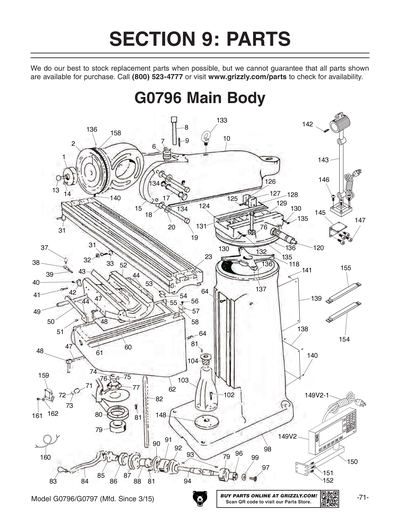

Parts for G0796 - 9" x 49" Vertical Mill with Power Feed and DRO

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty

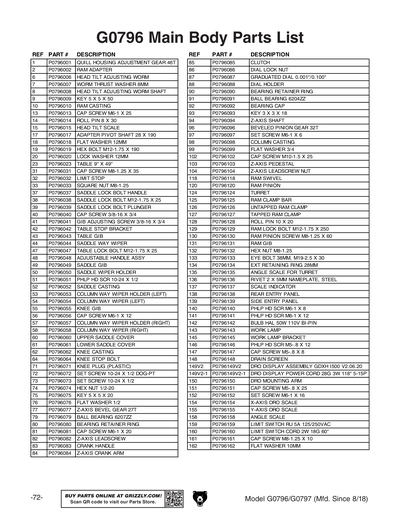

1 P0796001
QUILL HOUSING ADJUSTMENT GEAR 46T
N/A
2 P0796002
RAM ADAPTER
N/A
6 P0796006
HEAD TILT ADJUSTING WORM
N/A
7 P0796007
DOCK WASHER 18MM
N/A
8 P0796008
HEAD TILT ADJUSTING WORM SHAFT
N/A
9 P0796009
Replaced By PK36M
KEY 5 X 5 X 50
N/A View Replacement
10 P0796010
RAM CASTING
N/A
13 P0796013
Replaced By PCAP06M
CAP SCREW M6-1 X 25
N/A View Replacement
14 P0796014
Replaced By PRP90M
ROLL PIN 8 X 30
N/A View Replacement
15 P0796015
HEAD TILT SCALE
N/A
17 P0796017
ADAPTER PIVOT SHAFT 28 X 190
N/A
18 P0796018
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
19 P0796019
HEX BOLT M12-1.75 X 190
N/A
20 P0796020
Replaced By PLW05M
LOCK WASHER 12MM
N/A View Replacement
23 P0796023
TABLE 9" X 49"
N/A
31 P0796031
Replaced By PCAP40M
CAP SCREW M8-1.25 X 35
N/A View Replacement
32 P0796032
LIMIT STOP
N/A
33 P0796033
Replaced By PSN03M
SQUARE NUT M8-1.25
N/A View Replacement
37 P0796037
SADDLE LOCK BOLT HANDLE
N/A
38 P0796038
SADDLE LOCK BOLT M12-1.75 X 55
N/A
39 P0796039
SADDLE LOCK BOLT PLUNGER
N/A
40 P0796040
Replaced By PCAP16
CAP SCREW 3/8-16 X 3/4
N/A View Replacement
41 P0796041
GIB ADJUSTING SCREW 3/8-16 X 3/4
N/A
42 P0796042
TABLE STOP BRACKET
N/A
43 P0796043
TABLE GIB
N/A
44 P0796044 ***USE P0796044A*** $12.00
44A P0796044A
SADDLE WIPER ASSEMBLY
N/A
47 P0796047 TABLE LOCK BOLT M12-1.75 X 25 $16.75
48 P0796048
ADJUSTABLE HANDLE ASSY
N/A
49 P0796049
SADDLE GIB
N/A
50 P0796050
***USE P0796044A***
N/A
51 P0796051
Replaced By PS01
PHLP HD SCR 10-24 X 1/2
N/A View Replacement
52 P0796052
SADDLE CASTING
N/A
53 P0796053
COLUMN WAY WIPER HOLDER (LEFT)
N/A
54 P0796054
COLUMN WAY WIPER (LEFT)
N/A
55 P0796055
KNEE GIB
N/A
56 P0796056
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
57 P0796057
COLUMN WAY WIPER HOLDER (RIGHT)
N/A
58 P0796058
COLUMN WAY WIPER (RIGHT)
N/A
60 P0796060
UPPER SADDLE COVER
N/A
61 P0796061
LOWER SADDLE COVER
N/A
62 P0796062
KNEE CASTING
N/A
64 P0796064
KNEE STOP BOLT
N/A
71 P0796071
KNEE PLUG (PLASTIC)
N/A
72 P0796072
SET SCREW 10-24 X 1/2 DOG-PT
N/A
73 P0796073
Replaced By PSS34
SET SCREW 10-24 X 1/2
N/A View Replacement
74 P0796074
Replaced By PN01
HEX NUT 1/2-20
N/A View Replacement
75 P0796075
Replaced By PK34M
KEY 5 X 5 X 20
N/A View Replacement
76 P0796076
Replaced By PW01
FLAT WASHER 1/2
N/A View Replacement
77 P0796077
Z-AXIS BEVEL GEAR 27T
N/A
79 P0796079
Replaced By P6207ZZ
BALL BEARING 6207ZZ
N/A View Replacement
80 P0796080
BEARING RETAINER RING
N/A
81 P0796081
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
82 P0796082
Z-AXIS LEADSCREW
N/A
83 P0796083 CRANK HANDLE $9.62
84 P0796084 Z-AXIS CRANK ARM $21.50
85 P0796085 CLUTCH $16.25
86 P0796086
DIAL LOCK NUT
N/A
87 P0796087
GRADUATED DIAL 0.001"/0.100"
N/A
88 P0796088
DIAL HOLDER
N/A
90 P0796090
BEARING RETAINER RING
N/A
91 P0796091
Replaced By P6204ZZ
BALL BEARING 6204ZZ
N/A View Replacement
92 P0796092
BEARING CAP
N/A
93 P0796093
Replaced By PK155M
KEY 3 X 3 X 18
N/A View Replacement
94 P0796094
Z-AXIS SHAFT
N/A
96 P0796096
BEVELED PINION GEAR 32T
N/A
97 P0796097
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
98 P0796098
COLUMN CASTING
N/A
99 P0796099
Replaced By PW13
FLAT WASHER 3/4
N/A View Replacement
102 P0796102
Replaced By PCAP64M
CAP SCREW M10-1.5 X 25
N/A View Replacement
103 P0796103
Z-AXIS PEDESTAL
N/A
104 P0796104
Z-AXIS LEADSCREW NUT
N/A
118 P0796118
RAM SWIVEL
N/A
120 P0796120
RAM PINION
N/A
124 P0796124
TURRET
N/A
125 P0796125
RAM CLAMP BAR
N/A
126 P0796126
UNTAPPED RAM CLAMP
N/A
127 P0796127
TAPPED RAM CLAMP
N/A
128 P0796128
Replaced By PRP120
ROLL PIN 10 X 20
N/A View Replacement
129 P0796129
RAM LOCK BOLT M12-1.75 X 250
N/A
130 P0796130
RAM PINION SCREW M8-1.25 X 60
N/A
131 P0796131
RAM GIB
N/A
132 P0796132
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
133 P0796133
EYE BOLT 38MM, M19-2.5 X 30
N/A
134 P0796134
Replaced By PR19M
EXT RETAINING RING 28MM
N/A View Replacement
135 P0796135
ANGLE SCALE FOR TURRET
N/A
136 P0796136
Replaced By PRIV001M
RIVET 2 X 5MM NAMEPLATE, STEEL
N/A View Replacement
137 P0796137
SCALE INDICATOR
N/A
138 P0796138
REAR ENTRY PANEL
N/A
139 P0796139
SIDE ENTRY PANEL
N/A
140 P0796140
Replaced By PS03M
PHLP HD SCR M6-1 X 8
N/A View Replacement
141 P0796141
Replaced By PS14M
PHLP HD SCR M6-1 X 12
N/A View Replacement
142 P0796142 BULB HALOGEN 50W 110V BI-PIN $3.50
143 P0796143 WORK LAMP $135.75
145 P0796145
WORK LAMP BRACKET
N/A
146 P0796146
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
N/A View Replacement
147 P0796147
Replaced By PCAP03M
CAP SCREW M5-.8 X 8
N/A View Replacement
148 P0796148
DRAIN SCREEN
N/A
149 P0796149 DRO DISPLAY ASSEMBLY $405.00
149-1 P0796149-1 DRO DISPLAY ASSEMBLY POWER CORD $21.50
149-2 P0796149-2 DRO CONTROL PANEL PLATE $275.25
149V2 P0796149V2 DRO DISPLAY ASSEMBLY GDXH I500 V2.06.20 $280.75
149V2-1 P0796149V2-1
DRO DISPLAY POWER CORD 28G 3W 118 5-15P
N/A
150 P0796150
DRO MOUNTING ARM
N/A
151 P0796151
Replaced By PCAP38M
CAP SCREW M5-.8 X 25
N/A View Replacement
152 P0796152
Replaced By PSS11M
SET SCREW M6-1 X 16
N/A View Replacement
154 P0796154 X-AXIS DRO SCALE $435.50
154-1 P0796154-1 X-AXIS COVER GUARD $41.50
154-2 P0796154-2
***USE P0796154***
N/A
155 P0796155
Y-AXIS DRO SCALE
N/A
155-1 P0796155-1 Y-AXIS COVER GUARD $20.75
155-2 P0796155-2
***USE P0796155***
N/A
158 P0796158
ANGLE SCALE
N/A
159 P0796159
LIMIT SWITCH RU 5A 125/250VAC
N/A
160 P0796160 LIMIT SWITCH CORD 2W 18G 60" $18.25
161 P0796161
Replaced By PCAP52M
CAP SCREW M8-1.25 X 10
N/A View Replacement
162 P0796162
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement

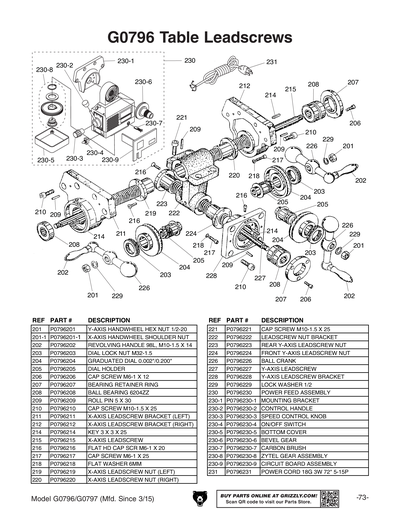

201 P0796201
***SEE EXT. DESCRIPTION***
Item is no longer available
N/A
201-1 P0796201-1 X-AXIS HANDWHEEL SHOULDER NUT $5.25
202 P0796202 REVOLVING HANDLE 98L, M10-1.5 X 14 $9.75
203 P0796203 DIAL LOCK NUT M32-1.5 $8.75
204 P0796204 GRADUATED DIAL 0.002"/0.200" $16.75
205 P0796205 DIAL HOLDER $14.50
206 P0796206
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
207 P0796207
BEARING RETAINER RING
N/A
208 P0796208
Replaced By P6204ZZ
BALL BEARING 6204ZZ
N/A View Replacement
209 P0796209
Replaced By PRP05M
ROLL PIN 5 X 30
N/A View Replacement
210 P0796210
Replaced By PCAP64M
CAP SCREW M10-1.5 X 25
N/A View Replacement
211 P0796211
X-AXIS LEADSCREW BRACKET (LEFT)
N/A
212 P0796212 X-AXIS LEADSCREW BRACKET (RIGHT) $21.50
214 P0796214
Replaced By PK92M
KEY 3 X 3 X 25
N/A View Replacement
215 P0796215 X-AXIS LEADSCREW $452.50
216 P0796216
Replaced By PFH55M
FLAT HD CAP SCR M6-1 X 20
N/A View Replacement
217 P0796217
Replaced By PCAP06M
CAP SCREW M6-1 X 25
N/A View Replacement
218 P0796218
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
219 P0796219 X-AXIS LEADSCREW NUT (LEFT) $57.25
220 P0796220 X-AXIS LEADSCREW NUT (RIGHT) $57.25
221 P0796221
Replaced By PCAP64M
CAP SCREW M10-1.5 X 25
N/A View Replacement
222 P0796222 LEADSCREW NUT BRACKET $50.62
223 P0796223 REAR Y-AXIS LEADSCREW NUT $57.25
224 P0796224 FRONT Y-AXIS LEADSCREW NUT $57.25
226 P0796226 BALL CRANK $23.00
227 P0796227 Y-AXIS LEADSCREW $262.00
228 P0796228
Y-AXIS LEADSCREW BRACKET
N/A
229 P0796229
Replaced By PLW07
LOCK WASHER 1/2
N/A View Replacement
230 P0796230 POWER FEED ASSEMBLY $714.50
230-1 P0796230-1 MOUNTING BRACKET $26.25
230-2 P0796230-2
CONTROL HANDLE
N/A
230-3 P0796230-3
SPEED CONTROL KNOB
N/A
230-4 P0796230-4
ON/OFF SWITCH
N/A
230-5 P0796230-5
BOTTOM COVER
N/A
230-6 P0796230-6 BEVEL GEAR $75.25
230-7 P0796230-7
CARBON BRUSH
N/A
230-8 P0796230-8
ZYTEL GEAR ASSEMBLY
N/A
230-9 P0796230-9
CIRCUIT BOARD ASSEMBLY
N/A
231 P0796231
POWER CORD 18G 3W 72" 5-15P
N/A
232 P0796232
DETENT SLEEVE
N/A

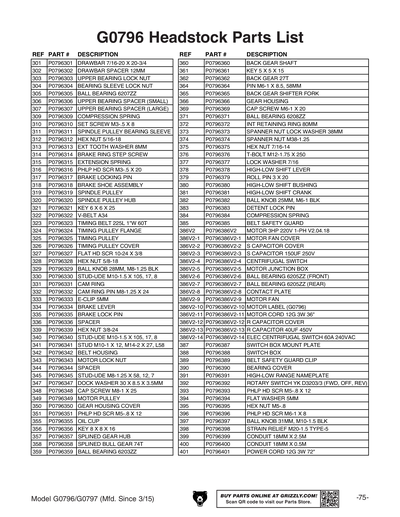

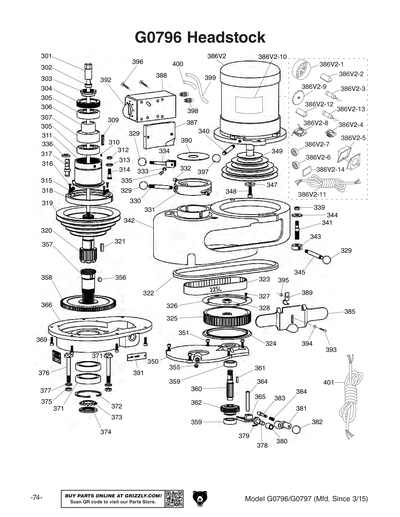

301 P0796301 DRAWBAR 7/16-20 X 20-3/4 $21.50
302 P0796302
DRAWBAR SPACER 12MM
N/A
303 P0796303
UPPER BEARING LOCK NUT
N/A
304 P0796304
BEARING SLEEVE LOCK NUT
N/A
305 P0796305
Replaced By P6207ZZ
BALL BEARING 6207ZZ
N/A View Replacement
306 P0796306
UPPER BEARING SPACER (SMALL)
N/A
307 P0796307
UPPER BEARING SPACER (LARGE)
N/A
309 P0796309
COMPRESSION SPRING
N/A
310 P0796310
Replaced By PSS82M
SET SCREW M3-.5 X 8
N/A View Replacement
311 P0796311 SPINDLE PULLEY BEARING SLEEVE $40.50
312 P0796312
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement
313 P0796313
Replaced By PTLW07M
EXT TOOTH WASHER 8MM
N/A View Replacement
314 P0796314
BRAKE RING STEP SCREW
N/A
315 P0796315
EXTENSION SPRING
N/A
316 P0796316
Replaced By PS13M
PHLP HD SCR M3-.5 X 20
N/A View Replacement
317 P0796317
BRAKE LOCKING PIN
N/A
318 P0796318
BRAKE SHOE ASSEMBLY
N/A
319 P0796319
SPINDLE PULLEY
N/A
320 P0796320 SPINDLE PULLEY HUB $110.31
321 P0796321
Replaced By PK143M
KEY 6 X 6 X 25
N/A View Replacement
322 P0796322
Replaced By PVA34
V-BELT A34
N/A View Replacement
323 P0796323
TIMING BELT 225L 1"W 60T
N/A
324 P0796324
TIMING PULLEY FLANGE
N/A
325 P0796325
TIMING PULLEY
N/A
326 P0796326
TIMING PULLEY COVER
N/A
327 P0796327
Replaced By PFH01
FLAT HD SCR 10-24 X 3/8
N/A View Replacement
328 P0796328
Replaced By PN09
HEX NUT 5/8-18
N/A View Replacement
329 P0796329
BALL KNOB 28MM, M8-1.25 BLK
N/A
330 P0796330 STUD-UDE M10-1.5 X 105, 17, 8 $8.75
331 P0796331
CAM RING
N/A
332 P0796332 CAM RING PIN M8-1.25 X 24 $5.00
333 P0796333
Replaced By PEC13M
E-CLIP 5MM
N/A View Replacement
334 P0796334
BRAKE LEVER
N/A
335 P0796335
BRAKE LOCK PIN
N/A
336 P0796336
SPACER
N/A
339 P0796339
Replaced By PN11
HEX NUT 3/8-24
N/A View Replacement
340 P0796340
Replaced By P0796330
STUD-UDE M10-1.5 X 105, 17, 8
N/A View Replacement
341 P0796341
STUD M10-1 X 12, M14-2 X 27, L58
N/A
342 P0796342
BELT HOUSING
N/A
343 P0796343
MOTOR LOCK NUT
N/A
344 P0796344
SPACER
N/A
345 P0796345
STUD-UDE M8-1.25 X 58, 12, 7
N/A
347 P0796347
Replaced By PWF08M
FENDER WASHER 8MM
N/A View Replacement
348 P0796348 CAP SCREW M8-1 X 25 $1.00
349 P0796349 MOTOR PULLEY $83.50
349-1 P0796349-1
Replaced By PK09M
KEY 8 X 8 X 35
N/A View Replacement
350 P0796350
GEAR HOUSING COVER
N/A
351 P0796351
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
N/A View Replacement
355 P0796355
OIL CUP
N/A
356 P0796356
Replaced By PK40M
KEY 8 X 8 X 16
N/A View Replacement
357 P0796357
SPLINED GEAR HUB
N/A
358 P0796358
SPLINED BULL GEAR 74T
N/A
359 P0796359
Replaced By P6203ZZ
BALL BEARING 6203ZZ
N/A View Replacement
360 P0796360 BACK GEAR SHAFT $29.42
361 P0796361
Replaced By PK20M
KEY 5 X 5 X 15
N/A View Replacement
362 P0796362 BACK GEAR 27T $78.65
364 P0796364
PIN M6-1 X 8.5, 58MM
N/A
365 P0796365
BACK GEAR SHIFTER FORK
N/A
366 P0796366
GEAR HOUSING
N/A
369 P0796369
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
371 P0796371
Replaced By P6208ZZ
BALL BEARING 6208ZZ
N/A View Replacement
372 P0796372
Replaced By PR50M
INT RETAINING RING 80MM
N/A View Replacement
373 P0796373
EXT TOOTH WASHER 40MM
N/A
374 P0796374 SPANNER NUT M38-1.25 $12.00
375 P0796375
Replaced By PN19
HEX NUT 7/16-14
N/A View Replacement
376 P0796376
T-BOLT M12-1.75 X 250
N/A
377 P0796377
Replaced By PLW05
LOCK WASHER 7/16
N/A View Replacement
378 P0796378
HIGH-LOW SHIFT LEVER
N/A
379 P0796379
Replaced By PRP42M
ROLL PIN 3 X 20
N/A View Replacement
380 P0796380
HIGH-LOW SHIFT BUSHING
N/A
381 P0796381
HIGH-LOW SHIFT CRANK
N/A
382 P0796382
BALL KNOB 25MM, M6-1 BLK
N/A
383 P0796383
DETENT LOCK PIN
N/A
384 P0796384
COMPRESSION SPRING
N/A
385 P0796385
BELT SAFETY GUARD
N/A
386 P0796386 MOTOR 3HP 220V 1-PH V1 $400.00
386-1 P0796386-1
MOTOR FAN COVER
N/A
386-10 P0796386-10
MOTOR LABEL (G0796)
N/A
386-11 P0796386-11 MOTOR CORD 12G 3W 36" $16.75
386-2 P0796386-2
CAPACITOR COVER
N/A
386-3 P0796386-3 S CAPACITOR 500M 275V 2 X 3-3/4 $18.12
386-4 P0796386-4 CENTRIFUGAL SWITCH $20.94
386-5 P0796386-5
MOTOR JUNCTION BOX
N/A
386-6 P0796386-6
Replaced By P6205ZZ
BALL BEARING 6205ZZ
N/A View Replacement
386-7 P0796386-7
Replaced By P6205ZZ
BALL BEARING 6205ZZ
N/A View Replacement
386-8 P0796386-8 CONTACT PLATE $22.00
386-9 P0796386-9 MOTOR FAN $31.00
386V2 P0796386V2 MOTOR 3HP 220V 1-PH V2.04.18 $593.50
386V2-1 P0796386V2-1 MOTOR FAN COVER $22.50
386V2-10 P0796386V2-10
MOTOR LABEL (G0796)
N/A
386V2-11 P0796386V2-11
Replaced By P0796386-11
MOTOR CORD 12G 3W 36"
N/A View Replacement
386V2-12 P0796386V2-12
R CAPACITOR COVER
N/A
386V2-13 P0796386V2-13
R CAPACITOR 40UF 450V
N/A
386V2-14 P0796386V2-14 ELEC CENTRIFUGAL SWITCH 60A 240VAC $24.00
386V2-2 P0796386V2-2
S CAPACITOR COVER
N/A
386V2-3 P0796386V2-3 S CAPACITOR 150UF 250V $24.00
386V2-4 P0796386V2-4
CENTRIFUGAL SWITCH
N/A
386V2-5 P0796386V2-5 MOTOR JUNCTION BOX $9.75
386V2-6 P0796386V2-6
Replaced By P6205ZZ
BALL BEARING 6205ZZ
N/A View Replacement
386V2-7 P0796386V2-7
Replaced By P6205ZZ
BALL BEARING 6205ZZ
N/A View Replacement
386V2-8 P0796386V2-8
CONTACT PLATE
N/A
386V2-9 P0796386V2-9
MOTOR FAN
N/A
387 P0796387
SWITCH BOX MOUNT PLATE
N/A
388 P0796388 SWITCH BOX $35.75
389 P0796389
BELT SAFETY GUARD CLIP
N/A
390 P0796390
BEARING COVER
N/A
391 P0796391
HIGH-LOW RANGE NAMEPLATE
N/A
392 P0796392 ROTARY SWITCH YK D3203/3 (FWD, OFF, REV) $74.69
393 P0796393
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
N/A View Replacement
394 P0796394
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
395 P0796395
Replaced By PN06M
HEX NUT M5-.8
N/A View Replacement
396 P0796396
Replaced By PS03M
PHLP HD SCR M6-1 X 8
N/A View Replacement
397 P0796397
BALL KNOB 31MM, M10-1.5 BLK
N/A
398 P0796398
STRAIN RELIEF M20-1.5 TYPE-5
N/A
399 P0796399
CONDUIT 18MM X 2.5M
N/A
400 P0796400
CONDUIT 18MM X 0.5M
N/A
401 P0796401
POWER CORD 12G 3W 72"
N/A
402 P0796402
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
403 P0796403
Replaced By P0796409A
FEED DRIVE WORM GEAR ASSY
N/A View Replacement
405 P0796405
Replaced By P0796409A
FEED DRIVE WORM GEAR ASSY
N/A View Replacement
406 P0796406
Replaced By PSS11
SET SCREW 1/4-20 X 1/4
N/A View Replacement
407 P0796407
Replaced By P0796409A
FEED DRIVE WORM GEAR ASSY
N/A View Replacement
408 P0796408
Replaced By P0796409A
FEED DRIVE WORM GEAR ASSY
N/A View Replacement
409 P0796409
Replaced By P0796409A
FEED DRIVE WORM GEAR ASSY
N/A View Replacement
409A P0796409A FEED DRIVE WORM GEAR ASSY $200.25
411 P0796411
Replaced By PK96M
KEY 3 X 3 X 20
N/A View Replacement
412 P0796412
Replaced By PCAP58M
CAP SCREW M8-1.25 X 12
N/A View Replacement
413 P0796413
Replaced By P0796409A
FEED DRIVE WORM GEAR ASSY
N/A View Replacement
414 P0796414
Replaced By PK03M
KEY 3 X 3 X 8
N/A View Replacement
415 P0796415
Replaced By P0796409A
FEED DRIVE WORM GEAR ASSY
N/A View Replacement
416 P0796416
Replaced By P0796409A
FEED DRIVE WORM GEAR ASSY
N/A View Replacement
417 P0796417
Replaced By P0796409A
FEED DRIVE WORM GEAR ASSY
N/A View Replacement
418 P0796418
WORM GEAR CRADLE THROW-OUT
N/A
419 P0796419
SHIFT SLEEVE
N/A
420 P0796420
GEAR SHIFT PLUNGER
N/A
421 P0796421
COMPRESSION SPRING
N/A
422 P0796422
Replaced By PRP42M
ROLL PIN 3 X 20
N/A View Replacement
423 P0796423
SHIFT CRANK
N/A
424 P0796424
BALL KNOB 25MM, M6-1 BLK
N/A
425 P0796425
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
427 P0796427
SLEEVE BEARING 9.7 X 14.4 X 25.5 (BRASS)
N/A
428 P0796428
CLUSTER COMBO GEAR 32T
N/A
429 P0796429
Replaced By PK53M
KEY 3 X 3 X 45
N/A View Replacement
431 P0796431
CLUSTER GEAR SHAFT
N/A
432 P0796432
Replaced By PR06M
EXT RETAINING RING 16MM
N/A View Replacement
433 P0796433
SLEEVE BEARING 16 X 13.5 X 24 (BRASS)
N/A
434 P0796434
THRUST WASHER 16MM
N/A
435 P0796435
FEED REVERSE BEVEL PINION
N/A
436 P0796436
Replaced By P0796409A
FEED DRIVE WORM GEAR ASSY
N/A View Replacement
437 P0796437
Replaced By PK03M
KEY 3 X 3 X 8
N/A View Replacement
438 P0796438
Replaced By P0796409A
FEED DRIVE WORM GEAR ASSY
N/A View Replacement
440 P0796440
Replaced By P0796409A
FEED DRIVE WORM GEAR ASSY
N/A View Replacement
441 P0796441
Replaced By P0796409A
FEED DRIVE WORM GEAR ASSY
N/A View Replacement
442 P0796442
BUSHING
N/A
443 P0796443
FEED WORM
N/A
444 P0796444
FEED WORM SHAFT BUSHING
N/A
447 P0796447
FLAT WASHER 8MM
N/A
448 P0796448
BUSHING
N/A
449 P0796449
FEED REVERSE BEVEL GEAR 35T
N/A
450 P0796450
FEED REVERSE CLUTCH
N/A
451 P0796451
FEED REVERSE BEVEL GEAR 30T
N/A
452 P0796452
BUSHING
N/A
455 P0796455 REVERSE CLUTCH ROD $7.25
456 P0796456
Replaced By PRP42M
ROLL PIN 3 X 20
N/A View Replacement
457 P0796457
FEED WORM SHAFT
N/A
459 P0796459
Replaced By PRP61M
ROLL PIN 3 X 12
N/A View Replacement
460 P0796460
FEED SHAFT ROD
N/A
461 P0796461
Replaced By PSS26M
SET SCREW M5-.8 X 6
N/A View Replacement
462 P0796462
Replaced By PK52M
KEY 3 X 3 X 15
N/A View Replacement
463 P0796463
FEED GEAR SHIFT CRANK
N/A
464 P0796464
CLUSTER GEAR SHIFT CRANK
N/A
466 P0796466
CLUSTER GEAR COVER
N/A
467 P0796467
Replaced By PCAP50M
CAP SCREW M5-.8 X 10
N/A View Replacement
468 P0796468 GEAR SHIFT PLUNGER $7.25
469 P0796469 COMPRESSION SPRING $5.25
470 P0796470 SHIFT CRANK $8.75
471 P0796471
Replaced By PRP72M
ROLL PIN 3 X 15
N/A View Replacement
472 P0796472 BALL KNOB 25MM, M6-1 BLK $5.75
473 P0796473
Replaced By PCAP79M
CAP SCREW M5-.8 X 35
N/A View Replacement
474 P0796474
CLUTCH RING PIN
N/A
475 P0796475
CLUTCH RING
N/A
476 P0796476
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
477 P0796477
BRASS PLUG
N/A
479 P0796479
SAFETY CLUTCH COMPRESSION SPRING
N/A
480 P0796480
OVERLOAD CLUTCH
N/A
481 P0796481
OVERLOAD CLUTCH SLEEVE
N/A
488 P0796488
COMPRESSION SPRING
N/A
489 P0796489
OVERLOAD CLUTCH SPRING PLUNGER
N/A
490 P0796490
QUILL PINION SHAFT BUSHING AND SPACER
N/A
491 P0796491
Replaced By P0796490
QUILL PINION SHAFT BUSHING AND SPACER
N/A View Replacement
492 P0796492
OVERLOAD CLUTCH WORM GEAR 34T AND RING
N/A
493 P0796493
Replaced By P0796492
OVERLOAD CLUTCH WORM GEAR 34T AND RING
N/A View Replacement
494 P0796494
Replaced By PR05M
EXT RETAINING RING 15MM
N/A View Replacement
495 P0796495
DOWEL PIN 5 X 20
N/A
496 P0796496
OVERLOAD CLUTCH TRIP LEVER
N/A
497 P0796497
Replaced By P0796447
FLAT WASHER 8MM
N/A View Replacement
498 P0796498
Replaced By PR01M
EXT RETAINING RING 10MM
N/A View Replacement
499 P0796499
CLUTCH ARM COVER
N/A
500 P0796500
Replaced By PSS11M
SET SCREW M6-1 X 16
N/A View Replacement
501 P0796501
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
503 P0796503
CAM ROD
N/A
504 P0796504
LEVER SHAFT M5-.8 X 4, M5-.8 X 4, L84
N/A
505 P0796505
BALL KNOB 25MM, M6-1 BLK
N/A
506 P0796506
FEED TRIP BRACKET
N/A
507 P0796507
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
508 P0796508
Replaced By PSS25M
SET SCREW M6-1 X 20
N/A View Replacement
510 P0796510
Replaced By P0796511
FEED REVERSE KNOB W/ SCREW M4-.7 X 9
N/A View Replacement
511 P0796511 FEED REVERSE KNOB W/ SCREW M4-.7 X 9 $10.00
512 P0796512
Replaced By PR03M
EXT RETAINING RING 12MM
N/A View Replacement
513 P0796513
HANDWHEEL CLUTCH
N/A
514 P0796514
Replaced By PSTB004
STEEL BALL 3/16
N/A View Replacement
515 P0796515
COMPRESSION SPRING
N/A
516 P0796516
Replaced By PSS20M
SET SCREW M8-1.25 X 8
N/A View Replacement
517 P0796517
Replaced By PRP37M
ROLL PIN 3 X 14
N/A View Replacement
518 P0796518
CAM ROD SLEEVE ASSEMBLY
N/A
519 P0796519
Replaced By PRP61M
ROLL PIN 3 X 12
N/A View Replacement
520 P0796520
COMPRESSION SPRING
N/A
521 P0796521
TRIP PLUNGER
N/A
523 P0796523
PLUNGER BUSHING
N/A
524 P0796524
FEED TRIP PLUNGER
N/A
525 P0796525 HANDWHEEL138D X 13B X M8-1.25 DISHED $10.00
526 P0796526 HANDWHEEL HANDLE 66L, M8-1.25 X 10 $6.25
527 P0796527
R-8 SPINDLE
N/A
528 P0796528
QUILL SKIRT
N/A
529 P0796529
SPANNER NUT M30-1.5
N/A

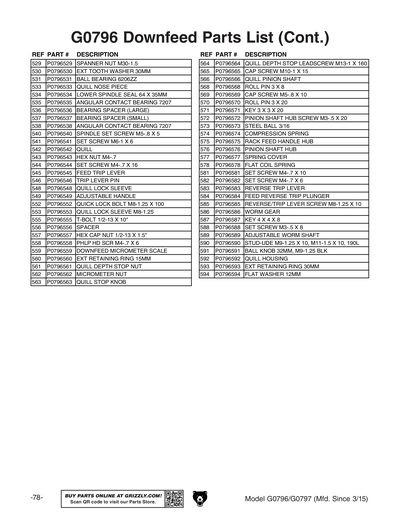

530 P0796530
Replaced By PTLW15M
EXT TOOTH WASHER 30MM
N/A View Replacement
531 P0796531
Replaced By P6206ZZ
BALL BEARING 6206ZZ
N/A View Replacement
533 P0796533
QUILL NOSE PIECE
N/A
534 P0796534
LOWER SPINDLE SEAL 64 X 35MM
N/A
535 P0796535
Replaced By P7207
ANGULAR CONTACT BEARING 7207
N/A View Replacement
536 P0796536
BEARING SPACER SMALL, LARGE
N/A
537 P0796537
Replaced By P0796536
BEARING SPACER SMALL, LARGE
N/A View Replacement
538 P0796538
Replaced By P7207
ANGULAR CONTACT BEARING 7207
N/A View Replacement
540 P0796540
SPINDLE SET SCREW M5-.8 X 5
N/A
541 P0796541
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
542 P0796542
QUILL
N/A
543 P0796543
Replaced By PN04M
HEX NUT M4-.7
N/A View Replacement
544 P0796544
Replaced By PSS49M
SET SCREW M4-.7 X 16
N/A View Replacement
545 P0796545
FEED TRIP LEVER
N/A
546 P0796546
TRIP LEVER PIN
N/A
548 P0796548
QUILL LOCK SLEEVE
N/A
549 P0796549
ADJUSTABLE HANDLE W/ LOCK BOLT M8-1.25
N/A
552 P0796552
Replaced By P0796549
ADJUSTABLE HANDLE W/ LOCK BOLT M8-1.25
N/A View Replacement
553 P0796553
QUILL LOCK SLEEVE M8-1.25
N/A
555 P0796555
T-BOLT 1/2-13 X 10"
N/A
556 P0796556
SPACER
N/A
557 P0796557
HEX CAP NUT 1/2-13 X 1.5"
N/A
558 P0796558
Replaced By PS17M
PHLP HD SCR M4-.7 X 6
N/A View Replacement
559 P0796559
DOWNFEED MICROMETER SCALE
N/A
560 P0796560
Replaced By PR05M
EXT RETAINING RING 15MM
N/A View Replacement
561 P0796561
QUILL DEPTH STOP NUT W/ MICROMETER NUT
N/A
562 P0796562
Replaced By P0796561
QUILL DEPTH STOP NUT W/ MICROMETER NUT
N/A View Replacement
563 P0796563
QUILL STOP KNOB
N/A
564 P0796564
QUILL DEPTH STOP LEADSCREW M13-1 X 160
N/A
565 P0796565
CAP SCREW M10-1 X 15
N/A
566 P0796566
QUILL PINION SHAFT
N/A
568 P0796568
Replaced By PRP15M
ROLL PIN 3 X 8
N/A View Replacement
569 P0796569
Replaced By PCAP50M
CAP SCREW M5-.8 X 10
N/A View Replacement
570 P0796570
Replaced By PRP42M
ROLL PIN 3 X 20
N/A View Replacement
571 P0796571
Replaced By PK96M
KEY 3 X 3 X 20
N/A View Replacement
572 P0796572 PINION SHAFT HUB SCREW M3-.5 X 20 $5.25
573 P0796573
Replaced By PSTB004
STEEL BALL 3/16
N/A View Replacement
574 P0796574
COMPRESSION SPRING
N/A
575 P0796575
RACK FEED HANDLE HUB
N/A
576 P0796576
PINION SHAFT HUB
N/A
577 P0796577
SPRING COVER
N/A
578 P0796578 FLAT COIL SPRING $31.00
581 P0796581
Replaced By PSS23M
SET SCREW M4-.7 X 10
N/A View Replacement
582 P0796582
Replaced By PSS79M
SET SCREW M4-.7 X 6
N/A View Replacement
583 P0796583
REVERSE TRIP LEVER
N/A
584 P0796584
FEED REVERSE TRIP PLUNGER
N/A
585 P0796585
REVERSE/TRIP LEVER SCREW M8-1.25 X 10
N/A
586 P0796586
WORM GEAR
N/A
587 P0796587
Replaced By PK65M
KEY 4 X 4 X 8
N/A View Replacement
588 P0796588
Replaced By PSS82M
SET SCREW M3-.5 X 8
N/A View Replacement
589 P0796589
ADJUSTABLE WORM SHAFT
N/A
590 P0796590
STUD-UDE M9-1.25 X 10, M11-1.5 X 10,190L
N/A
591 P0796591
BALL KNOB 32MM, M9-1.25 BLK
N/A
592 P0796592
QUILL HOUSING
N/A
593 P0796593
Replaced By PR15M
EXT RETAINING RING 30MM
N/A View Replacement
594 P0796594
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
601 P0796601

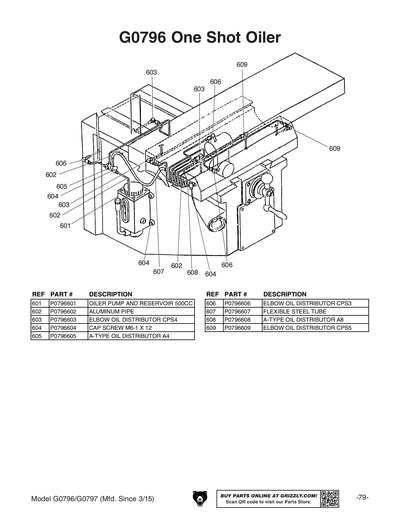

OILER PUMP AND RESERVOIR 500CC
N/A
602 P0796602
ALUMINUM PIPE
N/A
603 P0796603
ELBOW OIL DISTRIBUTOR CPS4
N/A
604 P0796604
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
605 P0796605
A-TYPE OIL DISTRIBUTOR A4
N/A
606 P0796606
ELBOW OIL DISTRIBUTOR CPS3
N/A
607 P0796607
FLEXIBLE STEEL TUBE
N/A
608 P0796608
A-TYPE OIL DISTRIBUTOR A8
N/A
609 P0796609
ELBOW OIL DISTRIBUTOR CPS5
N/A

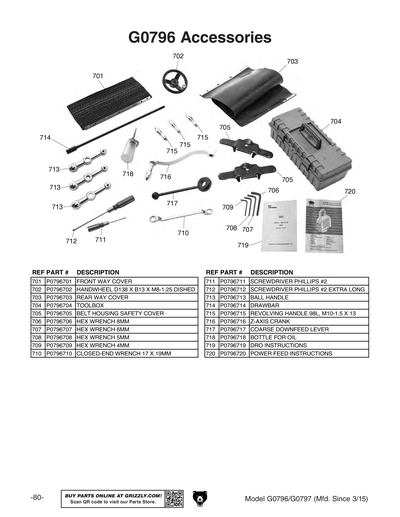

701 P0796701 FRONT WAY COVER $39.33
702 P0796702 HANDWHEEL D138 X B13 X M8-1.25 DISHED $16.75
703 P0796703
REAR WAY COVER
N/A
704 P0796704
TOOLBOX
N/A
705 P0796705 BELT HOUSING SAFETY COVER $12.00
706 P0796706
Replaced By PAW08M
HEX WRENCH 8MM
N/A View Replacement
707 P0796707
Replaced By PAW06M
HEX WRENCH 6MM
N/A View Replacement
708 P0796708
Replaced By PAW05M
HEX WRENCH 5MM
N/A View Replacement
709 P0796709
Replaced By PAW04M
HEX WRENCH 4MM
N/A View Replacement
710 P0796710
CLOSED-END WRENCH 17 X 19MM
N/A
711 P0796711
Replaced By PSDP2
SCREWDRIVER PHILLIPS #2
N/A View Replacement
712 P0796712 SCREWDRIVER PHILLIPS #2 EXTRA LONG $12.00
713 P0796713 BALL HANDLE $17.75
714 P0796714 DRAWBAR $21.50
715 P0796715 REVOLVING HANDLE 98L, M10-1.5 X 13 $11.50
716 P0796716 Z-AXIS CRANK $40.50
717 P0796717 COARSE DOWNFEED LEVER $18.25
718 P0796718
BOTTLE FOR OIL
N/A
719 P0796719
DRO INSTRUCTIONS
N/A
720 P0796720
POWER FEED INSTRUCTIONS
N/A
801 P0796801
Replaced By G8588
Name Plates - Small
N/A View Replacement
801V2 P0796801V2
Replaced By G9987
Name Plates - Mini
N/A View Replacement

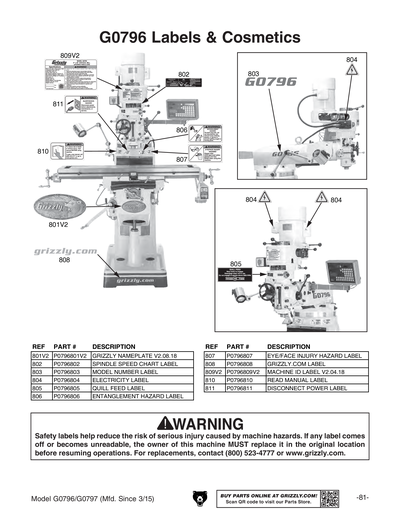

802 P0796802 SPINDLE SPEED CHART LABEL $4.00
803 P0796803
MODEL NUMBER LABEL
N/A
804 P0796804
Replaced By PLABEL-14A
ELECTRICITY 0.7W X 0.6H
N/A View Replacement
805 P0796805
QUILL FEED LABEL
N/A
806 P0796806
Replaced By PLABEL-55C
ENTANGLEMENT HAZARD 2.8W X 1.5H
N/A View Replacement
807 P0796807
Replaced By PLABEL-88C
N/A View Replacement
808 P0796808
GRIZZLY.COM LABEL
N/A
809 P0796809
MACHINE ID LABEL V1
N/A
809V2 P0796809V2
MACHINE ID LABEL V2.04.18
N/A
810 P0796810
Replaced By PLABEL-12D
READ MANUAL 2.8W X 1.5H
N/A View Replacement
811 P0796811
Replaced By PLABEL-62C
DISCONNECT 110V 2.8W X 1.5H
N/A View Replacement
MAN P0796MAN MANUAL G0796/G0797 MFD-12.14-12.17 V1.08 $16.25
MANV2 P0796MANV2
MANUAL G0796/G0797 MFD-01.18 V2.05.18
N/A
