Parts for G0799 - 20" x 48" Heavy-Duty Wood Lathe

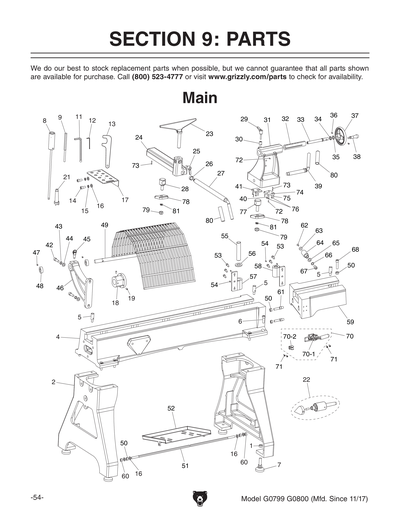

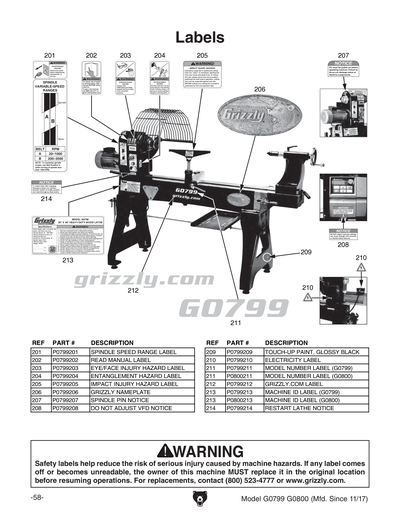

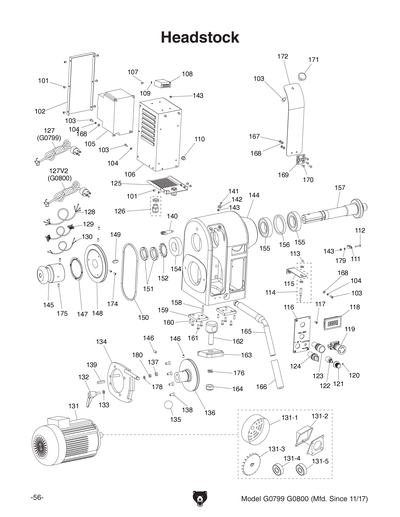

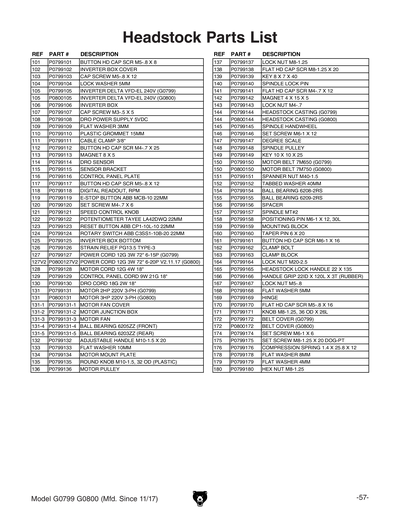

Part Diagram for G0799
Part Diagram for G0799
Part Diagram for G0799
Part Diagram for G0799
Part Diagram for G0799
Part Diagram for G0799
Part Diagram for G0799
Part Diagram for G0799
Part Diagram for G0799
Part Diagram for G0799

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

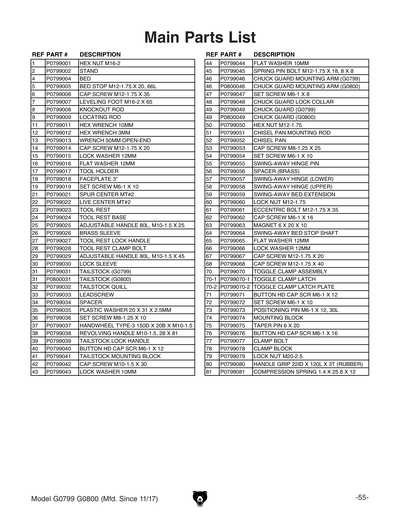

Ref #
Part #
Description
1
HEX NUT M16-2
Price
N/A
2
*DISCD*STAND
Price
$376.05
4
*DISCD*BED
Price
$2,299.45
5
*DISCD*BED STOP M12-1.75 X 20, 66L
Price
$3.45
6
CAP SCREW M12-1.75 X 40
Price
N/A
7
*DISCD*LEVELING FOOT M16-2 X 65
Price
$15.10
8
*DISCD*KNOCKOUT ROD
Price
$47.45
9
*DISCD*LOCATING ROD
Price
$15.10
10
*DISCD*LIVE CENTER PIN
Item is no longer available
Price
N/A
11
HEX WRENCH 10MM
Price
N/A
12
HEX WRENCH 3MM
Price
N/A
13
*DISCD*WRENCH 50MM OPEN-END
Item is no longer available
Price
N/A
14
CAP SCREW M12-1.75 X 20
Price
N/A
15
LOCK WASHER 12MM
Price
N/A
16
FLAT WASHER 12MM
Price
N/A
17
*DISCD*TOOL HOLDER
Price
$28.05
18
*DISCD*FACEPLATE 3"
Item is no longer available
Price
N/A
19
SET SCREW M6-1 X 10
Price
N/A
21
*DISCD*SPUR CENTER MT#2
Price
$13.80
22
*DISCD*LIVE CENTER MT#2
Price
$129.40
23
*DISCD*TOOL REST
Price
$179.00
24
*DISCD*TOOL REST BASE
Price
$251.85
25
*DISCD*ADJUSTABLE HANDLE 80L, M10-1.5 X
Item is no longer available
Price
N/A
26
*DISCD*BRASS SLEEVE
Price
$15.10
27
*DISCD*TOOL REST LOCK HANDLE
Price
$135.70
28
*DISCD*TOOL REST CLAMP BOLT
Price
$46.60
29
*DISCD*ADJUSTABLE HANDLE 80L, M10-1.5 X
Item is no longer available
Price
N/A
30
*DISCD*LOCK SLEEVE
Item is no longer available
Price
N/A
31
*DISCD*TAILSTOCK
Item is no longer available
Price
N/A
32
*DISCD*TAILSTOCK QUILL
Price
$82.80
33
*DISCD*LEADSCREW
Price
$30.20
34
*DISCD*SPACER
Item is no longer available
Price
N/A
35
*DISCD*PLASTIC WASHER 20 X 31 X 2.5MM
Item is no longer available
Price
N/A
36
SET SCREW M8-1.25 X 10
Price
N/A
37
*DISCD*HANDWHEEL TYPE-3 150D X 20B X M10
Price
$50.05
38
*DISCD*REVOLVING HANDLE M10-1.5, 28 X 81
Item is no longer available
Price
N/A
39
*DISCD*TAILSTOCK LOCK HANDLE
Item is no longer available
Price
N/A
40
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
41
*DISCD*TAILSTOCK MOUNTING BLOCK
Item is no longer available
Price
N/A
42
CAP SCREW M10-1.5 X 30
Price
N/A
43
LOCK WASHER 10MM
Price
N/A
44
FLAT WASHER 10MM
Price
N/A
45
*DISCD*SPRING PIN BOLT M12-1.75 X 18, 8
Price
$1.75
46
*DISCD*CHUCK GUARD MOUNTING ARM
Price
