Parts for G0800 - 24" x 48" Heavy-Duty Wood Lathe

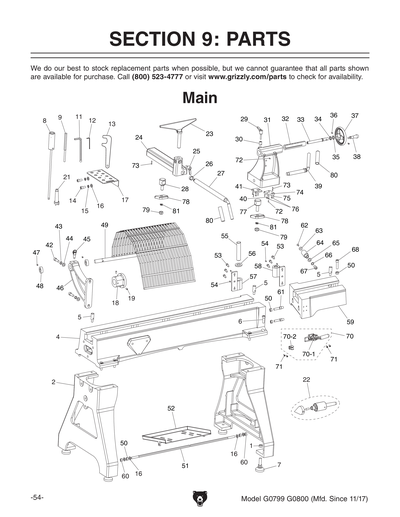

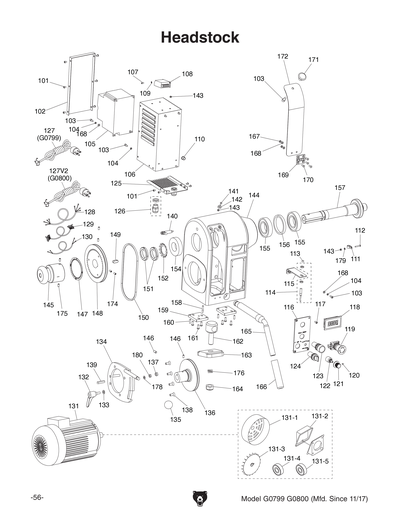

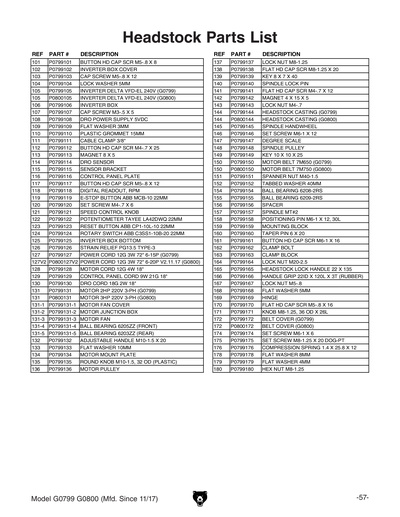

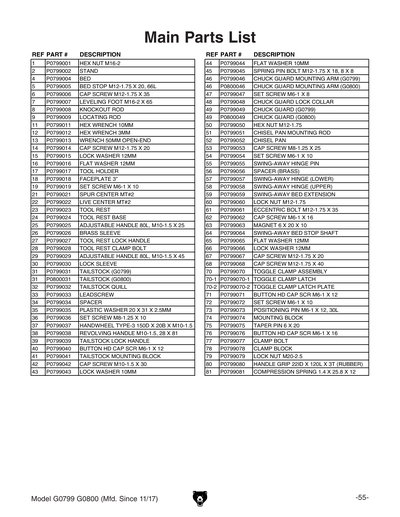

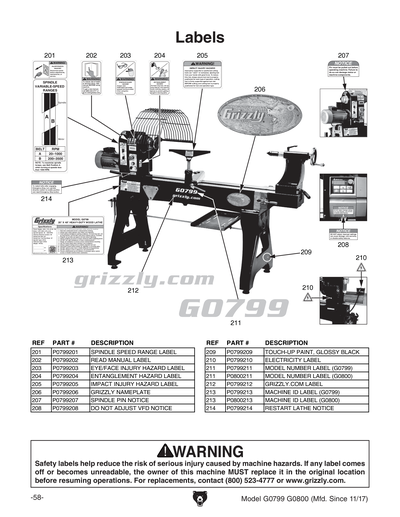

Part Diagram for G0800
Part Diagram for G0800
Part Diagram for G0800
Part Diagram for G0800
Part Diagram for G0800
Part Diagram for G0800
Part Diagram for G0800
Part Diagram for G0800
Part Diagram for G0800
Part Diagram for G0800

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
HEX NUT M16-2
Price
N/A
2
*DISCD*STAND
Price
N/A
4
*DISCD*BED
Price
N/A
5
*DISCD*BED STOP M12-1.75 X 20, 66L
Price
N/A
6
CAP SCREW M12-1.75 X 40
Price
N/A
7
*DISCD*LEVELING FOOT M16-2 X 65
Price
N/A
8
*DISCD*KNOCKOUT ROD
Price
N/A
9
*DISCD*LOCATING ROD
Price
N/A
10
*DISCD*LIVE CENTER PIN
Price
N/A
11
HEX WRENCH 10MM
Price
N/A
12
HEX WRENCH 3MM
Price
N/A
13
*DISCD*WRENCH 50MM OPEN-END
Price
N/A
14
CAP SCREW M12-1.75 X 20
Price
N/A
15
LOCK WASHER 12MM
Price
N/A
16
FLAT WASHER 12MM
Price
N/A
17
*DISCD*TOOL HOLDER
Price
N/A
18
*DISCD*FACEPLATE 3"
Price
N/A
19
SET SCREW M6-1 X 10
Price
N/A
21
*DISCD*SPUR CENTER MT#2
Price
N/A
22
*DISCD*LIVE CENTER MT#2
Price
N/A
23
*DISCD*TOOL REST
Price
N/A
24
*DISCD*TOOL REST BASE
Price
N/A
25
*DISCD*ADJUSTABLE HANDLE 80L, M10-1.5 X
Price
N/A
26
*DISCD*BRASS SLEEVE
Price
N/A
27
*DISCD*TOOL REST LOCK HANDLE
Price
N/A
28
*DISCD*TOOL REST CLAMP BOLT
Price
N/A
29
*DISCD*ADJUSTABLE HANDLE 80L, M10-1.5 X
Price
N/A
30
*DISCD*LOCK SLEEVE
Price
N/A
31
*DISCD*TAILSTOCK
Price
$436.45
32
*DISCD*TAILSTOCK QUILL
Price
N/A
33
*DISCD*LEADSCREW
Price
N/A
34
*DISCD*SPACER
Price
N/A
35
*DISCD*PLASTIC WASHER 20 X 31 X 2.5MM
Price
N/A
36
SET SCREW M8-1.25 X 10
Price
N/A
37
*DISCD*HANDWHEEL TYPE-3 150D X 20B X M10
Price
N/A
38
*DISCD*REVOLVING HANDLE M10-1.5, 28 X 81
Price
N/A
39
*DISCD*TAILSTOCK LOCK HANDLE
Price
N/A
40
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
41
*DISCD*TAILSTOCK MOUNTING BLOCK
Price
N/A
42
CAP SCREW M10-1.5 X 30
Price
N/A
43
LOCK WASHER 10MM
Price
N/A
44
FLAT WASHER 10MM
Price
N/A
45
*DISCD*SPRING PIN BOLT M12-1.75 X 18, 8
Price
N/A
46
*DISCD*CHUCK GUARD MOUNTING ARM
Item is no longer available
Price
N/A
47
SET SCREW M6-1 X 8
Price
N/A
48
*DISCD*CHUCK GUARD LOCK COLLAR
Price
N/A
49
*DISCD*CHUCK GUARD
Price
$91.45
50
HEX NUT M12-1.75
Price
N/A
51
*DISCD*CHISEL PAN MOUNTING ROD
Price
N/A
52
*DISCD*CHISEL PAN
Price
N/A
53
CAP SCREW M8-1.25 X 25
Price
N/A
54
SET SCREW M6-1 X 10
Price
N/A
55
*DISCD*SWING-AWAY HINGE PIN
Price
N/A
56
*DISCD*SPACER (BRASS)
Price
N/A
57
*DISCD*SWING-AWAY HINGE (LOWER)
Price
N/A
58
*DISCD*SWING-AWAY HINGE (UPPER)
Price
N/A
59
*DISCD*SWING-AWAY BED EXTENSION
Price
N/A
60
LOCK NUT M12-1.75
Price
N/A
61
*DISCD*ECCENTRIC BOLT M12-1.75 X 35
Price
N/A
62
CAP SCREW M6-1 X 16
Price
N/A
63
*DISCD*MAGNET 6 X 20 X 10
Price
N/A
64
*DISCD*SWING-AWAY BED STOP SHAFT
Price
N/A
65
FLAT WASHER 12MM
Price
N/A
66
LOCK WASHER 12MM
Price
N/A
67
CAP SCREW M12-1.75 X 20
Price
N/A
68
CAP SCREW M12-1.75 X 50
Price
N/A
69
CAP SCREW M12-1.75 X 40
Price
N/A
70
*DISCD*TOGGLE CLAMP ASSEMBLY
Price
N/A
70-1
*DISCD*TOGGLE CLAMP LATCH
Price
N/A
70-2
*DISCD*TOGGLE CLAMP LATCH PLATE
Price
N/A
71
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
72
SET SCREW M6-1 X 12
Price
N/A
73
*DISCD*POSITIONING PIN M6-1 X 12, 30L
Price
N/A
74
*DISCD*MOUNTING BLOCK
Price
N/A
75
*DISCD*TAPER PIN 6 X 20
Price
N/A
76
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
77
*DISCD*CLAMP BOLT
Price
N/A
78
*DISCD*CLAMP BLOCK
Price
N/A
79
*DISCD*LOCK NUT M20-2.5
Price
N/A
80
*DISCD*HANDLE GRIP 22ID X 120L X 3T (RUB
Price
N/A
81
*DISCD*COMPRESSION SPRING 1.4 X 25.8 X 1
Price
N/A
101
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
102
*DISCD*INVERTER BOX COVER
Price
N/A
103
CAP SCREW M5-.8 X 12
Price
N/A
104
LOCK WASHER 5MM
Price
N/A
105
*DISCD*INVERTER DELTA VFD-EL 240V
Price
$990.15
106
*DISCD*INVERTER BOX
Price
N/A
107
CAP SCREW M4-.7 X 10
Price
N/A
108
*DISCD*DRO POWER SUPPLY 5VDC
Price
N/A
109
FLAT WASHER 4MM
Price
N/A
110
*DISCD*PLASTIC GROMMET 15MM
Price
N/A
111
*DISCD*CABLE CLAMP 3/8"
Price
N/A
112
BUTTON HD CAP SCR M4-.7 X 25
Price
N/A
113
*DISCD*MAGNET 8 X 5
Price
N/A
114
*DISCD*DRO SENSOR
Price
N/A
115
*DISCD*SENSOR BRACKET
Price
N/A
116
*DISCD*CONTROL PANEL PLATE
Price
N/A
117
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
118
*DISCD*DIGITAL READOUT, RPM
Price
N/A
119
*DISCD*E-STOP BUTTON ABB MCB-10 22MM
Price
N/A
120
SET SCREW M4-.7 X 6
Price
N/A
121
*DISCD*SPEED CONTROL KNOB
Price
N/A
122
*DISCD*POTENTIOMETER TAYEE LA42DWQ 22MM
Price
N/A
123
*DISCD*RESET BUTTON ABB CP1-10L-10 22MM
Price
N/A
124
*DISCD*ROTARY SWITCH ABB C3SS1-10B-20 22
Price
N/A
125
*DISCD*INVERTER BOX BOTTOM
Price
N/A
126
*DISCD*STRAIN RELIEF PG13.5 TYPE-3
Price
N/A
127
*DISCD*POWER CORD 12G 3W 72" 6-15P
Price
N/A
128
*DISCD*MOTOR CORD 12G 4W 18"
Price
N/A
129
*DISCD*CONTROL PANEL CORD 9W 21G 18"
Price
N/A
130
*DISCD*DRO CORD 18G 2W 18"
Price
N/A
131
*DISCD*MOTOR 3HP 220V 3-PH
Item is no longer available
Price
N/A
131-1
*DISCD*MOTOR FAN COVER
Price
N/A
131-2
*DISCD*MOTOR JUNCTION BOX
Price
N/A
131-3
*DISCD*MOTOR FAN
Price
N/A
131-4
BALL BEARING 6205ZZ
Price
N/A
131-5
BALL BEARING 6203ZZ
Price
N/A
132
*DISCD*ADJUSTABLE HANDLE M8-1.25 X 20
Price
N/A
133
FLAT WASHER 8MM
Price
N/A
134
*DISCD*MOTOR MOUNT PLATE
Price
N/A
135
*DISCD*ROUND KNOB M10-1.5, 32 OD (PLASTI
Price
N/A
136
*DISCD*MOTOR PULLEY
Price
N/A
137
LOCK NUT M8-1.25
Price
N/A
138
FLAT HD CAP SCR M8-1.25 X 20
Price
N/A
139
KEY 8 X 7 X 40
Price
N/A
140
*DISCD*SPINDLE LOCK PIN M12-1.75 X48
Price
N/A
140V2
*DISCD*SPINDLE LOCK PIN M16-1.5 X 48 V2.
Price
N/A
141
FLAT HD CAP SCR M4-.7 X 12
Price
N/A
142
*DISCD*MAGNET 4 X 15 X 5
Price
N/A
143
HEX NUT M4-.7
Price
N/A
144
*DISCD*HEADSTOCK CASTING
Item is no longer available
Price
N/A
145
*DISCD*SPINDLE HANDWHEEL
Price
N/A
146
SET SCREW M6-1 X 12
Price
N/A
147
*DISCD*DEGREE SCALE
Price
N/A
148
*DISCD*SPINDLE PULLEY
Price
N/A
149
KEY 10 X 10 X 25
Price
N/A
150
*DISCD*MOTOR BELT 7M750
Item is no longer available
Price
N/A
151
*DISCD*SPANNER NUT M40-1.5
Price
N/A
152
*DISCD*TABBED WASHER 40MM
Price
N/A
153
*DISCD*NYLON WASHER 40 X 46 X 1MM
Price
N/A
154
BALL BEARING 6208-2RS
Price
N/A
155
BALL BEARING 6209-2RS
Price
N/A
156
*DISCD*SPACER
Price
N/A
157
*DISCD*SPINDLE MT#2
Price
N/A
158
*DISCD*POSITIONING PIN M6-1 X 12, 30L
Price
N/A
159
*DISCD*MOUNTING BLOCK
Price
N/A
160
*DISCD*TAPER PIN 6 X 20
Price
N/A
161
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
162
*DISCD*CLAMP BOLT
Price
N/A
163
*DISCD*CLAMP BLOCK
Price
N/A
164
*DISCD*LOCK NUT M20-2.5
Price
N/A
165
*DISCD*HEADSTOCK LOCK HANDLE 22 X 135
Price
N/A
166
*DISCD*HANDLE GRIP 22ID X 120L X 3T (RUB
Price
N/A
167
LOCK NUT M5-.8
Price
N/A
168
FLAT WASHER 5MM
Price
N/A
169
*DISCD*HINGE
Price
N/A
170
FLAT HD CAP SCR M5-.8 X 16
Price
N/A
171
*DISCD*KNOB M8-1.25, 36 OD X 26L
Price
N/A
172
*DISCD*BELT COVER
Item is no longer available
Price
N/A
173
CAP SCREW M8-1.25 X 16
Price
N/A
174
SET SCREW M8-1.25 X 10
Price
N/A
175
SET SCREW M8-1.25 X 20 DOG-PT
Price
N/A
176
*DISCD*COMPRESSION SPRING 1.4 X 25.8 X 1
Price
N/A
177
SET SCREW M6-1 X 12
Price
N/A
178
FLAT WASHER 8MM
Price
N/A
179
FLAT WASHER 4MM
Price
N/A
180
HEX NUT M8-1.25
Price
N/A
201
*DISCD*SPINDLE SPEED RANGE LABEL
Price
N/A
202
READ MANUAL 1.5W X 2.5H
Price
N/A
203
FACE SHIELD & SAFETY GLASSES 2W X 3.3H
Price
N/A
204
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
205
*DISCD*IMPACT INJURY HAZARD LABEL
Price
N/A
206
Nameplate - Small
Price
N/A
207
*DISCD*SPINDLE PIN NOTICE
Price
N/A
208
*DISCD*DO NOT ADJUST VFD NOTICE
Price
N/A
209
GLOSSY BLACK
Price
N/A
210
ELECTRICITY 0.7W X 0.6H
Price
N/A
211
*DISCD*MODEL NUMBER LABEL
Item is no longer available
Price
N/A
212
*DISCD*GRIZZLY.COM LABEL
Price
N/A
213
MACHINE ID LABEL
Item is no longer available
Price
N/A
214
*DISCD*RESTART LATHE NOTICE
Price
N/A
MAN
MANUAL G0799 G0800 MFD-09.15 V1.03.16
Price
N/A
