Parts for G0802 6" x 26" Vertical Mill with Power Feed and LED Worklight

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

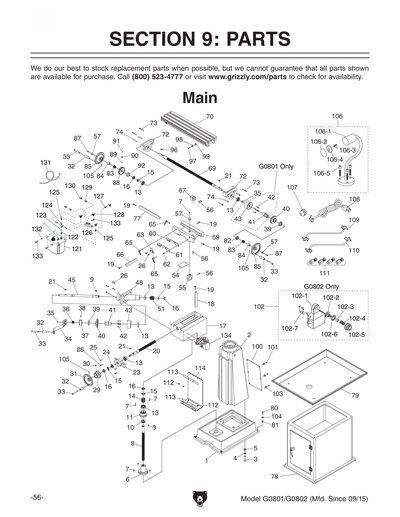

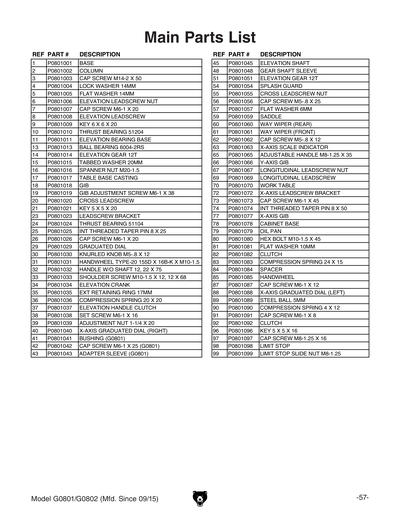

1
BASE
Price
N/A
2
COLUMN
Price
N/A
3
CAP SCREW M14-2 X 50
Price
N/A
4
LOCK WASHER 14MM
Price
N/A
5
Now: PW10M
FLAT WASHER 14MM
Price
N/A
6
ELEVATION LEADSCREW NUT
Price
N/A
7
CAP SCREW M6-1 X 20
Price
N/A
8
ELEVATION LEADSCREW
Price
N/A
9
Now: PK07M
KEY 6 X 6 X 20
Price
N/A
10
THRUST BEARING 51204
Price
N/A
11
ELEVATION BEARING BASE
Price
N/A
13
BALL BEARING 6004-2RS
Price
N/A
14
ELEVATION GEAR 12T
Price
N/A
15
TABBED WASHER 20MM
Price
N/A
16
SPANNER NUT M20-1.5
Price
N/A
17
TABLE BASE CASTING
Price
N/A
18
GIB
Price
N/A
19
GIB ADJUSTMENT SCREW M6-1 X 38
Price
N/A
20
CROSS LEADSCREW
Price
N/A
21
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
23
LEADSCREW BRACKET
Price
N/A
24
THRUST BEARING 51104
Price
N/A
25
INT THREADED TAPER PIN 8 X 25
Price
N/A
26
CAP SCREW M6-1 X 20
Price
N/A
29
GRADUATED DIAL
Price
N/A
30
KNURLED KNOB M5-.8 X 12
Price
N/A
31
HANDWHEEL TYPE-20 155D X 16B-K X M10-1.5
Price
N/A
32
HANDLE W/O SHAFT 12, 22 X 75
Price
N/A
33
SHOULDER SCREW M10-1.5 X 12, 12 X 68
Price
N/A
34
ELEVATION CRANK
Price
N/A
35
Now: PR18M
EXT RETAINING RING 17MM
Price
N/A
36
COMPRESSION SPRING 20 X 20
Price
N/A
37
ELEVATION HANDLE CLUTCH
Price
N/A
38
SET SCREW M6-1 X 16
Price
N/A
39
ADJUSTMENT NUT 1-1/4 X 20
Price
N/A
40
X-AXIS GRADUATED DIAL (RIGHT)
Price
N/A
45
ELEVATION SHAFT
Price
N/A
48
GEAR SHAFT SLEEVE
Price
N/A
51
ELEVATION GEAR 12T
Price
N/A
54
SPLASH GUARD
Price
N/A
55
CROSS LEADSCREW NUT
Price
N/A
56
CAP SCREW M5-.8 X 25
Price
N/A
57
Now: PW03M
FLAT WASHER 6MM
Price
N/A
59
SADDLE
Price
N/A
60
WAY WIPER (REAR)
Price
N/A
61
WAY WIPER (FRONT)
Price
N/A
62
CAP SCREW M5-.8 X 12
Price
N/A
63
X-AXIS SCALE INDICATOR
Price
N/A
65
ADJUSTABLE HANDLE M8-1.25 X 35
Price
N/A
66
Y-AXIS GIB
Price
N/A
67
LONGITUDINAL LEADSCREW NUT
Price
N/A
69
LONGITUDINAL LEADSCREW
Price
N/A
70
WORK TABLE
Price
N/A
72
X-AXIS LEADSCREW BRACKET
Price
N/A
73
CAP SCREW M6-1 X 45
Price
N/A
74
INT THREADED TAPER PIN 8 X 50
Price
N/A
77
X-AXIS GIB
Price
N/A
78
CABINET BASE
Price
N/A
79
OIL PAN
Price
N/A
80
HEX BOLT M10-1.5 X 45
Price
N/A
81
Now: PW04M
FLAT WASHER 10MM
Price
N/A
82
CLUTCH
Price
N/A
83
COMPRESSION SPRING 24 X 15
Price
N/A
84
SPACER
Price
N/A
85
HANDWHEEL
Price
N/A
87
CAP SCREW M6-1 X 12
Price
N/A
88
X-AXIS GRADUATED DIAL (LEFT)
Price
N/A
89
STEEL BALL 5MM
Price
N/A
90
COMPRESSION SPRING 4 X 12
Price
N/A
91
CAP SCREW M6-1 X 8
Price
N/A
92
CLUTCH
Price
N/A
96
Now: PK08M
KEY 5 X 5 X 16
Price
N/A
97
CAP SCREW M8-1.25 X 16
Price
N/A
98
LIMIT STOP
Price
N/A
99
LIMIT STOP SLIDE NUT M8-1.25
Price
N/A

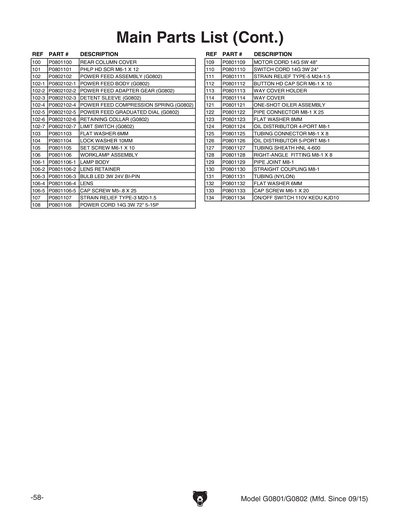

100
REAR COLUMN COVER
Price
N/A
101
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
102
POWER FEED ASSEMBLY
102-1
POWER FEED ASSEMBLY
Price
N/A
102-2
POWER FEED ASSEMBLY
Price
N/A
102-3
POWER FEED ASSEMBLY
Price
N/A
102-4
POWER FEED ASSEMBLY
Price
N/A
102-5
POWER FEED ASSEMBLY
Price
N/A
102-6
POWER FEED ASSEMBLY
Price
N/A
102-7
LIMIT SWITCH
103
Now: PW03M
FLAT WASHER 6MM
Price
N/A
104
LOCK WASHER 10MM
Price
N/A
105
SET SCREW M6-1 X 10
Price
N/A
106
WORKLAMP ASSEMBLY
Price
N/A
106-1
LAMP BODY
Price
N/A
106-2
LENS RETAINER
Price
N/A
106-3
BULB LED 3W 24V BI-PIN
Price
N/A
106-4
LENS
Price
N/A
106-5
CAP SCREW M5-.8 X 25
Price
N/A
107
STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
108
POWER CORD 14G 3W 72" 5-15P
Price
N/A
109
MOTOR CORD 14G 5W 48"
Price
N/A
110
SWITCH CORD 14G 3W 24"
Price
N/A
111
STRAIN RELIEF TYPE-5 M24-1.5
Price
N/A
112
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
113
WAY COVER HOLDER
Price
N/A
114
WAY COVER
Price
N/A
121
ONE-SHOT OILER ASSEMBLY
Price
N/A
122
PIPE CONNECTOR M8-1 X 25
Price
N/A
123
Now: PW01M
FLAT WASHER 8MM
Price
N/A
124
OIL DISTRIBUTOR 4-PORT M8-1
Price
N/A
125
TUBING CONNECTOR M8-1 X 8
Price
N/A
126
OIL DISTRIBUTOR 5-PORT M8-1
Price
N/A
127
TUBING SHEATH HNL 4-600
Price
N/A
128
RIGHT-ANGLE FITTING M8-1 X 8
Price
N/A
129
PIPE JOINT M8-1
Price
N/A
130
STRAIGHT COUPLING M8-1
Price
N/A
131
TUBING
Price
N/A
132
Now: PW03M
FLAT WASHER 6MM
Price
N/A
133
CAP SCREW M6-1 X 20
Price
N/A
134
ON/OFF SWITCH ASSY KEDU KJD3 110V
Price
N/A

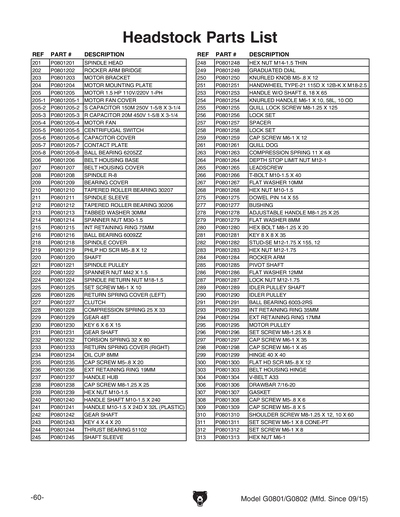

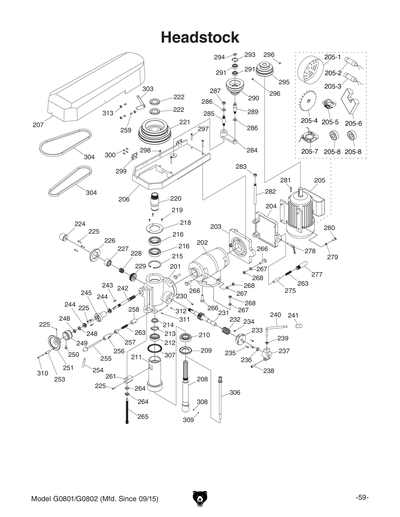

201
SPINDLE HEAD
Price
N/A
202
ROCKER ARM BRIDGE
Price
N/A
203
MOTOR BRACKET
Price
N/A
204
MOTOR MOUNTING PLATE
Price
N/A
205
MOTOR 1.5 HP 110V/220V 1-PH
Price
N/A
205-1
MOTOR FAN COVER
Price
N/A
205-2
S CAPACITOR 150M 250V 1-5/8 X 3-1/4
Price
N/A
205-3
Now: PC20B
R CAPACITOR 20M 450V 1-5/8 X 3-1/4
Price
N/A
205-4
MOTOR FAN
Price
N/A
205-5
CENTRIFUGAL SWITCH
Price
N/A
205-6
CAPACITOR COVER
Price
N/A
205-7
CONTACT PLATE
Price
N/A
205-8
BALL BEARING 6205ZZ
Price
N/A
206
BELT HOUSING BASE
Price
N/A
207
BELT HOUSING COVER
Price
N/A
208
SPINDLE R-8
Price
N/A
209
BEARING COVER
Price
N/A
210
TAPERED ROLLER BEARING 30207
Price
N/A
211
SPINDLE SLEEVE
Price
N/A
212
TAPERED ROLLER BEARING 30206
Price
N/A
213
TABBED WASHER 30MM
Price
N/A
214
SPANNER NUT M30-1.5
Price
N/A
215
Now: PR67M
INT RETAINING RING 75MM
Price
N/A
216
BALL BEARING 6009ZZ
Price
N/A
218
SPINDLE COVER
Price
N/A
219
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
220
SHAFT
Price
N/A
221
SPINDLE PULLEY
Price
N/A
222
SPANNER NUT M42 X 1.5
Price
N/A
224
SPINDLE RETURN NUT M18-1.5
Price
N/A
225
SET SCREW M6-1 X 10
Price
N/A
226
RETURN SPRING COVER (LEFT)
Price
N/A
227
CLUTCH
Price
N/A
228
COMPRESSION SPRING 25 X 33
Price
N/A
229
GEAR 48T
Price
N/A
230
Now: PK99M
KEY 6 X 6 X 15
Price
N/A
231
GEAR SHAFT
Price
N/A
232
TORSION SPRING 32 X 80
Price
N/A
233
RETURN SPRING COVER (RIGHT)
Price
N/A
234
OIL CUP 8MM
Price
N/A
235
CAP SCREW M5-.8 X 20
Price
N/A
236
Now: PR08M
EXT RETAINING RING 19MM
Price
N/A
237
HANDLE HUB
Price
N/A
238
CAP SCREW M8-1.25 X 25
Price
N/A
239
Now: PN02M
HEX NUT M10-1.5
Price
N/A
240
HANDLE SHAFT M10-1.5 X 240
Price
N/A
241
HANDLE M10-1.5 X 24D X 32L (PLASTIC)
Price
N/A
242
GEAR SHAFT
Price
N/A
243
Now: PK48M
KEY 4 X 4 X 20
Price
N/A
244
THRUST BEARING 51102
Price
N/A
245
SHAFT SLEEVE
Price
N/A
248
HEX NUT M14-1.5 THIN
Price
N/A
249
GRADUATED DIAL
Price
N/A
250
KNURLED KNOB M5-.8 X 12
Price
N/A
251
HANDWHEEL TYPE-21 115D X 12B-K X M18-2.5
Price
N/A
253
HANDWHEEL HANDLE 63L, M6-1 X 10
Price
N/A
254
KNURLED HANDLE M6-1 X 10, 58L, 10 OD
Price
N/A
255
QUILL LOCK SCREW M8-1.25 X 125
Price
N/A
256
LOCK SET
Price
N/A
257
SPACER
Price
N/A
258
LOCK SET
Price
N/A
259
CAP SCREW M6-1 X 12
Price
N/A
261
QUILL DOG
Price
N/A
263
COMPRESSION SPRING 11 X 48
Price
N/A
264
DEPTH STOP LIMIT NUT M12-1
Price
N/A
265
LEADSCREW
Price
N/A
266
T-BOLT M10-1.5 X 40
Price
N/A
267
Now: PW04M
FLAT WASHER 10MM
Price
N/A
268
Now: PN02M
HEX NUT M10-1.5
Price
N/A
275
DOWEL PIN 14 X 55
Price
N/A
277
BUSHING
Price
N/A
278
ADJUSTABLE HANDLE M8-1.25 X 25
Price
N/A
279
Now: PW01M
FLAT WASHER 8MM
Price
N/A
280
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
281
Now: PK09M
KEY 8 X 8 X 35
Price
N/A
282
STUD-SE M12-1.75 X 155, 12
Price
N/A
283
Now: PN09M
HEX NUT M12-1.75
Price
N/A
284
ROCKER ARM
Price
N/A
285
PIVOT SHAFT
Price
N/A
286
Now: PW06M
FLAT WASHER 12MM
Price
N/A
287
LOCK NUT M12-1.75
Price
N/A
289
IDLER PULLEY SHAFT
Price
N/A
290
IDLER PULLEY
Price
N/A
291
BALL BEARING 6003-2RS
Price
N/A
293
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
294
Now: PR18M
EXT RETAINING RING 17MM
Price
N/A
295
MOTOR PULLEY
Price
N/A
296
SET SCREW M8-1.25 X 8
Price
N/A
297
CAP SCREW M6-1 X 35
Price
N/A
298
CAP SCREW M6-1 X 45
Price
N/A
299
HINGE 40 X 40
Price
N/A
300
FLAT HD SCR M5-.8 X 12
Price
N/A
303
BELT HOUSING HINGE
Price
N/A
304
Now: PVA33
V-BELT A33
Price
N/A
306
DRAWBAR 7/16-20
Price
N/A
307
GASKET
Price
N/A
308
CAP SCREW M5-.8 X 6
Price
N/A
309
CAP SCREW M5-.8 X 5
Price
N/A
310
HANDWHEEL HANDLE 63L, M6-1 X 10
Price
N/A
311
SET SCREW M6-1 X 8 CONE-PT
Price
N/A
312
SET SCREW M6-1 X 8
Price
N/A
313
Now: PN01M
HEX NUT M6-1
Price
N/A

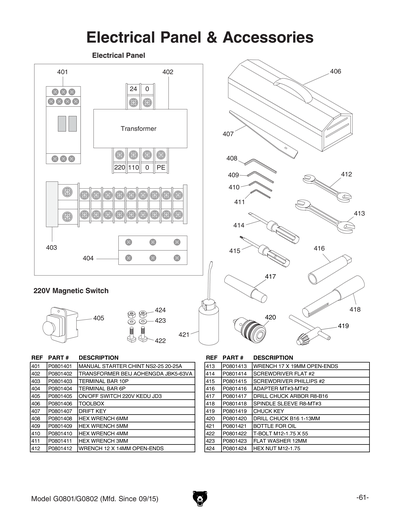

401
MANUAL STARTER CHINT NS2-25 20-25A
Price
N/A
402
TRANSFORMER BEIJ AOHENGDA JBK5-63VA
Price
N/A
403
TERMINAL BAR 10P
Price
N/A
404
TERMINAL BAR 6P
Price
N/A
405
ON/OFF SWITCH ASSY KEDU JD3 220V
Price
N/A
406
TOOLBOX
Price
N/A
407
DRIFT KEY
Price
N/A
408
HEX WRENCH 6MM
Price
N/A
409
HEX WRENCH 5MM
Price
N/A
410
HEX WRENCH 4MM
Price
N/A
411
HEX WRENCH 3MM
Price
N/A
412
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
413
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
414
Now: PSDF2
SCREWDRIVER FLAT #2
Price
N/A
415
Now: PSDP2
SCREWDRIVER PHILLIPS #2
Price
N/A
416
ADAPTER MT#3-MT#2
Price
N/A
417
DRILL CHUCK ARBOR R8-B16
Price
N/A
418
SPINDLE SLEEVE R8-MT#3
Price
N/A
419
CHUCK KEY
Price
N/A
420
DRILL CHUCK B16 1-13MM
Price
N/A
421
BOTTLE FOR OIL
Price
N/A
422
T-BOLT M12-1.75 X 55
Price
N/A
423
Now: PW06M
FLAT WASHER 12MM
Price
N/A
424
Now: PN09M
HEX NUT M12-1.75
Price
N/A

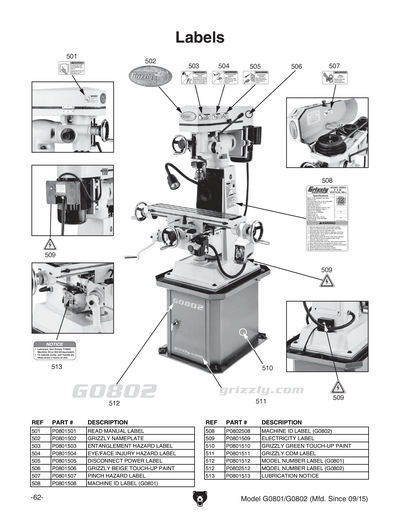

501
READ MANUAL 2.8W X 1.5H
Price
N/A
502
Now: G9987
Nameplate - Mini
Price
N/A
503
ENTANGLEMENT HAZARD 2.8W X 1.5H
Price
N/A
504
FACE SHIELD & SAFETY GLASSES 1.5W X 2.5H
Price
N/A
505
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
506
BEIGE REF G0555
Price
N/A
507
PINCH HAZARD LABEL
Price
N/A
508
MACHINE ID LABEL
Item is no longer available
Price
N/A
509
ELECTRICITY 0.7W X 0.6H
Price
N/A
510
N/S GRIZZLY GREEN G1023S
Price
N/A
511
***USE PGZCOM-26B***
Price
N/A
512
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
513
LUBRICATION NOTICE
Price
N/A
MAN
MANUAL G0801/G0802 MFD-09.15 V1.02.16
Price
N/A
