Parts for G0803 - 9" Benchtop Bandsaw

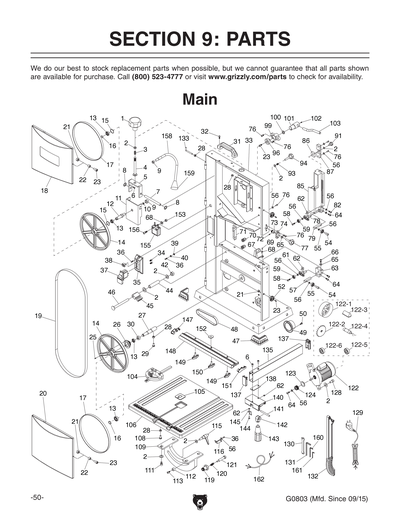

Part Diagram for G0803
Part Diagram for G0803
Part Diagram for G0803
Part Diagram for G0803
Part Diagram for G0803
Part Diagram for G0803
Part Diagram for G0803
Part Diagram for G0803

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

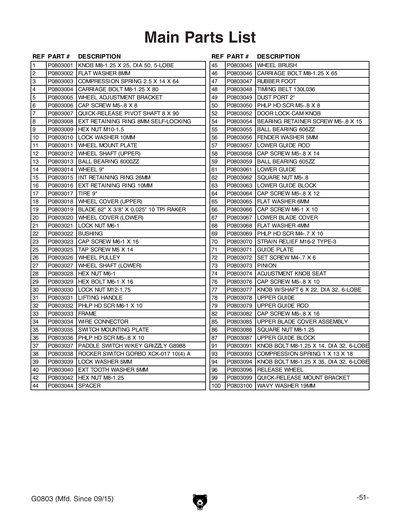

Ref #
Part #
Description
1
*DISCD*KNOB M8-1.25 X 25, DIA 50, 5-LOBE
Price
$3.75
2
FLAT WASHER 8MM
Price
N/A
3
*DISCD*COMPRESSION SPRING 2.5 X 14 X 64
Price
$1.49
4
CARRIAGE BOLT M8-1.25 X 80
Price
N/A
5
WHEEL ADJUSTMENT BRACKET
Item is no longer available
Price
N/A
6
CAP SCREW M5-.8 X 8
Price
N/A
7
QUICK-RELEASE PIVOT SHAFT 8 X 90
Item is no longer available
Price
N/A
8
*DISCD*EXT RETAINING RING 8MM SELF-LOCK
Price
$1.49
9
HEX NUT M10-1.5
Price
N/A
10
LOCK WASHER 10MM
Price
N/A
11
WHEEL MOUNT PLATE
Item is no longer available
Price
N/A
12
WHEEL SHAFT (UPPER)
Item is no longer available
Price
N/A
13
BALL BEARING 6000ZZ
Price
N/A
14
*DISCD*WHEEL 9"
Price
$14.40
15
INT RETAINING RING 26MM
Price
N/A
16
EXT RETAINING RING 10MM
Price
N/A
17
*DISCD*TIRE 9"
Price
$5.75
18
*DISCD*WHEEL COVER (UPPER)
Price
$8.65
19
62" x 3/8" x .025" x 10 TPI Raker Bandsaw Blade
Price
N/A
20
WHEEL COVER (LOWER)
Price
$8.65
21
LOCK NUT M6-1
Price
N/A
22
BUSHING
Item is no longer available
Price
N/A
23
CAP SCREW M6-1 X 16
Price
N/A
25
TAP SCREW M5 X 14
Price
N/A
26
*DISCD*WHEEL PULLEY
Price
$2.30
27
*DISCD*WHEEL SHAFT (LOWER)
Price
$4.05
28
HEX NUT M6-1
Price
N/A
29
HEX BOLT M6-1 X 16
Price
N/A
30
LOCK NUT M12-1.75
Price
N/A
31
*DISCD*LIFTING HANDLE
Price
$4.05
32
PHLP HD SCR M6-1 X 10
Price
N/A
33
FRAME
Item is no longer available
Price
N/A
35
*DISCD*SWITCH MOUNTING PLATE
Price
$1.49
36
PHLP HD SCR M5-.8 X 10
Price
N/A
37
Safety Paddle Switch
Price
N/A
38
*DISCD*ROCKER SWITCH
Price
$2.60
39
LOCK WASHER 5MM
Price
N/A
40
EXT TOOTH WASHER 5MM
Price
N/A
42
HEX NUT M8-1.25
Price
N/A
44
SPACER
Item is no longer available
Price
N/A
45
WHEEL BRUSH
Item is no longer available
Price
N/A
46
CARRIAGE BOLT M8-1.25 X 65
Item is no longer available
Price
N/A
47
*DISCD*RUBBER FOOT
Price
$1.49
48
*DISCD*TIMING BELT 130L036
Price
$6.05
49
DUST PORT 2"
Price
$1.75
50
PHLP HD SCR M5-.8 X 8
Price
N/A
52
*DISCD*DOOR LOCK CAM KNOB
Price
$1.75
54
*DISCD*BEARING RETAINER SCREW M5-.8 X 15
Price
$1.75
55
BALL BEARING 606ZZ
Price
N/A
56
FENDER WASHER 5MM
Price
N/A
57
*DISCD*LOWER GUIDE ROD
Price
$1.75
58
CAP SCREW M5-.8 X 14
Price
N/A
59
BALL BEARING 605ZZ
Price
N/A
61
*DISCD*LOWER GUIDE
Price
$3.20
62
SQUARE NUT M5-.8
Price
N/A
63
LOWER GUIDE BLOCK
Price
$4.05
64
CAP SCREW M5-.8 X 12
Price
N/A
65
FLAT WASHER 6MM
Price
N/A
66
CAP SCREW M6-1 X 10
Price
N/A
67
*DISCD*LOWER BLADE COVER
Price
$1.49
68
FLAT WASHER 4MM
Price
N/A
69
PHLP HD SCR M4-.7 X 10
Price
N/A
70
STRAIN RELIEF M16-2 TYPE-3
Item is no longer available
Price
N/A
71
GUIDE PLATE
Item is no longer available
Price
N/A
72
SET SCREW M4-.7 X 6
Price
N/A
73
*DISCD*PINION
Price
$2.30
74
ADJUSTMENT KNOB SEAT
Item is no longer available
Price
N/A
76
CAP SCREW M5-.8 X 10
Price
N/A
76-1
*DISCD*SHOULDER CAP SCREW M5-.8 X 10
Price
$1.49
77
*DISCD*KNOB W/SHAFT 6 X 22, D32, 6-LOBE
Price
$2.30
78
*DISCD*UPPER GUIDE
Price
$2.60
79
*DISCD*UPPER GUIDE ROD
Price
$1.75
82
CAP SCREW M5-.8 X 16
Price
N/A
85
*DISCD*UPPER BLADE COVER ASSEMBLY
Price
$16.70
86
SQUARE NUT M8-1.25
Price
N/A
87
UPPER GUIDE BLOCK
Price
$5.20
91
*DISCD*KNOB BLT M8-1.25 X 14, D32, 6-LOB
Price
$1.75
93
COMPRESSION SPRING 1 X 13 X 18
Item is no longer available
Price
N/A
94
*DISCD*KNOB BLT M8-1.25 X 35, D32, 6-LOB
Price
$1.75
96
*DISCD*RELEASE WHEEL
Price
$2.30
99
*DISCD*QUICK-RELEASE MOUNT BRACKET
Price
$4.60

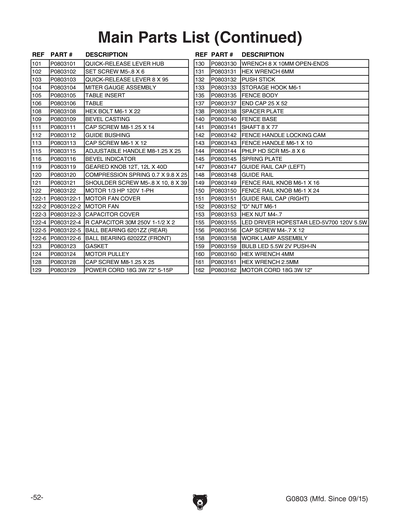

101
*DISCD*QUICK-RELEASE LEVER HUB
Price
$5.50
102
SET SCREW M5-.8 X 6
Price
N/A
103
*DISCD*QUICK-RELEASE LEVER 8 X 95
Price
$2.30
104
*DISCD*MITER GAUGE ASSEMBLY
Price
$10.10
105
*DISCD*TABLE INSERT
Price
$1.49
106
*DISCD*TABLE
Price
$34.80
108
HEX BOLT M6-1 X 22
Price
N/A
109
*DISCD*BEVEL CASTING
Price
$8.95
111
CAP SCREW M8-1.25 X 14
Price
N/A
112
*DISCD*GUIDE BUSHING
Price
$1.49
113
CAP SCREW M6-1 X 12
Price
N/A
115
*DISCD*ADJUSTABLE HANDLE M8-1.25 X 25
Price
$9.20
116
*DISCD*BEVEL INDICATOR
Price
$1.49
119
*DISCD*GEARED KNOB 12T, 12L X 40D
Price
$2.30
120
*DISCD*COMPRESSION SPRING 0.7 X 9.8 X 25
Price
$1.49
121
*DISCD*SHOULDER SCREW M5-.8 X 10, 8 X 39
Price
$2.90
122
*DISCD*MOTOR 1/3 HP 120V 1-PH
Item is no longer available
Price
N/A
122-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
122-2
MOTOR FAN
Item is no longer available
Price
N/A
122-3
CAPACITOR COVER
Item is no longer available
Price
N/A
122-4
*DISCD*R CAPACITOR 30M 250V 1-1/2 X 2
Price
$10.10
122-5
BALL BEARING 6201ZZ
Price
N/A
122-6
BALL BEARING 6202ZZ
Price
N/A
123
GASKET
Item is no longer available
Price
N/A
124
*DISCD*MOTOR PULLEY
Price
$3.75
128
CAP SCREW M8-1.25 X 25
Price
N/A
129
POWER CORD 18G 3W 72" 5-15P
Item is no longer available
Price
N/A
130
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
131
HEX WRENCH 6MM
Price
N/A
132
PUSH STICK
Item is no longer available
Price
N/A
133
STORAGE HOOK M6-1
Item is no longer available
Price
N/A
135
*DISCD*FENCE BODY
Price
$12.40
137
*DISCD*END CAP 25 X 52
Price
$1.49
138
*DISCD*SPACER PLATE
Price
$1.75
140
*DISCD*FENCE BASE
Price
$5.50
141
*DISCD*SHAFT 8 X 77
Price
$1.75
142
*DISCD*FENCE HANDLE LOCKING CAM
Price
$2.60
143
*DISCD*FENCE HANDLE M6-1 X 10
Price
$2.60
144
PHLP HD SCR M5-.8 X 6
Price
N/A
145
*DISCD*SPRING PLATE
Price
$1.49
147
*DISCD*GUIDE RAIL CAP (LEFT)
Price
$1.49
148
*DISCD*GUIDE RAIL
Price
$8.05
149
*DISCD*FENCE RAIL KNOB M6-1 X 16
Item is no longer available
Price
N/A
150
*DISCD*FENCE RAIL KNOB M6-1 X 24
Price
$1.75
151
*DISCD*GUIDE RAIL CAP (RIGHT)
Price
$1.49
152
*DISCD*"D" NUT M6-1
Price
$1.49
153
HEX NUT M4-.7
Price
N/A
155
*DISCD*LED DRIVER LED-5V700 120V 5.5W
Price
$21.60
156
CAP SCREW M4-.7 X 12
Price
N/A
158
*DISCD*WORK LAMP ASSEMBLY
Price
$21.00
160
HEX WRENCH 4MM
Price
N/A
161
HEX WRENCH 2.5MM
Price
N/A
162
MOTOR CORD 18G 3W 12"
Item is no longer available
Price
N/A
201

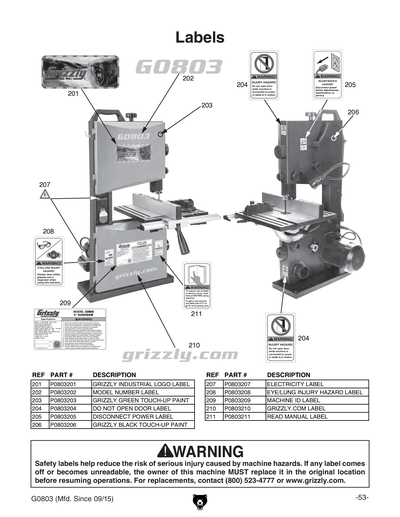

*DISCD*GRIZZLY INDUSTRIAL LOGO LABEL
Price
$2.00
202
*DISCD*MODEL NUMBER LABEL
Price
$2.50
203
N/S GRIZZLY GREEN G1023S
Price
N/A
204
DO NOT OPEN DOOR LABEL
Price
$1.00
205
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
206
GLOSSY BLACK
Price
N/A
207
ELECTRICITY 0.5W X 0.4H
Price
N/A
208
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
209
MACHINE ID LABEL
Item is no longer available
Price
N/A
210
GRIZZLY.COM LABEL
Price
$2.50
211
READ MANUAL 1.5W X 2.5H
Price
N/A
MAN
MANUAL G0803 MFD-07.15 V1.10.15
Price
$14.65
