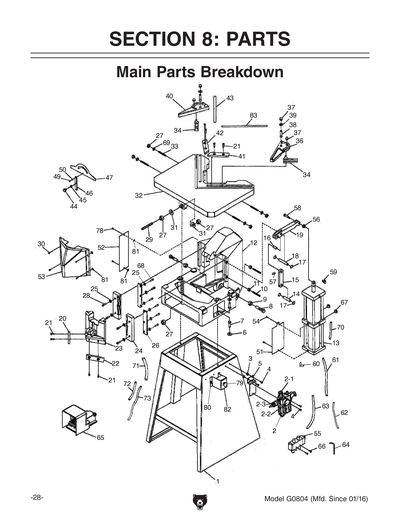

Parts for G0804 Heavy Duty Angle Notcher, 11-Gauge

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

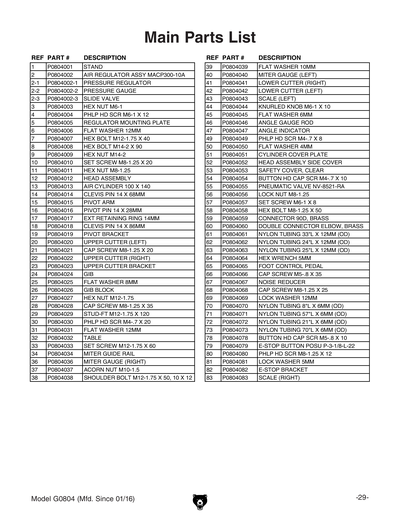

1
STAND
Item is no longer available
Price
N/A
2
AIR REGULATOR ASSY MACP300-10A
2-1
PRESSURE REGULATOR
Item is no longer available
Price
N/A
2-2
PRESSURE GAUGE
Item is no longer available
Price
N/A
2-3
SLIDE VALVE
Item is no longer available
Price
N/A
3
Now: PN01M
HEX NUT M6-1
Price
N/A
4
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
5
REGULATOR MOUNTING PLATE
Item is no longer available
Price
N/A
6
Now: PW06M
FLAT WASHER 12MM
Price
N/A
7
Now: PB35M
HEX BOLT M12-1.75 X 40
Price
N/A
8
HEX BOLT M14-2 X 90
Item is no longer available
Price
N/A
9
Now: PN32M
HEX NUT M14-2
Price
N/A
10
SET SCREW M8-1.25 X 20
Price
N/A
11
Now: PN03M
HEX NUT M8-1.25
Price
N/A
12
HEAD ASSEMBLY
Item is no longer available
Price
N/A
13
AIR CYLINDER 100 X 140
14
CLEVIS PIN 14 X 68MM
Item is no longer available
Price
N/A
15
PIVOT ARM
Item is no longer available
Price
N/A
16
PIVOT PIN 14 X 28MM
Item is no longer available
Price
N/A
17
Now: PR02M
EXT RETAINING RING 14MM
Price
N/A
18
CLEVIS PIN 14 X 86MM
Item is no longer available
Price
N/A
19
PIVOT BRACKET
Item is no longer available
Price
N/A
20
UPPER CUTTER (LEFT)
21
CAP SCREW M8-1.25 X 20
Price
N/A
22
UPPER CUTTER (RIGHT)
23
UPPER CUTTER BRACKET
Item is no longer available
Price
N/A
24
GIB
Item is no longer available
Price
N/A
25
Now: PW01M
FLAT WASHER 8MM
Price
N/A
26
GIB BLOCK
Item is no longer available
Price
N/A
27
Now: PN09M
HEX NUT M12-1.75
Price
N/A
28
CAP SCREW M8-1.25 X 35
Price
N/A
29
STUD-FT M12-1.75 X 120
Item is no longer available
Price
N/A
30
Now: PS52M
PHLP HD SCR M4-.7 X 20
Price
N/A
31
Now: PW06M
FLAT WASHER 12MM
Price
N/A
32
TABLE
Item is no longer available
Price
N/A
33
SET SCREW M12-1.75 X 60
Price
N/A
34
MITER GUIDE RAIL
Item is no longer available
Price
N/A
36
MITER GAUGE (RIGHT)
Item is no longer available
Price
N/A
37
Now: PN43M
ACORN NUT M10-1.5
Price
N/A
38
SHOULDER BOLT M12-1.75 X 50, 10 X 12
Item is no longer available
Price
N/A
39
Now: PW04M
FLAT WASHER 10MM
Price
N/A
40
MITER GAUGE (LEFT)
Item is no longer available
Price
N/A
41
*DISCD*LOWER CUTTER (RIGHT)
Item is no longer available
Price
N/A
42
*DISCD*LOWER CUTTER (LEFT)
Item is no longer available
Price
N/A
43
SCALE (LEFT)
Item is no longer available
Price
N/A
44
KNURLED KNOB M6-1 X 10
Item is no longer available
Price
N/A
45
Now: PW03M
FLAT WASHER 6MM
Price
N/A
46
ANGLE GAUGE ROD
Item is no longer available
Price
N/A
47
ANGLE INDICATOR
Item is no longer available
Price
N/A
49
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
50
Now: PW05M
FLAT WASHER 4MM
Price
N/A
51
CYLINDER COVER PLATE
Item is no longer available
Price
N/A
52
HEAD ASSEMBLY SIDE COVER
Item is no longer available
Price
N/A
53
SAFETY COVER, CLEAR
Item is no longer available
Price
N/A
54
BUTTON HD CAP SCR M4-.7 X 10
Price
N/A
55
PNEUMATIC VALVE NV-8521-RA
56
LOCK NUT M8-1.25
Price
N/A
57
SET SCREW M6-1 X 8
Price
N/A
58
Now: PB22M
HEX BOLT M8-1.25 X 50
Price
N/A
59
CONNECTOR 90D, BRASS
Item is no longer available
Price
N/A
60
DOUBLE CONNECTOR ELBOW, BRASS
Item is no longer available
Price
N/A
61
NYLON TUBING 33"L X 12MM (OD)
Item is no longer available
Price
N/A
62
NYLON TUBING 24"L X 12MM (OD)
Item is no longer available
Price
N/A
63
NYLON TUBING 25"L X 12MM (OD)
Item is no longer available
Price
N/A
64
HEX WRENCH 5MM
Price
N/A
65
FOOT CONTROL PEDAL
66
CAP SCREW M5-.8 X 35
Price
N/A
67
NOISE REDUCER
Item is no longer available
Price
N/A
68
CAP SCREW M8-1.25 X 25
Price
N/A
69
LOCK WASHER 12MM
Price
N/A
70
NYLON TUBING 8"L X 6MM (OD)
Item is no longer available
Price
N/A
71
NYLON TUBING 57"L X 6MM (OD)
Item is no longer available
Price
N/A
72
NYLON TUBING 21"L X 6MM (OD)
Item is no longer available
Price
N/A
73
NYLON TUBING 70"L X 6MM (OD)
Item is no longer available
Price
N/A
78
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
79
E-STOP BUTTON POSU P-3-1/8-L-22
80
Now: PS76M
PHLP HD SCR M8-1.25 X 12
Price
N/A
81
LOCK WASHER 5MM
Price
N/A
82
E-STOP BRACKET
Item is no longer available
Price
N/A
83
SCALE (RIGHT)
Item is no longer available
Price
N/A

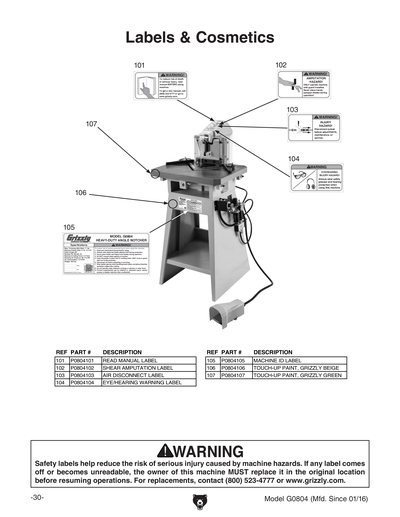

101
READ MANUAL 2.8W X 1.5H
Price
N/A
102
SHEAR AMPUTATION 2.8W X 1.5H
Price
N/A
103
AIR DISCONNECT LABEL
Item is no longer available
Price
N/A
104
EYE/HEARING WARNING LABEL
Item is no longer available
Price
N/A
105
MACHINE ID LABEL
Item is no longer available
Price
N/A
106
BEIGE REF G0555
Price
N/A
107
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL G0804 MFD-01.16 V1.05.16
Item is no longer available
Price
N/A
