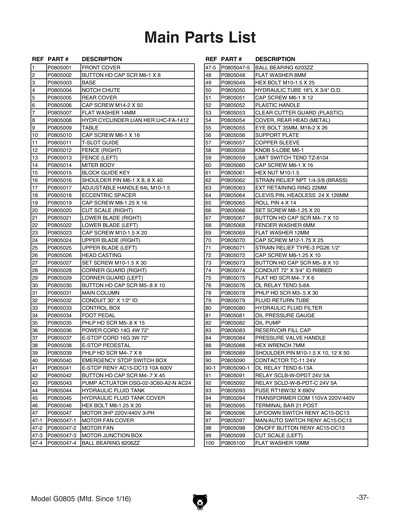

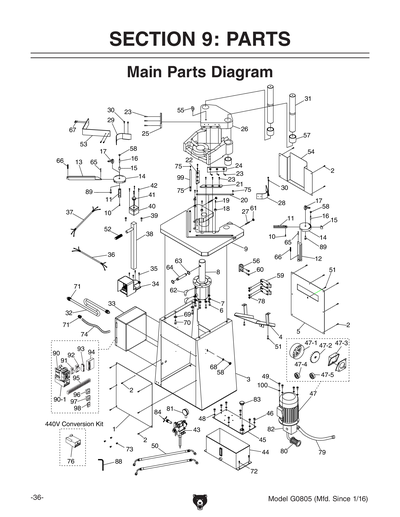

Parts for G0805 Super Heavy-Duty Angle Notcher, 9-Gauge

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
FRONT COVER
Item is no longer available
Price
N/A
2
BUTTON HD CAP SCR M6-1 X 8
Price
N/A
3
BASE
Item is no longer available
Price
N/A
4
NOTCH CHUTE
Item is no longer available
Price
N/A
5
REAR COVER
Item is no longer available
Price
N/A
6
CAP SCREW M14-2 X 50
Price
N/A
7
Now: PW10M
FLAT WASHER 14MM
Price
N/A
8
HYDR CYCLINDER LIAN HER LHC-FA-1412
Item is no longer available
Price
N/A
9
TABLE
Item is no longer available
Price
N/A
10
CAP SCREW M6-1 X 16
Price
N/A
11
T-SLOT GUIDE
Item is no longer available
Price
N/A
12
FENCE (RIGHT)
Item is no longer available
Price
N/A
13
FENCE (LEFT)
Item is no longer available
Price
N/A
14
MITER BODY
Item is no longer available
Price
N/A
15
BLOCK GUIDE KEY
Item is no longer available
Price
N/A
16
SHOULDER PIN M6-1 X 8, 8 X 40
Item is no longer available
Price
N/A
17
ADJUSTABLE HANDLE 64L M10-1.5
Item is no longer available
Price
N/A
18
ECCENTRIC SPACER
Item is no longer available
Price
N/A
19
CAP SCREW M8-1.25 X 16
Price
N/A
20
CUT SCALE (RIGHT)
Item is no longer available
Price
N/A
21
LOWER BLADE (RIGHT)
Item is no longer available
Price
N/A
22
LOWER BLADE (LEFT)
Item is no longer available
Price
N/A
23
CAP SCREW M10-1.5 X 20
Price
N/A
24
UPPER BLADE (RIGHT)
Item is no longer available
Price
N/A
25
UPPER BLADE (LEFT)
Item is no longer available
Price
N/A
26
HEAD CASTING
Item is no longer available
Price
N/A
27
SET SCREW M10-1.5 X 30
Price
N/A
28
CORNER GUARD (RIGHT)
Item is no longer available
Price
N/A
29
CORNER GUARD (LEFT)
Item is no longer available
Price
N/A
30
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
31
MAIN COLUMN
Item is no longer available
Price
N/A
32
CONDUIT 30" X 1/2" ID
Item is no longer available
Price
N/A
33
CONTROL BOX
Item is no longer available
Price
N/A
34
FOOT PEDAL
Item is no longer available
Price
N/A
35
Now: PS20M
PHLP HD SCR M5-.8 X 15
Price
N/A
36
POWER CORD 14G 4W 72"
Item is no longer available
Price
N/A
37
E-STOP CORD 16G 3W 72"
Item is no longer available
Price
N/A
38
E-STOP PEDESTAL
Item is no longer available
Price
N/A
39
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
40
EMERGENCY STOP SWITCH BOX
Item is no longer available
Price
N/A
41
E-STOP RENY AC15-DC13 10A 600V
Item is no longer available
Price
N/A
42
BUTTON HD CAP SCR M4-.7 X 45
Price
N/A
43
PUMP ACTUATOR DSG-02-3C60-A2-N AC24
Item is no longer available
Price
N/A
44
HYDRAULIC FLUID TANK
Item is no longer available
Price
N/A
45
HYDRAULIC FLUID TANK COVER
Item is no longer available
Price
N/A
46
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
47
MOTOR 3HP 220V/440V 3-PH
Item is no longer available
Price
N/A
47-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
47-2
MOTOR FAN
Item is no longer available
Price
N/A
47-3
MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
47-4
BALL BEARING 6206ZZ
Price
N/A
47-5
BALL BEARING 6203ZZ
Price
N/A
48
Now: PW01M
FLAT WASHER 8MM
Price
N/A
49
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
50
HYDRAULIC TUBE 18"L X 3/4" O.D.
Item is no longer available
Price
N/A
51
CAP SCREW M6-1 X 12
Price
N/A
52
PLASTIC HANDLE
Item is no longer available
Price
N/A
53
CLEAR CUTTER GUARD (PLASTIC)
Item is no longer available
Price
N/A
54
COVER, REAR HEAD (METAL)
Item is no longer available
Price
N/A
55
EYE BOLT 35MM, M16-2 X 26
Item is no longer available
Price
N/A
56
SUPPORT PLATE
Item is no longer available
Price
N/A
57
COPPER SLEEVE
Item is no longer available
Price
N/A
58
KNOB 5-LOBE M6-1
Item is no longer available
Price
N/A
59
LIMIT SWITCH TEND TZ-8104
Item is no longer available
Price
N/A
60
CAP SCREW M6-1 X 16
Price
N/A
61
Now: PN02M
HEX NUT M10-1.5
Price
N/A
62
STRAIN RELIEF NPT 1/4-3/8 (BRASS)
Item is no longer available
Price
N/A
63
Now: PR10M
EXT RETAINING RING 22MM
Price
N/A
64
CLEVIS PIN, HEADLESS 24 X 126MM
Item is no longer available
Price
N/A
65
ROLL PIN 4 X 14
Price
N/A
66
SET SCREW M8-1.25 X 20
Price
N/A
67
BUTTON HD CAP SCR M4-.7 X 10
Price
N/A
68
FENDER WASHER 6MM
Price
N/A
69
Now: PW06M
FLAT WASHER 12MM
Price
N/A
70
CAP SCREW M12-1.75 X 25
Price
N/A
71
STRAIN RELIEF TYPE-3 PG26 1/2"
Item is no longer available
Price
N/A
72
CAP SCREW M8-1.25 X 10
Price
N/A
73
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
74
CONDUIT 72" X 3/4" ID RIBBED
Item is no longer available
Price
N/A
75
FLAT HD SCR M4-.7 X 6
Price
N/A
76
OL RELAY TEND THR13-6.5 5-8A
Item is no longer available
Price
N/A
78
Now: PS95M
PHLP HD SCR M3-.5 X 30
Price
N/A
79
FLUID RETURN TUBE
Item is no longer available
Price
N/A
80
HYDRAULIC FLUID FILTER
Item is no longer available
Price
N/A
81
OIL PRESSURE GAUGE
Item is no longer available
Price
N/A
82
OIL PUMP
Item is no longer available
Price
N/A
83
RESERVOIR FILL CAP
Item is no longer available
Price
N/A
84
PRESSURE VALVE HANDLE
Item is no longer available
Price
N/A
88
HEX WRENCH 7MM
Price
N/A
89
SHOULDER PIN M10-1.5 X 10, 12 X 50
Item is no longer available
Price
N/A
90
CONTACTOR TC-11 24V
Item is no longer available
Price
N/A
90-1
OL RELAY TEND 6-13A
Item is no longer available
Price
N/A
91
RELAY SCLB-W-DPDT 24V 5A
Item is no longer available
Price
N/A
92
RELAY SCLD-W-B-PDT-C 24V 5A
Item is no longer available
Price
N/A
93
FUSE RT18W/32 X 690V
Item is no longer available
Price
N/A
94
TRANSFORMER COM 110VA 220V/440V
Item is no longer available
Price
N/A
95
TERMINAL BAR 21 POST
Item is no longer available
Price
N/A
96
UP/DOWN SWITCH RENY AC15-DC13
Item is no longer available
Price
N/A
97
MAN/AUTO SWITCH RENY AC15-DC13
Item is no longer available
Price
N/A
98
ON/OFF BUTTON RENY AC15-DC13
Item is no longer available
Price
N/A
99
CUT SCALE (LEFT)
Item is no longer available
Price
N/A
100
Now: PW04M
FLAT WASHER 10MM
Price
N/A
101

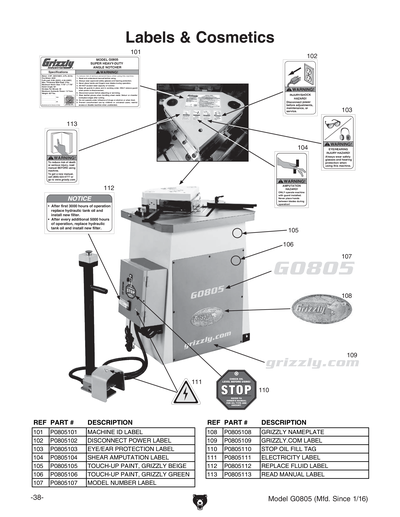

MACHINE ID LABEL
Item is no longer available
Price
N/A
102
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
103
EYE/EAR PROTECTION LABEL
Item is no longer available
Price
N/A
104
SHEAR AMPUTATION LABEL
Item is no longer available
Price
N/A
105
GREY PUTTY REF G0504
Price
N/A
106
N/S GRIZZLY GREEN G1023S
Price
N/A
107
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
108
Now: G8589
Nameplate - Large
Price
N/A
109
GRIZZLY.COM LABEL 13",BEIGE
Price
N/A
110
STOP OIL FILL TAG 4W X 4H
Price
N/A
111
ELECTRICITY 1.4W X 1.2H
Price
N/A
112
REPLACE FLUID LABEL
Item is no longer available
Price
N/A
113
READ MANUAL 1.5W X 2.5H
Price
N/A
MAN
MANUAL G0805 MFD-01.16 V1.05.16
Item is no longer available
Price
N/A
