Parts for G0811 9" x 16" 1-1/2 HP Horizontal Metal-Cutting Bandsaw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
HEX BOLT M12-1.75 X 80
Price
N/A

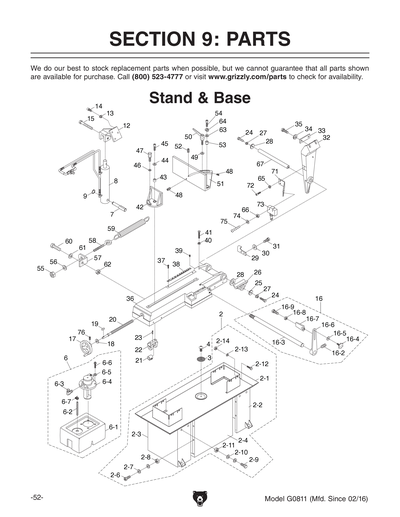

2
STAND ASSEMBLY
2-1
COOLANT PAN
2-10
Now: PW04M
FLAT WASHER 10MM
Price
N/A
2-11
Now: PN02M
HEX NUT M10-1.5
Price
N/A
2-12
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
2-13
Now: PW01M
FLAT WASHER 8MM
Price
N/A
2-14
Now: PN03M
HEX NUT M8-1.25
Price
N/A
2-2
STAND PANEL (RIGHT)
2-3
STAND PANEL (LEFT)
2-4
STAND PANEL (FRONT)
2-6
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
2-7
Now: PW06
FLAT WASHER 1/4
Price
N/A
2-8
Now: PN05
HEX NUT 1/4-20
Price
N/A
2-9
Now: PB74M
HEX BOLT M10-1.5 X 20
Price
N/A
3
COOLANT SCREEN
4
BUTTON HD CAP SCR M6-1 X 15
Price
N/A
6
COOLANT PUMP ASSEMBLY
6-1
COOLANT TANK
6-2
COOLANT HOSE 3/4" X 20"
6-3
PIPE ELBOW 1/2" X 3/8"
6-4
COOLANT PUMP MOTOR 53W 220V 1-PH
6-5
Now: PW06
FLAT WASHER 1/4
Price
N/A
6-6
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
6-7
HOSE CLAMP 3/4"
6V2
COOLANT PUMP ASSEMBLY V2.09.24
6V2-4
PUMP MOTOR 1/8HP 220V 1-PH V2.09.24
7
CYLINDER PIVOT ROD
8
HYDRAULIC CYLINDER ASSEMBLY
9
Now: PR07M
EXT RETAINING RING 18MM
Price
N/A
10
Now: PN09M
HEX NUT M12-1.75
Price
N/A
12
UPPER CYLINDER BRACKET
13
LOCK WASHER 8MM
Price
N/A
14
CAP SCREW M8-1.25 X 30
Price
N/A
15
CAP SCREW M10-1.5 X 50
Price
N/A
16
WORK STOP ASSEMBLY
16-2
SET SCREW M6-1 X 10
Price
N/A
16-3
WORK STOP ROD
16-4
KNOB BOLT M6-1
16-5
Now: PW06
FLAT WASHER 1/4
Price
N/A
16-6
WORK STOP BRACKET
16-7
DISTANCE SET BRACKET
16-8
Now: PN02M
HEX NUT M10-1.5
Price
N/A
16-9
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
17
HANDWHEEL TYPE-3 140D X 14B-K X M8-1.25
17-1
HANDWHEEL TYPE-3 140D X 14B-K X M8-1.25
Price
N/A
17-2
Now: PW04
FLAT WASHER 7/16
Price
N/A
17-3
Now: PK20M
KEY 5 X 5 X 15
Price
N/A
17-4
VISE LEADSCREW
Price
N/A
17-5
ACME NUT ASSY 22 X 5
Price
N/A
17-6
LEADSCREW NUT BRACKET
Price
N/A
17-7
ROLL PIN 5 X 34
Price
N/A
17-8
SET SCREW M8-1.25 X 14
Price
N/A
18
Now: PW04
FLAT WASHER 7/16
Price
N/A
19
Now: PK20M
KEY 5 X 5 X 15
Price
N/A
20
VISE LEADSCREW
21
ACME NUT ASSY 22 X 5
Price
N/A
22
LEADSCREW NUT BRACKET
23
DOWEL PIN 5 X 34
24
CAP SCREW M10-1.5 X 25
Price
N/A
25
PIVOT SHAFT WASHER
26
GAP RING
27
LOCK WASHER 10MM
Price
N/A
28
GAP RING WASHER 10MM
29
LIMIT SWITCH BRACKET
30
Now: PW01M
FLAT WASHER 8MM
Price
N/A
31
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
32
REAR PIVOT BRACKET
33
SPRING BRACKET
34
LOCK WASHER 10MM
Price
N/A
35
Now: PB14M
HEX BOLT M10-1.5 X 35
Price
N/A
36
BASE
37
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
38
VISE SCALE
39
SET SCREW M8-1.25 X 10
Price
N/A
40
Now: PN02M
HEX NUT M10-1.5
Price
N/A
41
HEX BOLT M10-1.5 X 45
Price
N/A
42
VISE JAW BRACKET
43
BUSHING
44
Now: PW04M
FLAT WASHER 10MM
Price
N/A
45
CAP SCREW M10-1.5 X 35
Price
N/A
46
Now: PW04M
FLAT WASHER 10MM
Price
N/A
47
HEX LOCK BOLT
48
SET SCREW M8-1.25 X 30
Price
N/A
49
Now: PW04M
FLAT WASHER 10MM
Price
N/A
50
ADJUSTABLE HANDLE
51
VISE JAW BRACKET (REAR)
52
SET SCREW M6-1 X 10
Price
N/A
53
BUSHING
54
CAP SCREW M12-1.75 X 40
Price
N/A
55
Now: PN02M
HEX NUT M10-1.5
Price
N/A
56
Now: PW04M
FLAT WASHER 10MM
Price
N/A
57
SPRING HANDLE BRACKET
58
EYE BOLT
59
EXTENSION SPRING
60
Now: PB17M
HEX BOLT M8-1.25 X 10
Price
N/A
61
Now: PW01M
FLAT WASHER 8MM
Price
N/A
62
Now: PN03M
HEX NUT M8-1.25
Price
N/A
63
Now: PW06M
FLAT WASHER 12MM
Price
N/A
64
LOCK WASHER 12MM
Price
N/A
65
Now: PW03M
FLAT WASHER 6MM
Price
N/A
66
Now: PN04M
HEX NUT M4-.7
Price
N/A
67
PIVOT SHAFT
71
LIMIT SWITCH SUPPORT
72
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
73
LIMIT SWITCH KEYON KM1309
74
EXT TOOTH WASHER 6MM
Price
N/A
75
Now: PS51M
PHLP HD SCR M4-.7 X 30
Price
N/A
76
SET SCREW M8-1.25 X 14
Price
N/A

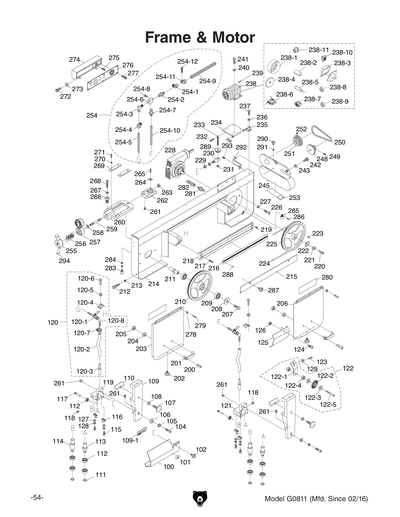

100
BLADE GUARD (FRONT)
101
SAW DIRECTION LABEL
102
KNOB M6-1 X 10
Price
N/A
104
CAP SCREW M10-1.5 X 30
Price
N/A
105
LOCK WASHER 10MM
Price
N/A
106
Now: PW04M
FLAT WASHER 10MM
Price
N/A
107
KNOB BOLT M10-1.5
108
Now: PW04M
FLAT WASHER 10MM
Price
N/A
109
ARM
109-1
BLADE DIRECTION LABEL
110
GIB
111
Now: PR39M
EXT RETAINING RING 8MM
Price
N/A
112
BALL BEARING 608-2RS
Price
N/A
113
SHORT ECCENTRIC SHAFT
Price
N/A
114
BLADE GUIDE SHAFT (FRONT)
115
CAP SCREW M6-1 X 20
Price
N/A
116
CARBIDE BLADE GUIDE
Price
N/A
117
BEARING SHAFT
118
SET SCREW M6-1 X 10
Price
N/A
119
BLADE ADJUSTMENT BRACKET (LEFT)
120
COOLANT HOSE ASSEMBLY
120-1
COOLANT VALVE
120-2
COOLANT HOSE 1/4"
120-3
HOSE FITTING
120-4
COOLANT VALVE CLAMP
120-5
LOCK WASHER 6MM
Price
N/A
120-6
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
120-7
HOSE CLAMP 1/4"
120-8
COOLANT VALVE BODY 1/8" X 1/4
121
LOWER BLADE GUIDE BLOCK
Price
N/A
122
BLADE BRUSH ASSEMBLY
122-1
BRUSH SUPPORT
122-2
BRUSH
122-3
Now: PW03M
FLAT WASHER 6MM
Price
N/A
122-4
Now: PN01M
HEX NUT M6-1
Price
N/A
122-5
Now: PB52M
HEX BOLT M6-1 X 35
Price
N/A
123
Now: PB04M
HEX BOLT M6-1 X 10
Price
N/A
124
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
125
BLADE GUARD II (REAR)
126
Now: PN01M
HEX NUT M6-1
Price
N/A
127
Now: PW03M
FLAT WASHER 6MM
Price
N/A
128
LOCK WASHER 6MM
Price
N/A
129
Now: PW03M
FLAT WASHER 6MM
Price
N/A
130
FRONT LIMIT SWITCH KEY
Price
N/A
131
REAR LIMIT SWITCH KEY
Price
N/A
132
BUTTON HD CAP SCR M4-.5 X 12
Price
N/A
133
REAR LIMIT SWITCH BRACKET
Price
N/A
134
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
135
CAP SCREW M4-.7 X 12
Price
N/A
136
Now: PN04M
HEX NUT M4-.7
Price
N/A
137
FRONT LIMIT SWITCH BRACKET
Price
N/A
138
REAR LIMIT SWITCH SQ3
Price
N/A
138-1
LIMIT SWITCH KEDU QKS8
Price
N/A
138-2
LIMIT SWITCH CORD 18G 2W 60"
Price
N/A
139
FRONT LIMIT SWITCH SQ2
Price
N/A
139-1
LIMIT SWITCH KEDU QKS8
Price
N/A
139-2
LIMIT SWITCH CORD 18G 2W 60"
Price
N/A
200
CAP SCREW M8-1.25 X 15
Price
N/A
201
HANDLE
202
STAR KNOB M6-1 X 10
203
BLADE COVER (LEFT)
203V2
BLADE COVER (LEFT) V2.06.20
204
LOCK WASHER 8MM
Price
N/A
205
Now: PN03M
HEX NUT M8-1.25
Price
N/A
206
BLADE COVER (RIGHT)
206V2
BLADE COVER (RIGHT) V2.06.20
207
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
208
Now: PW01M
FLAT WASHER 8MM
Price
N/A
209
BALL BEARING 6205ZZ
Price
N/A
210
IDLER WHEEL
211
IDLER SHAFT
212
HANDLE
213
Now: PN08
HEX NUT 3/8-16
Price
N/A
214
***SEE EXT DESCRIPTION****
Item is no longer available
Price
N/A
214V2
BODY FRAME V2.06.20
215
BLADE GUARD (TOP)
216
SCALE
217
CAP SCREW M12-1.75 X 20
Price
N/A
218
SCALE BRACKET
219
SET SCREW M8-1.25 X 20
Price
N/A
220
Now: PB74M
HEX BOLT M10-1.5 X 20
Price
N/A
221
LOCK WASHER 10MM
Price
N/A
222
DRIVE SHAFT WASHER 45MM
223
Now: PK61M
KEY 7 X 7 X 30
Price
N/A
224
BLADE 25.4 X 2910 X 0.9 X 5/8TPI
225
DRIVE WHEEL 7MM
226
CAP SCREW M10-1.5 X 20
Price
N/A
227
LOCK WASHER 10MM
Price
N/A
228
GEAR BOX ASSEMBLY
229
LOCK NUT M10-1.5
Price
N/A
230
SHAFT
231
Now: PN09M
HEX NUT M12-1.75
Price
N/A
232
CAP SCREW M10-1.5 X 50
Price
N/A
233
MOTOR SUPPORT SHAFT
234
MOTOR PLATE
235
MOTOR BRACKET
236
Now: PW03M
FLAT WASHER 6MM
Price
N/A
237
Now: PB18M
HEX BOLT M6-1 X 15
Price
N/A
238
MOTOR 1.5HP 220V 1-PH
238-1
MOTOR FAN COVER
238-10
CIRCUIT BREAKER
238-11
STRAIN RELIEF
238-2
CAPACITOR COVER
238-3
MOTOR JUNCTION BOX
238-4
MOTOR FAN
238-5
S CAPACITOR 150M 250V 1-3/8 X 2-5/8
238-6
CONTACT PLATE
238-7
CENTRIFUGAL SWITCH
238-8
BALL BEARING 6205ZZ
Price
N/A
238-9
BALL BEARING 6203ZZ
Price
N/A
239
Now: PK74M
KEY 6 X 6 X 35
Price
N/A
240
Now: PW01M
FLAT WASHER 8MM
Price
N/A
241
Now: PB87M
HEX BOLT M8-1.25 X 15
Price
N/A
242
Now: PB87M
HEX BOLT M8-1.25 X 15
Price
N/A
243
Now: PW01M
FLAT WASHER 8MM
Price
N/A
245
MOTOR PULLEY COVER ASSEMBLY
248
SPINDLE PULLEY
249
SET SCREW M8-1.25 X 10
Price
N/A
250
Now: PVA32
V-BELT A32
Price
N/A
251
MOTOR PULLEY
252
SET SCREW M8-1.25 X 10
Price
N/A
253
SPEED LABEL
254
3-WAY VALVE ASSEMBLY
254-1
HOSE CLAMP 12MM
254-10
COOLANT HOSE 1/4" X 2.8" X 13"
254-11
HOSE CLAMP
254-12
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
254-2
MICRO CONTROL BLOCK 1/4" X 1/2"
254-3
MICRO CONTROL BLOCK 1/4" X 1/2"
254-4
HOSE CLAMP 1/4"
254-5
COOLANT HOSE 1/4" X 2" X 32"
254-6
3-WAY VALVE
254-7
STRAIGHT CONNECTOR PT 1/4" X 1/4"
254-8
CAP SCREW M6-1 X 30
Price
N/A
254-9
COOLANT HOSE 1/4" X 2.2" X 57"
255
BLADE TENSION HANDWHEEL
256
THRUST BEARING 51203
Price
N/A
257
HYDRAULIC BLADE TENSION GAUGE W/ BASE
258
LOCK WASHER 16.3 X 31.5 X 1.8
259
BLADE TENSION LEADSCREW
260
TENSION BRACKET
261
SET SCREW M6-1 X 16
Price
N/A
262
ANCHOR BRACKET
263
Now: PN13M
HEX NUT M16-2
Price
N/A
264
Now: PW01M
FLAT WASHER 8MM
Price
N/A
265
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
266
INTERNALLY THREADED SCREW
267
LOCK WASHER 10MM
Price
N/A
268
Now: PB34M
HEX BOLT M10-1.5 X 60
Price
N/A
269
SLIDING PLATE
270
LOCK WASHER 8MM
Price
N/A
271
CAP SCREW M8-1.25 X 10
Price
N/A

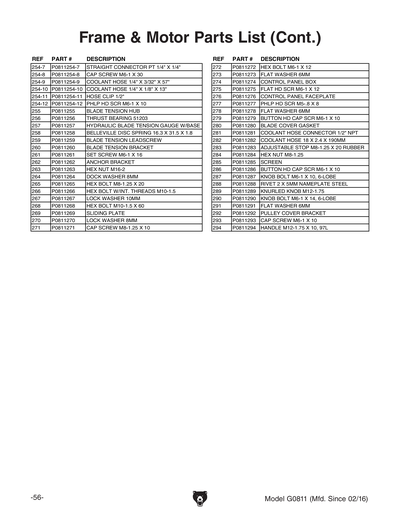

272
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
273
Now: PW03M
FLAT WASHER 6MM
Price
N/A
274
CONTROL BOX
275
FLAT HD SCR M6-1 X 12
Price
N/A
276
CONTROL PLATE
277
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
278
Now: PW03M
FLAT WASHER 6MM
Price
N/A
279
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
280
BLADE COVER GASKET
281
COOLANT HOSE CONNECTOR 1/2" NPT
282
COOLANT HOSE 18 X 24 X 190MM
283
ADJUSTABLE STOP M8-1.25 (RUBBER)
284
Now: PN03M
HEX NUT M8-1.25
Price
N/A
285
SCREEN
286
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
287
STAR KNOB M6-1 X 10
288
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
289
KNURLED KNOB
290
STAR KNOB M6-1
291
Now: PW03M
FLAT WASHER 6MM
Price
N/A
292
BRACKET
293
CAP SCREW M6-1 X 10
Price
N/A
294
BLADE TENSION HANDLE
295
TENSION SCALE

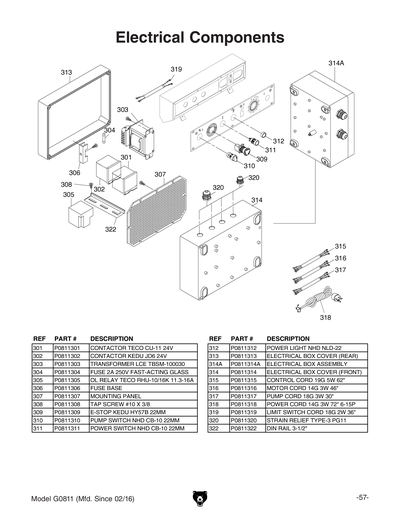

301
CONTACTOR TECO CU-11 24V
302
CONTACTOR KEDU JD6 24V
303
TRANSFORMER LCE TBSM-100030
304
FUSE 2A 250V FAST-ACTING GLASS
305
OL RELAY TECO RHU-10/16K 11.3-16A
306
FUSE BASE
307
MOUNTING PANEL
308
TAP SCREW #10 X 3/8
Price
N/A
309
STOP SWITCH KEDU HY57B 22MM
310
PUMP SWITCH NHD CB-10 22MM
311
POWER SWITCH NHD CB-10 22MM
312
POWER LIGHT NHD NLD-22
313
ELECTRICAL BOX COVER (REAR)
314
ELECTRICAL BOX COVER (FRONT)
314A
ELECTRICAL BOX ASSEMBLY
315
CONTROL CORD 19G 5W 62"
316
MOTOR CORD 14G 3W 46"
317
PUMP CORD 18G 3W 30"
318
POWER CORD 14G 3W 72" 6-15P
319
LIMIT SWITCH CORD 18G 2C 36"
320
STRAIN RELIEF TYPE-3 PG11
322
DIN RAIL 3-1/2"

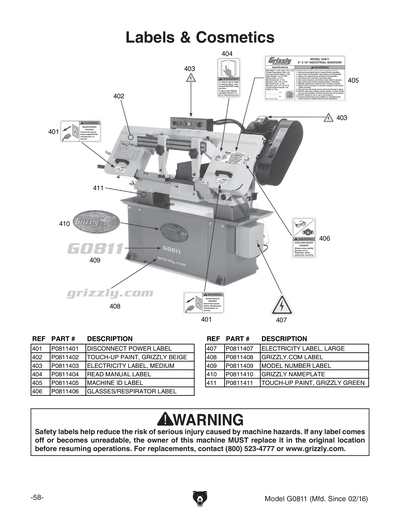

401
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
402
BEIGE REF G0555
Price
N/A
403
ELECTRICITY 0.7W X 0.6H
Price
N/A
404
READ MANUAL 1.5W X 2.5H
Price
N/A
405
MACHINE ID LABEL
406
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
407
ELECTRICITY 1.4W X 1.2H
Price
N/A
408
GRIZZLY.COM LABEL
409
MODEL NUMBER LABEL
410
Now: G8589
Nameplate - Large
Price
N/A
411
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL G0811 MFD.-12.15 V1.10.16
