Parts for G0813 - 6" x 48" Jointer with Economy Stand

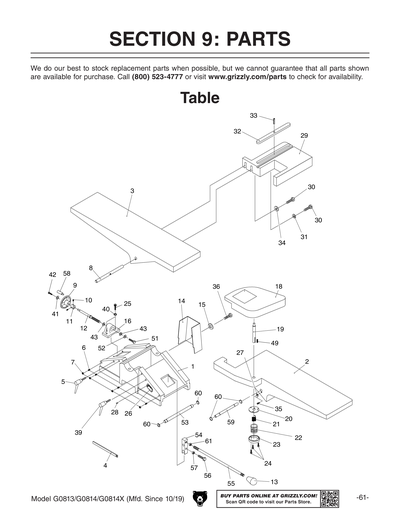

Part Diagram for G0813
Part Diagram for G0813
Part Diagram for G0813
Part Diagram for G0813
Part Diagram for G0813
Part Diagram for G0813
Part Diagram for G0813
Part Diagram for G0813
Part Diagram for G0813
Part Diagram for G0813
Part Diagram for G0813
Part Diagram for G0813
Part Diagram for G0813
Part Diagram for G0813
Part Diagram for G0813
Part Diagram for G0813
Part Diagram for G0813
Part Diagram for G0813
Part Diagram for G0813
Part Diagram for G0813

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

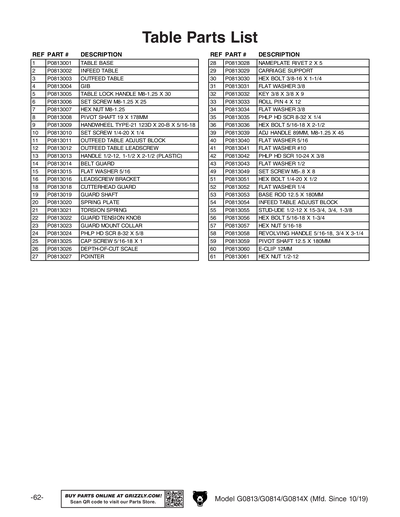

Ref #
Part #
Description
1
TABLE BASE
Item is no longer available
Price
N/A
1A
COMPLETE TABLE ASSY
Price
$470.95
2
INFEED TABLE
Price
$289.80
3
OUTFEED TABLE
Price
$180.55
4
GIB
Price
$3.05
5
TABLE LOCK HANDLE M8-1.25 X 30
Price
$9.10
6
SET SCREW 3/8-16 X 5/8
Price
N/A
7
P0813007
Now: PN03
HEX NUT 3/4-16
Price
N/A
8
PIVOT SHAFT 19 X 178MM
Price
$4.30
9
HANDWHEEL TYPE-21 123D X 20-B X 5/16-18
Price
$42.65
10
SET SCREW 1/4-20 X 1/4
Price
N/A
11
LOCK COLLAR
Price
$2.75
12
OUTFEED TABLE LEADSCREW
Price
$7.00
13
HANDLE 1/2-12, 1-1/2 X 2-1/2 (PLASTIC)
Price
$3.65
14
BELT GUARD
Price
$11.70
15
P0813015
Now: PW07
FLAT WASHER 5/16
Price
N/A
16
LEADSCREW BRACKET
Price
$6.40
18
CUTTERHEAD GUARD
Price
$46.65
19
GUARD SHAFT
Price
$10.00
20
SPRING PLATE
Price
$4.85
21
TORSION SPRING
Price
$4.50
22
GUARD TENSION KNOB
Price
$6.80
23
*DISCD*GUARD MOUNT COLLAR
Item is no longer available
Price
N/A
24
P0813024
Now: PS25
PHLP HD SCR 8-32 X 5/8
Price
N/A
25
CAP SCREW 5/16-18 X 1
Price
N/A
26
DEPTH-OF-CUT SCALE
Item is no longer available
Price
N/A
27
POINTER
Item is no longer available
Price
N/A
28
NAMEPLATE RIVET 2 X 5
Item is no longer available
Price
N/A
29
CARRIAGE SUPPORT
Price
$84.35
30
P0813030
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
31
P0813031
Now: PW02
FLAT WASHER 3/8
Price
N/A
32
KEY 3/8 X 3/8 X 9 W/HOLE
Price
N/A
33
ROLL PIN 4 X 12
Price
N/A
34
P0813034
Now: PW02
FLAT WASHER 3/8
Price
N/A
35
P0813035
Now: PS23
PHLP HD SCR 8-32 X 1/4
Price
N/A
36
P0813036
Now: PB23
HEX BOLT 5/16-18 X 2-1/2
Price
N/A
39
ADJ HANDLE 89MM, M8-1.25 X 45
Price
$8.95
40
P0813040
Now: PW07
FLAT WASHER 5/16
Price
N/A
41
P0813041
Now: PW03
FLAT WASHER #10
Price
N/A
42
P0813042
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
43
P0813043
Now: PW01
FLAT WASHER 1/2
Price
N/A
49
SET SCREW M5-.8 X 8
Price
N/A
51
P0813051
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
52
P0813052
Now: PW06
FLAT WASHER 1/4
Price
N/A
53
BASE ROD 12.5 X 180MM
Item is no longer available
Price
N/A
54
INFEED TABLE ADJUST BLOCK
Price
$25.40
55
STUD-UDE 1/2-12 X 15-3/4, 3/4, 1-3/8
Price
$4.30
56
P0813056
Now: PB22
HEX BOLT 5/16-18 X 1-3/4
Price
N/A
57
P0813057
Now: PN02
HEX NUT 5/16-18
Price
N/A
58
REVOLVING HANDLE 5/16-18, 3/4 X 3-1/4
Price
$21.75
59
PIVOT SHAFT 12.5 X 180MM
Item is no longer available
Price
N/A
60
E-CLIP 12MM
Price
N/A

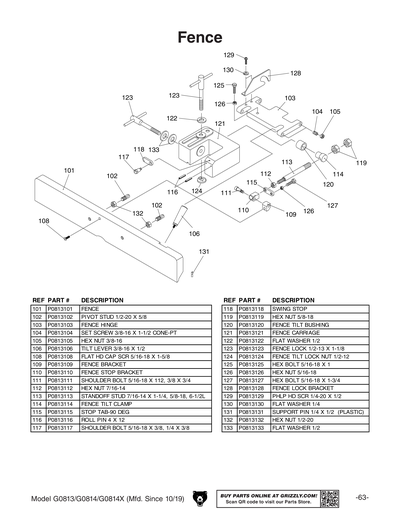

101
FENCE
Price
$119.55
102
PIVOT STUD 1/2-20 X 5/8
Price
$3.95
103
FENCE HINGE
Price
$39.85
104
SET SCREW 3/8-16 X 1-1/2 CONE-PT
Price
$2.75
105
P0813105
Now: PN08
HEX NUT 3/8-16
Price
N/A
106
TILT LEVER 3/8-16 X 1/2
Price
$10.90
108
FLAT HD CAP SCR 5/16-18 X 1-5/8
Price
$1.60
109
FENCE BRACKET
Price
$3.95
110
FENCE STOP BRACKET
Price
$3.65
111
SHOULDER BOLT 5/16-18 X 112, 3/8 X 3/4
Price
$4.00
112
P0813112
Now: PN19
HEX NUT 7/16-14
Price
N/A
113
STANDOFF STUD 7/16-14 X 1-1/4, 5/8-18,
Price
$5.50
114
FENCE TILT CLAMP
Price
$8.75
115
STOP TAB-90 DEG
Price
$1.85
116
ROLL PIN 4 X 12
Price
N/A
117
SHOULDER BOLT 5/16-18 X 3/8, 1/4 X 3/8
Price
$3.05
118
SWING STOP
Price
$1.60
119
P0813119
Now: PN09
HEX NUT 5/8-18
Price
N/A
120
FENCE TILT BUSHING
Price
$2.75
121
FENCE CARRIAGE
Price
$90.60
122
P0813122
Now: PW01
FLAT WASHER 1/2
Price
N/A
123
FENCE LOCK 1/2-12 X 1-1/8
Price
$11.45
124
FENCE TILT LOCK NUT 1/2-12
Price
$4.30
125
P0813125
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
126
P0813126
Now: PN02
HEX NUT 5/16-18
Price
N/A
127
P0813127
Now: PB22
HEX BOLT 5/16-18 X 1-3/4
Price
N/A
128
FENCE LOCK BRACKET
Price
$4.40
129
P0813129
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
130
P0813130
Now: PW06
FLAT WASHER 1/4
Price
N/A
131
SUPPORT PIN 1/4 X 1/2 (PLASTIC)
Price
$6.05
132
P0813132
Now: PN01
HEX NUT 1/2-20
Price
N/A
133
P0813133
Now: PW01
FLAT WASHER 1/2
Price
N/A

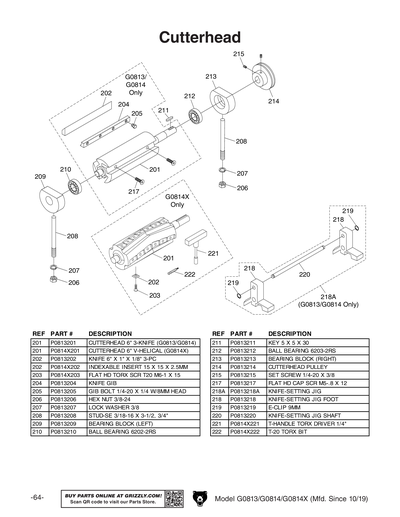

201
CUTTERHEAD 6" 3-KNIFE
Price
$108.70
202
KNIFE 6" X 1" X 1/8" 3-PC
Price
$43.50
204
KNIFE GIB
Price
$20.35
205
GIB BOLT 1/4-20 X1/4 W/ 8MM HEAD
Price
$1.60
206
P0813206
Now: PN11
HEX NUT 3/8-24
Price
N/A
207
LOCK WASHER 3/8
Price
N/A
208
STUD-SE 3/18-16 X 3-1/2, 3/4"
Price
$2.45
209
BEARING BLOCK (LEFT)
Price
$18.15
210
BALL BEARING 6202-2RS
Price
N/A
211
KEY 5 X 5 X 30
Price
N/A
212
BALL BEARING 6203-2RS
Price
N/A
213
BEARING BLOCK (RIGHT)
Price
$18.15
214
CUTTERHEAD PULLEY
Price
$15.70
215
SET SCREW 1/4-20 X 3/8
Price
N/A
217
FLAT HD CAP SCR M5-.8 X 12
Price
N/A
218
KNIFE-SETTING JIG FOOT
Price
$2.60
218A
KNIFE-SETTING JIG
Price
$12.85
219
E-CLIP 9MM
Price
N/A
220
KNIFE-SETTING JIG SHAFT
Price
$3.05

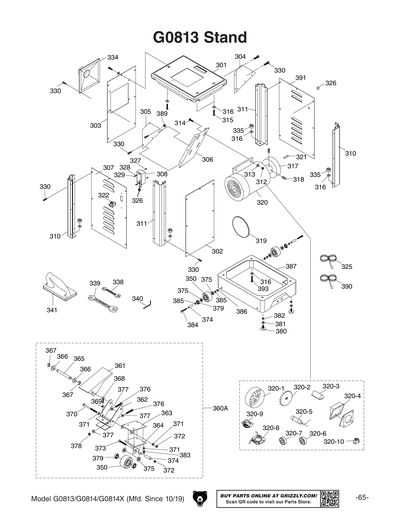

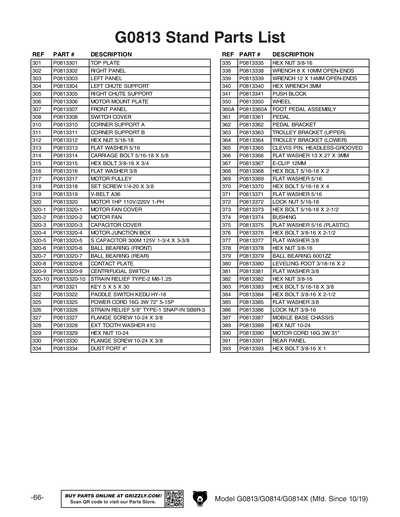

301
TOP PLATE
Price
$58.00
302
RIGHT PANEL
Price
$11.85
303
LEFT PANEL
Price
$14.25
304
LEFT CHUTE SUPPORT
Price
$10.00
305
RIGHT CHUTE SUPPORT
Price
$15.45
306
MOTOR MOUNT PLATE
Price
$16.05
307
FRONT PANEL
Price
$19.00
308
SWITCH COVER
Price
$10.30
310
CORNER SUPPORT A
Price
$12.75
311
CORNER SUPPORT B
Price
$36.25
312
P0813312
Now: PN02
HEX NUT 5/16-18
Price
N/A
313
P0813313
Now: PW07
FLAT WASHER 5/16
Price
N/A
314
CARRIAGE BOLT 5/16-18 X 5/8
Price
N/A
315
P0813315
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
316
P0813316
Now: PW02
FLAT WASHER 3/8
Price
N/A
317
MOTOR PULLEY
Price
$19.95
318
SET SCREW 1/4-20 X 3/8
Price
N/A
319
V-BELT A36
Price
N/A
320
MOTOR 1HP 110V/220V 1-PH
Price
$264.45
320-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
320-10
STRAIN RELIEF TYPE-2 M8-1.25
Item is no longer available
Price
N/A
320-2
MOTOR FAN
Item is no longer available
Price
N/A
320-3
CAPACITOR COVER
Item is no longer available
Price
N/A
320-4
MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
320-5
S CAPACITOR 300M 125V 1-3/4 X 3-3/8
Price
N/A
320-6
BALL BEARING (FRONT)
Price
$8.80
320-7
BALL BEARING (REAR)
Price
$8.80
320-8
CONTACT PLATE
Item is no longer available
Price
N/A
320-9
CENTRIFUGAL SWITCH
Item is no longer available
Price
N/A
321
KEY 5 X 5 X 30
Price
N/A
322
Safety Paddle Switch
Price
N/A
325
POWER CORD 16G 3W 72" 5-15P
Price
$10.35
326
STRAIN RELIEF 5/8" TYPE-1 SNAP-IN SB6R-3
Price
$1.60
327
FLANGE SCREW 10-24 X 3/8
Price
N/A
328
EXT TOOTH WASHER #10
Price
N/A
329
P0813329
Now: PN07
HEX NUT 10-24
Price
N/A
330
FLANGE SCREW 10-24 X 3/8
Price
N/A
334
DUST PORT 4"
Price
$5.15
335
P0813335
Now: PN08
HEX NUT 3/8-16
Price
N/A
338
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
339
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
340
HEX WRENCH 3MM
Price
N/A
341
PUSH BLOCK
Price
$11.70
350
***SEE EXT DESC***
Item is no longer available
Price
N/A
350V2
WHEEL (BLACK) V2.03.19
Price
$5.50
360A
FOOT PEDAL ASSEMBLY V1
Price
$29.90
360AV2
FOOT PEDAL ASSEMBLY V2.03.19
Price
$54.35
361
PEDAL
Price
$14.25
362
PEDAL BRACKET
Item is no longer available
Price
N/A
363
TROLLEY BRACKET (UPPER)
Item is no longer available
Price
N/A
364
TROLLEY BRACKET (LOWER)
Item is no longer available
Price
N/A
365
CLEVIS PIN, HEADLESS-GROOVED
Price
$8.20
366
*DISCD*FLAT WASHER 13 X 27 X 3MM
Item is no longer available
Price
N/A
367
E-CLIP 12MM
Price
N/A
368
P0813368
Now: PB06
HEX BOLT 5/16-18 X 2
Price
N/A
369
P0813369
Now: PW07
FLAT WASHER 5/16
Price
N/A
370
HEX BOLT 5/16-18 X 4
Price
N/A
371
P0813371
Now: PW07
FLAT WASHER 5/16
Price
N/A
372
LOCK NUT 5/16-18
Price
N/A
372V2
LOCK NUT 3/8-24 V2.03.19
Price
$1.49
373
P0813373
Now: PB23
HEX BOLT 5/16-18 X 2-1/2
Price
N/A
373V2
WHEEL AXLE BOLT 3/8-24 X 2-1/2 V2.03.19
Price
$2.90
374
BUSHING
Price
$1.85
375
FLAT WASHER 5/16 (PLASTIC)
Price
$1.60
376
P0813376
Now: PB35
HEX BOLT 3/8-16 X 2-1/2
Price
N/A
377
P0813377
Now: PW02
FLAT WASHER 3/8
Price
N/A
378
P0813378
Now: PN08
HEX NUT 3/8-16
Price
N/A
379
BALL BEARING 6001ZZ
Price
N/A
380
LEVELING FOOT 3/8-16 X 2
Price
$3.35
381
P0813381
Now: PW02
FLAT WASHER 3/8
Price
N/A
382
P0813382
Now: PN08
HEX NUT 3/8-16
Price
N/A
383
P0813383
Now: PB15
HEX BOLT 5/16-18 X 3/8
Price
N/A
384
P0813384
Now: PB35
HEX BOLT 3/8-16 X 2-1/2
Price
N/A
384V2
WHEEL AXLE BOLT 3/8-24 X 2-1/2 V2.03.19
Price
N/A
385
P0813385
Now: PW02
FLAT WASHER 3/8
Price
N/A
386
LOCK NUT 3/8-16
Price
N/A
386V2
LOCK NUT 3/8-24 V2.03.19
Price
N/A
387
MOBILE BASE CHASSIS
Price
$54.35
388
P0813388
Now: PW03
FLAT WASHER #10
Price
N/A
389
P0813389
Now: PN07
HEX NUT 10-24
Price
N/A
390
MOTOR CORD 16G 3W 31"
Price
$27.05
391
REAR PANEL
Price
$50.75
392
*DISCD*SWITCH CORD 16G 3W 30"
Item is no longer available
Price
N/A
393
P0813393
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A

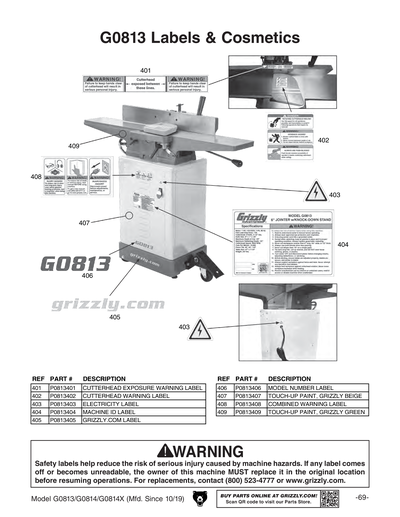

401
CUTTERHEAD EXPOSURE WARNING LABEL
Price
$1.00
402
CUTTERHEAD WARNING LABEL
Price
$1.75
403
ELECTRICITY 0.7W X 0.6H
Price
N/A
404
MACHINE ID LABEL
Price
$16.40
405
GRIZZLY.COM LABEL
Price
$4.30
406
MODEL NUMBER LABEL
Price
$1.75
407
BEIGE REF G0555
Price
N/A
408
COMBINED WARNING LABEL
Item is no longer available
Price
N/A
409
N/S GRIZZLY GREEN G1023S
Price
N/A
BOX2
COMPLETE BOX 2 OF 2 FOR G0813
Price
$166.65
MAN
MAN G0813/G0814 MFD-03.16-09.19 V1.03.16
Price
$22.50
MANV2
MAN G0813/14/14X MFD-10.19-3.22 V2.11.19
Item is no longer available
Price
N/A
