Parts for G0818 - 1-1/2 HP Metal Dust Collector

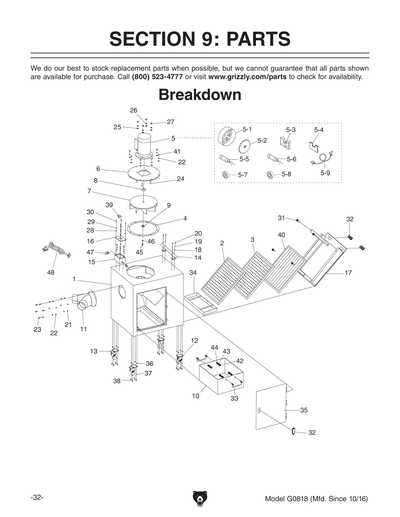

Part Diagram for G0818
Part Diagram for G0818
Part Diagram for G0818
Part Diagram for G0818
Part Diagram for G0818
Part Diagram for G0818

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

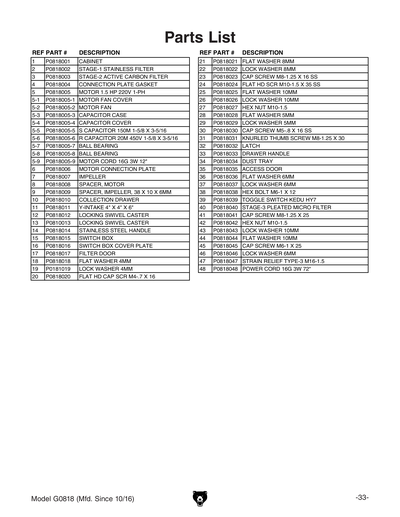

Ref #
Part #
Description
1
CABINET
Item is no longer available
Price
N/A
2
First-Stage Stainless Filter for G0818
Price
N/A
3
Second-Stage Active Carbon Filter for G0818
Price
N/A
4
CONNECTION PLATE GASKET
Item is no longer available
Price
N/A
5
*DISCD*MOTOR 1.5 HP 220V 1-PH
Item is no longer available
Price
N/A
5-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
5-2
MOTOR FAN
Item is no longer available
Price
N/A
5-3
CAPACITOR CASE
Item is no longer available
Price
N/A
5-4
CAPACITOR COVER
Item is no longer available
Price
N/A
5-5
S CAPACITOR 150UF 250V 1-5/8 X 3-5/16
Price
$35.70
5-6
R CAPACITOR 20UF 450V 1-5/8 X 3-5/16
Price
$18.70
5-7
BALL BEARING (FRONT)
Item is no longer available
Price
N/A
5-8
BALL BEARING (REAR)
Item is no longer available
Price
N/A
5-9
MOTOR CORD 16G 3W 12"
Item is no longer available
Price
N/A
6
MOTOR CONNECTION PLATE
Item is no longer available
Price
N/A
7
IMPELLER
Item is no longer available
Price
N/A
8
MOTOR SPACER
Item is no longer available
Price
N/A
9
IMPELLER SPACER, 10 X 38 X 6MM
Price
$2.90
10
Price
$65.55
11
Y-INTAKE DUST PORT 4" X 4" X 6"
Item is no longer available
Price
N/A
12
FIXED CASTER
Item is no longer available
Price
N/A
14
STAINLESS STEEL PUSH HANDLE
Item is no longer available
Price
N/A
15
SWITCH BOX
Item is no longer available
Price
N/A
16
SWITCH BOX COVER PLATE
Item is no longer available
Price
N/A
17
Price
$138.00
18
FLAT WASHER 4MM
Price
N/A
20
FLAT HD CAP SCR M4-.7 X 16
Price
N/A
21
FLAT WASHER 8MM
Price
N/A
22
LOCK WASHER 8MM
Price
N/A
23
CAP SCREW M8-1.25 X 16 SS
Price
N/A
24
FLAT HD SCR M10-1.5 X 35 SS
Item is no longer available
Price
N/A
25
FLAT WASHER 10MM
Price
N/A
26
LOCK WASHER 10MM
Price
N/A
27
HEX NUT M10-1.5
Price
N/A
28
FLAT WASHER 5MM
Price
N/A
29
LOCK WASHER 5MM
Price
N/A
30
CAP SCREW M5-.8 X 16 SS
Price
N/A
31
KNURLED THUMB SCREW M8-1.25 X 30
Price
$6.15
32
Price
$27.00
33
Price
$13.80
34
Price
$34.50
35
ACCESS DOOR
Item is no longer available
Price
N/A
36
FLAT WASHER 6MM
Price
N/A
37
LOCK WASHER 6MM
Price
N/A
38
HEX BOLT M6-1 X 12
Price
N/A
39
Toggle Safety Switch
Price
N/A
40
Third-Stage 1-Micron Pleated Filter for G0818
Price
N/A
41
CAP SCREW M8-1.25 X 25
Price
N/A
42
HEX NUT M10-1.5
Price
N/A
43
LOCK WASHER 10MM
Price
N/A
44
FLAT WASHER 10MM
Price
N/A
45
CAP SCREW M6-1 X 25
Price
N/A
46
LOCK WASHER 6MM
Price
N/A
47
STRAIN RELIEF TYPE-3 M16-1.5
Item is no longer available
Price
N/A
48
POWER CORD 16G 3W 72" 6-15P
Item is no longer available
Price
N/A

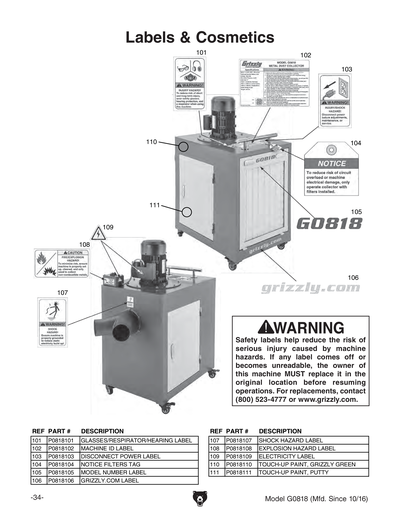

101
EYE/EAR/LUNG 1.5W X 2.5H
Price
N/A
102
MACHINE ID LABEL
Item is no longer available
Price
N/A
103
DISCONNECT 220V 1.5W X 2.5H
Price
N/A
104
DUST COLLECTORS NOTICE 2.5W X 2.5H
Price
N/A
105
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
106
GRIZZLY.COM LABEL 8.5",BEIGE
Price
N/A
107
SHOCK HAZARD LABEL
Item is no longer available
Price
N/A
108
EXPLOSION HAZARD LABEL
Item is no longer available
Price
N/A
109
ELECTRICITY 0.7W X 0.6H
Price
N/A
110
N/S GRIZZLY GREEN G1023S
Price
N/A
111
GREY PUTTY REF G0504
Price
N/A
MAN
MANUAL G0818 MFD-10.16 V1.01.17
Item is no longer available
Price
N/A
P0181019
LOCK WASHER 4MM
Price
N/A
