Parts for G0819 - 15" 5 HP Open-End Wide-Belt Sander

1/11

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

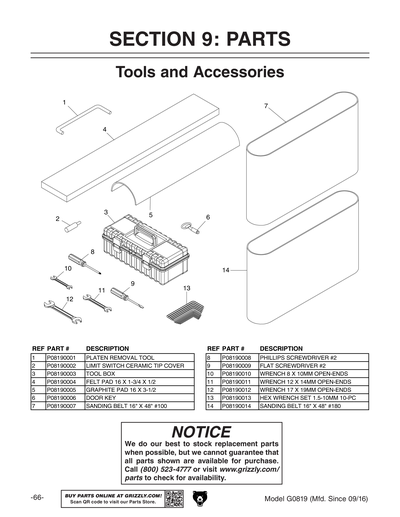

1
PLATEN REMOVAL TOOL
Price
$7.50
2
LIMIT SWITCH CERAMIC TIP COVER
Price
$18.00
3
TOOL BOX
Price
$53.50
4
*DISCD*FELT PAD 15-1/4 x 1-3/4 x 1/2
Item is no longer available
Price
N/A
5
GRAPHITE PAD 16 X 3-1/2
Price
$19.50
6
DOOR KEY
Price
$21.50
7
SANDING BELT 16" X 48" #100
Price
$16.50
8
SCREWDRIVER PHILLIPS #2
Price
N/A
9
SCREWDRIVER FLAT #2
Price
N/A
10
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
11
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
12
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
13
HEX WRENCH SET 1.5-10MM 10-PC
Price
$7.50
14
SANDING BELT 16" X 48" #180
Price
$16.50

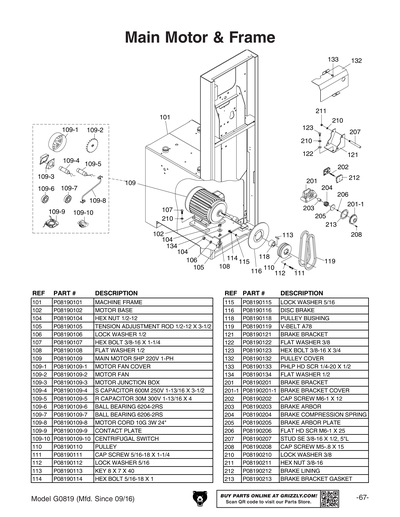

101
MACHINE FRAME
Price
$927.00
102
MOTOR BASE
Price
$106.50
104
HEX NUT 1/2-12
Price
N/A
105
TENSION ADJUSTMENT ROD 1/2-12 X 3-1/2
Price
$4.00
106
LOCK WASHER 1/2
Price
N/A
107
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
108
FLAT WASHER 1/2
Price
N/A
109
MAIN MOTOR 5HP 220V 1-PH
Price
$659.50
109-1
MOTOR FAN COVER
Price
$13.00
109-10
CENTRIFUGAL SWITCH
Price
$34.00
109-2
MOTOR FAN
Price
$7.50
109-3
MOTOR JUNCTION BOX
Price
$8.00
109-4
S CAPACITOR 600M 250V 1-13/16 X 3-1/2
Price
$34.25
109-5
R CAPACITOR 30M 300V 1-13/16 X 4
Price
$38.50
109-6
BALL BEARING 6204-2RS
Price
N/A
109-7
BALL BEARING 6206-2RS
Price
N/A
109-8
MOTOR CORD 10G 3W 24"
Price
$25.00
109-9
CONTACT PLATE
Price
$32.50
110
PULLEY
Price
$82.00
111
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
112
LOCK WASHER 5/16
Price
N/A
113
KEY 8 X 7 X 55
Price
$4.00
114
HEX BOLT 5/16-18 X 1
Price
N/A
115
LOCK WASHER 5/16
Price
N/A
116
DISC BRAKE
Price
$234.00
118
PULLEY BUSHING
Price
$36.00
119
V-BELT A78
Price
N/A
121
BRAKE BRACKET
Price
$36.00
122
FLAT WASHER 3/8
Price
N/A
123
HEX BOLT 3/8-16 X 3/4
Price
N/A
132
PULLEY COVER
Price
$36.00
133
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
134
FLAT WASHER 1/2
Price
N/A
201
BRAKE BRACKET
Price
$53.50
201-1
BRAKE BRACKET COVER
Price
$18.00
202
CAP SCREW M6-1 X 12
Price
N/A
203
BRAKE ARBOR
Price
$18.00
204
BRAKE COMPRESSION SPRING
Price
$4.00
205
BRAKE ARBOR PLATE
Price
$18.00
206
FLAT HD SCR M6-1 X 25
Price
N/A
207
STUD SE 3/8-16 X 1/2, 5"L
Price
$7.50
208
CAP SCREW M5-.8 X 15
Price
N/A
210
LOCK WASHER 3/8
Price
N/A
211
HEX NUT 3/8-16
Price
N/A
212
BRAKE LINING
Price
$29.00
213
BRAKE BRACKET GASKET
Price
$9.50

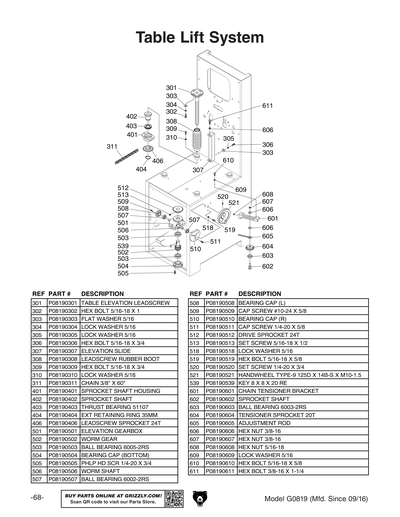

301
TABLE ELEVATION LEADSCREW
Price
$142.00
302
HEX BOLT 5/16-18 X 1
Price
N/A
303
FLAT WASHER 5/16
Price
N/A
304
LOCK WASHER 5/16
Price
N/A
305
LOCK WASHER 5/16
Price
N/A
306
HEX BOLT 5/16-18 X 3/4
Price
N/A
307
ELEVATION SLIDE
Price
$37.50
308
LEADSCREW RUBBER BOOT
Price
$42.00
309
HEX BOLT 5/16-18 X 3/4
Price
N/A
310
LOCK WASHER 5/16
Price
N/A
311
CHAIN 3/8" X 60"
Price
$53.50
401
SPROCKET SHAFT HOUSING
Price
$18.00
402
SPROCKET SHAFT
Price
$29.00
403
THRUST BEARING 51107
Price
N/A
404
EXT RETAINING RING 35MM
Price
N/A
406
LEADSCREW SPROCKET 24T
Price
$18.00
501
ELEVATION GEARBOX
Price
$71.50
502
WORM GEAR
Price
$42.50
503
BALL BEARING 6005-2RS
Price
N/A
504
BEARING CAP (BOTTOM)
Price
$29.00
505
PHLP HD SCR 1/4-20 X 3/4
Price
N/A
506
WORM SHAFT
Price
$42.50
507
BALL BEARING 6002-2RS
Price
N/A
508
BEARING CAP (L)
Price
$29.00
509
CAP SCREW 10-24 X 5/8
Price
N/A
510
BEARING CAP (R)
Price
$36.00
511
CAP SCREW 1/4-20 X 5/8
Price
N/A
512
DRIVE SPROCKET 24T
Price
$42.50
513
SET SCREW 5/16-18 X 1/2
Price
N/A
518
LOCK WASHER 5/16
Price
N/A
519
HEX BOLT 5/16-18 X 5/8
Price
N/A
520
SET SCREW 1/4-20 X 3/4
Price
N/A
521
HANDWHEEL TYPE-9 125D X 14B-S X M10-1.5
Price
$65.00
539
KEY 8 X 8 X 20
Price
N/A
601
CHAIN TENSIONER BRACKET
Price
$131.50
602
SPROCKET SHAFT
Price
$20.00
603
BALL BEARING 6003-2RS
Price
N/A
604
TENSIONER SPROCKET 20T
Price
$36.00
605
ADJUSTMENT ROD
Price
$11.00
606
HEX NUT 3/8-16
Price
N/A
607
HEX NUT 3/8-16
Price
N/A
608
HEX NUT 5/16-18
Price
N/A
609
LOCK WASHER 5/16
Price
N/A
610
HEX BOLT 5/16-18 X 5/8
Price
N/A
611
HEX BOLT 3/8-16 X 1-1/4
Price
$2.00

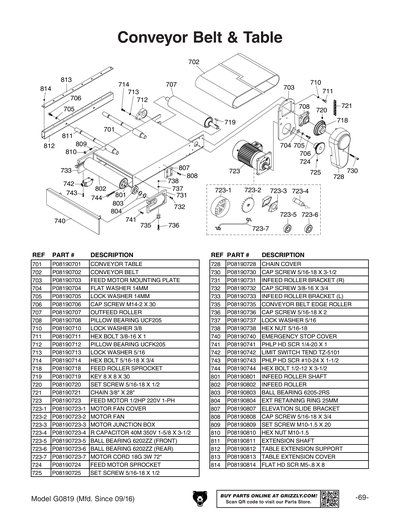

701
CONVEYOR TABLE
Price
$324.50
702
CONVEYOR BELT
Price
$217.50
703
FEED MOTOR MOUNTING PLATE
Price
$78.50
704
FLAT WASHER 14MM
Price
N/A
705
LOCK WASHER 14MM
Price
N/A
706
CAP SCREW M14-2 X 30
Price
N/A
707
OUTFEED ROLLER
Price
$772.50
708
PILLOW BEARING UCF205
Price
$42.50
710
LOCK WASHER 3/8
Price
N/A
711
HEX BOLT 3/8-16 X 1
Price
N/A
712
PILLOW BEARING UCFK205
Price
$59.00
713
LOCK WASHER 5/16
Price
N/A
714
HEX BOLT 5/16-18 X 3/4
Price
N/A
718
FEED ROLLER SPROCKET
Price
$29.00
719
KEY 8 X 8 X 30
Price
N/A
720
SET SCREW 5/16-18 X 1/2
Price
N/A
721
CHAIN 3/8" X 28"
Price
$42.50
723
FEED MOTOR 1/2HP 220V 1-PH
Price
$495.25
723-1
MOTOR FAN COVER
Price
$16.00
723-2
MOTOR FAN
Price
$7.50
723-3
MOTOR JUNCTION BOX
Price
$27.00
723-4
R CAPACITOR 40M 350V 1-5/8 X 3-1/2
Price
$23.00
723-5
BALL BEARING 6202ZZ
Price
N/A
723-6
BALL BEARING 6202ZZ
Price
N/A
723-7
MOTOR CORD 18G 3W 72"
Price
$12.50
724
FEED MOTOR SPROCKET
Price
$27.00
725
SET SCREW 5/16-18 X 1/2
Price
N/A
728
CHAIN COVER
Price
$124.50
730
CAP SCREW 5/16-18 X 3-1/2
Price
N/A
731
INFEED ROLLER BRACKET (R)
Price
$56.00
732
CAP SCREW 3/8-16 X 3/4
Price
N/A
733
INFEED ROLLER BRACKET (L)
Price
$53.50
735
CONVEYOR BELT EDGE ROLLER
Price
$18.00
736
CAP SCREW 5/16-18 X 2
Price
N/A
737
LOCK WASHER 5/16
Price
N/A
738
HEX NUT 5/16-18
Price
N/A
740
EMERGENCY STOP COVER
Price
$46.50
741
PHLP HD SCR 1/4-20 X 1
Price
N/A
742
LIMIT SWITCH TEND TZ-5101
Price
$71.50
743
PHLP HD SCR 10-24 X 1-1/2
Price
N/A
744
HEX BOLT 1/2-12 X 3-1/2
Price
N/A
801
INFEED ROLLER SHAFT
Price
$232.00
802
INFEED ROLLER
Price
$402.00
803
BALL BEARING 6205-2RS
Price
N/A
804
EXT RETAINING RING 25MM
Price
N/A
807
ELEVATION SLIDE BRACKET
Price
$15.50
808
CAP SCREW 5/16-18 X 3/4
Price
N/A
809
SET SCREW M10-1.5 X 20
Price
N/A
810
HEX NUT M10-1.5
Price
N/A
811
EXTENSION SHAFT
Price
$48.75
812
TABLE EXTENSION SUPPORT
Price
$39.00
813
TABLE EXTENSION COVER
Price
$39.00
814
FLAT HD SCR M5-.8 X 8
Price
N/A

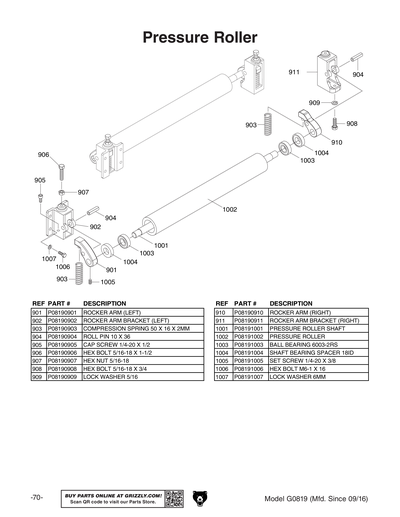

901
ROCKER ARM (LEFT)
Price
$25.00
902
ROCKER ARM BRACKET (LEFT)
Price
$46.50
903
COMPRESSION SPRING 50 X 16 X 2MM
Price
$6.50
905
CAP SCREW 1/4-20 X 1/2
Price
N/A
906
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
907
HEX NUT 5/16-18
Price
N/A
908
HEX BOLT 5/16-18 X 3/4
Price
N/A
909
LOCK WASHER 5/16
Price
N/A
910
ROCKER ARM (RIGHT)
Price
$22.00
911
ROCKER ARM BRACKET (RIGHT)
Price
$64.00
1001
PRESSURE ROLLER SHAFT
Price
$31.00
1002
PRESSURE ROLLER
Price
$201.00
1003
BALL BEARING 6003-2RS
Price
N/A
1004
SHAFT BEARING SPACER 18ID
Price
$11.00
1005
SET SCREW 1/4-20 X 3/8
Price
N/A
1006
HEX BOLT M6-1 X 16
Price
N/A
1007
LOCK WASHER 6MM
Price
N/A

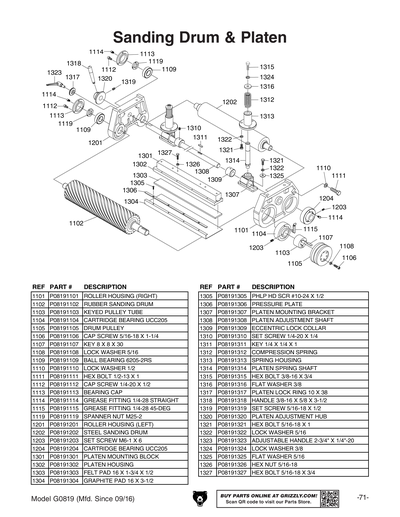

1101
ROLLER HOUSING (RIGHT)
Price
$154.50
1102
RUBBER SANDING DRUM
Price
$876.25
1103
KEYED PULLEY TUBE
Price
$44.75
1104
CARTRIDGE BEARING UCC205
Price
N/A
1105
DRUM PULLEY
Price
$80.50
1106
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
1107
KEY 8 X 8 X 30
Price
N/A
1108
LOCK WASHER 5/16
Price
N/A
1109
BALL BEARING 6205-2RS
Price
N/A
1110
LOCK WASHER 1/2
Price
N/A
1111
HEX BOLT 1/2-13 X 1
Price
N/A
1112
CAP SCREW 1/4-20 X 1/2
Price
N/A
1113
BEARING CAP
Price
$29.00
1114
GREASE FITTING 1/4-28 STRAIGHT
Price
$2.00
1115
GREASE FITTING 1/4-28 45-DEG
Price
$2.00
1119
SPANNER NUT M25-2
Price
$2.00
1201
ROLLER HOUSING (LEFT)
Price
$139.50
1202
STEEL SANDING DRUM
Price
$362.00
1203
SET SCREW M6-1 X 6
Price
N/A
1204
CARTRIDGE BEARING UCC205
Price
N/A
1301
PLATEN MOUNTING BLOCK
Price
$81.25
1302
PLATEN HOUSING
Price
$81.25
1303
FELT PAD 15-1/2 X 1-3/4 X 1/2
Price
$25.00
1304
GRAPHITE PAD 16 X 3-1/2
Price
$19.50
1305
PHLP HD SCR 10-24 X 1/2
Price
N/A
1306
PRESSURE PLATE
Price
$22.75
1307
PLATEN MOUNTING BRACKET
Price
$36.00
1308
PLATEN ADJUSTMENT SHAFT
Price
$34.00
1309
ECCENTRIC LOCK COLLAR
Price
$21.50
1310
SET SCREW 1/4-20 X 1/4
Price
N/A
1311
KEY 1/4 X 1/4 X 1
Price
N/A
1312
COMPRESSION SPRING
Price
$4.00
1313
SPRING HOUSING
Price
$25.00
1314
PLATEN SPRING SHAFT
Price
$18.00
1315
HEX BOLT 3/8-16 X 3/4
Price
N/A
1316
FLAT WASHER 3/8
Price
N/A
1317
PLATEN LOCK RING 10 X 38
Price
$14.50
1318
HANDLE 3/8-16 X 5/8 X 3-1/2
Price
$18.00
1319
SET SCREW 5/16-18 X 1/2
Price
N/A
1320
PLATEN ADJUSTMENT HUB
Price
$36.00
1321
HEX BOLT 5/16-18 X 1
Price
N/A
1322
LOCK WASHER 5/16
Price
N/A
1323
ADJUSTABLE HANDLE 2-3/4" X 1/4"-20
Price
$29.00
1324
LOCK WASHER 3/8
Price
N/A
1325
FLAT WASHER 5/16
Price
N/A
1326
HEX NUT 5/16-18
Price
N/A
1327
HEX BOLT 5/16-18 X 3/4
Price
N/A

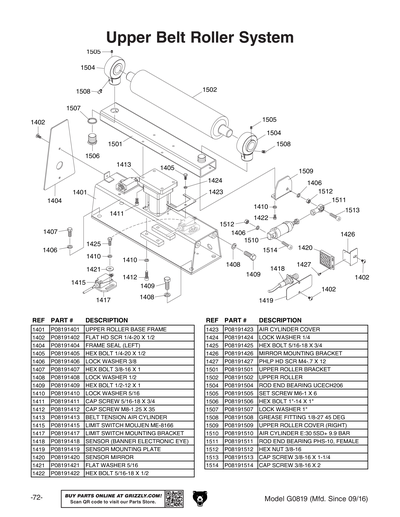

1401
UPPER ROLLER BASE FRAME
Price
$269.00
1402
FLAT HD SCR 1/4-20 X 1/2
Price
N/A
1404
FRAME SEAL (LEFT)
Price
$56.00
1405
HEX BOLT 1/4-20 X 1/2
Price
N/A
1406
LOCK WASHER 3/8
Price
N/A
1407
HEX BOLT 3/8-16 X 1
Price
N/A
1408
LOCK WASHER 1/2
Price
N/A
1409
HEX BOLT 1/2-12 X 1
Price
N/A
1410
LOCK WASHER 5/16
Price
N/A
1411
CAP SCREW 5/16-18 X 3/4
Price
N/A
1412
CAP SCREW M8-1.25 X 35
Price
N/A
1413
BELT TENSION AIR CYLINDER
Price
$334.75
1415
LIMIT SWITCH MOUJEN ME-8166
Price
$59.50
1417
LIMIT SWITCH MOUNTING BRACKET
Price
$11.00
1418
SENSOR (BANNER ELECTRONIC EYE)
Price
$337.50
1419
SENSOR MOUNTING PLATE
Price
$9.50
1420
SENSOR MIRROR
Price
$46.50
1421
FLAT WASHER 5/16
Price
N/A
1422
HEX BOLT 5/16-18 X 1/2
Price
N/A
1423
AIR CYLINDER COVER
Price
$29.00
1424
LOCK WASHER 1/4
Price
N/A
1425
HEX BOLT 5/16-18 X 3/4
Price
N/A
1426
MIRROR MOUNTING BRACKET
Price
$9.50
1427
PHLP HD SCR M4-.7 X 12
Price
N/A
1501
UPPER ROLLER BRACKET
Price
$68.00
1502
UPPER ROLLER
Price
$340.75
1504
ROD END BEARING UCECH206
Price
$56.00
1505
SET SCREW M6-1 X 6
Price
N/A
1506
HEX BOLT 1"-14 X 1"
Price
$2.00
1507
LOCK WASHER 1"
Price
N/A
1508
GREASE FITTING 1/8-27 45 DEG
Price
$2.00
1509
UPPER ROLLER COVER (RIGHT)
Price
$25.00
1510
AIR CYLINDER E:30 5SD+ 9.9 BAR
Price
$92.50
1511
ROD END BEARING PHS-10, FEMALE
Price
$12.00
1512
HEX NUT 3/8-16
Price
N/A
1513
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
1514
HEX BOLT 3/8-16 X 2
Price
N/A

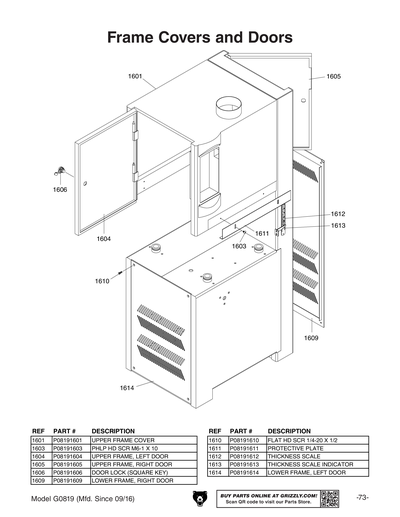

1601
UPPER FRAME COVER
Price
$763.50
1603
PHLP HD SCR M6-1 X 10
Price
N/A
1604
UPPER FRAME, LEFT DOOR
Price
$229.00
1605
UPPER FRAME, RIGHT DOOR
Price
$253.25
1606
DOOR LOCK (SQUARE KEY)
Price
$36.00
1609
LOWER FRAME, RIGHT DOOR
Price
$247.50
1610
FLAT HD SCR 1/4-20 X 1/2
Price
N/A
1611
PROTECTIVE PLATE
Price
$31.00
1612
THICKNESS SCALE
Price
$12.50
1613
THICKNESS SCALE INDICATOR
Price
$9.50
1614
LOWER FRAME, LEFT DOOR
Price
$241.50

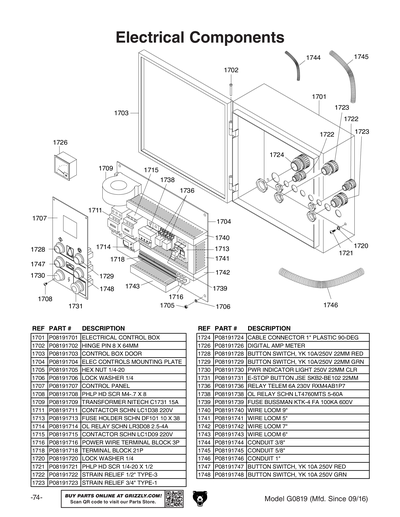

1701
ELECTRICAL CONTROL BOX
Price
$106.50
1702
HINGE PIN 8 X 64MM
Price
$7.50
1703
CONTROL BOX DOOR
Price
$36.00
1704
ELECTRICAL CONTROLS MOUNTING PLATE
Price
$60.50
1705
HEX NUT 1/4-20
Price
N/A
1706
LOCK WASHER 1/4
Price
N/A
1707
CONTROL PANEL
Price
$49.50
1708
PHLP HD SCR M4-.7 X 8
Price
N/A
1709
TRANSFORMER NITECH C1731 15A
Price
$33.00
1711
CONTACTOR SCHN LC1D38 220V
Price
$142.00
1713
FUSE HOLDER SCHN DF101 10 X 38
Price
$36.00
1714
OL RELAY SCHN LR3D08 2.5-4A
Price
$32.00
1715
CONTACTOR SCHN LC1D09 220V
Price
$39.50
1716
POWER WIRE TERMINAL BLOCK 3P
Price
$96.00
1718
TERMINAL BLOCK 21P
Price
$169.00
1720
LOCK WASHER 1/4
Price
N/A
1721
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
1722
STRAIN RELIEF 1/2" TYPE-3
Price
$3.00
1723
STRAIN RELIEF 3/4" TYPE-1
Price
$3.50
1724
CABLE CONNECTOR 1" PLASTIC 90-DEG
Price
$4.00
1726
DIGITAL AMP METER
Price
$74.50
1728
BUTTON SWITCH, YK 10A/250V 22MM GRN
Price
$28.00
1729
BUTTON SWITCH, YK 10A/250V 22MM RED
Price
$25.00
1730
PWR INDICATOR LIGHT 250V 22MM CLR
Price
$19.00
1731
E-STOP BUTTON JSE SKB2-BE102 22MM
Price
$29.00
1736
RELAY TELEM 6A 230V RXM4AB1P7
Price
$19.00
1738
OL RELAY SCHN LT4760MTS 5-60A
Price
$204.50
1739
FUSE BUSSMAN KTK-4 FA 100KA 600V
Price
$22.75
1740
WIRE LOOM 9"
Price
$5.00
1741
WIRE LOOM 5"
Price
$4.00
1742
WIRE LOOM 7"
Price
$5.00
1743
WIRE LOOM 6"
Price
$4.00
1744
CONDUIT 3/8"
Price
$3.50
1745
CONDUIT 5/8"
Price
$6.50
1746
CONDUIT 1"
Price
$4.00
1747
BUTTON SWITCH, YK 10A 250V GRN
Price
$28.00
1748
BUTTON SWITCH, YK 10A 250V RED
Price
$25.00

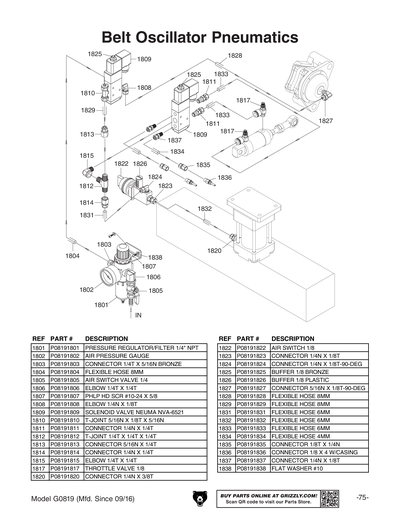

1801
PRESSURE REGULATOR/FILTER 1/4" NPT
Price
$148.75
1801-1
PRESSURE REGULATOR/FILTER 1/4" NPT
Price
N/A
1801-2
PRESSURE REGULATOR/FILTER 1/4" NPT
Price
N/A
1802
AIR PRESSURE GAUGE
Price
$18.75
1803
CONNECTOR 1/4T X 5/16N BRONZE
Price
$4.00
1804
FLEXIBLE HOSE 8MM
Price
$4.00
1805
AIR SWITCH VALVE 1/4
Price
$14.50
1806
ELBOW 1/4T X 1/4T
Price
$4.00
1807
PHLP HD SCR 10-24 X 5/8
Price
N/A
1808
ELBOW 1/4N X 1/8T
Price
$4.00
1809
SOLENOID VALVE NEUMA NVA-6521
Price
$77.00
1810
T-JOINT 5/16N X 1/8T X 5/16N
Price
$4.00
1811
CONNECTOR 1/4N X 1/4T
Price
$3.75
1812
T-JOINT 1/4T X 1/4T X 1/4T
Price
$7.50
1813
CONNECTOR 5/16N X 1/4T
Price
$4.00
1814
CONNECTOR 1/4N X 1/4T
Price
$4.00
1815
ELBOW 1/4T X 1/4T
Price
$3.75
1817
THROTTLE VALVE 1/8
Price
$33.50
1820
CONNECTOR 1/4N X 3/8T
Price
$4.00
1822
AIR SWITCH 1/8
Price
$57.00
1823
CONNECTOR 1/4N X 1/8T
Price
$4.00
1824
CONNECTOR 1/4N X 1/8T-90-DEG
Price
$3.75
1825
BUFFER 1/8 BRONZE
Price
$7.50
1826
BUFFER 1/8 PLASTIC
Price
$7.50
1827
CONNECTOR 5/16N X 1/8T-90-DEG
Price
$4.00
1828
FLEXIBLE HOSE 8MM
Price
$3.75
1829
FLEXIBLE HOSE 8MM
Price
$4.00
1831
FLEXIBLE HOSE 6MM
Price
$3.75
1832
FLEXIBLE HOSE 6MM
Price
$3.75
1833
FLEXIBLE HOSE 6MM
Price
$3.75
1834
FLEXIBLE HOSE 4MM
Price
$4.00
1835
CONNECTOR 1/8T X 1/4N
Price
$3.75
1836
CONNECTOR 1/8 X 4 W/CASING
Price
$3.75
1837
CONNECTOR 1/4N X 1/8T
Price
$3.75
1838
FLAT WASHER #10
Price
N/A

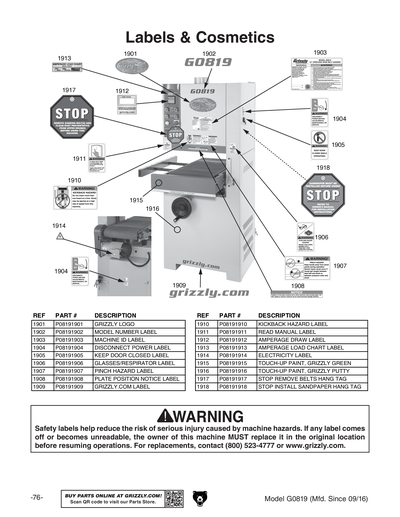

1901
Name Plates - Small
Price
N/A
1902
MODEL NUMBER LABEL
Price
$9.50
1903
MACHINE ID LABEL
Price
$9.50
1904
DISCONNECT HARDWIRED POWER 2W X 3.3H
Price
N/A
1905
DONT OPEN 2W X 3.3H
Price
N/A
1906
RESPIRATOR/GLASSES 1.5W X 2.5H
Price
N/A
1907
SANDER BELT PINCH 5.3W X 2.8H
Price
N/A
1908
PLATE POSITION NOTICE LABEL
Price
$1.50
1909
GRIZZLY.COM LABEL
Price
$9.00
1910
FEED ONLY ONE 5.3W X 2.8H V2.04.08
Price
N/A
1911
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
1912
AMPERAGE DRAW LABEL
Price
$2.00
1913
AMPERAGE LOAD CHART LABEL
Price
$1.50
1914
ELECTRICITY 0.7W X 0.6H
Price
N/A
1915
N/S GRIZZLY GREEN G1023S
Price
N/A
1916
GREY PUTTY REF G0504
Price
N/A
MAN
MANUAL G0819 MFD.-09.16 V1.03.17
Price
$18.75
