Parts for G0822 - 6" x 26" 2 HP Variable-Speed Vertical Mill with Power Feed

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

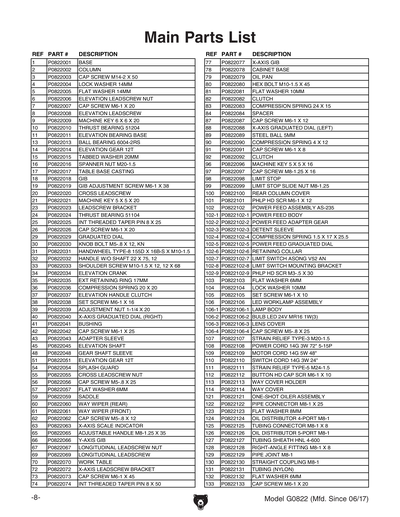

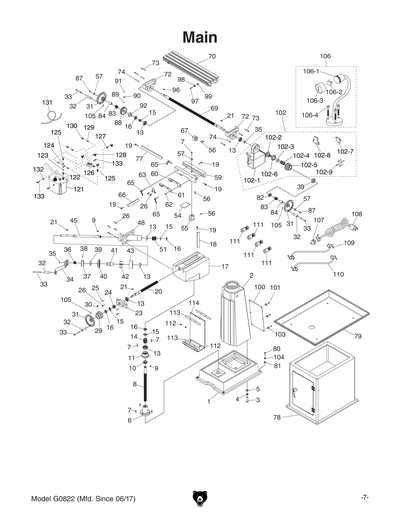

Ref # Part # Description Price Qty
1 P0822001
Replaced By P0801001
BASE
 N/A View Replacement
2 P0822002
Replaced By P0801002
COLUMN
 N/A View Replacement
3 P0822003
Replaced By PCAP67M
CAP SCREW M14-2 X 50
 N/A View Replacement
4 P0822004
Replaced By PLW08M
LOCK WASHER 14MM
 N/A View Replacement
5 P0822005
Replaced By PW10M
FLAT WASHER 14MM
 N/A View Replacement
6 P0822006
Replaced By P0801006
ELEVATION LEADSCREW NUT
 N/A View Replacement
7 P0822007
Replaced By PCAP02M
CAP SCREW M6-1 X 20
 N/A View Replacement
8 P0822008
Replaced By P0801008
ELEVATION LEADSCREW
 N/A View Replacement
9 P0822009
Replaced By PK07M
KEY 6 X 6 X 20
 N/A View Replacement
10 P0822010
Replaced By P51204
THRUST BEARING 51204
 N/A View Replacement
11 P0822011
Replaced By P0801011
ELEVATION BEARING BASE
 N/A View Replacement
13 P0822013
Replaced By P6004-2RS
BALL BEARING 6004-2RS
 N/A View Replacement
14 P0822014
Replaced By P0801014
ELEVATION GEAR 12T
 N/A View Replacement
15 P0822015
Replaced By P0801015
TABBED WASHER 20MM
 N/A View Replacement
16 P0822016
Replaced By P0801016
SPANNER NUT M20-1.5
 N/A View Replacement
17 P0822017
Replaced By P0801017
TABLE BASE CASTING
 N/A View Replacement
18 P0822018
Replaced By P0801018
GIB
 N/A View Replacement
19 P0822019
Replaced By P0801019
GIB ADJUSTMENT SCREW M6-1 X 38
 N/A View Replacement
20 P0822020
Replaced By P0801020
CROSS LEADSCREW
 N/A View Replacement
21 P0822021
Replaced By PK34M
KEY 5 X 5 X 20
 N/A View Replacement
23 P0822023
Replaced By P0801023
LEADSCREW BRACKET
 N/A View Replacement
24 P0822024
Replaced By P51104
THRUST BEARING 51104
 N/A View Replacement
25 P0822025
Replaced By P0801025
INT THREADED TAPER PIN 8 X 25
 N/A View Replacement
26 P0822026
Replaced By PCAP02M
CAP SCREW M6-1 X 20
 N/A View Replacement
29 P0822029
Replaced By P0801029
GRADUATED DIAL
 N/A View Replacement
30 P0822030
Replaced By P0801030
KNURLED KNOB M5-.8 X 12
 N/A View Replacement
31 P0822031 HANDWHEEL TYPE-8 155D X 16B-S X M10-1.5 $28.00
32 P0822032
Replaced By P0801032
HANDLE W/O SHAFT 12, 22 X 75
 N/A View Replacement
33 P0822033
Replaced By P0801033
SHOULDER SCREW M10-1.5 X 12, 12 X 68
 N/A View Replacement
34 P0822034
Replaced By P0801034
ELEVATION CRANK
 N/A View Replacement
35 P0822035
Replaced By PR18M
EXT RETAINING RING 17MM
 N/A View Replacement
36 P0822036
Replaced By P0801036
COMPRESSION SPRING 20 X 20
 N/A View Replacement
37 P0822037
Replaced By P0801037
ELEVATION HANDLE CLUTCH
 N/A View Replacement
38 P0822038
Replaced By PSS11M
SET SCREW M6-1 X 16
 N/A View Replacement
39 P0822039
Replaced By P0801039
ADJUSTMENT NUT 1-1/4 X 20
 N/A View Replacement
40 P0822040
Replaced By P0801040
X-AXIS GRADUATED DIAL (RIGHT)
 N/A View Replacement
41 P0822041
Replaced By P0801041
BUSHING
 N/A View Replacement
42 P0822042
Replaced By PCAP06M
CAP SCREW M6-1 X 25
 N/A View Replacement
43 P0822043
Replaced By P0801043
ADAPTER SLEEVE
 N/A View Replacement
45 P0822045
Replaced By P0801045
ELEVATION SHAFT
 N/A View Replacement
48 P0822048
Replaced By P0801048
GEAR SHAFT SLEEVE
 N/A View Replacement
51 P0822051
Replaced By P0801051
ELEVATION GEAR 12T
 N/A View Replacement
54 P0822054
Replaced By P0801054
SPLASH GUARD
 N/A View Replacement
55 P0822055
Replaced By P0801055
CROSS LEADSCREW NUT
 N/A View Replacement
56 P0822056
Replaced By PCAP38M
CAP SCREW M5-.8 X 25
 N/A View Replacement
57 P0822057
Replaced By PW03M
FLAT WASHER 6MM
 N/A View Replacement
59 P0822059
Replaced By P0801059
SADDLE
 N/A View Replacement
60 P0822060
Replaced By P0801060
WAY WIPER (REAR)
 N/A View Replacement
61 P0822061
Replaced By P0801061
WAY WIPER (FRONT)
 N/A View Replacement
62 P0822062
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
 N/A View Replacement
63 P0822063
Replaced By P0801063
X-AXIS SCALE INDICATOR
 N/A View Replacement
65 P0822065
Replaced By P0801065
ADJUSTABLE HANDLE M8-1.25 X 35
 N/A View Replacement
66 P0822066
Replaced By P0801066
Y-AXIS GIB
 N/A View Replacement
67 P0822067
Replaced By P0801067
LONGITUDINAL LEADSCREW NUT
 N/A View Replacement
69 P0822069
Replaced By P0801069
LONGITUDINAL LEADSCREW
 N/A View Replacement
70 P0822070
Replaced By P0801070
WORK TABLE
 N/A View Replacement
72 P0822072
Replaced By P0801072
X-AXIS LEADSCREW BRACKET
 N/A View Replacement
73 P0822073
Replaced By PCAP30M
CAP SCREW M6-1 X 45
 N/A View Replacement
74 P0822074
Replaced By P0801074
INT THREADED TAPER PIN 8 X 50
 N/A View Replacement
77 P0822077
Replaced By P0801077
X-AXIS GIB
 N/A View Replacement
78 P0822078 CABINET BASE ASSY $356.50
79 P0822079
Replaced By P0801079
OIL PAN
 N/A View Replacement
80 P0822080
Replaced By PB116M
HEX BOLT M10-1.5 X 45
 N/A View Replacement
81 P0822081
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
82 P0822082
Replaced By P0801082
CLUTCH
 N/A View Replacement
83 P0822083
Replaced By P0801083
COMPRESSION SPRING 24 X 15
 N/A View Replacement
84 P0822084
Replaced By P0801084
SPACER
 N/A View Replacement
87 P0822087
Replaced By PCAP26M
CAP SCREW M6-1 X 12
 N/A View Replacement
88 P0822088
Replaced By P0801088
X-AXIS GRADUATED DIAL (LEFT)
 N/A View Replacement
89 P0822089
Replaced By PSTB004M
STEEL BALL 5MM
 N/A View Replacement
90 P0822090
Replaced By P0801090
COMPRESSION SPRING 4 X 12
 N/A View Replacement
91 P0822091
Replaced By PCAP68M
CAP SCREW M6-1 X 8
 N/A View Replacement
92 P0822092
Replaced By P0801092
CLUTCH
 N/A View Replacement
96 P0822096
Replaced By PK08M
KEY 5 X 5 X 16
 N/A View Replacement
97 P0822097
Replaced By PCAP11M
CAP SCREW M8-1.25 X 16
 N/A View Replacement
98 P0822098
Replaced By P0801098
LIMIT STOP
 N/A View Replacement
99 P0822099
Replaced By P0801099
LIMIT STOP SLIDE NUT M8-1.25
 N/A View Replacement
100 P0822100
Replaced By P0801100
REAR COLUMN COVER
 N/A View Replacement
101 P0822101
Replaced By PS14M
PHLP HD SCR M6-1 X 12
 N/A View Replacement
102 P0822102
Replaced By P0802102
POWER FEED ASSEMBLY
 N/A View Replacement
102-1 P0822102-1
Replaced By P0802102
POWER FEED ASSEMBLY
 N/A View Replacement
102-2 P0822102-2
Replaced By P0802102
POWER FEED ASSEMBLY
 N/A View Replacement
102-3 P0822102-3
Replaced By P0802102
POWER FEED ASSEMBLY
 N/A View Replacement
102-4 P0822102-4
Replaced By P0802102
POWER FEED ASSEMBLY
 N/A View Replacement
102-5 P0822102-5
Replaced By P0802102
POWER FEED ASSEMBLY
 N/A View Replacement
102-6 P0822102-6
Replaced By P0802102
POWER FEED ASSEMBLY
 N/A View Replacement
102-7 P0822102-7
Replaced By P0802102-7
LIMIT SWITCH
 N/A View Replacement
102-8 P0822102-8 LIMIT SWITCH MOUNTING BRACKET $4.75
102-9 P0822102-9
Replaced By PS95M
PHLP HD SCR M3-.5 X 30
 N/A View Replacement
103 P0822103
Replaced By PW03M
FLAT WASHER 6MM
 N/A View Replacement
104 P0822104
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
105 P0822105
Replaced By PSS01M
SET SCREW M6-1 X 10
 N/A View Replacement
106 P0822106
Replaced By P0801106
WORKLAMP ASSEMBLY
 N/A View Replacement
106-1 P0822106-1 LAMP BODY $40.50
106-2 P0822106-2 BULB LED 24V MR16 1W(3) $12.50
106-3 P0822106-3 LENS COVER $9.50
107 P0822107
Replaced By P0801107
STRAIN RELIEF TYPE-3 M20-1.5
 N/A View Replacement
108 P0822108
Replaced By P0801108
POWER CORD 14G 3W 72" 5-15P
 N/A View Replacement
109 P0822109
Replaced By P0801109
MOTOR CORD 14G 5W 48"
 N/A View Replacement
110 P0822110
Replaced By P0801110
SWITCH CORD 14G 3W 24"
 N/A View Replacement
111 P0822111
Replaced By P0801111
STRAIN RELIEF TYPE-5 M24-1.5
 N/A View Replacement
112 P0822112
Replaced By PBHS11M
BUTTON HD CAP SCR M6-1 X 10
 N/A View Replacement
113 P0822113
Replaced By P0801113
WAY COVER HOLDER
 N/A View Replacement
114 P0822114
Replaced By P0801114
WAY COVER
 N/A View Replacement
121 P0822121
Replaced By P0801121
ONE-SHOT OILER ASSEMBLY
 N/A View Replacement
122 P0822122
Replaced By P0801122
PIPE CONNECTOR M8-1 X 25
 N/A View Replacement
123 P0822123
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
124 P0822124
Replaced By P0801124
OIL DISTRIBUTOR 4-PORT M8-1
 N/A View Replacement
125 P0822125
Replaced By P0801125
TUBING CONNECTOR M8-1 X 8
 N/A View Replacement
126 P0822126
Replaced By P0801126
OIL DISTRIBUTOR 5-PORT M8-1
 N/A View Replacement
127 P0822127
Replaced By P0801127
TUBING SHEATH HNL 4-600
 N/A View Replacement
128 P0822128
Replaced By P0801128
RIGHT-ANGLE FITTING M8-1 X 8
 N/A View Replacement
129 P0822129
Replaced By P0801129
PIPE JOINT M8-1
 N/A View Replacement
130 P0822130
Replaced By P0801130
STRAIGHT COUPLING M8-1
 N/A View Replacement
131 P0822131
Replaced By P0801131
TUBING (NYLON)
 N/A View Replacement
132 P0822132
Replaced By PW03M
FLAT WASHER 6MM
 N/A View Replacement
133 P0822133
Replaced By PCAP02M
CAP SCREW M6-1 X 20
 N/A View Replacement

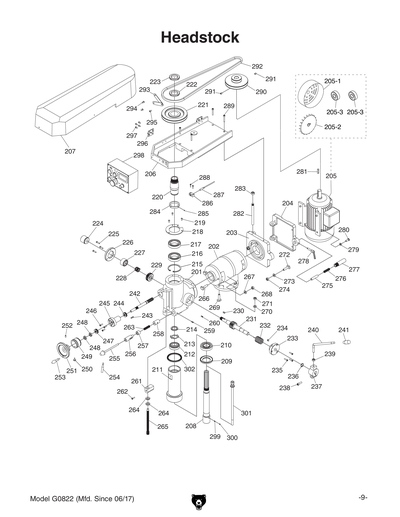

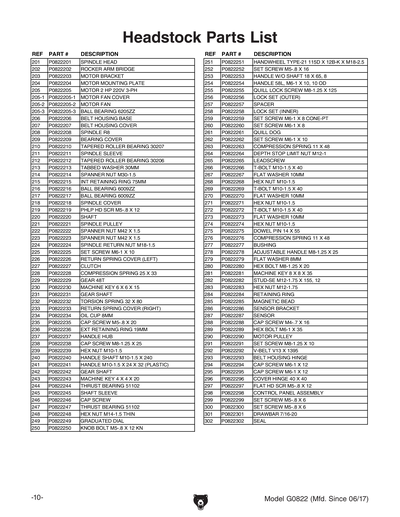

201 P0822201 SPINDLE HEAD $232.50
202 P0822202 ROCKER ARM BRIDGE $189.25
203 P0822203 MOTOR BRACKET $65.25
204 P0822204 MOTOR MOUNTING PLATE $46.50
205 P0822205 MOTOR 2 HP 220V 3-PH $499.25
205-2 P0822205-2 MOTOR FAN $18.75
205-3 P0822205-3
Replaced By P6205ZZ
BALL BEARING 6205ZZ
 N/A View Replacement
206 P0822206 BELT HOUSING BASE $124.00
207 P0822207 BELT HOUSING COVER $133.50
208 P0822208 SPINDLE R8 $135.00
209 P0822209 BEARING COVER $9.50
210 P0822210
Replaced By P30207
TAPERED ROLLER BEARING 30207
 N/A View Replacement
211 P0822211 SPINDLE SLEEVE $158.25
212 P0822212
Replaced By P30206
TAPERED ROLLER BEARING 30206
 N/A View Replacement
213 P0822213 TABBED WASHER 30MM $2.00
214 P0822214 SPANNER NUT M30-1.5 $6.25
215 P0822215
Replaced By PR67M
INT RETAINING RING 75MM
 N/A View Replacement
216 P0822216
Replaced By P6009ZZ
BALL BEARING 6009ZZ
 N/A View Replacement
217 P0822217
Replaced By P6009ZZ
BALL BEARING 6009ZZ
 N/A View Replacement
218 P0822218 SPINDLE COVER $12.50
219 P0822219
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
 N/A View Replacement
220 P0822220 SHAFT $46.50
221 P0822221 SPINDLE PULLEY $161.25
222 P0822222 SPANNER NUT M42 X 1.5 $9.50
223 P0822223
Replaced By P0822222
SPANNER NUT M42 X 1.5
 N/A View Replacement
224 P0822224 SPINDLE RETURN NUT M18-1.5 $12.50
225 P0822225
Replaced By PSS01M
SET SCREW M6-1 X 10
 N/A View Replacement
226 P0822226 RETURN SPRING COVER (LEFT) $15.50
227 P0822227 CLUTCH $17.25
228 P0822228 COMPRESSION SPRING 25 X 33 $2.00
229 P0822229 GEAR 48T $21.75
230 P0822230
Replaced By PK99M
KEY 6 X 6 X 15
 N/A View Replacement
231 P0822231 GEAR SHAFT $52.75
232 P0822232 TORSION SPRING 32 X 80 $4.75
233 P0822233 RETURN SPRING COVER (RIGHT) $21.75
234 P0822234 OIL CUP 8MM $1.25
235 P0822235
Replaced By PCAP15M
CAP SCREW M5-.8 X 20
 N/A View Replacement
236 P0822236
Replaced By PR08M
EXT RETAINING RING 19MM
 N/A View Replacement
237 P0822237 HANDLE HUB $15.50
238 P0822238
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
 N/A View Replacement
239 P0822239
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
240 P0822240 HANDLE SHAFT M10-1.5 X 240 $9.50
241 P0822241 HANDLE M10-1.5 X 24 X 32 (PLASTIC) $6.25
242 P0822242 GEAR SHAFT $34.25
243 P0822243
Replaced By PK48M
KEY 4 X 4 X 20
 N/A View Replacement
244 P0822244
Replaced By P51102
THRUST BEARING 51102
 N/A View Replacement
245 P0822245 SHAFT SLEEVE $18.75
246 P0822246 CAP SCREW $1.25
247 P0822247 THRUST BEARING 51102 $11.00
248 P0822248 HEX NUT M14-1.5 THIN $1.25
249 P0822249 GRADUATED DIAL $17.25
250 P0822250 KNOB BOLT M5-.8 X 12 KN $1.25
251 P0822251 HANDWHEEL TYPE-21 115D X 12B-K X M18-2.5 $18.75
252 P0822252
Replaced By PSS34M
SET SCREW M5-.8 X 16
 N/A View Replacement
253 P0822253 HANDLE W/O SHAFT 18 X 65, 8 $9.50
254 P0822254 HANDLE 58L, M6-1 X 10, 10 OD $6.25
255 P0822255 QUILL LOCK SCREW M8-1.25 X 125 $12.50
256 P0822256 LOCK SET (OUTER) $9.50
257 P0822257 SPACER $4.75
258 P0822258 LOCK SET (INNER) $12.50
259 P0822259
Replaced By PSS130M
SET SCREW M6-1 X 8 CONE-PT
 N/A View Replacement
260 P0822260
Replaced By PSS03M
SET SCREW M6-1 X 8
 N/A View Replacement
261 P0822261 QUILL DOG $9.50
262 P0822262
Replaced By PSS01M
SET SCREW M6-1 X 10
 N/A View Replacement
263 P0822263 COMPRESSION SPRING 11 X 48 $2.50
264 P0822264 DEPTH STOP LIMIT NUT M12-1 $1.25
265 P0822265 LEADSCREW $18.75
266 P0822266 T-BOLT M10-1.5 X 40 $4.75
267 P0822267
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
268 P0822268
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
269 P0822269
Replaced By P0822266
T-BOLT M10-1.5 X 40
 N/A View Replacement
270 P0822270
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
271 P0822271
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
272 P0822272
Replaced By P0822266
T-BOLT M10-1.5 X 40
 N/A View Replacement
273 P0822273
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
274 P0822274
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
275 P0822275 DOWEL PIN 14 X 55 $2.50
276 P0822276 COMPRESSION SPRING 11 X 48 $1.25
277 P0822277 BUSHING $7.00
278 P0822278 ADJUSTABLE HANDLE M8-1.25 X 25 $4.75
279 P0822279
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
280 P0822280
Replaced By PB09M
HEX BOLT M8-1.25 X 20
 N/A View Replacement
281 P0822281
Replaced By PK09M
KEY 8 X 8 X 35
 N/A View Replacement
282 P0822282 STUD-SE M12-1.75 X 155, 12 $6.25
283 P0822283
Replaced By PN09M
HEX NUT M12-1.75
 N/A View Replacement
284 P0822284 RETAINING RING $28.00
285 P0822285 MAGNETIC BEAD $6.25
286 P0822286 SENSOR BRACKET $9.50
287 P0822287 SENSOR $20.25
288 P0822288
Replaced By PCAP16M
CAP SCREW M4-.7 X 16
 N/A View Replacement
289 P0822289
Replaced By PB52M
HEX BOLT M6-1 X 35
 N/A View Replacement
290 P0822290 MOTOR PULLEY $38.75
291 P0822291
Replaced By PSS16M
SET SCREW M8-1.25 X 10
 N/A View Replacement
292 P0822292 V-BELT V13 X 1395 $31.00
293 P0822293 BELT HOUSING HINGE $9.50
294 P0822294
Replaced By PCAP26M
CAP SCREW M6-1 X 12
 N/A View Replacement
295 P0822295
Replaced By PCAP26M
CAP SCREW M6-1 X 12
 N/A View Replacement
296 P0822296 COVER HINGE 40 X 40 $7.75
297 P0822297
Replaced By PFH05M
FLAT HD SCR M5-.8 X 12
 N/A View Replacement
298 P0822298 CONTROL PANEL ASSEMBLY $232.50
299 P0822299
Replaced By PCAP97M
CAP SCREW M5-.8 X 6
 N/A View Replacement
300 P0822300
Replaced By PCAP97M
CAP SCREW M5-.8 X 6
 N/A View Replacement
301 P0822301 DRAWBAR 7/16-20 $21.75
302 P0822302 SEAL $3.25

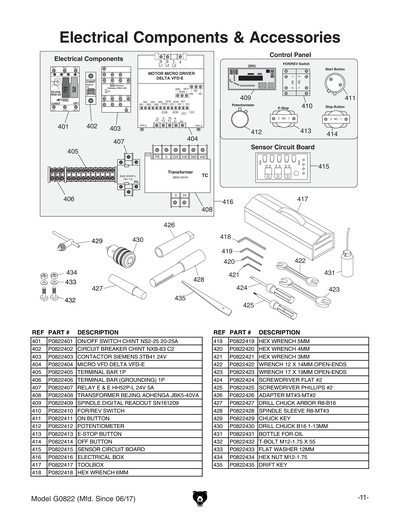

401 P0822401 ON/OFF SWITCH CHINT NS2-25 20-25A $25.00
402 P0822402 CIRCUIT BREAKER CHINT NXB-83 C2 $18.75
403 P0822403 CONTACTOR SIEMENS 3TB41 24V $46.50
404 P0822404 MICRO VFD DELTA VFD-E $899.00
405 P0822405 TERMINAL BAR 10P $9.50
406 P0822406 TERMINAL BAR 3P $3.25
407 P0822407 RELAY E & E HH52P-L 24V 5A $34.25
408 P0822408 TRANSFORMER BEJING AOHENGA JBK5-40VA $56.00
409 P0822409 SPINDLE DIGITAL READOUT SN161209 $46.50
410 P0822410 FOR/REV SWITCH $21.75
411 P0822411 ON BUTTON $21.75
412 P0822412 POTENTIOMETER $9.50
413 P0822413 E-STOP BUTTON $28.00
414 P0822414 OFF BUTTON $21.75
415 P0822415 SENSOR CIRCUIT BOARD $31.00
416 P0822416 ELECTRICAL BOX $31.00
417 P0822417 TOOLBOX $20.25
418 P0822418
Replaced By PAW06M
HEX WRENCH 6MM
 N/A View Replacement
419 P0822419
Replaced By PAW05M
HEX WRENCH 5MM
 N/A View Replacement
420 P0822420
Replaced By PAW04M
HEX WRENCH 4MM
 N/A View Replacement
421 P0822421
Replaced By PAW03M
HEX WRENCH 3MM
 N/A View Replacement
422 P0822422
Replaced By PWR1214
WRENCH 12 X 14MM OPEN-ENDS
 N/A View Replacement
423 P0822423
Replaced By PWR1719
WRENCH 17 X 19MM OPEN-ENDS
 N/A View Replacement
424 P0822424
Replaced By PSDF2
SCREWDRIVER FLAT #2
 N/A View Replacement
425 P0822425
Replaced By PSDP2
SCREWDRIVER PHILLIPS #2
 N/A View Replacement
426 P0822426 ADAPTER MT#3-MT#2 $23.25
427 P0822427 DRILL CHUCK ARBOR R8-B16 $28.00
428 P0822428 SPINDLE SLEEVE R8-MT#3 $22.50
429 P0822429 CHUCK KEY $3.25
430 P0822430 DRILL CHUCK B16 1-13MM $21.75
431 P0822431 BOTTLE FOR OIL $5.00
432 P0822432 T-BOLT M12-1.75 X 55 $5.00
433 P0822433
Replaced By PW06M
FLAT WASHER 12MM
 N/A View Replacement
434 P0822434
Replaced By PN09M
HEX NUT M12-1.75
 N/A View Replacement
435 P0822435 DRIFT KEY $5.75

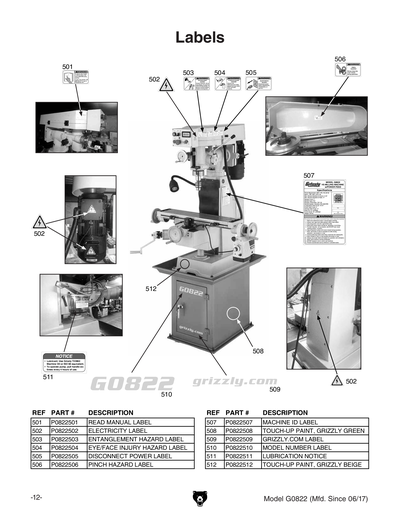

501 P0822501
Replaced By PLABEL-12D
READ MANUAL 2.8W X 1.5H
 N/A View Replacement
502 P0822502
Replaced By PLABEL-14A
ELECTRICITY 0.7W X 0.6H
 N/A View Replacement
503 P0822503
Replaced By PLABEL-55C
ENTANGLEMENT HAZARD 2.8W X 1.5H
 N/A View Replacement
505 P0822505
Replaced By PLABEL-62C
DISCONNECT 110V 2.8W X 1.5H
 N/A View Replacement
506 P0822506 PINCH HAZARD LABEL $3.25
507 P0822507 MACHINE ID LABEL $9.50
508 P0822508
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
 N/A View Replacement
509 P0822509 GRIZZLY.COM LABEL $6.25
510 P0822510 MODEL NUMBER LABEL $6.25
511 P0822511 LUBRICATION NOTICE $3.25
512 P0822512
Replaced By PPAINT-14
BEIGE REF G0555
 N/A View Replacement
MAN P0822MAN MANUAL G0822 MFD-06.17 V1.08.17 $7.50
