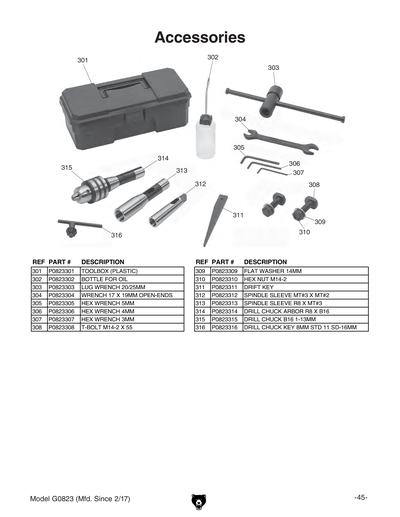

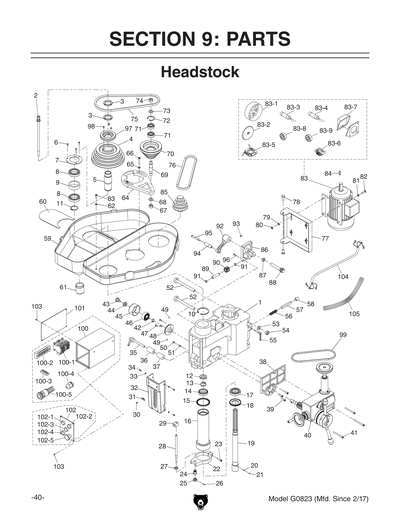

Parts for G0823 - 15" Drill Press w/ Auto Downfeed

Part Diagram for G0823
Part Diagram for G0823
Part Diagram for G0823
Part Diagram for G0823
Part Diagram for G0823
Part Diagram for G0823
Part Diagram for G0823
Part Diagram for G0823
Part Diagram for G0823
Part Diagram for G0823
Part Diagram for G0823
Part Diagram for G0823
Part Diagram for G0823
Part Diagram for G0823

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

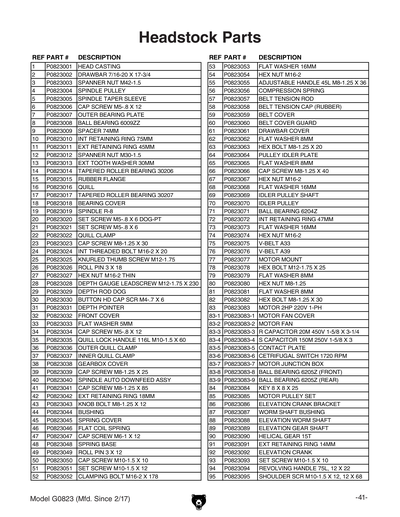

1
HEAD CASTING
Price
$1,051.95
2
DRAWBAR 7/16-20 X 17-3/4
Price
N/A
3
SPANNER NUT M42-1.5
Price
N/A
4
SPINDLE PULLEY
Price
N/A
5
SPINDLE TAPER SLEEVE
Price
N/A
6
CAP SCREW M5-.8 X 12
Price
N/A
7
OUTER BEARING PLATE
Price
N/A
8
BALL BEARING 6009ZZ
Price
N/A
9
SPACER 74MM
Price
N/A
10
INT RETAINING RING 75MM
Price
N/A
11
EXT RETAINING RING 45MM
Price
N/A
12
SPANNER NUT M30-1.5
Price
N/A
13
EXT TOOTH WASHER 30MM
Price
N/A
14
TAPERED ROLLER BEARING 30206
Price
N/A
15
RUBBER FLANGE
Price
N/A
16
QUILL
Price
N/A
17
TAPERED ROLLER BEARING 30207
Price
N/A
18
BEARING COVER
Price
N/A
19
SPINDLE R-8
Price
N/A
20
SET SCREW M5-.8 X 6 DOG-PT
Price
N/A
21
SET SCREW M5-.8 X 6
Price
N/A
22
QUILL CLAMP
Price
N/A
23
CAP SCREW M8-1.25 X 30
Price
N/A
24
INT THREADED BOLT M16-2 X 20
Price
N/A
25
KNURLED KNOB M12-1.75
Price
N/A
26
ROLL PIN 3 X 18
Price
N/A
27
HEX NUT M16-2 THIN
Price
N/A
28
DEPTH STOP STUD M12-1.75 X 230
Price
N/A
29
DEPTH ROD DOG
Price
N/A
30
BUTTON HD CAP SCR M4-.7 X 6
Price
N/A
31
DEPTH POINTER
Price
N/A
32
FRONT COVER
Price
N/A
33
FLAT WASHER 5MM
Price
N/A
34
CAP SCREW M5-.8 X 12
Price
N/A
35
ADJUSTABLE HANDLE 116L M10-1.5 X 60
Price
N/A
36
OUTER QUILL CLAMP
Price
N/A
37
INNER QUILL CLAMP
Price
N/A
38
GEARBOX COVER
Price
$89.15
39
CAP SCREW M8-1.25 X 25
Price
N/A
40
SPINDLE AUTO DOWNFEED ASSY
Price
$1,033.85
40-1
PULLEY
Price
$40.25
40-10
SQUARE THREAD NUT
Price
$43.90
40-11
HANDLE BODY
Price
$102.85
40-12
FLAT WASHER 6MM
Price
$2.60
40-13
HANDLE
Price
$22.35
40-14
CLUTCH KEY BASE SET
Price
$22.35
40-15
BUSH
Price
$13.70
40-16
GEAR 45T
Price
$44.60
40-17
CLUTCH SCREW SET
Price
$22.35
40-18
SCREW M5-.8 X 18
Price
$7.20
40-19
SPRING
Price
$1.90
40-2
GEAR SHAFT 18T
Price
$125.10
40-20
SHAFT
Price
$27.00
40-21
BALL BEARING 6003-2RS
Price
N/A
40-22
CHANGE GEAR LEVER SET
Price
$31.35
40-23
SPRING
Price
$1.90
40-24
PULL KEY
Price
$9.00
40-25
PIN 2 X 10
Price
$1.90
40-26
WORM GEAR
Price
$102.85
40-27
KEY 8 X 16
Price
$2.90
40-28
BUSHING
Price
$3.25
40-29
GEAR 21T
Price
$22.35
40-3
SPINDLE STROKE DIAL
Price
$58.25
40-30
GEAR 29T
Price
$22.35
40-31
GEAR 34T
Price
$27.00
40-32
BUSHING BRACKET
Price
$4.70
40-33
RETAINING RING 24
Price
$2.90
40-34
RETAINING RING 35
Price
$3.25
40-35
KEY 4 X 8
Price
$1.90
40-36
SET SCREW M4-.7 X 8
Price
$1.90
40-37
GEAR SHAFT 12T
Price
$15.85
40-38
SPEED LEVER
Price
$22.35
40-39
STEEL BALL 8
Price
$1.90
40-4
CLUTCH SHAFT
Price
$129.40
40-40
RETAINING RING 12
Price
$1.90
40-41
SPRING
Price
$3.25
40-42
SCREW M6-1 X 18
Price
$1.90
40-43
PLATE
Price
$4.70
40-44
PIN
Price
$3.65
40-45
LIMITED SCREW
Price
$7.20
40-46
WORM SHAFT
Price
$53.60
40-47
BALL BEARING 6202-2RS
Price
N/A
40-48
KEY 5 X 32
Price
$1.90
40-49
GEAR 21T
Price
$22.35
40-5
BACKING PIN
Price
$11.20
40-50
GEAR 26T
Price
$22.35
40-51
GEAR 35T
Price
$22.35
40-52
BUSH
Price
$7.20
40-53
WORM COVER
Price
$18.00
40-54
RETAINING RING
Price
$1.90
40-55
CAP SCREW M6-1 X 25
Price
$1.90
40-56
CAP SCREW M5-.8 X 16
Price
$1.90
40-57
PLATE
Price
$3.65
40-58
MIRCO FEED DIAL
Price
$23.40
40-59
HAND WHEEL
Price
$35.95
40-6
PIN 6 X 12
Price
$1.90
40-60
HANDLE
Price
$13.70
40-61
SET SCREW M6-1 X 8
Price
$1.90
40-62
LOCK SCREW
Price
$4.70
40-63
BUSHING
Price
$4.70
40-64
KNOB
Price
$12.25
40-65
SCREW M5-.8 X 12
Price
$1.90
40-66
LOCK SCREW M6-1 X 42
Price
$9.00
40-67
LOCK NUT M6-1
Price
$9.00
40-68
PIN
Price
$9.00
40-69
RETAINING RING
Price
$1.90
40-7
BALL HEAD PIN
Price
$7.95
40-70
SPRING RING
Price
$2.90
40-71
SPRING
Price
$3.65
40-72
WORM CLUTCH
Price
$32.40
40-73
CLUTCH
Price
$18.00
40-74
BALL BEARING 6003-2RS
Price
N/A
40-75
SHAFT COVER
Price
$40.25
40-76
FLAT WASHER 6MM
Price
N/A
40-77
CAP SCREW M6-1 X 20
Price
$1.90
40-78
SHAFT
Price
$40.25
40-79
KEY 5 X 12
Price
$1.90
40-8
PIN 4 X 12
Price
$1.90
40-80
KEY 5 X 30
Price
$1.90
40-81
POWER FEED BOX
Price
$263.10
40-82
SCREW M6-1 X 6
Price
$1.90
40-83
DOWNFEED HANDLE/GEAR ASSEMBLY
Price
$710.50
40-9
SQUARE THREAD SET
Price
$35.95
41
CAP SCREW M8-1.25 X 85
Price
N/A
42
EXT RETAINING RING 18MM
Price
N/A
43
KNOB BOLT M8-1.25 X 12
Price
N/A
44
BUSHING
Price
N/A
45
SPRING COVER
Price
N/A
46
TORSION SPRING W/COVER
Price
N/A
47
CAP SCREW M6-1 X 12
Price
N/A
48
SPRING BASE
Price
N/A
49
ROLL PIN 3 X 12
Price
N/A
50
CAP SCREW M10-1.5 X 10
Price
N/A
51
SET SCREW M10-1.5 X 12
Price
N/A
52
CLAMPING BOLT M16-2 X 178
Price
N/A
53
FLAT WASHER 16MM
Price
N/A
54
HEX NUT M16-2
Price
N/A
55
ADJUSTABLE HANDLE 45L M8-1.25 X 36
Price
$9.00
56
COMPRESSION SPRING
Price
N/A
57
BELT TENSION ROD
Price
N/A
58
BELT TENSION CAP (RUBBER)
Price
N/A
59
BELT COVER
Price
N/A
60
BELT COVER GUARD
Price
N/A
61
DRAWBAR COVER
Price
N/A
62
FLAT WASHER 8MM
Price
N/A
63
HEX BOLT M8-1.25 X 20
Price
N/A
64
PULLEY IDLER PLATE
Price
N/A
65
FLAT WASHER 8MM
Price
N/A
66
CAP SCREW M8-1.25 X 40
Price
N/A
67
HEX NUT M16-2
Price
N/A
68
FLAT WASHER 16MM
Price
N/A
69
IDLER PULLEY SHAFT
Price
N/A
70
IDLER PULLEY
Price
N/A
71
BALL BEARING 6204Z
Price
N/A
72
INT RETAINING RING 47MM
Price
N/A
73
FLAT WASHER 16MM
Price
N/A
74
HEX NUT M16-2
Price
N/A
75
V-BELT A33
Price
N/A
76
V-BELT A39
Price
N/A
77
MOTOR MOUNT
Price
N/A
78
HEX BOLT M12-1.75 X 25
Price
N/A
79
FLAT WASHER 8MM
Price
N/A
80
HEX NUT M8-1.25
Price
N/A
81
FLAT WASHER 8MM
Price
N/A
82
HEX BOLT M8-1.25 X 30
Price
N/A
83
MOTOR 2HP 220V 1-PH
Price
N/A
83-1
MOTOR FAN COVER
Price
N/A
83-2
MOTOR FAN
Price
N/A
83-3
R CAPACITOR 20M 450V 1-5/8 X 3-1/4
Price
N/A
83-4
S CAPACITOR 150M 250V 1-1/2 X 2-3/8
Price
N/A
83-5
CONTACT PLATE
Price
N/A
83-6
CETRIFUGAL SWITCH
Price
N/A
83-7
MOTOR JUNCTION BOX
Price
N/A
83-8
BALL BEARING 6205Z
Price
N/A
83-9
BALL BEARING 6205Z
Price
N/A
84
KEY 8 X 8 X 25
Price
N/A
85
MOTOR PULLEY SET
Price
N/A
86
ELEVATION CRANK BRACKET
Price
N/A
87
WORM SHAFT BUSHING
Price
N/A
88
ELEVATION WORM SHAFT
Price
N/A
89
ELEVATION GEAR SHAFT
Price
N/A
90
HELICAL GEAR 15T
Price
N/A
91
EXT RETAINING RING 14MM
Price
N/A
92
ELEVATION CRANK
Price
N/A
93
SET SCREW M10-1.5 X 10
Price
N/A
94
REVOLVING HANDLE 75L, 12 X 22
Price
$9.00
95
SHOULDER SCR M10-1.5 X 12, 12 X 68
Price
$7.20
96
CAP SCREW M6-1 X 20
Price
N/A
97
PULLEY
Price
$93.85
98
FLAT HD SCR M5-.8 X 10
Price
N/A
99
ROUND BELT 8 X 670
Price
$49.25

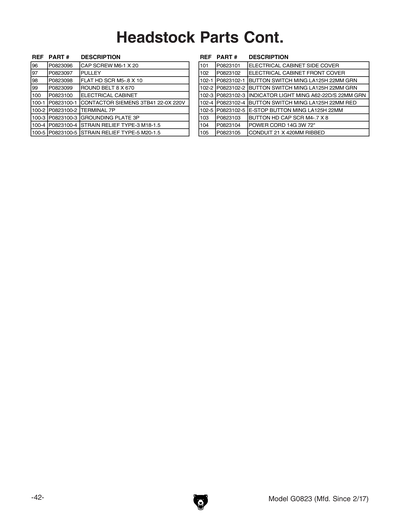

100
ELECTRICAL CABINET
Price
$40.25
100-1
CONTACTOR SIEMENS 3TB41 22-0X 220V
Price
$89.15
100-2
TERMINAL 7P
Price
$18.00
100-3
GROUNDING PLATE 3P
Price
$9.00
100-4
STRAIN RELIEF TYPE-3 M18-1.5
Price
$13.70
100-5
STRAIN RELIEF TYPE-5 M20-1.5
Price
N/A
101
ELECTRICAL CABINET SIDE COVER
Price
$9.00
102
ELECTRICAL CABINET FRONT COVER
Price
$13.70
102-1
BUTTON SWITCH MING LA125H 22MM GRN
Price
$25.05
102-2
BUTTON SWITCH MING LA125H 22MM GRN
Price
$25.05
102-3
INDICATOR LIGHT MING A62-22D/S 22MM GRN
Price
$31.35
102-4
BUTTON SWITCH MING LA125H 22MM RED
Price
$31.35
102-5
E-STOP BUTTON MINGER LA125H-BE102C
Price
N/A
103
BUTTON HD CAP SCR M4-.7 X 8
Price
N/A
104
POWER CORD 14G 3W 72"
Price
N/A
105
CONDUIT 21 X 420MM RIBBED
Price
$35.95

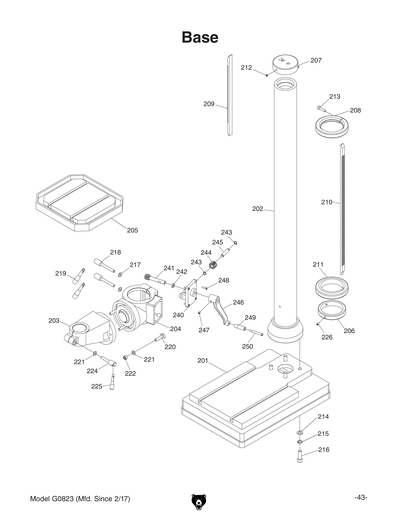

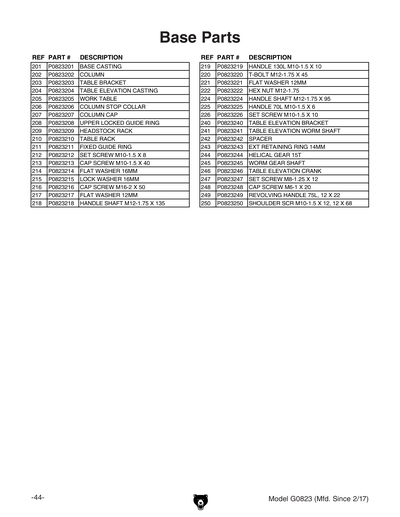

201
BASE CASTING
Price
N/A
202
COLUMN
Price
N/A
203
TABLE BRACKET
Price
N/A
204
TABLE ELEVATION CASTING
Price
N/A
205
WORK TABLE
Price
N/A
206
COLUMN STOP COLLAR
Price
N/A
207
COLUMN CAP
Price
N/A
208
UPPER LOCKED GUIDE RING
Price
N/A
209
HEADSTOCK RACK
Price
N/A
210
TABLE RACK
Price
N/A
211
FIXED GUIDE RING
Price
N/A
212
SET SCREW M10-1.5 X 8
Price
N/A
213
CAP SCREW M10-1.5 X 40
Price
N/A
214
FLAT WASHER 16MM
Price
N/A
215
LOCK WASHER 16MM
Price
N/A
216
CAP SCREW M16-2 X 50
Price
N/A
217
FLAT WASHER 12MM
Price
N/A
218
LOCK HANDLE BASE M12-1.75 X 135
Price
N/A
219
HANDLE 130L M10-1.5 X 10
Price
N/A
220
T-BOLT M12-1.75 X 45
Price
N/A
221
FLAT WASHER 12MM
Price
N/A
222
HEX NUT M12-1.75
Price
N/A
224
HANDLE BASE M12-1.75 X 95
Price
N/A
225
HANDLE 70L M10-1.5 X 6
Price
N/A
226
SET SCREW M10-1.5 X 10
Price
N/A
240
TABLE ELEVATION BRACKET
Price
N/A
241
TABLE ELEVATION WORM SHAFT
Price
N/A
242
SPACER
Price
N/A
243
EXT RETAINING RING 14MM
Price
N/A
244
HELICAL GEAR 15T
Price
N/A
245
WORM GEAR SHAFT
Price
N/A
246
TABLE ELEVATION CRANK
Price
N/A
247
SET SCREW M10-1.5 X 12
Price
N/A
248
CAP SCREW M6-1 X 20
Price
N/A
249
REVOLVING HANDLE 75L, 12 X 22
Price
N/A
250
SHOULDER SCR M10-1.5 X 12, 12 X 68
Price
N/A
301
TOOLBOX, PLASTIC
Price
N/A
302
BOTTLE FOR OIL
Price
N/A
303
LUG WRENCH 20/25MM
Price
N/A
304
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
305
HEX WRENCH 5MM
Price
N/A
306
HEX WRENCH 4MM
Price
N/A
307
HEX WRENCH 3MM
Price
N/A
308
T-BOLT M14-2 X 55
Price
N/A
309
FLAT WASHER 14MM
Price
N/A
310
HEX NUT M14-2
Price
N/A
311
DRIFT KEY
Price
N/A
312
SPINDLE SLEEVE MT#3-MT#2
Price
N/A
313
SPINDLE SLEEVE R8-MT#3
Price
N/A
314
***USE P0779304***
Price
N/A
315
DRILL CHUCK B16 1-13MM
Price
N/A
316
DRILL CHUCK KEY 8MM STD 11 SD-16MM
Price
N/A

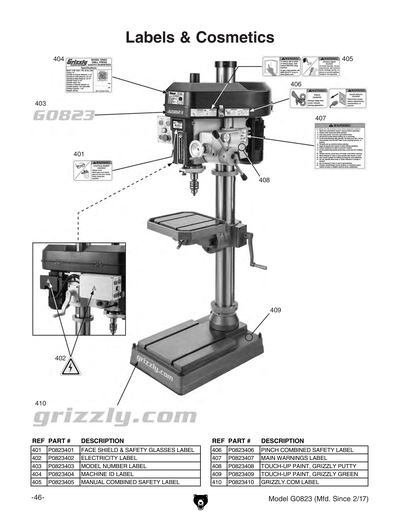

401
FACE SHIELD & SAFETY GLASSES 2.8W X 1.5H
Price
N/A
402
ELECTRICITY 0.7W X 0.6H
Price
N/A
403
MODEL NUMBER LABEL
Price
$15.65
404
MACHINE ID LABEL
Price
$16.40
405
MANUAL COMBINED SAFETY LABEL
Price
$7.20
406
PINCH COMBINED SAFETY LABEL
Price
$7.20
407
MAIN WARNINGS LABEL
Price
$7.20
408
GREY PUTTY REF G0504
Price
N/A
409
N/S GRIZZLY GREEN G1023S
Price
N/A
410
GRIZZLY.COM LABEL 12",BEIGE
Price
N/A
MAN
MANUAL G0823 MFD-12.16 V1.02.17
Price
$18.00
P
CAP SCREW M8-1.25 X 85
Price
$2.60
