Parts for G0827 - 11" x 50" 2 HP Horizontal/Vertical Mill with DRO

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty

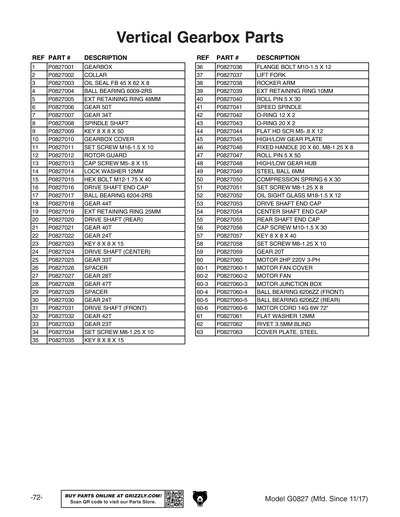

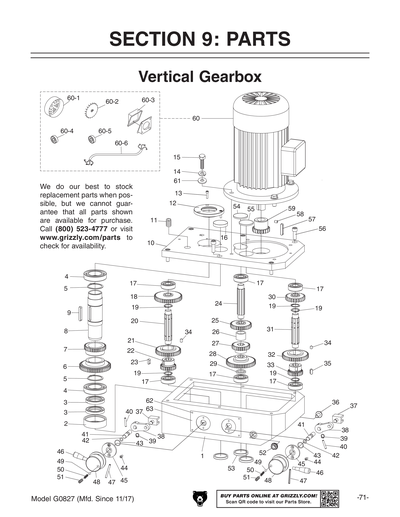

1 P0827001 GEARBOX $449.50
2 P0827002 COLLAR $21.75
3 P0827003 OIL SEAL FB 45 X 62 X 8 $6.25
4 P0827004
Replaced By P6009-2RS
BALL BEARING 6009-2RS
N/A View Replacement
5 P0827005
Replaced By PR32M
EXT RETAINING RING 48MM
N/A View Replacement
6 P0827006 GEAR 50T $77.50
7 P0827007 GEAR 34T $68.25
8 P0827008 SPINDLE SHAFT $28.00
9 P0827009
Replaced By PK158M
KEY 8 X 8 X 50
N/A View Replacement
10 P0827010 GEARBOX COVER $180.00
12 P0827012 ROTOR GUARD $25.00
13 P0827013
Replaced By PCAP10M
CAP SCREW M5-.8 X 15
N/A View Replacement
14 P0827014
Replaced By PLW05M
LOCK WASHER 12MM
N/A View Replacement
15 P0827015
Replaced By PB35M
HEX BOLT M12-1.75 X 40
N/A View Replacement
16 P0827016 DRIVE SHAFT END CAP $3.25
17 P0827017
Replaced By P6204-2RS
BALL BEARING 6204-2RS
N/A View Replacement
18 P0827018 GEAR 44T $59.00
19 P0827019
Replaced By PR11M
EXT RETAINING RING 25MM
N/A View Replacement
20 P0827020 DRIVE SHAFT (REAR) $28.00
21 P0827021 GEAR 40T $38.75
22 P0827022 GEAR 24T $37.25
23 P0827023
Replaced By PK60M
KEY 8 X 8 X 15
N/A View Replacement
24 P0827024 DRIVE SHAFT (CENTER) $28.00
25 P0827025 GEAR 33T $42.00
26 P0827026 SPACER $3.25
27 P0827027 GEAR 28T $37.25
28 P0827028 GEAR 47T $59.00
29 P0827029 SPACER $3.75
30 P0827030 GEAR 24T $34.25
31 P0827031 DRIVE SHAFT (FRONT) $28.00
32 P0827032 GEAR 42T $49.75
33 P0827033 GEAR 23T $34.25
34 P0827034
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
35 P0827035
Replaced By PK60M
KEY 8 X 8 X 15
N/A View Replacement
37 P0827037 LIFT FORK $12.50
38 P0827038 ROCKER ARM $9.50
39 P0827039
Replaced By PR01M
EXT RETAINING RING 10MM
N/A View Replacement
40 P0827040
Replaced By PRP05M
ROLL PIN 5 X 30
N/A View Replacement
41 P0827041 SPEED SPINDLE $3.25
42 P0827042 O-RING 12 X 2 $2.00
43 P0827043 O-RING 20 X 2 $2.00
44 P0827044
Replaced By PFH05M
FLAT HD SCR M5-.8 X 12
N/A View Replacement
45 P0827045 HIGH/LOW GEAR PLATE $6.25
46 P0827046 FIXED HANDLE 20 X 60, M8-1.25 X 8 $6.25
47 P0827047
Replaced By PRP30M
ROLL PIN 5 X 50
N/A View Replacement
48 P0827048 HIGH/LOW GEAR HUB $21.75
49 P0827049
Replaced By PSTB003M
STEEL BALL 6MM
N/A View Replacement
50 P0827050 COMPRESSION SPRING 6 X 30 $3.25
51 P0827051
Replaced By PSS20M
SET SCREW M8-1.25 X 8
N/A View Replacement
52 P0827052 OIL SIGHT GLASS M18-1.5 X 12 $3.25
53 P0827053 DRIVE SHAFT END CAP $3.25
54 P0827054 CENTER SHAFT END CAP $4.75
55 P0827055 REAR SHAFT END CAP $4.75
56 P0827056
Replaced By PCAP72M
CAP SCREW M10-1.5 X 30
N/A View Replacement
57 P0827057
Replaced By PK41M
KEY 8 X 8 X 40
N/A View Replacement
58 P0827058
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
59 P0827059 GEAR 20T $43.50
60 P0827060 MOTOR 2HP 220V 3-PH $651.00
60-1 P0827060-1 MOTOR FAN COVER $21.75
60-2 P0827060-2 MOTOR FAN $21.75
60-3 P0827060-3 MOTOR JUNCTION BOX $25.00
60-4 P0827060-4
Replaced By P6206ZZ
BALL BEARING 6206ZZ
N/A View Replacement
60-5 P0827060-5
Replaced By P6206ZZ
BALL BEARING 6206ZZ
N/A View Replacement
60-6 P0827060-6 MOTOR CORD 14G 6W 72" $25.00
61 P0827061
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
62 P0827062 RIVET 3.5MM BLIND $1.25
63 P0827063 COVER PLATE, STEEL $4.75

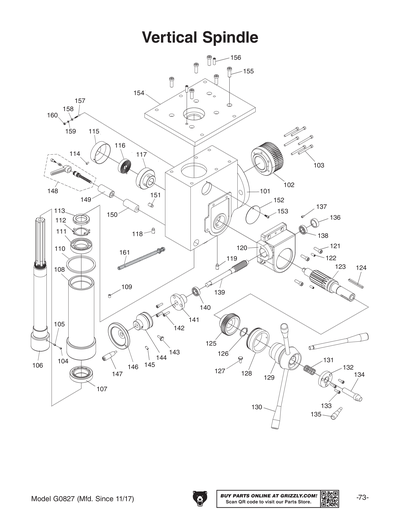

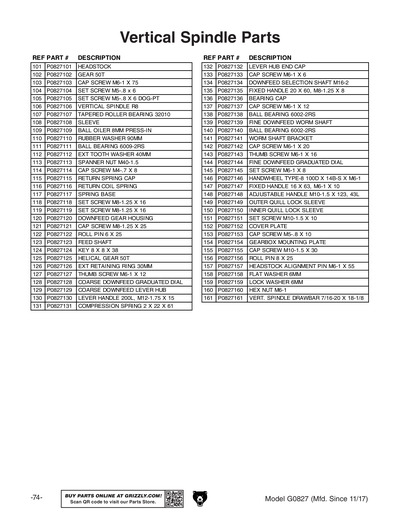

101 P0827101 HEADSTOCK $387.50
102 P0827102 GEAR 50T $96.25
103 P0827103
Replaced By PCAP103M
CAP SCREW M6-1 X 75
N/A View Replacement
104 P0827104
Replaced By PSS26M
SET SCREW M5-.8 X 6
N/A View Replacement
105 P0827105
***USE PSS143M***
Item is no longer available
N/A
106 P0827106 VERTICAL SPINDLE R8 $356.50
107 P0827107
Replaced By P32010
TAPERED ROLLER BEARING 32010
N/A View Replacement
108 P0827108 SLEEVE $325.50
109 P0827109
Replaced By PLUBE002M
BALL OILER 8MM PRESS-IN
N/A View Replacement
110 P0827110 RUBBER WASHER 90MM $2.50
111 P0827111
Replaced By P6009-2RS
BALL BEARING 6009-2RS
N/A View Replacement
112 P0827112
Replaced By PTLW10M
EXT TOOTH WASHER 40MM
N/A View Replacement
113 P0827113
Replaced By P0757313
SPANNER NUT M40-1.5
N/A View Replacement
114 P0827114
Replaced By PCAP18M
CAP SCREW M4-.7 X 8
N/A View Replacement
115 P0827115 RETURN SPRING CAP $15.50
116 P0827116 RETURN COIL SPRING $20.25
117 P0827117 SPRING BASE $18.75
118 P0827118
Replaced By PSS06M
SET SCREW M8-1.25 X 16
N/A View Replacement
119 P0827119
Replaced By PSS06M
SET SCREW M8-1.25 X 16
N/A View Replacement
120 P0827120 DOWNFEED GEAR HOUSING $46.50
121 P0827121
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
122 P0827122
Replaced By PRP93M
ROLL PIN 6 X 25
N/A View Replacement
123 P0827123 FEED SHAFT $80.75
124 P0827124
Replaced By PK121M
KEY 8 X 8 X 38
N/A View Replacement
125 P0827125 HELICAL GEAR 50T $43.50
126 P0827126
Replaced By PR15M
EXT RETAINING RING 30MM
N/A View Replacement
127 P0827127
Replaced By PTS003M
THUMB SCREW M6-1 X 12
N/A View Replacement
128 P0827128 COARSE DOWNFEED GRADUATED DIAL $25.00
129 P0827129 COARSE DOWNFEED LEVER HUB $48.25
130 P0827130 LEVER HANDLE 200L, M12-1.75 X 15 $15.50
131 P0827131 COMPRESSION SPRING 2 X 22 X 61 $6.25
132 P0827132 LEVER HUB END CAP $12.50
133 P0827133
Replaced By PCAP85M
CAP SCREW M6-1 X 6
N/A View Replacement
134 P0827134 DOWNFEED SELECTION SHAFT M16-2 $3.25
135 P0827135
Replaced By P0827046
FIXED HANDLE 20 X 60, M8-1.25 X 8
N/A View Replacement
136 P0827136 BEARING CAP $4.75
137 P0827137
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
138 P0827138
Replaced By P6002-2RS
BALL BEARING 6002-2RS
N/A View Replacement
139 P0827139 FINE DOWNFEED WORM SHAFT $43.50
140 P0827140
Replaced By P6002-2RS
BALL BEARING 6002-2RS
N/A View Replacement
141 P0827141 WORM SHAFT BRACKET $12.50
142 P0827142
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
143 P0827143
Replaced By PTS001M
THUMB SCREW M6-1 X 16
N/A View Replacement
144 P0827144 FINE DOWNFEED GRADUATED DIAL $26.50
145 P0827145
Replaced By PSS03M
SET SCREW M6-1 X 8
N/A View Replacement
146 P0827146 HANDWHEEL TYPE-8 100D X 14B-S X M6-1 $18.75
147 P0827147 FIXED HANDLE 16 X 63, M6-1 X 10 $6.25
148 P0827148 ADJUSTABLE HANDLE M10-1.5 X 123, 43L $11.00
149 P0827149 OUTER QUILL LOCK SLEEVE $15.50
150 P0827150 INNER QUILL LOCK SLEEVE $15.50
151 P0827151
Replaced By PSS30M
SET SCREW M10-1.5 X 10
N/A View Replacement
152 P0827152 COVER PLATE $6.25
153 P0827153
Replaced By PCAP50M
CAP SCREW M5-.8 X 10
N/A View Replacement
154 P0827154 GEARBOX MOUNTING PLATE $176.75
155 P0827155
Replaced By PCAP72M
CAP SCREW M10-1.5 X 30
N/A View Replacement
157 P0827157 HEADSTOCK ALIGNMENT PIN M6-1 X 55 $3.25
158 P0827158
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
159 P0827159
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
160 P0827160
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement

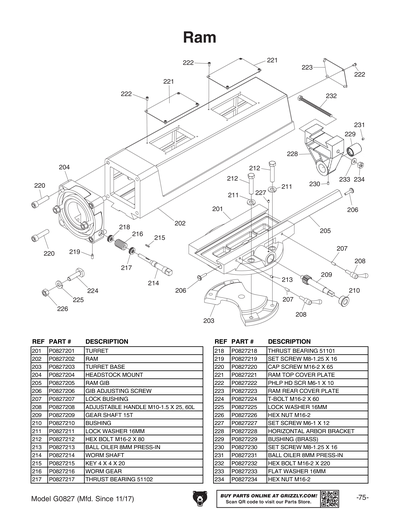

201 P0827201 TURRET $269.75
202 P0827202 RAM $852.50
203 P0827203 TURRET BASE $127.25
204 P0827204 HEADSTOCK MOUNT $105.50
205 P0827205 RAM GIB $37.25
206 P0827206 GIB ADJUSTING SCREW $3.25
207 P0827207 LOCK BUSHING $3.25
208 P0827208 ADJUSTABLE HANDLE M10-1.5 X 25, 60L $6.25
209 P0827209 GEAR SHAFT 15T $87.00
210 P0827210 BUSHING $4.75
211 P0827211
Replaced By PLW10M
LOCK WASHER 16MM
N/A View Replacement
212 P0827212
Replaced By PB159M
HEX BOLT M16-2 X 80
N/A View Replacement
213 P0827213
Replaced By PLUBE002M
BALL OILER 8MM PRESS-IN
N/A View Replacement
214 P0827214 WORM SHAFT $59.00
215 P0827215
Replaced By PK48M
KEY 4 X 4 X 20
N/A View Replacement
216 P0827216 WORM GEAR $28.00
217 P0827217
Replaced By P51102
THRUST BEARING 51102
N/A View Replacement
218 P0827218
Replaced By P51101
THRUST BEARING 51101
N/A View Replacement
219 P0827219
Replaced By PSS06M
SET SCREW M8-1.25 X 16
N/A View Replacement
220 P0827220
Replaced By PCAP104M
CAP SCREW M16-2 X 65
N/A View Replacement
221 P0827221 RAM TOP COVER PLATE $6.25
222 P0827222
Replaced By PS68M
PHLP HD SCR M6-1 X 10
N/A View Replacement
223 P0827223 RAM REAR COVER PLATE $4.75
224 P0827224 T-BOLT M16-2 X 60 $9.50
225 P0827225
Replaced By PLW10M
LOCK WASHER 16MM
N/A View Replacement
226 P0827226
Replaced By PN13M
HEX NUT M16-2
N/A View Replacement
227 P0827227
Replaced By PSS04M
SET SCREW M6-1 X 12
N/A View Replacement
228 P0827228 HORIZONTAL ARBOR BRACKET $180.00
229 P0827229 BUSHING (BRASS) $43.50
230 P0827230
Replaced By PSS06M
SET SCREW M8-1.25 X 16
N/A View Replacement
231 P0827231
Replaced By PLUBE002M
BALL OILER 8MM PRESS-IN
N/A View Replacement
233 P0827233
Replaced By PW08M
FLAT WASHER 16MM
N/A View Replacement
234 P0827234
Replaced By PN13M
HEX NUT M16-2
N/A View Replacement

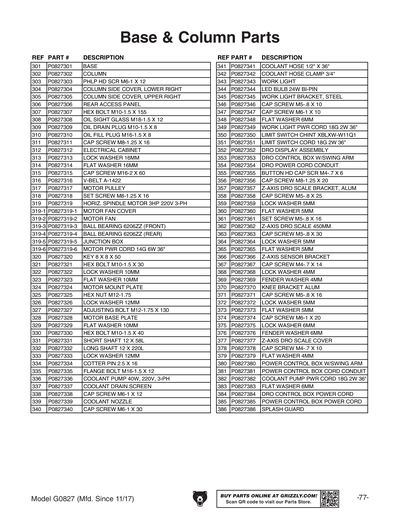

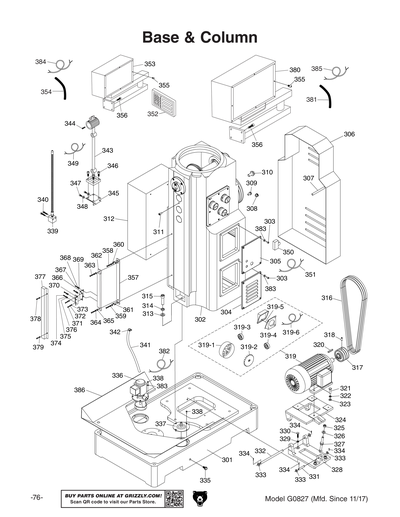

301 P0827301 BASE $1,054.00
302 P0827302 COLUMN $1,736.00
303 P0827303
Replaced By PS14M
PHLP HD SCR M6-1 X 12
N/A View Replacement
304 P0827304 COLUMN SIDE COVER, LOWER RIGHT $12.50
305 P0827305 COLUMN SIDE COVER, UPPER RIGHT $9.50
306 P0827306 REAR ACCESS PANEL $139.50
308 P0827308 OIL SIGHT GLASS M18-1.5 X 12 $3.25
309 P0827309 OIL DRAIN PLUG M10-1.5 X 8 $2.50
310 P0827310 OIL FILL PLUG M16-1.5 X 8 $3.25
311 P0827311
Replaced By PCAP11M
CAP SCREW M8-1.25 X 16
N/A View Replacement
312 P0827312 ELECTRICAL CABINET $211.00
313 P0827313
Replaced By PLW10M
LOCK WASHER 16MM
N/A View Replacement
314 P0827314
Replaced By PW08M
FLAT WASHER 16MM
N/A View Replacement
315 P0827315
Replaced By PCAP123M
CAP SCREW M16-2 X 60
N/A View Replacement
316 P0827316 V-BELT A-1422 $15.50
317 P0827317 MOTOR PULLEY $49.75
318 P0827318
Replaced By PSS06M
SET SCREW M8-1.25 X 16
N/A View Replacement
319 P0827319 HORIZ. SPINDLE MOTOR 3HP 220V 3-PH $589.00
319-1 P0827319-1 MOTOR FAN COVER $21.75
319-2 P0827319-2 MOTOR FAN $18.75
319-3 P0827319-3
Replaced By P6206ZZ
BALL BEARING 6206ZZ
N/A View Replacement
319-4 P0827319-4
Replaced By P6206ZZ
BALL BEARING 6206ZZ
N/A View Replacement
319-5 P0827319-5 JUNCTION BOX $34.25
319-6 P0827319-6 MOTOR PWR CORD 14G 6W 36" $25.00
320 P0827320
Replaced By PK158M
KEY 8 X 8 X 50
N/A View Replacement
321 P0827321
Replaced By PB01M
HEX BOLT M10-1.5 X 30
N/A View Replacement
322 P0827322
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
323 P0827323
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
324 P0827324 MOTOR MOUNT PLATE $87.00
325 P0827325
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
326 P0827326
Replaced By PLW05M
LOCK WASHER 12MM
N/A View Replacement
327 P0827327 ADJUSTING BOLT M12-1.75 X 130 $9.50
328 P0827328 MOTOR BASE PLATE $87.00
329 P0827329
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
330 P0827330
Replaced By PB31M
HEX BOLT M10-1.5 X 40
N/A View Replacement
331 P0827331 SHORT SHAFT 12 X 58L $6.25
332 P0827332 LONG SHAFT 12 X 220L $15.50
333 P0827333
Replaced By PLW05M
LOCK WASHER 12MM
N/A View Replacement
334 P0827334 COTTER PIN 2.5 X 16 $2.50
336 P0827336 COOLANT PUMP 40W,220V, 3-PH $279.00
337 P0827337 COOLANT DRAIN SCREEN $18.75
338 P0827338
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
339 P0827339 COOLANT NOZZLE $9.50
340 P0827340
Replaced By PCAP07M
CAP SCREW M6-1 X 30
N/A View Replacement
341 P0827341 COOLANT HOSE 1/2" X 36" $3.25
342 P0827342
Replaced By P0757092
COOLANT HOSE CLAMP 3/4"
N/A View Replacement
343 P0827343 WORK LIGHT $133.50
344 P0827344 LED BULB 24W BI-PIN $14.00
345 P0827345 WORK LIGHT BRACKET, STEEL $9.50
346 P0827346
Replaced By PCAP50M
CAP SCREW M5-.8 X 10
N/A View Replacement
347 P0827347
Replaced By PCAP04M
CAP SCREW M6-1 X 10
N/A View Replacement
348 P0827348
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
349 P0827349 WORK LIGHT PWR CORD 18G 2W 36" $31.00
350 P0827350 LIMIT SWITCH CHINT XBLXW-W11Q1 $15.50
351 P0827351 LIMIT SWITCH CORD 18G 2W 36" $28.00
352 P0827352
Replaced By P0827352A
DRO DISPLAY ASSEMBLY
N/A View Replacement
352A P0827352A DRO DISPLAY ASSEMBLY $1,333.00
353 P0827353
Replaced By P0827352A
DRO DISPLAY ASSEMBLY
N/A View Replacement
354 P0827354
Replaced By P0827352A
DRO DISPLAY ASSEMBLY
N/A View Replacement
355 P0827355
Replaced By PBHS46M
BUTTON HD CAP SCR M4-.7 X 6
N/A View Replacement
356 P0827356
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
357 P0827357
Replaced By P0827352A
DRO DISPLAY ASSEMBLY
N/A View Replacement
358 P0827358
Replaced By PCAP38M
CAP SCREW M5-.8 X 25
N/A View Replacement
359 P0827359
Replaced By PLW01M
LOCK WASHER 5MM
N/A View Replacement
360 P0827360
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
361 P0827361
Replaced By PSS34M
SET SCREW M5-.8 X 16
N/A View Replacement
362 P0827362
Replaced By P0827352A
DRO DISPLAY ASSEMBLY
N/A View Replacement
363 P0827363
Replaced By PCAP95M
CAP SCREW M5-.8 X 30
N/A View Replacement
364 P0827364
Replaced By PLW01M
LOCK WASHER 5MM
N/A View Replacement
365 P0827365
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
366 P0827366
Replaced By P0827352A
DRO DISPLAY ASSEMBLY
N/A View Replacement
367 P0827367
Replaced By PCAP41M
CAP SCREW M4-.7 X 14
N/A View Replacement
368 P0827368
Replaced By PLW02M
LOCK WASHER 4MM
N/A View Replacement
369 P0827369
Replaced By PWF04M
FENDER WASHER 4MM
N/A View Replacement
370 P0827370
Replaced By P0827352A
DRO DISPLAY ASSEMBLY
N/A View Replacement
371 P0827371
Replaced By PCAP24M
CAP SCREW M5-.8 X 16
N/A View Replacement
372 P0827372
Replaced By PLW01M
LOCK WASHER 5MM
N/A View Replacement
373 P0827373
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
374 P0827374
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
375 P0827375
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
376 P0827376
Replaced By PWF06M
FENDER WASHER 6MM
N/A View Replacement
377 P0827377
Replaced By P0827352A
DRO DISPLAY ASSEMBLY
N/A View Replacement
378 P0827378
Replaced By PCAP17M
CAP SCREW M4-.7 X 10
N/A View Replacement
379 P0827379
Replaced By PW05M
FLAT WASHER 4MM
N/A View Replacement
380 P0827380 POWER CONTROL BOX W/SWING ARM $142.75
381 P0827381 POWER CONTROL BOX CORD CONDUIT $6.25
382 P0827382 COOLANT PUMP PWR CORD 18G 2W 36" $11.00
383 P0827383
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
384 P0827384 DRO CONTROL BOX POWER CORD $12.50
385 P0827385 POWER CONTROL BOX POWER CORD $25.00
386 P0827386 SPLASH GUARD $176.75

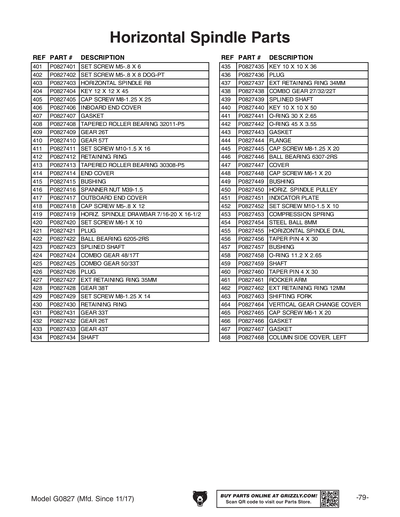

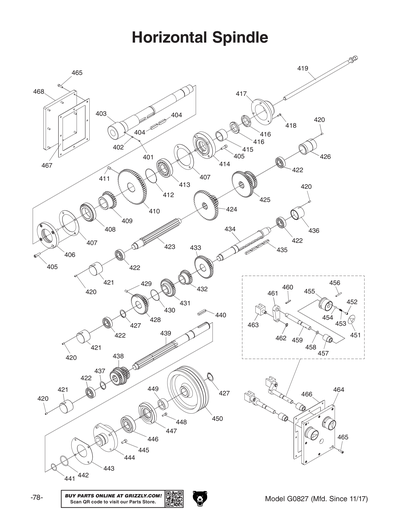

401 P0827401
Replaced By PSS26M
SET SCREW M5-.8 X 6
N/A View Replacement
402 P0827402
Replaced By PSS142M
SET SCREW M5-.8 X 8 DOG-PT
N/A View Replacement
403 P0827403 HORIZONTAL SPINDLE R8 $279.00
404 P0827404
Replaced By PK137M
KEY 12 X 12 X 45
N/A View Replacement
405 P0827405
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
406 P0827406 INBOARD END COVER $45.00
407 P0827407 GASKET $6.25
408 P0827408
Replaced By P32011-P5
TAPERED ROLLER BEARING 32011 P5
N/A View Replacement
409 P0827409 GEAR 26T $111.75
410 P0827410 GEAR 57T $263.50
411 P0827411
Replaced By PSS75M
SET SCREW M10-1.5 X 16
N/A View Replacement
412 P0827412 RETAINING RING $5.00
413 P0827413
Replaced By P30308-P5
TAPERED ROLLER BEARING 30308 P5
N/A View Replacement
414 P0827414 END COVER $28.00
415 P0827415 BUSHING $13.25
416 P0827416
Replaced By P0757209
SPANNER NUT M39-1.5
N/A View Replacement
417 P0827417 OUTBOARD END COVER $18.75
418 P0827418
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
419 P0827419 HORIZ. SPINDLE DRAWBAR 7/16-20 X 17-1/2 $25.00
420 P0827420
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
421 P0827421 PLUG $15.50
422 P0827422
Replaced By P6205-2RS
BALL BEARING 6205-2RS
N/A View Replacement
423 P0827423 SPLINED SHAFT $111.75
424 P0827424 COMBO GEAR 48/17T $195.50
425 P0827425 COMBO GEAR 50/33T $214.00
426 P0827426 PLUG $25.00
427 P0827427
Replaced By PR12M
EXT RETAINING RING 35MM
N/A View Replacement
428 P0827428 GEAR 38T $90.00
429 P0827429
Replaced By PSS60M
SET SCREW M8-1.25 X 14
N/A View Replacement
430 P0827430 RETAINING RING $3.75
431 P0827431 GEAR 33T $77.50
432 P0827432 GEAR 26T $56.00
433 P0827433 GEAR 43T $114.75
434 P0827434 SHAFT $93.00
435 P0827435
Replaced By PK138M
KEY 10 X 10 X 36
N/A View Replacement
436 P0827436 PLUG $15.50
437 P0827437
Replaced By PR84M
EXT RETAINING RING 34MM
N/A View Replacement
438 P0827438 COMBO GEAR 27/32/22T $136.50
439 P0827439 SPLINED SHAFT $111.75
440 P0827440
Replaced By PK59M
KEY 10 X 10 X 50
N/A View Replacement
441 P0827441
Replaced By P07730728
*DISCD*O-RING 30 X 2.65
N/A View Replacement
442 P0827442 O-RING 45 X 3.55 $1.25
443 P0827443 GASKET $6.25
444 P0827444 FLANGE $46.50
445 P0827445
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
447 P0827447 COVER $21.75
448 P0827448
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
449 P0827449 BUSHING $15.50
450 P0827450 HORIZ. SPINDLE PULLEY $59.00
451 P0827451 INDICATOR PLATE $3.25
452 P0827452
Replaced By PSS30M
SET SCREW M10-1.5 X 10
N/A View Replacement
453 P0827453 COMPRESSION SPRING $6.25
454 P0827454
Replaced By PSTB002M
STEEL BALL 8MM
N/A View Replacement
455 P0827455 HORIZONTAL SPINDLE DIAL $15.50
456 P0827456 TAPER PIN 4 X 30 $2.00
457 P0827457 BUSHING $14.00
458 P0827458 O-RING 11.2 X 2.65 $1.25
459 P0827459 SHAFT $9.50
460 P0827460
Replaced By P0827456
TAPER PIN 4 X 30
N/A View Replacement
461 P0827461 ROCKER ARM $9.50
462 P0827462
Replaced By PR03M
EXT RETAINING RING 12MM
N/A View Replacement
463 P0827463 SHIFTING FORK $17.25
464 P0827464 VERTICAL GEAR CHANGE COVER $108.50
465 P0827465
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
466 P0827466 GASKET $10.25
467 P0827467 GASKET $10.25
468 P0827468 COLUMN SIDE COVER, LEFT $114.75

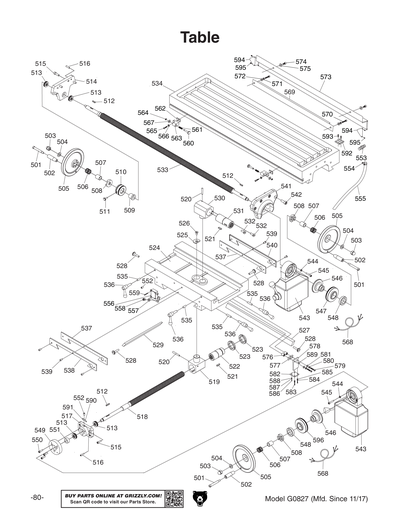

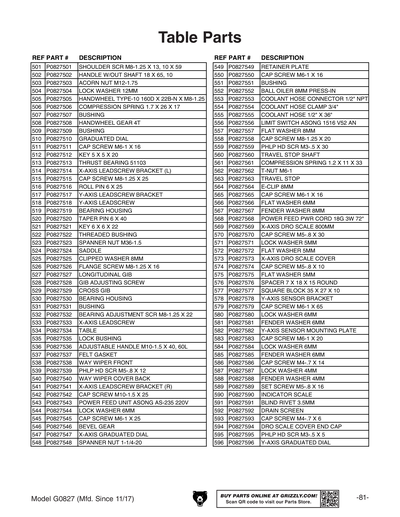

501 P0827501 SHOULDER SCR M8-1.25 X 13, 10 X 59 $10.25
502 P0827502 HANDLE W/OUT SHAFT 18 X 65, 10 $12.50
503 P0827503
Replaced By PN26M
ACORN NUT M12-1.75
N/A View Replacement
504 P0827504
Replaced By PLW05M
LOCK WASHER 12MM
N/A View Replacement
505 P0827505 HANDWHEEL TYPE-10 160D X 22B-N X M8-1.25 $48.25
506 P0827506 COMPRESSION SPRING 1.7 X 26 X 17 $1.25
507 P0827507 BUSHING $5.00
508 P0827508 HANDWHEEL GEAR 4T $12.50
509 P0827509 BUSHING $9.50
510 P0827510 GRADUATED DIAL $21.75
511 P0827511
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
512 P0827512
Replaced By PK34M
KEY 5 X 5 X 20
N/A View Replacement
513 P0827513
Replaced By P51103
THRUST BEARING 51103
N/A View Replacement
514 P0827514 X-AXIS LEADSCREW BRACKET (L) $62.00
515 P0827515
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
516 P0827516
Replaced By PRP93M
ROLL PIN 6 X 25
N/A View Replacement
517 P0827517 Y-AXIS LEADSCREW BRACKET $28.00
518 P0827518 Y-AXIS LEADSCREW $170.50
519 P0827519 BEARING HOUSING $118.00
521 P0827521
Replaced By PK139M
KEY 6 X 6 X 22
N/A View Replacement
522 P0827522 THREADED BUSHING $105.50
523 P0827523 SPANNER NUT M36-1.5 $11.00
524 P0827524 SADDLE $480.50
525 P0827525 CLIPPED WASHER 8MM $6.25
526 P0827526
Replaced By PFS16M
FLANGE SCREW M8-1.25 X 16
N/A View Replacement
527 P0827527 LONGITUDINAL GIB $58.00
528 P0827528 GIB ADJUSTING SCREW $5.50
529 P0827529 CROSS GIB $54.25
530 P0827530 BEARING HOUSING $167.50
531 P0827531 BUSHING $155.00
532 P0827532 BEARING ADJUSTMENT SCR M8-1.25 X 22 $3.25
533 P0827533 X-AXIS LEADSCREW $245.00
534 P0827534 TABLE $2,046.00
535 P0827535 LOCK BUSHING $6.25
536 P0827536 ADJUSTABLE HANDLE M10-1.5 X 40, 60L $9.50
537 P0827537 FELT GASKET $10.00
538 P0827538 WAY WIPER FRONT $10.00
539 P0827539
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
N/A View Replacement
540 P0827540 WAY WIPER COVER BACK $10.00
541 P0827541 X-AXIS LEADSCREW BRACKET (R) $52.75
542 P0827542
Replaced By PCAP64M
CAP SCREW M10-1.5 X 25
N/A View Replacement
543 P0827543 POWER FEED UNIT ASONG AS-235 220V $806.00
544 P0827544
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
545 P0827545
Replaced By PCAP06M
CAP SCREW M6-1 X 25
N/A View Replacement
546 P0827546 BEVEL GEAR $52.75
547 P0827547 X-AXIS GRADUATED DIAL $45.00
548 P0827548 SPANNER NUT 1-1/4-20 $3.75
549 P0827549 RETAINER PLATE $40.50
550 P0827550
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
551 P0827551 BUSHING $5.50
552 P0827552
Replaced By PLUBE002M
BALL OILER 8MM PRESS-IN
N/A View Replacement
553 P0827553 COOLANT HOSE CONNECTOR 1/2" NPT $6.25
554 P0827554
Replaced By P0757092
COOLANT HOSE CLAMP 3/4"
N/A View Replacement
555 P0827555 COOLANT HOSE 1/2" X 36" $3.25
556 P0827556 LIMIT SWITCH ASONG 1516 V52 AN $24.25
557 P0827557
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
558 P0827558
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
559 P0827559
Replaced By PS95M
PHLP HD SCR M3-.5 X 30
N/A View Replacement
560 P0827560 TRAVEL STOP SHAFT $6.25
561 P0827561 COMPRESSION SPRING 1.2 X 11 X 33 $2.00
562 P0827562 T-NUT M6-1 $2.00
563 P0827563 TRAVEL STOP $6.25
564 P0827564
Replaced By PEC015M
E-CLIP 8MM
N/A View Replacement
565 P0827565
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
566 P0827566
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
567 P0827567
Replaced By PWF08M
FENDER WASHER 8MM
N/A View Replacement
568 P0827568 POWER FEED PWR CORD 18G 3W 72" $15.50
569 P0827569
Replaced By P0827352A
DRO DISPLAY ASSEMBLY
N/A View Replacement
570 P0827570
Replaced By PCAP95M
CAP SCREW M5-.8 X 30
N/A View Replacement
571 P0827571
Replaced By PLW01M
LOCK WASHER 5MM
N/A View Replacement
572 P0827572
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
573 P0827573
Replaced By P0827352A
DRO DISPLAY ASSEMBLY
N/A View Replacement
574 P0827574
Replaced By PCAP50M
CAP SCREW M5-.8 X 10
N/A View Replacement
575 P0827575
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
576 P0827576
Replaced By P0827352A
DRO DISPLAY ASSEMBLY
N/A View Replacement
577 P0827577
Replaced By P0827352A
DRO DISPLAY ASSEMBLY
N/A View Replacement
578 P0827578
Replaced By P0827352A
DRO DISPLAY ASSEMBLY
N/A View Replacement
579 P0827579
Replaced By PCAP127M
CAP SCREW M6-1 X 65
N/A View Replacement
580 P0827580
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
581 P0827581
Replaced By PWF06M
FENDER WASHER 6MM
N/A View Replacement
582 P0827582
Replaced By P0827352A
DRO DISPLAY ASSEMBLY
N/A View Replacement
583 P0827583
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
584 P0827584
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
585 P0827585
Replaced By PWF06M
FENDER WASHER 6MM
N/A View Replacement
586 P0827586
Replaced By PCAP41M
CAP SCREW M4-.7 X 14
N/A View Replacement
587 P0827587
Replaced By PLW02M
LOCK WASHER 4MM
N/A View Replacement
588 P0827588
Replaced By PWF04M
FENDER WASHER 4MM
N/A View Replacement
589 P0827589
Replaced By PSS34M
SET SCREW M5-.8 X 16
N/A View Replacement
590 P0827590 INDICATOR SCALE $1.25
591 P0827591 BLIND RIVET 3.5MM $1.25
592 P0827592 DRAIN SCREEN $9.50
593 P0827593
Replaced By PCAP110M
CAP SCREW M4-.7 X 6
N/A View Replacement
594 P0827594
Replaced By P0827352A
DRO DISPLAY ASSEMBLY
N/A View Replacement
595 P0827595
Replaced By PS49M
PHLP HD SCR M3-.5 X 5
N/A View Replacement
596 P0827596
Replaced By P0827547
X-AXIS GRADUATED DIAL
N/A View Replacement

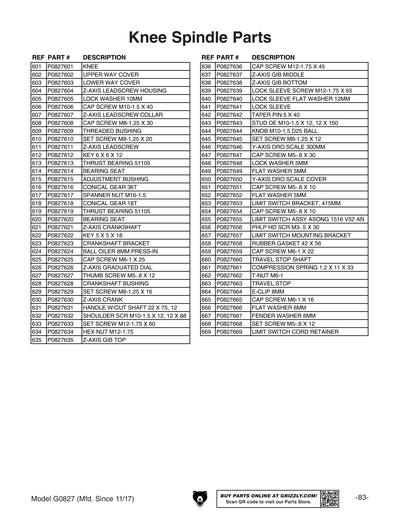

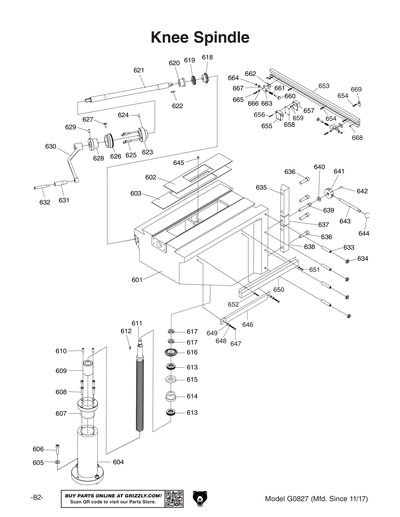

601 P0827601 KNEE $1,720.50
602 P0827602 UPPER WAY COVER $7.75
603 P0827603 LOWER WAY COVER $31.00
604 P0827604 Z-AXIS LEADSCREW HOUSING $170.50
605 P0827605
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
606 P0827606
Replaced By PCAP47M
CAP SCREW M10-1.5 X 40
N/A View Replacement
607 P0827607 Z-AXIS LEADSCREW COLLAR $118.00
608 P0827608
Replaced By PCAP13M
CAP SCREW M8-1.25 X 30
N/A View Replacement
609 P0827609 THREADED BUSHING $105.50
610 P0827610
Replaced By PSS09M
SET SCREW M8-1.25 X 20
N/A View Replacement
611 P0827611 Z-AXIS LEADSCREW $170.50
612 P0827612
Replaced By PK81M
KEY 6 X 6 X 12
N/A View Replacement
613 P0827613
Replaced By P51105
THRUST BEARING 51105
N/A View Replacement
614 P0827614 BEARING SEAT $15.50
615 P0827615 ADJUSTMENT BUSHING $9.50
616 P0827616 CONICAL GEAR 36T $68.25
617 P0827617
Replaced By P0757055
SPANNER NUT M16-1.5
N/A View Replacement
618 P0827618 CONICAL GEAR 18T $68.25
619 P0827619
Replaced By P51105
THRUST BEARING 51105
N/A View Replacement
620 P0827620 BEARING SEAT $9.50
621 P0827621 Z-AXIS CRANKSHAFT $40.50
622 P0827622
Replaced By PK14M
KEY 5 X 5 X 18
N/A View Replacement
623 P0827623 CRANKSHAFT BRACKET $25.00
624 P0827624
Replaced By PLUBE002M
BALL OILER 8MM PRESS-IN
N/A View Replacement
625 P0827625
Replaced By PCAP06M
CAP SCREW M6-1 X 25
N/A View Replacement
626 P0827626 Z-AXIS GRADUATED DIAL $34.25
627 P0827627 THUMB SCREW M5-.8 X 12 $3.75
628 P0827628 CRANKSHAFT BUSHING $21.75
629 P0827629
Replaced By PSS06M
SET SCREW M8-1.25 X 16
N/A View Replacement
630 P0827630 Z-AXIS CRANK $40.50
631 P0827631 HANDLE W/OUT SHAFT 22 X 75, 12 $9.50
632 P0827632 SHOULDER SCR M10-1.5 X 12, 12 X 88 $9.50
633 P0827633
Replaced By PSS33M
SET SCREW M12-1.75 X 60
N/A View Replacement
634 P0827634
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
635 P0827635 Z-AXIS GIB TOP $31.00
636 P0827636
Replaced By PCAP131M
CAP SCREW M12-1.75 X 45
N/A View Replacement
637 P0827637 Z-AXIS GIB MIDDLE $31.00
638 P0827638 Z-AXIS GIB BOTTOM $31.00
639 P0827639 LOCK SLEEVE SCREW M12-1.75 X 65 $11.50
640 P0827640 LOCK SLEEVE FLAT WASHER 12MM $2.25
641 P0827641 LOCK SLEEVE $18.75
642 P0827642 TAPER PIN 5 X 40 $2.00
643 P0827643 STUD DE M10-1.5 X 12, 12 X 150 $9.50
644 P0827644 KNOB M10-1.5 D25 BALL $11.00
645 P0827645
Replaced By PSS14M
SET SCREW M8-1.25 X 12
N/A View Replacement
646 P0827646
Replaced By P0827352A
DRO DISPLAY ASSEMBLY
N/A View Replacement
647 P0827647
Replaced By PCAP95M
CAP SCREW M5-.8 X 30
N/A View Replacement
648 P0827648
Replaced By PLW01M
LOCK WASHER 5MM
N/A View Replacement
649 P0827649
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
650 P0827650
Replaced By P0827352A
DRO DISPLAY ASSEMBLY
N/A View Replacement
651 P0827651
Replaced By PCAP50M
CAP SCREW M5-.8 X 10
N/A View Replacement
652 P0827652
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
653 P0827653 LIMIT SWITCH BRACKET, 415MM $93.00
654 P0827654
Replaced By PCAP50M
CAP SCREW M5-.8 X 10
N/A View Replacement
656 P0827656
Replaced By PS95M
PHLP HD SCR M3-.5 X 30
N/A View Replacement
657 P0827657
Replaced By P0827655
LIMIT SWITCH ASSY ASONG 1516 V52 AN
N/A View Replacement
659 P0827659
Replaced By PCAP114M
CAP SCREW M6-1 X 22
N/A View Replacement
660 P0827660 TRAVEL STOP SHAFT $7.75
661 P0827661
Replaced By P0827561
COMPRESSION SPRING 1.2 X 11 X 33
N/A View Replacement
662 P0827662
Replaced By P0827562
T-NUT M6-1
N/A View Replacement
663 P0827663 TRAVEL STOP $15.50
664 P0827664
Replaced By PEC015M
E-CLIP 8MM
N/A View Replacement
665 P0827665
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
666 P0827666
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
667 P0827667
Replaced By PWF08M
FENDER WASHER 8MM
N/A View Replacement
668 P0827668
Replaced By PSS53M
SET SCREW M5-.8 X 12
N/A View Replacement
669 P0827669 LIMIT SWITCH CORD RETAINER $1.25
701 P0827701 ELECTRICAL BOX W/DOOR $251.25
702 P0827702 STRAIN RELIEF TYPE-5 PG8 $9.50
703 P0827703 CONDUIT 10MM $3.25
704 P0827704 STRAIN RELIEF TYPE-5 PG10 $1.25
705 P0827705 CONDUIT 12MM $3.25
710 P0827710 STRAIN RELIEF TYPE-3 PG10 $9.50
711 P0827711 STRAIN RELIEF TYPE-3 PG12 $9.50
712 P0827712 WIRE LOOM 12" $9.50
713 P0827713 WIRE LOOM 18" $9.50
714 P0827714 TRANSFORMER JBK5-160V $195.50
716 P0827716 OL RELAY CHINT NS2-25 20-25A $145.75
717 P0827717 CIRCUIT BREAKER CHINT DZ4760 C2 2P $15.50
718 P0827718 DIN RAIL 3" $1.25
719 P0827719 DIN RAIL 10" $1.25
720 P0827720 CONTACTOR SIEMENS 3TB41 24V $43.50
721 P0827721 ROTARY SWITCH CANSEN LW26-25 $65.25
722 P0827722 TERMINAL BAR 1P $1.25
723 P0827723
Replaced By PS17M
PHLP HD SCR M4-.7 X 6
N/A View Replacement
724 P0827724 ELECTRICAL BOX MOUNTING PLATE $74.50
725 P0827725 WIRE LOOM 10" $9.50
726 P0827726 ELECTRICAL BOX LOCK W/KEYS $9.50
727 P0827727 CONTROL PANEL FACEPLATE $42.00
730 P0827730 BUTTON SWITCH MINGER LA125H 22MM RED $15.50
731 P0827731 BUTTON SWITCH MINGER LA125H 22MM GRN $15.50
733 P0827733 PUMP SWITCH MINGER LA125H 22MM $15.50
734 P0827734 E-STOP BUTTON MINGER LA125H 22MM $15.50
735 P0827735 POWER BUTTON MINGER LA125J-11D206A $18.75
736 P0827736 POWER CORD 14G 4W 72" $6.25
737 P0827737 ROTARY SWITCH CANSEN LW26-20 $57.50
738 P0827738
Replaced By PN04M
HEX NUT M4-.7
N/A View Replacement
739 P0827739
Replaced By PW05M
FLAT WASHER 4MM
N/A View Replacement
740 P0827740
Replaced By PBHS46M
BUTTON HD CAP SCR M4-.7 X 6
N/A View Replacement

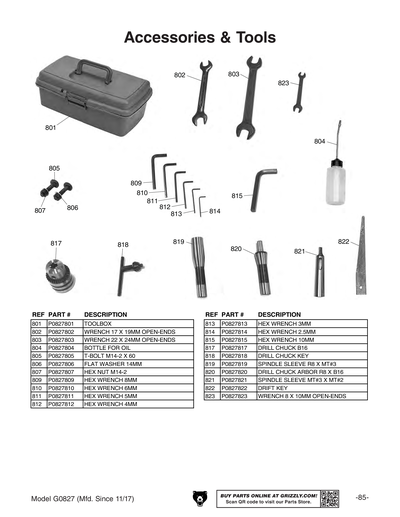

801 P0827801 TOOLBOX $29.50
802 P0827802
Replaced By PWR1719
WRENCH 17 X 19MM OPEN-ENDS
N/A View Replacement
803 P0827803
Replaced By PWR2224
WRENCH 22 X 24MM OPEN-ENDS
N/A View Replacement
804 P0827804 BOTTLE FOR OIL $6.25
805 P0827805 T-BOLT M14-2 X 60 $3.25
806 P0827806
Replaced By PW10M
FLAT WASHER 14MM
N/A View Replacement
807 P0827807
Replaced By PN32M
HEX NUT M14-2
N/A View Replacement
809 P0827809
Replaced By PAW08M
HEX WRENCH 8MM
N/A View Replacement
810 P0827810
Replaced By PAW06M
HEX WRENCH 6MM
N/A View Replacement
811 P0827811
Replaced By PAW05M
HEX WRENCH 5MM
N/A View Replacement
812 P0827812
Replaced By PAW04M
HEX WRENCH 4MM
N/A View Replacement
813 P0827813
Replaced By PAW03M
HEX WRENCH 3MM
N/A View Replacement
815 P0827815
Replaced By PAW10M
HEX WRENCH 10MM
N/A View Replacement
817 P0827817 DRILL CHUCK B16 $23.25
818 P0827818 DRILL CHUCK KEY $6.25
819 P0827819 SPINDLE SLEEVE R8 X MT#3 $29.50
820 P0827820 DRILL CHUCK ARBOR R8 X B16 $28.00
821 P0827821 SPINDLE SLEEVE MT#3 X MT#2 $23.25
822 P0827822 DRIFT KEY $6.25
823 P0827823
Replaced By PWR810
WRENCH 8 X 10MM OPEN-ENDS
N/A View Replacement

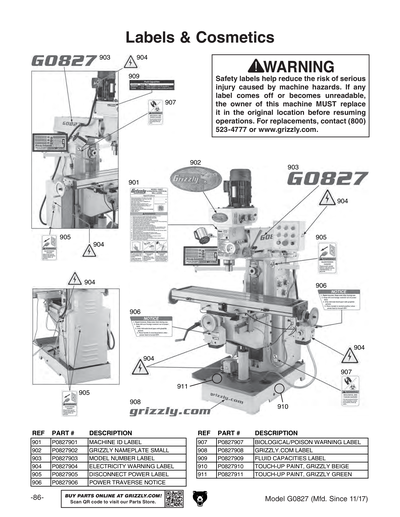

901 P0827901 MACHINE ID LABEL $9.50
902 P0827902
Replaced By G8588
Name Plates - Small
N/A View Replacement
903 P0827903 MODEL NUMBER LABEL $6.25
904 P0827904
Replaced By PLABEL-14
ELECTRICITY 1.4W X 1.2H
N/A View Replacement
905 P0827905
Replaced By PLABEL-62A
DISCONNECT 110V 1.5W X 2.5H
N/A View Replacement
906 P0827906 POWER TRAVERSE NOTICE $7.75
907 P0827907
Replaced By PLABEL-50A
BIOLOGICAL/POISON HAZARD 1.5W X 2.5H
N/A View Replacement
908 P0827908 GRIZZLY.COM LABEL $6.25
909 P0827909 FLUID CAPACITIES LABEL $3.25
910 P0827910
Replaced By PPAINT-11
GREY PUTTY REF G0504
N/A View Replacement
911 P0827911
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
N/A View Replacement
MAN P0827MAN G0827 MANUAL MFD-11.17 V1.01.18 $19.50
