Parts for G0832 - 13" Benchtop Planer with Built-In Dust Collection

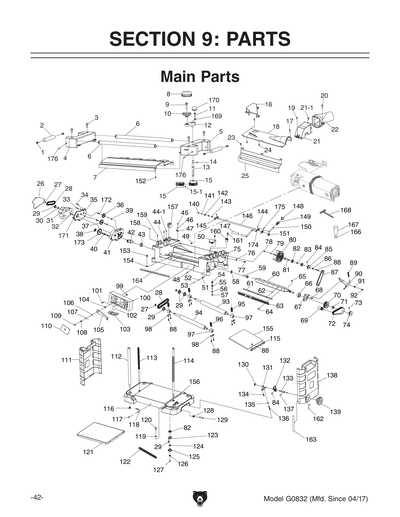

Part Diagram for G0832
Part Diagram for G0832
Part Diagram for G0832
Part Diagram for G0832
Part Diagram for G0832
Part Diagram for G0832
Part Diagram for G0832
Part Diagram for G0832
Part Diagram for G0832
Part Diagram for G0832

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

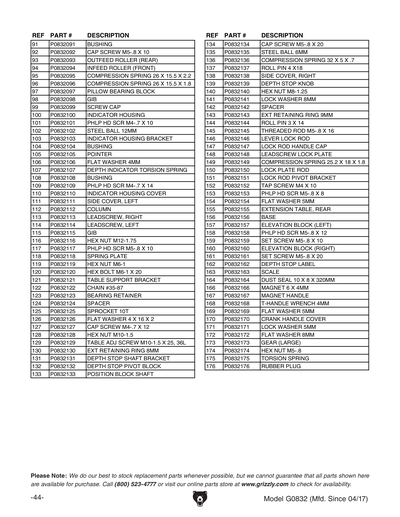

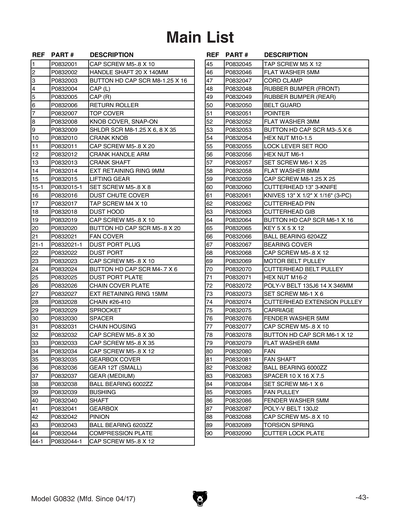

Ref #
Part #
Description
1
CAP SCREW M5-.8 X 10
Price
N/A
2
HANDLE SHAFT 20 X 140MM
Item is no longer available
Price
N/A
3
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
4
CAP (L)
Price
$15.15
5
CAP (R)
Price
$16.35
6
RETURN ROLLER
Item is no longer available
Price
N/A
7
TOP COVER
Item is no longer available
Price
N/A
8
KNOB COVER, SNAP-ON
Item is no longer available
Price
N/A
9
SHLDR SCR M8-1.25 X 6, 8 X 35
Item is no longer available
Price
N/A
10
CRANK KNOB
Item is no longer available
Price
N/A
11
CAP SCREW M5-.8 X 20
Price
N/A
12
CRANK HANDLE ARM
Price
$4.30
13
CRANK SHAFT
Price
$4.85
14
EXT RETAINING RING 9MM
Price
N/A
15
LIFTING GEAR
Item is no longer available
Price
N/A
15-1
SET SCREW M5-.8 X 8
Price
N/A
16
DUST CHUTE COVER
Item is no longer available
Price
N/A
17
TAP SCREW M4 X 10
Price
N/A
18
DUST HOOD
Price
$13.05
19
CAP SCREW M5-.8 X 10
Price
N/A
20
BUTTON HD CAP SCR M5-.8 X 20
Price
N/A
21
FAN COVER
Price
$4.90
21-1
DUST PORT PLUG
Price
$1.60
22
DUST PORT
Price
$4.30
22-1
DUST BAG CLAMP
Price
$4.85
22-2
DUST BAG
Price
$36.90
23
CAP SCREW M5-.8 X 10
Price
N/A
24
BUTTON HD CAP SCR M4-.7 X 6
Price
N/A
25
DUST PORT PLATE
Price
$11.85
26
*DISCD*CHAIN COVER PLATE
Item is no longer available
Price
N/A
27
EXT RETAINING RING 15MM
Price
N/A
28
CHAIN #26-410
Price
$7.25
29
SPROCKET
Price
$3.05
30
SPACER
Item is no longer available
Price
N/A
31
CHAIN HOUSING
Item is no longer available
Price
N/A
32
CAP SCREW M5-.8 X 30
Price
N/A
33
CAP SCREW M5-.8 X 35
Price
N/A
34
CAP SCREW M5-.8 X 12
Price
N/A
35
*DISCD*GEARBOX COVER
Item is no longer available
Price
N/A
36
GEAR 12T (SMALL)
Price
$10.65
37
GEAR (MEDIUM)
Price
$11.20
38
BALL BEARING 6002ZZ
Price
N/A
39
BUSHING
Price
$1.60
40
SHAFT
Price
$4.35
41
GEARBOX
Item is no longer available
Price
N/A
41A
COMPLETE GEARBOX ASSEMBLY
Price
$61.05
42
PINION
Price
$1.60
43
BALL BEARING 6203ZZ
Price
N/A
44
COMPRESSION PLATE
Item is no longer available
Price
N/A
44-1
CAP SCREW M5-.8 X 12
Price
N/A
45
TAP SCREW M5 X 12
Price
N/A
46
FLAT WASHER 5MM
Price
N/A
47
CORD CLAMP
Item is no longer available
Price
N/A
48
RUBBER BUMPER (FRONT)
Item is no longer available
Price
N/A
49
RUBBER BUMPER (REAR)
Item is no longer available
Price
N/A
50
BELT GUARD
Item is no longer available
Price
N/A
51
POINTER
Item is no longer available
Price
N/A
52
FLAT WASHER 3MM
Price
N/A
53
BUTTON HD CAP SCR M3-.5 X 6
Price
$1.60
54
HEX NUT M10-1.5
Price
N/A
55
LOCK LEVER SET ROD
Item is no longer available
Price
N/A
56
HEX NUT M6-1
Price
N/A
57
SET SCREW M6-1 X 25
Price
N/A
58
FLAT WASHER 8MM
Price
N/A
59
CAP SCREW M8-1.25 X 25
Price
N/A
60
CUTTERHEAD 13" 3-KNIFE
Price
$150.05
61
Replacement Knives for G0889, 3 Pack
Price
N/A
62
CUTTERHEAD PIN
Item is no longer available
Price
N/A
63
CUTTERHEAD GIB
Price
$10.50
64
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
64V2
TORX SCREW M6-1 X 16 V2.01.18
Price
$1.60
65
KEY 5 X 5 X 12
Price
N/A
66
BALL BEARING 6204ZZ
Price
N/A
67
BEARING COVER
Item is no longer available
Price
N/A
68
CAP SCREW M5-.8 X 12
Price
N/A
69
MOTOR BELT PULLEY
Item is no longer available
Price
N/A
70
CUTTERHEAD BELT PULLEY
Price
$11.80
71
HEX NUT M16-2
Price
N/A
72
V-BELT RIBBED 135J6 14 X 346MM
Price
N/A
73
SET SCREW M6-1 X 6
Price
N/A
74
CUTTERHEAD EXTENSION PULLEY
Item is no longer available
Price
N/A
75
CARRIAGE
Item is no longer available
Price
N/A
76
FENDER WASHER 5MM
Price
N/A
77
CAP SCREW M5-.8 X 10
Price
N/A
78
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
79
FLAT WASHER 6MM
Price
N/A
80
FAN
Price
$7.10
81
FAN SHAFT
Item is no longer available
Price
N/A
82
BALL BEARING 6000ZZ
Price
N/A
83
SPACER 10 X 16 X 7.5
Item is no longer available
Price
N/A
84
SET SCREW M6-1 X 6
Price
N/A
85
FAN PULLEY
Item is no longer available
Price
N/A
86
FENDER WASHER 5MM
Price
N/A
87
V-BELT 130J2
Price
$5.50
88
CAP SCREW M5-.8 X 10
Price
N/A
89
TORSION SPRING
Item is no longer available
Price
N/A
90
CUTTER LOCK PLATE
Price
$5.15
91
BUSHING
Item is no longer available
Price
N/A
92
CAP SCREW M5-.8 X 10
Price
N/A
93
OUTFEED ROLLER (REAR)
Price
$33.25
94
INFEED ROLLER (FRONT)
Price
$33.25
95
COMPRESSION SPRING 26 X 15.5 X 2.2
Price
$1.60
96
COMPRESSION SPRING 26 X 15.5 X 1.8
Item is no longer available
Price
N/A
97
PILLOW BEARING BLOCK
Price
$1.85
98
GIB
Item is no longer available
Price
N/A
99
SCREW CAP
Item is no longer available
Price
N/A
100
INDICATOR HOUSING
Item is no longer available
Price
N/A
101
PHLP HD SCR M4-.7 X 10
Price
N/A
102
STEEL BALL 12MM
Price
N/A
103
INDICATOR HOUSING BRACKET
Item is no longer available
Price
N/A
104
BUSHING
Item is no longer available
Price
N/A
105
POINTER
Item is no longer available
Price
N/A
106
FLAT WASHER 4MM
Price
N/A
107
DEPTH INDICATOR TORSION SPRING
Item is no longer available
Price
N/A
108
BUSHING
Item is no longer available
Price
N/A
109
PHLP HD SCR M4-.7 X 14
Price
N/A
110
INDICATOR HOUSING COVER
Price
$1.85
111
SIDE COVER, LEFT
Price
$25.40
112
COLUMN
Item is no longer available
Price
N/A
113
LEADSCREW, RIGHT
Item is no longer available
Price
N/A
114
LEADSCREW, LEFT
Price
$11.20
115
GIB
Item is no longer available
Price
N/A
116
HEX NUT M12-1.75
Price
N/A
117
PHLP HD SCR M5-.8 X 10
Price
N/A
118
*DISCD*SPRING PLATE
Price
$1.60
119
HEX NUT M6-1
Price
N/A
120
HEX BOLT M6-1 X 20
Price
N/A
121
TABLE SUPPORT BRACKET
Item is no longer available
Price
N/A
122
CHAIN #35-87
Item is no longer available
Price
N/A
123
BEARING RETAINER
Price
$1.49
124
SPACER
Price
$1.60
125
SPROCKET 10T
Price
$1.60
126
FLAT WASHER 4 X 16 X 2
Price
$1.60
127
CAP SCREW M4-.7 X 12
Price
N/A
128
HEX NUT M10-1.5
Price
N/A
129
TABLE ADJ SCREW M10-1.5 X 25, 36L
Item is no longer available
Price
N/A
130
EXT RETAINING RING 8MM
Price
N/A
131
DEPTH STOP SHAFT BRACKET
Item is no longer available
Price
N/A
132
DEPTH STOP PIVOT BLOCK
Price
$3.65
133
POSITION BLOCK SHAFT
Price
$1.60
134
CAP SCREW M5-.8 X 20
Price
N/A
135
STEEL BALL 6MM
Price
N/A
136
COMPRESSION SPRING 32 X 5 X .7
Item is no longer available
Price
N/A
137
ROLL PIN 4 X18
Price
$1.60
138
SIDE COVER, RIGHT
Price
$23.60
139
DEPTH STOP KNOB
Price
$3.65
140
HEX NUT M8-1.25
Price
N/A
141
LOCK WASHER 8MM
Price
N/A
142
SPACER
Item is no longer available
Price
N/A
143
EXT RETAINING RING 9MM
Price
N/A
144
ROLL PIN 3 X 14
Price
N/A
145
THREADED ROD M5-.8 X 16
Item is no longer available
Price
N/A
146
LEVER LOCK ROD
Item is no longer available
Price
N/A
147
LOCK ROD HANDLE CAP
Item is no longer available
Price
N/A
148
LEADSCREW LOCK PLATE
Item is no longer available
Price
N/A
149
COMPRESSION SPRING 25.2 X 18 X 1.8
Item is no longer available
Price
N/A
150
LOCK PLATE ROD
Item is no longer available
Price
N/A
151
LOCK ROD PIVOT BRACKET
Item is no longer available
Price
N/A
152
TAP SCREW M4 X 10
Price
N/A
153
PHLP HD SCR M5-.8 X 8
Price
N/A
154
FLAT WASHER 5MM
Price
N/A
155
EXTENSION TABLE, REAR
Item is no longer available
Price
N/A
156
BASE
Price
$108.10
157
ELEVATION BLOCK (LEFT)
Item is no longer available
Price
N/A
158
PHLP HD SCR M5-.8 X 12
Price
N/A
159
SET SCREW M5-.8 X 10
Price
N/A
160
ELEVATION BLOCK (RIGHT)
Item is no longer available
Price
N/A
161
SET SCREW M5-.8 X 20
Price
N/A
162
DEPTH STOP LABEL
Price
$1.05
163
SCALE
Price
$1.60
164
DUST SEAL 10 X 8 X 320MM
Item is no longer available
Price
N/A
166
MAGNET 6 X 4MM
Price
$1.60
167
MAGNET HANDLE
Price
$1.60
168
T-HANDLE HEX WRENCH 4MM
Price
$16.65
168V2
T-HANDLE TORX DRIVER T-30
Price
N/A
169
FLAT WASHER 5MM
Price
N/A
170
CRANK HANDLE COVER
Item is no longer available
Price
N/A
171
LOCK WASHER 5MM
Price
N/A
172
SHIM WASHER 8MM
Price
$1.60
173
GEAR (LARGE)
Price
$1.85
174
HEX NUT M5-.8
Price
N/A
175
TORSION SPRING
Item is no longer available
Price
N/A
176
HOLE COVER, RUBBER
Item is no longer available
Price
N/A
177
T-HANDLE TORX DRIVER T-30
Price
$12.40
178
DUST BAG
Price
N/A
179
DUST BAG CLAMP
Price
N/A
180
DUST BAG CLAMP
Price
N/A
181
DUST BAG CLAMP
Price
N/A
182
DUST BAG CLAMP
Price
N/A
183
DUST BAG CLAMP
Price
N/A

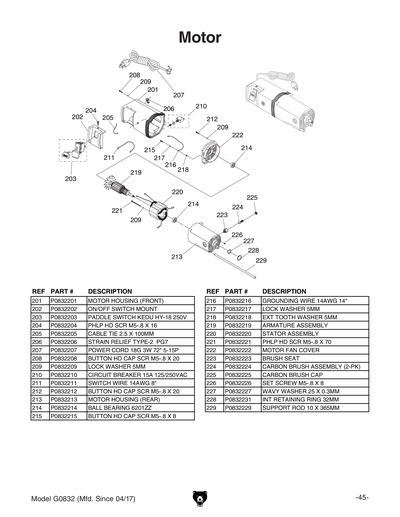

200
COMPLETE MOTOR ASSEMBLY
Price
$190.80
201
MOTOR HOUSING (FRONT)
Item is no longer available
Price
N/A
202
ON/OFF SWITCH MOUNT
Item is no longer available
Price
N/A
203
PADDLE SWITCH KEDU HY-18 250V
Price
$8.95
204
PHLP HD SCR M5-.8 X 16
Price
N/A
205
CABLE TIE 2.5 X 100MM
Item is no longer available
Price
N/A
206
STRAIN RELIEF TYPE-2 PG7
Item is no longer available
Price
N/A
207
POWER CORD 18G 3W 72" 5-15P
Item is no longer available
Price
N/A
208
BUTTON HD CAP SCR M5-.8 X 20
Price
N/A
209
LOCK WASHER 5MM
Price
N/A
210
CIRCUIT BREAKER 15A 125/250VAC
Item is no longer available
Price
N/A
211
SWITCH WIRE 14AWG 8"
Item is no longer available
Price
N/A
212
BUTTON HD CAP SCR M5-.8 X 20
Price
N/A
213
MOTOR HOUSING (REAR)
Item is no longer available
Price
N/A
214
BALL BEARING 6201ZZ
Price
N/A
215
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
216
GROUNDING WIRE 14AWG 14"
Item is no longer available
Price
N/A
217
LOCK WASHER 5MM
Price
N/A
218
EXT TOOTH WASHER 5MM
Price
N/A
219
ARMATURE ASSEMBLY
Item is no longer available
Price
N/A
220
STATOR ASSEMBLY
Item is no longer available
Price
N/A
221
PHLP HD SCR M5-.8 X 70
Item is no longer available
Price
N/A
222
MOTOR FAN COVER
Price
$10.30
223
BRUSH SEAT
Price
$3.95
224
CARBON BRUSH ASSEMBLY - 2PK
Price
$1.60
225
CARBON BRUSH CAP
Price
$1.60
226
SET SCREW M5-.8 X 8
Price
N/A
227
WAVY WASHER 25 X 0.3MM
Item is no longer available
Price
N/A
229
SUPPORT ROD 10 X 365MM
Item is no longer available
Price
N/A
231
INT RETAINING RING 32MM
Price
N/A

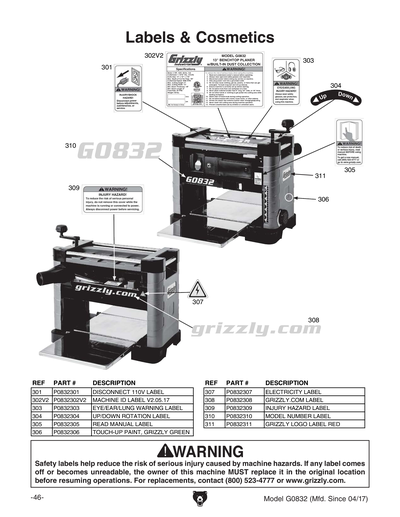

301
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
302
MACHINE ID LABEL
Item is no longer available
Price
N/A
303
EYE/EAR/LUNG 1.5W X 2.5H
Price
N/A
304
UP/DOWN ROTATION LABEL
Price
$1.05
305
READ MANUAL 1.5W X 2.5H
Price
N/A
306
N/S GRIZZLY GREEN G1023S
Price
N/A
307
ELECTRICITY 0.7W X 0.6H
Price
N/A
308
GRIZZLY.COM LABEL 11",BEIGE
Price
N/A
309
INJURY HAZARD LABEL
Item is no longer available
Price
N/A
310
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
311
GRIZZLY LOGO LABEL RED
Price
$1.05
MAN
MANUAL G0832 MFD-01.17 V1.04.17
Price
$14.65
MANV2
MANUAL G0832 MFD-04.17 V2.05.17
Item is no longer available
Price
N/A
MANV3
MANUAL G0832 MFD-01.18 V3.03.18
Item is no longer available
Price
N/A
