Parts for G0833P - 10" 2 HP 230V Hybrid Table Saw with Riving Knife, Polar Bear Series

Part Diagram for G0833P
Part Diagram for G0833P
Part Diagram for G0833P
Part Diagram for G0833P
Part Diagram for G0833P
Part Diagram for G0833P
Part Diagram for G0833P
Part Diagram for G0833P
Part Diagram for G0833P
Part Diagram for G0833P
Part Diagram for G0833P
Part Diagram for G0833P
Part Diagram for G0833P
Part Diagram for G0833P
Part Diagram for G0833P
Part Diagram for G0833P
Part Diagram for G0833P
Part Diagram for G0833P

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

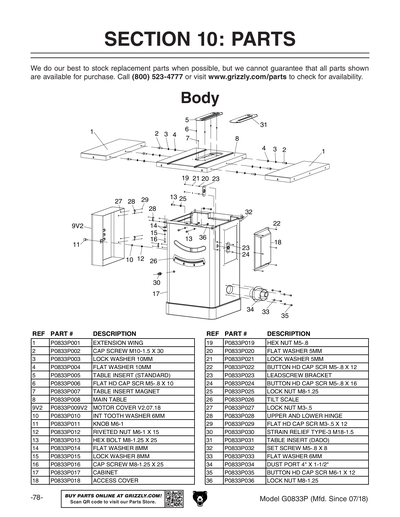

Ref #
Part #
Description
1
*DISCD*EXTENSION WING
Item is no longer available
Price
N/A
2
CAP SCREW M10-1.5 X 25
Price
N/A
3
LOCK WASHER 10MM
Price
N/A
4
FLAT WASHER 10MM
Price
N/A
5
*DISCD*TABLE INSERT (STANDARD)
Price
$24.15
6
FLAT HD CAP SCR M5-.8 X 10
Price
N/A
7
*DISCD*TABLE INSERT MAGNET
Item is no longer available
Price
N/A
8
*DISCD*MAIN TABLE
Price
$409.70
9
MOTOR COVER
Price
$120.75
9V2
*DISCD*MOTOR COVER V2.07.18
Price
$131.10
10
INT TOOTH WASHER 6MM
Price
N/A
11
*DISCD*KNOB M6-1
Price
$1.75
12
*DISCD*RIVETED NUT M6-1 X 15
Price
$2.90
13
HEX BOLT M8-1.25 X 25
Price
N/A
14
FLAT WASHER 8MM
Price
N/A
15
LOCK WASHER 8MM
Price
N/A
16
CAP SCREW M8-1.25 X 25
Price
N/A
17
*DISCD*CABINET
Item is no longer available
Price
N/A
18
*DISCD*ACCESS COVER
Price
$43.15
19
HEX NUT M5-.8
Price
N/A
20
FLAT WASHER 5MM
Price
N/A
21
LOCK WASHER 5MM
Price
N/A
22
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
23
*DISCD*LEADSCREW BRACKET
Item is no longer available
Price
N/A
24
BUTTON HD CAP SCR M5-.8 X 16
Price
N/A
25
LOCK NUT M8-1.25
Price
N/A
26
*DISCD*TILT SCALE
Price
$3.45
27
LOCK NUT M3-.5
Price
N/A
28
*DISCD*UPPER AND LOWER HINGE
Price
$8.65
29
*DISCD*FLAT HD CAP SCR M3-.5 X 12
Item is no longer available
Price
N/A
30
*DISCD*STRAIN RELIEF TYPE-3 M18-1.5
Item is no longer available
Price
N/A
31
*DISCD*TABLE INSERT (DADO)
Price
$24.15
32
SET SCREW M5-.8 X 8
Price
N/A
33
FLAT WASHER 6MM
Price
N/A
34
DUST PORT 4" X 1-1/2"
Price
$8.65
35
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
36
LOCK NUT M8-1.25
Price
N/A

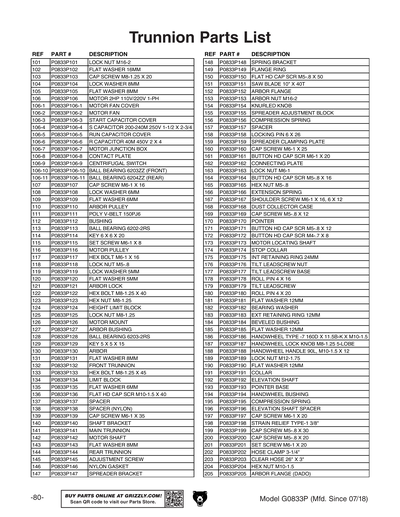

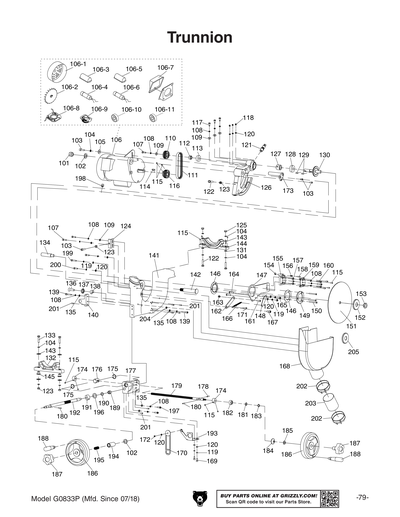

101
LOCK NUT M16-2
Price
N/A
102
FLAT WASHER 16MM
Price
N/A
103
CAP SCREW M8-1.25 X 20
Price
N/A
104
LOCK WASHER 8MM
Price
N/A
105
FLAT WASHER 8MM
Price
N/A
106
*DISCD*MOTOR 2HP 110V/220V 1-PH
Item is no longer available
Price
N/A
106-1
*DISCD*MOTOR FAN COVER
Price
$6.90
106-10
BALL BEARING 6203ZZ
Price
N/A
106-11
BALL BEARING 6204ZZ
Price
N/A
106-12
SET SCREW M6-1 X 8 CONE-PT
Price
N/A
106-13
*DISCD*THIN WASHER 6MM X 1.3MM
Item is no longer available
Price
N/A
106-14
*DISCD*PHLP HD SCR M6-1 X 12 LH
Price
$1.90
106-2
*DISCD*MOTOR FAN
Price
$4.35
106-3
*DISCD*START CAPACITOR COVER
Price
$3.45
106-4
*DISCD*S CAPACITOR 200-240M 250V 1-1/2 X
Item is no longer available
Price
N/A
106-5
*DISCD*RUN CAPACITOR COVER
Item is no longer available
Price
N/A
106-6
*DISCD*R CAPACITOR 40M 450V 2 X 4
Item is no longer available
Price
N/A
106-7
*DISCD*MOTOR JUNCTION BOX
Price
$4.35
106-8
*DISCD*CONTACT PLATE
Item is no longer available
Price
N/A
106-9
*DISCD*CENTRIFUGAL SWITCH
Item is no longer available
Price
N/A
107
CAP SCREW M6-1 X 16
Price
N/A
108
LOCK WASHER 6MM
Price
N/A
109
FLAT WASHER 6MM
Price
N/A
110
*DISCD*ARBOR PULLEY
Item is no longer available
Price
N/A
111
*DISCD*POLY V-BELT 150PJ6
Item is no longer available
Price
N/A
112
*DISCD*BUSHING
Price
$12.65
113
BALL BEARING 6202-2RS
Price
N/A
114
KEY 6 X 6 X 20
Price
N/A
115
SET SCREW M6-1 X 8
Price
N/A
116
*DISCD*MOTOR PULLEY
Price
$21.60
117
HEX BOLT M6-1 X 16
Price
N/A
118
LOCK NUT M5-.8
Price
N/A
119
LOCK WASHER 5MM
Price
N/A
120
FLAT WASHER 5MM
Price
N/A
121
*DISCD*ARBOR LOCK
Item is no longer available
Price
N/A
122
HEX BOLT M8-1.25 X 40
Price
N/A
123
HEX NUT M8-1.25
Price
N/A
124
*DISCD*HEIGHT LIMIT BLOCK
Item is no longer available
Price
N/A
125
LOCK NUT M8-1.25
Price
N/A
126
*DISCD*MOTOR MOUNT
Price
$103.50
127
*DISCD*ARBOR BUSHING
Item is no longer available
Price
N/A
128
BALL BEARING 6203-2RS
Price
N/A
129
KEY 5 X 5 X 15
Price
N/A
130
*DISCD*ARBOR
Price
$28.75
131
FLAT WASHER 8MM
Price
N/A
132
*DISCD*FRONT TRUNNION
Price
$27.60
133
HEX BOLT M8-1.25 X 45
Price
N/A
134
*DISCD*LIMIT BLOCK
Item is no longer available
Price
N/A
135
FLAT WASHER 6MM
Price
N/A
136
*DISCD*FLAT HD CAP SCR M10-1.5 X 40
Price
$1.75
137
*DISCD*SPACER
Price
$4.90
138
*DISCD*SPACER (NYLON)
Item is no longer available
Price
N/A
139
CAP SCREW M6-1 X 35
Price
N/A
140
*DISCD*SHAFT BRACKET
Price
$10.35
141
*DISCD*MAIN TRUNNION
Price
$103.50
142
*DISCD*MOTOR SHAFT
Item is no longer available
Price
N/A
143
FLAT WASHER 8MM
Price
N/A
144
*DISCD*REAR TRUNNION
Price
$27.60
145
*DISCD*ADJUSTMENT SCREW
Item is no longer available
Price
N/A
146
*DISCD*NYLON GASKET
Item is no longer available
Price
N/A
147
*DISCD*SPREADER BRACKET
Item is no longer available
Price
N/A
148
*DISCD*SPRING BRACKET
Item is no longer available
Price
N/A
149
*DISCD*FLANGE RING
Item is no longer available
Price
N/A
150
*DISCD*FLAT HD CAP SCR M5-.8 X 50
Item is no longer available
Price
N/A
151
*DISCD*SAW BLADE 10" X 40T
Price
$55.20
152
*DISCD*ARBOR FLANGE
Price
$6.90
153
*DISCD*ARBOR NUT M16-2
Item is no longer available
Price
N/A
154
*DISCD*KNURLED KNOB
Item is no longer available
Price
N/A
155
*DISCD*SPREADER ADJUSTMENT BLOCK
Item is no longer available
Price
N/A
156
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
157
*DISCD*SPACER
Item is no longer available
Price
N/A
158
*DISCD*LOCKING PIN 6 X 26
Item is no longer available
Price
N/A
159
*DISCD*SPREADER CLAMPING PLATE
Item is no longer available
Price
N/A
160
CAP SCREW M6-1 X 25
Price
N/A
161
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
162
*DISCD*CONNECTING PLATE
Item is no longer available
Price
N/A
163
LOCK NUT M6-1
Price
N/A
164
BUTTON HD CAP SCR M5-.8 X 16
Price
N/A
165
HEX NUT M5-.8
Price
N/A
166
*DISCD*EXTENSION SPRING
Item is no longer available
Price
N/A
167
*DISCD*SHOULDER SCREW M6-1 X 16, 6 X 12
Item is no longer available
Price
N/A
168
*DISCD*DUST COLLECTOR CASE
Item is no longer available
Price
N/A
169
CAP SCREW M5-.8 X 12
Price
N/A
170
*DISCD*POINTER
Price
$4.35
171
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
172
BUTTON HD CAP SCR M4-.7 X 8
Price
N/A
173
*DISCD*MOTOR LOCATING SHAFT
Price
$11.25
174
*DISCD*STOP COLLAR
Item is no longer available
Price
N/A
175
INT RETAINING RING 24MM
Price
N/A
176
*DISCD*TILT LEADSCREW NUT
Item is no longer available
Price
N/A
177
*DISCD*TILT LEADSCREW BASE
Item is no longer available
Price
N/A
178
ROLL PIN 4 X 16
Price
N/A
179
*DISCD*TILT LEADSCREW
Item is no longer available
Price
N/A
180
ROLL PIN 4 X 20
Price
N/A
181
FLAT WASHER 12MM
Price
N/A
182
*DISCD*BEARING WASHER
Item is no longer available
Price
N/A
183
EXT RETAINING RING 12MM
Price
N/A
184
*DISCD*BEVELED BUSHING
Item is no longer available
Price
N/A
185
FLAT WASHER 12MM
Price
N/A
186
*DISCD*HANDWHEEL TYPE-7 160D X 11.5B-K,
Item is no longer available
Price
N/A
187
*DISCD*HANDWHEEL LOCK KNOB M8-1.25 5-LOB
Item is no longer available
Price
N/A
188
*DISCD*HANDWHEEL HANDLE 90L, M10-1.5 X 1
Item is no longer available
Price
N/A
189
LOCK NUT M12-1.75
Price
N/A
190
FLAT WASHER 12MM
Price
N/A
191
*DISCD*COLLAR
Item is no longer available
Price
N/A
192
*DISCD*ELEVATION SHAFT
Item is no longer available
Price
N/A
193
*DISCD*POINTER BASE
Item is no longer available
Price
N/A
194
*DISCD*HANDWHEEL BUSHING
Item is no longer available
Price
N/A
195
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
196
*DISCD*ELEVATION SHAFT SPACER
Price
$1.75
197
CAP SCREW M6-1 X 20
Price
N/A
198
*DISCD*STRAIN RELIEF TYPE-1 3/8"
Price
$1.75
199
CAP SCREW M5-.8 X 30
Price
N/A
200
CAP SCREW M5-.8 X 20
Price
N/A
201
SET SCREW M6-1 X 20
Price
N/A
202
*DISCD*HOSE CLAMP 3-1/4"
Item is no longer available
Price
N/A
203
*DISCD*CLEAR HOSE 26" X 3"
Item is no longer available
Price
N/A
204
HEX NUT M10-1.5
Price
N/A
205
*DISCD*ARBOR FLANGE (DADO)
Item is no longer available
Price
N/A

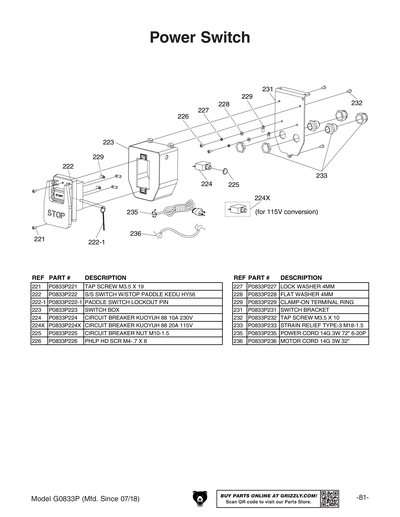

221
TAP SCREW M3.5 X 19
Price
N/A
222
Paddle Switch 120/230V
Price
N/A
222-1
*DISCD*PADDLE SWITCH LOCKOUT PIN
Item is no longer available
Price
N/A
223
*DISCD*SWITCH BOX
Item is no longer available
Price
N/A
224
*DISCD*CIRCUIT BREAKER KUOYUH 88 10A 230
Item is no longer available
Price
N/A
224V2
*DISCD*CIRCUT BREAKR KEDU RB2 10A 250V V
Item is no longer available
Price
N/A
224X
20A Circuit Breaker
Price
N/A
225
*DISCD*CIRCUIT BREAKER WATERPROOF NUT M1
Price
N/A
225V2
*DISCD*CIRCUIT BREAKER WATERPROOF NUT M1
Item is no longer available
Price
N/A
226
PHLP HD SCR M4-.7 X 8
Price
N/A
227
LOCK WASHER 4MM
Price
N/A
228
FLAT WASHER 4MM
Price
N/A
229
*DISCD*CLAMP-ON TERMINAL RING
Price
$1.75
231
*DISCD*SWITCH BRACKET
Item is no longer available
Price
N/A
232
TAP SCREW M3.5 X 10
Price
N/A
233
*DISCD*STRAIN RELIEF TYPE-3 M18-1.5
Price
$3.45
235
*DISCD*POWER CORD 14G 3W 72" 6-20P
Price
$22.45
236
*DISCD*MOTOR CORD 14G 3W 32"
Price
$15.55
301

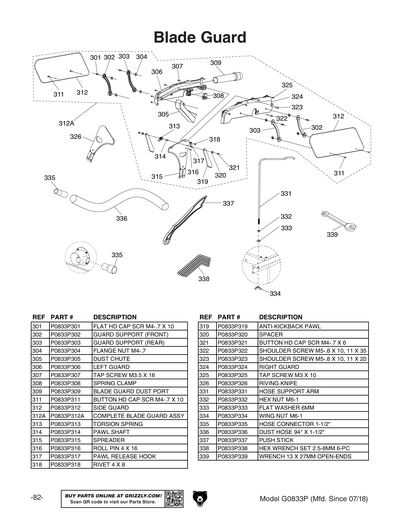

FLAT HD CAP SCR M4-.7 X 10
Price
N/A
302
*DISCD*GUARD SUPPORT (FRONT)
Price
$3.20
303
*DISCD*GUARD SUPPORT (REAR)
Price
$3.20
304
*DISCD*FLANGE NUT M4-.7
Item is no longer available
Price
N/A
305
*DISCD*DUST CHUTE
Item is no longer available
Price
N/A
306
*DISCD*LEFT GUARD
Price
$19.05
307
TAP SCREW M3.5 X 16
Price
N/A
308
*DISCD*SPRING CLAMP
Item is no longer available
Price
N/A
309
*DISCD*BLADE GUARD DUST PORT
Item is no longer available
Price
N/A
311
BUTTON HD CAP SCR M4-.7 X 10
Price
N/A
312
*DISCD*SIDE GUARD
Item is no longer available
Price
N/A
312A
*DISCD*COMPLETE BLADE GUARD ASSY
Item is no longer available
Price
N/A
313
*DISCD*TORSION SPRING
Price
$1.75
314
*DISCD*PAWL SHAFT
Price
$1.75
315
*DISCD*SPREADER
Item is no longer available
Price
N/A
316
ROLL PIN 4 X 16
Price
N/A
317
*DISCD*PAWL RELEASE HOOK
Price
$1.75
318
*DISCD*RIVET 4 X 8
Price
$1.75
319
*DISCD*ANTI-KICKBACK PAWL
Price
$3.60
320
*DISCD*SPACER
Price
$2.90
321
BUTTON HD CAP SCR M4-.7 X 6
Price
N/A
322
*DISCD*SHOULDER SCREW M5-.8 X 10, 11 X 3
Item is no longer available
Price
N/A
323
*DISCD*SHOULDER SCREW M5-.8 X 10, 11 X 2
Item is no longer available
Price
N/A
324
*DISCD*RIGHT GUARD
Price
$19.05
325
TAP SCREW M3 X 10
Price
N/A
326
*DISCD*RIVING KNIFE
Item is no longer available
Price
N/A
331
*DISCD*HOSE SUPPORT ARM
Item is no longer available
Price
N/A
332
HEX NUT M6-1
Price
N/A
333
FLAT WASHER 6MM
Price
N/A
334
WING NUT M6-1
Price
N/A
335
*DISCD*HOSE CONNECTOR 1-1/2"
Price
$10.35
336
*DISCD*DUST HOSE 94" X 1-1/2"
Price
$17.25
337
*DISCD*PUSH STICK
Item is no longer available
Price
N/A
338
*DISCD*HEX WRENCH SET 2.5-8MM 6-PC
Item is no longer available
Price
N/A
339
*DISCD*WRENCH 13 X 27MM OPEN-ENDS
Item is no longer available
Price
N/A
401

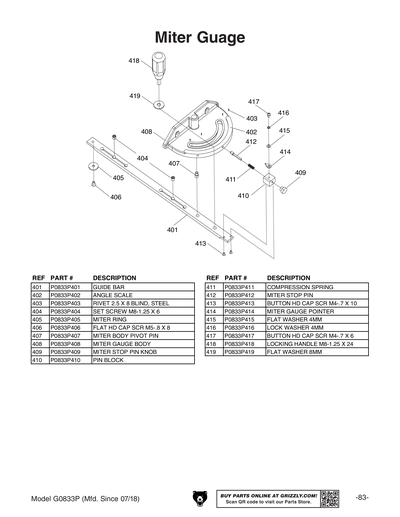

*DISCD*GUIDE BAR
Price
$30.55
402
*DISCD*ANGLE SCALE
Price
$3.45
403
*DISCD*RIVET 2.5 X 8 BLIND, STEEL
Item is no longer available
Price
N/A
404
SET SCREW M8-1.25 X 6
Price
N/A
405
*DISCD*MITER RING
Item is no longer available
Price
N/A
406
FLAT HD CAP SCR M5-.8 X 8
Price
N/A
407
*DISCD*MITER BODY PIVOT PIN
Item is no longer available
Price
N/A
408
*DISCD*MITER GAUGE BODY
Price
$49.25
409
*DISCD*MITER STOP PIN KNOB
Price
$8.05
410
*DISCD*PIN BLOCK
Price
$1.75
411
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
412
*DISCD*MITER STOP PIN
Price
$1.90
413
BUTTON HD CAP SCR M4-.7 X 10
Price
N/A
414
*DISCD*MITER GAUGE POINTER
Item is no longer available
Price
N/A
415
FLAT WASHER 4MM
Price
N/A
416
LOCK WASHER 4MM
Price
N/A
417
BUTTON HD CAP SCR M4-.7 X 6
Price
N/A
418
*DISCD*LOCKING HANDLE M8-1.25 X 24
Item is no longer available
Price
N/A
419
FLAT WASHER 8MM
Price
N/A
500

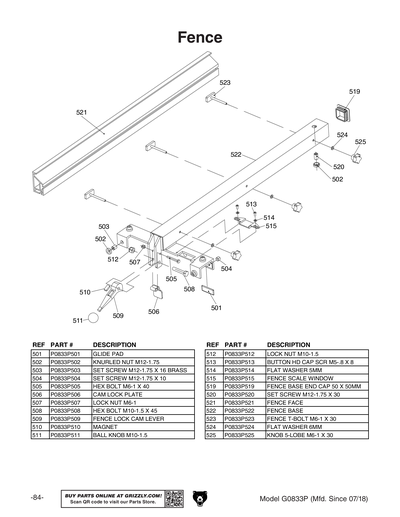

*DISCD*COMPLETE FENCE ASSEMBLY
Item is no longer available
Price
N/A
501
*DISCD*GLIDE PAD
Item is no longer available
Price
N/A
502
*DISCD*KNURLED NUT M12-1.75
Item is no longer available
Price
N/A
503
*DISCD*SET SCREW M12-1.75 X 16 BRASS
Item is no longer available
Price
N/A
504
SET SCREW M12-1.75 X 10
Price
N/A
505
HEX BOLT M6-1 X 40
Price
N/A
506
*DISCD*CAM LOCK PLATE
Price
$2.30
507
LOCK NUT M6-1
Price
N/A
508
HEX BOLT M10-1.5 X 45
Price
N/A
509
*DISCD*FENCE LOCK CAM LEVER
Price
$12.95
510
*DISCD*MAGNET
Price
$2.90
511
*DISCD*BALL KNOB M10-1.5
Price
$5.75
512
LOCK NUT M10-1.5
Price
N/A
513
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
514
FLAT WASHER 5MM
Price
N/A
515
*DISCD*FENCE SCALE WINDOW
Item is no longer available
Price
N/A
519
*DISCD*FENCE BASE END CAP 50 X 50MM
Price
$1.75
520
SET SCREW M12-1.75 X 30
Price
N/A
521
*DISCD*FENCE FACE
Price
$82.80
522
*DISCD*FENCE BASE
Price
$129.40
523
*DISCD*FENCE T-BOLT M6-1 X 30
Item is no longer available
Price
N/A
524
FLAT WASHER 6MM
Price
N/A
525
*DISCD*KNOB 5-LOBE M6-1 X 30
Item is no longer available
Price
N/A
601

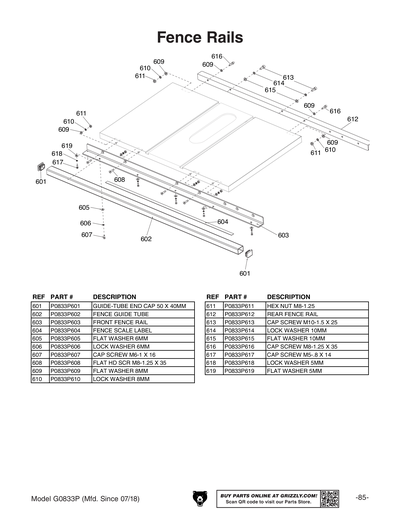

*DISCD*GUIDE-TUBE END CAP 50 X 40MM
Price
$1.75
602
*DISCD*FENCE GUIDE TUBE
Price
$86.25
603
*DISCD*FRONT FENCE RAIL
Price
$81.95
604
*DISCD*FENCE SCALE LABEL
Item is no longer available
Price
N/A
605
FLAT WASHER 6MM
Price
N/A
606
LOCK WASHER 6MM
Price
N/A
607
CAP SCREW M6-1 X 16
Price
N/A
608
FLAT HD SCR M8-1.25 X 35
Price
N/A
609
FLAT WASHER 8MM
Price
N/A
610
LOCK WASHER 8MM
Price
N/A
611
HEX NUT M8-1.25
Price
N/A
612
*DISCD*REAR FENCE RAIL
Item is no longer available
Price
N/A
613
CAP SCREW M10-1.5 X 25
Price
N/A
614
LOCK WASHER 10MM
Price
N/A
615
FLAT WASHER 10MM
Price
N/A
616
CAP SCREW M8-1.25 X 35
Price
N/A
617
CAP SCREW M5-.8 X 14
Price
N/A
618
LOCK WASHER 5MM
Price
N/A
619
FLAT WASHER 5MM
Price
N/A
701

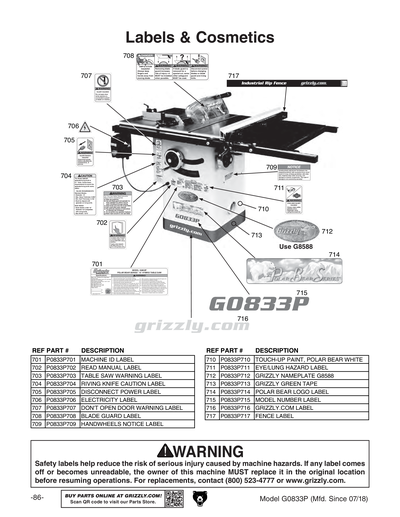

MACHINE ID LABEL
Item is no longer available
Price
N/A
702
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
703
TABLE SAW UL 987 2.5W X 2.1H
Price
N/A
704
*DISCD*RIVING KNIFE CAUTION LABEL
Price
$6.00
705
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
706
ELECTRICITY 0.7W X 0.6H
Price
N/A
707
DOOR CLOSED BLADE 1.5W X 2.5H
Price
N/A
708
*DISCD*BLADE GUARD LABEL
Item is no longer available
Price
N/A
709
*DISCD*HANDWHEELS NOTICE LABEL
Item is no longer available
Price
N/A
710
POLAR BEAR WHITE TOUCH-UP PAINT
Price
N/A
711
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
712
Nameplate - Small
Price
N/A
713
*DISCD*GRIZZLY GREEN TAPE
Price
$17.25
714
POLAR BEAR LOGO-LARGE 9.5W X 2.5H
Price
N/A
715
*DISCD*MODEL NUMBER LABEL
Price
$6.60
716
*DISCD*GRIZZLY.COM LABEL
Price
$6.60
717
*DISCD*FENCE LABEL
Price
$6.00
MAN
MANUAL G0833P MFD-06.17 V1.03.18
Item is no longer available
Price
N/A
MANV2
MANUAL G0833P MFD-07.18 V2.06.18
Price
$18.75
