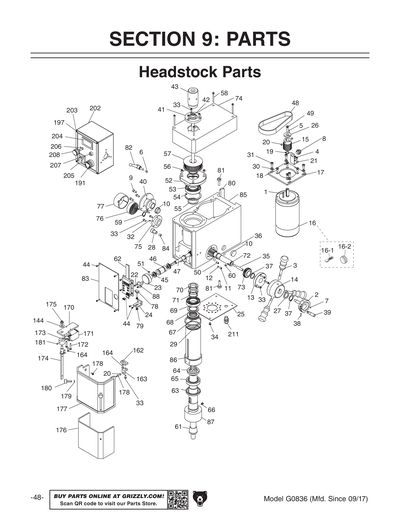

Parts for G0836 6" x 23" 1 HP Variable-Speed Mini Mill with DRO

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

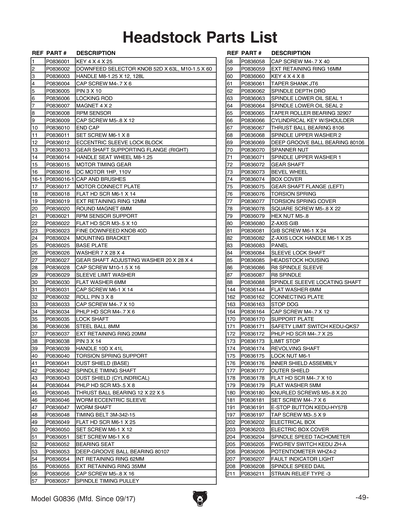

1
Now: PK30M
KEY 4 X 4 X 25
Price
N/A
2
SELECTOR KNOB 52D X 63L, M10-1.5 X 60
Item is no longer available
Price
N/A
3
HANDLE M8-1.25 X 12, 128L
Item is no longer available
Price
N/A
4
CAP SCREW M4-.7 X 6
Price
N/A
5
PIN 3 X 10
Item is no longer available
Price
N/A
6
LOCKING ROD
Item is no longer available
Price
N/A
7
MAGNET 4 X 2
Item is no longer available
Price
N/A
8
RPM SENSOR
9
CAP SCREW M5-.8 X 12
Price
N/A
10
END CAP
Item is no longer available
Price
N/A
11
SET SCREW M6-1 X 8
Price
N/A
12
ECCENTRIC SLEEVE LOCK BLOCK
Item is no longer available
Price
N/A
13
GEAR SHAFT SUPPORTING FLANGE (RIGHT)
Item is no longer available
Price
N/A
14
HANDLE SEAT WHEEL M8-1.25
Item is no longer available
Price
N/A
15
MOTOR TIMING GEAR
Item is no longer available
Price
N/A
16
DC MOTOR 1HP, 110V
Item is no longer available
Price
N/A
16-1
CAP AND BRUSHES
17
MOTOR CONNECT PLATE
Item is no longer available
Price
N/A
18
FLAT HD SCR M6-1 X 14
Item is no longer available
Price
N/A
19
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
20
ROUND MAGNET 6MM
21
RPM SENSOR SUPPORT
Item is no longer available
Price
N/A
22
FLAT HD SCR M3-.5 X 10
Price
N/A
23
FINE DOWNFEED KNOB 40D
Item is no longer available
Price
N/A
24
MOUNTING BRACKET
Item is no longer available
Price
N/A
25
BASE PLATE
Item is no longer available
Price
N/A
26
WASHER 7 X 28 X 4
27
GEAR SHAFT ADJUSTING WASHER 20 X 28 X 4
Item is no longer available
Price
N/A
28
CAP SCREW M10-1.5 X 16
Price
N/A
29
SLEEVE LIMIT WASHER
Item is no longer available
Price
N/A
30
Now: PW03M
FLAT WASHER 6MM
Price
N/A
31
CAP SCREW M6-1 X 14
Price
N/A
32
ROLL PIN 3 X 8
Price
N/A
33
CAP SCREW M4-.7 X 10
Price
N/A
34
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
35
LOCK SHAFT
Item is no longer available
Price
N/A
36
STEEL BALL 8MM
Price
N/A
37
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
38
PIN 3 X 14
Item is no longer available
Price
N/A
39
HANDLE 10D X 41L
Item is no longer available
Price
N/A
40
TORSION SPRING SUPPORT
Item is no longer available
Price
N/A

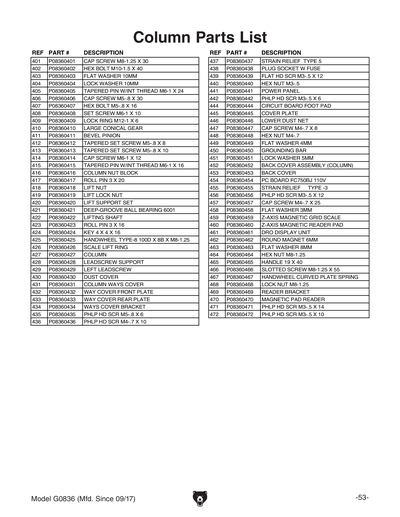

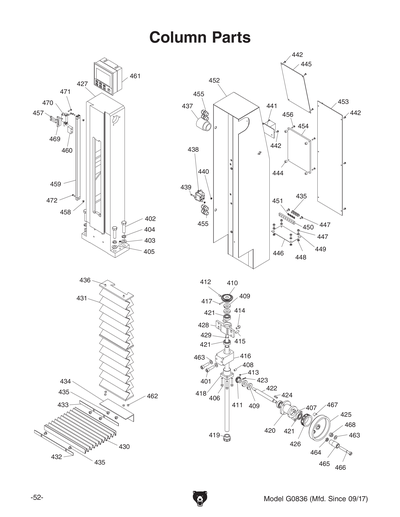

401
CAP SCREW M8-1.25 X 30
Price
N/A
402
Now: PB31M
HEX BOLT M10-1.5 X 40
Price
N/A
403
Now: PW04M
FLAT WASHER 10MM
Price
N/A
404
LOCK WASHER 10MM
Price
N/A
405
TAPERED PIN W/INT THREAD M6-1 X 24
Item is no longer available
Price
N/A
406
CAP SCREW M5-.8 X 30
Price
N/A
407
Now: PB95M
HEX BOLT M5-.8 X 16
Price
N/A
408
SET SCREW M6-1 X 10
Price
N/A
409
LOCK RING M12-1 X 6
Item is no longer available
Price
N/A
41
DUST SHIELD (BASE)
Item is no longer available
Price
N/A
410
LARGE CONICAL GEAR
Item is no longer available
Price
N/A
411
BEVEL PINION
Item is no longer available
Price
N/A
412
TAPERED SET SCREW M5-.8 X 8
Item is no longer available
Price
N/A
413
TAPERED SET SCREW M5-.8 X 10
Item is no longer available
Price
N/A
414
CAP SCREW M6-1 X 12
Price
N/A
415
TAPERED PIN W/INT THREAD M6-1 X 16
Item is no longer available
Price
N/A
416
COLUMN NUT BLOCK
Item is no longer available
Price
N/A
417
ROLL PIN 3 X 20
Price
N/A
418
LIFT NUT
Item is no longer available
Price
N/A
419
LIFT LOCK NUT
Item is no longer available
Price
N/A
42
SPINDLE TIMING SHAFT
Item is no longer available
Price
N/A
420
LIFT SUPPORT SET
Item is no longer available
Price
N/A
421
DEEP-GROOVE BALL BEARING 6001
Item is no longer available
Price
N/A
422
LIFTING SHAFT
Item is no longer available
Price
N/A
423
ROLL PIN 3 X 16
Price
N/A
424
Now: PK37M
KEY 4 X 4 X 16
Price
N/A
425
HANDWHEEL TYPE-8 100D X 8B X M8-1.25
426
SCALE LIFT RING
Item is no longer available
Price
N/A
427
COLUMN
Item is no longer available
Price
N/A
428
LEADSCREW SUPPORT
Item is no longer available
Price
N/A
429
LEFT LEADSCREW
Item is no longer available
Price
N/A
43
DUST SHIELD (CYLINDRICAL)
Item is no longer available
Price
N/A
430
DUST COVER
Item is no longer available
Price
N/A
431
COLUMN WAYS COVER
Item is no longer available
Price
N/A
432
WAY COVER FRONT PLATE
Item is no longer available
Price
N/A
433
WAY COVER REAR PLATE
Item is no longer available
Price
N/A
434
WAYS COVER BRACKET
Item is no longer available
Price
N/A
435
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
436
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
437
STRAIN RELIEF TYPE 5
Item is no longer available
Price
N/A
438
PLUG SOCKET W FUSE
Item is no longer available
Price
N/A
439
FLAT HD SCR M3-.5 X 12
Item is no longer available
Price
N/A
44
Now: PS79M
PHLP HD SCR M3-.5 X 8
Price
N/A
440
Now: PN07M
HEX NUT M3-.5
Price
N/A
441
POWER PANEL
Item is no longer available
Price
N/A
442
Now: PS12M
PHLP HD SCR M3-.5 X 6
Price
N/A
444
CIRCUIT BOARD FOOT PAD
Item is no longer available
Price
N/A
445
COVER PLATE
Item is no longer available
Price
N/A
446
LOWER DUST NET
Item is no longer available
Price
N/A
447
CAP SCREW M4-.7 X 8
Price
N/A
448
Now: PN04M
HEX NUT M4-.7
Price
N/A
449
Now: PW05M
FLAT WASHER 4MM
Price
N/A
45
THRUST BALL BEARING 12 X 22 X 5
450
GROUNDING BAR
Item is no longer available
Price
N/A
451
LOCK WASHER 5MM
Price
N/A
452
BACK COVER ASSEMBLY (COLUMN)
Item is no longer available
Price
N/A
453
BACK COVER
Item is no longer available
Price
N/A
454
PC BOARD FC750BJ 110V
455
STRAIN RELIEF TYPE -3
Item is no longer available
Price
N/A
456
Now: PS50M
PHLP HD SCR M3-.5 X 12
Price
N/A
457
CAP SCREW M4-.7 X 25
Price
N/A
458
FLAT WASHER 3MM
Item is no longer available
Price
N/A
459
Z-AXIS MAGNETIC GRID SCALE
Item is no longer available
Price
N/A
46
WORM ECCENTRIC SLEEVE
Item is no longer available
Price
N/A
460
Z-AXIS MAGNETIC READER PAD
Item is no longer available
Price
N/A
461
DRO DISPLAY UNIT
462
ROUND MAGNET 6MM
Item is no longer available
Price
N/A
463
Now: PW01M
FLAT WASHER 8MM
Price
N/A
464
Now: PN03M
HEX NUT M8-1.25
Price
N/A
465
HANDLE 19 X 40
Item is no longer available
Price
N/A
466
SLOTTED SCREW M8-1.25 X 55
Item is no longer available
Price
N/A
467
HANDWHEEL CURVED PLATE SPRING
Item is no longer available
Price
N/A
468
LOCK NUT M8-1.25
Price
N/A
469
READER BRACKET
Item is no longer available
Price
N/A
47
WORM SHAFT
Item is no longer available
Price
N/A
470
MAGNETIC PAD READER
Item is no longer available
Price
N/A
471
Now: PS59M
PHLP HD SCR M3-.5 X 14
Price
N/A
472
Now: PS55M
PHLP HD SCR M3-.5 X 10
Price
N/A
48
TIMING BELT 3M-342-15
49
FLAT HD SCR M6-1 X 25
Price
N/A
50
SET SCREW M6-1 X 12
Price
N/A

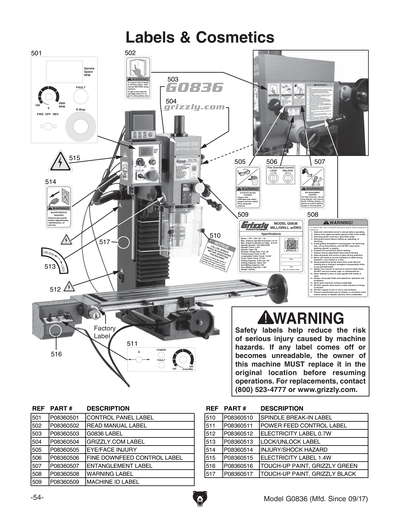

501
CONTROL PANEL LABEL
502
READ MANUAL 1.5W X 2.5H
Price
N/A
503
G0836 LABEL
Item is no longer available
Price
N/A
504
GRIZZLY.COM LABEL 3.50",BEIGE
Price
N/A
505
EYE/FACE INJURY
Item is no longer available
Price
N/A
506
FINE DOWNFEED CONTROL LABEL
Item is no longer available
Price
N/A
507
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
508
WARNING LABEL
Item is no longer available
Price
N/A
509
MACHINE ID LABEL
51
SET SCREW M6-1 X 6
Price
N/A
510
SPINDLE BREAK-IN LABEL
Item is no longer available
Price
N/A
511
POWERFEED CONTROL LABEL
Item is no longer available
Price
N/A
512
ELECTRICITY 1.4W X 1.2H
Price
N/A
513
LOCK/UNLOCK LABEL
Item is no longer available
Price
N/A
514
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
515
ELECTRICITY 0.5W X 0.4H
Price
N/A
516
N/S GRIZZLY GREEN G1023S
Price
N/A
517
GLOSSY BLACK
Price
N/A
52
BEARING SEAT
Item is no longer available
Price
N/A
53
DEEP-GROOVE BALL BEARING 80107
Item is no longer available
Price
N/A
54
Now: PR38M
INT RETAINING RING 62MM
Price
N/A
55
Now: PR12M
EXT RETAINING RING 35MM
Price
N/A
56
CAP SCREW M5-.8 X 16
Price
N/A
57
SPINDLE TIMING PULLEY
Item is no longer available
Price
N/A
58
CAP SCREW M4-.7 X 40
Price
N/A
59
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
60
Now: PK65M
KEY 4 X 4 X 8
Price
N/A
61
TAPER SHANK JT6
Item is no longer available
Price
N/A
62
SPINDLE DEPTH DRO
Item is no longer available
Price
N/A
63
SPINDLE LOWER OIL SEAL 1
Item is no longer available
Price
N/A
64
SPINDLE LOWER OIL SEAL 2
Item is no longer available
Price
N/A
65
TAPER ROLLER BEARING 32907
Item is no longer available
Price
N/A
66
CYLINDRICAL KEY W/SHOULDER
67
THRUST BALL BEARING 8106
Item is no longer available
Price
N/A
68
SPINDLE UPPER WASHER 2
Item is no longer available
Price
N/A
69
DEEP GROOVE BALL BEARING 80106
Item is no longer available
Price
N/A
70
SPANNER NUT
Item is no longer available
Price
N/A
71
SPINDLE UPPER WASHER 1
Item is no longer available
Price
N/A
72
GEAR SHAFT
Item is no longer available
Price
N/A
73
BEVEL WHEEL
Item is no longer available
Price
N/A
74
BOX COVER
Item is no longer available
Price
N/A
75
GEAR SHAFT FLANGE (LEFT)
Item is no longer available
Price
N/A
76
TORSION SPRING
77
TORSION SPRING COVER
Item is no longer available
Price
N/A
78
SQUARE SCREW M5-.8 X 22
Item is no longer available
Price
N/A
79
Now: PN06M
HEX NUT M5-.8
Price
N/A
80
Z-AXIS GIB
Item is no longer available
Price
N/A
81
GIB SCREW M6-1 X 24
Item is no longer available
Price
N/A
82
Z-AXIS LOCK HANDLE M6-1 X 25
Item is no longer available
Price
N/A
83
PANEL
Item is no longer available
Price
N/A
84
SLEEVE LOCK SHAFT
Item is no longer available
Price
N/A
85
HEADSTOCK HOUSING
Item is no longer available
Price
N/A
86
R8 SPINDLE SLEEVE
Item is no longer available
Price
N/A
87
R8 SPINDLE
88
SPINDLE SLEEVE LOCATING SHAFT
Item is no longer available
Price
N/A
144
Now: PW03M
FLAT WASHER 6MM
Price
N/A
162
CONNECTING PLATE
Item is no longer available
Price
N/A
163
STOP DOG
Item is no longer available
Price
N/A
164
CAP SCREW M4-.7 X 12
Price
N/A
170
SUPPORT PLATE
Item is no longer available
Price
N/A
171
SAFETY LIMIT SWITCH KEDU-QKS7
Item is no longer available
Price
N/A
172
Now: PS18M
PHLP HD SCR M4-.7 X 25
Price
N/A
173
LIMIT STOP
Item is no longer available
Price
N/A
174
REVOLVING SHAFT
Item is no longer available
Price
N/A
175
LOCK NUT M6-1
Price
N/A
176
INNER SHIELD ASSEMBLY
177
OUTER SHIELD
178
FLAT HD SCR M4-.7 X 10
Price
N/A
179
Now: PW02M
FLAT WASHER 5MM
Price
N/A
180
KNURLED SCREWS M5-.8 X 20
181
SET SCREW M4-.7 X 6
Price
N/A
191
E-STOP BUTTON KEDU-HY57B
197
TAP SCREW M3-.5 X 9
202
ELECTRICAL BOX
Item is no longer available
Price
N/A
203
ELECTRIC BOX COVER
204
SPINDLE SPEED TACHOMETER
205
FWD/REV SWITCH KEDU ZH-A
Item is no longer available
Price
N/A
206
POTENTIOMETER WHZ4-2
207
FAULT INDICATOR LIGHT
Item is no longer available
Price
N/A
208
SPINDLE SPEED DAIL
211
STRAIN RELIEF TYPE -3
Item is no longer available
Price
N/A
301
CAP SCREW M5-.8 X 14
Price
N/A
302
TAPERED PIN B3 X 26
Item is no longer available
Price
N/A
303
CAP SCREW M5-.8 X 20
Price
N/A
304
Y-AXIS LEADSCREW NUT
Item is no longer available
Price
N/A
305
BASE
Item is no longer available
Price
N/A
306
SADDLE
Item is no longer available
Price
N/A
307
X-AXIS GIB
Item is no longer available
Price
N/A
308
WORKTABLE
Item is no longer available
Price
N/A
309
Y-AXIS GIB
Item is no longer available
Price
N/A
310
X-AXIS LEADSCREW NUT
Item is no longer available
Price
N/A
311
Y-AXIS LEADSCREW
Item is no longer available
Price
N/A
312
TAPERED PIN A3 X 30
Item is no longer available
Price
N/A
313
X-AXIS LEADSCREW
314
LEADSCREW BEARING SEAT
315
THRUST BALL BEARING 8101
316
GRADUATED DIAL
317
CAP SCREW M6-1 X 10
Price
N/A
318
END CAP
Item is no longer available
Price
N/A
319
DRAIN PLUG M16-1.5
Item is no longer available
Price
N/A
320
CAP SCREW M6-1 X 10
Price
N/A
321
Now: PW03M
FLAT WASHER 6MM
Price
N/A
322
HANDWHEEL TYPE-8 120D X 12B X M8-1.25
323
PIN 4 X 20
324
SCALE LABEL
Item is no longer available
Price
N/A
325
BLIND RIVET 2 X 3 ALUMINUM
Item is no longer available
Price
N/A
326
0 POSITION LABEL
Item is no longer available
Price
N/A
327
CAP SCREW M4-.7 X 14
Price
N/A
328
INDICATOR
329
BLIND RIVET 2 X 4 ALUMINUM
330
COMPRESSION SPRING 1 X 9.2 X 14
Item is no longer available
Price
N/A
331
FENDER WASHER 4MM
332
SCREW CLUTCH
333
TAPERED PIN 4 X 28
334
COMPRESSION SPRING -
Item is no longer available
Price
N/A
335
SPLASH GUARD (LARGE)
Item is no longer available
Price
N/A
336
SPLASH GUARD (SMALL)
Item is no longer available
Price
N/A
337
POWER FEED ASSY
338
POWER FEED CLUTCH ASSY
Item is no longer available
Price
N/A
339
POWER FEED LIMIT ASSY
339-1
TABLE LIMIT STOP ASSY
Item is no longer available
Price
N/A
340
CAP SCREW M4-.7 X 20
Price
N/A
341
Now: PS34
PHLP HD SCR M3-.5 X 25
Price
N/A
342
X-AXIS MAGNETIC GRID SCALE
Item is no longer available
Price
N/A
343
MAGNETIC READER PAD
Item is no longer available
Price
N/A
344
Y-AXIS MAGNETIC GRID SCALE
Item is no longer available
Price
N/A
345
FIX SEAT
Item is no longer available
Price
N/A
346
Y-AXIS MAGNETIC PAD
Item is no longer available
Price
N/A
347
LOCKING ROD
Item is no longer available
Price
N/A
348
CAP SCREW M4-.7 X 10
Price
N/A
349
Now: PN06M
HEX NUT M5-.8
Price
N/A
350
ADJUSTABLE HANDLE 58L M6-1 X 25
Item is no longer available
Price
N/A
351
Now: PW01M
FLAT WASHER 8MM
Price
N/A
352
Now: PN03M
HEX NUT M8-1.25
Price
N/A
353
HANDLE 19 X 40
354
SLOTTED SCREW M8-1.25 X 55
355
HANDWHEEL CURVED PLATE SPRING
356
LOCK NUT M8-1.25
Price
N/A
357
READER BRACKET
Item is no longer available
Price
N/A
358
MAGNETIC PAD READER
Item is no longer available
Price
N/A
359
Now: PS59M
PHLP HD SCR M3-.5 X 14
Price
N/A
360
Now: PS55M
PHLP HD SCR M3-.5 X 10
Price
N/A
361
GIB SCREW M6-1 X 24
Price
N/A
362
HANDWHEEL TYPE-8 100D X 8B X M8-1.25
Price
N/A
363
Now: PK37M
KEY 4 X 4 X 16
Price
N/A
381
BOTTLE FOR OIL
Item is no longer available
Price
N/A
382
POWER CORD FOR MILL/DRILL
Item is no longer available
Price
N/A
383
POWER CORD FOR POWER FEED
384
1A POWER SUPPLY ADAPTER 1-15P
385
5A POWER SUPPLY ADAPTER
Item is no longer available
Price
N/A
386
CHUCK KEY
Item is no longer available
Price
N/A
387
SPINDLE WRENCH
Item is no longer available
Price
N/A
388
QUILL LOCK LEVER
Item is no longer available
Price
N/A
389
T-NUTS M12-1.75
Item is no longer available
Price
N/A
390
OPEN-END WRENCH 17/19MM
Item is no longer available
Price
N/A
391
OPEN-END WRENCH 14/17MM
Item is no longer available
Price
N/A
392
OPEN-END WRENCH 8/10MM
Item is no longer available
Price
N/A
393
HEX WRENCH 8MM
Item is no longer available
Price
N/A
394
HEX WRENCH SET 3, 4, 5, 6MM
Item is no longer available
Price
N/A
MAN
MANUAL G0836 MFD-10.17 V1.10.17
Item is no longer available
Price
N/A
