Parts for G0837 - Benchtop Oscillating Spindle Sander

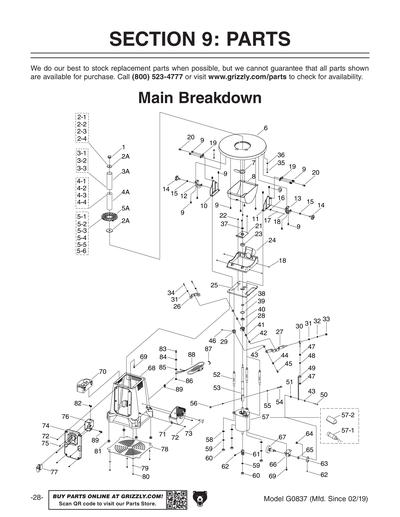

Part Diagram for G0837
Part Diagram for G0837
Part Diagram for G0837
Part Diagram for G0837
Part Diagram for G0837
Part Diagram for G0837

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

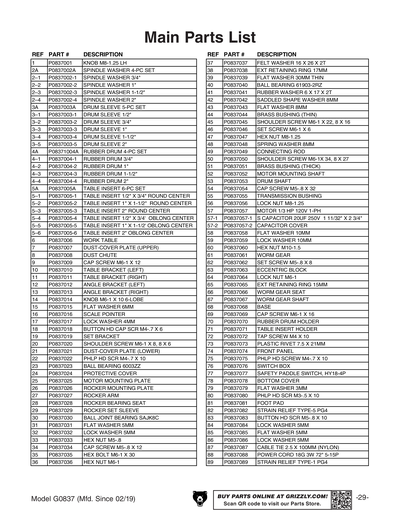

Ref #
Part #
Description
1
KNOB M8-1.25 LH
Price
$5.25
2-1
SPINDLE WASHER 3/4"
Price
$1.60
2-2
SPINDLE WASHER 1"
Price
$1.60
2-3
SPINDLE WASHER 1-1/2"
Price
$1.60
2-4
SPINDLE WASHER 2"
Price
$2.20
2A
SPINDLE WASHER 4-PC SET
Price
$4.30
3-1
DRUM SLEEVE 1/2"
Price
$1.60
3-2
DRUM SLEEVE 3/4"
Price
$2.20
3-3
DRUM SLEEVE 1"
Price
$2.75
3-4
DRUM SLEEVE 1-1/2"
Price
$3.65
3-5
*DISCD*DRUM SLEEVE 2"
Item is no longer available
Price
N/A
3A
DRUM SLEEVE 5-PC SET
Price
$14.85
4-1
RUBBER DRUM 3/4"
Price
$4.60
4-2
*DISCD*RUBBER DRUM 1"
Item is no longer available
Price
N/A
4-3
RUBBER DRUM 1-1/2"
Price
$11.20
4-4
*DISCD*RUBBER DRUM 2"
Price
$12.95
5-1
TABLE INSERT 1/2" X 3/4" ROUND CENTER
Item is no longer available
Price
N/A
5-2
TABLE INSERT 1" X 1-1/2" ROUND CENTER
Item is no longer available
Price
N/A
5-3
TABLE INSERT 2" ROUND CENTER
Price
$1.60
5-4
TABLE INSERT 1/2" X 3/4' OBLONG CENTER
Item is no longer available
Price
N/A
5-5
TABLE INSERT 1" X 1-1/2' OBLONG CENTER
Item is no longer available
Price
N/A
5-6
TABLE INSERT 2" OBLONG CENTER
Item is no longer available
Price
N/A
5A
*DISCD*TABLE INSERT 6-PC SET
Item is no longer available
Price
N/A
6
WORK TABLE
Item is no longer available
Price
N/A
7
DUST-COVER PLATE (UPPER)
Item is no longer available
Price
N/A
8
DUST CHUTE
Item is no longer available
Price
N/A
9
CAP SCREW M6-1 X 12
Price
N/A
10
TABLE BRACKET (LEFT)
Item is no longer available
Price
N/A
11
TABLE BRACKET (RIGHT)
Item is no longer available
Price
N/A
12
ANGLE BRACKET (LEFT)
Item is no longer available
Price
N/A
13
ANGLE BRACKET (RIGHT)
Item is no longer available
Price
N/A
14
KNOB M6-1 X 10 6-LOBE
Item is no longer available
Price
N/A
15
FLAT WASHER 6MM
Price
N/A
16
SCALE POINTER
Item is no longer available
Price
N/A
17
LOCK WASHER 4MM
Price
N/A
18
BUTTON HD CAP SCR M4-.7 X 6
Price
N/A
19
SET BRACKET
Item is no longer available
Price
N/A
20
SHOULDER SCREW M6-1 X 8, 8 X 6
Item is no longer available
Price
N/A
21
DUST-COVER PLATE (LOWER)
Item is no longer available
Price
N/A
22
PHLP HD SCR M4-.7 X 10
Price
N/A
23
Bearing - 35mm x 17mm
Price
N/A
24
PROTECTIVE COVER
Item is no longer available
Price
N/A
25
MOTOR MOUNTING PLATE
Item is no longer available
Price
N/A
26
ROCKER MOUNTING PLATE
Item is no longer available
Price
N/A
27
ROCKER ARM
Item is no longer available
Price
N/A
28
ROCKER BEARING SEAT
Item is no longer available
Price
N/A
29
ROCKER SET SLEEVE
Item is no longer available
Price
N/A
30
BALL JOINT BEARING SAJK8C
Item is no longer available
Price
N/A
31
FLAT WASHER 5MM
Price
N/A
32
LOCK WASHER 5MM
Price
N/A
33
HEX NUT M5-.8
Price
N/A
34
CAP SCREW M5-.8 X 12
Price
N/A
35
HEX BOLT M6-1 X 30
Price
N/A
36
HEX NUT M6-1
Price
N/A
37
FELT WASHER 16 X 26 X 2T
Item is no longer available
Price
N/A
38
EXT RETAINING RING 17MM
Price
N/A
39
FLAT WASHER 30MM THIN
Item is no longer available
Price
N/A
40
BALL BEARING 61903-2RZ
Item is no longer available
Price
N/A
41
RUBBER WASHER 6 X 17 X 2T
Item is no longer available
Price
N/A
42
SADDLED SHAPE WASHER 8MM
Item is no longer available
Price
N/A
43
FLAT WASHER 8MM
Price
N/A
44
BRASS BUSHING (THIN)
Item is no longer available
Price
N/A
45
SHOULDER SCREW M6-1 X 22, 8 X 16
Item is no longer available
Price
N/A
46
SET SCREW M6-1 X 6
Price
N/A
47
HEX NUT M8-1.25
Price
N/A
48
SPRING WASHER 8MM
Item is no longer available
Price
N/A
49
CONNECTING ROD
Item is no longer available
Price
N/A
50
SHOULDER SCREW M6-1X 34, 8 X 27
Item is no longer available
Price
N/A
51
BRASS BUSHING (THICK)
Item is no longer available
Price
N/A
52
MOTOR MOUNTING SHAFT
Item is no longer available
Price
N/A
53
DRUM SHAFT
Price
$3.75
54
CAP SCREW M5-.8 X 32
Item is no longer available
Price
N/A
55
TRANSMISSION BUSHING
Item is no longer available
Price
N/A
56
LOCK NUT M8-1.25
Price
N/A
57
MOTOR 1/3 HP 120V 1-PH
Item is no longer available
Price
N/A
57-1
S CAPACITOR 20UF 250V 1 11/16" X 2 3/4"
Item is no longer available
Price
N/A
57-2
CAPACITOR COVER
Item is no longer available
Price
N/A
58
FLAT WASHER 10MM
Price
N/A
59
LOCK WASHER 10MM
Price
N/A
60
HEX NUT M10-1.5
Price
N/A
61
WORM GEAR
Price
$1.75
62
SET SCREW M5-.8 X 8
Price
N/A
63
ECCENTRIC BLOCK
Item is no longer available
Price
N/A
64
LOCK NUT M6-1
Price
N/A
65
EXT RETAINING RING 15MM
Price
N/A
66
WORM GEAR SEAT
Item is no longer available
Price
N/A
67
WORM GEAR SHAFT
Price
$20.85
68
BASE
Item is no longer available
Price
N/A
69
CAP SCREW M6-1 X 16
Price
N/A
70
RUBBER DRUM HOLDER
Item is no longer available
Price
N/A
71
TABLE INSERT HOLDER
Item is no longer available
Price
N/A
72
TAP SCREW M4 X 10
Price
N/A
73
PLASTIC RIVET 7.5 X 21MM
Item is no longer available
Price
N/A
74
FRONT PANEL
Item is no longer available
Price
N/A
75
PHLP HD SCR M4-.7 X 10
Price
N/A
76
SWITCH BOX
Item is no longer available
Price
N/A
77
SAFETY PADDLE SWITCH, HY18-4P
Item is no longer available
Price
N/A
78
BOTTOM COVER
Item is no longer available
Price
N/A
79
FLAT WASHER 3MM
Price
N/A
80
PHLP HD SCR M3-.5 X 10
Price
N/A
81
FOOT PAD
Item is no longer available
Price
N/A
82
STRAIN RELIEF TYPE-5 PG4
Item is no longer available
Price
N/A
83
BUTTON HD SCR M5-.8 X 10
Item is no longer available
Price
N/A
84
LOCK WASHER 5MM
Price
N/A
85
FLAT WASHER 5MM
Price
N/A
86
LOCK WASHER 5MM
Price
N/A
87
CABLE TIE 2.5 X 100MM (NYLON)
Item is no longer available
Price
N/A
88
POWER CORD 18G 3W 72" 5-15P
Item is no longer available
Price
N/A
1004A
RUBBER DRUM 4-PC SET
Item is no longer available
Price
N/A
101

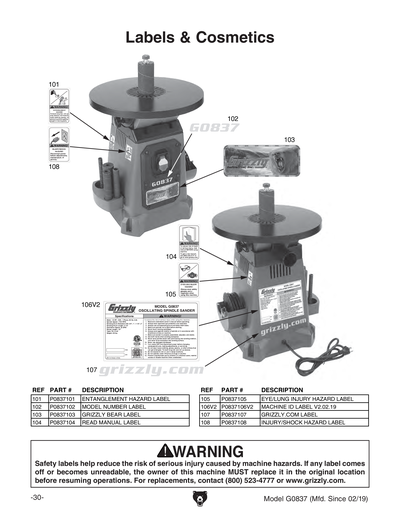

ENTANGLEMENT HAZARD 2W X 3.3H
Price
N/A
102
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
103
GRIZZLY BEAR LABEL
Item is no longer available
Price
N/A
104
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
105
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
106
MACHINE ID LABEL V1
Item is no longer available
Price
N/A
106V2
MACHINE ID LABEL V2.01.19
Item is no longer available
Price
N/A
107
GRIZZLY.COM LABEL 7.25",BEIGE
Price
N/A
108
INJURY/SHOCK HAZARD LABEL
Item is no longer available
Price
N/A
MAN
MANUAL G0837 MFG-12/17 V1.01.18
Price
$16.25
MANV2
MANUAL G0837 MFD-01.19+ V2.02.19
Item is no longer available
Price
N/A
