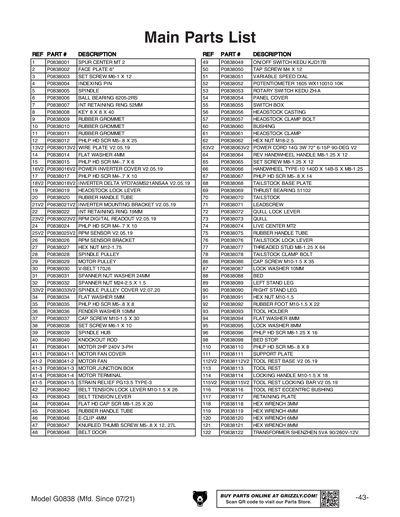

Parts for G0838 - 16" x 24" Variable-Speed Wood Lathe

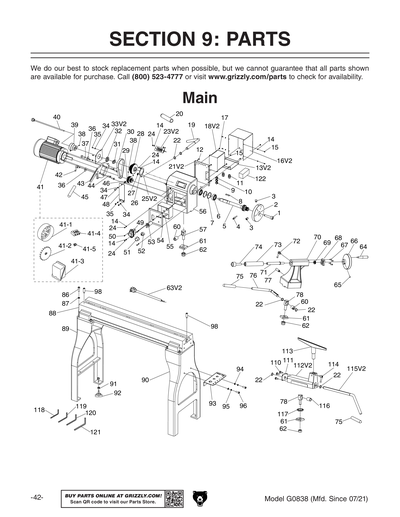

Part Diagram for G0838
Part Diagram for G0838
Part Diagram for G0838
Part Diagram for G0838
Part Diagram for G0838
Part Diagram for G0838

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
SPUR CENTER MT2
Price
N/A
2
FACE PLATE 6"
Price
$61.50
3
SET SCREW M6-1 X 12
Price
N/A
4
INDEXING PIN
Price
$10.85
5
SPINDLE
Price
$87.70
6
BALL BEARING 6205-2RS
Price
N/A
7
INT RETAINING RING 52MM
Price
N/A
8
KEY 8 X 8 X 40
Price
$1.90
9
RUBBER GROMMET
Price
$1.90
10
RUBBER GROMMET
Price
$1.90
11
RUBBER GROMMET
Price
$1.90
12
PHLP HD SCR M5-.8 X 25
Price
N/A
13
WIRE PLATE V2.05.19
Price
N/A
13V2
WIRE PLATE V2.05.19
Price
$6.90
14
FLAT WASHER 4MM
Price
N/A
15
PHLP HD SCR M4-.7 X 6
Price
N/A
16
POWER INVERTER COVER V2.05.19
Price
N/A
16V2
POWER INVERTER COVER V2.05.19
Price
$18.00
17
PHLP HD SCR M4-.7 X 10
Price
N/A
18
POWER INVERTER DELTA VFD-M VFD015M21A
Price
$1,358.15
18V2
INVERTER DELTA VFD7A5MS21ANSAA V2.05.19
Price
N/A
19
HEADSTOCK LOCK LEVER
Price
$23.00
20
RUBBER HANDLE TUBE
Price
$2.90
21
INVERTER MOUNTING BRACKET V1
Price
$9.75
21V2
INVERTER MOUNTING BRACKET V2.05.19
Price
$9.75
22
INT RETAINING RING 19MM
Price
N/A
23
RPM DIGITAL READOUT W/SENSOR V2.05.19
Price
N/A
23V2
RPM DIGITAL READOUT W/SENSOR V2.05.19
Price
$74.75
24
PHLP HD SCR M4-.7 X 10
Price
N/A
25
RPM SENSOR V1
Price
$25.60
25V2
RPM DIGITAL READOUT W/SENSOR V2.05.19
Price
N/A
26
RPM SENSOR BRACKET
Price
$1.90
27
HEX NUT M12-1.75
Price
N/A
28
SPINDLE PULLEY
Price
$41.15
29
MOTOR PULLEY
Price
$30.20
30
V-BELT 170J6
Price
$29.50
31
SPANNER NUT WASHER 24MM
Price
$1.90
32
SPANNER NUT M24-2.5 X 1.5
Price
$2.75
33
SPINDLE PULLEY COVER V2.07.20
Price
N/A
33V2
SPINDLE PULLEY COVER V2.07.20
Price
$1.90
34
FLAT WASHER 5MM
Price
N/A
35
PHLP HD SCR M5-.8 X 8
Price
N/A
36
FENDER WASHER 10MM
Price
N/A
37
CAP SCREW M10-1.5 X 30
Price
N/A
38
SET SCREW M6-1 X 10
Price
N/A
39
SPINDLE HUB
Price
$31.45
40
KNOCKOUT ROD
Price
$2.40
41
MOTOR 2HP 220V 3-PH
Price
N/A
41-1
MOTOR FAN COVER
Price
$3.60
41-2
MOTOR FAN
Price
$8.65
41-3
MOTOR JUNCTION BOX
Price
$12.65
41-4
MOTOR TERMINAL
Price
$6.90
41-5
STRAIN RELIEF PG13.5 TYPE-3
Price
$1.90
42
BELT TENSION LOCK LEVER M10-1.5 X 26
Price
$6.05
43
BELT TENSION LEVER
Price
$16.10
44
FLAT HD CAP SCR M8-1.25 X 20
Price
N/A
45
RUBBER HANDLE TUBE
Price
N/A
46
E-CLIP 4MM
Price
N/A
47
KNURLED THUMB SCREW M5-.8 X 12, 27L
Price
$11.90
48
BELT DOOR
Price
$4.50
49
ON/OFF SWITCH KEDU KJD17B
Price
$26.80
50
TAP SCREW M4 X 12
Price
N/A
51
VARIABLE SPEED DIAL
Price
$2.30
52
POTENTIOMETER WX1 10 010 10K
Price
N/A
53
ROTARY SWITCH KEDU ZH-A
Price
$29.45
54
PANEL COVER
Price
$2.30
55
SWITCH BOX
Price
$3.45
56
HEADSTOCK CASTING
Price
$419.10
56A
COMPLETE HEADSTOCK ASSEMBLY
Price
$3,318.50
57
HEADSTOCK CLAMP BOLT
Price
$21.60
60
BUSHING
Price
$3.75
61
HEADSTOCK CLAMP
Price
$8.60
62
HEX NUT M18-2.5
Price
N/A
63
POWER CORD 14G 3W 72" 6-15P V1
Price
$40.25
63V2
POWER CORD 14G 3W 72" 6-15P 90-DEG V2
Price
$46.75
64
REVOLVING HANDWHEEL HANDLE M8-1.25 X 12
Price
$23.00
65
SET SCREW M8-1.25 X 12
Price
N/A
66
HANDWHEEL TYPE-10 140D X 14B-S X M8-1.25
Price
$56.65
67
PHLP HD SCR M5-.8 X 14
Price
N/A
68
TAILSTOCK BASE PLATE
Price
$18.25
69
THRUST BEARING 51102
Price
N/A
70
TAILSTOCK
Price
$205.15
71
LEADSCREW
Price
$23.95
72
QUILL LOCK LEVER
Price
$6.05
73
QUILL
Price
$56.55
74
LIVE CENTER MT2
Price
$29.50
75
RUBBER HANDLE TUBE
Price
N/A
76
TAILSTOCK LOCK LEVER
Price
$32.20
77
THREADED STUD M8-1.25 X 64
Price
$5.45
78
TAILSTOCK CLAMP BOLT
Price
$20.20
86
CAP SCREW M10-1.5 X 35
Price
N/A
87
LOCK WASHER 10MM
Price
N/A
88
BED
Price
$873.70
89
LEFT STAND LEG
Price
$564.95
90
RIGHT STAND LEG
Price
$574.35
91
HEX NUT M10-1.5
Price
N/A
92
RUBBER FOOT M10-1.5 X 22
Price
$21.60
93
TOOL HOLDER
Price
$14.10
94
FLAT WASHER 8MM
Price
N/A
95
LOCK WASHER 8MM
Price
N/A
96
PHLP HD SCR M8-1.25 X 16
Price
N/A
98
BED STOP
Price
$3.45
110
PHLP HD SCR M5-.8 X 8
Price
N/A
111
SUPPORT PLATE
Price
$7.70
112
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
112V2
TOOL REST BASE V2 05.19
Price
$92.00
113
TOOL REST
Price
$53.35
114
ADJUSTABLE HANDLE 65L, M10-1.5 X 18
Price
N/A
115
TOOL REST LOCKING BAR V1
Price
$30.60
115V2
TOOL REST LOCKING BAR V2 05.19
Price
$33.25
116
TOOL REST ECCENTRIC BUSHING
Price
$4.05
117
RETAINING PLATE
Price
$9.85
118
HEX WRENCH 3MM
Price
N/A
119
HEX WRENCH 4MM
Price
N/A
120
HEX WRENCH 6MM
Price
N/A
121
HEX WRENCH 8MM
Price
N/A
122
TRANSFORMER SHENZHEN 5VA 90/260V-12V
Price
$16.95

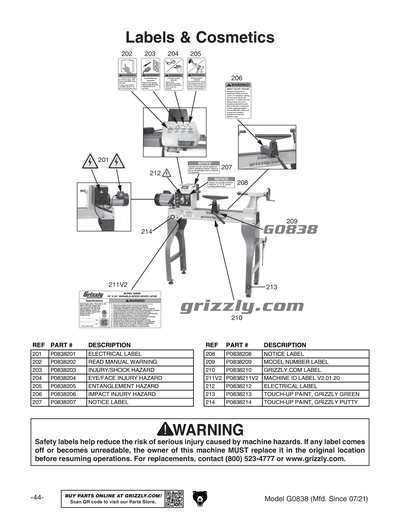

201
ELECTRICITY 0.7W X 0.6H
Price
N/A
202
READ MANUAL 1.5W X 2.5H
Price
N/A
203
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
204
EYE/FACE INJURY HAZARD
Price
$1.90
205
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
206
IMPACT INJURY HAZARD
Price
$1.90
207
NOTICE LABEL
Price
$1.25
208
NOTICE LABEL
Price
$1.25
209
MODEL NUMBER LABEL
Price
$1.00
210
GRIZZLY.COM LABEL 9",GREEN
Price
N/A
211
MACHINE ID LABEL V1
Price
$16.40
211V2
MACHINE ID LABEL V2.01.20
Price
$16.40
212
ELECTRICITY 1.4W X 1.2H
Price
N/A
213
N/S GRIZZLY GREEN G1023S
Price
N/A
214
GREY PUTTY REF G0504
Price
N/A
MAN
MANUAL G0838 MFD-09.17-04.19 V1.05.18
Price
$22.65
MANV2
MANUAL G0838 MFD-05.19-12.19 V2.06.19
Price
$18.50
MANV3
MANUAL G0838 MFD-01.20-06.21 V3.01.20
Price
$18.50
MANV4
MANUAL G0838 MFD-07.21+ V4.04.21
Price
$22.65
