Parts for G0839P - 6" x 79" Edge Sander - Polar Bear Series

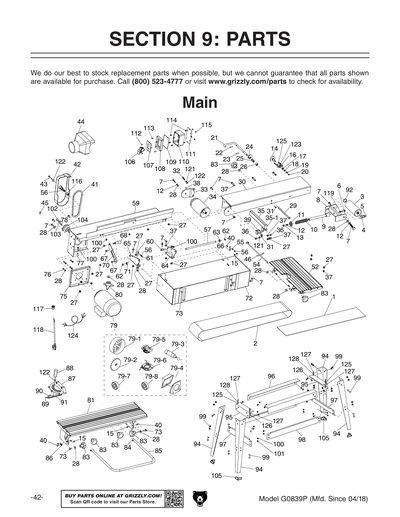

Part Diagram for G0839P
Part Diagram for G0839P
Part Diagram for G0839P
Part Diagram for G0839P
Part Diagram for G0839P
Part Diagram for G0839P
Part Diagram for G0839P
Part Diagram for G0839P

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

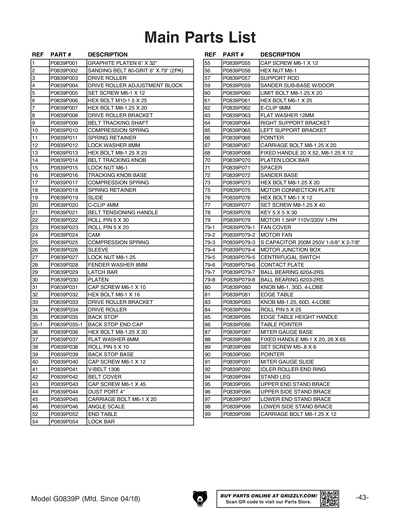

Ref #
Part #
Description
1
GRAPHITE PLATEN 6" X 32"
Price
$34.20
2
SANDING BELT 80-GRIT 6" X 79"
Price
$21.45
3
IDLER ROLLER
Price
$74.75
4
IDLER ROLLER ADJUSTMENT BLOCK
Price
$4.00
5
SET SCREW M6-1 X 12
Price
N/A
6
HEX BOLT M10-1.5 X 25
Price
N/A
7
HEX BOLT M8-1.25 X 20
Price
N/A
8
IDLER ROLLER BRACKET
Price
$29.50
9
BELT TRACKING SHAFT
Price
$19.85
10
COMPRESSION SPRING
Price
$2.90
11
SPRING RETAINER
Price
$2.60
12
LOCK WASHER 8MM
Price
N/A
13
HEX BOLT M8-1.25 X 25
Price
N/A
14
BELT TRACKING KNOB
Price
$8.35
15
HEX NUT M8-1.25
Price
N/A
16
TRACKING KNOB BASE
Price
$1.49
17
COMPRESSION SPRING
Price
$1.90
18
SPRING RETAINER
Price
$1.90
19
SLIDE
Price
$1.90
20
C-CLIP 4MM
Price
$1.90
21
BELT TENSIONING HANDLE
Price
$12.65
22
ROLL PIN 5 X 30
Price
N/A
23
ROLL PIN 5 X 20
Price
N/A
24
CAM
Price
$2.50
25
COMPRESSION SPRING
Price
$1.90
26
SLEEVE
Price
$2.60
27
LOCK NUT M8-1.25
Price
N/A
28
FENDER WASHER 8MM
Price
N/A
29
LATCH BAR
Price
$6.90
30
PLATEN
Price
$149.50
31
CAP SCREW M6-1 X 10
Price
N/A
32
HEX BOLT M6-1 X 16
Price
N/A
33
DRIVE ROLLER BRACKET
Price
$7.60
34
DRIVE ROLLER
Price
$187.25
35
BACK STOP
Price
$9.40
35-1
BACK STOP END CAP
Price
$1.90
36
HEX BOLT M8-1.25 X 20
Price
N/A
37
FLAT WASHER 8MM
Price
N/A
38
ROLL PIN 5 X 10
Price
N/A
39
BACK STOP BASE
Price
$2.60
40
CAP SCREW M6-1 X 12
Price
N/A
41
V-BELT 1306
Price
$6.50
42
BELT COVER
Price
$14.75
43
CAP SCREW M6-1 X 45
Price
N/A
44
DUST PORT 4"
Price
$21.60
45
CARRIAGE BOLT M6-1 X 20
Price
N/A
46
ANGLE SCALE
Price
$1.90
52
END TABLE
Price
$158.50
54
LOCK BAR
Price
$7.50
55
CAP SCREW M6-1 X 12
Price
N/A
56
HEX NUT M6-1
Price
N/A
57
SUPPORT ROD
Price
$14.75
59
SANDER SUB-BASE W/DOOR
Price
$116.85
60
LIMIT BOLT M8-1.25 X 20
Price
$5.10
61
HEX BOLT M6-1 X 25
Price
N/A
62
E-CLIP 9MM
Price
N/A
63
FLAT WASHER 12MM
Price
N/A
64
RIGHT SUPPORT BRACKET
Price
$8.65
65
LEFT SUPPORT BRACKET
Price
$8.65
66
POINTER
Price
$1.90
67
SHOULDER BOLT MI-1.25 X 15, 10 X 3.5
Price
$1.90
68
FIXED HANDLE 20 X 52, M8-1.25 X 12
Price
$5.10
70
PLATEN LOCK BAR
Price
$8.35
71
SPACER
Price
$2.90
72
SANDER BASE
Price
$172.50
73
HEX BOLT M8-1.25 X 20
Price
N/A
75
MOTOR CONNECTION PLATE
Price
$15.85
76
HEX BOLT M6-1 X 12
Price
N/A
77
SET SCREW M8-1.25 X 40
Price
N/A
78
KEY 5 X 5 X 30
Price
N/A
79
MOTOR 1.5HP 110V/220V 1-PH
Price
$548.85
79-1
FAN COVER
Price
$11.50
79-2
MOTOR FAN
Price
$4.70
79-3
S CAPACITOR 200UF 250V, 1-5/8" x 2-7/8"
Price
$22.70
79-4
MOTOR JUNCTION BOX
Price
$16.95
79-5
CENT SWITCH W/CONTACT PLATE
Price
$16.65
79-6
CENT SWITCH W/CONTACT PLATE
Price
N/A
79-7
BALL BEARING 6204-2RS
Price
N/A
79-8
BALL BEARING 6203-2RS
Price
N/A
80
KNOB M6-1, 30D, 3-LOBE
Price
$1.90
81
EDGE TABLE
Price
$238.35
83
KNOB M8-1.25, 60D, 4-LOBE
Price
$3.65
84
ROLL PIN 5 X 25
Price
N/A
85
EDGE TABLE HEIGHT HANDLE
Price
$44.60
86
TABLE POINTER
Price
$1.90
87
MITER GAUGE BASE
Price
$26.65
88
FIXED HANDLE M6-1 X 20, 26 x 65
Price
$4.00
89
SET SCREW M5-.8 X 6
Price
N/A
90
POINTER
Price
$1.90
91
MITER GAUGE SLIDE
Price
$6.90
92
IDLER ROLLER END RING
Price
$1.90
94
STAND LEG
Price
$26.60
95
UPPER END STAND BRACE
Price
$10.50
96
UPPER SIDE STAND BRACE
Price
$21.00
97
LOWER END STAND BRACE
Price
$10.50
98
LOWER SIDE STAND BRACE
Price
$19.85
99
CARRIAGE BOLT M8-1.25 X 12
Price
N/A

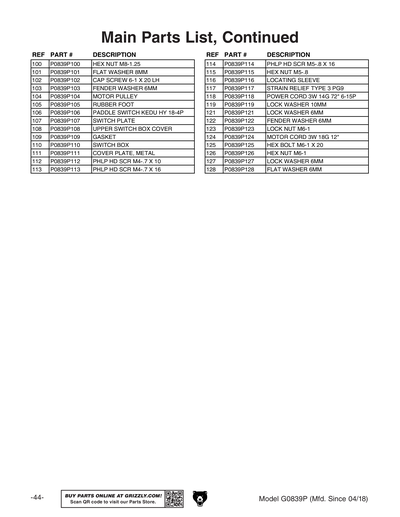

100
HEX NUT M8-1.25
Price
N/A
101
FLAT WASHER 8MM
Price
N/A
102
CAP SCREW 6-1 X 20 LH
Price
$1.90
103
FENDER WASHER 6MM
Price
N/A
104
MOTOR PULLEY
Price
$12.95
105
RUBBER FOOT
Price
$1.90
106
PADDLE SWITCH KEDU HY 18-4P
Price
$9.25
107
SWITCH PLATE
Price
$1.90
108
UPPER SWITCH BOX COVER
Price
$2.20
109
GASKET
Price
$1.90
110
SWITCH BOX
Price
$9.75
111
COVER PLATE, METAL
Price
$2.60
112
PHLP HD SCR M4-.7 X 10
Price
N/A
113
PHLP HD SCR M4-.7 X 16
Price
N/A
114
PHLP HD SCR M5-.8 X 16
Price
N/A
115
HEX NUT M5-.8
Price
N/A
116
LOCATING SLEEVE
Price
$1.90
117
STRAIN RELIEF TYPE 3 PG9
Price
$1.90
118
POWER CORD 3W 14G 72" 6-15P
Price
$28.10
119
LOCK WASHER 10MM
Price
N/A
121
LOCK WASHER 6MM
Price
N/A
122
FENDER WASHER 6MM
Price
N/A
123
LOCK NUT M6-1
Price
N/A
124
MOTOR CORD 3W 18G 12"
Price
$10.85
125
HEX BOLT M6-1 X 20
Price
N/A
126
HEX NUT M6-1
Price
N/A
127
LOCK WASHER 6MM
Price
N/A
128
FLAT WASHER 6MM
Price
N/A
201

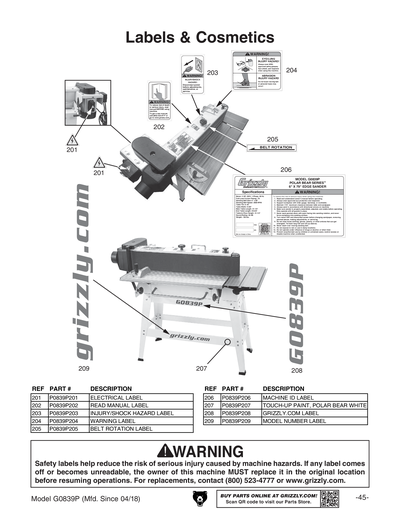

ELECTRICITY 0.7W X 0.6H
Price
N/A
202
READ MANUAL 1.5W X 2.5H
Price
N/A
203
INJURY/SHOCK HAZARD LABEL
Price
$1.90
204
WARNING LABEL
Price
$1.90
205
BELT ROTATION LABEL
Price
$1.90
206
MACHINE ID LABEL
Price
$16.40
207
POLAR BEAR WHITE TOUCH-UP PAINT
Price
N/A
208
GRIZZLY.COM LABEL 11",GREEN
Price
N/A
209
MODEL NUMBER LABEL
Price
$2.20
MAN
G0839P MANUAL MFD 09.17 V1.03.18
Price
$18.75
