Parts for G0842 - 14" x 37" Wood Lathe w/ Copy Attachment

Part Diagram for G0842
Part Diagram for G0842
Part Diagram for G0842
Part Diagram for G0842
Part Diagram for G0842
Part Diagram for G0842
Part Diagram for G0842
Part Diagram for G0842

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

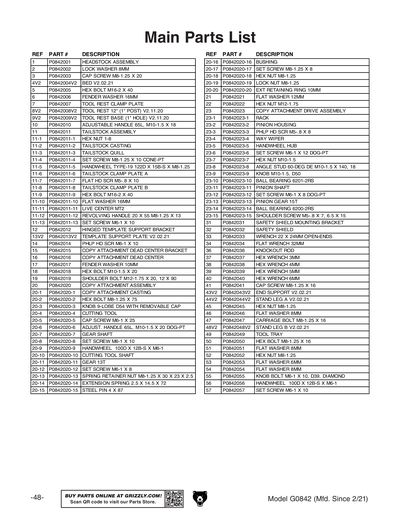

Ref #
Part #
Description
1
HEADSTOCK ASSEMBLY
Price
$909.25
2
LOCK WASHER 8MM
Price
N/A
3
CAP SCREW M8-1.25 X 20
Price
N/A
4
BED V1
Price
$106.70
4V2
BED V2.02.21
Price
$217.10
5
HEX BOLT M16-2 X 40
Price
N/A
6
FENDER WASHER 16MM
Price
N/A
7
TOOL REST CLAMP PLATE
Price
$11.50
8
TOOL REST 12" (20MM POST)
Price
$26.10
8V2
TOOL REST 12" (1" POST) V2.11.20
Price
$26.10
9
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
9V2
TOOL REST BASE (1" HOLE) V2.11.20
Price
$27.10
10
ADJUSTABLE HANDLE 65L, M10-1.5 X 18
Price
$1.90
11
TAILSTOCK ASSEMBLY
Price
$185.45
11-1
HEX NUT 1-8
Price
N/A
11-10
FLAT WASHER 16MM
Price
N/A
11-11
LIVE CENTER MT2
Price
$28.45
11-12
REVOLVING HANDLE 20 X 55 M8-1.25 X 13
Price
$12.10
11-13
SET SCREW M6-1 X 10
Price
N/A
11-2
TAILSTOCK CASTING
Price
$75.15
11-3
TAILSTOCK QUILL
Price
$27.70
11-4
SET SCREW M8-1.25 X 10 CONE-PT
Price
$1.90
11-5
HANDWHEEL TYPE-19 122D X 15B-S X M8-1.25
Price
$12.10
11-6
TAILSTOCK CLAMP PLATE A
Price
$19.85
11-7
FLAT HD SCR M5-.8 X 10
Price
N/A
11-8
TAILSTOCK CLAMP PLATE B
Price
$18.70
11-9
HEX BOLT M16-2 X 40
Price
N/A
12
HINGED TEMPLATE SUPPORT BRACKET
Price
$33.10
13
TEMPLATE SUPPORT PLATE V1
Price
$8.35
13V2
TEMPLATE SUPPORT PLATE V2.02.21
Price
$9.40
14
PHLP HD SCR M6-1 X 10
Price
N/A
15
COPY ATTACHMENT DEAD CENTER BRACKET
Price
$18.70
16
COPY ATTACHMENT DEAD CENTER
Price
$6.90
17
FENDER WASHER 10MM
Price
N/A
18
HEX BOLT M10-1.5 X 20
Price
N/A
19
SHOULDER BOLT M12-1.75 X 20, 12 X 90
Price
$6.50
20
COPY ATTACHMENT ASSEMBLY
Price
$286.85
20-1
COPY ATTACHMENT CASTING
Price
$159.60
20-10
CUTTING TOOL SHAFT
Price
$43.50
20-11
GEAR 13T
Price
$6.15
20-12
SET SCREW M6-1 X 8
Price
N/A
20-13
SPRING RETAINER NUT M8-1.25 X 30 X23X2.5
Price
$1.90
20-14
EXTENSION SPRING 2.5 X 14.5 X 72
Price
$1.90
20-15
STEEL PIN 4 X 87
Price
$1.90
20-16
BUSHING
Price
$1.90
20-17
SET SCREW M8-1.25 X 8
Price
N/A
20-18
HEX NUT M8-1.25
Price
N/A
20-19
LOCK NUT M8-1.25
Price
N/A
20-2
HEX BOLT M8-1.25 X 75
Price
N/A
20-20
EXT RETAINING RING 10MM
Price
N/A
20-3
KNOB 9-LOBE D54 WITH REMOVABLE CAP
Price
$3.25
20-4
CUTTING TOOL
Price
$14.70
20-5
CAP SCREW M6-1 X 25
Price
N/A
20-6
QUILL LOCK LEVER
Price
N/A
20-7
GEAR SHAFT
Price
$6.50
20-8
SET SCREW M6-1 X 10
Price
N/A
20-9
HANDWHEEL 100D X 12B-S X M6-1
Price
N/A
21
FLAT WASHER 12MM
Price
N/A
22
HEX NUT M12-1.75
Price
N/A
23
COPY ATTACHMENT DRIVE ASSEMBLY
Price
$244.40
23-1
RACK
Price
$116.85
23-10
BALL BEARING 6201-2RS
Price
N/A
23-11
PINION SHAFT
Price
$19.45
23-12
SET SCREW M6-1 X 8 DOG-PT
Price
N/A
23-13
PINION GEAR 15T
Price
$7.45
23-14
BALL BEARING 6200-2RS
Price
N/A
23-15
SHOULDER SCREW M5-.8 X 7, 6.5 X 15
Price
$2.60
23-2
PINION HOUSING
Price
$66.15
23-3
PHLP HD SCR M5-.8 X 8
Price
N/A
23-4
WAY WIPER
Price
$1.90
23-5
HANDWHEEL HUB
Price
$9.40
23-6
SET SCREW M6-1 X 12 DOG-PT
Price
N/A
23-7
HEX NUT M10-1.5
Price
N/A
23-8
ANGLE STUD 60-DEG DE M10-1.5 X 140, 18
Price
$5.10
23-9
KNOB M10-1.5, D50
Price
$2.90
31
SAFETY SHIELD MOUNTING BRACKET
Price
$1.90
32
SAFETY SHIELD
Price
$3.35
33
WRENCH 22 X 24MM OPEN-ENDS
Price
N/A
34
FLAT WRENCH 32MM
Price
N/A
36
KNOCKOUT ROD
Price
$2.10
37
HEX WRENCH 3MM
Price
N/A
38
HEX WRENCH 4MM
Price
N/A
39
HEX WRENCH 5MM
Price
N/A
40
HEX WRENCH 6MM
Price
N/A
41
CAP SCREW M8-1.25 X 16
Price
N/A
43
END SUPPORT V1
Price
$7.95
43V2
END SUPPORT V2.02.21
Price
$10.10
44
STAND LEG A V2.02.21
Price
N/A
44V2
STAND LEG A V2.02.21
Price
$26.95
45
HEX NUT M8-1.25
Price
N/A
46
FLAT WASHER 8MM
Price
N/A
47
CARRIAGE BOLT M8-1.25 X 16
Price
N/A
48
STAND LEG B V2.02.21
Price
N/A
48V2
STAND LEG B V2.02.21
Price
$27.00
49
TOOL TRAY
Price
$102.10
50
HEX BOLT M8-1.25 X 16
Price
N/A
51
FLAT WASHER 8MM
Price
N/A
52
HEX NUT M8-1.25
Price
N/A
53
FLAT WASHER 6MM
Price
N/A
54
FLAT WASHER 8MM
Price
N/A
55
KNOB BOLT M6-1 X 10, D39, DIAMOND
Price
$1.90
56
HANDWHEEL 100D X 12B-S X M6-1
Price
$17.25
57
SET SCREW M6-1 X 10
Price
N/A

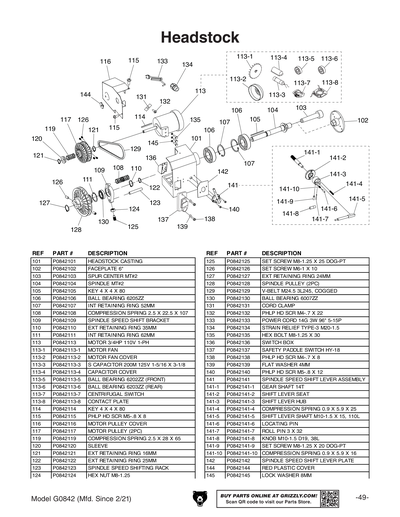

101
HEADSTOCK CASTING
Price
$228.25
102
FACEPLATE 6"
Price
$33.10
103
SPUR CENTER MT#2
Price
$15.50
104
SPINDLE MT#2
Price
$66.90
105
KEY 4 X 4 X 80
Price
N/A
106
BALL BEARING 6205ZZ
Price
N/A
107
INT RETAINING RING 52MM
Price
N/A
108
COMPRESSION SPRING 2.5 X 22.5 X 107
Price
$1.90
109
SPINDLE SPEED SHIFT BRACKET
Price
$13.55
110
EXT RETAINING RING 35MM
Price
N/A
111
INT RETAINING RING 62MM
Price
N/A
113
MOTOR 3/4HP 110V 1-PH
Price
$454.35
113-1
MOTOR FAN
Price
$2.55
113-2
MOTOR FAN COVER
Price
$9.75
113-3
S CAPACITOR 200M 125V 1-5/16 X 3-1/8
Price
$18.20
113-4
CAPACITOR COVER
Price
$3.65
113-5
BALL BEARING 6202ZZ
Price
N/A
113-6
BALL BEARING 6203ZZ
Price
N/A
113-7
CENTRIFUGAL SWITCH W/CONTACT PLATE
Price
$20.50
113-8
CENTRIFUGAL SWITCH W/CONTACT PLATE
Price
N/A
114
KEY 4 X 4 X 80
Price
N/A
115
PHLP HD SCR M5-.8 X 8
Price
N/A
116
MOTOR PULLEY COVER
Price
$35.95
117
MOTOR PULLEY (2PC)
Price
$49.65
119
COMPRESSION SPRING 2.5 X 28 X 65
Price
$1.90
120
SLEEVE
Price
$1.90
121
EXT RETAINING RING 16MM
Price
N/A
122
EXT RETAINING RING 25MM
Price
N/A
123
SPINDLE SPEED SHIFTING RACK
Price
$4.60
124
HEX NUT M8-1.25
Price
N/A
125
SET SCREW M8-1.25 X 25 DOG-PT
Price
N/A
126
SET SCREW M6-1 X 10
Price
N/A
127
EXT RETAINING RING 24MM
Price
N/A
128
SPINDLE PULLEY (2PC)
Price
$52.45
129
V-BELT MX24.5, COGGED
Price
N/A
130
BALL BEARING 6007ZZ
Price
N/A
131
CORD CLAMP
Price
$1.90
132
PHLP HD SCR M4-.7 X 22
Price
N/A
133
POWER CORD 14G 3W 96" 5-15P
Price
$36.70
134
STRAIN RELIEF TYPE-3 M20-1.5
Price
$1.90
135
HEX BOLT M8-1.25 X 30
Price
N/A
136
SWITCH BOX
Price
$4.35
137
Safety Paddle Switch
Price
N/A
138
PHLP HD SCR M4-.7 X 8
Price
N/A
139
FLAT WASHER 4MM
Price
N/A
140
PHLP HD SCR M5-.8 X 12
Price
N/A
141
SPINDLE SPEED SHIFT LEVER ASSEMBLY
Price
$35.75
141-1
GEAR SHAFT 14T
Price
$5.75
141-10
COMPRESSION SPRING 0.9 X 5.9 X 16
Price
$1.90
141-2
SHIFT LEVER SEAT
Price
$12.25
141-3
SHIFT LEVER HUB
Price
$9.00
141-4
COMPRESSION SPRING 0.9 X 5.9 X 25
Price
$1.90
141-5
SHIFT LEVER SHAFT M10-1.5 X 15, 110L
Price
$4.00
141-6
LOCATING PIN
Price
$1.90
141-7
ROLL PIN 3 X 32
Price
N/A
141-8
KNOB M10-1.5 D19, 38L
Price
$1.90
141-9
SET SCREW M8-1.25 X 20 DOG-PT
Price
N/A
142
SPINDLE SPEED SHIFT LEVER PLATE
Price
$1.90
144
RED PLASTIC COVER
Price
$1.90
145
LOCK WASHER 8MM
Price
N/A

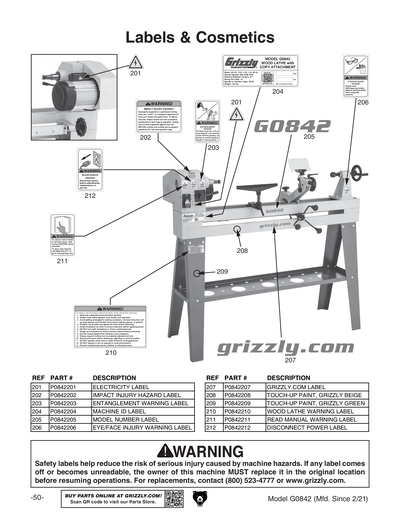

201
ELECTRICITY 0.7W X 0.6H
Price
N/A
202
IMPACT INJURY HAZARD LABEL
Price
$1.25
203
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
204
MACHINE ID LABEL
Price
$16.40
205
MODEL NUMBER LABEL
Price
$1.90
206
FACE SHIELD & SAFETY GLASSES 2W X 3.3H
Price
N/A
207
GRIZZLY.COM LABEL
Price
$2.20
208
BEIGE REF G0555
Price
N/A
209
N/S GRIZZLY GREEN G1023S
Price
N/A
210
WOOD LATHE WARNING LABEL
Price
$1.90
211
READ MANUAL 1.5W X 2.5H
Price
N/A
212
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
MAN
MANUAL G0842 MFD-04.18-10.20 V1.09.18
Price
$22.65
MANV2
MANUAL G0842 MFD-11.20-01.21 V2.09.20
Price
$22.65
MANV3
MANUAL G0842 MFD-02.21+ V3.02.21
Price
$22.65
