Parts for G0861 - 2 HP Portable Cyclone Dust Collector

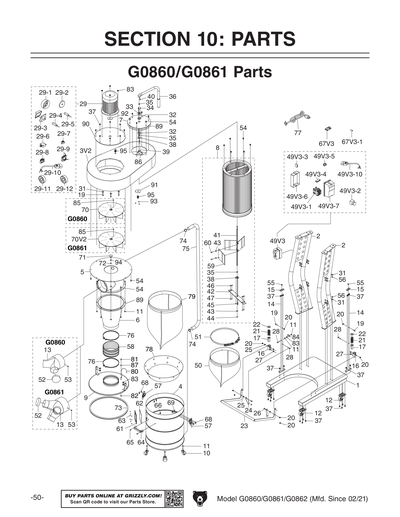

Part Diagram for G0861
Part Diagram for G0861
Part Diagram for G0861
Part Diagram for G0861
Part Diagram for G0861
Part Diagram for G0861
Part Diagram for G0861
Part Diagram for G0861
Part Diagram for G0861
Part Diagram for G0861
Part Diagram for G0861
Part Diagram for G0861
Part Diagram for G0861
Part Diagram for G0861
Part Diagram for G0861
Part Diagram for G0861

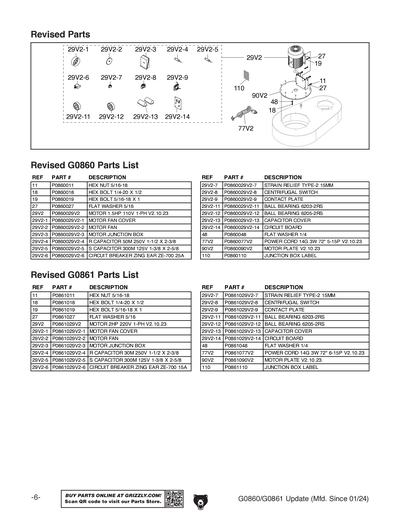

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

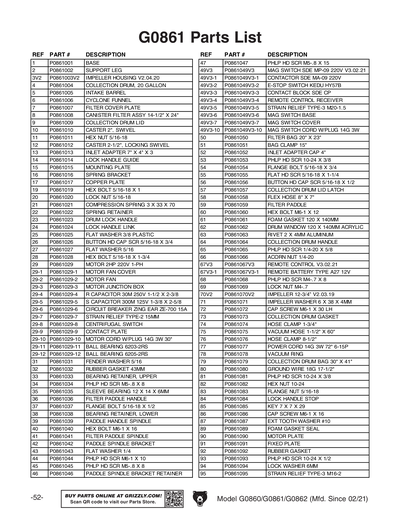

Ref #
Part #
Description
1
BASE
Price
N/A
2
SUPPORT LEG
Price
N/A
3
IMPELLER HOUSING V1
Price
N/A
3V2
IMPELLER HOUSING V2.04.20
Price
N/A
4
COLLECTION DRUM W/WINDOW, 20 GALLON
Price
N/A
4-1
*DISCD*90 DEGREE ANGLE TUBE
Price
N/A
4-2
*DISCD*HEX BOLT
Price
N/A
5
INTAKE BARREL
Price
N/A
6
CYCLONE FUNNEL
Price
$159.75
7
FILTER COVER PLATE
Price
N/A
8
REPLACEMENT FILTER
Price
$313.95
9
COLLECTION DRUM LID
Price
$114.75
10
CASTER 2", SWIVEL
Price
N/A
11
P0861011
Now: PN02
HEX NUT 5/16-18
Price
N/A
12
CASTER 2-1/2", LOCKING SWIVEL
Price
N/A
13
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
13V2
INLET ADAPTER 7" X 4" X 3 (PC) V2.01.22
Price
$91.20
14
LOCK HANDLE GUIDE
Price
N/A
15
MOUNTING PLATE
Price
N/A
16
SPRING BRACKET
Price
N/A
17
COPPER PLATE
Price
N/A
18
P0861018
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
19
P0861019
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
20
LOCK NUT 5/16-18
Price
N/A
21
COMPRESSION SPRING 3 X 33 X 70
Price
N/A
22
SPRING RETAINER
Price
N/A
23
DRUM LOCK HANDLE
Price
N/A
24
LOCK HANDLE LINK
Price
N/A
25
FLAT WASHER 3/8 PLASTIC
Price
N/A
26
BUTTON HD CAP SCR 5/16-18 X 3/4
Price
N/A
27
P0861027
Now: PW07
FLAT WASHER 5/16
Price
N/A
28
P0861028
Now: PB22
HEX BOLT 5/16-18 X 1-3/4
Price
N/A
29
MOTOR 2HP 220V 1-PH V1
Price
$381.00
29-1
MOTOR FAN COVER
Price
$26.35
29-10
MOTOR CORD W/PLUG 14G 3W 30"
Price
N/A
29-11
BALL BEARING 6203-2RS
Price
N/A
29-12
BALL BEARING 6205-2RS
Price
N/A
29-2
MOTOR FAN
Price
N/A
29-3
MOTOR JUNCTION BOX
Price
$14.25
29-4
R CAPACITOR 30M 250V 1-1/2 X 2-3/8
Price
$15.15
29-5
S CAPACITOR 300M 125V 1-3/8 X 2-5/8
Price
N/A
29-6
CIRCUIT BREAKER ZING EAR ZE-700 15A
Price
$8.20
29-7
STRAIN RELIEF TYPE-2 15MM
Price
N/A
29-8
***USE P0860029-8***
Price
$20.45
29-9
***USE P0860029-9***
Price
$23.60
29V2
MOTOR 2HP 220V 1-PH V2.10.23
Price
$564.00
29V2-1
MOTOR FAN COVER
Price
N/A
29V2-11
BALL BEARING 6203-2RS
Price
N/A
29V2-12
BALL BEARING 6205-2RS
Price
N/A
29V2-13
CAPACITOR COVER
Price
$22.35
29V2-14
CIRCUIT BOARD
Price
N/A
29V2-2
MOTOR FAN
Price
N/A
29V2-3
MOTOR JUNCTION BOX
Price
N/A
29V2-4
R CAPACITOR 30M 250V 1-1/2 X 2-3/8
Price
N/A
29V2-5
S CAPACITOR 300M 125V 1-3/8 X 2-5/8
Price
N/A
29V2-6
CIRCUIT BREAKER ZING EAR ZE-700 15A
Price
N/A
29V2-7
STRAIN RELIEF TYPE-2 15MM
Price
N/A
29V2-8
CENTRIFUGAL SWITCH
Price
N/A
29V2-9
CONTACT PLATE
Price
N/A
30
FLANGE NUT 5/16-18
Price
N/A
31
FENDER WASHER 5/16
Price
N/A
32
RUBBER GASKET 43MM
Price
N/A
33
BEARING RETAINER, UPPER
Price
N/A
34
PHLP HD SCR M5-.8 X 8
Price
N/A
35
SLEEVE BEARING 12 X 14 X 6MM
Price
N/A
36
FILTER PADDLE HANDLE
Price
N/A
37
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
38
BEARING RETAINER, LOWER
Price
N/A
39
PADDLE HANDLE SPINDLE
Price
N/A
40
HEX BOLT M6-1 X 16
Price
N/A
41
FILTER PADDLE SPINDLE
Price
N/A
42
PADDLE SPINDLE BRACKET
Price
N/A
43
P0861043
Now: PW06
FLAT WASHER 1/4
Price
N/A
44
PHLP HD SCR M6-1 X 10
Price
N/A
45
PHLP HD SCR M5-.8 X 8
Price
N/A
46
PADDLE SPINDLE BRACKET RETAINER
Price
N/A
47
PHLP HD SCR M5-.8 X 15
Price
N/A
49
MAG SWITCH NHD MS1-12D 220V V2.06.19
Price
N/A
49-1
*DISCD*CONTACTOR NHD C-12D10 220V
Item is no longer available
Price
N/A
49-10
MAG SWITCH CORD W/PLUG 14G 3W
Price
N/A
49-2
*DISCD*E-STOP SWITCH NHD NPB22-H
Price
N/A
49-3
CONTACT BLOCK NHD CB-01
Price
N/A
49-4
*SEE EXT. DESCRIPTION
Item is no longer available
Price
N/A
49-4V2
REMOTE CONTROL RECEIVER V2.06.19
Price
N/A
49-5
STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
49-6
MAG SWITCH BASE
Price
$30.55
49-7
*DISCD*MAG SWITCH COVER
Price
N/A
49-8
PHLP HD SCR 10-24 X 3/4
Price
N/A
49-9
HEX NUT 10-24
Price
N/A
49V2
MAG SWITCH NHD MS1-12D 220V V2.06.19
Price
$294.40
49V2-1
*DISCD*CONTACTOR NHD C-12D10 220V
Price
N/A
49V2-10
MAG SWITCH CORD W/PLUG 14G 3W
Price
N/A
49V2-2
*DISCD*E-STOP SWITCH NHD NPB22-H
Price
N/A
49V2-3
CONTACT BLOCK NHD CB-01
Price
N/A
49V2-4
REMOTE CONTROL RECEIVER V2.06.19
Price
N/A
49V2-5
STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
49V2-6
MAG SWITCH BASE
Price
N/A
49V2-7
*DISCD*MAG SWITCH COVER
Price
N/A
49V2-8
PHLP HD SCR 10-24 X 3/4
Price
N/A
49V2-9
HEX NUT 10-24
Price
N/A
49V3
MAG SWITCH SDE MP-09 220V V3.05.21
Price
N/A
49V3-1
CONTACTOR SDE MA-09 220V
Price
N/A
49V3-10
MAG SWITCH CORD W/PLUG 14G 3W
Price
N/A
49V3-2
E-STOP SWITCH KEDU HY57B
Price
N/A
49V3-3
CONTACT BLOCK SDE CP
Price
N/A
49V3-4
REMOTE CONTROL RECEIVER
Price
N/A
49V3-5
STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
49V3-6
MAG SWITCH BASE
Price
$15.15
49V3-7
MAG SWITCH COVER
Price
$15.15
50
Filter Bag 20" x 23"
Price
N/A
51
BAG CLAMP 15"
Price
N/A
52
***USE P0944025***
Price
N/A
53
P0861053
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
54
FLANGE BOLT 5/16-18 X 3/4
Price
N/A
55
FLAT HD SCR 5/16-18 X 1-1/4
Price
N/A
56
BUTTON HD CAP SCR 5/16-18 X 3/4
Price
N/A
57
COLLECTION DRUM LID LATCH
Price
N/A
58
FLEX HOSE 8" X 7"
Price
$42.30
59
FILTER PADDLE
Price
N/A
60
HEX BOLT M6-1 X 12
Price
N/A
61
FOAM GASKET, 120 X 140MM
Price
N/A
62
DRUM WINDOW, 120 X 140MM ACRYLIC
Price
N/A
63
RIVET 2 X 4MM NAMEPLATE, ALUMINUM
Price
N/A
64
HANDLE
Price
N/A
65
P0861065
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
66
P0861066
Now: PN53
ACORN NUT 1/4-20
Price
N/A
67
*SEE EXT. DESCRIPTION
Item is no longer available
Price
N/A
67-1
REMOTE BATTERY TYPE A27 12V
Price
N/A
67A
REMOTE CONTROL AND RECEIVER
Price
$165.40
67V2
***USE P0860067V3***
Price
N/A
67V2-1
REMOTE BATTERY TYPE A27 12V
Price
N/A
67V3
REMOTE CONTROL V3.02.21
Price
N/A
67V3-1
REMOTE BATTERY TYPE A27 12V
Price
N/A
68
PHLP HD SCR M4-.7 X 8
Price
N/A
69
LOCK NUT M4-.7
Price
N/A
70
IMPELLER 12-3/4" V2.03.19
Price
N/A
70V2
IMPELLER 12-3/4" V2.03.19
Price
$168.20
71
IMPELLER WASHER 6 X 38 X 4MM
Price
N/A
72
CAP SCREW M6-1 X 30 LH
Price
N/A
73
COLLECTION DRUM GASKET
Price
N/A
74
HOSE CLAMP 1-3/4"
Price
N/A
75
VACUUM HOSE 1-1/2" X 60"
Price
N/A
76
HOSE CLAMP 7-1/2"
Price
N/A
77
POWER CORD 14G 3W 72" 6-15P V1
Price
$28.75
77V2
POWER CORD 14G 3W 72" 6-15P V2.10.23
Price
$49.60
78
VACUUM RING
Price
N/A
79
Collection Bag 30" x 41"
Price
N/A
80
GROUND WIRE 18G 17-1/2"
Price
N/A
81
P0861081
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
82
P0861082
Now: PN07
HEX NUT 10-24
Price
N/A
83
FLANGE NUT 5/16-18
Price
N/A
84
STOPPER
Price
N/A
85
KEY 7 X 7 X 29
Price
N/A
86
CAP SCREW M6-1 X 16
Price
N/A
87
EXT TOOTH WASHER #10
Price
N/A
89
FOAM GASKET SEAL
Price
N/A
90
MOTOR PLATE V1
Price
N/A
90V2
MOTOR PLATE V2.10.23
Price
N/A
91
FIXED PLATE
Price
N/A
92
RUBBER GASKET
Price
N/A
93
P0861093
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
94
LOCK WASHER 6MM
Price
N/A
95
STRAIN RELIEF TYPE-3 M16-2
Price
N/A

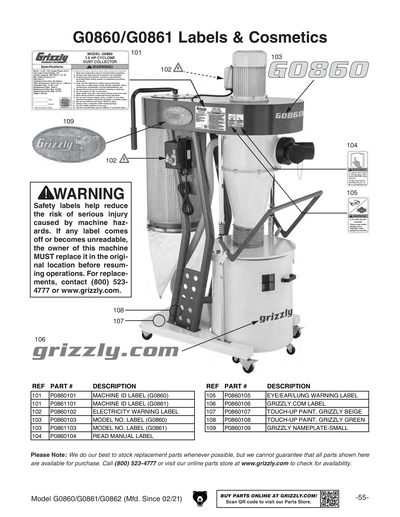

101
MACHINE ID LABEL
Price
$16.40
102
ELECTRICITY 0.7W X 0.6H
Price
N/A
103
MODEL NO. LABEL
Price
$3.70
104
READ MANUAL 1.5W X 2.5H
Price
N/A
105
EYE/EAR/LUNG 1.5W X 2.5H
Price
N/A
106
GRIZZLY.COM LABEL
Price
N/A
107
BEIGE REF G0555
Price
N/A
108
N/S GRIZZLY GREEN G1023S
Price
N/A
109
Nameplate - Small
Price
N/A
110
JUNCTION BOX LABEL
Price
N/A
BOX2
COMPLETE BOX 2 OF 3 FOR G0861
Price
$338.75
BOX3
COMPLETE BOX 3 OF 3 FOR G0861
Price
$401.10
MAN
MANUAL G0860-62 MFD-09.18-05.19 V1.12.18
Price
N/A
MANV2
MANUAL G0860-62 MFD-06.19-09.19 V2.06.19
Price
N/A
MANV3
MANUAL G0860-62 MFD-10.19-01.21 V3.10.19
Price
N/A
MANV4
MANUAL G0860-62 MFD-02.21+ V4.08.21
Price
N/A
P0860048
P0860048
Now: PW06
FLAT WASHER 1/4
Price
N/A
