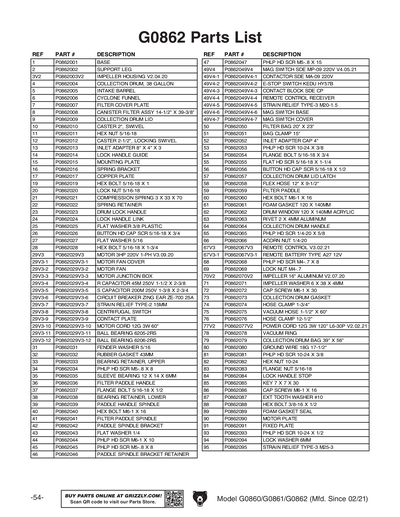

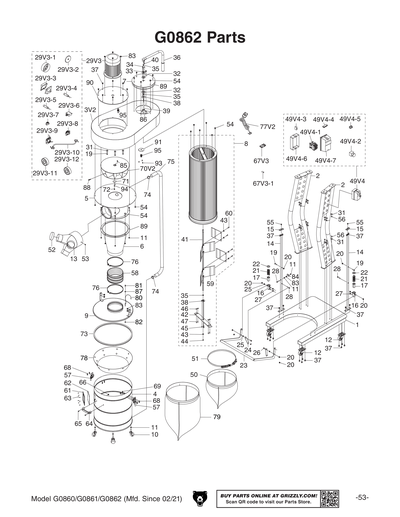

Parts for G0862 3 HP Portable Cyclone Dust Collector

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BASE
2
SUPPORT LEG
3
IMPELLER HOUSING V1
3V2
IMPELLER HOUSING V2.04.20
4
COLLECTION DRUM W/WINDOW, 38 GALLON
5
INTAKE BARREL
6
CYCLONE FUNNEL
7
FILTER COVER PLATE
Price
N/A
8
Replacement Filter for G0862
Price
N/A
9
COLLECTION DRUM LID
10
CASTER 2", SWIVEL
Price
N/A
11
Now: PN02
HEX NUT 5/16-18
Price
N/A
12
CASTER 2-1/2", LOCKING SWIVEL
Price
N/A
13
INLET ADAPTER 8" X 4" X 3
Item is no longer available
Price
N/A
13V2
INLET ADAPTER 8" X 4" X 3 (PC) V2.01.22
14
LOCK HANDLE GUIDE
15
MOUNTING PLATE
Price
N/A
16
SPRING BRACKET
Price
N/A
17
COPPER PLATE
Price
N/A
19
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
20
Now: PLN03
LOCK NUT 5/16-18
Price
N/A
21
COMPRESSION SPRING 3 X 33 X 70
Price
N/A
22
SPRING RETAINER
Price
N/A
23
DRUM LOCK HANDLE
24
LOCK HANDLE LINK
Price
N/A
25
FLAT WASHER 3/8 PLASTIC
Price
N/A
26
BUTTON HD CAP SCR 5/16-18 X 3/4
Price
N/A
27
Now: PW07
FLAT WASHER 5/16
Price
N/A
28
Now: PB22
HEX BOLT 5/16-18 X 1-3/4
Price
N/A
29
MOTOR 3HP 220V 1-PH V3.09.20
Price
N/A
29-1
MOTOR FAN COVER
29-10
MOTOR CORD 12G 3W 60"
29-11
BALL BEARING 6205-2RS
Price
N/A
29-12
BALL BEARING 6206-2RS
Price
N/A
29-2
MOTOR FAN
Price
N/A
29-3
MOTOR JUNCTION BOX
29-4
R CAPACITOR 50M 250V 1-1/2 X 2-3/8
Price
N/A
29-5
S CAPACITOR 400M 125V 1-3/8 X 2-3/4
29-6
CIRCUIT BREAKER ZING EAR ZE-700 50A
29-7
STRAIN RELIEF TYPE-2 15MM
Price
N/A
29-8
CENTRIFUGAL SWITCH
Price
N/A
29-9
CONTACT PLATE
Price
N/A
29V2
MOTOR 3HP 220V 1-PH V3.09.20
Price
N/A
29V2-1
MOTOR FAN COVER
29V2-10
MOTOR CORD 12G 3W 60"
29V2-11
BALL BEARING 6205-2RS
Price
N/A
29V2-12
BALL BEARING 6206-2RS
Price
N/A
29V2-2
MOTOR FAN
Price
N/A
29V2-3
MOTOR JUNCTION BOX
29V2-4
R CAPACITOR 45M 250V 1-1/2 X 2-3/8
29V2-5
S CAPACITOR 200M 250V 1-3/8 X 2-3/8
Price
N/A
29V2-6
CIRCUIT BREAKER ZING EAR ZE-700 50A
Price
N/A
29V2-7
STRAIN RELIEF TYPE-2 15MM
29V2-8
CENTRIFUGAL SWITCH
29V2-9
CONTACT PLATE
29V3
MOTOR 3HP 220V 1-PH V3.09.20
29V3-1
MOTOR FAN COVER
Price
N/A
29V3-10
MOTOR CORD 12G 3W 60"
Price
N/A
29V3-11
BALL BEARING 6205-2RS
Price
N/A
29V3-12
BALL BEARING 6206-2RS
Price
N/A
29V3-2
MOTOR FAN
Price
N/A
29V3-3
MOTOR JUNCTION BOX
Price
N/A
29V3-4
R CAPACITOR 45M 250V 1-1/2 X 2-3/8
Price
N/A
29V3-5
S CAPACITOR 200M 250V 1-3/8 X 2-3/8
Price
N/A
29V3-6
CIRCUIT BREAKER ZING EAR ZE-700 25A
Price
N/A
29V3-7
STRAIN RELIEF TYPE-2 15MM
Price
N/A
29V3-8
CENTRIFUGAL SWITCH
Price
N/A
29V3-9
CONTACT PLATE
Price
N/A
30
Now: PFN02
FLANGE NUT 5/16-18
Price
N/A
31
Now: PWF01
FENDER WASHER 5/16
Price
N/A
32
RUBBER GASKET 43MM
Price
N/A
33
BEARING RETAINER, UPPER
Price
N/A
34
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
35
SLEEVE BEARING 12 X 14 X 6MM
Price
N/A
36
FILTER PADDLE HANDLE
Price
N/A
37
Now: PFB01
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
38
BEARING RETAINER, LOWER
Price
N/A
39
PADDLE HANDLE SPINDLE
40
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
41
FILTER PADDLE SPINDLE
Price
N/A
42
PADDLE SPINDLE BRACKET
Price
N/A
43
Now: PW06
FLAT WASHER 1/4
Price
N/A
44
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
45
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
46
PADDLE SPINDLE BRACKET RETAINER
Price
N/A
47
Now: PS20M
PHLP HD SCR M5-.8 X 15
Price
N/A
49
*DISCD*MAG SWITCH NHD MS1-18D 220V V1
Item is no longer available
Price
N/A
49-1
*DISCD*CONTACTOR NHD C-18D10 220V
Item is no longer available
Price
N/A
49-2
*DISCD*E-STOP SWITCH NHD NPB22-H
Price
N/A
49-3
CONTACT BLOCK NHD CB-01
Price
N/A
49-4
*SEE EXT. DESCRIPTION
Item is no longer available
Price
N/A
49-4V2
REMOTE CONTROL RECEIVER V2.06.19
Price
N/A
49-5
STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
49-6
MAG SWITCH BASE
49-7
*DISCD*MAG SWITCH COVER
Price
N/A
49-8
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
49-9
Now: PN07
HEX NUT 10-24
Price
N/A
49V2-1
*DISCD*CONTACTOR NHD C-18D10 220V
Price
N/A
49V2-2
*DISCD*E-STOP SWITCH NHD NPB22-H
Price
N/A
49V2-3
CONTACT BLOCK NHD CB-01
Price
N/A
49V2-4
REMOTE CONTROL RECEIVER V2.06.19
Price
N/A
49V2-5
STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
49V2-6
MAG SWITCH BASE
Price
N/A
49V2-7
*DISCD*MAG SWITCH COVER
Price
N/A
49V2-8
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
49V2-9
Now: PN07
HEX NUT 10-24
Price
N/A
49V3
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
49V3-1
CONTACTOR SDE MA-15 220V
49V3-2
E-STOP SWITCH KEDU HY57B
Price
N/A
49V3-3
CONTACT BLOCK SDE CP
Price
N/A
49V3-4
REMOTE CONTROL RECEIVER
Price
N/A
49V3-5
STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
49V3-6
MAG SWITCH BASE
49V3-7
MAG SWITCH COVER
49V4
MAG SWITCH SDE MP-09 220V V3.05.21
49V4-1
CONTACTOR SDE MA-09 220V
Price
N/A
49V4-2
E-STOP SWITCH KEDU HY57B
Price
N/A
49V4-3
CONTACT BLOCK SDE CP
Price
N/A
49V4-4
REMOTE CONTROL RECEIVER
Price
N/A
49V4-5
STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
49V4-6
MAG SWITCH BASE
49V4-7
MAG SWITCH COVER
50
Filter Bag 20" x 23"
Price
N/A
51
BAG CLAMP 15"
Price
N/A
52
***USE P0944025***
Price
N/A
53
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
54
Now: PFB02
FLANGE BOLT 5/16-18 X 3/4
Price
N/A
55
Now: PFH07
FLAT HD SCR 5/16-18 X 1-1/4
Price
N/A
56
BUTTON HD CAP SCR 5/16-18 X 3/4
Price
N/A
57
COLLECTION DRUM LID LATCH
Price
N/A
58
FLEX HOSE 12" X 7-1/2"
59
FILTER PADDLE
Price
N/A
60
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
61
FOAM GASKET, 120 X 140MM
Price
N/A
62
DRUM WINDOW, 120 X 140MM ACRYLIC
Price
N/A
63
RIVET 2 X 4MM NAMEPLATE, ALUMINUM
Price
N/A
64
HANDLE
Price
N/A
65
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
66
Now: PN53
ACORN NUT 1/4-20
Price
N/A
67
*SEE EXT. DESCRIPTION
Item is no longer available
Price
N/A
67-1
REMOTE BATTERY TYPE A27 12V
Price
N/A
67V2
***USE P0860067V3***
Price
N/A
67V2-1
REMOTE BATTERY TYPE A27 12V
Price
N/A
67V3
REMOTE CONTROL V3.02.21
Price
N/A
67V3-1
REMOTE BATTERY TYPE A27 12V
Price
N/A
68
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
69
LOCK NUT M4-.7
Price
N/A
70
IMPELLER 16"
70V2
IMPELLER 16" ALUMINUM
Price
N/A
71
IMPELLER WASHER 6 X 38 X 4MM
Price
N/A
72
CAP SCREW M6-1 X 30
Price
N/A
73
COLLECTION DRUM GASKET
74
HOSE CLAMP 1-3/4"
Price
N/A
75
VACUUM HOSE 1-1/2" X 60"
Price
N/A
76
HOSE CLAMP 12-1/2"
77
POWER CORD 12G 3W 72" 6-20P V1
77V2
POWER CORD 12G 3W 120" L6-30P V2.02.21
78
VACUUM RING
79
Collection Bag 39" x 56"
Price
N/A
80
GROUND WIRE 18G 17-1/2"
Price
N/A
81
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
82
Now: PN07
HEX NUT 10-24
Price
N/A
83
Now: PFN02
FLANGE NUT 5/16-18
Price
N/A
84
STOPPER
Price
N/A
85
Now: PK61M
KEY 7 X 7 X 30
Price
N/A
86
CAP SCREW M6-1 X 16
Price
N/A
87
EXT TOOTH WASHER #10
Price
N/A
88
Now: PB34
HEX BOLT 3/8-16 X 1/2
Price
N/A
89
FOAM GASKET SEAL
Price
N/A
90
MOTOR PLATE
91
FIXED PLATE
93
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
94
LOCK WASHER 6MM
Price
N/A
95
STRAIN RELIEF TYPE-3 M16-2
Price
N/A
101

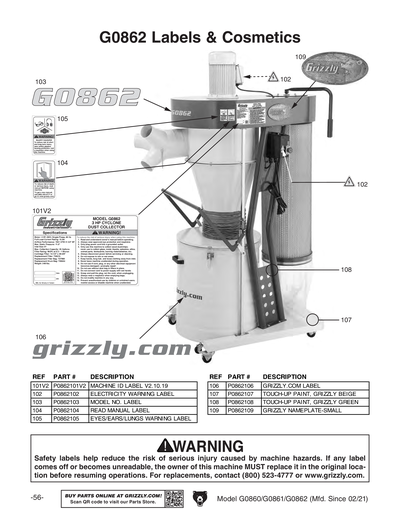

MACHINE ID LABEL V1
101V2
MACHINE ID LABEL V2.10.19
102
ELECTRICITY 0.7W X 0.6H
Price
N/A
103
MODEL NO. LABEL
104
READ MANUAL 1.5W X 2.5H
Price
N/A
105
EYE/EAR/LUNG 1.5W X 2.5H
Price
N/A
106
***USE PGZCOM-31A***
Price
N/A
107
BEIGE REF G0555
Price
N/A
108
N/S GRIZZLY GREEN G1023S
Price
N/A
109
Now: G8588
Nameplate - Small
Price
N/A
BOX2
COMPLETE BOX 2 OF 3 FOR G0862
BOX3
COMPLETE BOX 3 OF 3 FOR G0862
MAN
MANUAL G0860-62 MFD-09.18-05.19 V1.12.18
Price
N/A
MANV2
MANUAL G0860-62 MFD-06.19-09.19 V2.06.19
Price
N/A
MANV3
MANUAL G0860-62 MFD-10.19-01.21 V3.10.19
Price
N/A
