Parts for G0872 - 60W Benchtop 17" x 23" CNC Laser Cutter/Engraver

Part Diagram for G0872
Part Diagram for G0872
Part Diagram for G0872
Part Diagram for G0872
Part Diagram for G0872
Part Diagram for G0872
Part Diagram for G0872
Part Diagram for G0872
Part Diagram for G0872
Part Diagram for G0872
Part Diagram for G0872
Part Diagram for G0872
Part Diagram for G0872
Part Diagram for G0872

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

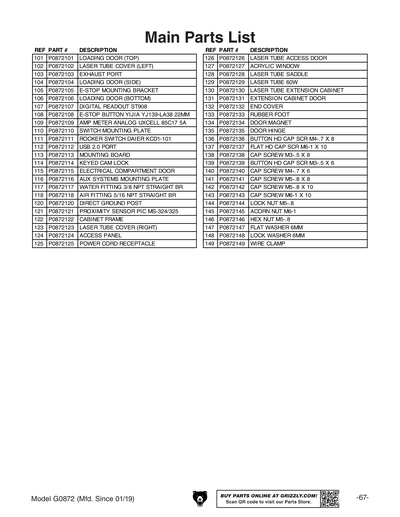

Ref #
Part #
Description

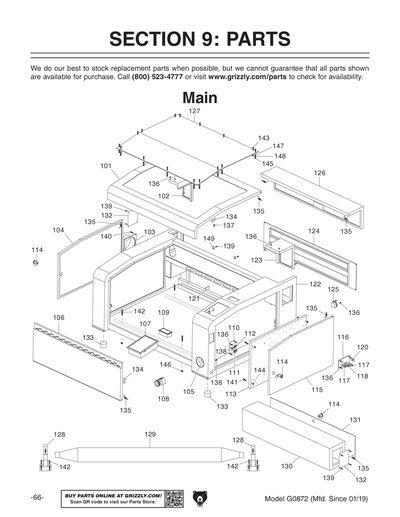

101
*DISCD*LOADING DOOR (TOP)
Item is no longer available
Price
N/A
102
*DISCD*LASER TUBE COVER (LEFT)
Item is no longer available
Price
N/A
103
*DISCD*EXHAUST PORT
Item is no longer available
Price
N/A
104
*DISCD*LOADING DOOR (SIDE)
Item is no longer available
Price
N/A
105
*DISCD*E-STOP MOUNTING BRACKET
Item is no longer available
Price
N/A
106
*DISCD*LOADING DOOR (BOTTOM)
Item is no longer available
Price
N/A
107
*DISCD*DIGITAL READOUT ST908
Price
$891.25
108
*DISCD*E-STOP BUTTON
Item is no longer available
Price
N/A
109
*DISCD*AMP METER ANALOG UXCELL 85C17 5A
Item is no longer available
Price
N/A
110
*DISCD*SWITCH MOUNTING PLATE
Item is no longer available
Price
N/A
111
*DISCD*ROCKER SWITCH DAIER KCD1-101
Item is no longer available
Price
N/A
112
*DISCD*USB 3.0 PORT
Item is no longer available
Price
N/A
113
*DISCD*MOUNTING BOARD
Item is no longer available
Price
N/A
114
*DISCD*KEYED CAM LOCK
Item is no longer available
Price
N/A
115
*DISCD*ELECTRICAL COMPARTMENT DOOR
Price
$133.70
116
*DISCD*AUX SYSTEMS MOUNTING PLATE
Item is no longer available
Price
N/A
117
*DISCD*WATER FITTING 3/8 NPT STRAIGHT BR
Item is no longer available
Price
N/A
118
*DISCD*AIR FITTING 5/16 NPT STRAIGHT BR
Item is no longer available
Price
N/A
120
*DISCD*DIRECT GROUND POST
Item is no longer available
Price
N/A
121
*DISCD*PROXIMITY SENSOR PIC MS-324/325
Item is no longer available
Price
N/A
122
*DISCD*CABINET FRAME
Item is no longer available
Price
N/A
123
*DISCD*LASER TUBE COVER (RIGHT)
Item is no longer available
Price
N/A
124
*DISCD*ACCESS PANEL
Price
$1,336.90
125
*DISCD*POWER CORD RECEPTACLE
Item is no longer available
Price
N/A
126
*DISCD*LASER TUBE ACCESS DOOR
Item is no longer available
Price
N/A
127
*DISCD*ACRYLIC WINDOW
Price
$44.60
128
*DISCD*LASER TUBE SADDLE
Item is no longer available
Price
N/A
129
60W Laser Tube for G0872
Price
N/A
130
*DISCD*LASER TUBE EXTENSION CABINET
Item is no longer available
Price
N/A
131
*DISCD*EXTENSION CABINET DOOR
Item is no longer available
Price
N/A
132
*DISCD*END COVER
Item is no longer available
Price
N/A
133
*DISCD*RUBBER FOOT
Item is no longer available
Price
N/A
134
*DISCD*DOOR MAGNET
Item is no longer available
Price
N/A
135
*DISCD*DOOR HINGE
Item is no longer available
Price
N/A
136
BUTTON HD CAP SCR M4-.7 X 8
Price
N/A
137
FLAT HD CAP SCR M6-1 X 10
Price
N/A
138
CAP SCREW M3-.5 X 8
Price
N/A
139
*DISCD*BUTTON HD CAP SCR M3-.5 X 6
Item is no longer available
Price
N/A
140
CAP SCREW M4-.7 X 6
Price
N/A
141
CAP SCREW M5-.8 X 8
Price
N/A
142
CAP SCREW M5-.8 X 10
Price
N/A
143
CAP SCREW M6-1 X 10
Price
N/A
144
LOCK NUT M5-.8
Price
N/A
145
ACORN NUT M6-1
Price
N/A
146
HEX NUT M5-.8
Price
N/A
147
FLAT WASHER 6MM
Price
N/A
148
LOCK WASHER 6MM
Price
N/A
149
*DISCD*WIRE CLAMP
Item is no longer available
Price
N/A
150
*DISCD*HIGH VOLTAGE CABLE 7W, 4.2 X450MM
Item is no longer available
Price
N/A
151
*DISCD*HIGH VOLTAGE CONNECTOR 22.6MM
Item is no longer available
Price
N/A
152
*DISCD*ANODE TERMINAL LUG M2.5-.45 X 5
Item is no longer available
Price
N/A
153
*DISCD*CATHODE CABLE 16G 1W 72"
Item is no longer available
Price
N/A

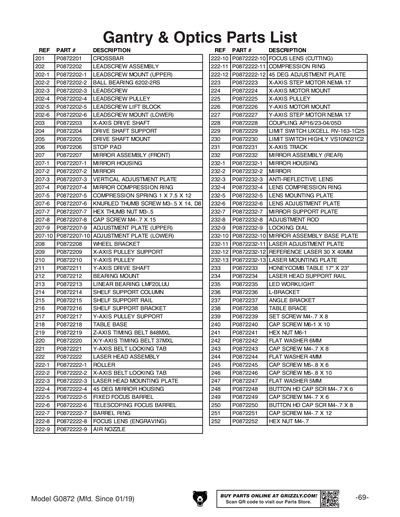

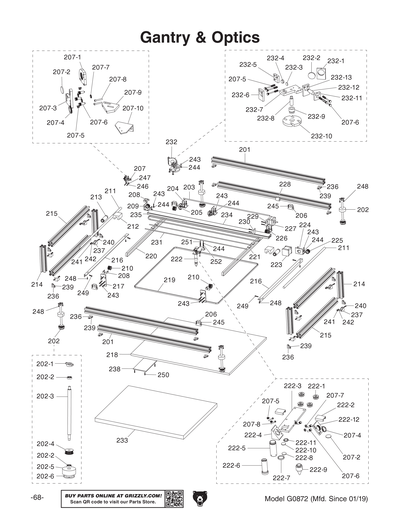

201
*DISCD*CROSSBAR
Item is no longer available
Price
N/A
202
*DISCD*LEADSCREW ASSEMBLY
Item is no longer available
Price
N/A
202-1
*DISCD*LEADSCREW MOUNT (UPPER)
Item is no longer available
Price
N/A
202-2
BALL BEARING 6202-2RS
Price
N/A
202-3
*DISCD*LEADSCREW
Item is no longer available
Price
N/A
202-4
*DISCD*LEADSCREW PULLEY
Item is no longer available
Price
N/A
202-5
*DISCD*LEADSCREW LIFT BLOCK
Item is no longer available
Price
N/A
202-6
*DISCD*LEADSCREW MOUNT (LOWER)
Item is no longer available
Price
N/A
203
*DISCD*X-AXIS DRIVE SHAFT
Item is no longer available
Price
N/A
204
*DISCD*DRIVE SHAFT SUPPORT
Item is no longer available
Price
N/A
205
*DISCD*DRIVE SHAFT MOUNT
Item is no longer available
Price
N/A
206
*DISCD*STOP PAD
Item is no longer available
Price
N/A
207
*DISCD*MIRROR ASSEMBLY (FRONT)
Item is no longer available
Price
N/A
207-1
*DISCD*MIRROR HOUSING
Item is no longer available
Price
N/A
207-10
*DISCD*ADJUSTMENT PLATE (LOWER)
Item is no longer available
Price
N/A
207-2
*DISCD*MIRROR
Item is no longer available
Price
N/A
207-3
*DISCD*VERTICAL ADJUSTMENT PLATE
Item is no longer available
Price
N/A
207-4
*DISCD*MIRROR COMPRESSION RING
Item is no longer available
Price
N/A
207-5
*DISCD*COMPRESSION SPRING 1 X 7.5 X 12
Item is no longer available
Price
N/A
207-6
*DISCD*KNURLED THUMB SCREW M3-.5 X14, D8
Item is no longer available
Price
N/A
207-7
*DISCD*HEX THUMB NUT M3-.5
Item is no longer available
Price
N/A
207-8
*DISCD*CAP SCREW M4-.7 X 15
Item is no longer available
Price
N/A
207-9
*DISCD*ADJUSTMENT PLATE (UPPER)
Item is no longer available
Price
N/A
208
*DISCD*WHEEL BRACKET
Item is no longer available
Price
N/A
209
*DISCD*X-AXIS PULLEY SUPPORT
Item is no longer available
Price
N/A
210
*DISCD*Y-AXIS PULLEY
Item is no longer available
Price
N/A
211
*DISCD*Y-AXIS DRIVE SHAFT
Item is no longer available
Price
N/A
212
*DISCD*BEARING MOUNT
Item is no longer available
Price
N/A
213
*DISCD*LINEAR BEARING LMF20LUU
Item is no longer available
Price
N/A
214
*DISCD*SHELF SUPPORT COLUMN
Item is no longer available
Price
N/A
215
*DISCD*SHELF SUPPORT RAIL
Item is no longer available
Price
N/A
216
*DISCD*SHELF SUPPORT BRACKET
Item is no longer available
Price
N/A
217
*DISCD*Y-AXIS PULLEY SUPPORT
Item is no longer available
Price
N/A
218
*DISCD*TABLE BASE
Item is no longer available
Price
N/A
219
*DISCD*Z-AXIS TIMING BELT 848MXL
Item is no longer available
Price
N/A
220
*DISCD*X/Y-AXIS TIMING BELT 37MXL
Item is no longer available
Price
N/A
220-13
*DISCD*AIR HOSE (CURLY)
Item is no longer available
Price
N/A
221
*DISCD*Y-AXIS BELT LOCKING TAB
Item is no longer available
Price
N/A
222
*DISCD*LASER HEAD ASSEMBLY
Item is no longer available
Price
N/A
222-1
*DISCD*ROLLER
Item is no longer available
Price
N/A
222-10
*DISCD*FOCUS LENS (CUTTING)
Item is no longer available
Price
N/A
222-11
*DISCD*LASER HEAD COMPRESSION RING
Price
$43.15
222-12
*DISCD*45 DEG ADJUSTMENT PLATE
Item is no longer available
Price
N/A
222-2
*DISCD*X-AXIS BELT LOCKING TAB
Item is no longer available
Price
N/A
222-3
*DISCD*LASER HEAD MOUNTING PLATE
Item is no longer available
Price
N/A
222-4
*DISCD*45 DEG MIRROR HOUSING
Item is no longer available
Price
N/A
222-5
*DISCD*FIXED FOCUS BARREL
Item is no longer available
Price
N/A
222-6
*DISCD*TELESCOPING FOCUS BARREL
Item is no longer available
Price
N/A
222-7
*DISCD*BARREL RING
Price
$3.65
222-8
Replacement 50.8 Focal Lens for G0872
Price
N/A
222-9
*DISCD*AIR NOZZLE
Item is no longer available
Price
N/A
223
*DISCD*X-AXIS STEP MOTOR NEMA 17
Item is no longer available
Price
N/A
224
*DISCD*X-AXIS MOTOR MOUNT
Item is no longer available
Price
N/A
225
*DISCD*X-AXIS PULLEY
Item is no longer available
Price
N/A
226
*DISCD*Y-AXIS MOTOR MOUNT
Item is no longer available
Price
N/A
227
*DISCD*Y-AXIS STEP MOTOR NEMA 17
Item is no longer available
Price
N/A
228
*DISCD*COUPLING AP16/23-04/05D
Item is no longer available
Price
N/A
229
*DISCD*LIMIT SWITCH UXCELL RV-163-1C25
Item is no longer available
Price
N/A
230
*DISCD*LIMIT SWITCH HIGHLY VS10N021C2
Item is no longer available
Price
N/A
231
*DISCD*X-AXIS TRACK
Item is no longer available
Price
N/A
232
*DISCD*MIRROR ASSEMBLY (REAR)
Price
$267.40
232-1
*DISCD*MIRROR HOUSING
Item is no longer available
Price
N/A
232-10
*DISCD*MIRROR ASSEMBLY BASE PLATE
Item is no longer available
Price
N/A
232-11
*DISCD*LASER ADJUSTMENT PLATE
Item is no longer available
Price
N/A
232-12
*DISCD*REFERENCE LASER 30 X 40MM
Item is no longer available
Price
N/A
232-13
*DISCD*LASER MOUNTING PLATE
Item is no longer available
Price
N/A
232-2
*DISCD*MIRROR
Item is no longer available
Price
N/A
232-3
*DISCD*ANTI-REFLECTIVE LENS
Item is no longer available
Price
N/A
232-4
*DISCD*LENS COMPRESSION RING
Item is no longer available
Price
N/A
232-5
*DISCD*LENS MOUNTING PLATE
Item is no longer available
Price
N/A
232-6
*DISCD*LENS ADJUSTMENT PLATE
Item is no longer available
Price
N/A
232-7
*DISCD*MIRROR SUPPORT PLATE
Item is no longer available
Price
N/A
232-8
*DISCD*ADJUSTMENT ROD
Item is no longer available
Price
N/A
232-9
*DISCD*LOCKING DIAL
Item is no longer available
Price
N/A
233
17" x 23" Honeycomb Table
Price
N/A
234
*DISCD*LASER HEAD SUPPORT RAIL
Item is no longer available
Price
N/A
235
*DISCD*LED WORKLIGHT
Item is no longer available
Price
N/A
236
*DISCD*L-BRACKET
Item is no longer available
Price
N/A
237
*DISCD*ANGLE BRACKET
Item is no longer available
Price
N/A
238
*DISCD*TABLE BRACE
Item is no longer available
Price
N/A
239
SET SCREW M4-.7 X 8
Price
N/A
240
CAP SCREW M6-1 X 10
Price
N/A
241
HEX NUT M6-1
Price
N/A
242
FLAT WASHER 6MM
Price
N/A
243
CAP SCREW M4-.7 X 8
Price
N/A
244
FLAT WASHER 4MM
Price
N/A
245
CAP SCREW M5-.8 X 6
Price
N/A
246
CAP SCREW M5-.8 X 10
Price
N/A
247
FLAT WASHER 5MM
Price
N/A
248
BUTTON HD CAP SCR M4-.7 X 6
Price
N/A
249
CAP SCREW M4-.7 X 6
Price
N/A
250
BUTTON HD CAP SCR M4-.7 X 8
Price
N/A
251
CAP SCREW M4-.7 X 12
Price
N/A
252
HEX NUT M4-.7
Price
N/A
300

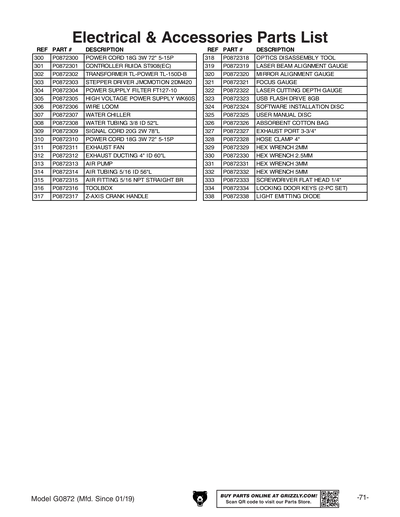

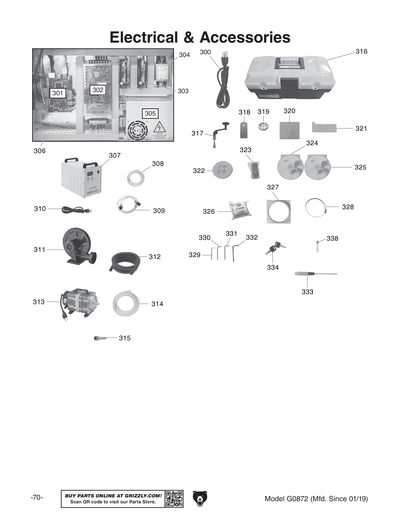

*DISCD*POWER CORD 18G 3W 72" 5-15P
Item is no longer available
Price
N/A
301
*DISCD*CONTROLLER RUIDA ST908(EC)
Price
$891.25
302
*DISCD*TRANSFORMER TL-POWER TL-150D-B
Price
$445.65
303
*DISCD*STEPPER DRIVER JMCMOTION 2DM420
Price
$89.15
304
*DISCD*POWER SUPPLY FILTER FT127-10
Price
$22.35
305
*DISCD*HIGH VOLTAGE POWER SUPPLY WK60S
Item is no longer available
Price
N/A
306
*DISCD*WIRE LOOM
Item is no longer available
Price
N/A
307
Water Chiller for G0872
Price
N/A
308
*DISCD*WATER TUBING 3/8 ID 52"L
Item is no longer available
Price
N/A
309
*DISCD*SIGNAL CORD 20G 2W 78"L
Item is no longer available
Price
N/A
310
*DISCD*POWER CORD 18G 3W 72" 5-15P
Price
N/A
311
Extraction Fan for CNC Lasers
Price
N/A
312
*DISCD*EXHAUST DUCTING 4" ID 60"L
Item is no longer available
Price
N/A
313
Air Pump for CNC Lasers
Price
N/A
314
*DISCD*AIR TUBING 5/16 ID 56"L
Item is no longer available
Price
N/A
315
*DISCD*AIR FITTING 5/16 NPT STRAIGHT BR
Item is no longer available
Price
N/A
316
*DISCD*TOOLBOX
Item is no longer available
Price
N/A
317
*DISCD*Z-AXIS CRANK HANDLE
Price
$44.60
318
*DISCD*OPTICS DISASSEMBLY TOOL
Item is no longer available
Price
N/A
319
*DISCD*LASER BEAM ALIGNMENT GAUGE
Item is no longer available
Price
N/A
320
*DISCD*MIRROR ALIGNMENT GAUGE
Item is no longer available
Price
N/A
321
*DISCD*FOCUS GAUGE
Item is no longer available
Price
N/A
322
*DISCD*LASER CUTTING DEPTH GAUGE
Item is no longer available
Price
N/A
323
*DISCD*USB FLASH DRIVE 8GB
Item is no longer available
Price
N/A
324
*DISCD*SOFTWARE INSTALLATION DISC
Item is no longer available
Price
N/A
325
*DISCD*USER MANUAL DISC
Item is no longer available
Price
N/A
326
*DISCD*ABSORBENT COTTON BAG
Item is no longer available
Price
N/A
327
*DISCD*EXHAUST PORT 3-3/4"
Item is no longer available
Price
N/A
328
*DISCD*HOSE CLAMP 4"
Item is no longer available
Price
N/A
329
HEX WRENCH 2MM
Price
N/A
330
HEX WRENCH 2.5MM
Price
N/A
331
HEX WRENCH 3MM
Price
N/A
332
HEX WRENCH 5MM
Price
N/A
333
*DISCD*SCREWDRIVER FLAT HEAD 1/4"
Item is no longer available
Price
N/A
334
*DISCD*LOCKING DOOR KEYS (2-PC SET)
Item is no longer available
Price
N/A
335
*DISCD*LASER TUBE POSITIVE TEST CABLE
Item is no longer available
Price
N/A
336
*DISCD*LASER TUBE NEGATIVE TEST CABLE
Item is no longer available
Price
N/A
337
*DISCD*LASER TUBE TEST RESISTOR
Item is no longer available
Price
N/A
338
*DISCD*LIGHT EMITTING DIODE
Item is no longer available
Price
N/A
339
*DISCD*POWER SUPPLY CONNECTOR
Item is no longer available
Price
N/A
400

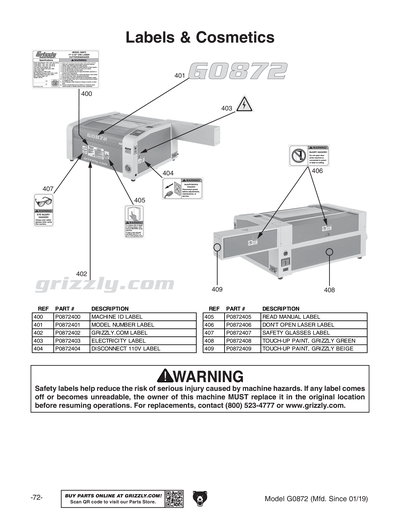

*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
401
*DISCD*MODEL NUMBER LABEL
Item is no longer available
Price
N/A
402
GRIZZLY.COM LABEL 12.5",BEIGE
Price
N/A
403
ELECTRICITY 1.4W X 1.2H
Price
N/A
404
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
405
READ MANUAL 1.5W X 2.5H
Price
N/A
406
*DISCD*DON'T OPEN LASER LABEL
Item is no longer available
Price
N/A
407
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
408
N/S GRIZZLY GREEN G1023S
Price
N/A
409
BEIGE REF G0555
Price
N/A
MAN
MANUAL G0872 MFD-01.19+ V1.03.21
Price
$31.00
