Parts for G0875 - 7" x 24" Enclosed CNC Mill

Part Diagram for G0875
Part Diagram for G0875
Part Diagram for G0875
Part Diagram for G0875
Part Diagram for G0875
Part Diagram for G0875
Part Diagram for G0875
Part Diagram for G0875
Part Diagram for G0875
Part Diagram for G0875
Part Diagram for G0875
Part Diagram for G0875
Part Diagram for G0875
Part Diagram for G0875
Part Diagram for G0875
Part Diagram for G0875

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

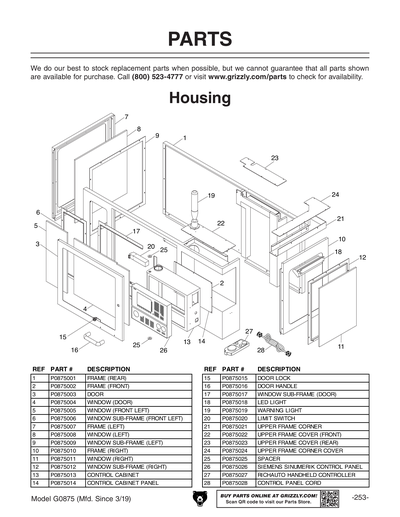

1
FRAME (REAR)
Price
$215.65
2
FRAME (FRONT)
Price
$215.65
3
DOOR
Price
$56.10
4
WINDOW (DOOR)
Price
$103.50
5
WINDOW (FRONT LEFT)
Price
$103.50
6
WINDOW SUB-FRAME (FRONT LEFT)
Price
$43.15
7
FRAME (LEFT)
Price
$64.70
8
WINDOW (LEFT)
Price
$112.15
9
WINDOW SUB-FRAME (LEFT)
Price
$43.15
10
FRAME (RIGHT)
Price
$77.65
11
WINDOW (RIGHT)
Price
$94.90
12
WINDOW SUB-FRAME (RIGHT)
Price
$43.15
13
CONTROL CABINET
Price
$86.25
14
CONTROL CABINET PANEL
Price
$12.95
15
DOOR LOCK
Price
$21.60
16
DOOR HANDLE
Price
$47.45
17
WINDOW SUB-FRAME (DOOR)
Price
$34.50
18
LED LIGHT
Price
$17.25
19
WARNING LIGHT
Price
$172.50
20
Price
N/A
21
UPPER FRAME CORNER
Price
$43.15
22
UPPER FRAME COVER (FRONT)
Price
$21.60
23
UPPER FRAME COVER (REAR)
Price
$17.25
24
UPPER FRAME CORNER COVER
Price
$34.50
25
SPACER
Price
$4.35
26
SIEMENS SINUMERIK CONTROL PANEL
Price
$12,381.20
27
HANDHELD CONTROLLER PENDANT RICHAUTO
Price
N/A
28
HANDHELD CONTROLLER PENDANT RICHAUTO
Price
N/A
29
CF CONTROL BOARD
Price
$1,283.70
30
KEYBOARD
Price
$1,919.10
31
SIEMENS 808D AD PPU15X CONTROL SYSTEM
Price
$12,951.90
32
POWER CORD 12G 3W 72" L6-30P
Price
$40.25
33
CONTACT BASE W/AUXILIARY CONTACT BLOCK
Price
$142.65

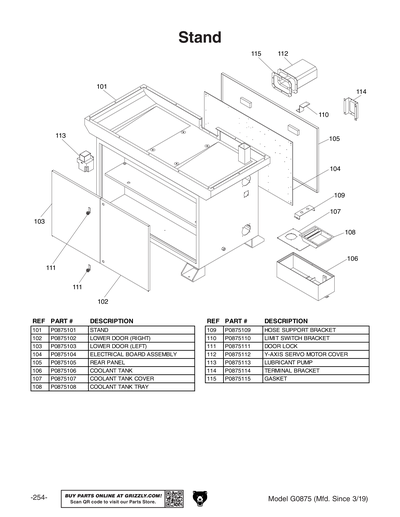

101
STAND
Price
$1,631.60
102
LOWER DOOR (RIGHT)
Price
$64.70
103
LOWER DOOR (LEFT)
Price
$64.70
104
ELECTRICAL BOARD ASSEMBLY
Price
$163.90
105
REAR PANEL
Price
$107.85
106
COOLANT TANK
Price
$94.90
107
COOLANT TANK COVER
Price
$21.60
108
COOLANT TANK TRAY
Price
$43.15
109
HOSE SUPPORT BRACKET
Price
$17.25
110
LIMIT SWITCH BRACKET
Price
$17.25
111
DOOR LOCK
Price
N/A
112
Y-AXIS SERVO MOTOR COVER
Price
$43.15
113
LUBRICANT PUMP
Price
$228.60
114
TERMINAL BRACKET
Price
$21.60
115
GASKET
Price
$17.25
116
TOOLBOX
Price
$49.25
117
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
118
WRENCH 16 X 18MM OPEN-ENDS
Price
N/A
119
WRENCH 22 X 24MM OPEN-ENDS
Price
N/A
120
SCREWDRIVER FLAT HEAD 1/4"
Price
$4.70
121
SCREWDRIVER PHILLIPS #2
Price
N/A
122
HEX WRENCH 10MM
Price
N/A
123
HEX WRENCH SET 2.5, 3, 4, 5, 6, 8MM
Price
$9.00
124
OIL BOTTLE
Price
$6.90
125
HEX NUT M12-1.75
Price
N/A
126
FOOT M12-1.75 X 82, D120
Price
$58.25
127
FLAT WASHER 12MM
Price
N/A
128
HEX NUT M10-1.5 BLK
Price
$2.60
129
FLAT WASHER 10MM BLK
Price
$2.60
130
T-SLOT BOLT M10-1.5 X 60 BLK
Price
$6.90
131
TRANSFORMER SG-2.5KVA 230/400 V1
Price
$891.25
131V2
TRANSFORMER JBK5-2.5KVA 230/400 V2.09.22
Price
$935.85
132
CIRCUIT BREAKER 16A PL9-C16/3 3P V1
Price
$98.15
132V2
CIRCUIT BRAKER 16A PL9-C16/2 2P V2.09.22
Price
$66.90
133
CIRCUIT BREAKER 10A PL9-D10/3 3P V1
Price
$125.10
133V2
CIRCUIT BRAKER 10A PL9-D10/2 2P V2.09.22
Price
$89.15
140
SPINDLE POWER SUPPLY (V1)
Price
$115.90
141
SPINDLE SPEED CONTROLLER (V2)
Price
$80.25
142
EMI FILTER
Price
$89.15

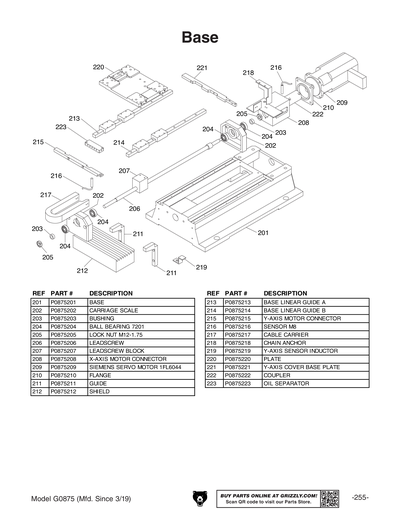

201
BASE
Price
$362.25
202
CARRIAGE SCALE
Price
$94.90
203
BUSHING
Price
$5.75
204
ANGULAR CONTACT BEARING 7201
Price
$81.95
205
LOCK NUT M12-1.75
Price
N/A
206
LEADSCREW
Price
$1,358.45
207
LEADSCREW
Price
N/A
208
X-AXIS MOTOR CONNECTOR
Price
$60.40
209
Y AXIS SERVO MOTOR
Price
$953.10
210
FLANGE
Price
$47.45
211
GUIDE
Price
$41.00
212
SHIELD
Price
$560.65
213
BASE LINEAR GUIDES 2PC-SET
Price
$297.60
214
BASE LINEAR GUIDES 2PC-SET
Price
N/A
215
Y-AXIS MOTOR CONNECTOR
Price
$51.75
216
SENSOR M8
Price
$116.45
217
CABLE CARRIER
Price
$56.10
218
CHAIN ANCHOR
Price
$34.50
219
Y-AXIS SENSOR INDUCTOR
Price
$24.85
220
PLATE
Price
$168.20
221
Y-AXIS COVER BASE PLATE
Price
$64.70
222
COUPLER
Price
$51.75
223
OIL SEPARATOR
Price
$46.00

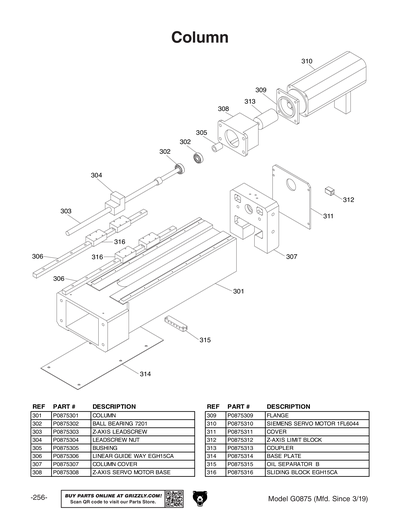

301
COLUMN
Price
$370.90
302
ANGULAR CONTACT BEARING 7201
Price
N/A
303
Z-AXIS LEADSCREW W/NUT
Price
$759.00
304
Z-AXIS LEADSCREW W/NUT
Price
N/A
305
BUSHING
Price
$7.95
306
LINEAR GUIDE WAY W/SLIDING BLOCK EGH15CA
Price
$284.65
307
COLUMN COVER
Price
$133.70
308
Z-AXIS SERVO MOTOR BASE
Price
$189.75
309
FLANGE
Price
$47.45
310
Z AXIS SERVO MOTOR
Price
$1,358.45
311
COVER
Price
$51.75
312
Z-AXIS LIMIT BLOCK
Price
$7.95
313
COUPLER
Price
$51.75
314
BASE PLATE
Price
$51.75
315
OIL SEPARATOR B
Price
$38.85
316
LINEAR GUIDE WAY W/SLIDING BLOCK EGH15CA
Price
N/A

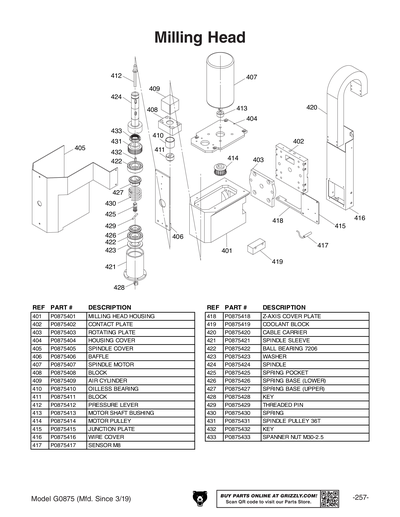

401
MILLING HEAD HOUSING
Price
$163.90
402
CONTACT PLATE
Price
$163.90
403
ROTATING PLATE
Price
$43.15
404
HOUSING COVER
Price
$51.75
405
SPINDLE COVER
Price
$107.85
406
BAFFLE
Price
$51.75
407
SPINDLE MOTOR
Price
$396.75
408
BEARING BLOCK ASSEMBLY
Price
$107.85
409
BEARING BLOCK ASSEMBLY
Price
N/A
410
BEARING BLOCK ASSEMBLY
Price
N/A
411
BEARING BLOCK ASSEMBLY
Price
N/A
412
PRESSURE LEVER
Price
$11.50
413
MOTOR SHAFT BUSHING
Price
$7.95
414
MOTOR PULLEY
Price
$43.15
415
JUNCTION PLATE
Price
$34.50
416
WIRE COVER
Price
$215.65
417
SENSOR M8
Price
$116.45
418
Z-AXIS COVER PLATE
Price
$34.50
419
COOLANT BLOCK
Price
$43.15
420
CABLE CARRIER
Price
$90.60
421
SPINDLE ASSEMBLY
Price
N/A
422
SPINDLE ASSEMBLY
Price
N/A
423
SPINDLE ASSEMBLY
Price
N/A
424
SPINDLE ASSEMBLY
Price
$445.65
425
SPINDLE ASSEMBLY
Price
N/A
426
SPINDLE ASSEMBLY
Price
N/A
427
SPINDLE ASSEMBLY
Price
N/A
428
KEY
Price
$2.20
429
SPINDLE ASSEMBLY
Price
N/A
430
SPINDLE ASSEMBLY
Price
N/A
431
SPINDLE ASSEMBLY
Price
N/A
432
SPINDLE ASSEMBLY
Price
N/A
433
SPINDLE ASSEMBLY
Price
N/A

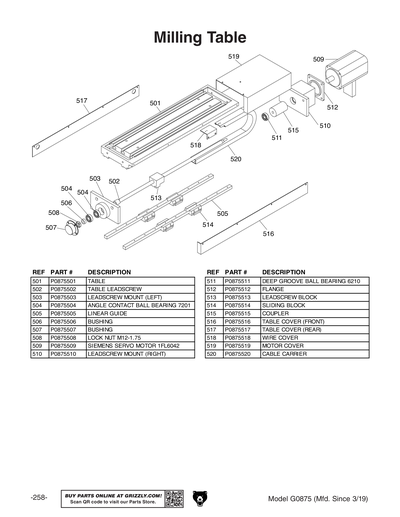

501
TABLE
Price
$323.45
502
TABLE LEADSCREW W/BLOCK
Price
$815.10
503
LEADSCREW MOUNT (LEFT)
Price
$38.85
504
ANGLE CONTACT BALL BEARING 7201
Price
$58.85
505
LINEAR GUIDE W/SLIDING BLOCK
Price
$340.70
506
BUSHING
Price
$5.75
507
BUSHING
Price
$129.40
508
LOCK NUT M12-1.75
Price
N/A
509
X AXIS SERVO MOTOR
Price
$810.75
510
LEADSCREW MOUNT (RIGHT)
Price
$38.85
511
DEEP GROOVE BALL BEARING 6210
Price
$23.20
512
FLANGE
Price
$47.45
513
TABLE LEADSCREW W/BLOCK
Price
N/A
514
LINEAR GUIDE W/SLIDING BLOCK
Price
N/A
515
COUPLER
Price
$51.75
516
TABLE COVER (FRONT)
Price
$23.75
517
TABLE COVER (REAR)
Price
$23.75
518
WIRE COVER
Price
$17.25
519
MOTOR COVER
Price
$86.25
520
CABLE CARRIER
Price
$20.15

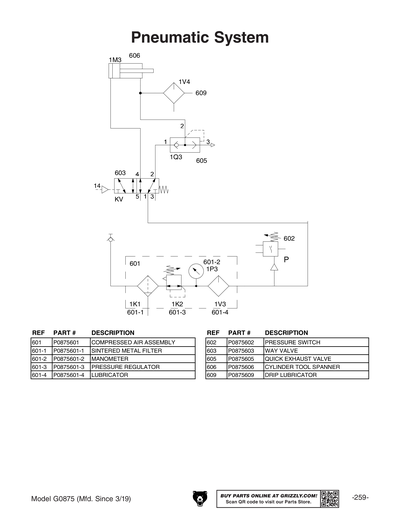

601
COMPRESSED AIR ASSEMBLY
Price
$237.20
601-1
COMPRESSED AIR ASSEMBLY
Price
N/A
601-2
COMPRESSED AIR ASSEMBLY
Price
N/A
601-3
COMPRESSED AIR ASSEMBLY
Price
N/A
601-4
COMPRESSED AIR ASSEMBLY
Price
N/A
602
PRESSURE SWITCH
Price
$77.65
603
WAY VALVE
Price
$81.95
605
QUICK EXHAUST VALVE
Price
$7.95
606
CYLINDER TOOL SPANNER
Price
$107.85
609
DRIP LUBRICATOR
Price
$452.85

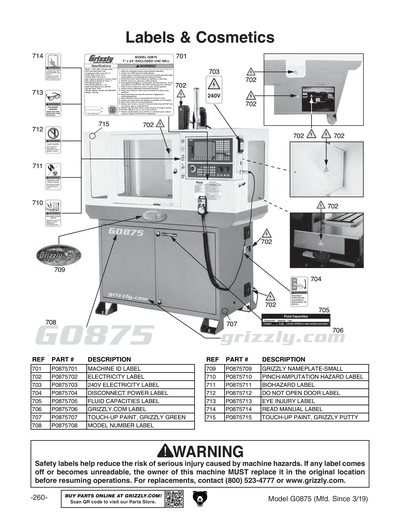

701
MACHINE ID LABEL V1
Price
$16.40
701V2
MACHINE ID LABEL V2.07.22
Price
$27.20
702
ELECTRICITY 1.4W X 1.2H
Price
N/A
703
240V ELECTRICITY LABEL
Price
$4.25
704
DISCONNECT HARDWIRED POWER 1.5W X 2.5H
Price
N/A
704V2
DISCONNECT 220V 1.5W X 2.5H
Price
N/A
705
FLUID CAPACITIES LABEL
Price
$16.40
706
GRIZZLY.COM LABEL 14.25",BEIGE
Price
N/A
707
N/S GRIZZLY GREEN G1023S
Price
N/A
708
MODEL NUMBER LABEL
Price
$16.40
709
Nameplate - Small
Price
N/A
710
PINCH/AMPUTATION HAZARD LABEL
Price
$4.25
711
BIOLOGICAL/POISON HAZARD 1.5W X 2.5H
Price
N/A
712
DO NOT OPEN DOOR LABEL
Price
$4.25
713
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
714
READ MANUAL 1.5W X 2.5H
Price
N/A
715
GREY PUTTY REF G0504
Price
N/A
MAN
MANUAL G0875 MFD-03.19-08.22 V1.03.19
Price
$25.00
MANV2
MANUAL G0875 MFD-09.22+ V2.09.22
Price
$25.00
P
WRENCH 16 X 18MM OPEN-ENDS
Price
$9.00
