Parts for G0886 12" x 14" 3 HP 3-Phase Auto Metal-Cutting Bandsaw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

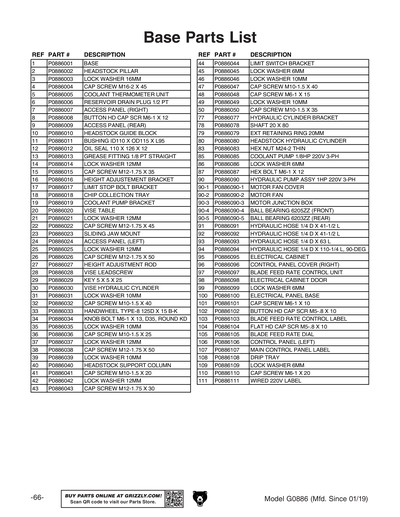

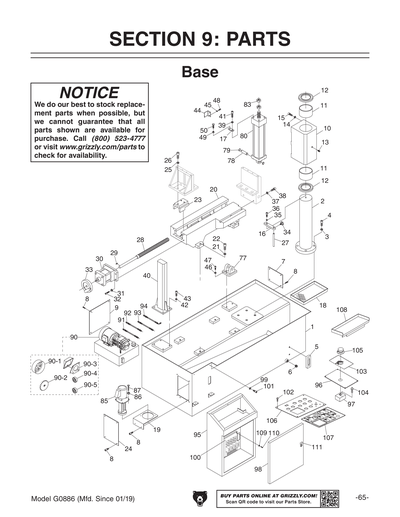

1
BASE
2
HEADSTOCK PILLAR
3
LOCK WASHER 16MM
Price
N/A
4
CAP SCREW M16-2 X 45
5
COOLANT THERMOMETER UNIT
6
RESERVOIR DRAIN PLUG 1/2 PT
7
ACCESS PANEL (RIGHT)
8
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
9
ACCESS PANEL (REAR)
10
HEADSTOCK GUIDE BLOCK
11
BUSHING ID110 X OD115 X L95
12
OIL SEAL 110 X 126 X 12
13
GREASE FITTING 1/8" NPT STRAIGHT
Price
N/A
14
LOCK WASHER 12MM
Price
N/A
15
CAP SCREW M12-1.75 X 35
Price
N/A
16
HEIGHT ADJUSTEMENT BRACKET
17
LIMIT STOP BOLT BRACKET
18
CHIP COLLECTION TRAY
19
COOLANT PUMP BRACKET
20
VISE TABLE
21
LOCK WASHER 12MM
Price
N/A
22
CAP SCREW M12-1.75 X 45
Price
N/A
23
SLIDING JAW MOUNT
24
ACCESS PANEL (LEFT)
25
LOCK WASHER 12MM
Price
N/A
26
CAP SCREW M12-1.75 X 50
Price
N/A
27
HEIGHT ADJUSTMENT ROD
28
VISE LEADSCREW
29
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
30
VISE HYDRAULIC CYLINDER
31
LOCK WASHER 10MM
Price
N/A
32
CAP SCREW M10-1.5 X 40
Price
N/A
33
HANDWHEEL TYPE-8 125D X 15 B-K
34
KNOB BOLT M6-1 X 13, D35, ROUND KD
35
LOCK WASHER 10MM
Price
N/A
36
CAP SCREW M10-1.25 X 35
Price
N/A
37
LOCK WASHER 12MM
Price
N/A
38
CAP SCREW M12-1.75 X 50
Price
N/A
39
LOCK WASHER 10MM
Price
N/A
40
HEADSTOCK SUPPORT COLUMN
41
CAP SCREW M10-1.5 X 20
Price
N/A
42
LOCK WASHER 12MM
Price
N/A
43
CAP SCREW M12-1.75 X 30
Price
N/A
44
LIMIT SWITCH BRACKET
45
LOCK WASHER 6MM
Price
N/A
46
LOCK WASHER 10MM
Price
N/A
47
CAP SCREW M10-1.5 X 40
Price
N/A
48
CAP SCREW M6-1 X 15
Price
N/A
49
LOCK WASHER 10MM
Price
N/A
50
CAP SCREW M10-1.25 X 35
Price
N/A
77
HEADSTOCK HYDRAULIC CYLINDER ASSY.
Price
N/A
78
HEADSTOCK HYDRAULIC CYLINDER ASSY.
Price
N/A
79
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
80
HEADSTOCK HYDRAULIC CYLINDER ASSY.
83
HEADSTOCK HYDRAULIC CYLINDER ASSY.
Price
N/A
85
COOLANT PUMP 1/8HP 220V 3-PH V2.03.25
Price
N/A
85V2
COOLANT PUMP 1/8HP 220V 3-PH V2.03.25
86
LOCK WASHER 6MM
Price
N/A
87
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
90
HYDRAULIC PUMP ASSY 1HP 220V 3-PH
90-06
SOLENOID
90-07
SOLENOID VALVE ASSY.
90-1
MOTOR FAN COVER
90-2
MOTOR FAN
90-3
MOTOR JUNCTION BOX
90-4
BALL BEARING 6205ZZ
Price
N/A
90-5
BALL BEARING 6203ZZ
Price
N/A
91
HYDRAULIC HOSE 1/4 D X 41-1/2 L
92
HYDRAULIC HOSE 1/4 D X 41-1/2 L
Price
N/A
93
HYDRAULIC HOSE 1/4 D X 63 L
94
HYDRAULIC HOSE 1/4 D X 110-1/4 L, 90-DEG
95
ELECTRICAL CABINET V1
95V2
ELECTRICAL CABINET V2.01.24
96
CONTROL PANEL COVER (RIGHT)
97
***SEE EXT DESC***
Item is no longer available
Price
N/A
98
ELECTRICAL CABINET DOOR
99
LOCK WASHER 6MM
Price
N/A
100
ELECTRICAL PANEL BASE
101
CAP SCREW M6-1 X 10
Price
N/A
102
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
103
BLADE FEED RATE CONTROL LABEL
104
FLAT HD CAP SCR M5-.8 X 10
Price
N/A
105
BLADE FEED RATE DIAL
106
CONTROL PANEL (LEFT)
107
MAIN CONTROL PANEL LABEL
108
DRIP TRAY
109
Now: PW03M
FLAT WASHER 6MM
Price
N/A
110
CAP SCREW M6-1 X 20
Price
N/A
111
WIRED 220V LABEL
112
CONTROL UNIT MOUNTING PLATE

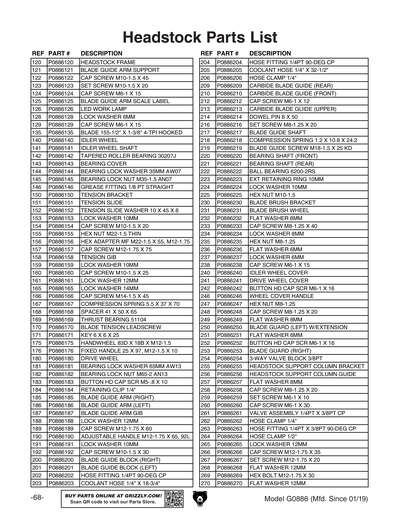

120
HEADSTOCK FRAME
121
BLADE GUIDE ARM SUPPORT
122
CAP SCREW M10-1.5 X 45
Price
N/A
123
SET SCREW M10-1.5 X 20
Price
N/A
124
CAP SCREW M6-1 X 15
Price
N/A
125
BLADE GUIDE ARM SCALE LABEL
126
LED WORK LAMP
128
LOCK WASHER 6MM
Price
N/A
129
CAP SCREW M6-1 X 15
Price
N/A
135
BLADE 155-1/2" X 1-3/8" 4-TPI HOOKED
140
IDLER WHEEL
141
IDLER WHEEL SHAFT
142
TAPERED ROLLER BEARING 30207J
143
BEARING COVER
144
BEARING LOCK WASHER 35MM AW07
145
BEARING LOCK NUT M35-1.5 AN07
146
GREASE FITTING 1/8" NPT STRAIGHT
Price
N/A
150
TENSION BRACKET
151
TENSION SLIDE
152
TENSION SLIDE WASHER 10 X 45 X 6
153
LOCK WASHER 10MM
Price
N/A
154
CAP SCREW M10-1.5 X 20
Price
N/A
155
HEX NUT M22-1.5 THIN
156
HEX ADAPTER MF M22-1.5 X 55, M12-1.75
157
CAP SCREW M12-1.75 X 75
Price
N/A
158
TENSION GIB
159
LOCK WASHER 10MM
Price
N/A
160
CAP SCREW M10-1.5 X 25
Price
N/A
161
LOCK WASHER 12MM
Price
N/A
165
LOCK WASHER 14MM
Price
N/A
166
CAP SCREW M14-2 X 45
Price
N/A
167
COMPRESSION SPRING 5.5 X 37 X 70
168
SPACER 41 X 50 X 65
169
THRUST BEARING 51104
Price
N/A
170
BLADE TENSION LEADSCREW
171
KEY 6 X 6 X 25
Price
N/A
175
HANDWHEEL 83D X 18B X M12-1.5
176
FIXED HANDLE 25 X 97, M12-1.5 X 10
180
DRIVE WHEEL
181
BEARING LOCK WASHER 65MM AW13
182
BEARING LOCK NUT M65-2 AN13
183
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
184
RETAINING CLIP 1/4"
185
BLADE GUIDE ARM (RIGHT)
186
BLADE GUIDE ARM (LEFT)
187
BLADE GUIDE ARM GIB
188
LOCK WASHER 12MM
Price
N/A
189
CAP SCREW M12-1.75 X 60
Price
N/A
190
ADJUSTABLE HANDLE M12-1.75 X 65, 92L
191
LOCK WASHER 10MM
Price
N/A
192
CAP SCREW M10-1.5 X 30
Price
N/A
200
BLADE GUIDE BLOCK (RIGHT)
201
BLADE GUIDE BLOCK (LEFT)
202
HOSE FITTING 1/4PT 90-DEG CP
203
COOLANT HOSE 1/4" X 18-3/4"
204
HOSE FITTING 1/4PT 90-DEG CP
Price
N/A
205
COOLANT HOSE 1/4" X 32-1/2"
206
HOSE CLAMP 1/4"
209
CARBIDE BLADE GUIDE (REAR)
210
CARBIDE BLADE GUIDE (FRONT)
212
CAP SCREW M6-1 X 20
Price
N/A
213
CARBIDE BLADE GUIDE (UPPER)
214
DOWEL PIN 8 X 50
216
SET SCREW M8-1.25 X 20
Price
N/A
217
BLADE GUIDE SHAFT
218
COMPRESSION SPRING 1.2 X 10.8 X 24.2
219
BLADE GUIDE SCREW M18-1.5 X 25 KD
220
BEARING SHAFT (FRONT)
221
BEARING SHAFT (REAR)
222
BALL BEARING 6200-2RS
Price
N/A
223
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
224
LOCK WASHER 10MM
Price
N/A
225
Now: PN02M
HEX NUT M10-1.5
Price
N/A
230
BLADE BRUSH BRACKET
231
BRUSH
Price
N/A
232
Now: PW01M
FLAT WASHER 8MM
Price
N/A
233
CAP SCREW M8-1.25 X 40
Price
N/A
234
LOCK WASHER 8MM
Price
N/A
235
Now: PN03M
HEX NUT M8-1.25
Price
N/A
236
Now: PW03M
FLAT WASHER 6MM
Price
N/A
237
LOCK WASHER 6MM
Price
N/A
238
CAP SCREW M6-1 X 15
Price
N/A
240
IDLER WHEEL COVER
241
DRIVE WHEEL COVER
242
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
246
WHEEL COVER HANDLE
247
Now: PN03M
HEX NUT M8-1.25
Price
N/A
248
CAP SCREW M8-1.25 X 20
Price
N/A
249
Now: PW01M
FLAT WASHER 8MM
Price
N/A
250
BLADE GUARD (LEFT) W/EXTENSION
251
Now: PW03M
FLAT WASHER 6MM
Price
N/A
252
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
253
BLADE GUARD (RIGHT)
254
3-WAY VALVE BLOCK 3/8PT
255
HEADSTOCK SUPPORT COLUMN BRACKET
256
HEADSTOCK SUPPORT COLUMN GUIDE
257
Now: PW01M
FLAT WASHER 8MM
Price
N/A
258
CAP SCREW M8-1.25 X 20
Price
N/A
259
SET SCREW M6-1 X 10
Price
N/A
260
CAP SCREW M6-1 X 30
Price
N/A
261
VALVE ASSEMBLY 1/4PT X 3/8PT CP
262
HOSE CLAMP 1/4"
Price
N/A
263
HOSE FITTING 1/4PT X 3/8PT 90-DEG CP
264
HOSE CLAMP 1/2"
265
LOCK WASHER 12MM
Price
N/A
266
CAP SCREW M12-1.75 X 35
Price
N/A
267
SET SCREW M12-1.75 X 20
Price
N/A
268
LOCK WASHER 10MM
Price
N/A
269
Now: PB27M
HEX BOLT M12-1.75 X 30
Price
N/A
270
LOCK WASHER 10MM
Price
N/A
271
Now: PB27M
HEX BOLT M12-1.75 X 30
Price
N/A
272
MOTOR MOUNT PLATE
273
COOLANT HOSE 1/2" X 110-1/4"
274
HOSE FITTING 1/2PT X 3/8PT 90-DEG CP
275
MAIN MOTOR 3HP 220V 3-PH
275-1
MOTOR FAN COVER
275-2
MOTOR FAN
275-3
MOTOR JUNCTION BOX
275-4
BALL BEARING 6206ZZ
Price
N/A
275-5
BALL BEARING 6204ZZ
Price
N/A
276
LOCK WASHER 10MM
Price
N/A
277
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
278
KEY 8 X 7 X 40
Price
N/A
279
HOSE FITTING 1/2PT X 3/8PT STRAIGHT CP
280
MOTOR PULLEY
281
GEAR PULLEY
282
PULLEY COVER
283
Now: PVA47
V-BELT A47
Price
N/A
284
BLADE SPEED SELECTION LABEL
285
PULLEY WASHER 10 X 40 X 6
286
MOTOR PULLEY BUSHING
287
PULLEY COVER PLATE
288
KNOB BOLT M6-1 X 13, 5-LOBE, D35
289
Now: PW03M
FLAT WASHER 6MM
Price
N/A
290
Now: PB74M
HEX BOLT M10-1.5 X 20
Price
N/A
291
BLADE TENSION GAUGE
Price
N/A
292
BLADE SELECTION LABEL
293
BLADE DIRECTION LABEL

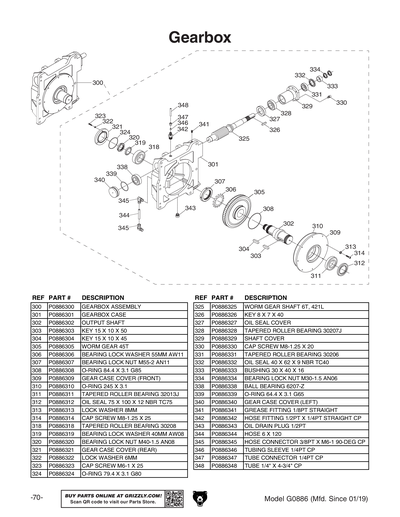

300
GEARBOX ASSEMBLY
301
GEARBOX CASE
302
OUTPUT SHAFT
303
KEY 15 X 10 X 50
304
KEY 15 X 10 X 45
305
WORM GEAR 45T
306
BEARING LOCK WASHER 55MM AW11
307
BEARING LOCK NUT M55-2 AN11
308
O-RING 84.4 X 3.1 G85
Price
N/A
309
GEAR CASE COVER (FRONT)
310
O-RING 245 X 3.1
311
TAPERED ROLLER BEARING 32013J
312
OIL SEAL 75 X 100 X 12 NBR TC75
313
LOCK WASHER 8MM
Price
N/A
314
CAP SCREW M8-1.25 X 25
Price
N/A
318
TAPERED ROLLER BEARING 30208
319
BEARING LOCK WASHER 40MM AW08
320
BEARING LOCK NUT M40-1.5 AN08
321
GEAR CASE COVER (REAR)
322
LOCK WASHER 6MM
Price
N/A
323
CAP SCREW M6-1 X 25
Price
N/A
324
O-RING G80
Price
N/A
325
WORM GEAR SHAFT 6T, 421L
326
KEY 8 X 7 X 40
Price
N/A
327
OIL SEAL COVER
328
TAPERED ROLLER BEARING 30207J
Price
N/A
329
SHAFT COVER
330
CAP SCREW M8-1.25 X 20
Price
N/A
331
TAPERED ROLLER BEARING 30206
Price
N/A
332
OIL SEAL 40 X 62 X 9 NBR TC40
333
BUSHING 30 X 40 X 16
334
BEARING LOCK NUT M30-1.5 AN06
338
BALL BEARING 6207-Z
339
O-RING 64.4 X 3.1 G65
Price
N/A
340
GEAR CASE COVER (LEFT)
341
GREASE FITTING 1/8" NPT STRAIGHT
Price
N/A
342
HOSE FITTING 1/2PT X 1/4PT STRAIGHT CP
343
OIL DRAIN PLUG 1/2PT
344
HOSE 6 X 120
345
HOSE CONNECTOR 3/8PT X M6-1 90-DEG CP
346
TUBE SLEEVE 1/4PT CP
347
TUBE CONNECTOR 1/4PT CP
348
TUBE 1/4" X 4-3/4" CP

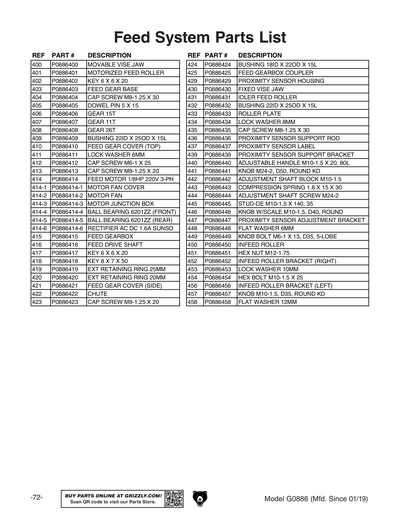

400
MOVABLE VISE JAW
401
MOTORIZED FEED ROLLER
402
Now: PK07M
KEY 6 X 6 X 20
Price
N/A
403
FEED GEAR BASE
404
CAP SCREW M8-1.25 X 30
Price
N/A
405
DOWEL PIN 5 X 15
406
GEAR 15T
407
GEAR 11T
408
GEAR 26T
409
BUSHING 22ID X 25OD X 15L
410
FEED GEAR COVER (TOP)
411
LOCK WASHER 6MM
Price
N/A
412
CAP SCREW M6-1 X 25
Price
N/A
413
CAP SCREW M8-1.25 X 20
Price
N/A
414
FEED MOTOR 1/8HP 220V 3-PH
414-1
MOTOR FAN AND COVER
Price
N/A
414-2
MOTOR FAN AND COVER
414-3
MOTOR JUNCTION BOX
414-4
BALL BEARING 6201ZZ
Price
N/A
414-5
BALL BEARING 6201ZZ
Price
N/A
414-6
RECTIFIER AC DC 1.6A SUNSO
415
FEED GEARBOX
416
FEED DRIVE SHAFT
417
Now: PK07M
KEY 6 X 6 X 20
Price
N/A
418
KEY 8 X 7 X 50
Price
N/A
419
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
420
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
421
FEED GEAR COVER (SIDE)
422
CHUTE
423
CAP SCREW M8-1.25 X 20
Price
N/A
424
BUSHING 18ID X 22OD X 15L
425
FEED GEARBOX COUPLER
426
Now: PS18M
PHLP HD SCR M4-.7 X 25
Price
N/A
427
CAP SCREW M6-1 X 16
Price
N/A
428
Now: PW03M
FLAT WASHER 6MM
Price
N/A
429

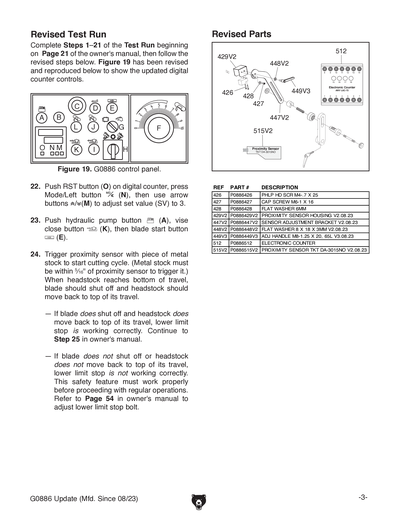

PROXIMITY SENSOR HOUSING V1
429V2
PROXIMITY SENSOR HOUSING V2.08.23
429V3
PROXIMITY SENSOR HOUSING V3.01.24
430
FIXED VISE JAW
431
IDLER FEED ROLLER
432
BUSHING 22ID X 25OD X 15L
Price
N/A
433
ROLLER PLATE
434
LOCK WASHER 8MM
Price
N/A
435
CAP SCREW M8-1.25 X 30
Price
N/A
436
PROXIMITY SENSOR SUPPORT ROD
437
PROXIMITY SENSOR LABEL
439
PROXIMITY SENSOR SUPPORT BRACKET V1
439V2
PROX SENSOR SUPPORT BRACKET V2.01.24
440
ADJUSTABLE HANDLE M10-1.5 X 20, 80L
441
KNOB M24-2, D50, ROUND KD
442
ADJUSTMENT SHAFT BLOCK M10-1.5
443
COMPRESSION SPRING 1.8 X 15 X 30
444
ADJUSTMENT SHAFT SCREW M24-2
445
STUD-DE M10-1.5 X 140, 35
446
KNOB W/SCALE M10-1.5, D40, ROUND
447
PROXIMITY SENSOR ADJUSTMENT BRACKET V1
447V2
SENSOR ADJUSTMENT BRACKET V2.08.23
447V3
SENSOR ADJUSTMENT BRACKET V3.01.24
448
Now: PW03M
FLAT WASHER 6MM
Price
N/A
448V2
FLAT WASHER 8 X 18 X 3MM V2.08.23
449
KNOB BOLT M6-1 X 13, D35, 5-LOBE V1
449V2
ADJ HANDLE M6-1 X 20, 65L V2.09.21
449V3
ADJ HANDLE M8-1.25 X 20, 65L V3.08.23
450
INFEED ROLLER
451
Now: PN09M
HEX NUT M12-1.75
Price
N/A
452
INFEED ROLLER BRACKET
453
LOCK WASHER 10MM
Price
N/A
454
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
456
INFEED ROLLER BRACKET
Price
N/A
457
KNOB M10-1.5, D35, ROUND KN
458
Now: PW06M
FLAT WASHER 12MM
Price
N/A

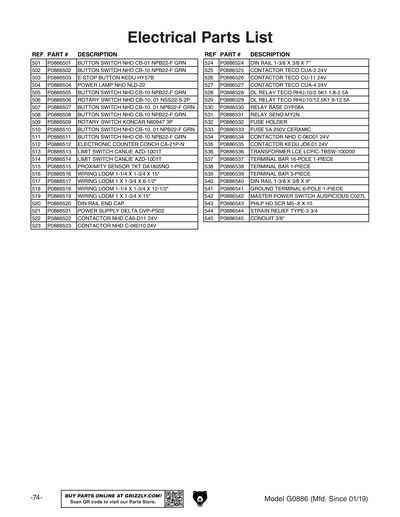

501
BUTTON SWITCH NHD CB-01 NPB22-F GRN
502
BUTTON SWITCH NHD CB-10 NPB22-F GRN
503
E-STOP BUTTON KEDU HY57B
504
POWER LAMP NHD NLD-22
505
BUTTON SWITCH NHD CB-10 NPB22-F GRN
Price
N/A
506
ROTARY SWITCH NHD CB-10, 01 NSS22-S 2P
507
BUTTON SWITCH NHD CB-10, 01 NPB22-F GRN
508
BUTTON SWITCH NHD CB-10 NPB22-F GRN
Price
N/A
509
ROTARY SWITCH KONCAR N60947 3P
510
BUTTON SWITCH NHD CB-10, 01 NPB22-F GRN
Price
N/A
511
BUTTON SWITCH NHD CB-10 NPB22-F GRN
Price
N/A
512
ELECTRONIC COUNTER
513
LIMIT SWITCH CANLIE AZD-1001T
514
LIMIT SWITCH CANLIE AZD-1001T
Price
N/A
515
PROXIMITY SENSOR TKT DA1805NO V1
515V2
PROXIMITY SENSOR TKT DA-3015NO V2.08.23
515V3
PROXIMITY SENSOR TKT BGS-30N V3.01.24
516
WIRING LOOM 1-1/4 X 1-3/4 X 15"
517
WIRING LOOM 1 X 1-3/4 X 6-1/2"
518
WIRING LOOM 1-1/4 X 1-3/4 X 12-1/2"
519
WIRING LOOM 1 X 1-3/4 X 15"
520
DIN RAIL END CAP
521
POWER SUPPLY DELTA DVP-PS02
522
CONTACTOR NHD CA6-D11 24V
523
CONTACTOR NHD C-06D10 24V
524
DIN RAIL 1-3/8 X 3/8 X 7"
525
CONTACTOR TECO CUA-2 24V
526
CONTACTOR TECO CU-11 24V
527
CONTACTOR TECO CUA-4 24V
528
OL RELAY TECO RHU-10/2.5K1 1.8-2.5A
529
OL RELAY TECO RHU-10/12.5K1 9-12.5A
530
RELAY BASE DYF08A
531
RELAY SENO MY2N
532
FUSE HOLDER
533
FUSE 5A 250V CERAMIC
534
CONTACTOR NHD C-06D01 24V
535
CONTACTOR KEDU JD6.01 24V
536
TRANSFORMER LCE LCPIC-TBSW-100200
537
TERMINAL BAR 16-POLE 1-PIECE
538
TERMINAL BAR 1-PIECE
539
TERMINAL BAR 3-PIECE
540
DIN RAIL 1-3/8 X 3/8 X 9"
541
GROUND TERMINAL 6-POLE 1-PIECE
542
MASTER POWER SWITCH AUSPICIOUS C027L
543
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
544
STRAIN RELIEF TYPE-3 3/4
545
CONDUIT 3/8"
546
POWER CORD 14G 4W 120"
601
SAFETY GLASSES 3.8W X 2H
Price
N/A
602
ELECTRICITY 0.7W X 0.6H
Price
N/A
603
MODEL NUMBER LABEL
604
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
605
MACHINE ID LABEL
606
DISCONNECT 220V 2W X 3.3H
Price
N/A
607
FLUID CAPACITY LABEL
608
Now: G8589
Nameplate - Large
Price
N/A
609
GRIZZLY.COM LABEL 13",BEIGE
Price
N/A
610
ELECTRICITY 1.4W X 1.2H
Price
N/A
611
BANDSAW BLADE 1.5W X 2H
Price
N/A
612
N/S GRIZZLY GREEN G1023S
Price
N/A
613
GREY PUTTY REF G0504
Price
N/A
614
REMOVE SHIPPING BRACE NOTICE
615
POWER CONNECTION NOTICE
MAN
MANUAL G0886 MFD-01.19+ V1.03.19
