Parts for G0887 20" x 26" 5 HP Industrial Horizontal Mitering Metal Cutting Bandsaw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

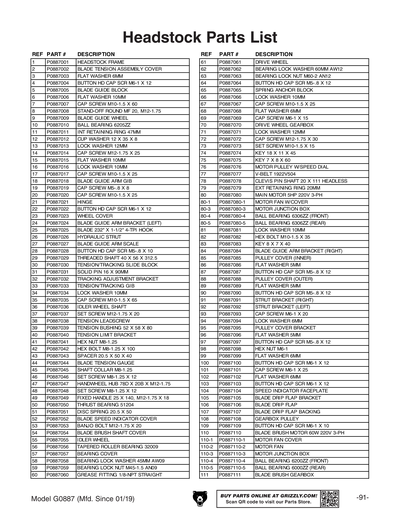

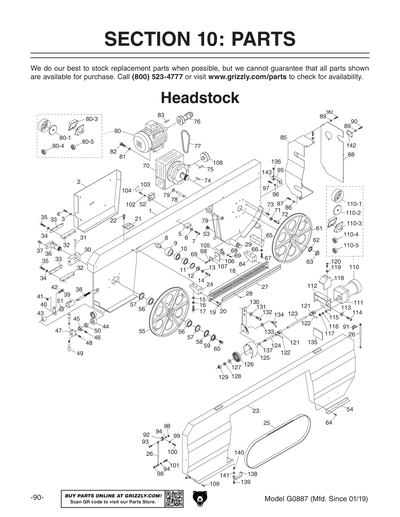

1
HEADSTOCK FRAME
2
BLADE TENSION ASSEMBLY COVER
3
Now: PW03M
FLAT WASHER 6MM
Price
N/A
4
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
5
BLADE GUIDE BLOCK
6
Now: PW04M
FLAT WASHER 10MM
Price
N/A
7
CAP SCREW M10-1.5 X 60
Price
N/A
8
STAND-OFF ROUND MF 20, M12-1.75
9
BLADE GUIDE WHEEL
10
BALL BEARING 6205ZZ
Price
N/A
11
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
12
CUP WASHER 12 X 35 X 8
13
LOCK WASHER 12MM
Price
N/A
14
CAP SCREW M12-1.75 X 25
Price
N/A
15
Now: PW04M
FLAT WASHER 10MM
Price
N/A
16
LOCK WASHER 10MM
Price
N/A
17
CAP SCREW M10-1.5 X 25
Price
N/A
18
BLADE GUIDE ARM GIB
19
CAP SCREW M5-.8 X 8
Price
N/A
20
CAP SCREW M10-1.5 X 25
Price
N/A
21
HINGE
22
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
23
WHEEL COVER
24
BLADE GUIDE ARM BRACKET (LEFT)
25
BLADE 232" X 1-1/2" 4-TPI HOOK
26
HYDRAULIC STRUT
27
BLADE GUIDE ARM SCALE
28
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
29
THREADED SHAFT 40 X 56 X 312.5
30
TENSION/TRACKING SLIDE BLOCK
31
SOLID PIN 16 X 90MM
32
TRACKING ADJUSTMENT BRACKET
33
TENSION/TRACKING GIB
34
LOCK WASHER 10MM
Price
N/A
35
CAP SCREW M10-1.5 X 65
Price
N/A
36
IDLER WHEEL SHAFT
37
SET SCREW M12-1.75 X 20
Price
N/A
38
TENSION LEADSCREW
39
TENSION BUSHING 52 X 58 X 80
40
TENSION LIMIT BRACKET
41
Now: PN03M
HEX NUT M8-1.25
Price
N/A
42
Now: PB45M
HEX BOLT M8-1.25 X 100
Price
N/A
43
SPACER 20.5 X 50 X 40
44
BLADE TENSION GAUGE
45
SHAFT COLLAR M8-1.25
46
SET SCREW M8-1.25 X 12
Price
N/A
47
HANDWHEEL HUB 78D X 20B X M12-1.75
48
SET SCREW M8-1.25 X 12
Price
N/A
49
FIXED HANDLE 25 X 140, M12-1.75 X 18
50
THRUST BEARING 51204
Price
N/A
51
DISC SPRING WASHER 20.5 X 50
52
BLADE SPEED INDICATOR COVER
53
BANJO BOLT M12-1.75 X 20
54
BLADE BRUSH SHAFT COVER
55
IDLER WHEEL
56
TAPERED ROLLER BEARING 32009
Price
N/A
57
BEARING COVER
58
BEARING LOCK WASHER 45MM AW09
59
BEARING LOCK NUT M45-1.5 AN09
60
GREASE FITTING 1/8-NPT STRAIGHT
61
DRIVE WHEEL
62
BEARING LOCK WASHER 60MM AW12
63
BEARING LOCK NUT M60-2 AN12
64
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
65
SPRING ANCHOR BLOCK
66
LOCK WASHER 10MM
Price
N/A
67
CAP SCREW M10-1.5 X 25
Price
N/A
68
Now: PW03M
FLAT WASHER 6MM
Price
N/A
69
CAP SCREW M6-1 X 15
Price
N/A
70
DRIVE WHEEL GEARBOX
71
LOCK WASHER 12MM
Price
N/A
72
CAP SCREW M12-1.75 X 30
Price
N/A
73
SET SCREW M10-1.5 X 15
Price
N/A
74
KEY 18 X 11 X 45
75
KEY 7 X 8 X 60
76
MOTOR PULLEY W/SPEED DIAL
77
V-BELT 1922V504
78
CLEVIS PIN SHAFT 20 X 111 HEADLESS
79
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
80
MAIN MOTOR 5HP 220V 3-PH
80-1
MOTOR FAN W/COVER
80-2
MOTOR FAN W/COVER
Price
N/A
80-3
MOTOR JUNCTION BOX
80-4
BALL BEARING 6306ZZ
Price
N/A
80-5
BALL BEARING 6306ZZ
Price
N/A
81
LOCK WASHER 10MM
Price
N/A
82
Now: PB14M
HEX BOLT M10-1.5 X 35
Price
N/A
83
KEY 8 X 7 X 40
Price
N/A
84
BLADE GUIDE ARM BRACKET (RIGHT)
85
PULLEY COVER (INNER)
86
Now: PW02M
FLAT WASHER 5MM
Price
N/A
87
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
88
PULLEY COVER (OUTER)
89
Now: PW02M
FLAT WASHER 5MM
Price
N/A
90
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
91
STRUT BRACKET (RIGHT)
92
STRUT BRACKET (LEFT)
93
CAP SCREW M6-1 X 20
Price
N/A
94
LOCK WASHER 6MM
Price
N/A
95
PULLEY COVER BRACKET
96
Now: PW02M
FLAT WASHER 5MM
Price
N/A
97
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
98
Now: PN01M
HEX NUT M6-1
Price
N/A
99
Now: PW03M
FLAT WASHER 6MM
Price
N/A
100
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
101
CAP SCREW M6-1 X 25
Price
N/A
102
Now: PW03M
FLAT WASHER 6MM
Price
N/A
103
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
104
SPEED INDICATOR FACEPLATE
105
BLADE DRIP FLAP BRACKET
106
BLADE DRIP FLAP
107
BLADE DRIP FLAP BACKING
108
GEARBOX PULLEY
109
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
110
BLADE BRUSH MOTOR 60W 220V 3-PH
110-1
MOTOR FAN W/COVER
Price
N/A
110-2
MOTOR FAN W/COVER
Price
N/A
110-3
MOTOR JUNCTION BOX
Price
N/A
110-4
BALL BEARING 6200ZZ
Price
N/A
110-5
BALL BEARING 6000ZZ
Price
N/A

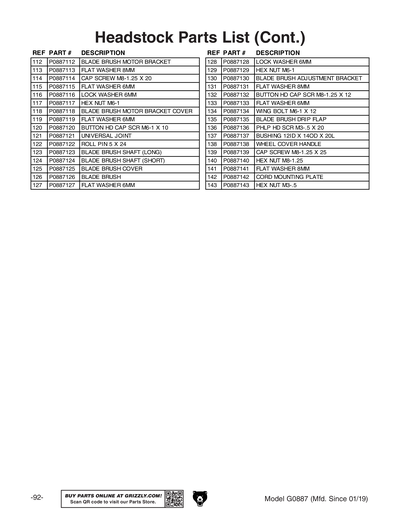

111
BLADE BRUSH GEARBOX
112
BLADE BRUSH MOTOR BRACKET
113
Now: PW01M
FLAT WASHER 8MM
Price
N/A
114
CAP SCREW M8-1.25 X 20
Price
N/A
115
Now: PW03M
FLAT WASHER 6MM
Price
N/A
116
LOCK WASHER 6MM
Price
N/A
117
Now: PN01M
HEX NUT M6-1
Price
N/A
118
BLADE BRUSH MOTOR BRACKET COVER
119
Now: PW03M
FLAT WASHER 6MM
Price
N/A
120
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
121
UNIVERSAL JOINT
122
ROLL PIN 5 X 24
Price
N/A
123
BLADE BRUSH SHAFT (LONG)
124
BLADE BRUSH SHAFT (SHORT)
125
BLADE BRUSH COVER
126
BRUSH
Price
N/A
127
Now: PW03M
FLAT WASHER 6MM
Price
N/A
128
LOCK WASHER 6MM
Price
N/A
129
Now: PN01M
HEX NUT M6-1
Price
N/A
130
BLADE BRUSH ADJUSTMENT BRACKET
131
Now: PW01M
FLAT WASHER 8MM
Price
N/A
132
BUTTON HD CAP SCR M8-1.25 X 12
133
Now: PW03M
FLAT WASHER 6MM
Price
N/A
134
WING BOLT M6-1 X 12
135
BLADE BRUSH DRIP FLAP
136
Now: PS13M
PHLP HD SCR M3-.5 X 20
Price
N/A
137
BUSHING 12ID X 14OD X 20L
138
WHEEL COVER HANDLE
139
CAP SCREW M8-1.25 X 25
Price
N/A
140
Now: PN03M
HEX NUT M8-1.25
Price
N/A
141
Now: PW01M
FLAT WASHER 8MM
Price
N/A
142
CORD MOUNTING PLATE
143
Now: PN07M
HEX NUT M3-.5
Price
N/A

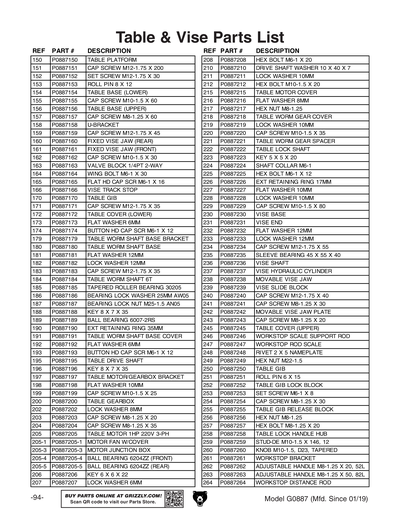

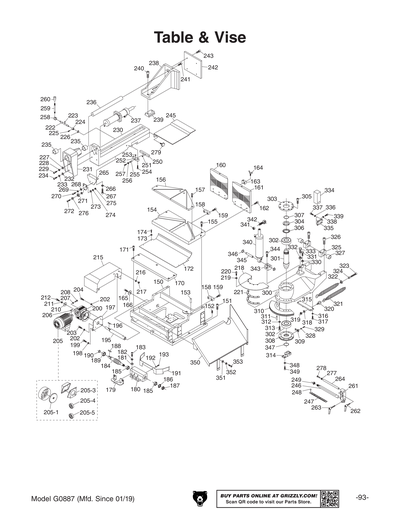

150
TABLE PLATFORM
151
CAP SCREW M12-1.75 X 200
152
SET SCREW M12-1.75 X 30
Price
N/A
153
ROLL PIN 8 X 12
Price
N/A
154
TABLE BASE (LOWER)
155
CAP SCREW M10-1.5 X 60
Price
N/A
156
TABLE BASE (UPPER)
157
CAP SCREW M8-1.25 X 60
Price
N/A
158
U-BRACKET
159
CAP SCREW M12-1.75 X 45
Price
N/A
160
FIXED VISE JAW (REAR)
161
FIXED VISE JAW (FRONT)
162
CAP SCREW M10-1.5 X 30
Price
N/A
163
VALVE BLOCK 1/4PT 2-WAY
164
WING BOLT M6-1 X 30
165
FLAT HD CAP SCR M6-1 X 16
Price
N/A
166
VISE TRACK STOP
170
TABLE GIB
171
CAP SCREW M12-1.75 X 35
Price
N/A
172
TABLE COVER (LOWER)
173
Now: PW03M
FLAT WASHER 6MM
Price
N/A
174
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
179
TABLE WORM SHAFT BASE BRACKET
180
TABLE WORM SHAFT BASE
181
Now: PW06M
FLAT WASHER 12MM
Price
N/A
182
LOCK WASHER 12MM
Price
N/A
183
CAP SCREW M12-1.75 X 35
Price
N/A
184
TABLE WORM SHAFT 6T
185
TAPERED ROLLER BEARING 30205
Price
N/A
186
BEARING LOCK WASHER 25MM AW05
187
BEARING LOCK NUT M25-1.5 AN05
188
KEY 8 X 7 X 35
Price
N/A
189
BALL BEARING 6007-2RS
Price
N/A
190
Now: PR12M
EXT RETAINING RING 35MM
Price
N/A
191
TABLE WORM SHAFT BASE COVER
192
Now: PW03M
FLAT WASHER 6MM
Price
N/A
193
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
195
TABLE DRIVE SHAFT
196
KEY 8 X 7 X 35
Price
N/A
197
TABLE MOTOR/GEARBOX BRACKET
198
Now: PW04M
FLAT WASHER 10MM
Price
N/A
199
CAP SCREW M10-1.5 X 25
Price
N/A
200
TABLE GEARBOX
202
LOCK WASHER 8MM
Price
N/A
203
CAP SCREW M8-1.25 X 20
Price
N/A
204
CAP SCREW M8-1.25 X 35
Price
N/A
205
TABLE MOTOR 1HP 220V 3-PH
205-1
MOTOR FAN W/COVER
205-2
MOTOR FAN W/COVER
Price
N/A
205-3
MOTOR JUNCTION BOX
205-4
BALL BEARING 6204ZZ
Price
N/A
205-5
BALL BEARING 6204ZZ
Price
N/A
206
KEY 6 X 6 X 22
Price
N/A
207
LOCK WASHER 6MM
Price
N/A
208
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
210
DRIVE SHAFT WASHER 10 X 40 X 7
211
LOCK WASHER 10MM
Price
N/A
212
Now: PB74M
HEX BOLT M10-1.5 X 20
Price
N/A
215
TABLE MOTOR COVER
216
Now: PW01M
FLAT WASHER 8MM
Price
N/A
217
Now: PN03M
HEX NUT M8-1.25
Price
N/A
218
TABLE WORM GEAR COVER
219
LOCK WASHER 10MM
Price
N/A
220
CAP SCREW M10-1.25 X 35
Price
N/A
221
TABLE WORM GEAR SPACER
222
TABLE LOCK SHAFT
223
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
224
SHAFT COLLAR M6-1
225
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
226
Now: PR18M
EXT RETAINING RING 17MM
Price
N/A
227
Now: PW04M
FLAT WASHER 10MM
Price
N/A
228
LOCK WASHER 10MM
Price
N/A
229
CAP SCREW M10-1.5 X 80
Price
N/A
230
VISE BASE
231
VISE END
232
Now: PW06M
FLAT WASHER 12MM
Price
N/A
233
LOCK WASHER 12MM
Price
N/A
234
CAP SCREW M12-1.75 X 55
Price
N/A
235
SLEEVE BEARING 45 X 55 X 40
236
VISE SHAFT
237
VISE HYDRAULIC CYLINDER
238
MOVABLE VISE JAW
239
VISE SLIDE BLOCK
240
CAP SCREW M12-1.75 X 40
Price
N/A
241
CAP SCREW M8-1.25 X 30
Price
N/A
242
MOVABLE VISE JAW PLATE
243
CAP SCREW M8-1.25 X 20
Price
N/A
245
TABLE COVER (UPPER)
246
WORKSTOP SCALE SUPPORT ROD
247
WORKSTOP ROD SCALE
248
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
249
HEX NUT M22-1.5
250
TABLE GIB
251
ROLL PIN 6 X 15
252
TABLE GIB LOCK BLOCK
253
SET SCREW M6-1 X 8
Price
N/A
254
CAP SCREW M8-1.25 X 30
Price
N/A
255
TABLE GIB RELEASE BLOCK
256
Now: PN03M
HEX NUT M8-1.25
Price
N/A
257
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
258
TABLE LOCK HANDLE HUB
259
STUD-DE M10-1.5 X 146, 12
260
KNOB M10-1.5, D23, TAPERED
261
WORKSTOP BRACKET
262
ADJUSTABLE HANDLE M8-1.25 X 20, 52L
263
ADJUSTABLE HANDLE M8-1.25 X 50, 82L
264
WORKSTOP DISTANCE ROD

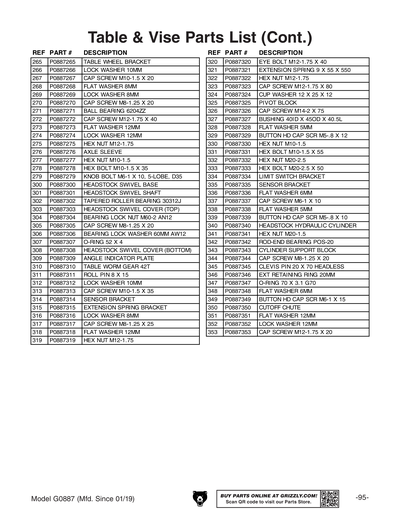

265
TABLE WHEEL BRACKET
266
LOCK WASHER 10MM
Price
N/A
267
CAP SCREW M10-1.5 X 20
Price
N/A
268
Now: PW01M
FLAT WASHER 8MM
Price
N/A
269
LOCK WASHER 8MM
Price
N/A
270
CAP SCREW M8-1.25 X 20
Price
N/A
271
BALL BEARING 6204ZZ
Price
N/A
272
CAP SCREW M12-1.75 X 40
Price
N/A
273
Now: PW06M
FLAT WASHER 12MM
Price
N/A
274
LOCK WASHER 12MM
Price
N/A
275
Now: PN09M
HEX NUT M12-1.75
Price
N/A
276
AXLE SLEEVE
277
Now: PN02M
HEX NUT M10-1.5
Price
N/A
278
Now: PB14M
HEX BOLT M10-1.5 X 35
Price
N/A
279
KNOB BOLT M6-1 X 10, 5-LOBE, D35
300
HEADSTOCK SWIVEL BASE
301
HEADSTOCK SWIVEL SHAFT
302
TAPERED ROLLER BEARING 30312J
303
HEADSTOCK SWIVEL COVER (TOP)
304
BEARING LOCK NUT M60-2 AN12
305
CAP SCREW M8-1.25 X 20
Price
N/A
306
BEARING LOCK WASHER 60MM AW12
307
O-RING 52 X 4
308
HEADSTOCK SWIVEL COVER (BOTTOM)
309
ANGLE INDICATOR PLATE
310
TABLE WORM GEAR 42T
311
ROLL PIN 8 X 15
312
LOCK WASHER 10MM
Price
N/A
313
CAP SCREW M10-1.5 X 35
Price
N/A
314
SENSOR BRACKET
315
EXTENSION SPRING BRACKET
316
LOCK WASHER 8MM
Price
N/A
317
CAP SCREW M8-1.25 X 25
Price
N/A
318
Now: PW06M
FLAT WASHER 12MM
Price
N/A
319
Now: PN09M
HEX NUT M12-1.75
Price
N/A
320
EYE BOLT M12-1.75 X 40
321
EXTENSION SPRING 9 X 55 X 550
322
Now: PN09M
HEX NUT M12-1.75
Price
N/A
323
CAP SCREW M12-1.75 X 80
Price
N/A
324
CUP WASHER 12 X 25 X 12
325
PIVOT BLOCK
326
CAP SCREW M14-2 X 75
Price
N/A
327
BUSHING 40ID X 45OD X 40.5L
328
Now: PW02M
FLAT WASHER 5MM
Price
N/A
329
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
330
Now: PN02M
HEX NUT M10-1.5
Price
N/A
331
HEX BOLT M10-1.5 X 55
Price
N/A
332
Now: PN28M
HEX NUT M20-2.5
Price
N/A
333
HEX BOLT M20-2.5 X 50
334
LIMIT SWITCH BRACKET
335
SENSOR BRACKET
336
Now: PW03M
FLAT WASHER 6MM
Price
N/A
337
CAP SCREW M6-1 X 10
Price
N/A
338
Now: PW02M
FLAT WASHER 5MM
Price
N/A
339
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
340
HEADSTOCK HYDRAULIC CYLINDER
341
Now: PN17M
HEX NUT M20-1.5
Price
N/A
342
ROD-END BEARING POS-20
343
CYLINDER SUPPORT BLOCK
344
CAP SCREW M8-1.25 X 10
Price
N/A
345
CLEVIS PIN 20 X 70 HEADLESS
346
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
347
O-RING 70 X 3.1 G70
348
Now: PW03M
FLAT WASHER 6MM
Price
N/A
349
BUTTON HD CAP SCR M6-1 X 15
Price
N/A
350
CUTOFF CHUTE
351
Now: PW06M
FLAT WASHER 12MM
Price
N/A
352
LOCK WASHER 12MM
Price
N/A
353
CAP SCREW M12-1.75 X 20
Price
N/A
360

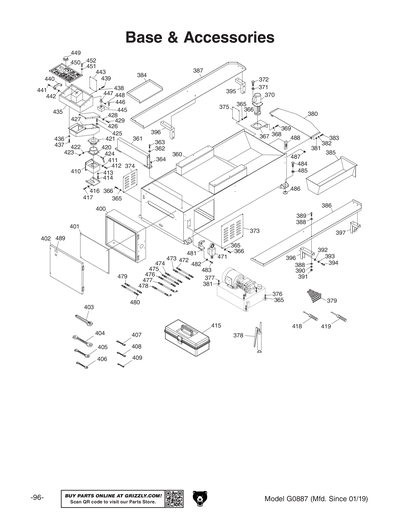

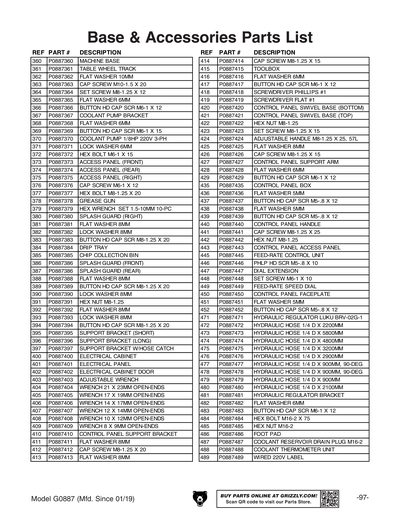

MACHINE BASE
361
TABLE WHEEL TRACK
362
Now: PW04M
FLAT WASHER 10MM
Price
N/A
363
CAP SCREW M10-1.5 X 20
Price
N/A
364
SET SCREW M8-1.25 X 12
Price
N/A
365
Now: PW03M
FLAT WASHER 6MM
Price
N/A
366
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
367
COOLANT PUMP BRACKET
368
Now: PW03M
FLAT WASHER 6MM
Price
N/A
369
BUTTON HD CAP SCR M6-1 X 15
Price
N/A
370
***USE P0886085V2***
Price
N/A
371
LOCK WASHER 6MM
Price
N/A
372
Now: PB18M
HEX BOLT M6-1 X 15
Price
N/A
373
ACCESS PANEL (FRONT)
374
ACCESS PANEL (REAR)
375
ACCESS PANEL (RIGHT)
376
CAP SCREW M6-1 X 12
Price
N/A
377
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
378
GREASE GUN
379
HEX WRENCH SET 1.5-10MM 10-PC
380
SPLASH GUARD (RIGHT)
381
Now: PW01M
FLAT WASHER 8MM
Price
N/A
382
LOCK WASHER 8MM
Price
N/A
383
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
384
DRIP TRAY
385
CHIP COLLECTION BIN
386
SPLASH GUARD (FRONT)
387
SPLASH GUARD (REAR)
388
Now: PW01M
FLAT WASHER 8MM
Price
N/A
389
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
390
LOCK WASHER 8MM
Price
N/A
391
Now: PN03M
HEX NUT M8-1.25
Price
N/A
392
Now: PW01M
FLAT WASHER 8MM
Price
N/A
393
LOCK WASHER 8MM
Price
N/A
394
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
395
SUPPORT BRACKET (SHORT)
396
SUPPORT BRACKET (LONG)
397
SUPPORT BRACKET W/HOSE CATCH
400

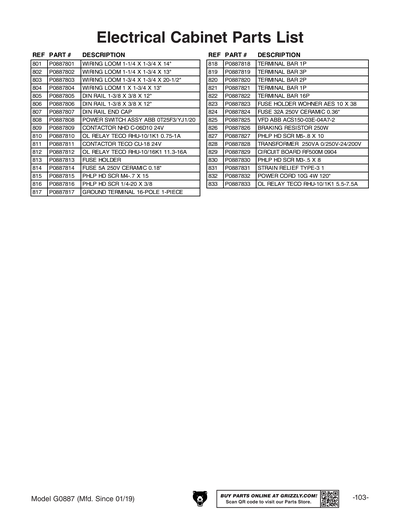

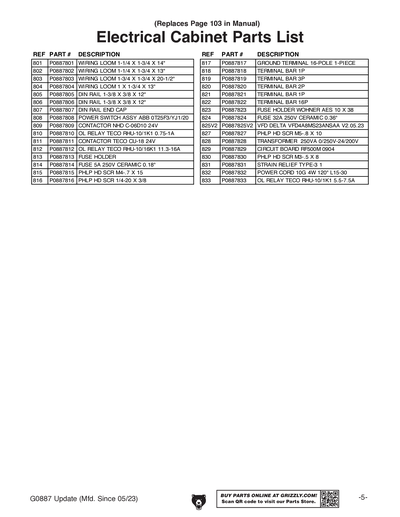

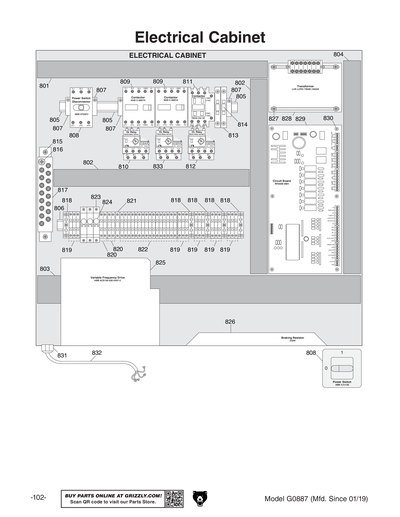

ELECTRICAL CABINET
401
ELECTRICAL PANEL
402
ELECTRICAL CABINET DOOR
403
ADJUSTABLE WRENCH
404
WRENCH 21 X 23MM OPEN-ENDS
Price
N/A
405
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
406
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
407
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
408
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
409
WRENCH 8 X 9MM OPEN-ENDS
410
CONTROL PANEL SUPPORT BRACKET
411
Now: PW01M
FLAT WASHER 8MM
Price
N/A
412
CAP SCREW M8-1.25 X 20
Price
N/A
413
Now: PW01M
FLAT WASHER 8MM
Price
N/A
414
CAP SCREW M8-1.25 X 15
Price
N/A
415
TOOLBOX
416
Now: PW03M
FLAT WASHER 6MM
Price
N/A
417
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
418
SCREWDRIVER PHILLIPS #1
419
SCREWDRIVER FLAT #1
420
CONTROL PANEL SWIVEL BASE (BOTTOM)
421
CONTROL PANEL SWIVEL BASE (TOP)
422
Now: PN03M
HEX NUT M8-1.25
Price
N/A
423
SET SCREW M8-1.25 X 15
Price
N/A
424
ADJUSTABLE HANDLE M8-1.25 X 25, 57L
425
Now: PW01M
FLAT WASHER 8MM
Price
N/A
426
CAP SCREW M8-1.25 X 15
Price
N/A
427
CONTROL PANEL SUPPORT ARM
428
Now: PW03M
FLAT WASHER 6MM
Price
N/A
429
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
435

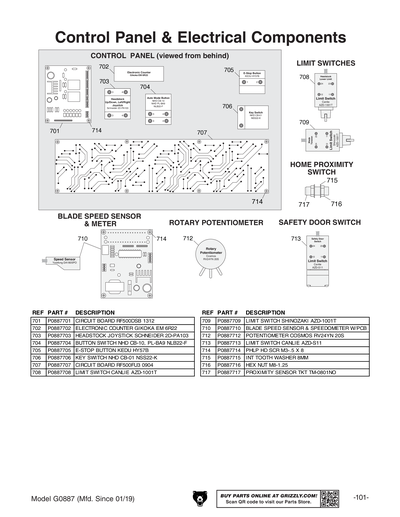

CONTROL PANEL BOX
436
Now: PW02M
FLAT WASHER 5MM
Price
N/A
437
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
438
Now: PW02M
FLAT WASHER 5MM
Price
N/A
439
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
440
CONTROL PANEL HANDLE
441
CAP SCREW M8-1.25 X 25
Price
N/A
442
Now: PN03M
HEX NUT M8-1.25
Price
N/A
443
CONTROL PANEL ACCESS PANEL
445
FEED-RATE CONTROL UNIT
446
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
447
DIAL EXTENSION
448
SET SCREW M6-1 X 10
Price
N/A
449
FEED-RATE SPEED DIAL
450
CIRCUIT BOARD ASSEMBLY
Price
N/A
451
Now: PW02M
FLAT WASHER 5MM
Price
N/A
452
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
470

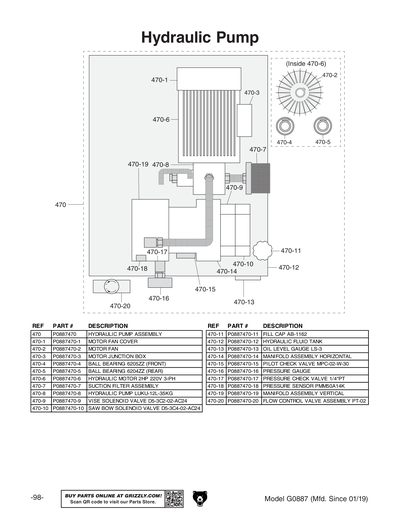

HYDRAULIC PUMP ASSEMBLY
470-1
MOTOR FAN COVER
470-10
SAW BOW SOLENOID VALVE D5-3C4-02-AC24
470-11
FILL CAP AB-1162
470-12
HYDRAULIC FLUID TANK
470-13
OIL LEVEL GAUGE LS-3
470-14
MANIFOLD ASSEMBLY HORIZONTAL
470-15
PILOT CHECK VALVE MPC-02-W-30
470-16
PRESSURE GAUGE
470-17
PRESSURE CHECK VALVE 1/4"PT
470-18
PRESSURE SENSOR PMM50A14K
470-19
MANIFOLD ASSEMBLY VERTICAL
470-2
MOTOR FAN
470-20
FLOW CONTROL VALVE ASSEMBLY PT-02
470-3
MOTOR JUNCTION BOX
470-4
BALL BEARING 6205ZZ
Price
N/A
470-5
BALL BEARING 6204ZZ
Price
N/A
470-6
HYDRAULIC MOTOR 2HP 220V 3-PH
470-7
SUCTION FILTER ASSEMBLY
470-8
HYDRAULIC PUMP LUKU-12L-35KG
470-9
VISE SOLENOID VALVE D5-3C2-02-AC24
471
HYDRAULIC REGULATOR LUKU BRV-02G-1
472
HYDRAULIC HOSE 1/4 D X 2200MM
473
HYDRAULIC HOSE 1/4 D X 5800MM
474
HYDRAULIC HOSE 1/4 D X 4800MM
475
HYDRAULIC HOSE 1/4 D X 3200MM
476
HYDRAULIC HOSE 1/4 D X 2900MM
477
HYDRAULIC HOSE 1/4 D X 900MM, 90-DEG
478
HYDRAULIC HOSE 1/4 D X 900MM, 90-DEG
Price
N/A
479
HYDRAULIC HOSE 1/4 D X 900MM
480
HYDRAULIC HOSE 1/4 D X 2100MM
481
HYDRAULIC REGULATOR BRACKET
482
Now: PW03M
FLAT WASHER 6MM
Price
N/A
483
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
484
HEX BOLT M16-2 X 75
Price
N/A
485
Now: PN13M
HEX NUT M16-2
Price
N/A
486
FOOT PAD
487
COOLANT RESERVOIR DRAIN PLUG M16-2
488
COOLANT THERMOMETER UNIT
489
WIRED 220V LABEL
500

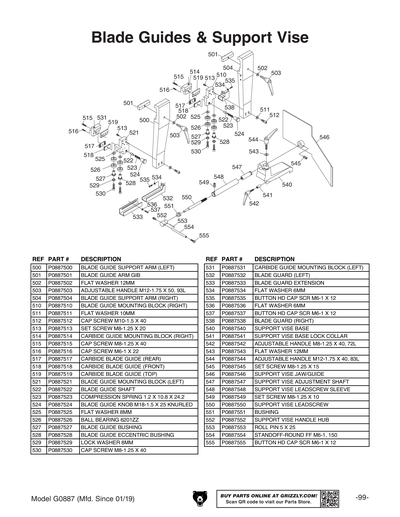

BLADE GUIDE SUPPORT ARM (LEFT)
501
BLADE GUIDE ARM GIB
502
Now: PW06M
FLAT WASHER 12MM
Price
N/A
503
ADJUSTABLE HANDLE M12-1.75 X 50, 93L
504
BLADE GUIDE SUPPORT ARM (RIGHT)
510
BLADE GUIDE MOUNTING BLOCK (RIGHT)
511
Now: PW04M
FLAT WASHER 10MM
Price
N/A
512
CAP SCREW M10-1.5 X 40
Price
N/A
513
SET SCREW M8-1.25 X 20
Price
N/A
514
CARBIDE GUIDE MOUNTING BLOCK (RIGHT)
515
CAP SCREW M8-1.25 X 40
Price
N/A
516
CAP SCREW M6-1 X 22
Price
N/A
517
CARBIDE BLADE GUIDE (REAR)
518
CARBIDE BLADE GUIDE (FRONT)
519
CARBIDE BLADE GUIDE (TOP)
521
BLADE GUIDE MOUNTING BLOCK (LEFT)
522
BLADE GUIDE SHAFT
523
COMPRESSION SPRING 1.2 X 10.8 X 24.2
524
BLADE GUIDE KNOB M18-1.5 X 25 KNURLED
525
Now: PW01M
FLAT WASHER 8MM
Price
N/A
526
BALL BEARING 6201ZZ
Price
N/A
527
BLADE GUIDE BUSHING
528
BLADE GUIDE ECCENTRIC BUSHING
529
LOCK WASHER 8MM
Price
N/A
530
CAP SCREW M8-1.25 X 40
Price
N/A
531
CARBIDE GUIDE MOUNTING BLOCK (LEFT)
532
BLADE GUARD (LEFT)
533
BLADE GUARD EXTENSION
534
Now: PW03M
FLAT WASHER 6MM
Price
N/A
535
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
536
Now: PW03M
FLAT WASHER 6MM
Price
N/A
537
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
538
BLADE GUARD (RIGHT)
540
SUPPORT VISE BASE
541
SUPPORT VISE BASE LOCK COLLAR
542
ADJUSTABLE HANDLE M8-1.25 X 40, 72L
543
Now: PW06M
FLAT WASHER 12MM
Price
N/A
544
ADJUSTABLE HANDLE M12-1.75 X 40, 83L
545
SET SCREW M8-1.25 X 15
Price
N/A
546
SUPPORT VISE JAW/GUIDE
547
SUPPORT VISE ADJUSTMENT SHAFT
548
SUPPORT VISE LEADSCREW SLEEVE
549
SET SCREW M8-1.25 X 10
Price
N/A
550
SUPPORT VISE LEADSCREW
551
BUSHING
552
SUPPORT VISE HANDLE HUB
553
ROLL PIN 5 X 25
Price
N/A
554
STANDOFF-ROUND FF M6-1, 150
555
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
601

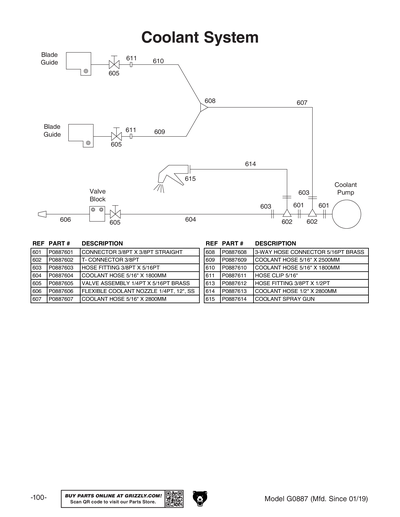

CONNECTOR 3/8PT X 3/8PT STRAIGHT
602
T- CONNECTOR 3/8PT
603
HOSE FITTING 3/8PT X 5/16PT
604
COOLANT HOSE 5/16" X 1800MM
605
VALVE ASSEMBLY 1/4PT X 5/16PT BRASS
606
FLEXIBLE COOLANT NOZZLE 1/4PT, 12", SS
607
COOLANT HOSE 5/16" X 2800MM
608
3-WAY HOSE CONNECTOR 5/16PT BRASS
609
COOLANT HOSE 5/16" X 2500MM
610
COOLANT HOSE 5/16" X 1800MM
611
HOSE CLIP 5/16"
612
HOSE FITTING 3/8PT X 1/2PT
613
COOLANT HOSE 1/2" X 2800MM
614
COOLANT SPRAY GUN
701
CIRCUIT BOARD ASSEMBLY
Price
N/A
701-1
CIRCUIT BOARD ASSEMBLY
702
ELECTRONIC COUNTER GIKOKA EM 6R22
703
HEADSTOCK JOYSTICK SCHNEIDER 2D-PA103
704
BUTTON SWITCH NHD CB-10, PL-BA9 NLB22-F
705
E-STOP BUTTON KEDU HY57B
706
KEY SWITCH NHD CB-01 NSS22-K
707
CIRCUIT BOARD ASSEMBLY
Price
N/A
708
LIMIT SWITCH CANLIE AZD-1001T
709
LIMIT SWITCH SHINOZAKI AZD-1001T
710
BLADE SPEED SENSOR & SPEEDOMETER W/PCB
711
CIRCUIT BOARD ASSEMBLY
Price
N/A
712
POTENTIOMETER COSMOS RV24YN 20S
713
LIMIT SWITCH CANLIE AZD-S11
714
Now: PS79M
PHLP HD SCR M3-.5 X 8
Price
N/A
715
INT TOOTH WASHER 8MM
Price
N/A
716
Now: PN03M
HEX NUT M8-1.25
Price
N/A
717
PROXIMITY SENSOR TKT TM-0801NO
801
WIRING LOOM 1-1/4 X 1-3/4 X 14"
802
WIRING LOOM 1-1/4 X 1-3/4 X 13"
803
WIRING LOOM 1-3/4 X 1-3/4 X 20-1/2"
804
WIRING LOOM 1 X 1-3/4 X 13"
805
DIN RAIL 1-3/8 X 3/8 X 12"
806
DIN RAIL 1-3/8 X 3/8 X 12"
Price
N/A
807
DIN RAIL END CAP
808
POWER SWITCH ASSY ABB 0T25F3/YJ1/20 V1
808V2
POWER SWITCH ASSY NHD NDS-203G V2.03.24
809
CONTACTOR NHD C-06D10 24V
810
OL RELAY TECO RHU-10/1K1 .75-1A
811
CONTACTOR TECO CU-18 24V
812
OL RELAY TECO RHU-10/16K1 11.3-16A
813
FUSE HOLDER
814
FUSE 5A 250V CERAMIC 0.18"
815
Now: PS21M
PHLP HD SCR M4-.7 X 15
Price
N/A
816
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
817
GROUND TERMINAL 16-POLE 1-PIECE
818
TERMINAL BAR 1P
819
TERMINAL BAR 3P
820
TERMINAL BAR 2P
821
TERMINAL BAR 1P
822
TERMINAL BAR 16P
823
FUSE HOLDER WOHNER AES 10 X 38
824
FUSE 32A 250V CERAMIC 0.36"
825
***SEE EXT DESC***
Item is no longer available
Price
N/A
825V2
VFD DELTA VFD4A8MS23ANSAA V2.05.23
826
BRAKING RESISTOR 250W
827
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
828
TRANSFORMER 250VA 0/250V-24/200V
829
CIRCUIT BOARD RF500M 0904
829V2
CIRCUIT BOARD RF500MB V2.11.19
830
Now: PS79M
PHLP HD SCR M3-.5 X 8
Price
N/A
831
STRAIN RELIEF TYPE-3 1
832
POWER CORD 10G 4W 120"
833
OL RELAY TECO RHU-10/1K1 5.5-7.5A

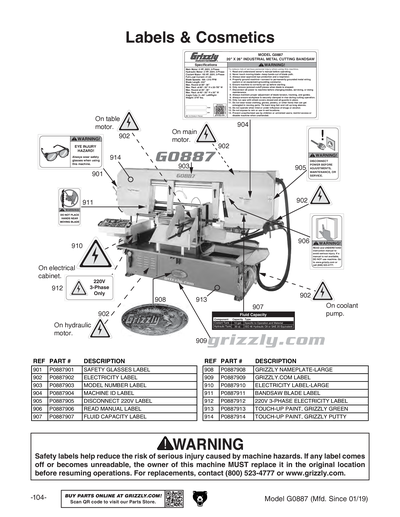

901
SAFETY GLASSES 3.8W X 2H
Price
N/A
902
ELECTRICITY 0.7W X 0.6H
Price
N/A
903
MODEL NUMBER LABEL
904
MACHINE ID LABEL
905
DISCONNECT 220V 2W X 3.3H
Price
N/A
906
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
907
FLUID CAPACITY LABEL
908
Now: G8589
Nameplate - Large
Price
N/A
909
GRIZZLY.COM LABEL 13.5",BEIGE
Price
N/A
910
ELECTRICITY 1.4W X 1.2H
Price
N/A
911
BANDSAW BLADE 1.5W X 2H
Price
N/A
912
220V 3-PHASE ELECTRICITY 2.8W X 1.5H
Price
N/A
913
N/S GRIZZLY GREEN G1023S
Price
N/A
914
GREY PUTTY REF G0504
Price
N/A
MAN
MANUAL G0887 MFD-01.19+ V1.11.21
