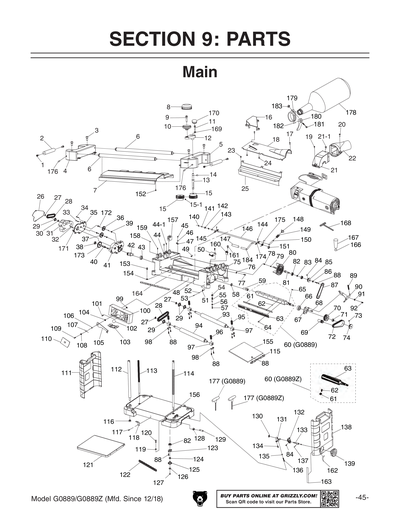

Parts for G0889 - 13" 2 HP Benchtop Planer

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

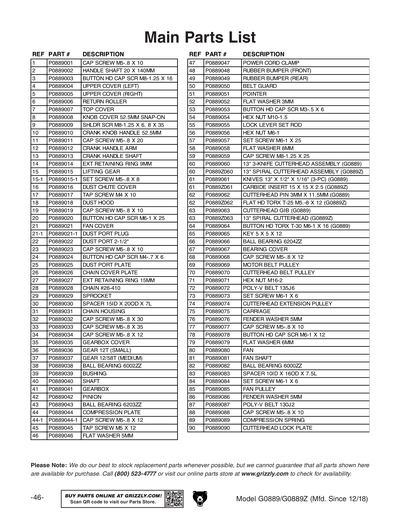

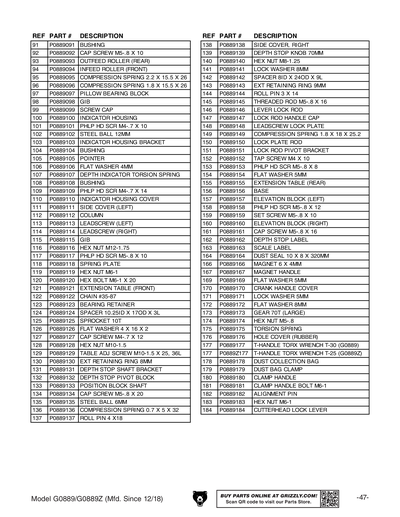

Ref # Part # Description Price Qty
1 P0889001
Replaced By PCAP50M
CAP SCREW M5-.8 X 10
N/A View Replacement
2 P0889002 HANDLE SHAFT 20 X 140MM $17.00
3 P0889003
Replaced By PBHS03M
BUTTON HD CAP SCR M8-1.25 X 16
N/A View Replacement
4 P0889004 UPPER COVER (LEFT) $15.00
5 P0889005 UPPER COVER (RIGHT) $15.75
6 P0889006 RETURN ROLLER $25.00
7 P0889007 TOP COVER $10.50
8 P0889008 KNOB COVER 52.5MM SNAP-ON $1.50
9 P0889009 SHLDR SCR M8-1.25 X 6, 8 X 35 $1.00
10 P0889010 CRANK KNOB HANDLE 52.5MM $2.75
11 P0889011
Replaced By PCAP15M
CAP SCREW M5-.8 X 20
N/A View Replacement
12 P0889012 CRANK HANDLE ARM $3.50
13 P0889013 CRANK HANDLE SHAFT $3.50
14 P0889014
Replaced By PR16M
EXT RETAINING RING 9MM
N/A View Replacement
15 P0889015 LIFTING GEAR $2.50
15-1 P0889015-1
Replaced By PSS31M
SET SCREW M5-.8 X 8
N/A View Replacement
16 P0889016 DUST CHUTE COVER $2.75
17 P0889017
Replaced By PHTEK15M
TAP SCREW M4 X 10
N/A View Replacement
18 P0889018 DUST HOOD $10.75
19 P0889019
Replaced By PCAP50M
CAP SCREW M5-.8 X 10
N/A View Replacement
20 P0889020
Replaced By PCAP118M
BUTTON HD CAP SCR M5-.8 X 20
N/A View Replacement
21 P0889021 FAN COVER $3.00
21-1 P0889021-1 DUST PORT PLUG $1.00
22 P0889022 DUST PORT 2-1/2" $3.25
23 P0889023
Replaced By PCAP50M
CAP SCREW M5-.8 X 10
N/A View Replacement
24 P0889024
Replaced By PBHS46M
BUTTON HD CAP SCR M4-.7 X 6
N/A View Replacement
25 P0889025 DUST PORT PLATE $8.75
26 P0889026 CHAIN COVER PLATE $1.00
27 P0889027
Replaced By PR05M
EXT RETAINING RING 15MM
N/A View Replacement
28 P0889028 CHAIN #26-410 $10.25
29 P0889029 SPROCKET $8.25
30 P0889030 SPACER 15ID X 20OD X 7L $1.00
31 P0889031 CHAIN HOUSING $2.50
32 P0889032
Replaced By PCAP95M
CAP SCREW M5-.8 X 30
N/A View Replacement
33 P0889033
Replaced By PCAP79M
CAP SCREW M5-.8 X 35
N/A View Replacement
34 P0889034
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
35 P0889035 GEARBOX COVER $4.25
36 P0889036 GEAR 12T (SMALL) $7.75
37 P0889037 GEAR 12/58T (MEDIUM) $8.25
38 P0889038
Replaced By P6002ZZ
BALL BEARING 6002ZZ
N/A View Replacement
39 P0889039 BUSHING $3.50
40 P0889040 SHAFT $3.25
41 P0889041 GEARBOX $6.00
42 P0889042 PINION $5.25
43 P0889043
Replaced By P6203ZZ
BALL BEARING 6203ZZ
N/A View Replacement
44 P0889044 COMPRESSION PLATE $1.50
44-1 P0889044-1
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
45 P0889045
Replaced By PHTEK37M
TAP SCREW M5 X 12
N/A View Replacement
46 P0889046
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
47 P0889047 POWER CORD CLAMP $1.00
48 P0889048 RUBBER BUMPER (FRONT) $1.00
49 P0889049 RUBBER BUMPER (REAR) $1.00
50 P0889050 BELT GUARD $1.00
51 P0889051 POINTER $1.00
52 P0889052
Replaced By PW07M
FLAT WASHER 3MM
N/A View Replacement
53 P0889053
Replaced By P0832053
BUTTON HD CAP SCR M3-.5 X 6
N/A View Replacement
54 P0889054
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
55 P0889055 LOCK LEVER SET ROD $1.25
56 P0889056
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
57 P0889057
Replaced By PSS12M
SET SCREW M6-1 X 25
N/A View Replacement
58 P0889058
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
59 P0889059
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
60A P0889060A 13" 3-KNIFE CUTTERHEAD ASSEMBLY $56.50
61 P0889061 KNIVES 13" X 1/2" X 1/16" (3-PC) $56.75
62 P0889062 CUTTERHEAD PIN 3MM X 11.5MM $1.00
63 P0889063 CUTTERHEAD GIB $21.75
64 P0889064 BUTTON HD TORX T-30 M6-1 X 16 $1.00
65 P0889065
Replaced By PK10M
KEY 5 X 5 X 12
N/A View Replacement
66 P0889066
Replaced By P6204ZZ
BALL BEARING 6204ZZ
N/A View Replacement
67 P0889067 BEARING COVER $1.50
68 P0889068
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
69 P0889069 MOTOR BELT PULLEY $3.75
70 P0889070 CUTTERHEAD BELT PULLEY $9.00
71 P0889071
Replaced By PN13M
HEX NUT M16-2
N/A View Replacement
72 P0889072
Replaced By P0505026
RIBBED BELT 135J6 14 X 346MM
N/A View Replacement
73 P0889073
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
74 P0889074 CUTTERHEAD EXTENSION PULLEY $4.25
75 P0889075 CARRIAGE $66.25
76 P0889076
Replaced By PWF05M
FENDER WASHER 5MM
N/A View Replacement
77 P0889077
Replaced By PCAP50M
CAP SCREW M5-.8 X 10
N/A View Replacement
78 P0889078
Replaced By PBHS09M
BUTTON HD CAP SCR M6-1 X 12
N/A View Replacement
79 P0889079
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
80 P0889080 FAN $3.50
81 P0889081 FAN SHAFT $2.00
82 P0889082
Replaced By P6000ZZ
BALL BEARING 6000ZZ
N/A View Replacement
83 P0889083 SPACER 10ID X 16OD X 7.5L $1.00
84 P0889084
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
85 P0889085 FAN PULLEY $3.00
86 P0889086
Replaced By PWF05M
FENDER WASHER 5MM
N/A View Replacement
87 P0889087 POLY-V BELT 130J2 $1.75
88 P0889088
Replaced By PCAP50M
CAP SCREW M5-.8 X 10
N/A View Replacement
89 P0889089 COMPRESSION SPRING $1.00
90 P0889090 CUTTERHEAD LOCK PLATE $3.75
91 P0889091 BUSHING $1.00
92 P0889092
Replaced By PCAP50M
CAP SCREW M5-.8 X 10
N/A View Replacement
93 P0889093 OUTFEED ROLLER (REAR) $29.75
94 P0889094 INFEED ROLLER (FRONT) $29.75
95 P0889095 COMPRESSION SPRING 2.2 X 15.5 X 26 $1.00
96 P0889096 COMPRESSION SPRING 1.8 X 15.5 X 26 $1.00
97 P0889097 PILLOW BEARING BLOCK $10.00
98 P0889098 GIB $1.50
99 P0889099 SCREW CAP $1.00
100 P0889100 INDICATOR HOUSING $1.00
101 P0889101
Replaced By PS38M
PHLP HD SCR M4-.7 X 10
N/A View Replacement
102 P0889102
Replaced By PSTB008M
STEEL BALL 12MM
N/A View Replacement
103 P0889103 INDICATOR HOUSING BRACKET $1.00
104 P0889104 BUSHING $1.00
105 P0889105 POINTER $1.25
106 P0889106
Replaced By PW05M
FLAT WASHER 4MM
N/A View Replacement
107 P0889107 DEPTH INDICATOR TORSION SPRING $1.00
108 P0889108 BUSHING $1.00
109 P0889109
Replaced By PS74M
PHLP HD SCR M4-.7 X 14
N/A View Replacement
110 P0889110 INDICATOR HOUSING COVER $1.00
111 P0889111 SIDE COVER (LEFT) $10.75
112 P0889112 COLUMN $40.25
113 P0889113 LEADSCREW (LEFT) $6.75
114 P0889114 LEADSCREW (RIGHT) $8.25
115 P0889115 GIB $3.25
116 P0889116
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
117 P0889117
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
118 P0889118 SPRING PLATE $1.25
119 P0889119
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
120 P0889120
Replaced By PB08M
HEX BOLT M6-1 X 20
N/A View Replacement
121 P0889121 EXTENSION TABLE (FRONT) $75.50
122 P0889122 CHAIN #35-87 $9.00
123 P0889123 BEARING RETAINER $1.00
124 P0889124 SPACER 10.25ID X 17OD X 3L $1.00
125 P0889125 SPROCKET 10T $3.50
126 P0889126 FLAT WASHER 4 X 16 X 2 $1.00
127 P0889127
Replaced By PCAP23M
CAP SCREW M4-.7 X 12
N/A View Replacement
128 P0889128
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
129 P0889129 TABLE ADJ SCREW M10-1.5 X 25, 36L $1.75
130 P0889130
Replaced By PR39M
EXT RETAINING RING 8MM
N/A View Replacement
131 P0889131 DEPTH STOP SHAFT BRACKET $5.50
132 P0889132 DEPTH STOP PIVOT BLOCK $2.75
133 P0889133 POSITION BLOCK SHAFT $1.00
134 P0889134
Replaced By PCAP15M
CAP SCREW M5-.8 X 20
N/A View Replacement
135 P0889135
Replaced By PSTB003M
STEEL BALL 6MM
N/A View Replacement
136 P0889136 COMPRESSION SPRING 0.7 X 5 X 32 $1.00
137 P0889137
Replaced By PRP01M
ROLL PIN 4 X 18
N/A View Replacement
138 P0889138 SIDE COVER (RIGHT) $11.25
139 P0889139 DEPTH STOP KNOB 70MM $1.75
140 P0889140
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
141 P0889141
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
142 P0889142 SPACER 8ID X 24OD X 9L $1.00
143 P0889143
Replaced By PR16M
EXT RETAINING RING 9MM
N/A View Replacement
144 P0889144
Replaced By PRP37M
ROLL PIN 3 X 14
N/A View Replacement
145 P0889145 THREADED ROD M5-.8 X 16 $1.00
146 P0889146
Replaced By P0889184
CUTTERHEAD LOCK LEVER AND ROD
N/A View Replacement
147 P0889147 LOCK ROD HANDLE CAP $1.00
148 P0889148 LEADSCREW LOCK PLATE $4.25
149 P0889149 COMPRESSION SPRING 1.8 X 18 X 25.2 $1.25
150 P0889150 LOCK PLATE ROD $7.25
151 P0889151 LOCK ROD PIVOT BRACKET $1.00
152 P0889152
Replaced By PHTEK15M
TAP SCREW M4 X 10
N/A View Replacement
153 P0889153
Replaced By PS05M
PHLP HD SCR M5-.8 X 8
N/A View Replacement
154 P0889154
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
155 P0889155 EXTENSION TABLE (REAR) $16.00
156 P0889156 BASE $48.50
157 P0889157 ELEVATION BLOCK (LEFT) $4.25
158 P0889158
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
N/A View Replacement
159 P0889159
Replaced By PSS05M
SET SCREW M5-.8 X 10
N/A View Replacement
160 P0889160 ELEVATION BLOCK (RIGHT) $1.75
161 P0889161
Replaced By PSS57M
SET SCREW M5-.8 X 20
N/A View Replacement
162 P0889162 DEPTH STOP LABEL $1.00
163 P0889163 SCALE LABEL $1.00
164 P0889164 DUST SEAL 10 X 8 X 320MM $1.00
166 P0889166 MAGNET 6 X 4MM $6.50
167 P0889167 MAGNET HANDLE $6.50
168 P0889168 T-HANDLE HEX WRENCH 4MM $9.00
169 P0889169
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
170 P0889170 CRANK HANDLE COVER $1.00
171 P0889171
Replaced By PLW01M
LOCK WASHER 5MM
N/A View Replacement
172 P0889172
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
173 P0889173 GEAR 70T (LARGE) $7.75
174 P0889174
Replaced By PN06M
HEX NUT M5-.8
N/A View Replacement
175 P0889175 TORSION SPRING $1.00
176 P0889176 HOLE COVER (RUBBER) $2.50
177 P0889177 T-HANDLE TORX WRENCH T-30 $9.00
178 P0889178 DUST COLLECTION BAG $26.25
179 P0889179 DUST BAG CLAMP $1.50
180 P0889180 CLAMP HANDLE $1.25
181 P0889181 CLAMP HANDLE BOLT M6-1 $1.00
182 P0889182 ALIGNMENT PIN $1.00
183 P0889183
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
184 P0889184 CUTTERHEAD LOCK LEVER AND ROD $10.25

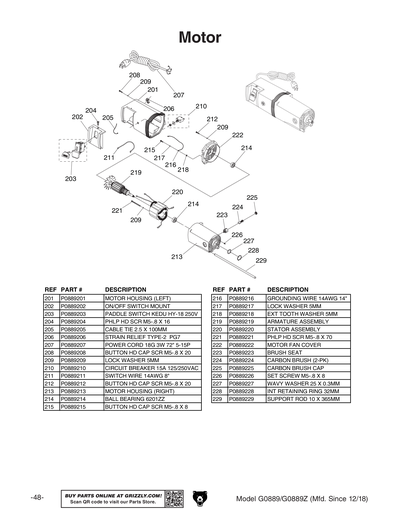

200 P0889200 MOTOR 2 HP 120V $102.00
201 P0889201 MOTOR HOUSING (LEFT) $8.50
202 P0889202 ON/OFF SWITCH MOUNT $3.75
203 P0889203 PADDLE SWITCH KEDU HY-18 250V $7.25
204 P0889204
Replaced By PS40M
PHLP HD SCR M5-.8 X 16
N/A View Replacement
205 P0889205 CABLE TIE 2.5 X 100MM $1.00
206 P0889206 STRAIN RELIEF TYPE-2 PG7 $1.00
207 P0889207 POWER CORD 18G 3W 72" 5-15P $20.25
208 P0889208
Replaced By PCAP118M
BUTTON HD CAP SCR M5-.8 X 20
N/A View Replacement
209 P0889209
Replaced By PLW01M
LOCK WASHER 5MM
N/A View Replacement
210 P0889210 CIRCUIT BREAKER 15A 125/250VAC $6.75
211 P0889211 SWITCH WIRE 14AWG 8" $1.25
212 P0889212
Replaced By PCAP118M
BUTTON HD CAP SCR M5-.8 X 20
N/A View Replacement
213 P0889213 MOTOR HOUSING (RIGHT) $53.00
214 P0889214
Replaced By P6201ZZ
BALL BEARING 6201ZZ
N/A View Replacement
215 P0889215
Replaced By PBHS38M
BUTTON HD CAP SCR M5-.8 X 8
N/A View Replacement
216 P0889216 GROUNDING WIRE 14AWG 14" $1.50
217 P0889217
Replaced By PLW01M
LOCK WASHER 5MM
N/A View Replacement
218 P0889218
Replaced By PTLW02M
EXT TOOTH WASHER 5MM
N/A View Replacement
219 P0889219 ARMATURE ASSEMBLY $7.00
220 P0889220 STATOR ASSEMBLY $7.25
221 P0889221
Replaced By P0832221
PHLP HD SCR M5-.8 X 70
N/A View Replacement
222 P0889222 MOTOR FAN COVER $3.00
223 P0889223 BRUSH SEAT $5.50
224 P0889224 CARBON BRUSH (2-PK) $5.75
225 P0889225 CARBON BRUSH CAP $1.00
226 P0889226
Replaced By PSS31M
SET SCREW M5-.8 X 8
N/A View Replacement
227 P0889227 WAVY WASHER 25 X 0.3MM $1.00
228 P0889228
Replaced By PR29M
INT RETAINING RING 32MM
N/A View Replacement
229 P0889229 SUPPORT ROD 10 X 365MM $2.75

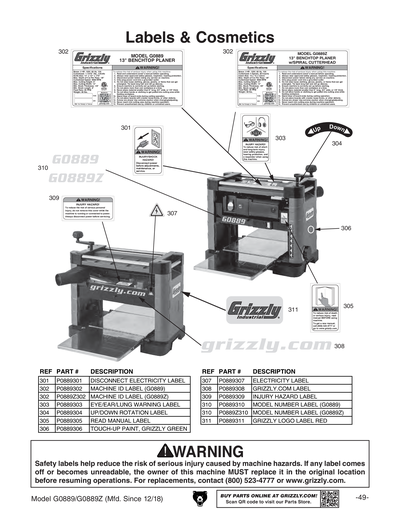

301 P0889301
Replaced By PLABEL-62A
DISCONNECT 110V 1.5W X 2.5H
N/A View Replacement
302 P0889302 MACHINE ID LABEL $9.50
303 P0889303
Replaced By PLABEL-90A
EYE/EAR/LUNG 1.5 X 2.5H
N/A View Replacement
304 P0889304 UP/DOWN ROTATION LABEL $1.00
305 P0889305
Replaced By PLABEL-12C
READ MANUAL 1.5W X 2.5H
N/A View Replacement
306 P0889306
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
N/A View Replacement
307 P0889307
Replaced By PLABEL-14A
ELECTRICITY 0.7W X 0.6H
N/A View Replacement
308 P0889308 GRIZZLY.COM LABEL $1.75
309 P0889309 INJURY HAZARD LABEL $1.00
310 P0889310 MODEL NUMBER LABEL $1.00
311 P0889311 GRIZZLY LOGO LABEL RED $3.75
MAN P0889MAN MANUAL G08889/G0889Z MFD-12.18+ V1.12.18 $18.50
