Parts for G0895 4' x 8' CNC Router

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

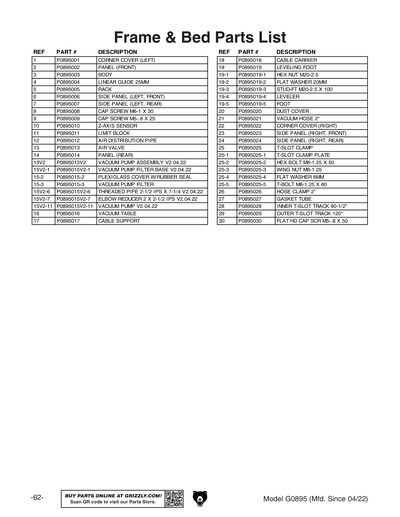

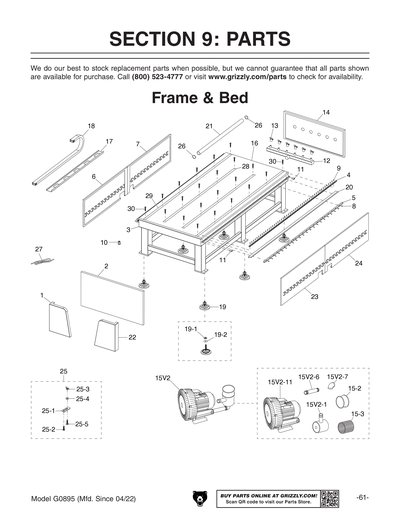

1
CORNER COVER (LEFT)
2
PANEL (FRONT)
3
BODY
4
LINEAR GUIDE 25MM
5
RACK
6
SIDE PANEL (LEFT, FRONT)
7
SIDE PANEL (LEFT, REAR)
8
CAP SCREW M6-1 X 30
Price
N/A
9
CAP SCREW M5-.8 X 25
Price
N/A
10
Z-AXIS SENSOR
11
LIMIT BLOCK
12
AIR DISTRIBUTION PIPE
13
AIR VALVE
14
PANEL (REAR)
15
VACUUM PUMP ASSEMBLY V1
15-1
VACUUM PUMP FILTER BASE V1
15-2
PLEXIGLASS COVER W/RUBBER SEAL
15-3
VACUUM PUMP FILTER
15-4
*DISCD*THREADED PIPE 1-1/2 IPS
Item is no longer available
Price
N/A
15-6
THREADED PIPE 2 IPS X 7-1/4 V1
15-7
ELBOW FITTING 90 DEG V1
15V2
VACUUM PUMP ASSEMBLY V2.04.22
15V2-1
VACUUM PUMP FILTER BASE V2.04.22
15V2-11
VACUUM PUMP V2.04.22
15V2-6
THREADED PIPE 2-1/2 IPS X 7-1/4 V2.04.22
15V2-7
ELBOW REDUCER 2 X 2-1/2 IPS V2.04.22
16
VACUUM TABLE
17
CABLE SUPPORT
18
CABLE CARRIER
19
LEVELING FOOT
19-1
Now: PN28M
HEX NUT M20-2.5
Price
N/A
19-2
Now: PW13M
FLAT WASHER 20MM
Price
N/A
19-3
LEVELING FOOT
Price
N/A
19-4
LEVELING FOOT
Price
N/A
19-5
LEVELING FOOT
Price
N/A
20
DUST COVER
21
VACUUM HOSE 2"
22
CORNER COVER (RIGHT)
23
SIDE PANEL (RIGHT, FRONT)
24
SIDE PANEL (RIGHT, REAR)
25
T-SLOT CLAMP
25-1
T-SLOT CLAMP PLATE
25-2
Now: PB22M
HEX BOLT M8-1.25 X 50
Price
N/A
25-3
WING NUT M8-1.25
Price
N/A
25-4
Now: PW01M
FLAT WASHER 8MM
Price
N/A
25-5
T-BOLT M8-1.25 X 80
Price
N/A
26
HOSE CLAMP 2"
27
GASKET TUBE
28
INNER T-SLOT TRACK 90-1/2"
29
OUTER T-SLOT TRACK 120"
30
FLAT HD CAP SCR M5-.8 X 50

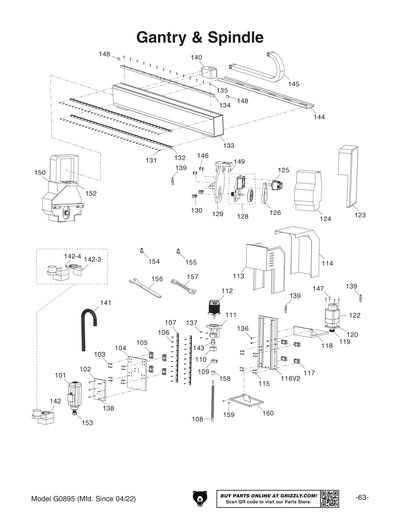

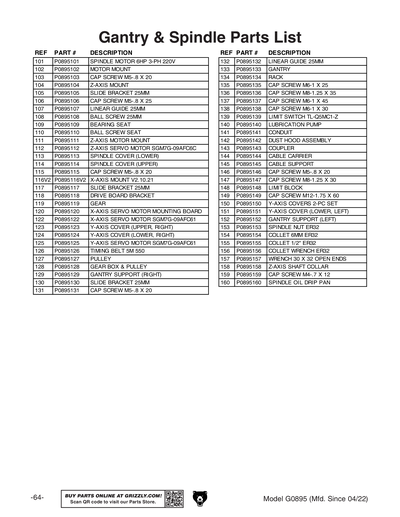

101
SPINDLE MOTOR 6HP 3-PH 220V
101-1
SPINDLE MOTOR FAN
102
MOTOR MOUNT
103
CAP SCREW M5-.8 X 20
Price
N/A
104
Z-AXIS MOUNT
105
SLIDE BRACKET 25MM
106
CAP SCREW M5-.8 X 25
Price
N/A
107
LINEAR GUIDE 25MM
108
BALL SCREW 25MM
109
BEARING SEAT
110
BALL SCREW SEAT
111
Z-AXIS MOTOR MOUNT
112
Z-AXIS SERVO MOTOR SGM7G-09AFC6C
112V2
Z-AXIS MOTOR SGMXG-09AUA6CC2 V2.09.23
113
SPINDLE COVER (LOWER)
114
SPINDLE COVER (UPPER)
115
CAP SCREW M5-.8 X 20
Price
N/A
116
X-AXIS MOUNT V1
116V2
X-AXIS MOUNT V2.10.21
117
SLIDE BRACKET 25MM
118
DRIVE BOARD BRACKET
119
GEAR
120
X-AXIS SERVO MOTOR MOUNTING BOARD
122
X-AXIS SERVO MOTOR SGM7G-09AFC61
122V2
X-AXIS MOTOR SGMXG-09AUA61C2 V2.09.23
123
Y-AXIS COVER (UPPER, RIGHT)
124
Y-AXIS COVER (LOWER, RIGHT)
125
X-AXIS SERVO MOTOR SGM7G-09AFC61
Price
N/A
126
TIMING BELT 5M 590
127
GEAR BOX & PULLEY
Price
N/A
128
GEAR BOX & PULLEY
129
GANTRY SUPPORT (RIGHT)
130
SLIDE BRACKET 25MM
131
CAP SCREW M5-.8 X 20
Price
N/A
132
LINEAR GUIDE 25MM
133
GANTRY
134
RACK
135
CAP SCREW M6-1 X 25
Price
N/A
136
CAP SCREW M8-1.25 X 35
Price
N/A
137
CAP SCREW M6-1 X 45
Price
N/A
138
CAP SCREW M6-1 X 30
Price
N/A
139
PROXIMITY SWITCH OMRON TL-Q5MC1
Price
N/A
140
LUBRICATION PUMP
141
CONDUIT
142
DUST HOOD ASSEMBLY
142-1
DUST HOOD ASSEMBLY
Price
N/A
142-2
DUST HOOD ASSEMBLY
Price
N/A
142-3
CAP SCREW M5-.8 X 30
Price
N/A
142-4
Now: PN06M
HEX NUT M5-.8
Price
N/A
143
COUPLER
144
CABLE CARRIER
145
CABLE CARRIER
Price
N/A
146
CAP SCREW M5-.8 X 20
Price
N/A
147
CAP SCREW M8-1.25 X 30
Price
N/A
148
LIMIT BLOCK
149
CAP SCREW M12-1.75 X 60
Price
N/A
150
Y-AXIS COVERS 2-PC SET
151
Y-AXIS COVERS 2-PC SET
Price
N/A
152
GANTRY SUPPORT (LEFT)
153
SPINDLE NUT ER32
154
COLLET 1/4" ER32
155
COLLET 1/2" ER32
156
COLLET WRENCH ER32
157
WRENCH 30 X 32 OPEN ENDS
158
Z-AXIS SHAFT COLLAR
159
CAP SCREW M4-.7 X 12
Price
N/A
160
SPINDLE OIL DRIP PAN
201

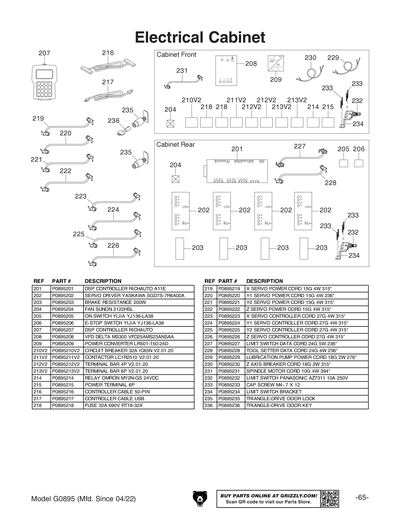

DSP CONTROLLER RICHAUTO A11E SYSTEM CARD
202
SERVO CONTROLLER YASKAWA SGD7S-7R6A00A
202V2
SERVOPACK YASKAWA SGDXS-7R6A00A V2.07.23
203
BRAKE RESISTANCE 200W
204
FAN SUNON 2122HSL
205
ON SWITCH YIJIA YJ136-LA38
206
E-STOP SWITCH YIJIA YJ136-LA38
207
DSP CONTROLLER RICHAUTO A11X-10
Price
N/A
208
VFD DELTA MS300 VFD25AMS23ANSAA
209
POWER CONVERTER LRS01-150-24D
210
CIRCUIT BREAKER 63A IC65N V1
210V2
CIRCUIT BREAKER 32A IC65N V2.01.20
211
CONTACTOR LC1D25G7 120V V1
211V2
CONTACTOR LC1R2510 V2.01.20
212
TERMINAL BAR 8P V1
212V2
TERMINAL BAR 4P V2.01.20
213
TERMINAL BAR 4P V1
213V2
TERMINAL BAR 6P V2.01.20
214
RELAY OMRON MY2N-GS 24VDC
215
POWER TERMINAL 6P
216
CONTROLLER CABLE 50-PIN
217
CONTROLLER CABLE USB
218
FUSE 32A 690A RT18-32X
219
X SERVO POWER CORD 15G 4W 315"
220
Y1 SERVO POWER CORD 15G 4W 236"
221
X SERVO POWER CORD 15G 4W 315"
Price
N/A
222
X SERVO POWER CORD 15G 4W 315"
Price
N/A
223
X SERVO CONTROLLER CORD 27G 4W 315"
224
Y1 SERVO CONTROLLER CORD 27G 4W 315"
225
Y2 SERVO CONTROLLER CORD 27G 4W 315"
226
Z SERVO CONTROLLER CORD 27G 4W 315"
227
LIMIT SWITCH DATA CORD 24G 5W 236"
228
TOOL SETTER DATA CORD 24G 4W 236"
229
LUBRICATION PUMP POWER CORD 18G 2W 276"
230
Z AXIS BREAKER CORD 18G 2W 315"
231
SPINDLE MOTOR CORD 10G 4W 394"
232
LIMIT SWITCH PANASONIC AZ7311 10A 250V
Price
N/A
233
CAP SCREW M4-.7 X 12
Price
N/A
234
LIMIT SWITCH BRACKET
235
TRIANGLE-DRIVE DOOR LOCK
236
TRIANGLE-DRIVE DOOR KEY
237
X SERVO INPUT CORD 18G 6W 18"
238
Y1 Y2 SERVO INPUT CORD 18G 12W 18"
239
X SERVO INPUT CORD 18G 6W 18"
Price
N/A

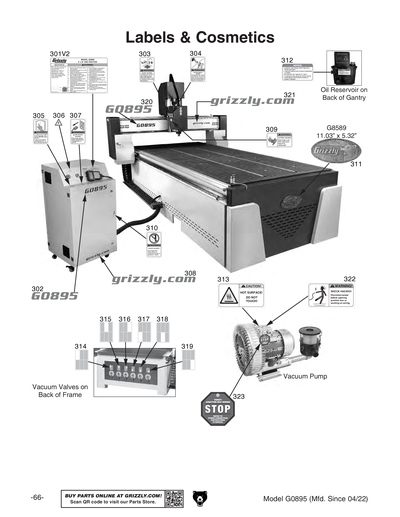

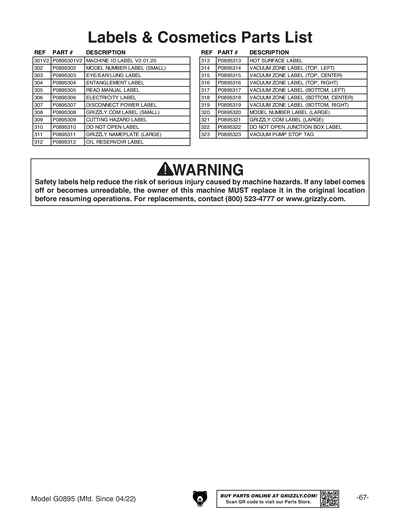

301
MACHINE ID LABEL V1
301V2
MACHINE ID LABEL V2.01.20
302
MODEL NUMBER LABEL (SMALL)
303
EYE/EAR/LUNG 1.5W X 2.5H
Price
N/A
304
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
305
READ MANUAL 1.5W X 2.5H
Price
N/A
306
ELECTRICITY 0.7W X 0.6H
Price
N/A
307
DISCONNECT HARDWIRED POWER 1.5W X 2.5H
Price
N/A
308
GRIZZLY.COM LABEL 16",GREEN
Price
N/A
309
CUTTING HAZARD LABEL
310
DO NOT OPEN LABEL
311
Now: G8589
Nameplate - Large
Price
N/A
312
OIL RESERVOIR LABEL
313
HOT SURFACE LABEL
314
VACUUM ZONE LABEL (TOP, LEFT)
315
VACUUM ZONE LABEL (TOP, CENTER)
316
VACUUM ZONE LABEL (TOP, RIGHT)
317
VACUUM ZONE LABEL (BOTTOM, LEFT)
318
VACUUM ZONE LABEL (BOTTOM, CENTER)
319
VACUUM ZONE LABEL (BOTTOM, RIGHT)
320
MODEL NUMBER LABEL (LARGE)
321
GRIZZLY.COM LABEL 13",GREEN
Price
N/A
322
DO NOT OPEN JUNCTION BOX LABEL
323
VACUUM PUMP STOP TAG
MAN
MANUAL G0895 MFD 07.19-12.19 V1.11.19
MAN2
MANUAL G0895 MFD 01.20+ V2.03.20
MANV3
MANUAL G0895 MFD 04.22+ V3.11.22
