Parts for G0898 - 2" x 48" 2-Wheel Belt Grinder/Sander

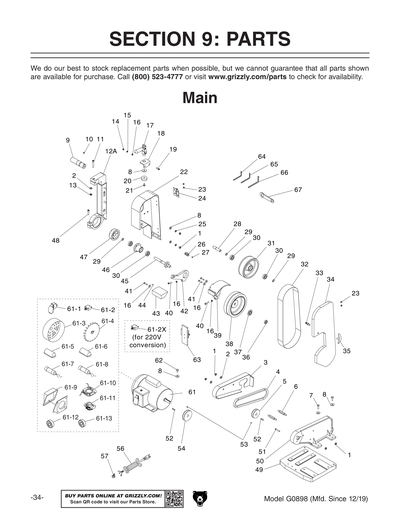

Part Diagram for G0898
Part Diagram for G0898
Part Diagram for G0898
Part Diagram for G0898
Part Diagram for G0898
Part Diagram for G0898

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

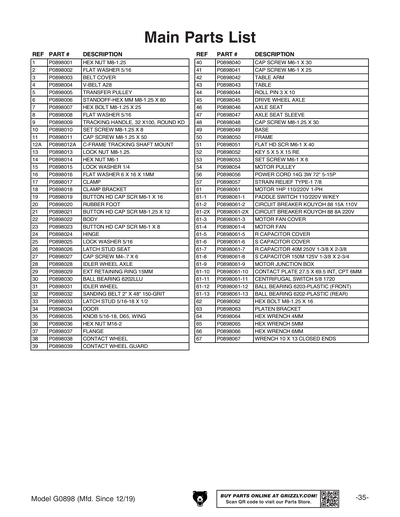

Ref #
Part #
Description
1
P0898001
Now: PN03
HEX NUT 3/4-16
Price
N/A
2
P0898002
Now: PW07
FLAT WASHER 5/16
Price
N/A
3
BELT COVER
Price
$119.90
4
V-BELT A28
Price
N/A
5
TRANSFER PULLEY
Price
$41.10
6
STANDOFF-HEX MM M8-1.25 X 80
Price
$8.50
7
HEX BOLT M8-1.25 X 25
Price
N/A
8
P0898008
Now: PW07
FLAT WASHER 5/16
Price
N/A
9
TRACKING HANDLE, 32 X 100, ROUND KD
Price
$55.55
10
SET SCREW M8-1.25 X 8
Price
N/A
11
CAP SCREW M8-1.25 X 50
Price
N/A
12A
C-FRAME TRACKING SHAFT MOUNT
Price
$441.40
13
LOCK NUT M8-1.25
Price
N/A
14
HEX NUT M6-1
Price
N/A
15
LOCK WASHER 1/4
Price
N/A
16
FLAT WASHER 6 X 16 X 1MM
Price
$2.75
17
CLAMP
Price
$33.85
18
CLAMP BRACKET
Price
$10.30
19
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
20
RUBBER FOOT
Price
$7.00
21
BUTTON HD CAP SCR M8-1.25 X 12
Price
N/A
22
BODY
Price
$282.00
23
BUTTON HD CAP SCR M6-1 X 8
Price
N/A
24
HINGE
Price
$5.80
25
LOCK WASHER 5/16
Price
N/A
26
LATCH STUD SEAT
Price
$4.85
27
CAP SCREW M4-.7 X 6
Price
N/A
28
IDLER WHEEL AXLE
Price
$30.20
29
EXT RETAINING RING 15MM
Price
N/A
30
BALL BEARING 6202LLU
Price
$5.70
31
IDLER WHEEL
Price
$227.65
32
SANDING BELT 2" X 48" 150-GRIT
Price
$28.30
33
LATCH STUD 5/16-18 X 1/2
Price
$7.60
34
DOOR
Price
$218.60
35
KNOB 5/16-18, D65, WING
Price
$4.60
36
HEX NUT M16-2
Price
N/A
37
FLANGE
Price
$14.50
38
CONTACT WHEEL
Price
$652.05
39
CONTACT WHEEL GUARD
Price
$100.50
40
CAP SCREW M6-1 X 30
Price
N/A
41
CAP SCREW M6-1 X 25
Price
N/A
42
TABLE ARM
Price
$94.20
43
TABLE
Price
$53.80
44
ROLL PIN 3 X 10
Price
N/A
45
DRIVE WHEEL AXLE
Price
$119.00
46
AXLE SEAT
Price
$77.30
47
AXLE SEAT SLEEVE
Price
$80.95
48
CAP SCREW M8-1.25 X 30
Price
N/A
49
BASE
Price
$258.45
50
FRAME
Price
$276.55
51
FLAT HD SCR M6-1 X 40
Price
N/A
52
KEY 5 X 5 X 15 RE
Price
$2.45
53
SET SCREW M6-1 X 6
Price
N/A
54
MOTOR PULLEY
Price
$40.20
56
POWER CORD 14G 3W 72" 5-15P
Price
$35.05
57
STRAIN RELIEF TYPE-1 7/8
Price
$3.40
61
MOTOR 1HP 110/220V 1-PH
Price
$327.25
61-1
Safety Paddle Switch
Price
N/A
61-10
CONTACT PLATE 27.5 X 69.5 INT, CPT 6MM
Price
$19.95
61-11
CENTRIFUGAL SWITCH 5/8 1720
Price
$14.50
61-12
BALL BEARING 6203-PLASTIC (FRONT)
Price
$11.20
61-13
BALL BEARING 6202-PLASTIC (REAR)
Price
$10.65
61-2
CIRCUIT BREAKER KOUYOH 88 15A 110V
Price
$6.70
61-2X
CIRCUIT BREAKER KOUYOH 88 8A 220V
Price
$6.70
61-3
MOTOR FAN COVER
Price
$24.50
61-4
MOTOR FAN
Price
$12.75
61-5
R CAPACITOR COVER
Price
$7.25
61-6
S CAPACITOR COVER
Price
$7.25
61-7
R CAPACITOR 40M 250V 1-3/8 X 2-3/8
Price
$28.80
61-8
S CAPACITOR 150M 125V 1-3/8 X 2-3/4
Price
$13.40
61-9
INVERTER/CONTROLLER BOX V2.12.20
Price
N/A
62
HEX BOLT M8-1.25 X 16
Price
N/A
63
PLATEN BRACKET
Price
$131.65
64
HEX WRENCH 4MM
Price
N/A
65
HEX WRENCH 5MM
Price
N/A
66
HEX WRENCH 6MM
Price
N/A
67
WRENCH 10 X 13 CLOSED ENDS
Price
$4.60
101

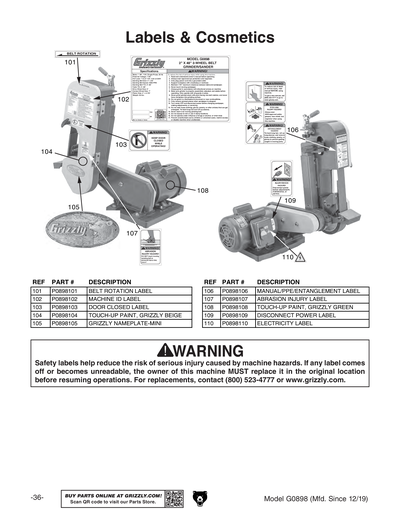

BELT ROTATION LABEL
Price
$2.65
102
MACHINE ID LABEL
Price
$16.40
103
DOOR CLOSED LABEL
Price
$4.25
104
LIGHT BEIGE REF G4003G
Price
N/A
105
Nameplate - Mini
Price
N/A
106
MANUAL/PPE/ENTANGLEMENT LABEL
Price
$4.25
107
ABRASION INJURY LABEL
Price
$4.25
108
N/S GRIZZLY GREEN G1023S
Price
N/A
109
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
110
ELECTRICITY 0.7W X 0.6H
Price
N/A
MAN
MANUAL G0898 MFD-12.19+ V1.01.20
Price
$15.00
