Parts for G0900 - 5 HP Deluxe Spindle Shaper

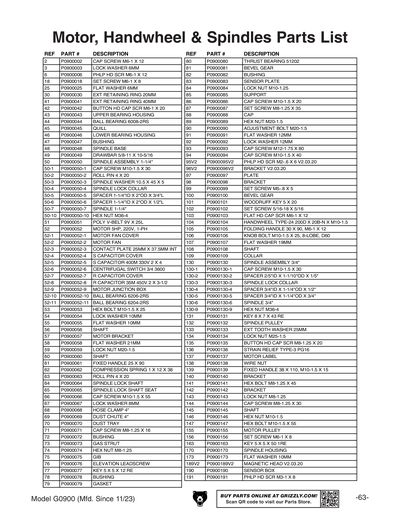

Part Diagram for G0900

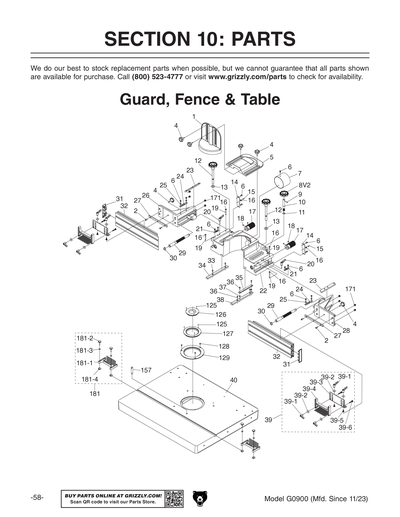

Part Diagram for G0900

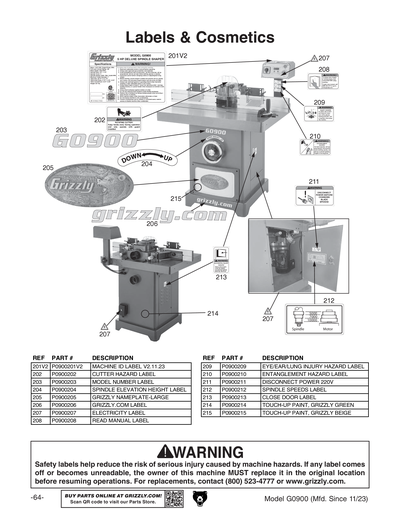

Part Diagram for G0900

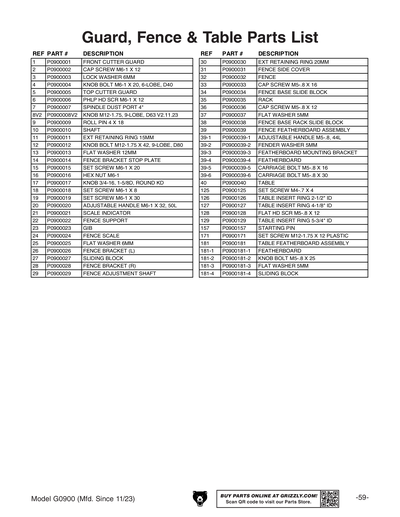

Part Diagram for G0900

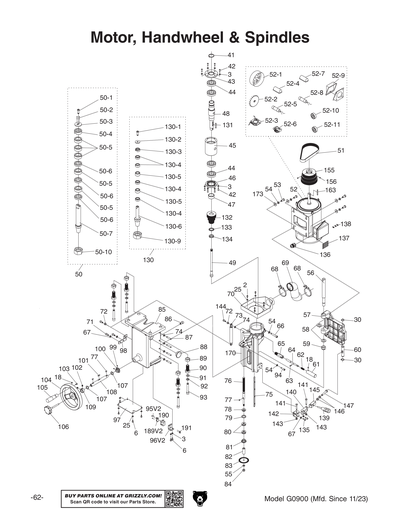

Part Diagram for G0900

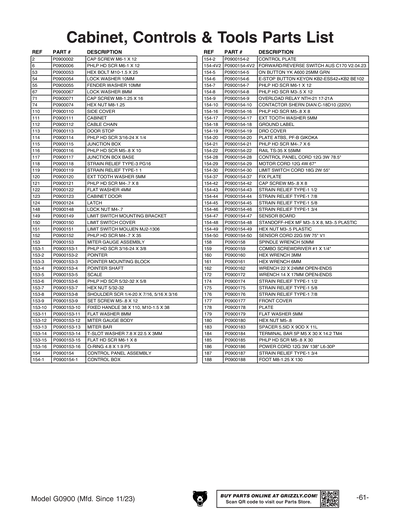

Part Diagram for G0900

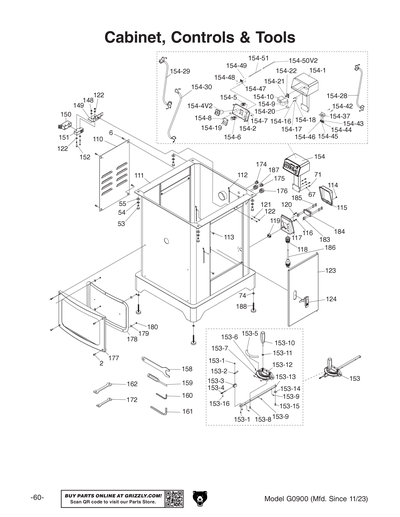

Part Diagram for G0900
Part Diagram for G0900
Part Diagram for G0900
Part Diagram for G0900
Part Diagram for G0900
Part Diagram for G0900
Part Diagram for G0900
Part Diagram for G0900

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
FRONT CUTTER GUARD
Price
$13.05
2
CAP SCREW M6-1 X 12
Price
N/A
3
LOCK WASHER 6MM
Price
N/A
4
KNOB BOLT M6-1 X 20, 6-LOBE, D40
Price
$1.85
5
TOP CUTTER GUARD
Price
$67.40
6
PHLP HD SCR M6-1 X 12
Price
N/A
7
SPINDLE DUST PORT 4"
Price
$10.90
8
***USE P0900008V2***
Price
$15.55
8V2
KNOB M12-1.75, 9-LOBE, D63 V2.11.23
Price
$16.30
9
ROLL PIN 4 X 18
Price
N/A
10
SHAFT
Price
$11.85
11
EXT RETAINING RING 15MM
Price
N/A
12
KNOB BOLT M12-1.75 X 42, 9-LOBE, D80
Price
$31.15
13
FLAT WASHER 12MM
Price
N/A
14
FENCE BRACKET STOP PLATE
Price
$2.20
15
SET SCREW M6-1 X 20
Price
N/A
16
HEX NUT M6-1
Price
N/A
17
KNOB 3/4-16, 1-5/8D, ROUND KD
Price
$21.20
18
SET SCREW M6-1 X 8
Price
N/A
19
SET SCREW M6-1 X 30
Price
N/A
20
ADJUSTABLE HANDLE M6-1 X 32, 50L
Price
$4.30
21
SCALE INDICATOR
Price
$1.60
22
FENCE SUPPORT
Price
$453.15
23
GIB
Price
$29.30
24
FENCE SCALE
Price
$2.20
25
FLAT WASHER 6MM
Price
N/A
26
FENCE BRACKET (L)
Price
$123.50
27
SLIDING BLOCK
Price
$22.05
28
FENCE BRACKET (R)
Price
$115.35
29
FENCE ADJUSTMENT SHAFT
Price
$10.90
30
EXT RETAINING RING 20MM
Price
N/A
31
FENCE SIDE COVER
Price
$1.60
32
FENCE
Price
$45.65
33
CAP SCREW M5-.8 X 16
Price
N/A
34
FENCE BASE SLIDE BLOCK
Price
$7.25
35
RACK
Price
$2.20
36
CAP SCREW M5-.8 X 12
Price
N/A
37
FLAT WASHER 5MM
Price
N/A
38
FENCE BASE RACK SLIDE BLOCK
Price
$9.40
39
FENCE FEATHERBOARD ASSEMBLY
Price
$27.55
39-1
ADJUSTABLE HANDLE M5-.8, 44L
Price
$4.85
39-2
FENDER WASHER 5MM
Price
N/A
39-3
FEATHERBOARD MOUNTING BRACKET
Price
$5.80
39-4
FEATHERBOARD
Price
$7.25
39-5
CARRIAGE BOLT M5-.8 X 16
Price
$1.60
39-6
CARRIAGE BOLT M5-.8 X 30
Price
$1.60
40
TABLE
Price
$1,213.90
41
EXT RETAINING RING 40MM
Price
N/A
42
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
43
BEARING RETAINING PLATE (UPPER)
Price
$16.05
44
BALL BEARING 6008-2RS
Price
N/A
45
QUILL
Price
$58.00
46
BEARING RETAINING PLATE (LOWER)
Price
$18.75
47
BUSHING
Price
$9.10
48
SPINDLE BASE
Price
$109.00
49
DRAWBAR 5/8-11 X 10-5/16
Price
$11.20
50
SPINDLE ASSEMBLY 1-1/4"
Price
$98.15
50-1
CAP SCREW M10-1.5 X 30
Price
N/A
50-10
HEX NUT M36-4
Price
$17.25
50-2
ROLL PIN 4 X 20
Price
N/A
50-3
SPINDLE WASHER 10.5 X 45 X 5
Price
$1.85
50-4
SPINDLE LOCK COLLAR
Price
$9.70
50-5
SPACER 1-1/4"ID X 2"OD X 3/4"L
Price
$5.15
50-6
SPACER 1-1/4"ID X 2"OD X 1/2"L
Price
$5.15
50-7
SPINDLE 1-1/4"
Price
$56.50
51
POLY V-BELT 9V X 25L
Price
$20.30
52
MOTOR 5HP, 220V, 1-PH
Price
$749.00
52-1
MOTOR FAN COVER
Price
N/A
52-10
BALL BEARING 6206-2RS
Price
N/A
52-11
BALL BEARING 6204-2RS
Price
N/A
52-2
MOTOR FAN
Price
$21.50
52-3
CONTACT PLATE 25MM X 37.5MM INT
Price
$14.25
52-4
S CAPACITOR COVER
Price
$11.20
52-5
S CAPACITOR 400M 330V 2 X 4
Price
$47.45
52-6
CENTRIFUGAL SWITCH 3/4 3600
Price
$23.90
52-7
R CAPACITOR COVER
Price
$11.20
52-8
R CAPACITOR 35M 450V 2 X 3-1/2
Price
N/A
52-9
MOTOR JUNCTION BOX
Price
$13.05
53
HEX BOLT M10-1.5 X 25
Price
N/A
54
LOCK WASHER 10MM
Price
N/A
55
FENDER WASHER 10MM
Price
N/A
56
MOTOR BRACKET PIVOT SHAFT
Price
$19.10
57
MOTOR BRACKET
Price
$85.50
58
FLAT WASHER 21MM
Price
$1.60
59
LOCK NUT M20-1.5
Price
$1.85
60
SHAFT
Price
$7.25
61
FIXED HANDLE 25 X 90
Price
$9.40
62
COMPRESSION SPRING 1 X 12 X 38
Price
$1.60
63
ROLL PIN 4 X 20
Price
N/A
64
SPINDLE LOCK SHAFT
Price
$5.50
65
SPINDLE LOCK SHAFT SEAT
Price
$13.30
66
CAP SCREW M10-1.5 X 55
Price
N/A
67
LOCK WASHER 8MM
Price
N/A
68
HOSE CLAMP 3"
Price
$2.60
69
DUST CHUTE 3" X 11-3/4"
Price
$10.30
70
DUST TRAY
Price
$33.55
71
CAP SCREW M8-1.25 X 16
Price
N/A
72
BUSHING
Price
$1.49
73
GAS STRUT
Price
$32.35
74
HEX NUT M8-1.25
Price
N/A
75
GIB
Price
$31.15
76
ELEVATION LEADSCREW
Price
$15.70
77
KEY 5 X 5 X 12 RE
Price
$1.60
78
BUSHING
Price
N/A
79
GASKET
Price
N/A
80
THRUST BEARING 51202
Price
N/A
81
LEFT BEVEL GEAR
Price
N/A
82
SPACER 10.8 X 20 X 50
Price
$3.65
83
SENSOR PLATE
Price
$10.00
84
LOCK NUT M10-1.25
Price
N/A
85
ELEVATION HOUSING
Price
$344.50
86
CAP SCREW M10-1.5 X 20
Price
N/A
87
SET SCREW M8-1.25 X 35
Price
N/A
88
CAP
Price
N/A
89
HEX NUT M20-1.5
Price
N/A
90
STANDOFF-HEX MF M20-1.5 X 44, M12-1.75
Price
$6.70
91
FLAT WASHER 12MM
Price
N/A
92
LOCK WASHER 12MM
Price
N/A
93
CAP SCREW M12-1.75 X 80
Price
N/A
94
CAP SCREW M10-1.5 X 40
Price
N/A
95
PHLP HD SCR M3-.5 X 8
Price
N/A
95V2
TAP SCREW M2 X 6 V2.03.20
Price
$1.60
96
BRACKET V1
Price
$8.50
96V2
BRACKET V2.03.20
Price
$1.60
97
ELEVATION HOUSING PLATE
Price
$2.20
98
GAS STRUT BRACKET
Price
$1.85
99
SET SCREW M5-.8 X 5
Price
N/A
100
BEVEL GEAR
Price
$16.70
101
WOODRUFF KEY 22 X 5
Price
N/A
102
SET SCREW 5/16-18 X 5/16
Price
N/A
103
FLAT HD CAP SCR M6-1 X 12
Price
N/A
104
HANDWHEEL TYPE-24 200D X 20B-N X M10-1.5
Price
$60.15
105
FOLDING HANDLE 30 X 90, M6-1 X 12
Price
$34.80
106
KNOB BOLT M10-1.5 X 25, 8-LOBE, D60
Price
$27.60
107
PLASTIC BUSHING 19MM ID
Price
N/A
108
HANDWHEEL SHAFT
Price
$13.05
109
COLLAR
Price
$2.75
110
SIDE COVER
Price
$33.25
111
CABINET
Price
$489.40
112
CHAIN
Price
N/A
113
PAD
Price
N/A
114
PHLP HD SCR 3/16-24 X 1/4
Price
$1.60
115
JUNCTION BOX COVER
Price
N/A
116
PHLP HD SCR M5-.8 X 10
Price
N/A
117
JUNCTION BOX COVER
Price
N/A
118
STRAIN RELIEF PG16 TYPE-6 ST
Price
N/A
119
STRAIN RELIEF TYPE-1 1
Price
$1.60
120
EXT TOOTH WASHER 5MM
Price
N/A
121
PHLP HD SCR M4-.7 X 8
Price
N/A
122
FLAT WASHER 4MM
Price
N/A
123
CABINET DOOR
Price
$42.00
124
LATCH
Price
$10.90
125
SET SCREW M4-.7 X 4
Price
N/A
126
TABLE INSERT RING 2-1/2" ID
Price
$20.30
127
TABLE INSERT RING 4-1/8" ID
Price
$28.75
128
FLAT HD SCR M5-.8 X 12
Price
N/A
129
TABLE INSERT RING 5-3/4" ID
Price
$38.40
130
SPINDLE ASSEMBLY 3/4"
Price
$92.75
130-1
CAP SCREW M10-1.5 X 30
Price
N/A
130-2
SPINDLE WASHER 10.1 X 28 X 5MM
Price
$2.20
130-3
SPINDLE LOCK COLLAR
Price
$13.05
130-4
SPACER 3/4"ID X 1-1/4"OD X 1/2"
Price
$2.75
130-5
SPACER 3/4"ID X 1-1/4"OD X 3/4"
Price
$2.75
130-6
SPINDLE 3/4"
Price
$34.80
130-9
HEX NUT M36-4
Price
$17.25
131
KEY 8 X 7 X 43 RE
Price
$1.85
132
SPINDLE PULLEY
Price
$41.10
133
EXT TOOTH WASHER 25MM BLACK
Price
N/A
134
BEARING RETAINING NUT M25-1.5
Price
$7.00
135
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
136
STRAIN RELIEF PG16 TYPE-6 ST
Price
N/A
137
MOTOR LABEL
Price
$1.35
138
WIRE NUT SW-P6H
Price
N/A
139
FIXED HANDLE 38 X 110, M10-1.5 X 15
Price
$5.80
140
TENSION BRACKET
Price
$2.45
141
HEX BOLT M8-1.25 X 45
Price
N/A
142
BRACKET
Price
$1.85
143
LOCK NUT M8-1.25
Price
N/A
144
CAP SCREW M8-1.25 X 30
Price
N/A
145
TENSION BLOCK
Price
$7.25
146
HEX NUT M10-1.5
Price
N/A
147
HEX BOLT M10-1.5 X 55
Price
N/A
148
LOCK NUT M4-.7
Price
N/A
149
LIMIT SWITCH MOUNTING BRACKET
Price
$1.85
150
LIMIT SWITCH HOUSING
Price
N/A
151
LIMIT SWITCH MOUJEN MJ2-1306
Price
$15.70
152
PHLP HD SCR M4-.7 X 35
Price
N/A
153
MITER GAUGE ASSEMBLY
Price
N/A
153-1
PHLP HD SCR 3/16-24 X 3/8
Price
$1.60
153-10
FIXED HANDLE 38 X 110, M10-1.5 X 38
Price
$7.90
153-11
FLAT WASHER 8MM
Price
N/A
153-12
MITER GAUGE BODY
Price
$16.65
153-13
MITER BAR
Price
$19.95
153-14
T-SLOT WASHER 7.8 X 22.5 X 3MM
Price
$1.60
153-15
FLAT HD SCR M6-1 X 8
Price
N/A
153-16
O-RING 4.8 X 1.9 P5
Price
N/A
153-2
POINTER
Price
N/A
153-3
BLOCK
Price
N/A
153-4
SHAFT
Price
N/A
153-5
MITER GAUGE SCALE
Price
N/A
153-6
PHLP HD SCR 5/32-32 X 5/8
Price
$1.60
153-7
HEX NUT 5/32-32
Price
$1.60
153-8
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
153-9
SET SCREW M5-.8 X 12
Price
N/A
154
CONTROL PANEL ASSEMBLY
Price
$382.55
154-1
CONTROL BOX
Price
$103.60
154-10
CONTACTOR SHERN DIAN C-18D10 (220V)
Price
$71.25
154-16
PHLP HD SCR M5-.8 X 8
Price
N/A
154-17
EXT TOOTH WASHER 5MM
Price
N/A
154-18
GROUND LABEL
Price
N/A
154-19
DIGITAL SENSOR COVER
Price
N/A
154-2
CONTROL PLATE
Price
$29.30
154-20
PLATE ATBS, PF-B GIKOKA
Price
$1.85
154-21
PHLP HD SCR M4-.7 X 6
Price
N/A
154-22
RAIL TS-35 X 55MM
Price
$5.15
154-28
CONTROL PANEL CORD 12G 3W 78.5"
Price
$21.50
154-29
MOTOR CORD 12G 4W 67"
Price
$27.55
154-30
LIMIT SWITCH CORD 18G 2W 55"
Price
$5.80
154-37
FIX PLATE
Price
$8.20
154-4
***SEE EXT DESC***
Item is no longer available
Price
N/A
154-42
CAP SCREW M5-.8 X 8
Price
N/A
154-43
STRAIN RELIEF TYPE-1 1/2
Price
$4.60
154-44
STRAIN RELIEF TYPE-1 7/8
Price
N/A
154-45
STRAIN RELIEF TYPE-1 5/8
Price
N/A
154-46
STRAIN RELIEF TYPE-1 5/8"
Price
N/A
154-47
SENSOR BOARD
Price
$60.15
154-48
STANDOFF-HEX MF M3-.5 X 8, M3-.5 PLASTIC
Price
$1.60
154-49
HEX NUT M3-.5 PLASTIC
Price
$1.60
154-4V2
FORWARD/REVERSE SWITCH AUS C170 V2.04.23
Price
$38.25
154-5
START SWITCH TE XB4-BA31
Price
N/A
154-50
SENSOR CORD 22G 5W 75" V1
Price
$12.10
154-50V2
SENSOR CORD 22G 5W 18" V2.03.20
Price
$1.60
154-51
SENSOR EXTENSION CORD 22G 5W 57"
Price
$1.60
154-6
E-STOP BUTTON KEYON KB2-ESS42+KB2 BE102
Price
$16.65
154-7
PHLP HD SCR M6-1 X 12
Price
N/A
154-8
PHLP HD SCR M3-.5 X 12
Price
N/A
154-9
OVERLOAD RELAY NTH-21 17-21A
Price
$38.40
155
MOTOR PULLEY
Price
$102.10
156
SET SCREW M6-1 X 8
Price
N/A
157
STARTING PIN
Price
$3.65
158
SPINDLE WRENCH 50MM
Price
$22.05
159
SCREWDRIVER PHLP/FLAT HEAD #1
Price
N/A
160
HEX WRENCH 3MM
Price
N/A
161
HEX WRENCH 6MM
Price
N/A
162
WRENCH 22 X 24MM OPEN-ENDS
Price
N/A
163
KEY 5 X 5 X 50 1RE
Price
$1.60
170
SPINDLE HOUSING
Price
$217.70
171
SET SCREW M12-1.75 X 12
Price
N/A
172
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
173
FENDER WASHER 10MM
Price
N/A
174
STRAIN RELIEF TYPE-1 1/2
Price
N/A
175
STRAIN RELIEF TYPE-1 5/8
Price
$1.60
176
STRAIN RELIEF TYPE-1 7/8
Price
$1.60
177
FRONT COVER
Price
$61.90
178
RIVING KNIFE V1
Price
N/A
179
FLAT WASHER 5MM
Price
N/A
180
HEX NUT M5-.8
Price
N/A
181
TABLE FEATHERBOARD ASSEMBLY
Price
$27.55
181-1
FEATHERBOARD
Price
N/A
181-2
KNOB BOLT M5-.8 X 25
Price
$1.60
181-3
FLAT WASHER 5MM
Price
N/A
181-4
SLIDING BLOCK
Price
$4.85
183
SPACER 5.5ID X 9OD X 11L
Price
$1.60
184
TERMINAL BAR 5P M5 X 30 X 14.2 TM4
Price
$4.85
185
PHLP HD SCR M5-.8 X 30
Price
N/A
186
POWER CORD 12G 3W 138" L6-30P
Price
$40.55
187
STRAIN RELIEF TYPE-1 5/8"
Price
N/A
188
FOOT M8-1.25 X 130
Price
$1.75
189
MAGNETIC HEAD V1
Price
$3.05
189V2
MAGNETIC HEAD V2.03.20
Price
$1.60
190
SENSOR BOX
Price
$1.60
191
PHLP HD SCR M3-1 X 8
Price
$1.60
201
MACHINE ID LABEL V1
Price
$16.40
201V2
MACHINE ID LABEL V2.11.23
Price
$10.95
202
CUTTER HAZARD LABEL
Price
$1.35
203
MODEL NUMBER LABEL
Price
$2.40
204
SPINDLE ELEVATION HEIGHT LABEL
Price
$1.25
205
Nameplate - Large
Price
N/A
206
GRIZZLY.COM LABEL
Price
$2.65
207
ELECTRICITY 0.7W X 0.6H
Price
N/A
208
READ MANUAL 2.8W X 1.5H
Price
N/A
209
EYE/EAR/LUNG 2.8W X 1.5H
Price
N/A
210
ENTANGLEMENT HAZARD 2.8W X 1.5H
Price
N/A
211
DISCONNECT POWER 220V
Price
$1.60
212
SPINDLE SPEEDS LABEL
Price
$1.35
213
CLOSE DOOR LABEL
Price
$1.35
214
N/S GRIZZLY GREEN G1023S
Price
N/A
215
LIGHT BEIGE REF G4003G
Price
N/A
MAN
MANUAL G0900 MFD-08.19-02.20 V1.08.19
Price
$20.00
MANV2
MANUAL G0900 MFD-03.20-03.20 V2.02.20
Price
$20.00
MANV3
MANUAL G0900 MFD-11.23+ V3.10.23
Price
$14.65
