Parts for G0913 63" x 39" CO2 Laser Cutter 100W Double Head

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

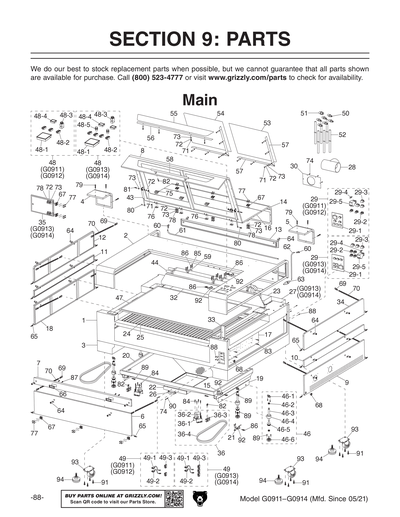

1
*DISCD*BODY FRAME
Item is no longer available
Price
N/A
2
*DISCD*UPPER FRAME
Item is no longer available
Price
N/A
3
*DISCD*BASE FRAME
Price
N/A
4
*DISCD*LASER TUBE COVER (LEFT)
Price
N/A
5
*DISCD*LASER TUBE COVER (RIGHT)
Price
N/A
6
*DISCD*FRONT ACCESS DOOR
Price
N/A
7
*DISCD*FRONT LOADING DOOR
Price
N/A
8
*DISCD*TOP LOADING DOOR
Price
N/A
9
*DISCD*ELECTRICAL COMPARTMENT DOOR
Price
N/A
10
*DISCD*SIDE LOADING DOOR (RIGHT)
Price
N/A
11
*DISCD*SIDE LOADING DOOR (LEFT)
Price
N/A
12
*DISCD*UPPER ACCESS DOOR (LEFT)
Price
N/A
13
*DISCD*REAR LOADING DOOR
Price
N/A
14
*DISCD*LASER TUBE ACCESS DOOR
Price
N/A
15
*DISCD*UPER LIMIT SWITCH MOUNTING BRCKET
Price
N/A
16
*DISCD*TOP LOADING DOOR TRIM
Price
N/A
17
*DISCD*ELECTRICAL MOUNTING BOARD
Price
N/A
18
*DISCD*LOWER ACCESS DOOR (LEFT)
Price
N/A
19
*DISCD*TABLE SUPPORT BRACKET
Price
N/A
20
*DISCD*TABLE SUPPORT
Price
N/A
21
*DISCD*LWER LIMIT SWITCH MOUNTING BRACKT
Price
N/A
22
*DISCD*TABLE COLLECTION TRAY
Price
N/A
23
*DISCD*LASER TUBE PLATFORM
Price
N/A
24
*DISCD*TABLE BLADE CRADLE
Price
N/A
25
*DISCD*TABLE BLADE
Price
N/A
26
*DISCD*TRAY PULL HANDLE
Price
N/A
27
*DISCD*POWER COMPARTMENT
Item is no longer available
Price
N/A
28
*DISCD*EXHAUST PORT ADAPTER 6"
Price
N/A
29
*DISCD*POWER CONNECTION ASSEMBLY
Item is no longer available
Price
N/A
29-1
*DISCD*POWER CONNECTION PANEL
Item is no longer available
Price
N/A
29-2
*DISCD*PWR RECEPTACLE NEMA 5-15 125V 15A
Price
N/A
29-3
*DISCD*POWER RECEPTACLE IEC C14 250V 10A
Price
N/A
29-4
*DISCD*EARTH GROUND POST
Price
N/A
29-5
*DISCD*CIRCUT BREAKR DELIXI DZ47SLE 230V
Price
N/A
30
*DISCD*EXHAUST PORT PANEL 6"
Price
N/A
32
*DISCD*CABINET DIVIDER
Price
N/A
33
*DISCD*CABLE GUARD
Price
N/A
34
*DISCD*UPPER ACCESS DOOR (RIGHT)
Price
N/A
35
*DISCD*POWER COMPARTMENT DOOR
Item is no longer available
Price
N/A
36
*DISCD*Z-AXIS TABLE LIFT ASSEMBLY
Price
N/A
36-1
*DISCD*STEPPER MOTOR MOUNTING BRACKET
Price
N/A
36-2
*DISCD*STEPER MOTOR CWM 86BHH76-320A-27A
Price
N/A
36-3
*DISCD*Z-AXIS BELT TENSIONER
Price
N/A
36-4
*DISCD*Z-AXIS SYNCHRONOUS BELT 1800-3M
Price
N/A
43
*DISCD*GAS STRUT 800N
Price
N/A
44
*DISCD*LASER TUBE 100W
Price
N/A
46
*DISCD*LEADSCREW ASSEMBLY
Price
N/A
46-1
*DISCD*LEADSCREW MOUNT (UPPER)
Price
N/A
46-2
BALL BEARING 6200-2RS
Price
N/A
46-3
*DISCD*LEADSCREW
Price
N/A
46-4
*DISCD*LEADSCREW NUT
Price
N/A
46-5
*DISCD*LEADSCREW PULLEY
Price
N/A
46-6
*DISCD*LEADSCREW MOUNT (LOWER)
Price
N/A
47
*DISCD*HONEYCOMB TABLE 39" X 63"
Price
N/A
48
*DISCD*UPPER CONTROLS ASSEMBLY
Item is no longer available
Price
N/A
48-1
*DISCD*CONTROL PANEL RUIDA RDC6442S-B
Price
N/A
48-2
*DISCD*ROCKER SWITCH CQC KDC4 30A 250V
Price
N/A
48-3
*DISCD*E-STP BUTON YIJIA YJ139-LA38 22MM
Price
N/A
48-4
*DISCD*AMP METER UXCELL 85C17 50MA
Price
N/A
48-5
*DISCD*ROTARY DIAL SWITCH
Item is no longer available
Price
N/A
49
*DISCD*LOWER CONTROLS ASSEMBLY
Item is no longer available
Price
N/A
49-1
*DISCD*PANEL-MOUNT ETHERNET CRD RJ45 36"
Price
N/A
49-2
*DISCD*PANEL-MOUNT USB 2.0 CORD 36"
Price
N/A
49-3
*DISCD*ROCKER SWITCH CQC KDC4 30A 250V
Price
N/A
50
*DISCD*TUBE FITTING 10MM STRAIGHT BR
Price
N/A
51
*DISCD*CHILLER SIGNAL RECEPTACLE
Price
N/A
52
*DISCD*SILICONE TUBING 8ID X 11OD X 1800
Price
N/A
53
*DISCD*RIGHT ACRYLIC SAFETY WINDOW
Price
N/A
54
*DISCD*LEFT ACRYLIC SAFETY WINDOW
Price
N/A
55
*DISCD*FRONT ACRYLIC SAFETY WINDOW
Price
N/A
56
*DISCD*FRONT WINDOW BRACKET
Price
N/A
57
*DISCD*TOP WINDOW BRACKET
Price
N/A
58
*DISCD*LOADING DOOR HANDLE
Price
N/A
59
*DISCD*LASER TUBE SADDLE
Price
N/A
60
*DISCD*HIGH VOLTAGE TERMINAL LUG
Price
N/A
61
*DISCD*CATHODE CABLE 16G 1W 120"
Price
N/A
62
*DISCD*HIGH VOLTAGE CABLE 7W, 4.2X3050MM
Price
N/A
63
*DISCD*HIGH VOLTAGE CONNECTOR 22.6MM
Price
N/A
64
*DISCD*KEYED ALIKE CAM LOCK
Price
N/A
65
*DISCD*L-HANDLE SPRING PLUNGER
Price
N/A
66
*DISCD*RECESSED PULL HANDLE
Price
N/A
67
*DISCD*ACCESS DOOR HINGE
Price
N/A
68
*DISCD*RUBBER GROMMET 24MM
Price
N/A
69
*DISCD*DOOR SUPPORT CARIBINER
Price
N/A
70
*DISCD*STEEL CHAIN 1/8" X 1/4" X 12"
Price
N/A
71
Now: PN54M
ACORN NUT M5-.8
Price
N/A
72
LOCK WASHER 5MM
Price
N/A
73
Now: PW02M
FLAT WASHER 5MM
Price
N/A
74
BUTTON HD CAP SCR M4-.7 X 8
Price
N/A
75
*DISCD*LOADING DOOR HINGE
Price
N/A
76
Now: PN01M
HEX NUT M6-1
Price
N/A
77
FLAT HD SCR M5-.8 X 14
Price
N/A
78
Now: PN06M
HEX NUT M5-.8
Price
N/A
79
CAP SCREW M4-.7 X 12
Price
N/A
80
*DISCD*STRUT STUD M5-.8
Price
N/A
81
CAP SCREW M5-.8 X 16
Price
N/A
82
CAP SCREW M5-.8 X 14
Price
N/A
83
CAP SCREW M6-1 X 20
Price
N/A
84
CAP SCREW M6-1 X 10
Price
N/A
85
CAP SCREW M5-.8 X 25
Price
N/A
86
CAP SCREW M4-.7 X 14
Price
N/A
87
*DISCD*FLANGE SCREW M4-.7 X 14
Price
N/A
88
CAP SCREW M3-.5 X 10
Price
N/A
89
CAP SCREW M5-.8 X 10
Price
N/A
90
Now: PW05M
FLAT WASHER 4MM
Price
N/A
91
*DISCD*FLANGE BOLT M6-1 X 14
Price
N/A
92
*DISCD*LIMIT SWITCH HIGHLY VS10N021C2
Price
N/A
93
*DISCD*CASTER 4", SWIVEL
Price
N/A
94
*DISCD*FOOT PAD M24-2.5
Price
N/A
101

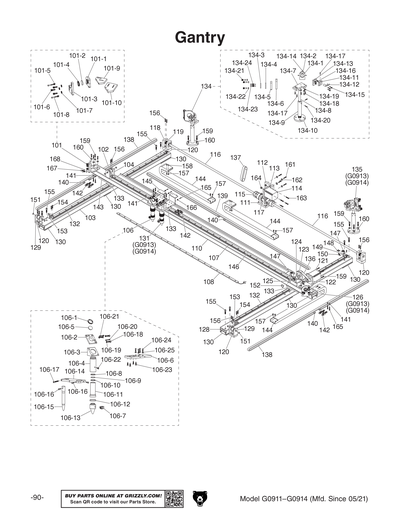

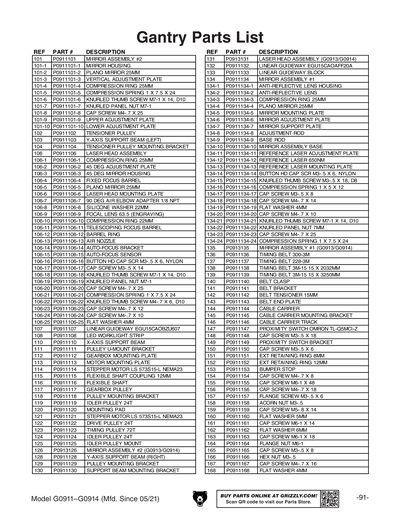

*DISCD*MIRROR ASSEMBLY #2
Price
N/A
101-1
*DISCD*MIRROR HOUSING
Price
N/A
101-10
*DISCD*LOWER ADJUSTMENT PLATE
Price
N/A
101-2
Replacement 25mm Mirror for G0874, G0912, G0914
Price
N/A
101-3
*DISCD*VERTICAL ADJUSTMENT PLATE
Price
N/A
101-4
*DISCD*COMPRESSION RING 25MM
Price
N/A
101-5
*DISCD*COMPRESSION SPRING 1 X 7.5 X 24
Price
N/A
101-6
*DISCD*KNURLED THUMB SCR M7-1 X 14, D10
Price
N/A
101-7
*DISCD*KNURLED PANEL NUT M7-1
Price
N/A
101-8
CAP SCREW M4-.7 X 25
Price
N/A
101-9
*DISCD*UPPER ADJUSTMENT PLATE
Price
N/A
102
*DISCD*TENSIONER PULLEY
Price
N/A
103
*DISCD*Y-AXIS SUPPORT BEAM (LEFT)
Price
N/A
104
*DISCD*TENSIONER PULLEY MOUNTING BRACKET
Price
N/A
106
*DISCD*LASER HEAD ASSEMBLY
Price
N/A
106-1
*DISCD*COMPRESSION RING 25MM
Price
N/A
106-10
*DISCD*COMPRESSION RING 22MM
Price
N/A
106-11
*DISCD*TELESCOPING FOCUS BARREL
Price
N/A
106-12
*DISCD*BARREL RING
Price
N/A
106-13
*DISCD*AIR NOZZLE
Price
N/A
106-14
*DISCD*AUTO-FOCUS BRACKET
Price
N/A
106-15
*DISCD*AUTO-FOCUS SENSOR
Price
N/A
106-16
*DISCD*BUTTON HD CAP SCR M3-.5 X 6, NYLN
Price
N/A
106-17
CAP SCREW M3-.5 X 14
Price
N/A
106-18
*DISCD*KNURLED THUMB SCR M7-1 X 14, D10
Price
N/A
106-19
*DISCD*KNURLED PANEL NUT M7-1
Price
N/A
106-2
*DISCD*45 DEG ADJUSTMENT PLATE
Price
N/A
106-20
CAP SCREW M4-.7 X 25
Price
N/A
106-21
*DISCD*COMPRESSION SPRING 1 X 7.5 X 24
Price
N/A
106-22
*DISCD*KNURLED THUMB SCR M4-.7 X 6, D10
Price
N/A
106-23
CAP SCREW M4-.7 X 12
Price
N/A
106-24
CAP SCREW M4-.7 X 10
Price
N/A
106-25
Now: PW05M
FLAT WASHER 4MM
Price
N/A
106-3
*DISCD*45 DEG MIRROR HOUSING
Price
N/A
106-4
*DISCD*FIXED FOCUS BARREL
Price
N/A
106-5
Replacement 25mm Mirror for G0874, G0912, G0914
Price
N/A
106-6
*DISCD*LASER HEAD MOUNTING PLATE
Price
N/A
106-7
*DISCD*90 DEG AIR ELBOW ADAPTER 1/8 NPT
Price
N/A
106-8
*DISCD*SILICONE WASHER 22MM
Price
N/A
106-9
Replacement 63.5 Focal Lens for G0873, G0874, G0912, G0914
Price
N/A
107
*DISCD*LINEAR GUIDEWAY EGU15CAOBZU607
Price
N/A
108
*DISCD*LED WORKLIGHT STRIP
Price
N/A
110
*DISCD*X-AXIS SUPPORT BEAM
Price
N/A
111
*DISCD*PULLEY U-MOUNT BRACKET
Price
N/A
112
*DISCD*GEARBOX MOUNTING PLATE
Price
N/A
113
*DISCD*MOTOR MOUNTING PLATE
Price
N/A
114
*DISCD*STEPPER MOTOR LS 573S15-L NEMA23
Price
N/A
115
*DISCD*FLEXIBLE SHAFT COUPLING 12MM
Price
N/A
116
*DISCD*FLEXIBLE SHAFT
Price
N/A
117
*DISCD*GEARBOX PULLEY
Price
N/A
118
*DISCD*PULLEY MOUNTING BRACKET
Price
N/A
119
*DISCD*IDLER PULLEY 24T
Price
N/A
120
*DISCD*MOUNTING PAD
Price
N/A
121
*DISCD*STEPPER MOTOR LS 573S15-L NEMA23
Price
N/A
122
*DISCD*DRIVE PULLEY 24T
Price
N/A
123
*DISCD*TIMING PULLEY 72T
Price
N/A
124
*DISCD*IDLER PULLEY 24T
Price
N/A
125
*DISCD*IDLER PULLEY MOUNT
Price
N/A
126
*DISCD*MIRROR ASSEMBLY #2
Item is no longer available
Price
N/A
128
*DISCD*Y-AXIS SUPPORT BEAM (RIGHT)
Price
N/A
129
*DISCD*PULLEY MOUNTING BRACKET
Price
N/A
130
*DISCD*SUPPORT BEAM MOUNTING BRACKET
Price
N/A
131
*DISCD*LASER HEAD ASSEMBLY
Item is no longer available
Price
N/A
132
*DISCD*LINEAR GUIDEWAY EGU15CAOAFF20A
Price
N/A
133
*DISCD*LINEAR GUIDEWAY BLOCK
Price
N/A
134
*DISCD*MIRROR ASSEMBLY #1
Price
N/A
134-1
*DISCD*ANTI-REFLECTIVE LENS HOUSING
Price
N/A
134-10
*DISCD*MIRROR ASSEMBLY BASE
Price
N/A
134-11
*DISCD*REFERENCE LASER ADJUSTMENT PLATE
Price
N/A
134-12
*DISCD*REFERENCE LASER 650NM
Price
N/A
134-13
*DISCD*REFERENCE LASER MOUNTING PLATE
Price
N/A
134-14
*DISCD*BUTTON HD CAP SCR M3-.5 X 6, NYLN
Price
N/A
134-15
*DISCD*KNURLED THUMB SCR M3-.5 X 18, D8
Price
N/A
134-16
*DISCD*COMPRESSION SPRING 1 X 5 X 12
Price
N/A
134-17
CAP SCREW M3-.5 X 8
Price
N/A
134-18
CAP SCREW M4-.7 X 14
Price
N/A
134-19
Now: PW05M
FLAT WASHER 4MM
Price
N/A
134-2
*DISCD*ANTI-REFLECTIVE LENS
Price
N/A
134-20
CAP SCREW M4-.7 X 10
Price
N/A
134-21
*DISCD*KNURLED THUMB SCR M7-1 X 14, D10
Price
N/A
134-22
*DISCD*KNURLED PANEL NUT M7-1
Price
N/A
134-23
CAP SCREW M4-.7 X 25
Price
N/A
134-24
*DISCD*COMPRESSION SPRING 1 X 7.5 X 24
Price
N/A
134-3
*DISCD*COMPRESSION RING 25MM
Price
N/A
134-4
Replacement 25mm Mirror for G0874, G0912, G0914
Price
N/A
134-5
*DISCD*MIRROR MOUNTING PLATE
Price
N/A
134-6
*DISCD*MIRROR ADJUSTMENT PLATE
Price
N/A
134-7
*DISCD*MIRROR SUPPORT PLATE
Price
N/A
134-8
*DISCD*ADJUSTMENT ROD
Price
N/A
134-9
*DISCD*BASE ROD
Price
N/A
135
*DISCD*MIRROR ASSEMBLY #1
Item is no longer available
Price
N/A
136
*DISCD*TIMING BELT 300-3M
Price
N/A
137
*DISCD*TIMING BELT 228-3M
Price
N/A
138
*DISCD*TIMING BELT 3M-15 15 X 2032MM
Price
N/A
139
*DISCD*TIMING BELT 3M-15 15 X 3250MM
Price
N/A
140
*DISCD*BELT CLASP
Price
N/A
141
*DISCD*BELT BRACKET
Price
N/A
142
*DISCD*BELT TENSIONER 15MM
Price
N/A
143
*DISCD*BELT END PLATE
Price
N/A
144
*DISCD*CABLE CARRIER
Price
N/A
145
*DISCD*CABLE CARRIER MOUNTING BRACKET
Price
N/A
146
*DISCD*CABLE CARRIER TRACK
Price
N/A
147
*DISCD*PROXIMITY SWITCH OMRON TL-Q5MCI-Z
Price
N/A
148
CAP SCREW M3-.5 X 18
Price
N/A
149
*DISCD*PROXIMITY SWITCH BRACKET
Price
N/A
150
CAP SCREW M3-.5 X 6
Price
N/A
151
Now: PR39M
EXT RETAINING RING 8MM
Price
N/A
152
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
153
*DISCD*BUMPER STOP
Price
N/A
154
CAP SCREW M4-.7 X 8
Price
N/A
155
*DISCD*CAP SCREW M6-1 X 48
Price
N/A
156
CAP SCREW M4-.7 X 18
Price
N/A
157
*DISCD*FLANGE SCREW M3-.5 X 6
Price
N/A
158
*DISCD*ACORN NUT M3-.5
Price
N/A
159
CAP SCREW M5-.8 X 14
Price
N/A
160
Now: PW02M
FLAT WASHER 5MM
Price
N/A
161
CAP SCREW M6-1 X 14
Price
N/A
162
Now: PW03M
FLAT WASHER 6MM
Price
N/A
163
CAP SCREW M6-1 X 18
Price
N/A
164
FLANGE NUT M6-1
Price
N/A
165
CAP SCREW M3-.5 X 8
Price
N/A
166
Now: PN07M
HEX NUT M3-.5
Price
N/A
167
CAP SCREW M4-.7 X 16
Price
N/A
168
Now: PW05M
FLAT WASHER 4MM
Price
N/A

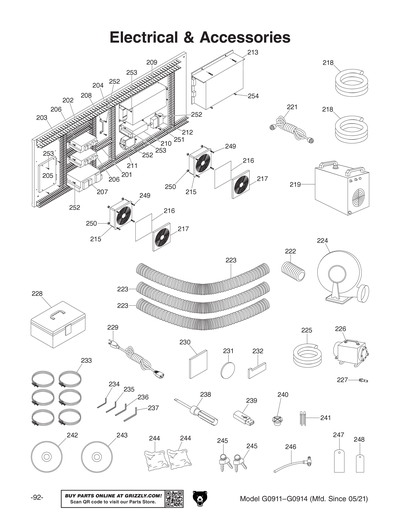

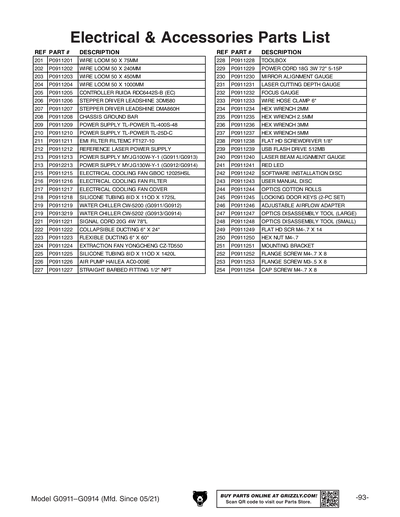

201
*DISCD*WIRE LOOM 50 X 75MM
Price
N/A
202
*DISCD*WIRE LOOM 50 X 240MM
Price
N/A
203
*DISCD*WIRE LOOM 50 X 450MM
Price
N/A
204
*DISCD*WIRE LOOM 50 X 1000MM
Price
N/A
205
*DISCD*CONTROLLER RUIDA RDC6442S-B (EC)
Price
N/A
206
*DISCD*STEPPER DRIVER LEADSHINE 3DM580
Price
N/A
207
*DISCD*STEPPER DRIVER LEADSHINE DMA860H
Price
N/A
208
*DISCD*CHASSIS GROUND BAR
Price
N/A
209
*DISCD*POWER SUPPLY TL-POWER TL-400S-48
Price
N/A
210
*DISCD*POWER SUPPLY TL-POWER TL-25D-C
Price
N/A
211
*DISCD*EMI FILTER FILTEMC FT127-10
Price
N/A
212
*DISCD*REFERENCE LASER POWER SUPPLY
Price
N/A
213
*DISCD*POWER SUPPLY MYJG100W-Y-1
Price
N/A
215
*DISCD*ELECTRICAL COOLING FAN
Price
N/A
216
*DISCD*ELECTRICAL COOLING FAN FILTER
Price
N/A
217
*DISCD*ELECTRICAL COOLING FAN COVER
Price
N/A
218
*DISCD*SILICONE TUBING 8ID X 11OD X 1725
Price
N/A
219
*DISCD*WATER CHILLER CW-5202
Item is no longer available
Price
N/A
221
*DISCD*SIGNAL CORD 20G 4W 78"L
Price
N/A
222
*DISCD*COLLAPSIBLE DUCTING 6" X 24"
Price
N/A
223
*DISCD*FLEXIBLE DUCTING 6" X 60"
Price
N/A
224
Extraction Fan for CNC Lasers
Price
N/A
225
*DISCD*SILICONE TUBING 8ID X 11OD X 1420
Price
N/A
226
Air Pump for CNC Lasers
Price
N/A
227
*DISCD*STRAIGHT BARBED FITTING 1/2" NPT
Price
N/A
228
*DISCD*TOOLBOX
Price
N/A
229
*DISCD*POWER CORD 18G 3W 72" 5-15P
Price
N/A
230
*DISCD*MIRROR ALIGNMENT GAUGE
Price
N/A
231
*DISCD*LASER CUTTING DEPTH GAUGE
Price
N/A
232
*DISCD*FOCUS GAUGE
Price
N/A
233
Now: W1319
6" Wire Hose Clamp
Price
N/A
234
HEX WRENCH 2MM
Price
N/A
235
HEX WRENCH 2.5MM
Price
N/A
236
HEX WRENCH 3MM
Price
N/A
237
HEX WRENCH 5MM
Price
N/A
238
*DISCD*FLAT HD SCREWDRIVER 1/8"
Price
N/A
239
*DISCD*USB FLASH DRIVE 512MB
Price
N/A
240
*DISCD*LASER BEAM ALIGNMENT GAUGE
Price
N/A
241
*DISCD*RED LED
Price
N/A
242
*DISCD*SOFTWARE INSTALLATION DISC
Price
N/A
243
*DISCD*USER MANUAL DISC
Price
N/A
244
*DISCD*OPTICS COTTON ROLLS
Price
N/A
245
*DISCD*LOCKING DOOR KEYS (2-PC SET)
Price
N/A
246
*DISCD*ADJUSTABLE AIRFLOW ADAPTER
Price
N/A
247
*DISCD*OPTICS DISASSEMBLY TOOL (LARGE)
Price
N/A
248
*DISCD*OPTICS DISASSEMBLY TOOL (SMALL)
Price
N/A
249
*DISCD*FLAT HD SCR M4-.7 X 14
Price
N/A
250
Now: PN04M
HEX NUT M4-.7
Price
N/A
251
*DISCD*MOUNTING BRACKET
Price
N/A
252
FLANGE SCREW M4-.7 X 8
Price
N/A
253
*DISCD*FLANGE SCREW M3-.5 X 8
Price
N/A
254
CAP SCREW M4-.7 X 8
Price
N/A

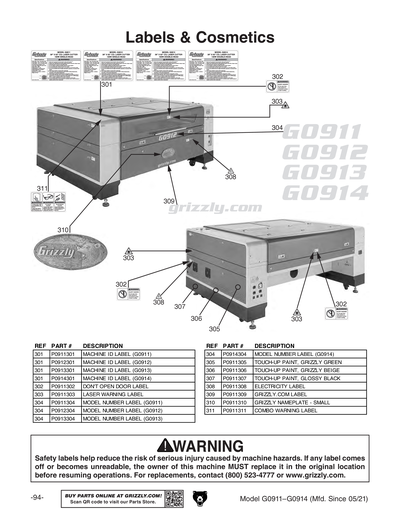

301
MACHINE ID LABEL
302
*DISCD*DON'T OPEN DOOR LABEL
Price
N/A
303
*DISCD*LASER WARNING LABEL
Price
N/A
304
*DISCD*MODEL NUMBER LABEL
Item is no longer available
Price
N/A
305
N/S GRIZZLY GREEN G1023S
Price
N/A
306
BEIGE REF G0555
Price
N/A
307
GLOSSY BLACK
Price
N/A
308
ELECTRICITY 1.4W X 1.2H
Price
N/A
309
***USE PGZCOM-51B***
Price
N/A
310
Now: G8588
Nameplate - Small
Price
N/A
311
*DISCD*COMBO WARNING LABEL
Price
N/A
MAN
MANUAL G0911-14 MFD-05.21+ V1.08.22
Price
N/A
