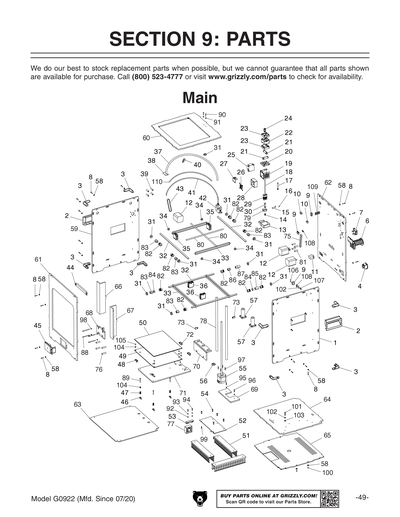

Parts for G0922 Enclosed 3D Printer

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

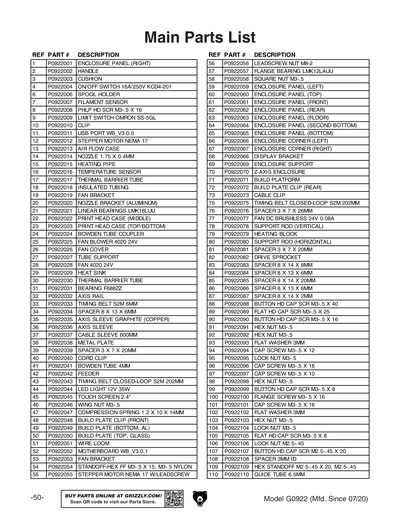

1
ENCLOSURE PANEL (RIGHT)
Item is no longer available
Price
N/A
2
*DISCD*HANDLE
Item is no longer available
Price
N/A
3
*DISCD*CUSHION
Item is no longer available
Price
N/A
4
ON/OFF SWITCH 16A/250V KCD4-201
Item is no longer available
Price
N/A
6
*DISCD*SPOOL HOLDER
7
FILAMENT SENSOR
Item is no longer available
Price
N/A
8
Now: PS98M
PHLP HD SCR M3-.5 X 16
Price
N/A
9
LIMIT SWITCH OMRON SS-5GL
Item is no longer available
Price
N/A
10
CLIP
Item is no longer available
Price
N/A
11
USB PORT WB_V3.0.0
Item is no longer available
Price
N/A
12
STEPPER MOTOR NEMA 17
Item is no longer available
Price
N/A
13
AIR FLOW CASE
Item is no longer available
Price
N/A
14
*DISCD*NOZZLE 1.75 X 0.4MM
Item is no longer available
Price
N/A
15
HEATING PIPE
Item is no longer available
Price
N/A
16
TEMPERATURE SENSOR
Item is no longer available
Price
N/A
17
THERMAL BARRIER TUBE
Item is no longer available
Price
N/A
18
INSULATED TUBING
19
FAN BRACKET
Item is no longer available
Price
N/A
20
NOZZLE BRACKET (ALUMINUM)
Item is no longer available
Price
N/A
21
LINEAR BEARINGS LMK16LUU
Item is no longer available
Price
N/A
22
PRINT HEAD CASE (MIDDLE)
Item is no longer available
Price
N/A
23
PRINT HEAD CASE (TOP/BOTTOM)
Item is no longer available
Price
N/A
24
BOWDEN TUBE COUPLER
Item is no longer available
Price
N/A
25
FAN BLOWER 4020 24V
Item is no longer available
Price
N/A
26
FAN COVER
Item is no longer available
Price
N/A
27
TUBE SUPPORT
Item is no longer available
Price
N/A
28
FAN 4020 24V
Item is no longer available
Price
N/A
29
HEAT SINK
Item is no longer available
Price
N/A
30
THERMAL BARRIER TUBE
31
BEARING F688ZZ
Item is no longer available
Price
N/A
32
AXIS RAIL
Item is no longer available
Price
N/A
33
TIMING BELT S2M 6MM
Item is no longer available
Price
N/A
34
SPACER 8 X 13 X 6MM
Item is no longer available
Price
N/A
35
AXIS SLEEVE GRAPHITE (COPPER)
Item is no longer available
Price
N/A
36
AXIS SLEEVE
Item is no longer available
Price
N/A
37
*DISCD*CABLE SLEEVE 600MM
38
METAL PLATE
Item is no longer available
Price
N/A
39
SPACER 3 X 7 X 20MM
Item is no longer available
Price
N/A
40
CORD CLIP
Item is no longer available
Price
N/A
41
*DISCD*BOWDEN TUBE 4MM
42
*DISCD*FEEDER
43
TIMING BELT CLOSED-LOOP S2M 202MM
Item is no longer available
Price
N/A
44
LED LIGHT 12V 35W
Item is no longer available
Price
N/A
45
TOUCH SCREEN 2.4"
Item is no longer available
Price
N/A
46
WING NUT M3-.5
Item is no longer available
Price
N/A
47
COMPRESSION SPRING 1.2 X 10 X 14MM
Item is no longer available
Price
N/A
48
*DISCD*BUILD PLATE CLIP (FRONT)
Item is no longer available
Price
N/A
49
BUILD PLATE (BOTTOM, AL)
Item is no longer available
Price
N/A
50
BUILD PLATE (TOP, GLASS)
Item is no longer available
Price
N/A
51
WIRE LOOM
Item is no longer available
Price
N/A
52
MOTHERBOARD WB_V3.0.1
Item is no longer available
Price
N/A
53
FAN BRACKET
Item is no longer available
Price
N/A
54
STANDOFF-HEX FF M3-.5 X 15, M3-.5 NYLON
Item is no longer available
Price
N/A
55
STEPPER MOTOR NEMA 17 W/LEADSCREW
Item is no longer available
Price
N/A
56
LEADSCREW NUT M8-2
Item is no longer available
Price
N/A
57
FLANGE BEARING LMK12LAUU
Item is no longer available
Price
N/A
58
SQUARE NUT M3-.5
Item is no longer available
Price
N/A
59
ENCLOSURE PANEL (LEFT)
Item is no longer available
Price
N/A
60
ENCLOSURE PANEL (TOP)
Item is no longer available
Price
N/A
61
ENCLOSURE PANEL (FRONT)
Item is no longer available
Price
N/A
62
ENCLOSURE PANEL (REAR)
Item is no longer available
Price
N/A
63
ENCLOSURE PANEL (FLOOR)
Item is no longer available
Price
N/A
64
ENCLOSURE PANEL (SECOND BOTTOM)
Item is no longer available
Price
N/A
65
ENCLOSURE PANEL (BOTTOM)
Item is no longer available
Price
N/A
66
ENCLOSURE CORNER (LEFT)
Item is no longer available
Price
N/A
67
ENCLOSURE CORNER (RIGHT)
Item is no longer available
Price
N/A
68
DISPLAY BRACKET
Item is no longer available
Price
N/A
69
ENCLOSURE SUPPORT
Item is no longer available
Price
N/A
70
Z-AXIS ENCLOSURE
Item is no longer available
Price
N/A
71
*DISCD*BUILD PLATFORM
72
*DISCD*BUILD PLATE CLIP (REAR)
Item is no longer available
Price
N/A
73
CABLE CLIP
Item is no longer available
Price
N/A
75
TIMING BELT CLOSED-LOOP S2M 202MM
Item is no longer available
Price
N/A
76
SPACER 3 X 7 X 26MM
Item is no longer available
Price
N/A
77
FAN DC BRUSHLESS 24V 0.08A
Item is no longer available
Price
N/A
78
SUPPORT ROD (VERTICAL)
Item is no longer available
Price
N/A
79
HEATING BLOCK
80
SUPPORT ROD (HORIZONTAL)
Item is no longer available
Price
N/A
81
SPACER 3 X 7 X 20MM
Item is no longer available
Price
N/A
82
DRIVE SPROCKET
Item is no longer available
Price
N/A
83
SPACER 8 X 14 X 8MM
Item is no longer available
Price
N/A
84
SPACER 8 X 13 X 6MM
Item is no longer available
Price
N/A
85
SPACER 8 X 14 X 20MM
Item is no longer available
Price
N/A
86
SPACER 8 X 13 X 6MM
Item is no longer available
Price
N/A
87
SPACER 8 X 14 X 2MM
Item is no longer available
Price
N/A
88
BUTTON HD CAP SCR M3-.5 X 40
Item is no longer available
Price
N/A
89
FLAT HD CAP SCR M3-.5 X 25
Item is no longer available
Price
N/A
90
BUTTON HD CAP SCR M3-.5 X 16
Price
N/A
91
Now: PN07M
HEX NUT M3-.5
Price
N/A
92
Now: PN07M
HEX NUT M3-.5
Price
N/A
93
Now: PW07M
FLAT WASHER 3MM
Price
N/A
94
CAP SCREW M3-.5 X 12
Price
N/A
95
LOCK NUT M3-.5
Price
N/A
96
CAP SCREW M3-.5 X 16
Price
N/A
97
CAP SCREW M3-.5 X 10
Price
N/A
98
Now: PN07M
HEX NUT M3-.5
Price
N/A
99
BUTTON HD CAP SCR M3-.5 X 8
Price
N/A
100
FLANGE SCREW M3-.5 X 16
Item is no longer available
Price
N/A
101
CAP SCREW M3-.5 X 16
Price
N/A
102
Now: PW07M
FLAT WASHER 3MM
Price
N/A
103
Now: PN07M
HEX NUT M3-.5
Price
N/A
104
LOCK NUT M3-.5
Price
N/A
105
FLAT HD CAP SCR M3-.5 X 8
Item is no longer available
Price
N/A
106
LOCK NUT M2.5-.45
Item is no longer available
Price
N/A
107
BUTTON HD CAP SCR M2.5-.45 X 20
Item is no longer available
Price
N/A
108
SPACER 3MM ID
Item is no longer available
Price
N/A
109
HEX STANDOFF M2.5-.45 X 20, M2.5-.45
Item is no longer available
Price
N/A
110
GUIDE TUBE 6.5MM
Item is no longer available
Price
N/A

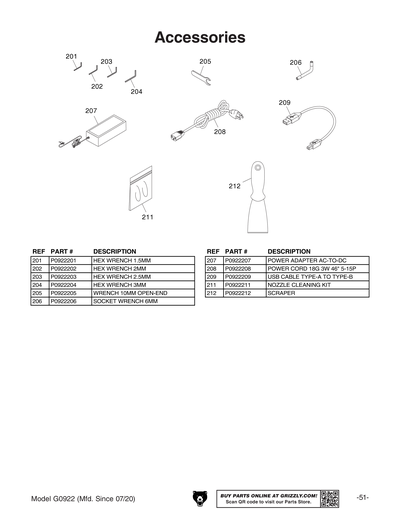

201
HEX WRENCH 1.5MM
Price
N/A
202
HEX WRENCH 2MM
Price
N/A
203
HEX WRENCH 2.5MM
Price
N/A
204
HEX WRENCH 3MM
Price
N/A
205
WRENCH 10MM OPEN-END
Item is no longer available
Price
N/A
206
SOCKET WRENCH 6MM
Item is no longer available
Price
N/A
207
*DISCD*POWER ADAPTER AC-TO-DC
Item is no longer available
Price
N/A
208
*DISCD*POWER CORD 18G 3W 46" 5-15P
Item is no longer available
Price
N/A
209
USB CABLE TYPE-A TO TYPE-B
211
*DISCD*NOZZLE CLEANING KIT
Item is no longer available
Price
N/A
212
Now: D3711
2" Stainless Scraper
Price
N/A

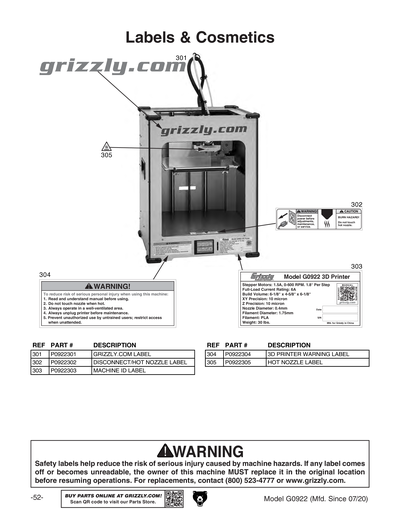

301
GRIZZLY.COM LABEL 10.5",GREEN
Price
N/A
302
DISCONNECT/HOT NOZZLE LABEL
Item is no longer available
Price
N/A
303
MACHINE ID LABEL
Item is no longer available
Price
N/A
304
3D PRINTER WARNING LABEL
Item is no longer available
Price
N/A
305
HOT NOZZLE LABEL
Item is no longer available
Price
N/A
MAN
MANUAL G0922 MFD-07.20+ V1.08.20
Item is no longer available
Price
N/A
