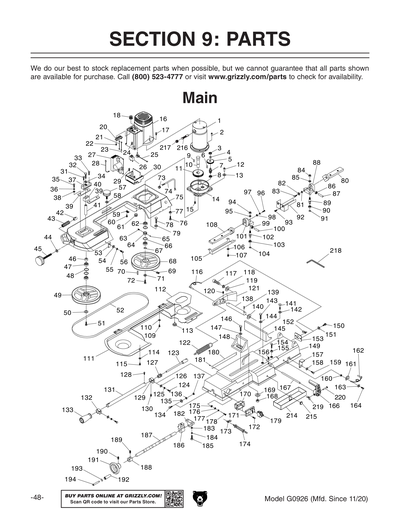

Parts for G0926 - 4" x 5-1/2" Variable-Speed Metal-Cutting Bandsaw

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty
1 P0926001 MOTOR 3/4HP 120V 1-PH $135.00
2 P0926002
Replaced By PCAP24M
CAP SCREW M5-.8 X 16
N/A View Replacement
3 P0926003
Replaced By P607ZZ
BALL BEARING 607ZZ
N/A View Replacement
4 P0926004
Replaced By PR48M
EXT RETAINING RING 11MM
N/A View Replacement
5 P0926005 GEAR 43T $13.00
6 P0926006 KEY 4 X 4 X 6 RE $1.00
7 P0926007 GEAR 10T $12.75
8 P0926008
Replaced By P607ZZ
BALL BEARING 607ZZ
N/A View Replacement
9 P0926009 KEY 5 X 5 X 10 RE $1.00
10 P0926010 WHEEL SHAFT (FRONT) $11.50
11 P0926011 GEAR 50T $14.25
12 P0926012
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
13 P0926013
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
14 P0926014 GEARBOX $19.50
15 P0926015
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
16 P0926016 MOTOR COVER $13.00
17 P0926017
Replaced By PS38M
PHLP HD SCR M4-.7 X 10
N/A View Replacement
18 P0926018 BLADE SPEED DIAL $1.00
20 P0926020 DIGITAL SPEED DISPLAY 2017120401B $33.75
21 P0926021 DISPLAY WIRE $9.00
22 P0926022
Replaced By PHTEK63M
TAP SCREW M3 X 10
N/A View Replacement
23 P0926023 SPEED SENSOR 45L $13.00
24 P0926024
Replaced By PHTEK29M
TAP SCREW M3.5 X 20
N/A View Replacement
25 P0926025 POTENTIOMETER BK10 $13.00
26 P0926026 CIRCUIT BREAKER ZHONGZUI 68-SERIES 4A $6.50
27 P0926027 CIRCUIT BOARD PWM500C $68.25
28 P0926028 CIRCUIT BREAKER WIRE $4.00
29 P0926029
Replaced By PS05M
PHLP HD SCR M5-.8 X 8
N/A View Replacement
30 P0926030 CIRCUIT BOARD HOUSING $4.00
31 P0926031
Replaced By PB26M
HEX BOLT M8-1.25 X 30
N/A View Replacement
32 P0926032
Replaced By PB03M
HEX BOLT M8-1.25 X 16
N/A View Replacement
33 P0926033
Replaced By PB26M
HEX BOLT M8-1.25 X 30
N/A View Replacement
34 P0926034
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
35 P0926035
Replaced By PB02M
HEX BOLT M6-1 X 12
N/A View Replacement
36 P0926036
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
37 P0926037 TRACKING BRACKET $12.75
38 P0926038
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
39 P0926039 TRACKING BRACKET MOUNT $5.50
40 P0926040 TRACKING ADJ BLOCK & WHEEL SHAFT $12.00
41 P0926041
Replaced By P0926040
TRACKING ADJ BLOCK & WHEEL SHAFT
N/A View Replacement
42 P0926042 BLADE TENSION NUT $5.00
43 P0926043 COMPRESSION SPRING 2 X 14 X 76 $2.00
44 P0926044
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
45 P0926045 KNOB BOLT M10-1.5 X 90, 12-LOBE, D60 $13.25
46 P0926046 BUSHING 16 X 19 X 6.5 $2.25
47 P0926047
Replaced By P6202ZZ
BALL BEARING 6202ZZ
N/A View Replacement
48 P0926048
Replaced By PR12M
EXT RETAINING RING 35MM
N/A View Replacement
49 P0926049 BLADE WHEEL (REAR) $24.75
50 P0926050
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
51 P0926051
Replaced By PB95M
HEX BOLT M5-.8 X 16
N/A View Replacement
52 P0926052 BLADE 64-1/2" X 1/2" X 1/4" 14 TPI $33.75
53 P0926053 AUTO-OFF TAB $1.50
54 P0926054
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
55 P0926055
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
56 P0926056
Replaced By PS11M
PHLP HD SCR M6-1 X 16
N/A View Replacement
57 P0926057 KNOB BOLT M10-1.5 X 30, 12-LOBE, D60 $13.25
58 P0926058
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
59 P0926059 CORD CLAMP $1.50
60 P0926060
Replaced By PBHS06M
BUTTON HD CAP SCR M5-.8 X 12
N/A View Replacement
61 P0926061 GROMMET 5/16" $1.50
62 P0926062
Replaced By P6202ZZ
BALL BEARING 6202ZZ
N/A View Replacement
63 P0926063
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
64 P0926064 MAGNET SEAT $5.25
65 P0926065 MAGNET 6 X 3MM $1.50
66 P0926066
Replaced By PR12M
EXT RETAINING RING 35MM
N/A View Replacement
67 P0926067
Replaced By PR54M
INT RETAINING RING 15MM
N/A View Replacement
68 P0926068 BLADE WHEEL (FRONT) $28.00
69 P0926069
Replaced By PSS20M
SET SCREW M8-1.25 X 8
N/A View Replacement
70 P0926070 KEY 5 X 5 X 25 RE $1.00
71 P0926071
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
72 P0926072
Replaced By PB95M
HEX BOLT M5-.8 X 16
N/A View Replacement
73 P0926073
Replaced By P0926061
GROMMET 5/16"
N/A View Replacement
74 P0926074 MOTOR DRIVER CORD 18G 3W 45" $12.75
75 P0926075 FRAME $85.50
76 P0926076
Replaced By PB10M
HEX BOLT M6-1 X 25
N/A View Replacement
77 P0926077
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
78 P0926078
Replaced By PB26M
HEX BOLT M8-1.25 X 30
N/A View Replacement
79 P0926079
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
80 P0926080 BLADE GUIDE BASE (FRONT) $13.25
81 P0926081
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
82 P0926082
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
83 P0926083
Replaced By PB26M
HEX BOLT M8-1.25 X 30
N/A View Replacement
84 P0926084
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
85 P0926085
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
86 P0926086
Replaced By P629ZZ
BALL BEARING 629ZZ
N/A View Replacement
87 P0926087 BLADE GUIDE PIN (FRONT) $2.50
88 P0926088 BLADE GUIDE (FRONT) $11.25
89 P0926089 BLADE GUIDE SHAFT (FRONT) $4.25
90 P0926090
Replaced By P629ZZ
BALL BEARING 629ZZ
N/A View Replacement
91 P0926091
Replaced By PR16M
EXT RETAINING RING 9MM
N/A View Replacement
92 P0926092 BLADE GUARD (FRONT) $9.00
93 P0926093
Replaced By PFH38M
FLAT HD SCR M6-1 X 16
N/A View Replacement
94 P0926094
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
95 P0926095
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
96 P0926096
Replaced By PB26M
HEX BOLT M8-1.25 X 30
N/A View Replacement
97 P0926097
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
98 P0926098
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
99 P0926099
Replaced By P629ZZ
BALL BEARING 629ZZ
N/A View Replacement
100 P0926100 BLADE GUIDE PIN (REAR) $2.50
101 P0926101 BLADE GUIDE (REAR) $10.25
102 P0926102 BLADE GUIDE SHAFT (REAR) $4.25
103 P0926103
Replaced By P629ZZ
BALL BEARING 629ZZ
N/A View Replacement
104 P0926104
Replaced By PR16M
EXT RETAINING RING 9MM
N/A View Replacement
105 P0926105 BLADE GUARD (REAR) $9.00
106 P0926106
Replaced By PW05M
FLAT WASHER 4MM
N/A View Replacement
107 P0926107
Replaced By PS17M
PHLP HD SCR M4-.7 X 6
N/A View Replacement
108 P0926108 BLADE GUARD BASE (REAR) $13.25
109 P0926109
Replaced By PS07M
PHLP HD SCR M4-.7 X 8
N/A View Replacement
110 P0926110
Replaced By PW05M
FLAT WASHER 4MM
N/A View Replacement
111 P0926111 FRAME GUARD $26.25
112 P0926112 EXTENSION GUARD $9.00
113 P0926113 KNOB BOLT M6-1 X 8, 6-LOBE, D25 $2.00
114 P0926114
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
115 P0926115
Replaced By PS05M
PHLP HD SCR M5-.8 X 8
N/A View Replacement
116 P0926116 LOCKING PIN W/CHAIN $5.50
117 P0926117
Replaced By PCAP84M
CAP SCREW M10-1.5 X 35
N/A View Replacement
118 P0926118
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
119 P0926119
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
120 P0926120
Replaced By PSS20M
SET SCREW M8-1.25 X 8
N/A View Replacement
121 P0926121 PIVOT BLOCK $19.75
122 P0926122 EXTENSION SPRING 4.5 X 22 X 215 $14.00
123 P0926123 SPRING ADJUSTMENT SCREW $10.00
124 P0926124
Replaced By PB83M
HEX BOLT M6-1 X 16
N/A View Replacement
125 P0926125
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
126 P0926126
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
127 P0926127 FEED RATE ADJUSTMENT NUT $6.25
128 P0926128
Replaced By PS17M
PHLP HD SCR M4-.7 X 6
N/A View Replacement
129 P0926129 ADJUSTMENT ROD BRACKET $4.75
130 P0926130
Replaced By PSS20M
SET SCREW M8-1.25 X 8
N/A View Replacement
131 P0926131 FEED RATE ADJUSTMENT ROD $6.25
132 P0926132 ADJUSTMENT ROD BRACKET $4.75
133 P0926133 FEED RATE ADJUSTMENT HANDLE $5.75
134 P0926134
Replaced By PB09M
HEX BOLT M8-1.25 X 20
N/A View Replacement
135 P0926135
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
136 P0926136
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
137 P0926137
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
138 P0926138 PIVOTING ROD $9.00
139 P0926139
Replaced By PRP56M
ROLL PIN 4 X 25
N/A View Replacement
140 P0926140
Replaced By PW08M
FLAT WASHER 16MM
N/A View Replacement
141 P0926141 SHOULDER BOLT M8-1.25 X 13, 9 X 12 $5.50
142 P0926142
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
143 P0926143
Replaced By PB15M
HEX BOLT M8-1.25 X 40
N/A View Replacement
144 P0926144
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
145 P0926145 FIXED VISE JAW $22.75
146 P0926146
Replaced By PB32M
HEX BOLT M10-1.5 X 25
N/A View Replacement
147 P0926147
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
148 P0926148 SLIDING VISE JAW $14.50
149 P0926149 BASE $73.00
150 P0926150
Replaced By PS05M
PHLP HD SCR M5-.8 X 8
N/A View Replacement
151 P0926151
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
152 P0926152 STRAIN RELIEF TYPE-1 5/16" $2.25
153 P0926153 STRAIN RELIEF MOUNTING PLATE $1.50
154 P0926154
Replaced By PB140M
HEX BOLT M12-1.75 X 70
N/A View Replacement
155 P0926155
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
156 P0926156
Replaced By PSS06M
SET SCREW M8-1.25 X 16
N/A View Replacement
157 P0926157 VERTICAL LOCKING BRACKET $3.00
158 P0926158
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
159 P0926159
Replaced By PB03M
HEX BOLT M8-1.25 X 16
N/A View Replacement
160 P0926160
Replaced By PN06M
HEX NUT M5-.8
N/A View Replacement
161 P0926161 CORD CLAMP $1.50
162 P0926162 LOCKING PIN W/CHAIN $4.00
163 P0926163
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
164 P0926164 PHLP HD SCR M5-.8 X 18 $1.00
166 P0926166 WORK STOP $2.50
167 P0926167 WORK STOP ROD $8.75
168 P0926168
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
169 P0926169
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
170 P0926170 SWITCH BOX $2.75
171 P0926171 SWITCH MOUNTING PLATE $2.50
172 P0926172 TAP SCREW M4.2 X 30 $1.00
173 P0926173
Replaced By P0926152
STRAIN RELIEF TYPE-1 5/16"
N/A View Replacement
174 P0926174 POWER CORD 18G 3W 72" 5-15P $14.50
175 P0926175 BELLEVILLE LOCK WASHER 5MM $1.00
176 P0926176
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
177 P0926177
Replaced By PLW01M
LOCK WASHER 5MM
N/A View Replacement

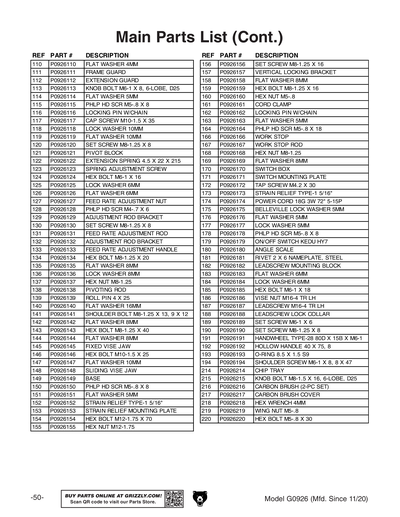

178 P0926178
Replaced By PS05M
PHLP HD SCR M5-.8 X 8
N/A View Replacement
179 P0926179 ON/OFF SWITCH KEDU HY7 $13.00
180 P0926180 ANGLE SCALE $1.25
181 P0926181
Replaced By PRIV009M
RIVET 2 X 6MM NAMEPLATE, STEEL
N/A View Replacement
182 P0926182 LEADSCREW MOUNTING BLOCK $9.00
183 P0926183
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
184 P0926184
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
185 P0926185
Replaced By PB91M
HEX BOLT M6-1 X 18
N/A View Replacement
186 P0926186 VISE NUT M16-4 TR LH $12.75
187 P0926187 LEADSCREW M16-4 TR LH $18.50
188 P0926188 LEADSCREW LOCK COLLAR $5.00
189 P0926189
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
190 P0926190
Replaced By PSS20M
SET SCREW M8-1.25 X 8
N/A View Replacement
191 P0926191 HANDWHEEL TYPE-28 80D X 15B X M6-1 $15.25
192 P0926192 HOLLOW HANDLE 40 X 75, 8 $11.50
193 P0926193
Replaced By PORS009
O-RING 8.5 X 1.5 S9
N/A View Replacement
194 P0926194 SHOULDER SCREW M6-1 X 8, 8 X 47 $3.25
214 P0926214 CHIP TRAY $12.50
215 P0926215 KNOB BOLT M8-1.5 X 16, 6-LOBE, D25 $1.00
216 P0926216 CARBON BRUSH (2-PC SET) $11.75
217 P0926217 CARBON BRUSH COVER $10.25
218 P0926218
Replaced By PAW04M
HEX WRENCH 4MM
N/A View Replacement
219 P0926219
Replaced By PWN05M
WING NUT M5-.8
N/A View Replacement
220 P0926220
Replaced By PB93M
HEX BOLT M5-.8 X 30
N/A View Replacement

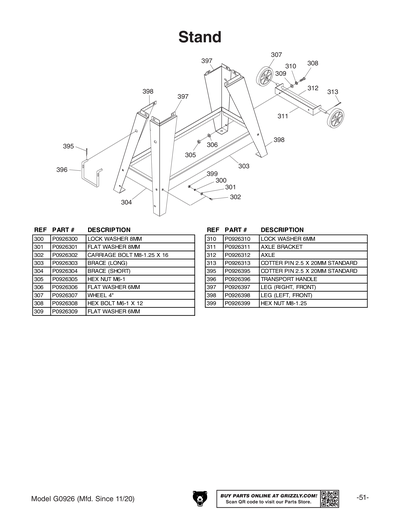

300 P0926300
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
301 P0926301
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
302 P0926302
Replaced By PCB06M
CARRIAGE BOLT M8-1.25 X 16
N/A View Replacement
303 P0926303 BRACE (LONG) $13.25
304 P0926304 BRACE (SHORT) $9.00
305 P0926305
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
306 P0926306
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
307 P0926307 WHEEL 4" $15.25
308 P0926308
Replaced By PB02M
HEX BOLT M6-1 X 12
N/A View Replacement
309 P0926309
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
310 P0926310
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
311 P0926311 AXLE BRACKET $11.25
312 P0926312 AXLE $12.75
313 P0926313 COTTER PIN 2.5 X 20MM STANDARD $1.00
395 P0926395
Replaced By P0926313
COTTER PIN 2.5 X 20MM STANDARD
N/A View Replacement
396 P0926396 TRANSPORT HANDLE $10.00
397 P0926397 LEG (RIGHT, FRONT) $17.50
398 P0926398 LEG (LEFT, FRONT) $17.50
399 P0926399
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement

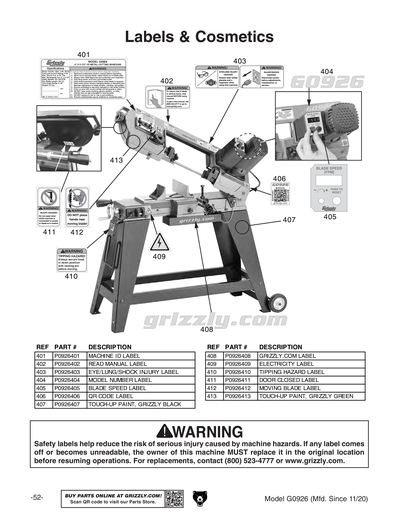

401 P0926401 MACHINE ID LABEL $9.50
402 P0926402
Replaced By PLABEL-12D
READ MANUAL 2.8W X 1.5H
N/A View Replacement
403 P0926403 EYE/LUNG/SHOCK INJURY LABEL $3.00
404 P0926404 MODEL NUMBER LABEL $3.50
406 P0926406 QR CODE LABEL $1.50
407 P0926407
Replaced By PPAINT-7
GLOSSY BLACK
N/A View Replacement
408 P0926408 GRIZZLY.COM LABEL $7.50
409 P0926409
Replaced By PLABEL-14
ELECTRICITY 1.4W X 1.2H
N/A View Replacement
410 P0926410 TIPPING HAZARD LABEL $2.25
411 P0926411
Replaced By PLABEL-79B
DOOR WARNING LABEL 1.5 X 2.5"
N/A View Replacement
412 P0926412
Replaced By PLABEL-19B
BANDSAW BLADE 1.5W X 2H
N/A View Replacement
413 P0926413
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
N/A View Replacement
MAN P0926MAN MANUAL G0926 MFD-11.20+ V1.10.20 $15.00
