Parts for G0932 - 4' x 8' CNC Router With Rotary 4th Axis

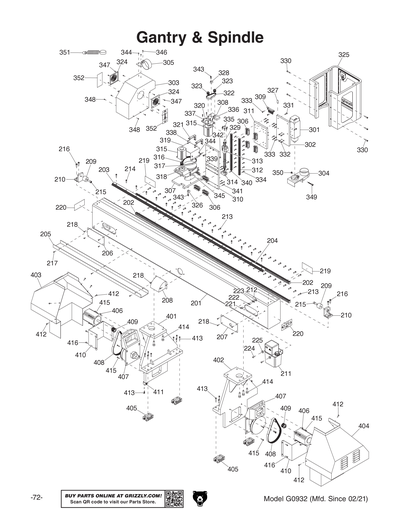

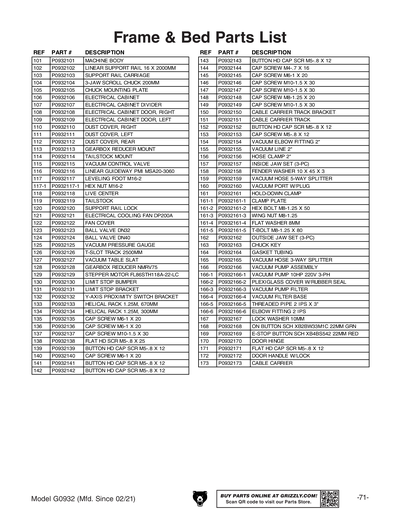

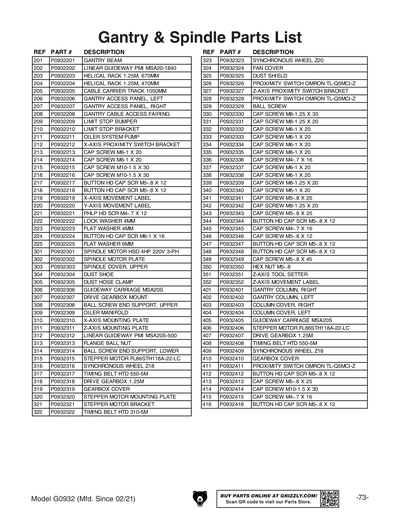

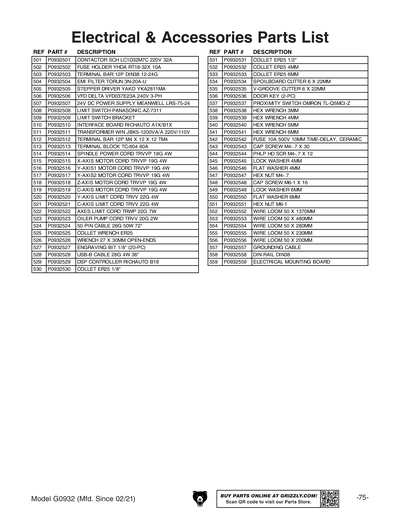

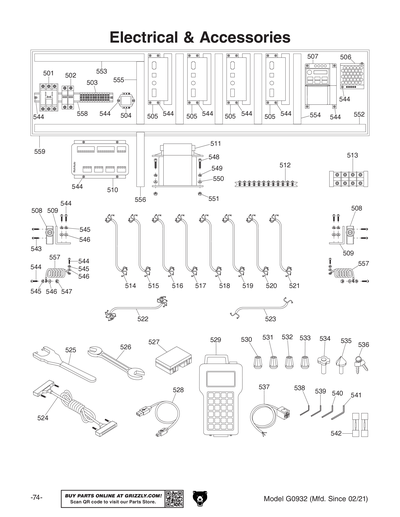

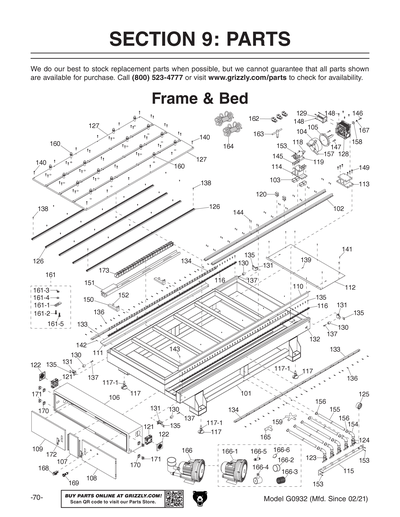

Part Diagram for G0932
Part Diagram for G0932
Part Diagram for G0932
Part Diagram for G0932
Part Diagram for G0932
Part Diagram for G0932
Part Diagram for G0932
Part Diagram for G0932
Part Diagram for G0932
Part Diagram for G0932
Part Diagram for G0932
Part Diagram for G0932
Part Diagram for G0932
Part Diagram for G0932

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
4A
3-JAW SCROLL CHUCK 200MM
Price
N/A
17
LEVELING FOOT M16-2
Price
N/A
18
TAILSTOCK
Price
N/A
21
ELECTRICAL COOLING FAN DP200A
Price
N/A
22
ELECTRICAL FAN COVER
Price
N/A
23
BALL VALVE DN32
Price
N/A
26
T-SLOT TRACK 2500MM
Price
N/A
27
VACUUM TABLE SLAT
Price
N/A
29
STEPPER MOTOR FL86STH118A-22-LC
Price
N/A
33
CABLE CARRIER
Price
N/A
99
TIMING BELT HTD 550-5M
Price
N/A
101
MACHINE BODY
Price
$5,607.70
102
LINEAR SUPPORT RAIL 16 X 2000MM
Price
$116.45
103
SUPPORT RAIL CARRIAGE
Price
$22.70
104
3-JAW SCROLL CHUCK 200MM
Price
$401.10
105
CHUCK MOUNTING PLATE
Price
$288.25
106
ELECTRICAL CABINET
Price
$761.20
107
ELECTRICAL CABINET DIVIDER
Price
$137.35
108
ELECTRICAL CABINET DOOR, RIGHT
Price
$311.95
109
ELECTRICAL CABINET DOOR, LEFT
Price
$311.95
110
DUST COVER, RIGHT
Price
$111.45
111
DUST COVER, LEFT
Price
$96.00
112
DUST COVER, REAR
Price
$154.60
113
GEARBOX REDUCER MOUNT
Price
$133.70
114
TAILSTOCK MOUNT
Price
$129.75
115
VACUUM CONTROL VALVE
Price
$113.25
116
LINEAR GUIDEWAY PMI MSA20-3060
Price
$725.25
117
LEVELING FOOT M16-2
Price
$9.00
117-1
HEX NUT M16-2
Price
N/A
118
LIVE CENTER
Price
$7.95
119
TAILSTOCK
Price
$156.00
120
SUPPORT RAIL LOCK
Price
$16.60
121
ELECTRICAL COOLING FAN DP200A
Price
N/A
122
FAN COVER
Price
$2.60
123
BALL VALVE DN32
Price
$29.15
124
BALL VALVE DN40
Price
$40.15
125
VACUUM PRESSURE GAUGE
Price
$51.75
126
T-SLOT TRACK 2500MM
Price
$156.00
127
VACUUM TABLE SLAT
Price
$534.75
128
GEARBOX REDUCER NMRV75
Price
$538.00
129
STEPPER MOTOR FL86STH118A-22-LC
Price
$222.85
130
LIMIT STOP BUMPER
Price
$16.60
131
LIMIT STOP BRACKET
Price
$13.70
132
Y-AXIS PROXIMITY SWITCH BRACKET
Price
$2.60
133
HELICAL RACK 1.25M, 670MM
Price
$66.90
134
HELICAL RACK 1.25M, 300MM
Price
$20.15
135
CAP SCREW M6-1 X 20
Price
N/A
136
CAP SCREW M6-1 X 20
Price
N/A
137
CAP SCREW M10-1.5 X 30
Price
N/A
138
FLAT HD SCR M5-.8 X 25
Price
N/A
139
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
140
CAP SCREW M6-1 X 20
Price
N/A
141
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
142
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
143
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
144
CAP SCREW M4-.7 X 16
Price
N/A
145
CAP SCREW M6-1 X 20
Price
N/A
146
CAP SCREW M10-1.5 X 30
Price
N/A
147
CAP SCREW M10-1.5 X 30
Price
N/A
148
CAP SCREW M8-1.25 X 20
Price
N/A
149
CAP SCREW M10-1.5 X 30
Price
N/A
150
CABLE CARRIER TRACK BRACKET
Price
$66.90
151
CABLE CARRIER TRACK
Price
$4.50
152
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
153
CAP SCREW M5-.8 X 12
Price
N/A
154
VACUUM ELBOW FITTING 2"
Price
$4.70
155
VACUUM LINE 2"
Price
$13.70
156
HOSE CLAMP 2"
Price
$1.90
157
INSIDE JAW SET (3-PC)
Price
$445.65
158
FENDER WASHER 10 X 45 X 3
Price
$1.90
159
VACUUM HOSE 5-WAY SPLITTER
Price
$3.65
160
VACUUM PORT W/PLUG
Price
$4.35
161
HOLD-DOWN CLAMP
Price
N/A
161-1
CLAMP PLATE
Price
N/A
161-2
HEX BOLT M8-1.25 X 50
Price
N/A
161-3
WING NUT M8-1.25
Price
N/A
161-4
FLAT WASHER 8MM
Price
N/A
161-5
T-BOLT M8-1.25 X 80
Price
N/A
162
OUTSIDE JAW SET (3-PC)
Price
$89.15
163
CHUCK KEY
Price
$15.50
164
GASKET TUBING
Price
$22.35
165
VACUUM HOSE 3-WAY SPLITTER
Price
$4.70
166
VACUUM PUMP ASSEMBLY
Price
$9.00
166-1
VACUUM PUMP 10HP 220V 3-PH
Price
$3,561.85
166-2
PLEXIGLASS COVER W/RUBBER SEAL
Price
$89.15
166-3
VACUUM PUMP FILTER
Price
$173.65
166-4
VACUUM FILTER BASE
Price
$22.35
166-5
THREADED PIPE 2 IPS X 3"
Price
$9.00
166-6
ELBOW FITTING 2 IPS
Price
$4.70
167
LOCK WASHER 10MM
Price
N/A
168
ON BUTTON SCH XB2BW33M1C 22MM GRN
Price
$29.15
169
E-STOP BUTTON SCH XB4BS542 22MM RED
Price
$28.10
170
DOOR HINGE
Price
$2.25
171
FLAT HD CAP SCR M5-.8 X 12
Price
N/A
172
DOOR HANDLE W/LOCK
Price
$1.90
173
CABLE CARRIER
Price
$44.60
174
CONTROLLER HOOK
Price
N/A
201
GANTRY BEAM
Price
$1,028.60
202
LINEAR GUIDEWAY PMI MSA20-1840
Price
$439.20
203
HELICAL RACK 1.25M, 670MM
Price
$66.90
204
HELICAL RACK 1.25M, 470MM
Price
$31.65
205
CABLE CARRIER TRACK 1050MM
Price
$44.60
205-1
CABLE CARRIER
Price
$66.90
206
GANTRY ACCESS PANEL, LEFT
Price
$53.60
207
GANTRY ACCESS PANEL, RIGHT
Price
$53.60
208
GANTRY CABLE ACCESS FAIRING
Price
$44.60
209
LIMIT STOP BUMPER
Price
N/A
210
LIMIT STOP BRACKET
Price
N/A
211
OILER SYSTEM PUMP
Price
$311.95
212
X-AXIS PROXIMITY SWITCH BRACKET
Price
$2.60
213
CAP SCREW M6-1 X 20
Price
N/A
214
CAP SCREW M6-1 X 20
Price
N/A
215
CAP SCREW M10-1.5 X 30
Price
N/A
216
CAP SCREW M10-1.5 X 30
Price
N/A
217
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
218
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
219
X-AXIS MOVEMENT LABEL
Price
N/A
220
Y-AXIS MOVEMENT LABEL
Price
N/A
221
PHLP HD SCR M4-.7 X 12
Price
N/A
222
LOCK WASHER 4MM
Price
N/A
223
FLAT WASHER 4MM
Price
N/A
224
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
225
FLAT WASHER 6MM
Price
N/A
228
PROXIMITY SWITCH OMRON TL-Q5MC1-Z
Price
$22.70
229
Z-AXIS SCREW ASSEMBLY
Price
$127.65
301
SPINDLE MOTOR HSD 4HP 220V 3-PH
Price
$4,901.90
302
SPINDLE MOTOR PLATE
Price
$185.45
303
SPINDLE COVER, UPPER
Price
$89.15
304
DUST SHOE
Price
$35.95
305
DUST HOSE CLAMP
Price
$46.40
306
GUIDEWAY CARRIAGE MSA20S
Price
$107.15
307
DRIVE GEARBOX MOUNT
Price
$22.35
308
BALL SCREW END SUPPORT, UPPER
Price
$22.35
309
OILER MANIFOLD
Price
$53.60
310
X-AXIS MOUNTING PLATE
Price
$89.15
311
Z-AXIS MOUNTING PLATE
Price
$89.15
312
LINEAR GUIDEWAY PMI MSA20S-500
Price
$118.65
313
FLANGE BALL NUT
Price
$22.35
314
BALL SCREW END SUPPORT, LOWER
Price
$22.35
315
STEPPER MOTOR FL86STH118A-22-LC
Price
N/A
316
SYNCHRONOUS WHEEL Z18
Price
$9.00
317
TIMING BELT HTD 550-5M
Price
$18.00
318
DRIVE GEARBOX 1.25M
Price
$111.45
319
GEARBOX COVER
Price
$118.65
320
STEPPER MOTOR MOUNTING PLATE
Price
$18.00
321
STEPPER MOTOR BRACKET
Price
$22.35
322
TIMING BELT HTD 310-5M
Price
$4.70
323
SYNCHRONOUS WHEEL Z20
Price
$9.00
324
ELECTRICAL FAN COVER
Price
N/A
325
DUST SHIELD
Price
$713.00
326
PROXIMITY SWITCH OMRON TL-Q5MCI-Z
Price
N/A
327
Z-AXIS PROXIMITY SWITCH BRACKET
Price
$2.60
328
PROXIMITY SWITCH OMRON TL-Q5MCI-Z
Price
N/A
329
BALL SCREW
Price
$111.45
330
CAP SCREW M8-1.25 X 35
Price
N/A
331
CAP SCREW M8-1.25 X 20
Price
N/A
332
CAP SCREW M6-1 X 20
Price
N/A
333
CAP SCREW M6-1 X 20
Price
N/A
334
CAP SCREW M6-1 X 20
Price
N/A
335
CAP SCREW M6-1 X 20
Price
N/A
336
CAP SCREW M4-.7 X 16
Price
N/A
337
CAP SCREW M6-1 X 20
Price
N/A
338
CAP SCREW M6-1 X 20
Price
N/A
339
CAP SCREW M8-1.25 X 20
Price
N/A
340
CAP SCREW M6-1 X 20
Price
N/A
341
CAP SCREW M5-.8 X 25
Price
N/A
342
CAP SCREW M8-1.25 X 20
Price
N/A
343
CAP SCREW M5-.8 X 25
Price
N/A
344
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
345
CAP SCREW M4-.7 X 16
Price
N/A
346
CAP SCREW M5-.8 X 12
Price
N/A
347
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
348
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
349
CAP SCREW M5-.8 X 45
Price
N/A
350
HEX NUT M5-.8
Price
N/A
351
Z-AXIS TOOL SETTER
Price
$18.40
352
Z-AXIS MOVEMENT LABEL
Price
N/A
401
GANTRY COLUMN, RIGHT
Price
$289.70
402
GANTRY COLUMN, LEFT
Price
$289.70
403
COLUMN COVER, RIGHT
Price
$89.15
404
COLUMN COVER, LEFT
Price
$89.15
405
GUIDEWAY CARRIAGE MSA20S
Price
N/A
406
STEPPER MOTOR FL86STH118A-22-LC
Price
N/A
407
DRIVE GEARBOX 1.25M
Price
N/A
408
TIMING BELT HTD 550-5M
Price
N/A
409
SYNCHRONOUS WHEEL Z18
Price
N/A
410
GEARBOX COVER
Price
N/A
411
PROXIMITY SWITCH OMRON TL-Q5MCI-Z
Price
N/A
412
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
413
CAP SCREW M5-.8 X 25
Price
N/A
414
CAP SCREW M10-1.5 X 30
Price
N/A
415
CAP SCREW M4-.7 X 16
Price
N/A
416
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
417
NYLON TUBING 4MM X 100M W/ANTI-KINK COIL
Price
$133.70
501
CONTACTOR SCH LC1D32M7C 220V 32A
Price
$97.75
502
FUSE HOLDER YHDA RT18-32X
Price
N/A
503
TERMINAL BAR 12P DIN38 12-24G
Price
$13.40
504
EMI FILTER TORUN 3N-20A-U
Price
N/A
505
STEPPER DRIVER YAKO YKA2811MA
Price
$579.35
506
VFD DELTA VFD037E23A 240V 3-PH
Price
$1,559.70
507
24V DC POWER SUPPLY MEANWELL LRS-75-24
Price
N/A
508
LIMIT SWITCH PANASONIC AZ-7311
Price
N/A
509
LIMIT SWITCH BRACKET
Price
$2.60
510
INTERFACE BOARD RICHAUTO A1X/B1X
Price
N/A
511
TRANSFORMER WIN JBK5-1200VA/A 220V/110V
Price
$191.95
512
TERMINAL BAR 12P M4 X 12 X 12 TM4
Price
$66.90
513
TERMINAL BLOCK TC-604 60A
Price
$27.00
514
SPINDLE POWER CORD TRVVP 18G 4W
Price
$75.15
515
X-AXIS MOTOR CORD TRVVP 19G 4W
Price
$53.60
516
Y-AXIS1 MOTOR CORD TRVVP 19G 4W
Price
$44.60
517
Y-AXIS2 MOTOR CORD TRVVP 19G 4W
Price
$44.60
518
Z-AXIS MOTOR CORD TRVVP 19G 4W
Price
$40.25
519
C-AXIS MOTOR CORD TRVVP 19G 4W
Price
$44.60
520
Y-AXIS LIMIT CORD TRVV 22G 4W
Price
$35.95
521
C-AXIS LIMIT CORD TRVV 22G 4W
Price
$44.60
522
AXES LIMIT CORD TRWP 22G 7W
Price
$35.95
523
OILER PUMP CORD TRVV 20G 2W
Price
$44.60
524
50 PIN CABLE 26G 50W 72"
Price
N/A
525
COLLET WRENCH ER25
Price
$11.50
526
WRENCH 27 X 30MM OPEN-ENDS
Price
N/A
527
ENGRAVING BIT 1/8" 20-PC
Price
$4.70
528
USB-B CABLE 28G 4W 36"
Price
N/A
529
DSP CONTROLLER RICHAUTO B18
Price
$2,339.60
529-1
SMALL USB EXTENSION
Price
$53.50
530
COLLET ER20 1/8
Price
N/A
531
COLLET ER20 1/2
Price
N/A
532
COLLET ER20 4MM
Price
N/A
533
COLLET ER20 6MM
Price
N/A
534
SPOILBOARD CUTTER 6 X 22MM
Price
N/A
535
V-GROOVE CUTTER 6 X 22MM
Price
$25.90
536
DOOR KEY (2-PC)
Price
$2.60
537
PROXIMITY SWITCH OMRON TL-Q5MCI-Z
Price
N/A
538
HEX WRENCH 3MM
Price
N/A
539
HEX WRENCH 4MM
Price
N/A
540
HEX WRENCH 5MM
Price
N/A
541
HEX WRENCH 6MM
Price
N/A
542
FUSE 10A 500V 10MM TIME-DELAY, CERAMIC
Price
N/A
543
CAP SCREW M4-.7 X 30
Price
N/A
544
PHLP HD SCR M4-.7 X 12
Price
N/A
545
LOCK WASHER 4MM
Price
N/A
546
FLAT WASHER 4MM
Price
N/A
547
HEX NUT M4-.7
Price
N/A
548
CAP SCREW M6-1 X 16
Price
N/A
549
LOCK WASHER 6MM
Price
N/A
550
FLAT WASHER 6MM
Price
N/A
551
HEX NUT M6-1
Price
N/A
552
WIRE LOOM 50 X 1370MM
Price
$1.90
553
WIRE LOOM 50 X 480MM
Price
$1.90
554
WIRE LOOM 50 X 280MM
Price
$1.90
555
WIRE LOOM 50 X 230MM
Price
$1.90
556
WIRE LOOM 50 X 200MM
Price
$1.90
557
GROUNDING CABLE
Price
$9.00
558
DIN RAIL DIN38
Price
$66.90
559
ELECTRICAL MOUNTING BOARD
Price
$66.90

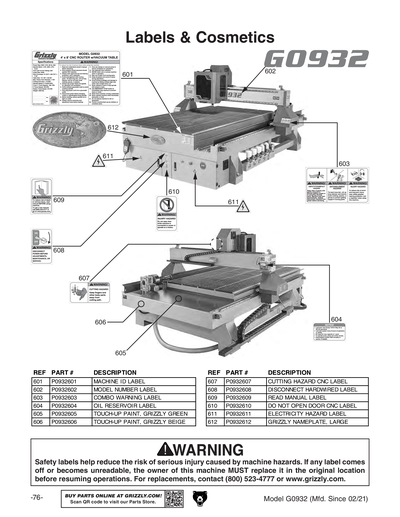

601
MACHINE ID LABEL
Price
$1.25
602
MODEL NUMBER LABEL
Price
$1.25
603
COMBO WARNING LABEL
Price
$1.25
604
OIL RESERVOIR LABEL
Price
$1.25
605
N/S GRIZZLY GREEN G1023S
Price
N/A
606
BEIGE REF G0555
Price
N/A
607
CUTTING HAZARD CNC LABEL
Price
N/A
608
DISCONNECT HARDWIRED POWER 1.5W X 2.5H
Price
N/A
609
READ MANUAL 1.5W X 2.5H
Price
N/A
610
DO NOT OPEN DOOR CNC LABEL
Price
N/A
611
ELECTRICITY 0.7W X 0.6H
Price
N/A
612
Nameplate - Large
Price
N/A
MAN
MANUAL G0932 MFD 02.21+ V1.01.22
Price
$22.65
