Parts for G0938 - 18" Variable-Speed Scroll Saw w/ Stand

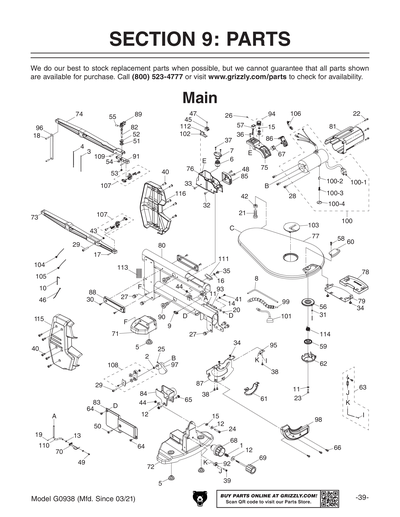

Part Diagram for G0938
Part Diagram for G0938
Part Diagram for G0938
Part Diagram for G0938
Part Diagram for G0938
Part Diagram for G0938
Part Diagram for G0938
Part Diagram for G0938
Part Diagram for G0938
Part Diagram for G0938

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

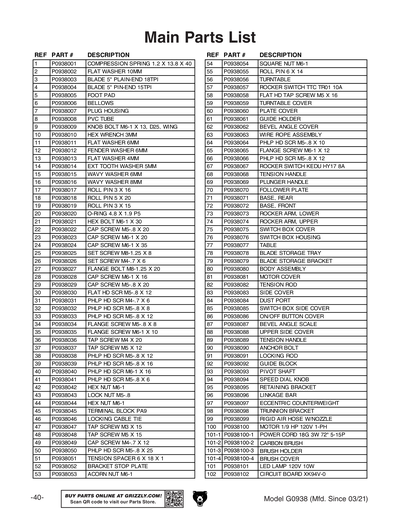

Ref #
Part #
Description
1
*DISCD*COMPRESION SPRING 1.2 X 13.8 X 40
Price
$5.10
2
FLAT WASHER 10MM
Price
N/A
3
*DISCD*BLADE 5" PLAIN-END 18TPI
Price
$6.15
4
*DISCD*BLADE 5" PIN-END 15TPI
Price
$6.15
5
*DISCD*FOOT PAD
Price
$5.10
6
*DISCD*BELLOWS
Price
$5.45
7
*DISCD*PLUG HOUSING
Price
$5.75
8
*DISCD*PVC TUBE
Price
$5.10
9
*DISCD*KNOB BOLT M6-1 X 13, D25, WING
Price
$5.70
10
HEX WRENCH 3MM
Price
N/A
11
FLAT WASHER 6MM
Price
N/A
12
FENDER WASHER 6MM
Price
N/A
13
FLAT WASHER 4MM
Price
N/A
14
EXT TOOTH WASHER 5MM
Price
N/A
15
*DISCD*WAVY WASHER 6MM
Price
$4.70
16
*DISCD*WAVY WASHER 8MM
Price
$4.70
17
ROLL PIN 3 X 16
Price
N/A
18
ROLL PIN 5 X 20
Price
N/A
19
ROLL PIN 3 X 15
Price
N/A
20
O-RING 4.8 X 1.9 P5
Price
N/A
21
HEX BOLT M6-1 X 30
Price
N/A
22
CAP SCREW M5-.8 X 20
Price
N/A
23
CAP SCREW M6-1 X 20
Price
N/A
24
CAP SCREW M6-1 X 35
Price
N/A
25
SET SCREW M8-1.25 X 8
Price
N/A
26
SET SCREW M4-.7 X 6
Price
N/A
27
FLANGE BOLT M8-1.25 X 20
Price
N/A
28
CAP SCREW M6-1 X 16
Price
N/A
29
CAP SCREW M5-.8 X 20
Price
N/A
30
FLAT HD SCR M5-.8 X 12
Price
N/A
31
PHLP HD SCR M4-.7 X 6
Price
N/A
32
PHLP HD SCR M5-.8 X 8
Price
N/A
33
PHLP HD SCR M5-.8 X 12
Price
N/A
34
FLANGE SCREW M5-.8 X 8
Price
N/A
35
FLANGE SCREW M6-1 X 10
Price
N/A
36
TAP SCREW M4 X 20
Price
N/A
37
TAP SCREW M5 X 12
Price
N/A
38
PHLP HD SCR M5-.8 X 12
Price
N/A
39
PHLP HD SCR M5-.8 X 16
Price
N/A
40
PHLP HD SCR M6-1 X 16
Price
N/A
41
PHLP HD SCR M5-.8 X 6
Price
N/A
42
HEX NUT M6-1
Price
N/A
43
LOCK NUT M5-.8
Price
N/A
44
HEX NUT M6-1
Price
N/A
45
*DISCD*TERMINAL BLOCK PA9
Price
$5.75
46
*DISCD*LOCKING CABLE TIE
Price
$4.70
47
TAP SCREW M3 X 15
Price
N/A
48
TAP SCREW M5 X 15
Price
N/A
49
CAP SCREW M4-.7 X 12
Price
N/A
50
PHLP HD SCR M5-.8 X 25
Price
N/A
51
*DISCD*TENSION SPACER 6 X 18 X 1
Price
$4.85
52
*DISCD*BRACKET STOP PLATE
Price
$4.70
53
*DISCD*ACORN NUT M6-.75
Price
$4.95
54
*DISCD*SQUARE NUT M6-.75
Price
$4.60
55
*DISCD*ROLL PIN 6 X 14
Price
$4.75
56
*DISCD*TURNTABLE
Price
$5.75
57
*DISCD*ROCKER SWITCH TTC TR01 10A
Price
$9.00
58
*DISCD*FLAT HD TAP SCREW M5 X 16
Price
$4.70
59
*DISCD*TURNTABLE COVER
Price
$5.10
60
*DISCD*PLATE COVER
Price
$5.75
61
*DISCD*GUIDE HOLDER
Price
$5.45
62
*DISCD*BEVEL ANGLE COVER
Price
$5.10
63
*DISCD*WIRE ROPE ASSEMBLY
Price
$10.85
64
PHLP HD SCR M5-.8 X 10
Price
N/A
65
FLANGE SCREW M6-1 X 12
Price
N/A
66
PHLP HD SCR M5-.8 X 12
Price
N/A
67
*DISCD*ROCKER SWITCH KEDU HY17 8A
Price
$6.85
68
*DISCD*TENSION HANDLE
Price
$7.20
69
*DISCD*PLUNGER HANDLE
Price
$6.15
70
*DISCD*FOLLOWER PLATE
Price
$6.90
71
*DISCD*BASE, REAR
Price
$32.00
72
*DISCD*BASE, FRONT
Price
$82.35
73
*DISCD*ROCKER ARM, LOWER
Price
$41.00
74
*DISCD*ROCKER ARM, UPPER
Price
$40.25
75
*DISCD*SWITCH BOX COVER
Price
$7.75
76
*DISCD*SWITCH BOX HOUSING
Price
$11.90
77
*DISCD*TABLE
Price
$91.70
78
*DISCD*BLADE STORAGE TRAY
Price
$6.50
79
*DISCD*BLADE STORAGE BRACKET
Price
$9.40
80
*DISCD*BODY ASSEMBLY
Item is no longer available
Price
N/A
81
*DISCD*MOTOR COVER
Price
$15.50
82
*DISCD*TENSION ROD
Price
$6.40
83
*DISCD*SIDE COVER
Price
$7.95
84
*DISCD*DUST PORT
Price
$6.15
85
*DISCD*SWITCH BOX SIDE COVER
Price
$12.25
86
*DISCD*ON/OFF BUTTON COVER
Price
$5.50
87
*DISCD*BEVEL ANGLE SCALE
Price
$17.65
88
*DISCD*UPPER SIDE COVER
Price
$5.75
89
*DISCD*TENSION HANDLE
Price
$9.20
90
*DISCD*ANCHOR BOLT
Price
$12.65
91
*DISCD*LOCKING ROD
Price
$10.10
92
*DISCD*GUIDE BLOCK
Price
$5.45
93
*DISCD*PIVOT SHAFT
Price
$6.15
94
*DISCD*SPEED DIAL KNOB
Price
$5.90
95
*DISCD*RETAINING BRACKET
Price
$7.20
96
*DISCD*LINKAGE BAR
Price
$6.50
97
*DISCD*ECCENTRIC COUNTERWEIGHT
Price
$16.60
98
*DISCD*TRUNNION BRACKET
Price
$9.75
99
*DISCD*RIGID AIR HOSE W/NOZZLE
Price
$13.30
100
*DISCD*MOTOR 1/9 HP 120V 1-PH
Price
$400.00
100-1
*DISCD*POWER CORD 18G 3W 72" 5-15P
Price
$30.95
100-2
*DISCD*CARBON BRUSH
Price
$5.75
100-3
*DISCD*BRUSH HOLDER
Price
$9.00
100-4
*DISCD*BRUSH COVER
Price
$6.90
101
*DISCD*LED LAMP 120V 10W
Price
$38.40
102
*DISCD*CIRCUIT BOARD XK94V-0
Price
$10.45

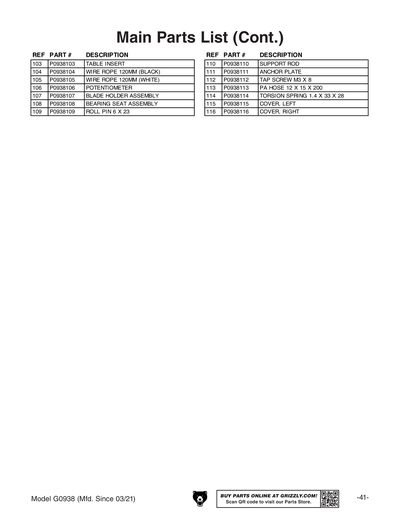

103
*DISCD*TABLE INSERT
Price
$5.35
104
*DISCD*WIRE ROPE 120MM (BLACK)
Price
$5.10
105
*DISCD*WIRE ROPE 120MM (WHITE)
Price
$5.10
106
*DISCD*POTENTIOMETER
Price
$7.60
107
*DISCD*BLADE HOLDER ASSEMBLY
Price
$17.00
108
*DISCD*BEARING SEAT ASSEMBLY
Price
$11.20
109
*DISCD*ROLL PIN 6 X 23
Price
$5.75
110
*DISCD*SUPPORT ROD
Price
$11.20
111
*DISCD*ANCHOR PLATE
Price
$5.75
112
TAP SCREW M3 X 8
Price
N/A
113
*DISCD*PA HOSE 12 X 15 X 200
Price
$10.10
114
*DISCD*TORSION SPRING 1.4 X 33 X 28
Price
$5.10
115
*DISCD*COVER, LEFT
Price
$20.50
116
*DISCD*COVER, RIGHT
Price
$20.50

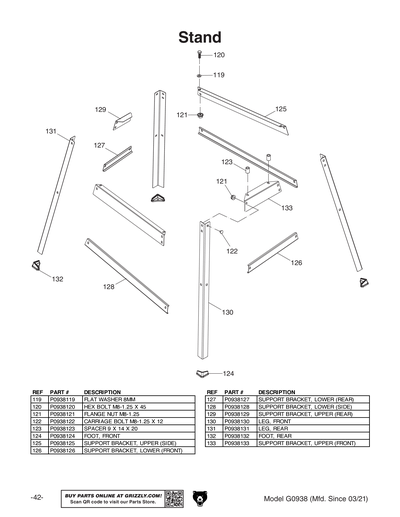

119
FLAT WASHER 8MM
Price
N/A
120
HEX BOLT M8-1.25 X 45
Price
N/A
121
FLANGE NUT M8-1.25
Price
N/A
122
CARRIAGE BOLT M8-1.25 X 12
Price
N/A
123
*DISCD*SPACER 9 X 14 X 20
Item is no longer available
Price
N/A
124
*DISCD*FOOT, FRONT
Price
$6.15
125
*DISCD*SUPPORT BRACKET, UPPER (SIDE)
Price
$18.70
126
*DISCD*SUPPORT BRACKET, LOWER (FRONT)
Price
$13.35
127
*DISCD*SUPPORT BRACKET, LOWER (REAR)
Price
$10.85
128
*DISCD*SUPPORT BRACKET, LOWER (SIDE)
Price
$18.40
129
*DISCD*SUPPORT BRACKET, UPPER (REAR)
Price
$9.40
130
*DISCD*LEG, FRONT
Price
$15.15
131
*DISCD*LEG, REAR
Price
$15.15
132
*DISCD*FOOT, REAR
Item is no longer available
Price
N/A
133
*DISCD*SUPPORT BRACKET, UPPER (FRONT)
Price
$13.35

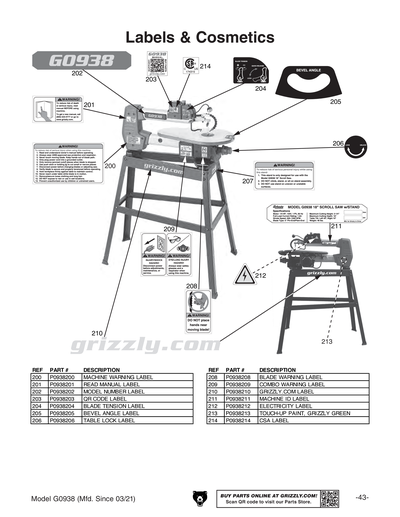

200
*DISCD*MACHINE WARNING LABEL
Item is no longer available
Price
N/A
201
READ MANUAL 1.5W X 2.5H
Price
N/A
202
*DISCD*MODEL NUMBER LABEL
Item is no longer available
Price
N/A
203
*DISCD*QR CODE LABEL
Item is no longer available
Price
N/A
204
*DISCD*BLADE TENSION LABEL
Item is no longer available
Price
N/A
205
*DISCD*BEVEL ANGLE LABEL
Item is no longer available
Price
N/A
206
*DISCD*TABLE LOCK LABEL
Item is no longer available
Price
N/A
207
*DISCD*STAND WARNING LABEL
Item is no longer available
Price
N/A
208
BANDSAW BLADE 1.5W X 2H
Price
N/A
209
*DISCD*COMBO WARNING LABEL
Item is no longer available
Price
N/A
210
GRIZZLY.COM LABEL 13",GRAY
Price
N/A
211
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
212
ELECTRICITY 1.4W X 1.2H
Price
N/A
213
N/S GRIZZLY GREEN G1023S
Price
N/A
