Parts for G0940 - 13" 2 HP Benchtop Planer w/ Helical Cutterhead

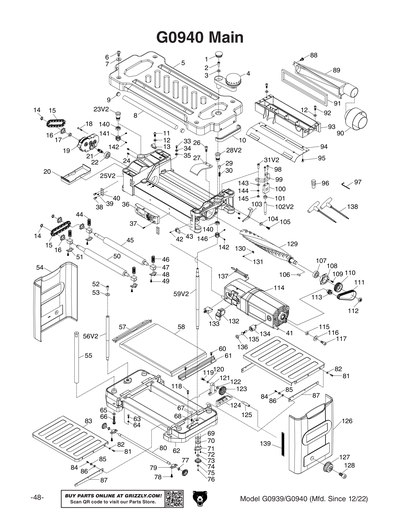

Part Diagram for G0940
Part Diagram for G0940
Part Diagram for G0940
Part Diagram for G0940
Part Diagram for G0940
Part Diagram for G0940
Part Diagram for G0940
Part Diagram for G0940
Part Diagram for G0940
Part Diagram for G0940
Part Diagram for G0940
Part Diagram for G0940
Part Diagram for G0940
Part Diagram for G0940

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

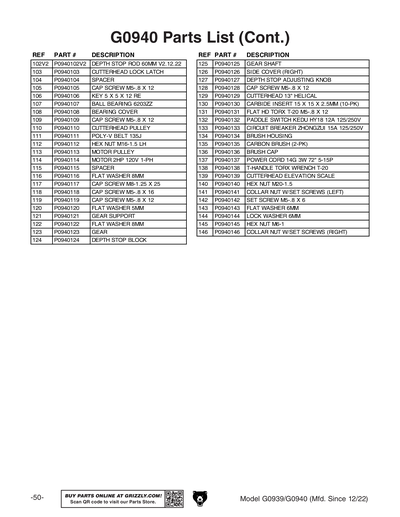

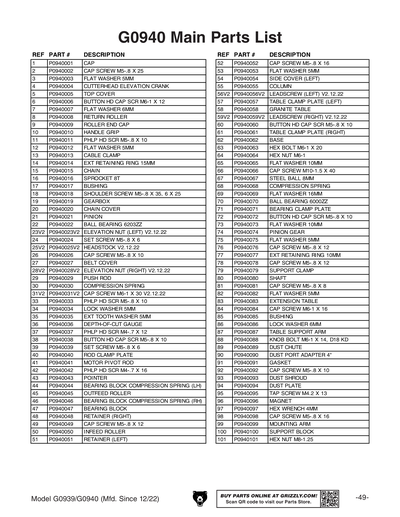

Ref #
Part #
Description
2
CAP SCREW M5-.8 X 25
Price
N/A
3
FLAT WASHER 5MM
Price
N/A
4
CUTTERHEAD ELEVATION CRANK
Price
N/A
5
Price
$60.40
6
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
7
FLAT WASHER 6MM
Price
N/A
8
RETURN ROLLER
Price
N/A
9
ROLLER END CAP
Price
N/A
10
Price
$7.20
11
PHLP HD SCR M5-.8 X 10
Price
N/A
12
FLAT WASHER 5MM
Price
N/A
13
CABLE CLAMP
Price
N/A
14
EXT RETAINING RING 15MM
Price
N/A
15
CHAIN
Price
N/A
16
SPROCKET 8T
Price
N/A
17
BUSHING
Price
N/A
18
SHOULDER SCREW M5-.8 X 35, 6 X 25
Price
N/A
19
GEARBOX
Price
N/A
20
Price
$4.70
20-1
Price
$2.20
21
PINION
Price
N/A
22
BALL BEARING 6203ZZ
Price
N/A
23
ELEVATION NUT (LEFT) V1
Price
N/A
23V2
ELEVATION NUT (LEFT) V2.12.22
Price
N/A
24
SET SCREW M5-.8 X 6
Price
N/A
25
Price
$97.75
25V2
Price
$100.75
25V3
Price
$80.60
26
CAP SCREW M5-.8 X 10
Price
N/A
27
BELT COVER
Price
N/A
28
ELEVATION NUT (RIGHT) V1
Price
N/A
28V2
ELEVATION NUT (RIGHT) V2.12.22
Price
N/A
29
PUSH ROD
Price
N/A
30
COMPRESSION SPRING
Price
N/A
31
CAP SCREW M6-1 X 16
Price
N/A
31V2
CAP SCREW M6-1 X 30
Price
N/A
32
ELEVATION NUT (LOWER RIGHT)
Price
$7.95
33
PHLP HD SCR M5-.8 X 10
Price
N/A
34
LOCK WASHER 5MM
Price
N/A
35
EXT TOOTH WASHER 5MM
Price
N/A
36
DEPTH-OF-CUT GAUGE
Price
N/A
37
PHLP HD SCR M4-.7 X 12
Price
N/A
38
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
39
SET SCREW M5-.8 X 6
Price
N/A
40
ROD CLAMP PLATE
Price
N/A
41
MOTOR PIVOT ROD
Price
N/A
42
PHLP HD SCR M4-.7 X 16
Price
N/A
43
POINTER
Price
N/A
44
BEARING BLOCK COMPRESSION SPRING (LH)
Price
$5.75
45
OUTFEED ROLLER
Price
N/A
46
BEARING BLOCK COMPRESSION SPRING (RH)
Price
$5.75
47
BEARING BLOCK
Price
N/A
48
RETAINER (RIGHT)
Price
N/A
49
CAP SCREW M5-.8 X 12
Price
N/A
50
INFEED ROLLER
Price
N/A
51
RETAINER (LEFT)
Price
N/A
52
CAP SCREW M5-.8 X 16
Price
N/A
53
FLAT WASHER 5MM
Price
N/A
54
Price
$23.75
55
COLUMN
Price
N/A
56
LEADSCREW (LEFT) V1
Price
N/A
56V2
LEADSCREW (LEFT) V2.12.22
Price
N/A
57
TABLE CLAMP PLATE (LEFT)
Price
$12.95
58
Price
$68.70
59
LEADSCREW (RIGHT) V1
Price
N/A
59V2
LEADSCREW (RIGHT) V2.12.22
Price
N/A
60
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
61
TABLE CLAMP PLATE (RIGHT)
Price
$12.95
62
Price
$123.35
63
HEX BOLT M6-1 X 20
Price
N/A
64
HEX NUT M6-1
Price
N/A
65
FLAT WASHER 10MM
Price
N/A
66
CAP SCREW M10-1.5 X 40
Price
N/A
67
STEEL BALL 8MM
Price
N/A
68
Price
$3.65
69
FLAT WASHER 16MM
Price
N/A
70
BALL BEARING 6000ZZ
Price
N/A
71
Price
$6.15
72
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
73
FLAT WASHER 10MM
Price
N/A
74
PINION GEAR
Price
N/A
75
FLAT WASHER 5MM
Price
N/A
76
CAP SCREW M5-.8 X 12
Price
N/A
77
EXT RETAINING RING 10MM
Price
N/A
78
CAP SCREW M5-.8 X 12
Price
N/A
79
SUPPORT CLAMP
Price
N/A
80
SHAFT
Price
N/A
81
CAP SCREW M5-.8 X 8
Price
N/A
82
FLAT WASHER 5MM
Price
N/A
83
Price
$43.90
84
CAP SCREW M6-1 X 16
Price
N/A
85
BUSHING
Price
N/A
86
LOCK WASHER 6MM
Price
N/A
87
Price
$11.90
88
KNOB BOLT M6-1 X 14, D18 KD
Price
N/A
89
DUST CHUTE
Price
N/A
90
DUST PORT ADAPTER 4"
Price
N/A
91
Price
$12.95
92
CAP SCREW M5-.8 X 10
Price
N/A
93
DUST SHROUD
Price
N/A
94
DUST PLATE
Price
N/A
95
TAP SCREW M4.2 X 13
Price
N/A
96
MAGNET
Price
N/A
97
HEX WRENCH 4MM
Price
N/A
98
CAP SCREW M5-.8 X 16
Price
N/A
99
Price
$15.65
100
Price
$14.10
101
HEX NUT M8-1.25
Price
N/A
102
Price
$8.10
102V2
DEPTH STOP ROD 60MM V2.12.22
Price
$8.10
103
CUTTERHEAD LOCK LATCH
Price
N/A
104
SPACER
Price
N/A
105
CAP SCREW M5-.8 X 12
Price
N/A
106
KEY 5 X 5 X 12
Price
N/A
107
BALL BEARING 6203ZZ
Price
N/A
108
BEARING COVER
Price
N/A
109
CAP SCREW M5-.8 X 12
Price
N/A
110
Price
$31.65
111
POLY-V BELT 135J
Price
N/A
112
HEX NUT M16-1.5 LH
Price
N/A
113
MOTOR PULLEY
Price
N/A
114
MOTOR 2HP 120V 1-PH
Price
N/A
115
SPACER
Price
N/A
116
FLAT WASHER 8MM
Price
N/A
117
CAP SCREW M8-1.25 X 25
Price
N/A
118
CAP SCREW M5-.8 X 16
Price
N/A
119
CAP SCREW M5-.8 X 12
Price
N/A
120
FLAT WASHER 5MM
Price
N/A
121
Price
$13.70
122
FLAT WASHER 8MM
Price
N/A
123
Price
$5.75
124
Price
$15.15
125
Price
$8.65
126
Price
$23.75
127
DEPTH STOP ADJUSTING KNOB
Price
$6.25
128
CAP SCREW M5-.8 X 12
Price
N/A
129
Price
$733.15
130
Indexable Carbide Insert - 15 x 15 x 2.5mm, 10-Pk.
Price
N/A
131
FLAT HD TORX T-20 M5-.8 X 12
Price
$1.90
132
Safety Paddle Switch
Price
N/A
133
CIRCUIT BREAKER ZHONGZUI 15A 125/250V
Price
N/A
134
BRUSH HOUSING W/CAP
Price
N/A
135
CARBON BRUSH (2-PK)
Price
N/A
136
BRUSH HOUSING W/CAP
Price
N/A
137
POWER CORD 14G 3W 72" 5-15P
Price
N/A
138
T-HANDLE TORX WRENCH T-20
Price
$2.25
140
HEX NUT M20-1.5
Price
N/A
141
COLLAR NUT W/SET SCREWS (LEFT)
Price
N/A
142
SET SCREW M5-.8 X 6
Price
N/A
143
FLAT WASHER 6MM
Price
N/A
144
LOCK WASHER 6MM
Price
N/A
145
HEX NUT M6-1
Price
N/A
146
COLLAR NUT W/SET SCREWS (RIGHT)
Price
N/A
147
SUPPORT BRACKET, REAR LEFT/RIGHT
Price
N/A
148
SUPPORT BRACKET, FRONT LEFT
Price
N/A
149
SUPPORT BRACKET, LOCK HANDLE
Price
N/A
150
SUPPORT BRACKET, FRONT RIGHT
Price
N/A
151
CAP SCREW M5-.8 X 12
Price
N/A
152
DRIVE ROD
Price
N/A
153
CONNECTING BLOCK
Price
N/A
154
IDLER RATCHET
Price
N/A
155
LOCKING PLATE
Price
N/A
156
FRICTION CLAMP
Price
N/A
157
CONNECTING ROD
Price
N/A
158
HEX NUT M10-1.5
Price
N/A
159
SHOULDER SCREW M5-.8 X 8, 6 X 4
Price
N/A
160
FLAT HD SCR M4-.7 X 10
Price
N/A
161
HANDLE CONNECTING LEVER
Price
N/A
162
HEADED PIN 6 X 22
Price
N/A
163
LOCK HANDLE
Price
N/A
164
DRIVING RATCHET
Price
N/A
165
HEADED PIN 6 X 35
Price
N/A
166
PUSH-ON EXT RETAINING RING 6MM
Price
N/A
167
FLAT WASHER 5MM
Price
N/A
168
LOCK WASHER 5MM
Price
N/A

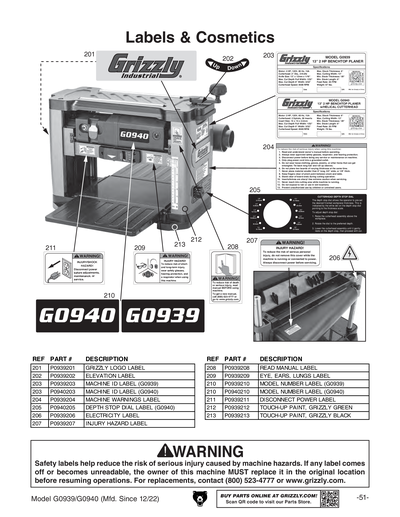

201
GRIZZLY LOGO LABEL
Price
N/A
202
ELEVATION LABEL
Price
N/A
203
Price
$16.40
204
MACHINE WARNINGS LABEL
Price
N/A
205
Price
$5.00
206
ELECTRICITY 0.7W X 0.6H
Price
N/A
207
INJURY HAZARD LABEL
Price
N/A
208
READ MANUAL 1.5W X 2.5H
Price
N/A
209
EYE/EAR/LUNG 2.8W X 1.5H
Price
N/A
210
Price
$11.65
211
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
212
N/S GRIZZLY GREEN G1023S
Price
N/A
213
GLOSSY BLACK
Price
N/A
MAN
MANUAL G0939/40 MFD-12.20-11.22 V1.08.21
Price
N/A
MANV2
MANUAL G0939/G0940 MFD-12.22-02.25 V2.12
Price
N/A
MANV3
MANUAL G0939/G0940 MFD-03.25+ V3.03.25
Price
N/A
