Parts for G0948 - 10" 1/2 HP Bandsaw

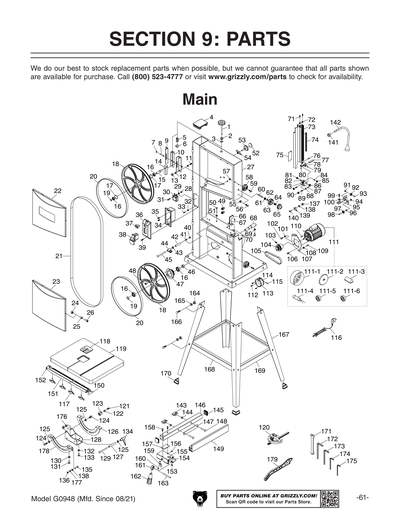

Part Diagram for G0948
Part Diagram for G0948
Part Diagram for G0948
Part Diagram for G0948
Part Diagram for G0948
Part Diagram for G0948
Part Diagram for G0948
Part Diagram for G0948

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

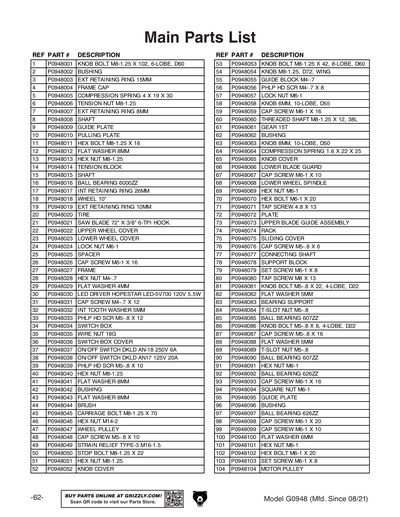

Ref #
Part #
Description
1
KNOB BOLT M8-1.25 x 102, 6-LOBE, D60
Price
$8.95
2
BUSHING
Price
$1.90
3
EXT RETAINING RING 15MM
Price
N/A
4
FRAME CAP
Price
$2.70
5
COMPRESSION SPRING 4 X 19 X 30
Price
$3.65
6
TENSION NUT M8-1.25
Price
$5.10
7
EXT RETAINING RING 8MM
Price
N/A
8
SHAFT
Price
$3.65
9
GUIDE PLATE
Price
$14.75
10
PULLING PLATE
Price
$14.10
11
HEX BOLT M8-1.25 X 16
Price
N/A
12
FLAT WASHER 8MM
Price
N/A
13
HEX NUT M8-1.25
Price
N/A
14
TENSION BLOCK
Price
$15.50
15
SHAFT
Price
$6.90
16
BALL BEARING 6000ZZ
Price
N/A
17
INT RETAINING RING 26MM
Price
N/A
18
WHEEL 10"
Price
$49.65
19
EXT RETAINING RING 10MM
Price
N/A
20
TIRE
Price
$14.75
21
SAW BLADE 72" X 3/8" 6-TPI HOOK
Price
$23.60
22
UPPER WHEEL COVER
Price
$29.50
23
LOWER WHEEL COVER
Price
$29.50
24
LOCK NUT M6-1
Price
N/A
25
SPACER
Price
$3.65
26
CAP SCREW M6-1 X 16
Price
N/A
27
FRAME
Price
$178.25
28
HEX NUT M4-.7
Price
N/A
29
FLAT WASHER 4MM
Price
N/A
30
LED DRIVER HOPESTAR LED-5V700 120V 5.5W
Price
$22.35
31
CAP SCREW M4-.7 X 12
Price
N/A
32
INT TOOTH WASHER 5MM
Price
N/A
33
PHLP HD SCR M5-.8 X 12
Price
N/A
34
SWITCH BOX
Price
$3.65
35
WIRE NUT 18G
Price
$1.90
36
SWITCH BOX COVER
Price
$6.90
37
ON/OFF SWITCH DKLD AN-18 250V 6A
Price
$3.25
38
ON/OFF SWITCH DKLD AN17 125V 20A
Price
$11.20
39
PHLP HD SCR M5-.8 X 10
Price
N/A
40
HEX NUT M8-1.25
Price
N/A
41
FLAT WASHER 8MM
Price
N/A
42
BUSHING
Price
$3.65
43
FLAT WASHER 8MM
Price
N/A
44
BRUSH
Price
$4.70
45
CARRIAGE BOLT M8-1.25 X 70
Price
$3.25
46
HEX NUT M14-2
Price
N/A
47
WHEEL PULLEY
Price
$24.15
48
CAP SCREW M5-.8 X 10
Price
N/A
49
STRAIN RELIEF TYPE-3 M16-1.5
Price
$11.90
50
STOP BOLT M8-1.25 X 22
Price
$6.90
51
HEX NUT M8-1.25
Price
N/A
52
KNOB COVER
Price
$1.90
53
KNOB BOLT M8-1.25 X 42, 8-LOBE, D60
Price
$6.90
54
KNOB M8-1.25, D72, WING
Price
$4.35
55
GUIDE BLOCK M4-.7
Price
$2.90
56
PHLP HD SCR M4-.7 X 8
Price
N/A
57
LOCK NUT M6-1
Price
N/A
58
KNOB 6MM, 10-LOBE, D55
Price
$4.70
59
CAP SCREW M6-1 X 16
Price
N/A
60
THREADED SHAFT M8-1.25 X 12, 38L
Price
$6.70
61
GEAR 15T
Price
$3.65
62
BUSHING
Price
$3.25
63
KNOB 8MM, 10-LOBE, D50
Price
$3.15
64
COMPRESSION SPRING 1.6 X 22 X 25
Price
$1.90
65
KNOB COVER
Price
$6.70
66
LOWER BLADE GUARD
Price
$4.70
67
CAP SCREW M6-1 X 10
Price
N/A
68
LOWER WHEEL SPINDLE
Price
$17.25
69
HEX NUT M6-1
Price
N/A
70
HEX BOLT M6-1 X 20
Price
N/A
71
TAP SCREW 4.8 X 13
Price
$1.90
72
PLATE
Price
$3.25
73
UPPER BLADE GUIDE ASSEMBLY
Price
$11.20
74
RACK
Price
$2.90
75
SLIDING COVER
Price
$3.65
76
CAP SCREW M5-.8 X 6
Price
N/A
77
CONNECTING SHAFT
Price
$3.65
78
SUPPORT BLOCK
Price
$14.40
79
SET SCREW M6-1 X 8
Price
N/A
80
TAP SCREW M8 X 13
Price
$1.90
81
KNOB BOLT M5-.8 X 22, 4-LOBE, D22
Price
$3.65
82
FLAT WASHER 5MM
Price
N/A
83
BEARING SUPPORT
Price
$13.90
84
T-SLOT NUT M5-.8
Price
$4.70
85
BALL BEARING 607ZZ
Price
N/A
86
KNOB BOLT M5-.8 X 8, 4-LOBE, D22
Price
$3.65
87
CAP SCREW M5-.8 X 16
Price
N/A
88
FLAT WASHER 5MM
Price
N/A
89
T-SLOT NUT M5-.8
Price
$1.49
90
BALL BEARING 607ZZ
Price
N/A
91
HEX NUT M6-1
Price
N/A
92
BALL BEARING 626ZZ
Price
N/A
93
CAP SCREW M6-1 X 16
Price
N/A
94
SQUARE NUT M6-1
Price
N/A
95
GUIDE PLATE
Price
$13.70
96
BUSHING
Price
$3.25
97
BALL BEARING 626ZZ
Price
N/A
98
CAP SCREW M6-1 X 20
Price
N/A
99
CAP SCREW M6-1 X 10
Price
N/A
100
FLAT WASHER 6MM
Price
N/A
101
HEX NUT M6-1
Price
N/A
102
HEX BOLT M6-1 X 20
Price
N/A
103
SET SCREW M6-1 X 8
Price
N/A

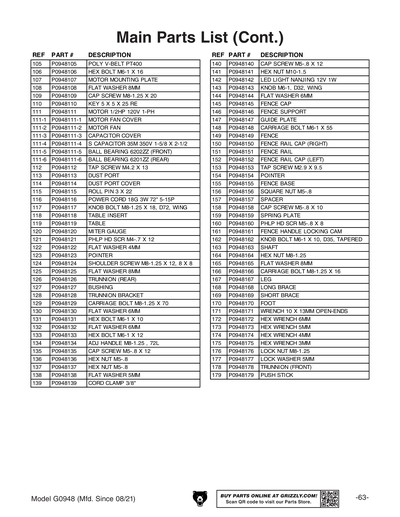

104
MOTOR PULLEY
Price
$23.40
105
POLY V-BELT PT400
Price
$8.95
106
HEX BOLT M6-1 X 16
Price
N/A
107
MOTOR MOUNTING PLATE
Price
$23.00
108
FLAT WASHER 8MM
Price
N/A
109
CAP SCREW M8-1.25 X 20
Price
N/A
110
KEY 5 X 5 X 25 RE
Price
$1.90
111
MOTOR 1/2HP 120V 1-PH
Price
$142.65
111-1
MOTOR FAN COVER
Price
$18.40
111-2
MOTOR FAN
Price
$3.65
111-3
CAPACITOR COVER
Price
$3.65
111-4
S CAPACITOR 35M 350V 1-5/8 X 2-1/2
Price
$19.20
111-5
BALL BEARING 6202ZZ
Price
N/A
111-6
BALL BEARING 6201ZZ
Price
N/A
112
TAP SCREW M4.2 X 13
Price
$1.90
113
DUST PORT W/ COVER
Price
$12.65
115
ROLL PIN 3 X 22
Price
N/A
116
POWER CORD 18G 3W 72" 5-15P
Price
$25.90
117
KNOB BOLT M8-1.25 X 18, D72, WING
Price
$4.35
118
TABLE INSERT
Price
$1.90
119
TABLE
Price
$93.85
120
MITER GAUGE
Price
$19.85
121
PHLP HD SCR M4-.7 X 12
Price
N/A
122
FLAT WASHER 4MM
Price
N/A
123
POINTER
Price
$1.90
124
SHOULDER SCREW M8-1.25 X 12, 8 X 8
Price
$1.90
125
FLAT WASHER 8MM
Price
N/A
126
TRUNNION BRACKET ASSY.
Price
N/A
127
TRUNNION BRACKET ASSY.
Price
N/A
128
TRUNNION BRACKET ASSY.
Price
$60.20
129
CARRIAGE BOLT M8-1.25 X 70
Price
N/A
130
FLAT WASHER 6MM
Price
N/A
131
HEX BOLT M6-1 X 10
Price
N/A
132
FLAT WASHER 6MM
Price
N/A
133
HEX BOLT M6-1 X 12
Price
N/A
134
TRUNNION BRACKET ASSY.
Price
N/A
135
CAP SCREW M5-.8 X 12
Price
N/A
136
HEX NUT M5-.8
Price
N/A
137
HEX NUT M5-.8
Price
N/A
138
FLAT WASHER 5MM
Price
N/A
139
CORD CLAMP 3/8"
Price
$1.90
140
CAP SCREW M5-.8 X 12
Price
N/A
141
HEX NUT M10-1.5
Price
N/A
142
LED LIGHT NANJING 12V 1W
Price
$44.60
143
KNOB M6-1, D32, WING
Price
$1.90
144
FLAT WASHER 6MM
Price
N/A
145
FENCE CAP
Price
$2.90
146
FENCE SUPPORT
Price
$23.40
147
GUIDE PLATE
Price
$4.35
148
CARRIAGE BOLT M6-1 X 55
Price
$1.90
149
FENCE
Price
$28.45
150
FENCE RAIL CAP (RIGHT)
Price
$1.90
151
FENCE RAIL
Price
$30.20
152
FENCE RAIL CAP (LEFT)
Price
$1.90
153
TAP SCREW M2.9 X 9.5
Price
$1.90
154
POINTER
Price
$3.65
155
FENCE BASE
Price
$19.45
156
SQUARE NUT M5-.8
Price
N/A
157
SPACER
Price
$2.90
158
CAP SCREW M5-.8 X 10
Price
N/A
159
SPRING PLATE
Price
$3.15
160
PHLP HD SCR M5-.8 X 8
Price
N/A
161
FENCE HANDLE LOCKING CAM
Price
$4.35
162
KNOB BOLT M6-1 X 10, D35, TAPERED
Price
$4.70
163
SHAFT
Price
$4.35
164
HEX NUT M8-1.25
Price
N/A
165
FLAT WASHER 8MM
Price
N/A
166
CARRIAGE BOLT M8-1.25 X 16
Price
N/A
167
LEG
Price
$24.15
168
LONG BRACE
Price
$15.50
169
SHORT BRACE
Price
$14.40
170
FOOT
Price
$4.70
171
WRENCH 10 X 13MM OPEN-ENDS
Price
N/A
172
HEX WRENCH 6MM
Price
N/A
173
HEX WRENCH 5MM
Price
N/A
174
HEX WRENCH 4MM
Price
N/A
175
HEX WRENCH 3MM
Price
N/A
176
LOCK NUT M8-1.25
Price
N/A
177
LOCK WASHER 5MM
Price
N/A
178
TRUNNION BRACKET ASSY.
Price
N/A
179
Push Stick
Price
N/A

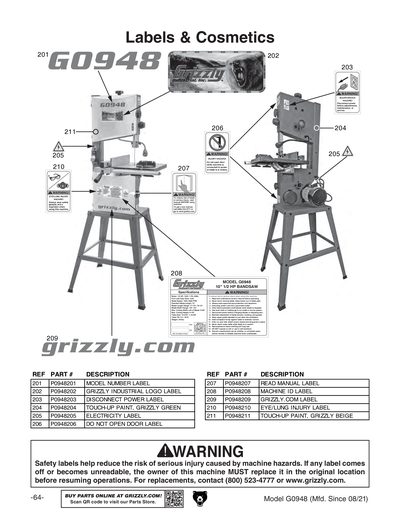

201
MODEL NUMBER LABEL
Price
$10.35
202
GRIZZLY INDUSTRIAL LOGO LABEL
Price
$11.25
203
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
204
N/S GRIZZLY GREEN G1023S
Price
N/A
205
ELECTRICITY 0.7W X 0.6H
Price
N/A
206
DOOR CLOSED BLADE 1.5W X 2.5H
Price
N/A
207
READ MANUAL 1.5W X 2.5H
Price
N/A
208
MACHINE ID LABEL
Price
$4.75
209
GRIZZLY.COM LABEL 9.5",GREEN
Price
N/A
210
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
211
BEIGE REF G0555
Price
N/A
212
BELT TENSION NOTICE TAG
Price
$4.50
MAN
MANUAL G0948 MFD-08.21+ V1.09.21
Price
$22.65
