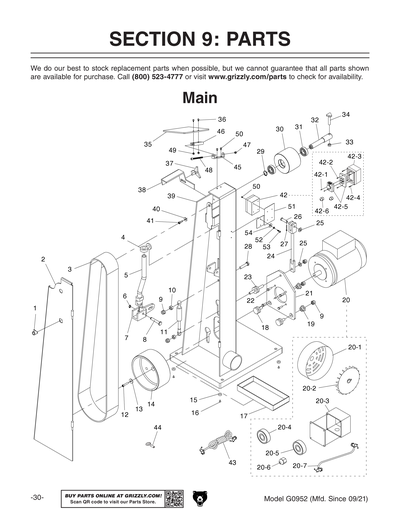

Parts for G0952 3" x 79" Metal Belt Grinder/Sander

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

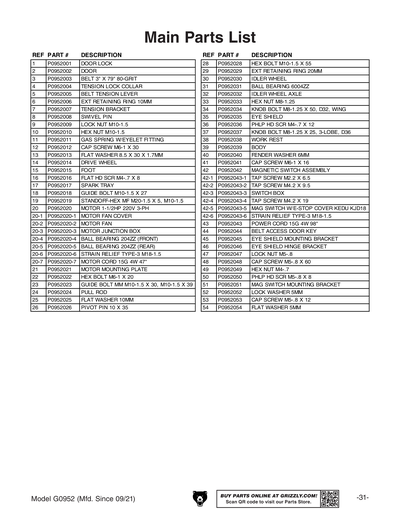

1
DOOR LOCK
2
DOOR
3
Now: H8866
3" x 79" A/O Sanding Belt 80 Grit, 10 pk.
Price
N/A
4
TENSION LOCK COLLAR
5
BELT TENSION LEVER
6
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
7
TENSION BRACKET
8
SWIVEL PIN
9
LOCK NUT M10-1.5
Price
N/A
10
Now: PN02M
HEX NUT M10-1.5
Price
N/A
11
GAS SPRING W/EYELET FITTING
12
CAP SCREW M6-1 X 30
Price
N/A
13
FLAT WASHER 8.5 X 30 X 1.7MM
14
DRIVE WHEEL
15
FOOT
16
FLAT HD SCR M4-.7 X 8
Price
N/A
17
SPARK TRAY
18
GUIDE BOLT M10-1.5 X 27
19
STANDOFF-HEX MF M20-1.5 X 5, M10-1.5
20
MOTOR 1-1/2HP 220V 3-PH
20-1
MOTOR FAN COVER
20-2
MOTOR FAN
20-3
MOTOR JUNCTION BOX ASSEMBLY
20-4
BALL BEARING 204ZZ
Price
N/A
20-5
BALL BEARING 204ZZ
Price
N/A
20-6
MOTOR JUNCTION BOX ASSEMBLY
Price
N/A
20-7
MOTOR JUNCTION BOX ASSEMBLY
Price
N/A
21
MOTOR MOUNTING PLATE
22
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
23
GUIDE BOLT MM M10-1.5 X 30, M10-1.5 X 39
24
PULL ROD
25
Now: PW04M
FLAT WASHER 10MM
Price
N/A
26
PIVOT PIN 10 X 35
27
COTTER PIN 3.2 X 20 STANDARD
28
HEX BOLT M10-1.5 X 55
Price
N/A
29
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
30
IDLER WHEEL
31
BALL BEARING 6004ZZ
Price
N/A
32
IDLER WHEEL AXLE
33
Now: PN03M
HEX NUT M8-1.25
Price
N/A
34
KNOB BOLT M8-1.25 X 50, D32, WING
35
EYE SHIELD
Price
N/A
36
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
37
KNOB BOLT M8-1.25 X 25, 3-LOBE, D36
38
WORK REST
39
BODY
40
FENDER WASHER 6MM
Price
N/A
41
CAP SCREW M6-1 X 16
Price
N/A
42
MAGNETIC SWITCH ASSEMBLY
43
POWER CORD 15G 4W 98"
43-1
MAGNETIC SWITCH ASSEMBLY
Price
N/A
43-2
MAGNETIC SWITCH ASSEMBLY
Price
N/A
43-3
MAGNETIC SWITCH ASSEMBLY
Price
N/A
43-4
MAGNETIC SWITCH ASSEMBLY
Price
N/A
43-5
MAGNETIC SWITCH ASSEMBLY
Price
N/A
43-6
MOTOR JUNCTION BOX ASSEMBLY
Price
N/A
44
BELT ACCESS DOOR KEY
45
***SEE EXT. DESCRIPTION***
Price
N/A
46
BRACKET
Price
N/A
47
LOCK NUT M5-.8
Price
N/A
48
CAP SCREW M5-.8 X 60
49
Now: PN04M
HEX NUT M4-.7
Price
N/A
50
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
51
MAG SWITCH MOUNTING BRACKET
52
LOCK WASHER 5MM
Price
N/A
53
CAP SCREW M5-.8 X 12
Price
N/A
54
Now: PW02M
FLAT WASHER 5MM
Price
N/A

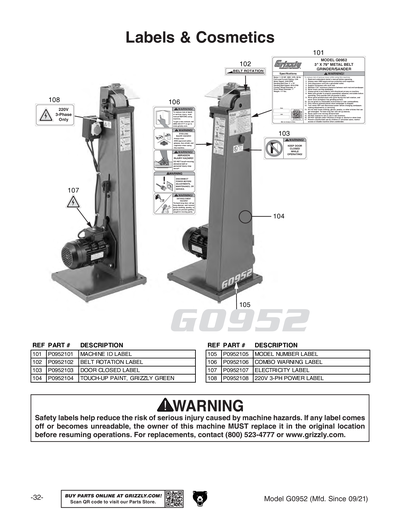

101
MACHINE ID LABEL
102
BELT ROTATION LABEL
103
DOOR CLOSED LABEL
104
N/S GRIZZLY GREEN G1023S
Price
N/A
105
MODEL NUMBER LABEL
106
COMBO WARNING LABEL
107
ELECTRICITY 0.7W X 0.6H
Price
N/A
108
220V 3-PH POWER LABEL
MAN
MANUAL G0952 MFD-09.21+ V1.09.22
