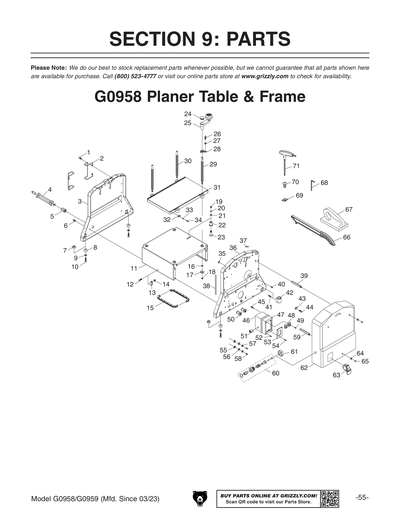

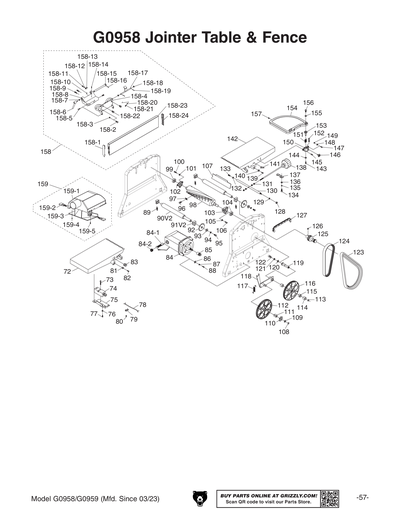

Parts for G0958 - 8" Combo Planer/Jointer with Helical Cutterhead

Part Diagram for G0958
Part Diagram for G0958
Part Diagram for G0958
Part Diagram for G0958
Part Diagram for G0958
Part Diagram for G0958
Part Diagram for G0958
Part Diagram for G0958
Part Diagram for G0958
Part Diagram for G0958
Part Diagram for G0958
Part Diagram for G0958
Part Diagram for G0958
Part Diagram for G0958
Part Diagram for G0958
Part Diagram for G0958
Part Diagram for G0958
Part Diagram for G0958
Part Diagram for G0958
Part Diagram for G0958

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

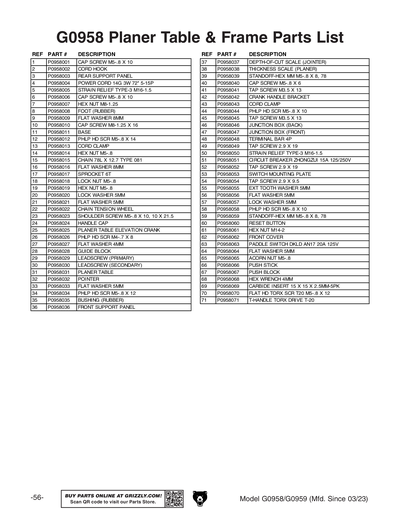

Ref #
Part #
Description
1
CAP SCREW M5-.8 X 10
Price
N/A
2
CORD HOOK
Price
$1.90
3
REAR SUPPORT PANEL
Price
$43.50
4
POWER CORD 14G 3W 72" 5-15P
Price
$32.40
5
STRAIN RELIEF TYPE-3 M16-1.5
Price
$3.65
6
CAP SCREW M5-.8 X 10
Price
N/A
7
HEX NUT M8-1.25
Price
N/A
8
FOOT (RUBBER)
Price
$1.90
9
FLAT WASHER 8MM
Price
N/A
10
CAP SCREW M8-1.25 X 16
Price
N/A
11
BASE
Price
$35.95
12
PHLP HD SCR M5-.8 X 14
Price
N/A
13
CORD CLAMP
Price
$1.90
14
HEX NUT M5-.8
Price
N/A
15
CHAIN 78L X 12.7 TYPE 081
Price
$8.35
16
FLAT WASHER 8MM
Price
N/A
17
SPROCKET 6T
Price
$1.90
18
LOCK NUT M5-.8
Price
N/A
19
HEX NUT M5-.8
Price
N/A
20
LOCK WASHER 5MM
Price
N/A
21
FLAT WASHER 5MM
Price
N/A
22
CHAIN TENSION WHEEL
Price
$3.25
23
SHOULDER SCREW M5-.8 X 10, 10 X 21.5
Price
$1.90
24
HANDLE CAP
Price
$1.90
25
PLANER TABLE ELEVATION CRANK
Price
$9.75
26
PHLP HD SCR M4-.7 X 8
Price
N/A
27
FLAT WASHER 4MM
Price
N/A
28
GUIDE BLOCK
Price
$1.90
29
LEADSCREW (PRIMARY)
Price
$7.20
30
LEADSCREW (SECONDARY)
Price
$5.45
31
PLANER TABLE
Price
$51.45
32
POINTER
Price
$1.90
33
FLAT WASHER 5MM
Price
N/A
34
PHLP HD SCR M5-.8 X 12
Price
N/A
35
BUSHING (RUBBER)
Price
$1.90
36
FRONT SUPPORT PANEL
Price
$41.40
37
DEPTH-OF-CUT SCALE (JOINTER)
Price
$1.90
38
THICKNESS SCALE (PLANER)
Price
$1.90
39
STANDOFF-HEX MM M5-.8 X 8, 78
Price
$1.90
40
CAP SCREW M5-.8 X 6
Price
N/A
41
TAP SCREW M3.5 X 13
Price
N/A
42
CRANK HANDLE BRACKET
Price
$1.90
43
CORD CLAMP
Price
$1.90
44
PHLP HD SCR M5-.8 X 10
Price
N/A
45
TAP SCREW M3.5 X 13
Price
N/A
46
JUNCTION BOX (BACK)
Price
$2.90
47
JUNCTION BOX (FRONT)
Price
$2.90
48
TERMINAL BAR 4P
Price
$1.90
49
TAP SCREW 2.9 X 19
Price
$1.90
50
STRAIN RELIEF TYPE-3 M16-1.5
Price
$1.90
51
CIRCUIT BREAKER ZHONGZUI 15A 125/250V
Price
$3.65
52
TAP SCREW 2.9 X 19
Price
$1.90
53
SWITCH MOUNTING PLATE
Price
$1.90
54
TAP SCREW 2.9 X 9.5
Price
$1.90
55
EXT TOOTH WASHER 5MM
Price
N/A
56
FLAT WASHER 5MM
Price
N/A
57
LOCK WASHER 5MM
Price
N/A
58
PHLP HD SCR M5-.8 X 10
Price
N/A
59
STANDOFF-HEX MM M5-.8 X 8, 78
Price
$1.90
60
RESET BUTTON
Price
$2.60
61
HEX NUT M14-2
Price
N/A
62
FRONT COVER
Price
$26.65
63
PADDLE SWITCH DKLD AN17 20A 125V
Price
$11.20
64
FLAT WASHER 5MM
Price
N/A
65
ACORN NUT M5-.8
Price
N/A
66
PUSH STICK
Price
$3.65
67
PUSH BLOCK
Price
$10.85
68
HEX WRENCH 4MM
Price
N/A
69
Indexable Carbide Insert - 15 x 15 x 2.5mm, 10-Pk.
Price
N/A
70
FLAT HD TORX SCR T20 M5-.8 X 12
Price
$1.90
71
T-HANDLE TORX DRIVE T-20
Price
N/A

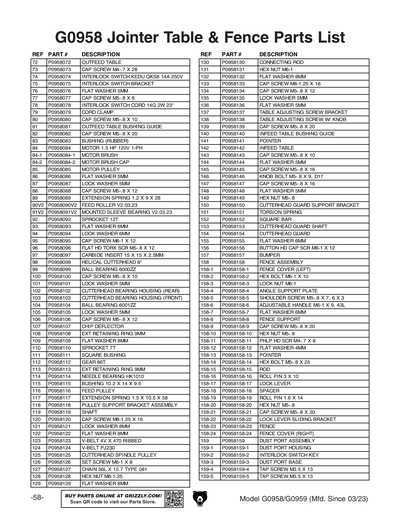

72
OUTFEED TABLE
Price
$66.90
73
CAP SCREW M4-.7 X 27
Price
$1.90
74
INTERLOCK SWITCH KEDU QKS8 14A 250V
Price
$14.40
75
INTERLOCK SWITCH BRACKET
Price
$5.10
76
FLAT WASHER 5MM
Price
N/A
77
CAP SCREW M5-.8 X 8
Price
N/A
78
INTERLOCK SWITCH CORD 14G 2W 23"
Price
$10.45
79
CORD CLAMP
Price
$1.90
80
CAP SCREW M5-.8 X 10
Price
N/A
81
OUTFEED TABLE BUSHING GUIDE
Price
$1.90
82
CAP SCREW M5-.8 X 20
Price
N/A
83
BUSHING (RUBBER)
Price
$1.90
84
MOTOR 1.5 HP 120V 1-PH
Price
$162.15
84-1
MOTOR BRUSH
Price
$2.60
84-2
MOTOR BRUSH CAP
Price
$2.90
85
MOTOR PULLEY
Price
$6.70
86
FLAT WASHER 5MM
Price
N/A
87
LOCK WASHER 5MM
Price
N/A
88
CAP SCREW M5-.8 X 12
Price
N/A
89
EXTENSION SPRING 1.2 X 9 X 28
Price
$1.90
90
***SEE EXT DESC***
Price
$14.70
90V2
FEED ROLLER V2.03.23
Price
$18.35
91
MOUNTED SLEEVE BEARING
Price
$1.49
91V2
MOUNTED SLEEVE BEARING V2.03.23
Price
$1.90
92
SPROCKET 12T
Price
$1.90
93
FLAT WASHER 6MM
Price
N/A
94
LOCK WASHER 6MM
Price
N/A
95
CAP SCREW M6-1 X 12
Price
N/A
96
FLAT HD TORX SCR M5-.8 X 12
Price
$1.90
97
CARBIDE INSERT 15 X 15 X 2.5MM
Price
$9.30
98
HELICAL CUTTERHEAD 8"
Price
$459.35
99
BALL BEARING 6000ZZ
Price
N/A
100
CAP SCREW M5-.8 X 10
Price
N/A
101
LOCK WASHER 5MM
Price
N/A
102
CUTTERHEAD BEARING HOUSING (REAR)
Price
$1.90
103
CUTTERHEAD BEARING HOUSING (FRONT)
Price
$5.45
104
BALL BEARING 6001ZZ
Price
N/A
105
LOCK WASHER 5MM
Price
N/A
106
CAP SCREW M5-.8 X 12
Price
N/A
107
CHIP DEFLECTOR
Price
$3.25
108
EXT RETAINING RING 9MM
Price
N/A
109
FLAT WASHER 8MM
Price
N/A
110
SPROCKET 7T
Price
$1.90
111
SQUARE BUSHING
Price
$1.90
112
GEAR 86T
Price
$2.90
113
EXT RETAINING RING 9MM
Price
N/A
114
NEEDLE BEARING HK1010
Price
$6.50
115
BUSHING 10.2 x 14 x 9.5
Price
$1.90
116
FEED PULLEY
Price
$6.15
117
EXTENSION SPRING 1.5 X 10.5 X 58
Price
$1.90
118
PULLEY SUPPORT BRACKET ASSEMBLY
Price
$8.65
119
SHAFT
Price
$3.65
120
CAP SCREW M8-1.25 X 16
Price
N/A
121
LOCK WASHER 8MM
Price
N/A
122
FLAT WASHER 8MM
Price
N/A
123
V-BELT 4V X 470 RIBBED
Price
$2.25
124
V-BELT PJ230
Price
$7.20
125
CUTTERHEAD SPINDLE PULLEY
Price
$16.20
126
SET SCREW M6-1 X 8
Price
N/A
127
CHAIN 36L X 12.7 TYPE 081
Price
$5.45
128
HEX NUT M8-1.25
Price
N/A
129
FLAT WASHER 8MM
Price
N/A
130
CONNECTING ROD
Price
$6.15
131
HEX NUT M6-1
Price
N/A
132
FLAT WASHER 8MM
Price
N/A
133
CAP SCREW M8-1.25 X 16
Price
N/A
134
CAP SCREW M5-.8 X 12
Price
N/A
135
LOCK WASHER 5MM
Price
N/A
136
FLAT WASHER 5MM
Price
N/A
137
TABLE ADJUSTING SCREW BRACKET
Price
$1.90
138
TABLE ADJUSTING SCREW W/ KNOB
Price
$6.25
139
CAP SCREW M5-.8 X 20
Price
N/A
140
INFEED TABLE BUSHING GUIDE
Price
$1.90
141
POINTER
Price
$1.90
142
INFEED TABLE
Price
$66.90
143
CAP SCREW M5-.8 X 10
Price
N/A
144
FLAT WASHER 5MM
Price
N/A
145
CAP SCREW M5-.8 X 16
Price
N/A
146
KNOB BOLT M5-.8 X 9, D17
Price
$1.90
147
CAP SCREW M5-.8 X 16
Price
N/A
148
FLAT WASHER 5MM
Price
N/A
149
HEX NUT M5-.8
Price
N/A
150
CUTTERHEAD GUARD SUPPORT BRACKET
Price
$1.90
151
TORSION SPRING
Price
$1.90
152
SQUARE BAR
Price
$1.90
153
CUTTERHEAD GUARD SHAFT
Price
$5.45
154
CUTTERHEAD GUARD
Price
$7.95
155
FLAT WASHER 6MM
Price
N/A
156
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
157
BUMPER
Price
$1.90
158
FENCE ASSEMBLY
Price
$57.95
158-1
FENCE COVER (LEFT)
Price
$1.90
158-10
HEX NUT M5-.8
Price
N/A
158-11
PHLP HD SCR M4-.7 X 8
Price
N/A
158-12
FLAT WASHER 4MM
Price
N/A
158-13
POINTER
Price
$1.90
158-14
HEX BOLT M5-.8 X 25
Price
N/A
158-15
ROD
Price
$4.35
158-16
ROLL PIN 3 X 10
Price
N/A
158-17
LOCK LEVER
Price
$2.90
158-18
SPACER
Price
$1.90
158-19
ROLL PIN 1.6 X 14
Price
$1.90
158-2
HEX BOLT M6-1 X 10
Price
N/A
158-20
HEX NUT M5-.8
Price
N/A
158-21
CAP SCREW M5-.8 X 20
Price
N/A
158-22
LOCK LEVER SLIDING BRACKET
Price
$2.60
158-23
FENCE
Price
$32.40
158-24
FENCE COVER (RIGHT)
Price
$1.90
158-3
LOCK NUT M6-1
Price
N/A
158-4
ANGLE SUPPORT PLATE
Price
$9.75
158-5
SHOULDER SCREW M5-.8 X 7, 6 X 3
Price
$1.90
158-6
ADJUSTABLE HANDLE M6-1 X 9, 43L
Price
$2.90
158-7
FLAT WASHER 6MM
Price
N/A
158-8
FENCE SUPPORT
Price
$11.90
158-9
CAP SCREW M5-.8 X 20
Price
N/A
159
DUST PORT ASSEMBLY
Price
$18.35
159-1
DUST PORT ASSEMBLY
Price
N/A
159-2
DUST PORT ASSEMBLY
Price
N/A
159-3
DUST PORT ASSEMBLY
Price
N/A
159-4
TAP SCREW M3.5 X 13
Price
N/A
159-5
TAP SCREW M3.5 X 13
Price
N/A

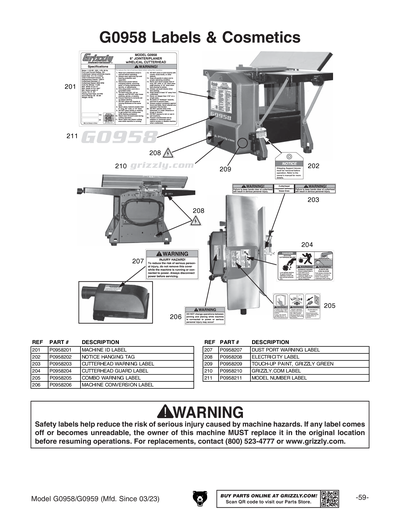

201
MACHINE ID LABEL
Price
$16.40
202
NOTICE HANGING TAG
Price
$1.90
203
CUTTERHEAD WARNING LABEL
Price
$1.90
204
CUTTERHEAD GUARD LABEL
Price
$2.50
205
COMBO WARNING LABEL
Price
$2.20
206
MACHINE CONVERSION LABEL
Price
$1.25
207
DUST PORT WARNING LABEL
Price
$1.90
208
ELECTRICITY 0.7W X 0.6H
Price
N/A
209
N/S GRIZZLY GREEN G1023S
Price
N/A
210
GRIZZLY.COM LABEL 5",BEIGE
Price
N/A
211
MODEL NUMBER LABEL
Price
$18.45
MAN
MANUAL G0958/59 MFD-05.22-02.23 V1.05.22
Price
$14.65
MANV2
MANUAL G0958/59 MFD-03.23+ V2.03.23
Price
$11.80
