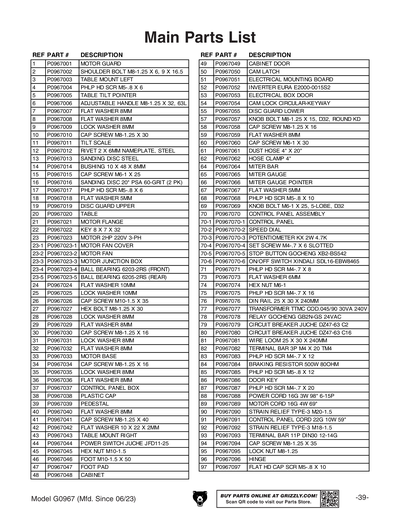

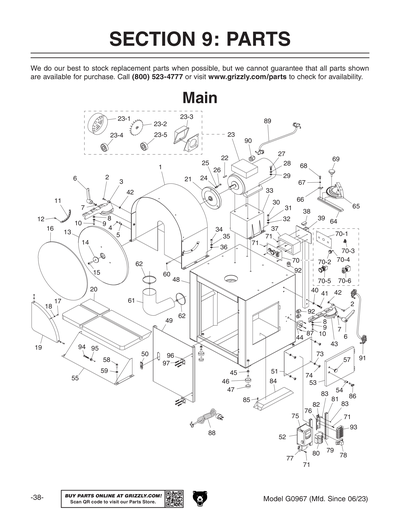

Parts for G0967 20" Variable-Speed Disc Sander

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
MOTOR GUARD
2
SHOULDER BOLT M8-1.25 X 6, 9 X 16.5
3
TABLE MOUNT LEFT
4
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
5
TABLE TILT POINTER
6
ADJUSTABLE HANDLE M8-1.25 X 32, 63L
7
Now: PW01M
FLAT WASHER 8MM
Price
N/A
8
Now: PW01M
FLAT WASHER 8MM
Price
N/A
9
LOCK WASHER 8MM
Price
N/A
10
CAP SCREW M8-1.25 X 30
Price
N/A
11
TILT SCALE
12
RIVET 2 X 6MM NAMEPLATE, STEEL
Price
N/A
13
SANDING DISC STEEL
14
BUSHING 10 X 48 X 8MM
15
CAP SCREW M6-1 X 25
Price
N/A
16
Now: D1342
20" A/O Sanding Disc, 60 Grit PSA, 2 Pk.
Price
N/A
17
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
18
Now: PW02M
FLAT WASHER 5MM
Price
N/A
19
DISC GUARD UPPER
20
TABLE
21
MOTOR FLANGE
22
KEY 8 X 7 X 32
23
MOTOR 2HP 220V 3-PH
23-1
MOTOR FAN COVER
23-2
MOTOR FAN
23-3
MOTOR JUNCTION BOX
23-4
BALL BEARING 6203-2RS
Price
N/A
23-5
BALL BEARING 6205-2RS
Price
N/A
24
Now: PW04M
FLAT WASHER 10MM
Price
N/A
25
LOCK WASHER 10MM
Price
N/A
26
CAP SCREW M10-1.25 X 35
Price
N/A
27
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
28
LOCK WASHER 8MM
Price
N/A
29
Now: PW01M
FLAT WASHER 8MM
Price
N/A
30
CAP SCREW M8-1.25 X 16
Price
N/A
31
LOCK WASHER 8MM
Price
N/A
32
Now: PW01M
FLAT WASHER 8MM
Price
N/A
33
MOTOR BASE
34
CAP SCREW M8-1.25 X 16
Price
N/A
35
LOCK WASHER 8MM
Price
N/A
36
Now: PW01M
FLAT WASHER 8MM
Price
N/A
37
CONTROL PANEL BOX
38
PLASTIC CAP
39
PEDESTAL
40
Now: PW01M
FLAT WASHER 8MM
Price
N/A
41
CAP SCREW M8-1.25 X 40
Price
N/A
42
FLAT WASHER 10 X 22 X 2MM
43
TABLE MOUNT RIGHT
44
POWER SWITCH JUCHE JFD11-25
45
Now: PN02M
HEX NUT M10-1.5
Price
N/A
46
FOOT M10-1.5 X 50
47
FOOT PAD
48
CABINET
49
CABINET DOOR
50
CAM LATCH
51
ELECTRICAL MOUNTING BOARD
52
INVERTER EURA E2000-0015S2
53
ELECTRICAL BOX DOOR
54
CAM LOCK CIRCULAR-KEYWAY
55
DISC GUARD LOWER
56
KNOB BOLT M8-1.25 X 25, D32, ROUND KD
57
KNOB BOLT M8-1.25 X 15, D32, ROUND KD
58
CAP SCREW M8-1.25 X 16
Price
N/A
59
Now: PW01M
FLAT WASHER 8MM
Price
N/A
60
CAP SCREW M6-1 X 30
Price
N/A
61
DUST HOSE 4" X 20"
62
HOSE CLAMP 4"
63
ROLL PIN 5 X 25
Price
N/A
64
MITER BAR
65
MITER GAUGE
66
MITER GAUGE POINTER
67
Now: PW02M
FLAT WASHER 5MM
Price
N/A
68
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
69
KNOB BOLT M6-1 X 25, 5-LOBE, D32
70
CONTROL PANEL ASSEMBLY
70-1
CONTROL PANEL
70-2
SPEED DIAL W/POTENTIOMETER KX 2W 4.7K
70-4
SET SCREW M4-.7 X 6 SLOTTED
70-5
STOP BUTTON GOCHENG XB2-BS542
70-6
ON/OFF SWITCH XINDALI SDL16-EBW8465
71
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
73
Now: PW03M
FLAT WASHER 6MM
Price
N/A
74
Now: PN01M
HEX NUT M6-1
Price
N/A
75
Now: PS56M
PHLP HD SCR M4-.7 X 16
Price
N/A
76
DIN RAIL 25 X 30 X 240MM
77
TRANSFORMER TTMC COD.045/90 30VA 240V
78
RELAY GOCHENG GB2N-GS 24VAC
79
CIRCUIT BREAKER JUCHE DZ47-63 C2
80
CIRCUIT BREAKER JUCHE DZ47-63 C16
81
WIRE LOOM 25 X 30 X 240MM
82
TERMINAL BAR 3P M4 X 20 TM4
83
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
84
BRAKING RESISTOR 500W 80OHM
85
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
86
DOOR KEY
87
Now: PS52M
PHLP HD SCR M4-.7 X 20
Price
N/A
88
POWER CORD 16G 3W 98" 6-15P
89
MOTOR CORD 16G 4W 69"
90
STRAIN RELIEF TYPE-3 M20-1.5
91
CONTROL PANEL CORD 22G 10W 59"
92
STRAIN RELIEF TYPE-3 M18-1.5
93
TERMINAL BAR 11P DIN30 12-14G
94
CAP SCREW M8-1.25 X 35
Price
N/A
95
LOCK NUT M8-1.25
Price
N/A
96
HINGE
97
FLAT HD CAP SCR M5-.8 X 10
Price
N/A
101

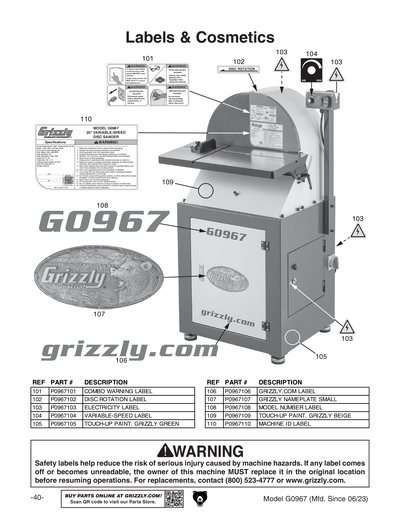

COMBO WARNING LABEL
102
ROTATION WARNING LABEL
Price
N/A
103
ELECTRICITY 0.5W X 0.4H
Price
N/A
104
VARIABLE-SPEED LABEL
105
N/S GRIZZLY GREEN G1023S
Price
N/A
106
GRIZZLY.COM LABEL
107
Now: G8588
Nameplate - Small
Price
N/A
108
MODEL NUMBER LABEL
109
BEIGE REF G0555
Price
N/A
110
MACHINE ID LABEL
MAN
MANUAL G0967 MFD-06.23+ V1.05.23
