Parts for G0970 - 14" Vertical Metal-Cutting Bandsaw

Part Diagram for G0970
Part Diagram for G0970
Part Diagram for G0970
Part Diagram for G0970
Part Diagram for G0970
Part Diagram for G0970
Part Diagram for G0970
Part Diagram for G0970
Part Diagram for G0970
Part Diagram for G0970
Part Diagram for G0970
Part Diagram for G0970
Part Diagram for G0970
Part Diagram for G0970

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

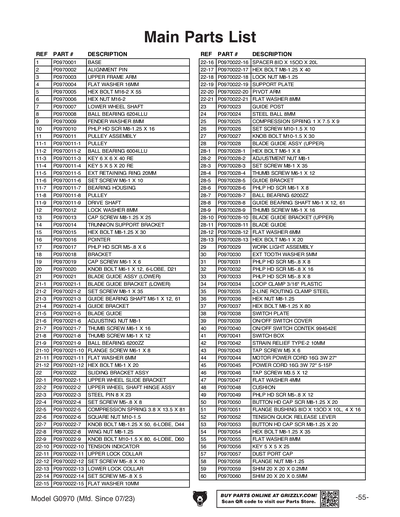

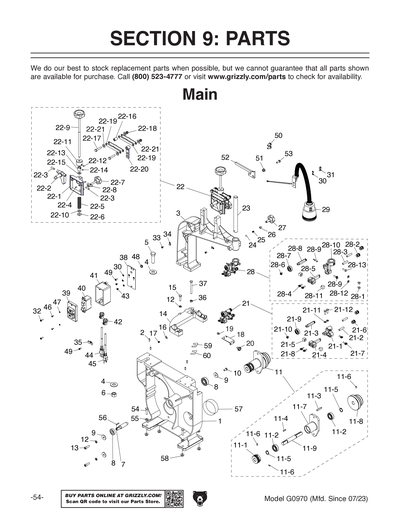

Ref #
Part #
Description
1
BASE
Price
N/A
2
ALIGNMENT PIN
Price
N/A
3
UPPER FRAME ARM
Price
N/A
4
FLAT WASHER 16MM
Price
N/A
5
HEX BOLT M16-2 X 55
Price
N/A
6
HEX NUT M16-2
Price
N/A
7
LOWER WHEEL SHAFT
Price
N/A
8
BALL BEARING 6204LLU
Price
$6.60
9
FENDER WASHER 8MM
Price
N/A
10
PHLP HD SCR M8-1.25 X 16
Price
N/A
11
PULLEY ASSEMBLY
Price
$160.45
11-1
PULLEY
Price
$36.25
11-2
BALL BEARING 6004LLU
Price
N/A
11-3
KEY 6 X 6 X 40 RE
Price
$3.65
11-4
KEY 5 X 5 X 20 RE
Price
$3.65
11-5
EXT RETAINING RING 20MM
Price
N/A
11-6
SET SCREW M6-1 X 10
Price
N/A
11-7
BEARING HOUSING
Price
$32.65
11-8
PULLEY
Price
$108.70
11-9
DRIVE SHAFT
Price
$59.80
12
LOCK WASHER 8MM
Price
N/A
13
CAP SCREW M8-1.25 X 25
Price
N/A
14
***USE P0555105***
Price
N/A
15
HEX BOLT M8-1.25 X 30
Price
N/A
16
POINTER
Price
N/A
17
PHLP HD SCR M5-.8 X 6
Price
N/A
18
BRACKET
Price
$14.50
19
CAP SCREW M6-1 X 6
Price
N/A
20
KNOB BOLT M6-1 X 12, 6-LOBE, D21
Price
$2.60
21
BLADE GUIDE ASSY (LOWER)
Price
$72.45
21-1
BLADE GUIDE BRACKET (LOWER)
Price
$8.80
21-10
FLANGE SCREW M6-1 X 8
Price
N/A
21-11
FLAT WASHER 6MM
Price
N/A
21-12
HEX BOLT M6-1 X 20
Price
N/A
21-2
SET SCREW M8-1 X 35
Price
N/A
21-3
GUIDE BEARING SHAFT M6-1 X 12, 61
Price
$5.95
21-4
GUIDE BRACKET
Price
$6.95
21-5
BLADE GUIDE
Price
$19.95
21-6
ADJUSTING NUT M8-1
Price
N/A
21-7
THUMB SCREW M6-1 X 16
Price
N/A
21-8
THUMB SCREW M6-1 X 12
Price
N/A
21-9
BALL BEARING 6200ZZ
Price
N/A
22
SLIDING BRACKET ASSY
Price
N/A
22-1
UPPER WHEEL SLIDING BRACKET V2.07.07
Price
N/A
22-10
***USE P0555018***
Price
N/A
22-12
SET SCREW M5-.8 X 10
Price
N/A
22-13
LOWER LOCK COLLAR
Price
N/A
22-14
SET SCREW M5-.8 X 5
Price
N/A
22-15
FLAT WASHER 10MM
Price
N/A
22-16
SPACER
Price
N/A
22-17
HEX BOLT M8-1.25 X 40
Price
N/A
22-18
LOCK NUT M8-1.25
Price
N/A
22-19
SUPPORT PLATE
Price
N/A
22-2
UPPER WHEEL SHAFT HINGE ASSY
Price
N/A
22-20
PIVOT ARM
Price
N/A
22-21
FLAT WASHER 8MM
Price
N/A
22-3
STEEL PIN 8 X 23MM
Price
N/A
22-4
SET SCREW M5-.8 X 8
Price
N/A
22-5
COMPRESSION SPRING 3.8 X 13.5 X 81
Price
N/A
22-6
SQUARE NUT M10-1.5
Price
N/A
22-7
KNOB BOLT M8-1.25 X 50, 6-LOBE, D44
Price
$1.60
22-8
WING NUT M8-1.25
Price
N/A
22-9
TENSION KNOB BOLT ASSEMBLY
Price
N/A
23
GUIDE POST
Price
N/A
24
STEEL BALL 8MM
Price
N/A
25
COMPRESSION SPRING 1 X 7.5 X 9
Price
$1.60
26
SET SCREW M10-1.5 X 10
Price
N/A
27
KNOB BOLT M10-1.5 X 30
Price
N/A
28
BLADE GUIDE ASSY (UPPER)
Price
$79.70
28-1
HEX BOLT M6-1 X 8
Price
N/A
28-10
BLADE GUIDE BRACKET (UPPER)
Price
$11.80
28-11
BLADE GUIDE
Price
N/A
28-12
FLAT WASHER 6MM
Price
N/A
28-13
HEX BOLT M6-1 X 20
Price
N/A
28-2
ADJUSTING NUT M8-1
Price
N/A
28-3
SET SCREW M8-1 X 35
Price
N/A
28-4
THUMB SCREW M6-1 X 12
Price
N/A
28-5
GUIDE BRACKET
Price
N/A
28-6
PHLP HD SCR M6-1 X 8
Price
N/A
28-7
BALL BEARING 6200ZZ
Price
N/A
28-8
GUIDE BEARING SHAFT M6-1 X 12, 61
Price
N/A
28-9
THUMB SCREW M6-1 X 16
Price
N/A
29
WORK LIGHT ASSEMBLY
Price
$88.00
30
EXT TOOTH WASHER 5MM
Price
N/A
31
PHLP HD SCR M5-.8 X 8
Price
N/A
32
PHLP HD SCR M5-.8 X 16
Price
N/A
33
PHLP HD SCR M5-.8 X 8
Price
N/A
34
LOOP CLAMP 3/16" PLASTIC
Price
$1.60
35
2-LINE ROUTING CLAMP STEEL
Price
$1.60
36
HEX NUT M8-1.25
Price
N/A
37
HEX BOLT M8-1.25 X 80
Price
N/A
38
SWITCH PLATE
Price
$5.50
39
ON/OFF SWITCH CONTEK 994542E W/COVER
Price
N/A
40
ON/OFF SWITCH CONTEK 994542E W/COVER
Price
$33.25
41
SWITCH BOX
Price
$4.00
42
STRAIN RELIEF TYPE-2 10MM
Price
$1.70
43
TAP SCREW M5 X 6
Price
$1.60
44
MOTOR POWER CORD 16G 3W 27"
Price
$10.90
45
POWER CORD 16G 3W 72" 5-15P
Price
$25.10
46
TAP SCREW M3.5 X 12
Price
N/A
47
FLAT WASHER 4MM
Price
N/A
48
CUSHION
Price
$1.85
49
PHLP HD SCR M5-.8 X 12
Price
N/A
50
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
51
FLANGE BUSHING 8ID X 13OD X 10L, 4 X 16
Price
$1.60
52
TENSION LEVER
Price
N/A
53
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
54
HEX BOLT M8-1.25 X 35
Price
N/A
55
FLAT WASHER 8MM
Price
N/A
56
KEY 5 X 5 X 25
Price
N/A
57
DUST PORT CAP
Price
$3.65
58
FLANGE NUT M8-1.25
Price
N/A
59
SHIM 0.2MM
Price
$1.60
60
SHIM 0.5MM
Price
$1.60

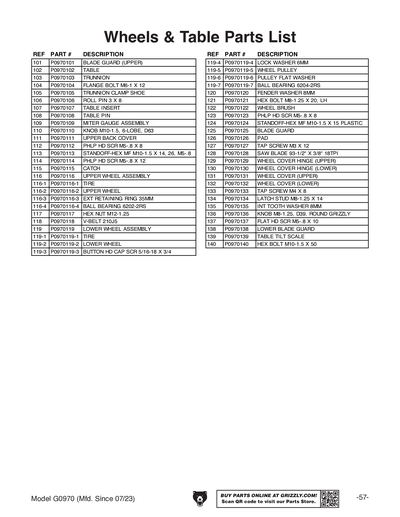

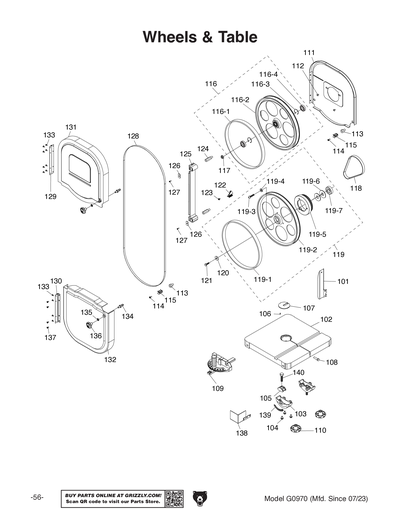

101
BLADE GUARD (UPPER)
Price
$7.05
102
TABLE
Price
$217.35
103
TRUNNION
Price
N/A
104
FLANGE BOLT M6-1 X 12
Price
N/A
105
TRUNNION CLAMP SHOE
Price
$2.75
106
ROLL PIN 3 X 8
Price
N/A
107
TABLE INSERT
Price
$3.60
108
TABLE PIN
Price
$3.25
109
MITER GAUGE ASSEMBLY
Price
$31.35
110
KNOB 10MM
Price
N/A
111
UPPER WHEEL BACK COVER V2.08.07
Price
N/A
112
PHLP HD SCR M5-.8 X 8
Price
N/A
113
STANDOFF-HEX MF M10-1.5 X 14, 26, M5-.8
Price
$6.10
114
PHLP HD SCR M5-.8 X 12
Price
N/A
115
CATCH
Price
N/A
116
UPPER WHEEL ASSEMBLY
Price
$110.85
116-1
***USE T23070***
Price
N/A
116-2
UPPER WHEEL
Price
N/A
116-3
EXT RETAINING RING 35MM
Price
N/A
116-4
BALL BEARING 6202-2RS
Price
N/A
117
HEX NUT M12-1.25
Price
N/A
118
V-BELT 210J5
Price
$19.10
119
LOWER WHEEL ASSEMBLY
Price
$135.35
119-1
***USE T23070***
Price
N/A
119-2
LOWER WHEEL V1
Price
N/A
119-3
BUTTON HD CAP SCR 5/16-18 X 3/4
Price
N/A
119-4
LOCK WASHER 6MM
Price
N/A
119-5
WHEEL PULLEY
Price
$54.35
119-6
PULLEY FLAT WASHER
Price
N/A
119-7
BALL BEARING 6204-2RS
Price
N/A
120
FENDER WASHER 8MM
Price
N/A
121
HEX BOLT M8-1.25 X 20, LH
Price
$1.60
122
WHEEL BRUSH
Price
$7.60
123
PHLP HD SCR M5-.8 X 8
Price
N/A
124
STANDOFF STUD
Price
N/A
125
LEFT BLADE GUARD
Price
N/A
126
PAD
Price
$1.60
127
TAP SCREW M3 X 12
Price
$1.60
128
SAW BLADE 93-1/2" X 3/8" 18TPI
Price
$97.85
129
UPPER WHEEL COVER HINGE
Price
N/A
130
LOWER WHEEL COVER HINGE
Price
N/A
131
UPPER WHEEL FRONT COVER
Price
N/A
132
LOWER WHEEL GUARD
Price
N/A
133
TAP SCREW M4 X 8
Price
N/A
134
LATCH STUD M8-1.25 X 14
Price
N/A
135
INT TOOTH WASHER 8MM
Price
N/A
136
GRIZZLY ROUND KNOB M8-1.25
Price
N/A
137
FLAT HD SCR M5-.8 X 10
Price
N/A
138
LOWER BLADE GUARD
Price
$27.20
139
SCALE
Price
N/A
140
HEX BOLT M10-1.5 X 50
Price
N/A

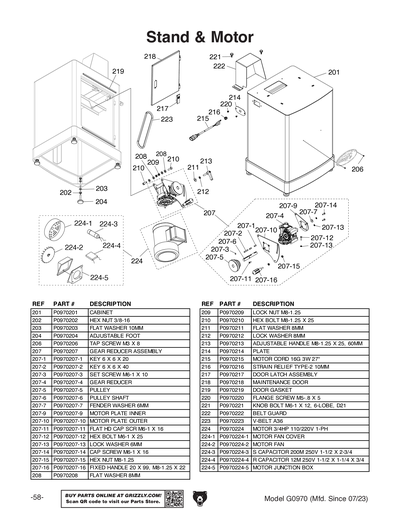

201
CABINET
Price
$499.95
202
P0970202
Now: PN08
HEX NUT 3/8-16
Price
N/A
203
FLAT WASHER 10MM
Price
N/A
204
ADJUSTABLE FOOT
Price
$3.00
206
TAP SCREW M3 X 8
Price
N/A
207
GEAR REDUCER ASSEMBLY
Price
$307.95
207-1
KEY 6 X 6 X 20
Price
N/A
207-10
MOTOR PLATE OUTER
Price
$43.50
207-11
FLAT HD CAP SCR M6-1 X 16
Price
N/A
207-12
HEX BOLT M6-1 X 25
Price
N/A
207-13
LOCK WASHER 6MM
Price
N/A
207-14
CAP SCREW M6-1 X 16
Price
N/A
207-15
HEX NUT M8-1.25
Price
N/A
207-16
FIXED HANDLE 20 X 99, M8-1.25 X 22
Price
$4.10
207-2
KEY 6 X 6 X 40
Price
N/A
207-3
SET SCREW M6-1 X 10
Price
N/A
207-4
GEAR REDUCER
Price
$257.20
207-5
PULLEY
Price
$108.70
207-6
PULLEY SHAFT
Price
$59.80
207-7
FENDER WASHER 6MM
Price
N/A
207-9
MOTOR PLATE INNER
Price
$21.75
208
FLAT WASHER 8MM
Price
N/A
209
LOCK NUT M8-1.25
Price
N/A
210
HEX BOLT M8-1.25 X 25
Price
N/A
211
FLAT WASHER 8MM
Price
N/A
212
LOCK WASHER 8MM
Price
N/A
213
ADJUSTABLE HANDLE M8-1.25 X 25, 60MM
Price
$9.10
214
PLATE
Price
$5.50
215
MOTOR CORD 16G 3W 27"
Price
$18.15
216
STRAIN RELIEF TYPE-2 10MM
Price
$1.60
217
DOOR LATCH
Price
N/A
218
MAINTENANCE DOOR
Price
$52.15
219
DOOR GASKET
Price
$1.85
220
FLANGE SCREW M5-.8 X 5
Price
$1.60
221
KNOB BOLT M6-1 X 12, 6-LOBE, D21
Price
$2.60
222
BELT GUARD
Price
$59.80
223
V-BELT A36
Price
N/A
224
MOTOR 3/4HP 110/220V 1-PH
Price
$507.15
224-1
MOTOR FAN COVER
Price
$29.00
224-2
MOTOR FAN
Price
$10.90
224-3
S CAPACITOR 200M 250V 1-1/2 X 2-3/4
Price
$18.15
224-4
R CAPACITOR 12M 250V 1-1/2 X 1-1/4 X 3/4
Price
$10.90
224-5
MOTOR JUNCTION BOX
Price
$16.35

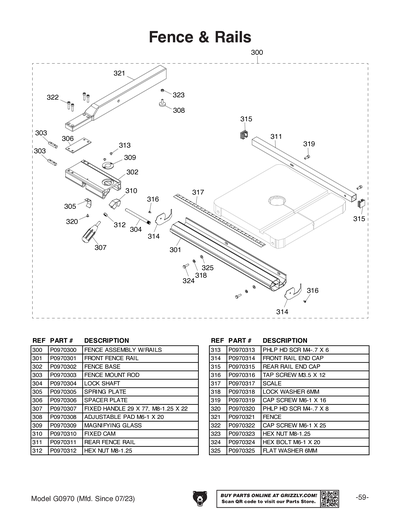

300
FENCE ASSEMBLY W/RAILS
Price
$253.60
301
***USE P0555X201***
Price
N/A
302
FENCE BASE
Price
N/A
303
FENCE MOUNT ROD
Price
N/A
304
LOCK SHAFT
Price
N/A
305
SPRING PLATE
Price
N/A
306
SPACER PLATE
Price
N/A
307
***USE P0817121-9***
Price
N/A
308
FENCE STAND-OFF
Price
N/A
309
MAGNIFYING GLASS
Price
N/A
310
FIXED CAM
Price
N/A
311
REAR FENCE RAIL
Price
N/A
312
HEX NUT M8-1.25
Price
N/A
313
PHLP HD SCR M4-.7 X 6
Price
N/A
314
***USE P0555XH217***
Price
N/A
315
REAR RAIL END CAP
Price
N/A
316
TAP SCREW M3.5 X 12
Price
N/A
317
SCALE
Price
N/A
318
LOCK WASHER 6MM
Price
N/A
319
CAP SCREW M6-1 X 16
Price
N/A
320
PHLP HD SCR M4-.7 X 8
Price
N/A
321
FENCE BRACKET 505MM
Price
N/A
322
CAP SCREW M6-1 X 25
Price
N/A
323
HEX NUT M8-1.25
Price
N/A
324
HEX BOLT M6-1 X 20
Price
N/A
325
FLAT WASHER 6MM
Price
N/A

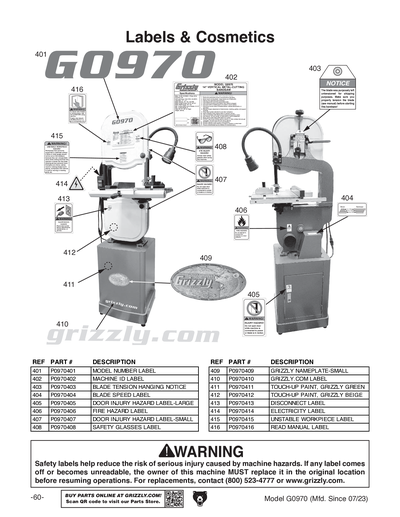

401
MODEL NUMBER LABEL
Price
$11.50
402
MACHINE ID LABEL
Price
$10.95
403
BLADE TENSION HANGING NOTICE
Price
N/A
404
BLADE SPEED LABEL
Price
$1.60
405
DOOR CLOSED BLADE 1.5W X 2.5H
Price
N/A
406
FIRE HAZARD LABEL
Price
$1.60
407
DOOR CLOSED BLADE 3.8W X 2H
Price
N/A
408
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
409
Nameplate - Small
Price
N/A
410
GRIZZLY.COM LABEL
Price
$6.25
411
N/S GRIZZLY GREEN G1023S
Price
N/A
412
BEIGE REF G0555
Price
N/A
413
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
414
ELECTRICITY 1.4W X 1.2H
Price
N/A
415
UNSTABLE WORKPIECE LABEL
Price
$1.85
416
READ MANUAL 1.5W X 2.5H
Price
N/A
MAN
MANUAL G0970 MFD-07.23+ V1.08.23
Price
$14.65
