Parts for G1004 - MILLING MACHINE A1S-A

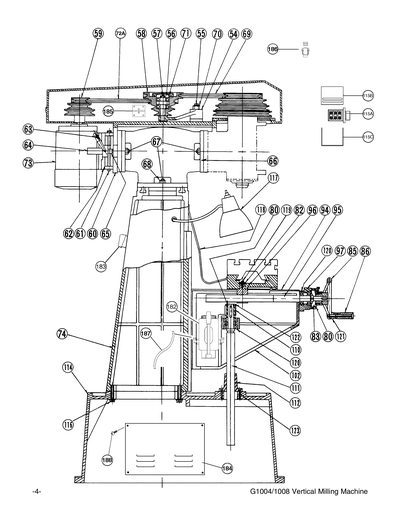

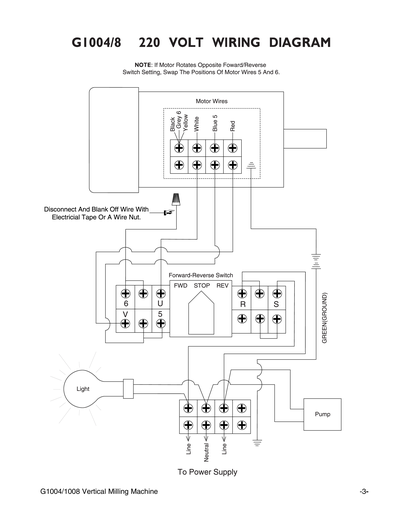

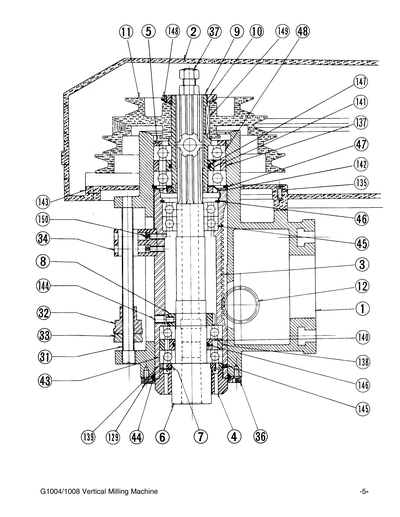

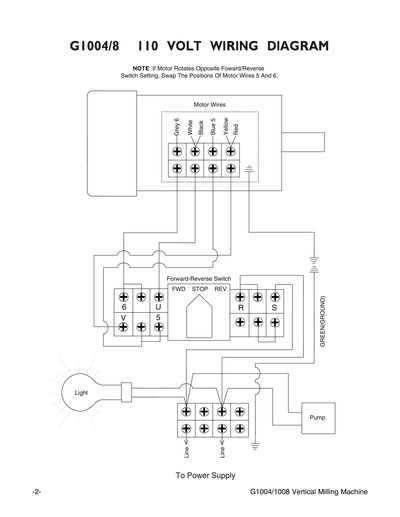

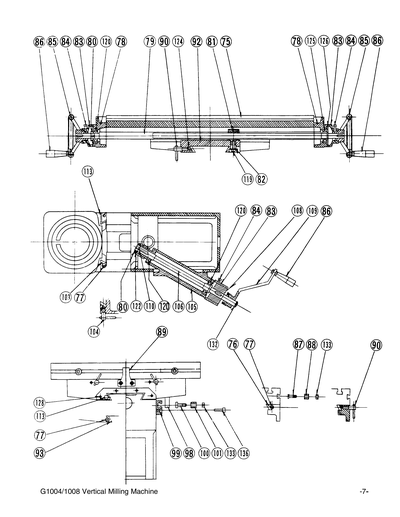

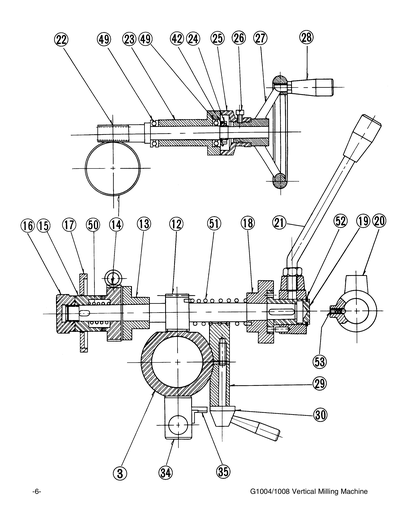

Part Diagram for G1004
Part Diagram for G1004
Part Diagram for G1004
Part Diagram for G1004
Part Diagram for G1004
Part Diagram for G1004
Part Diagram for G1004
Part Diagram for G1004
Part Diagram for G1004
Part Diagram for G1004
Part Diagram for G1004
Part Diagram for G1004
Part Diagram for G1004
Part Diagram for G1004
Part Diagram for G1004
Part Diagram for G1004
Part Diagram for G1004
Part Diagram for G1004

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

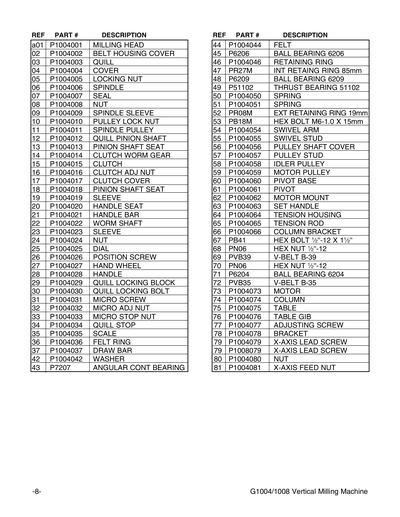

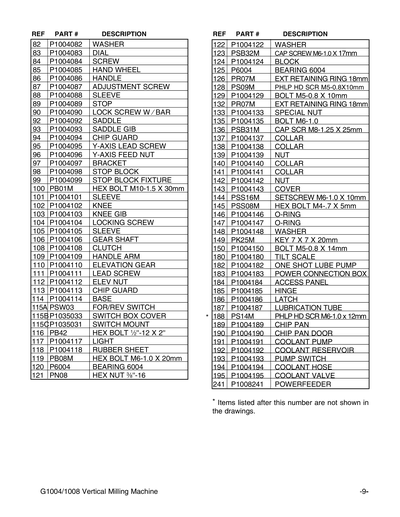

Ref #
Part #
Description
1
*DISCD*VERTICAL MILLING HEAD
Item is no longer available
Price
N/A
2
*DISCD*BELT HOUSING COVER
Item is no longer available
Price
N/A
3
*DISCD*QUILL
Item is no longer available
Price
N/A
4
*DISCD*SPINDLE BEARING LOCK NUT
Item is no longer available
Price
N/A
5
*DISCD*LOCKING NUT
Item is no longer available
Price
N/A
6
*DISCD*VERTICAL SPINDLE
Item is no longer available
Price
N/A
7
*DISCD*SPINDLE OIL SEAL
Item is no longer available
Price
N/A
8
Price
$16.40
9
Price
$46.30
10
*DISCD*PULLEY LOCKING NUT
Item is no longer available
Price
N/A
11
Price
$66.15
12
*DISCD*QUILL PINION SHAFT
Item is no longer available
Price
N/A
13
*DISCD*PINION SHAFT SEAT
Item is no longer available
Price
N/A
14
*DISCD*DISK WORM GEAR
Item is no longer available
Price
N/A
15
*DISCD*CLUTCH
Item is no longer available
Price
N/A
16
*DISCD*CLUTCH ADJ NUT
Item is no longer available
Price
N/A
17
Price
$12.65
18
*DISCD*PINION SHAFT SEAT
Item is no longer available
Price
N/A
19
*DISCD*PINION SHAFT SLEEVE
Item is no longer available
Price
N/A
20
*DISCD*HAND BAR HOLD SEAT
Item is no longer available
Price
N/A
21
*DISCD*HANDLE BAR
Item is no longer available
Price
N/A
22
*DISCD*WORM SHAFT
Item is no longer available
Price
N/A
23
*DISCD*WORM SHAFT SLEEVE
Price
$33.10
24
Price
$4.60
25
Price
$33.10
26
*DISCD*DIAL POSITION SCREW
Item is no longer available
Price
N/A
27
Price
$26.45
28
*DISCD*HANDLE
Item is no longer available
Price
N/A
29
*DISCD*QUILL LOCKING BLOCK
Item is no longer available
Price
N/A
30
*DISCD*QUILL LOCKING BOLT
Item is no longer available
Price
N/A
31
*DISCD*QUILL STOP MICRO SCREW
Price
$16.40
32
Price
$19.85
33
*DISCD*QUILL MICRO STOP NUT
Price
$10.10
34
Price
$16.40
35
*DISCD*MICROMETER SCALE
Item is no longer available
Price
N/A
36
*DISCD*FELT RING
Item is no longer available
Price
N/A
37
*DISCD*DRAW BAR
Item is no longer available
Price
N/A
42
*DISCD*WASHER FOR BEARING
Item is no longer available
Price
N/A
43
ANGULAR CONTACT BEARING 7207
Price
N/A
44
*DISCD*FELT
Item is no longer available
Price
N/A
45
BALL BEARING 6206ZZ
Price
N/A
46
*DISCD*SNAP RING
Item is no longer available
Price
N/A
47
INT RETAINING RING 85MM
Price
N/A
48
BALL BEARING 6209ZZ
Price
N/A
49
THRUST BEARING 51102
Price
N/A
50
Price
$46.30
51
Price
$13.25
52
EXT RETAINING RING 19MM
Price
N/A
53
HEX BOLT M6-1 X 15
Price
N/A
54
Price
$13.25
55
Price
$3.45
56
*DISCD*PULLEY SHAFT COVER
Item is no longer available
Price
N/A
57
*DISCD*PULLEY PIVOT STUD
Price
$6.65
58
*DISCD*V-BELT PULLEY
Item is no longer available
Price
N/A
59
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A
60
*DISCD*MOTOR MOUNTING
Item is no longer available
Price
N/A
61
*DISCD*MOTOR SUSPEND PIVOT
Price
$10.10
62
*DISCD*MOTOR MOUNTING
Item is no longer available
Price
N/A
63
*DISCD*MOTOR SET HANDLE
Price
$6.65
64
*DISCD*BELT SET UNIT
Item is no longer available
Price
N/A
65
*DISCD*BELT SET UNIT
Item is no longer available
Price
N/A
66
*DISCD*VERTICAL HEAD ADAPTOR
Item is no longer available
Price
N/A
67
P1004067
Now: PB41
HEX BOLT 1/2-12 X 1-1/2
Price
N/A
68
P1004068
Now: PN06
HEX NUT 1/2-12
Price
N/A
69
V-BELT B39
Price
N/A
70
P1004070
Now: PN06
HEX NUT 1/2-12
Price
N/A
71
BALL BEARING 6204ZZ
Price
N/A
72
V-BELT B36
Price
N/A
73
*DISCD*MOTOR
Item is no longer available
Price
N/A
74
*DISCD*COLUMN
Item is no longer available
Price
N/A
75
*DISCD*TABLE
Item is no longer available
Price
N/A
76
*DISCD*TABLE GIB
Item is no longer available
Price
N/A
77
*DISCD*ADJUSTING SCREW
Item is no longer available
Price
N/A
78
*DISCD*LONGITUDINAL BEARING BRACKET
Price
$52.90
79
*DISCD*X-AXIS LEAD SCREW
Item is no longer available
Price
N/A
80
*DISCD*NUT FOR BEARING
Item is no longer available
Price
N/A
81
*DISCD*LONGITUDINAL FEED NUT
Item is no longer available
Price
N/A
82
Price
$1.49
83
*DISCD*DIAL
Item is no longer available
Price
N/A
84
*DISCD*DIAL POSITION SCREW
Item is no longer available
Price
N/A
85
*DISCD*HAND WHEEL
Item is no longer available
Price
N/A
86
Price
$10.10
87
*DISCD*LONG TRAVEL ADJ SCREW
Item is no longer available
Price
N/A
88
*DISCD*ADJUSTING SCREW SLEEVE
Item is no longer available
Price
N/A
89
Price
$10.10
90
*DISCD*LOCK SCREW W/BAR #91
Item is no longer available
Price
N/A
91
*DISCD*LOCK SCREW W/BAR #91
Price
N/A
92
*DISCD*SADDLE
Item is no longer available
Price
N/A
93
*DISCD*SADDLE GIB
Item is no longer available
Price
N/A
94
*DISCD*CHIP GUARD
Item is no longer available
Price
N/A
95
*DISCD*CROSS LEAD SCREW
Price
$57.80
96
*DISCD*CROSS FEED NUT
Item is no longer available
Price
N/A
97
*DISCD*CROSS FEED BEARING BRK
Item is no longer available
Price
N/A
98
*DISCD*STOP BLOCK
Item is no longer available
Price
N/A
99
*DISCD*STOP BLOCK FIXTURE
Price
$33.10
100
HEX BOLT M10-1.5 X 30
Price
N/A
101
*DISCD*ADJUSTING SCREW SLEEVE
Price
$3.45
102
*DISCD*KNEE
Item is no longer available
Price
N/A
103
*DISCD*KNEE GIB
Item is no longer available
Price
N/A
104
*DISCD*KNEE LOCKING SCREW
Price
$6.65
105
*DISCD*GEAR SHAFT SLEEVE
Item is no longer available
Price
N/A
106
Price
$46.30
108
*DISCD*ELEVATION HANDLE CLUTCH
Price
$26.45
109
*DISCD*HANDLE ARM
Item is no longer available
Price
N/A
110
Price
$43.15
111
*DISCD*ELEVATING LEAD SCREW
Price
$62.70
112
*DISCD*ELEVATING LEAD SCREW SET NUT
Item is no longer available
Price
N/A
113
*DISCD*CHIP GUARD
Item is no longer available
Price
N/A
114
*DISCD*BASE
Item is no longer available
Price
N/A
115
*DISCD*FWD/REV SWITCH
Price
N/A
116
P1004116
Now: PB42
HEX BOLT 1/2-12 X 2
Price
N/A
117
*DISCD*LIGHT
Item is no longer available
Price
N/A
118
*DISCD*RUBBER SHEET
Item is no longer available
Price
N/A
119
HEX BOLT M6-1 X 20
Price
N/A
120
BALL BEARING 6004ZZ
Price
N/A
121
P1004121
Now: PN08
HEX NUT 3/8-16
Price
N/A
122
*DISCD*WASHER
Item is no longer available
Price
N/A
123
CAP SCREW M6-1 X 17
Price
N/A
124
*DISCD*BLOCK
Item is no longer available
Price
N/A
125
BALL BEARING 6004ZZ
Price
N/A
126
EXT RETAINING RING 18MM
Price
N/A
127
*DISCD*OIL CUP 1/4" NPT X 7MM X 20MM ELB
Price
$3.45
128
PHLP HD SCR M5-.8 X 10
Price
N/A
129
*DISCD*BOLT M5 X 10
Item is no longer available
Price
N/A
130
*DISCD*GREASE FITTING
Item is no longer available
Price
N/A
132
EXT RETAINING RING 18MM
Price
N/A
133
Price
$3.45
135
*DISCD*BOLT M6
Item is no longer available
Price
N/A
136
CAP SCREW M8-1.25 X 25
Price
N/A
137
*DISCD*COLLAR
Item is no longer available
Price
N/A
138
*DISCD*COLLAR
Item is no longer available
Price
N/A
139
*DISCD*NUT
Item is no longer available
Price
N/A
140
*DISCD*COLLAR
Item is no longer available
Price
N/A
141
*DISCD*COLLAR
Item is no longer available
Price
N/A
142
*DISCD*NUT FOR BEARING
Item is no longer available
Price
N/A
143
*DISCD*COVER
Item is no longer available
Price
N/A
144
SET SCREW M8-1.25 X 10
Price
N/A
145
SET SCREW M4-.7 X 5
Price
N/A
146
*DISCD*O-RING 36 X 7.5
Item is no longer available
Price
N/A
147
*DISCD*O-RING 42 X 7.5
Item is no longer available
Price
N/A
148
*DISCD*WASHER
Item is no longer available
Price
N/A
149
KEY 7 X 7 X 20
Price
N/A
150
*DISCD*BOLT M5 X 14
Item is no longer available
Price
N/A
151A
*DISCD*COMPLETE FLY CUTTER ASSY
Item is no longer available
Price
N/A
151B
*DISCD*FLY CUTTER INSERT V1
Price
$6.05
152
*DISCD*SNAP RING - MILL
Price
N/A
173
*DISCD*MOTOR - MILL
Price
N/A
173A
*DISCD*MOTOR - MILL
Price
N/A
179
*DISCD*LONGITUDINAL LEAD SCREW
Item is no longer available
Price
N/A
180
*DISCD*TILT SCALE VERTICAL HEAD
Price
$10.10
181
*DISCD*BEVELED BRASS GEAR FOR POWERFEED
Price
$57.80
182
*DISCD*ONE SHOT LUBE PUMP
Item is no longer available
Price
N/A
191
Price
$250.15
300
*DISCD*WARNING LABEL
Item is no longer available
Price
N/A
301
*DISCD*GRIZZLY NAMEPLATE 8W X 3.5H
Price
N/A
302
*DISCD*HINGE FOR TOP LID
Price
$6.05
303
*DISCD*PULLEY COVER SUPPORT
Item is no longer available
Price
N/A
MANUAL
*DISCD*MANUAL FOR THE G1004 03/99
Item is no longer available
Price
N/A
