Parts for G1006 - 2 HP Mill/Drill

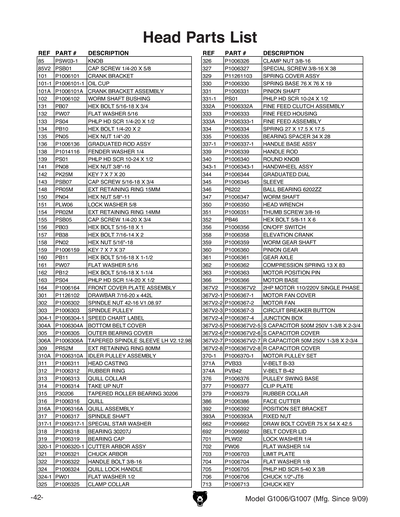

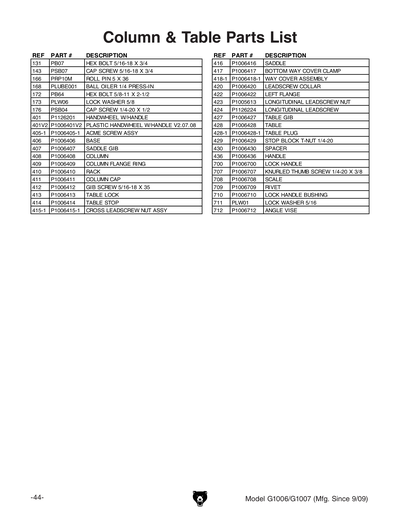

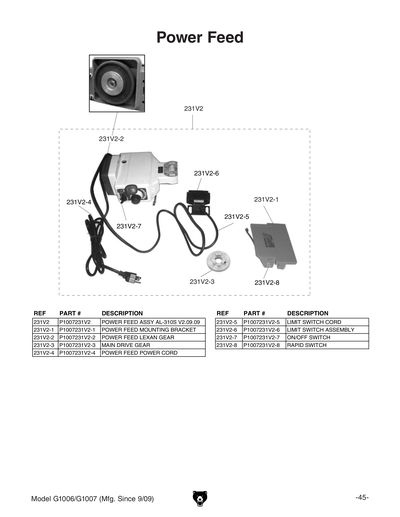

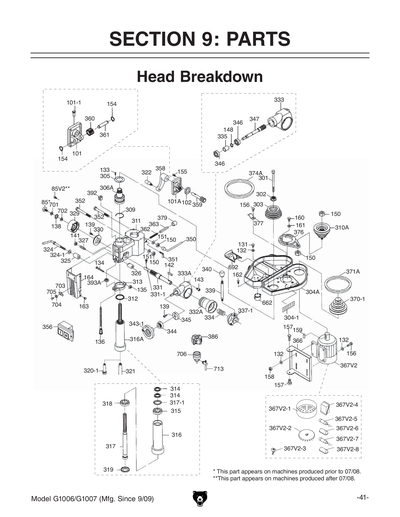

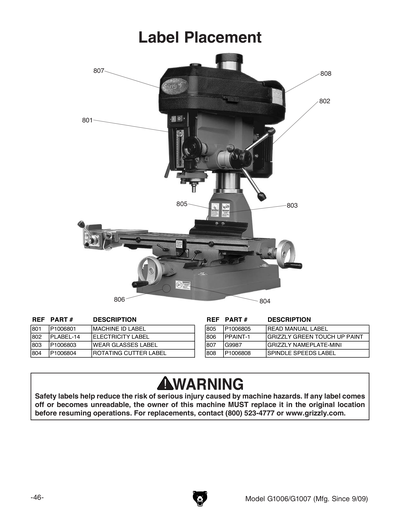

Part Diagram for G1006
Part Diagram for G1006
Part Diagram for G1006
Part Diagram for G1006
Part Diagram for G1006
Part Diagram for G1006
Part Diagram for G1006
Part Diagram for G1006
Part Diagram for G1006
Part Diagram for G1006
Part Diagram for G1006
Part Diagram for G1006

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
28
TENSION SPRING W/COVER
Price
N/A
29
TENSION SPRING W/COVER
Price
N/A
39
HANDLE ROD
Price
N/A
40
KNOB ROUND
Price
N/A
55
GRADUATED DIAL
Item is no longer available
Price
N/A
59
WORM GEAR SHAFT
Price
N/A
67
MOTOR 2HP 110V/220V 1-PH
Price
N/A
73
*DISCD*INTERMEDIATE PULLEY V1.08.97
Price
N/A
85
KNOB
Price
N/A
85V2
CAP SCREW 1/4-20 X 5/8
Price
N/A
101
CRANK BRACKET
Price
$76.40
101-1
BALL OILER 7MM PRESS-IN
Price
$2.45
101A
CRANK BRACKET ASSY
Item is no longer available
Price
N/A
102
WORM SHAFT BUSHING
Price
$10.90
107
*DISCD*THUMBSCREW-MUST ORDER AS ASSY
Price
N/A
131
P1006131
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
132
P1006132
Now: PW07
FLAT WASHER 5/16
Price
N/A
133
P1006133
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
134
P1006134
Now: PB10
HEX BOLT 1/4-20 X 2
Price
N/A
135
P1006135
Now: PN05
HEX NUT 1/4-20
Price
N/A
136
*DISCD*GRADUATED ROD ASSY
Item is no longer available
Price
N/A
136-1
GRADUATED ROD ASSY
Price
$54.30
137
EXT TOOTHED WASHER 30 X 39 X 1.0
Price
N/A
138
*DISCD*FENDER WASHER 1/4"
Price
N/A
139
P1006139
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
140
P1006140
Now: PN08
HEX NUT 3/8-16
Price
N/A
141
P1006141
Now: PN08
HEX NUT 3/8-16
Price
N/A
142
KEY 7 X 7 X 20
Price
N/A
143
CAP SCREW 5/16-18 X 3/4
Price
N/A
145
SET SCREW 5/16-18 X 1/2
Price
N/A
146
SET SCREW 1/4-20 X 1/4
Price
N/A
148
EXT RETAINING RING 15MM
Price
N/A
150
P1006150
Now: PN04
HEX NUT 5/8-11
Price
N/A
151
LOCK WASHER 5/8
Price
N/A
153
SET SCREW 5/16-18 X 1/2
Price
N/A
154
EXT RETAINING RING 14MM
Price
N/A
155
CAP SCREW 1/4-20 X 3/4
Price
N/A
156
P1006156
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
157
P1006157
Now: PB38
HEX BOLT 7/16-14 X 2
Price
N/A
158
P1006158
Now: PN02
HEX NUT 5/16-18
Price
N/A
159
KEY 7 X 7 X 37
Item is no longer available
Price
N/A
160
P1006160
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
161
P1006161
Now: PW07
FLAT WASHER 5/16
Price
N/A
162
P1006162
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
163
P1006163
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
164
*DISCD*FRONT COVER PLATE ASSEMBLY
Item is no longer available
Price
N/A
164-1
*DISCD*FRONT COVER PLATE ASSY
Item is no longer available
Price
N/A
166
ROLL PIN 5 X 36
Price
N/A
167
*DISCD*THUMBSCREW-MUST ORDER AS ASSY
Item is no longer available
Price
N/A
168
BALL OILER 1/4 PRESS-IN
Price
N/A
169
P1006169
Now: PB08
HEX BOLT 3/8-16 X 5
Price
N/A
170
WASHER 5/8 PLASTIC
Item is no longer available
Price
N/A
171
QUILL LOCK HANDLE
Item is no longer available
Price
N/A
172
P1006172
Now: PB64
HEX BOLT 5/8-11 X 2-1/2
Price
N/A
173
LOCK WASHER 5/8
Price
N/A
174
CAP SCREW 1/4-20 X 1
Price
N/A
176
CAP SCREW 1/4-20 X 1/2
Price
N/A
200
PHLP HD SCR M6-1 X 12
Price
N/A
201
*DISCD*ARBOR DRIVE KEY
Item is no longer available
Price
N/A
301
DRAWBAR 7/16-20 X 16-3/8
Price
N/A
302
SPINDLE NUT 42-16 V1.08.97
Price
$29.35
302A
SPINDLE NUT LH 42-16 V2.12.98
Item is no longer available
Price
N/A
303
SPINDLE PULLEY
Price
$193.20
304
BELT BOTTOM COVER
Item is no longer available
Price
N/A
304-1
SPINDLE SPEEDS LABEL
Price
N/A
304A
BOTTOM BELT COVER
Price
$237.30
305
OUTER BEARING COVER
Price
$5.50
306
TAPERED SPINDLE SLEEVE V1.08.97
Price
$42.90
306A
*DISCD*TAPERED SPINDLE SLEEVE LH V2.12.98
Item is no longer available
Price
N/A
307
BALL BEARING 6009ZZ
Price
N/A
308
BEARING SPACER
Price
$4.60
309
EXT RETAINING RING 80MM
Price
N/A
310
*DISCD*C-RETAINER RING-MUST ORDER ASSY
Price
$1.49
310-1
INTER PULLEY ASSY
Item is no longer available
Price
N/A
3100
*DISCD*HEXAGON SOCKET HEAD
Item is no longer available
Price
N/A
3101
*DISCD*HEX SOCKET HEADLESS
Item is no longer available
Price
N/A
3102
*DISCD*LIMIT PLATE
Item is no longer available
Price
N/A
3103
*DISCD*HEX SOCKET HEADLESS
Item is no longer available
Price
N/A
3104
*DISCD*KEY
Item is no longer available
Price
N/A
3105
*DISCD*RIVET
Item is no longer available
Price
N/A
3106
*DISCD*KEY
Item is no longer available
Price
N/A
3107
*DISCD*PIN
Item is no longer available
Price
N/A
3108
*DISCD*HEXAGON NUT
Item is no longer available
Price
N/A
3109
*DISCD*WASHER
Item is no longer available
Price
N/A
310A
IDLER PULLEY ASSEMBLY
Price
$318.25
311
HEAD CASTING
Price
$564.55
3110
*DISCD*HEX SOCKET HEADLESS
Item is no longer available
Price
N/A
3111
*DISCD*WASHER
Item is no longer available
Price
N/A
3113
*DISCD*HEXAGON HEAD BOLT
Item is no longer available
Price
N/A
3114
*DISCD*HEXAGON HEAD BOLT 29.5-20
Item is no longer available
Price
N/A
3115
*DISCD*HEXAGON HEAD BOLT
Item is no longer available
Price
N/A
3116
*DISCD*KEY
Item is no longer available
Price
N/A
3117
*DISCD*ELEC CORD PROTECT RING
Item is no longer available
Price
N/A
3118
*DISCD*ELECTRIC SOCKET
Item is no longer available
Price
N/A
312
RUBBER RING
Price
$3.80
313
QUILL COLLAR
Price
$44.95
314
TAKE UP NUT
Price
$15.40
315
TAPERED ROLLER BEARING 30206
Price
N/A
316
QUILL
Price
$122.95
316A
QUILL ASSY
Price
$332.10
317
SPINDLE SHAFT
Price
$158.85
317-1
EXT TOOTH WASHER 30MM
Price
$6.45
318
BEARING 30207J
Price
$72.45
319
BEARING CAP
Price
$5.80
320
*DISCD*SHELL ARBOR-MUST ORDER AS ASSY
Price
$62.70
320-1
CUTTER ARBOR ASSY
Item is no longer available
Price
N/A
320-2
CUTTERHEAD
Price
$90.85
321
DRILL CHUCK ARBOR JT6 X R8, 130MM L
Price
$82.45
322
HANDLE BOLT 3/8-16
Price
$9.40
323
HANDLE
Item is no longer available
Price
N/A
324
QUILL LOCK HANDLE
Price
$38.25
324-1
FLAT WASHER 1/2
Price
N/A
325
CLAMP COLLAR
Price
$10.90
326
CLAMP NUT 3/8-16
Price
$7.25
327
HEAD CASTING SCREW 3/8-16 X 38
Price
$2.75
329
TENSION SPRING W/COVER
Price
N/A
330
SPRING BASE 76 X 76 X 19
Price
$29.00
331
PINION SHAFT
Price
$58.60
331-1
PHLP HD SCR 10-24 X 1/2
Price
N/A
332
*DISCD*WORM GEAR- MUST ORDER ASSY
Price
$48.05
332-1
WORM GEAR
Item is no longer available
Price
N/A
332A
FINE FEED CLUTCH ASSY
Price
$72.45
333
FINE FEED HOUSING
Item is no longer available
Price
N/A
333A
FINE FEED ASSEMBLY
Item is no longer available
Price
N/A
334
SPRING 27 X 17.5 X 17.5
Price
$3.80
335
BEARING SPACER 34 X 28
Price
$2.45
336
*DISCD*FEED HANDLE
Item is no longer available
Price
N/A
337
*DISCD*HANDLE BODY-MUST ORDER ASSY
Item is no longer available
Price
N/A
337-1
HANDLE BASE ASSY
Item is no longer available
Price
N/A
338
*DISCD*C-RETAINER RING-SEE EXT. DESCR.
Item is no longer available
Price
N/A
339
HANDLE ROD
Price
$22.50
340
KNOB ROUND
Price
$3.80
341
*DISCD*HANDLE BOLT-MUST ORDER AS ASSY
Item is no longer available
Price
N/A
342
*DISCD*HANDLE- MUST ORDER AS ASSY.
Item is no longer available
Price
N/A
343
*DISCD*HAND WHEEL-MUST ORDER AS ASSY.
Item is no longer available
Price
N/A
343-1
*DISCD*HANDWHEEL ASSY
Price
$24.40
344
GRADUATED DIAL
Price
$23.30
345
SLEEVE
Price
$9.10
346
BALL BEARING 6202ZZ
Price
N/A
347
WORM SHAFT
Price
$33.75
348
INDICATION PLATE
Item is no longer available
Price
N/A
350
HEAD WRENCH
Price
$10.90
351
THUMB SCREW 3/8-16
Price
$4.30
352
P1006352
Now: PB46
HEX BOLT 5/8-11 X 6
Price
N/A
354
*DISCD*THREADED ROD- MUST ORDER AS ASSY
Price
$12.65
355
*DISCD*PLATE W/ SCALE-MUST ORDER AS ASSY
Price
$8.35
356
ON/OFF SWITCH SQUARE BUTTONS V1.04.97
Price
$76.10
356V2
*DISCD*ON/OFF SWITCH RECTANGLE BUTTONS V2.03.09
Item is no longer available
Price
N/A
357
NAME PLATE
Item is no longer available
Price
N/A
358
ELEVATION CRANK
Price
$41.25
359
WORM GEAR SHAFT
Price
$31.10
360
PINION GEAR
Price
$20.65
361
GEAR AXLE
Price
$4.60
362
COMPRESSION SPRING 13 X 83
Price
$1.60
363
*DISCD*MOTOR POSITION PIN
Item is no longer available
Price
N/A
364
*DISCD*TENSION SPRING-MUST ORDER AS ASSY
Item is no longer available
Price
N/A
365
*DISCD*SPRING SHACKLE ROD
Item is no longer available
Price
N/A
366
MOTOR BASE
Price
$37.20
367
MOTOR 2HP 110V/220V 1-PH
Price
$693.15
367-1
MOTOR FAN COVER
Price
$27.55
367-2
MOTOR FAN
Price
$27.05
367-3
CIRCUIT BREAKER 25A 125/250V
Price
$29.95
367-4
JUNCTION BOX
Price
$25.40
367-5
S CAPACITOR 150M 250V 1-21/32 X 3-1/8
Price
N/A
367-6
CAPACITOR COVER
Price
$20.45
367-7
MOTOR TERMINAL BLOCK
Item is no longer available
Price
N/A
368
*DISCD*WEDGE KEY
Price
$2.60
369
BELT COVER ASSY
Price
$136.80
369A
TOP BELT COVER
Price
$94.85
370
*DISCD*MOTOR PULLEY- MUST ORDER AS ASSY
Item is no longer available
Price
N/A
370-1
MOTOR PULLEY SET
Price
$228.25
371
V-BELT 31-100534-1006
Item is no longer available
Price
N/A
371A
V-BELT B34
Price
N/A
372
BALL BEARING 6204ZZ
Price
N/A
373
*DISCD*INTERMEDIATE PULLEY V1.08.97
Item is no longer available
Price
N/A
373A
INTERMEDIATE PULLEY V2.01.00
Price
$122.80
374
V-BELT 38-G1005
Item is no longer available
Price
N/A
374A
V-BELT B42
Price
N/A
375
*DISCD*PULLEY SHAFT- MUST ORDER AS ASSY
Item is no longer available
Price
N/A
376
PULLEY SWING BASE
Price
$80.50
377
CLIP PLATE
Item is no longer available
Price
N/A
378
*DISCD*SWITCH BOX
Item is no longer available
Price
N/A
379
RUBBER COLLAR
Price
$1.60
386
FACE CUTTER
Price
$95.75
391
*DISCD*HEXAGON HEAD BOLT- SEE EXT. DESCR
Item is no longer available
Price
N/A
391A
GRADUATED ROD ASSY
Price
N/A
392
POSITION SET BRACKET
Price
$10.65
392A
LIMIT PLATE
Price
N/A
393
*DISCD*CROSS-RECESS RND HD SCREW
Item is no longer available
Price
N/A
393A
FIXED NUT
Price
$5.50
394
*DISCD*HEXAGON HEAD BOLT- SEE EXT.DESCR
Item is no longer available
Price
N/A
394A
QUILL NUT 19 X 24 X 21
Item is no longer available
Price
N/A
395
*DISCD*HEXAGON NUT-MUST ORDER AS ASSY
Item is no longer available
Price
N/A
395A
QUILL NUT 25 X 25 X 15
Item is no longer available
Price
N/A
396
*DISCD*HEXAGON NUT- MUST ORDER AS ASSY
Item is no longer available
Price
N/A
396A
SWITCH HOUSING
Price
$20.65
397
*DISCD*HEXAGON NUT- MUST ORDER AS ASSY
Item is no longer available
Price
N/A
397A
SWITCH COVER
Item is no longer available
Price
N/A
398
*DISCD*CROSS-RECESS RND HD SCREW
Item is no longer available
Price
N/A
399
PIN
Item is no longer available
Price
N/A
401
TABLE HANDWHEEL W/HANDLE
Price
N/A
401V2
HANDWHEEL W/HANDLE PLASTIC V2.07.08
Price
$37.20
402
GRADUATED DIAL
Price
$28.45
402-1
*DISCD*CROSS FEED DIAL CLUTCH
Price
N/A
403
THRUST BEARING 51103
Price
N/A
404
*DISCD*FLANGE- MUST ORDER AS ASSY
Item is no longer available
Price
N/A
405
*DISCD*TABLE SCREW-MUST ORDER AS ASSY
Price
$20.70
405-1
ACME SCREW ASSY
Price
$183.55
406
BASE
Price
$311.85
407
SADDLE GIB
Price
$56.20
408
COLUMN
Price
$265.40
409
COLUMN FLANGE RING
Price
$57.10
410
RACK
Price
$61.60
4102
*DISCD*HEX SOCKET HEADLESS
Item is no longer available
Price
N/A
411
COLUMN CAP
Price
$39.85
4112
*DISCD*HEX SOCKET HEADLESS
Item is no longer available
Price
N/A
412
GIB SCREW 5/16-18 X 35
Price
$4.55
4121
*DISCD*PIN
Item is no longer available
Price
N/A
4122
*DISCD*HEX SOCKET HEAD SCREW
Item is no longer available
Price
N/A
4123
*DISCD*OIL BALL
Item is no longer available
Price
N/A
4129
*DISCD*HEX SOCKET HEAD SCREW
Item is no longer available
Price
N/A
413
TABLE LOCK
Price
$3.80
4130
*DISCD*HEXAGON HEAD BOLT
Item is no longer available
Price
N/A
4131
*DISCD*HEX SOCKET HEAD SCREW
Item is no longer available
Price
N/A
4132
*DISCD*HEXAGON HEAD BOLT
Item is no longer available
Price
N/A
4133
*DISCD*HEX SOCKET HEAD SCREW
Item is no longer available
Price
N/A
414
TABLE STOP
Price
$3.40
415
*DISCD*TABLE BASE NUT-MUST ORDER AS ASSY
Item is no longer available
Price
N/A
415-1
CROSS LEADSCREW NUT ASSY
Price
$104.55
416
SADDLE
Item is no longer available
Price
N/A
4167
*DISCD*THUMB SCREW
Item is no longer available
Price
N/A
417
BOTTOM WAY COVER CLAMP
Price
$5.15
418
*DISCD*WAY COVER W/CLAMP- SEE EXT DESCR
Item is no longer available
Price
N/A
418-1
WAY COVER ASSEMBLY
Price
$19.10
419
*DISCD*BOTTOM WAY COVER-SEE EXT DESCR.
Item is no longer available
Price
N/A
420
LEADSCREW COLLAR
Price
$35.95
422
FLANGE LEFT
Price
$30.55
423
TABLE NUT 23.5-10
Price
N/A
424
LEADSCREW ASSY ACME 23.5D X 10P X 997MM
Price
N/A
424-1
LEADSCREW ASSY ACME 23.5D X 10P X 997MM
Price
N/A
425
*DISCD*HANDLE BOLT-MUST ORDER AS ASSY
Item is no longer available
Price
N/A
426
*DISCD*RIGHT FLANGE-MUST ORDER AS ASSY
Item is no longer available
Price
N/A
427
TABLE GIB
Price
$65.25
428
TABLE
Price
$694.90
428-1
TABLE PLUG
Item is no longer available
Price
N/A
429
STOP BLOCK T-NUT 1/4-20
Price
$4.70
430
SPACER
Price
$5.65
436
HANDLE
Price
$9.40
491
*DISCD*HEXAGON HEAD SCREW
Item is no longer available
Price
N/A
605
LEADSCREW ASSY ACME 23.5D X 10P X 997MM
Price
N/A
608
COLUMN
Price
N/A
624
LEADSCREW ASSY ACME 23.5D X 10P X 997MM
Price
N/A
662
DRAW BOLT COVER 75 X 54 X 42.5
Price
$2.45
692
BOTTOM BELT COVER
Price
N/A
700
LOCK HANDLE
Price
$13.30
701
LOCK WASHER 1/4
Price
N/A
702
P1006702
Now: PW06
FLAT WASHER 1/4
Price
N/A
703
LIMIT PLATE
Price
$10.90
704
FLAT WASHER 1/8
Price
$1.60
705
PHLP HD SCR 5-40 X 3/8
Price
$1.60
706
CHUCK 1/2IN JT6
Price
$63.45
707
KNURLED THUMB SCR 1/4-20 X 3/8
Price
$5.65
708
SCALE
Price
$3.80
709
RIVET 2 X 5
Item is no longer available
Price
N/A
710
LOCK HANDLE BUSHING
Price
$2.20
711
LOCK WASHER 5/16
Price
N/A
712
ANGLE VISE
Item is no longer available
Price
N/A
713
DRL CHK KEY 7.88MM STD 12T SD-16.8MM
Price
$53.45
801
MACHINE ID LABEL
Item is no longer available
Price
N/A
802
ELECTRICITY 1.4W X 1.2H
Price
N/A
803
WEAR GLASSES LABEL
Price
$4.25
804
ROTATING CUTTER LABEL
Price
$4.25
805
READ MANUAL LABEL
Price
$3.15
806
N/S GRIZZLY GREEN G1023S
Price
N/A
807
Nameplate - Mini
Price
N/A
808
SPINDLE SPEEDS LABEL
Price
$1.50
MANUAL
*DISCD*MANUAL FOR THE G1006/G1007 02/00
Item is no longer available
Price
N/A
RMANUAL
*DISCD*
Item is no longer available
Price
N/A
SPINDLE
COMPLETE SPINDLE ASSY
Item is no longer available
Price
N/A
SWITCH
FWD/REV SWITCH
Price
$73.40
