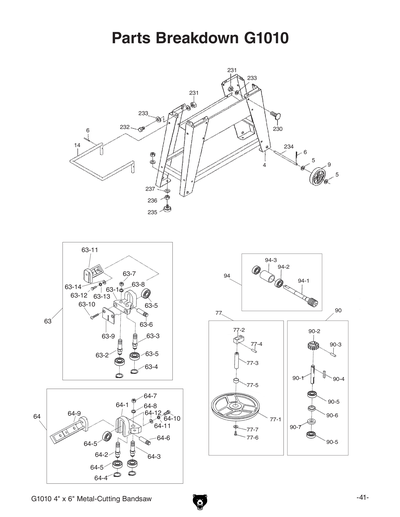

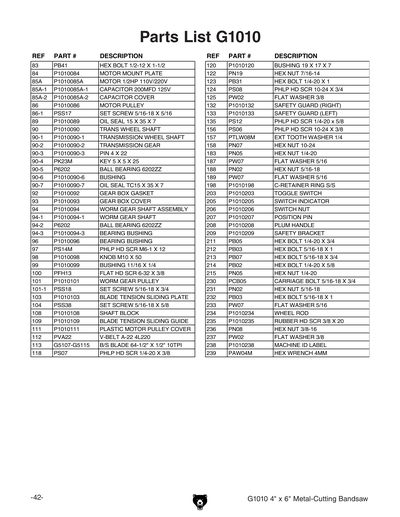

Parts for G1010 4 1/2" x 6" Metal Cutting Bandsaw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
2
Now: PN05
HEX NUT 1/4-20
Price
N/A
3
Now: PW06
FLAT WASHER 1/4
Price
N/A
4
COMPLETE STAND ASSY V2.12.95
4C
COMPLETE STAND ASSY V3.12.07
5
Now: PW14
FLAT WASHER 5/8
Price
N/A
6
COTTER PIN 1/8 X 1"
9
WHEEL V1.02.98
9A
WHEEL W/AXLE V2.07.04
10
Now: PW06
FLAT WASHER 1/4
Price
N/A
11
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
12
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
13
*DISCD*FLOOR STAND LEFT V1.10.03
Price
N/A
14
LIFTING HANDLE
Item is no longer available
Price
N/A
15
ADJUSTING TENSION ROD
Item is no longer available
Price
N/A
16
MOTOR CABLE
Item is no longer available
Price
N/A
17
PIVOTING ROD
18
Now: PLW01
LOCK WASHER 5/16
Price
N/A
18A
SUPPORT PLATE
19
DISTANCE SET BRACKET
19-1
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
20
Now: PN02
HEX NUT 5/16-18
Price
N/A
21
STOCK STOP ROD 1/2 X 216
Price
N/A
22
WIRE RELIEF RETAINER
23
Now: PSW05
TOGGLE SWITCH METAL 2POLE
Price
N/A
24
*DISCD*JAM NUT 7/16 X 24
Item is no longer available
Price
N/A
25
*DISCD*GEAR WASHER
Item is no longer available
Price
N/A
26
Now: PSW05
TOGGLE SWITCH METAL 2POLE
Price
N/A
27
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
28
HANDWHEEL
28-1
HANDWHEEL HANDLE
30
E-CLIP 10MM
Price
N/A
31
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
32
LEADSCREW 350 X 16-8
33
VISE NUT 35 X 32 X 60
34
MOVEABLE VISE PLATE
35
Now: PW02
FLAT WASHER 3/8
Price
N/A
36
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
37
SWIVEL BASE
38
Now: PS80
PHLP HD SCR 10-32 X 1/4
Price
N/A
39
SCALE
40
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
41
WIRE RING 1/2"
Item is no longer available
Price
N/A
42
SCREW M4 X 16
Item is no longer available
Price
N/A
43
WIRE PROTECTOR
44
POWER CABLE
Item is no longer available
Price
N/A
45
SPRING HANDLE BRACKET
45-1
SPRING HANDLE BRACKET
46
SPRING ADJ SCREW 80 X 1/4-20
47
SPRING 25 X 212
48
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
49
MOVABLE VISE PLATE
50
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
51
Now: PW07
FLAT WASHER 5/16
Price
N/A
52
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
53
Now: PB38
HEX BOLT 7/16-14 X 2
Price
N/A
54
PIVOT 5/16 HOLE 7-7/8L V1.12.95
54A
PIVOT 3/8 HOLE 7-7/8L V2.09.00
Item is no longer available
Price
N/A
54B
PIVOT 5/8HOLE 2(3/8HOLE) 8-1/2L V3.03.01
55
VERTICAL CUTTING PLATE
56
TABLE SUPPORTING PLATE
57
ELECTRIC CORD CLIP
58
PLUM HANDLE SCREW
59
*DISCD*STEEL SAFETY COVER V1.12.95
Item is no longer available
Price
N/A
59A
SAFETY COVER PLASTIC V2.04.04
60
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
61
Now: PSS38
SET SCREW 5/16-18 X 5/8
Price
N/A
62
GUIDE PIVOT RIGHT
Price
N/A
62-1
*DISCD*ECCENTRIC PIVOT
Item is no longer available
Price
N/A
62A
*DISCD*GUIDE PIVOT - ECCENTRIC
63
BLADE ADJUSTABLE ASSY REAR
63-1
BLADE ADJUSTABLE
63-10
Now: PFH19
FLAT HD SCR 1/4-20 X 3/8
Price
N/A
63-11
ADJUSTABLE BRACKET RIGHT
63-12
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
63-13
Now: PLW01
LOCK WASHER 5/16
Price
N/A
63-14
Now: PW07
FLAT WASHER 5/16
Price
N/A
63-2
BEARING SHAFT
63-3
GUIDE PIVOT RIGHT
63-4
C-RETAINER RING S10
63-5
BALL BEARING 6000ZZ
Price
N/A
63-6
BEARING PIN
63-7
Now: PN11
HEX NUT 3/8-24
Price
N/A
63-8
Now: PLW04
LOCK WASHER 3/8
Price
N/A
63-9
DEFLECTOR PLATE
64
ADJUSTABLE BRACKET ASSY RT
64-1
BLADE ADJUSTMENT FRONT
64-10
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
64-11
Now: PLW01
LOCK WASHER 5/16
Price
N/A
64-12
Now: PW07
FLAT WASHER 5/16
Price
N/A
64-2
BEARING SHAFT
Item is no longer available
Price
N/A
64-3
GUIDE PIVOT LEFT
Item is no longer available
Price
N/A
64-4
C-RETAINER RING S10
Item is no longer available
Price
N/A
64-5
BALL BEARING 6000ZZ
Price
N/A
64-6
BEARING PIN 10 X 36
64-7
Now: PN11
HEX NUT 3/8-24
Price
N/A
64-8
Now: PLW04
LOCK WASHER 3/8
Price
N/A
64-9
*DISCD*ADJUSTABLE BRACKET LEFT
Item is no longer available
Price
N/A
64A
BLADE ADJ SEAT ASSY
65
ADJUSTABLE BRACKET RIGHT
Price
N/A
65A
*DISCD*ADJUSTING BRACKET V1.12.95
66
BLADE ADJUSTABLE KNOB
67
Now: PLW01
LOCK WASHER 5/16
Price
N/A
68
Now: PFH19
FLAT HD SCR 1/4-20 X 3/8
Price
N/A
69
BLADE GUARD
Item is no longer available
Price
N/A
70
Now: PN11
HEX NUT 3/8-24
Price
N/A
71
BLADE WHEEL FRONT
71-1
Now: PSS17
SET SCREW 5/16-18 X 5/16
Price
N/A
71-2
BEARING BUSHING 33 X 25 X 8
72
BEARING COVER
73
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
74
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
75
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
76
SWITCH CUT OFF TIP
77
BLADE WHEEL ASSY REAR
77-1
BLADE WHEEL REAR
77-2
BLADE WHEEL SHAFT ASSY
Price
N/A
77-3
BLADE WHEEL SHAFT ASSY
77-4
BLADE WHEEL SHAFT ASSY
Price
N/A
77-5
BUSHING
77-6
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
77-7
Now: PW07
FLAT WASHER 5/16
Price
N/A
77-8
BLADE WHEEL SHAFT
78
*DISCD*OIL FILLER PLUG
Item is no longer available
Price
N/A
79
KNOB 3/8-16 X 3-1/2
80
SPRING 14 X 75
81
BODY FRAME
82
MOTOR 1/2HP 110V/220V 1-PH V2.08.98
Price
N/A
83
Now: PB41
HEX BOLT 1/2-12 X 1-1/2
Price
N/A
84
MOTOR MOUNT PLATE
85
*DISCD*MOTOR V1.12.95
Item is no longer available
Price
N/A
85A
MOTOR 1/2HP 110V/220V 1-PH V2.08.98
86
MOTOR PULLEY
86-1
Now: PSS17
SET SCREW 5/16-18 X 5/16
Price
N/A
87
BALL BEARING 6202ZZ
Price
N/A
88
BEARING BUSHING
Price
N/A
89
OIL SEAL TC15 X 35 X 7
Price
N/A
90
TRANSMISSION GEAR ASSY
90-1
TRANSMISSION WHEEL SHAFT
90-2
TRANSMISSION GEAR
90-3
PIN 4 X 22
90-4
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
90-5
BALL BEARING 6202ZZ
Price
N/A
90-6
BUSHING
90-7
OIL SEAL TC15 X 35 X 7
Price
N/A
91
Now: PN02
HEX NUT 5/16-18
Price
N/A
92
GEAR BOX GASKET
93
GEAR BOX COVER
94
WORM GEAR SHAFT ASSY
94-1
WORM GEAR SHAFT
94-2
BALL BEARING 6202ZZ
Price
N/A
94-3
BEARING BUSHING
95
ROLL PIN 4 X 22
Price
N/A
96
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
98
PLUM SCREW 5/16-18 X 45
99
BUSHING 11/16 X 1/4
Item is no longer available
Price
N/A
100
Now: PFH13
FLAT HD SCR 6-32 X 3/8
Price
N/A
101
WORM GEAR PULLEY
101-1
Now: PSS18
SET SCREW 5/16-18 X 3/4
Price
N/A
101-2
PULLEY BUSHING
Item is no longer available
Price
N/A
102
Now: PLW01
LOCK WASHER 5/16
Price
N/A
103
BLADE TENSION SLIDING PLATE
104
Now: PSS38
SET SCREW 5/16-18 X 5/8
Price
N/A
105
*DISCD*SPRING PIN 4 X 20
Item is no longer available
Price
N/A
106
*DISCD*SLIDING PLATE DRAW BLOCK
107
BLADE WHEEL SHAFT ASSY
Price
N/A
108
SHAFT BLOCK
109
BLADE TENSION SLIDING GUIDE
110
MOTOR PULLEY COVER ASSY
Price
N/A
111
MOTOR PULLEY COVER ASSY
112
V-BELT AX22
Price
N/A
114
Now: PLW04
LOCK WASHER 3/8
Price
N/A
115
CHIP PAN
116
UPPER STAND SUPPORT
117
Now: PLW02
LOCK WASHER 1/4
Price
N/A
118
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
120
BUSHING 19 X 17 X 7
121
*DISCD*RND HD CROSS SOCKET
Item is no longer available
Price
N/A
122
Now: PN19
HEX NUT 7/16-14
Price
N/A
123
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
124
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
125
Now: PW02
FLAT WASHER 3/8
Price
N/A
126
*DISCD*BUSHING
Item is no longer available
Price
N/A
132
SAFETY GUARD RIGHT
132-1
SAFETY GUARD LEFT
Price
N/A
133
SAFETY GUARD LEFT
134
*DISCD*SCREW
135
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
156
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
157
STAR WASHER 3/16
158
Now: PN07
HEX NUT 10-24
Price
N/A
187
Now: PW07
FLAT WASHER 5/16
Price
N/A
188
Now: PN02
HEX NUT 5/16-18
Price
N/A
189
Now: PW07
FLAT WASHER 5/16
Price
N/A
198
C-RETAINER RING S/S
199
Now: PN05
HEX NUT 1/4-20
Price
N/A
203
TOGGLE SWITCH
205
SWITCH INDICATOR
Item is no longer available
Price
N/A
206
HEX NUT
Item is no longer available
Price
N/A
207
POSITION PIN
208
PLUM HANDLE
209
FIXED PLATE
211
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
212
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
213
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
214
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
215
Now: PN05
HEX NUT 1/4-20
Price
N/A
230
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
231
Now: PN02
HEX NUT 5/16-18
Price
N/A
232
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
233
Now: PW07
FLAT WASHER 5/16
Price
N/A
234
WHEEL ROD
235
RUBBER HD SCR 3/8 X 20
236
Now: PN08
HEX NUT 3/8-16
Price
N/A
237
Now: PW02
FLAT WASHER 3/8
Price
N/A
MANUAL
MANUAL FOR G1010 07/07
