Parts for G1010 - 4 1/2" x 6" Metal Cutting Bandsaw

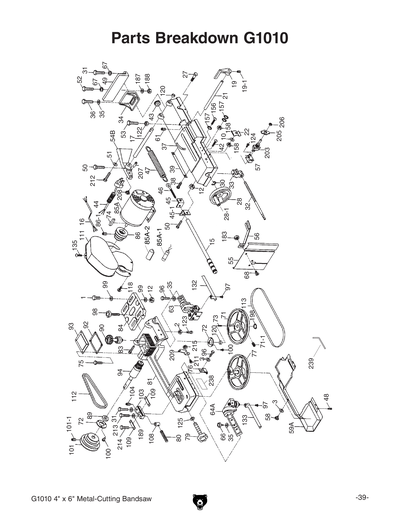

Part Diagram for G1010

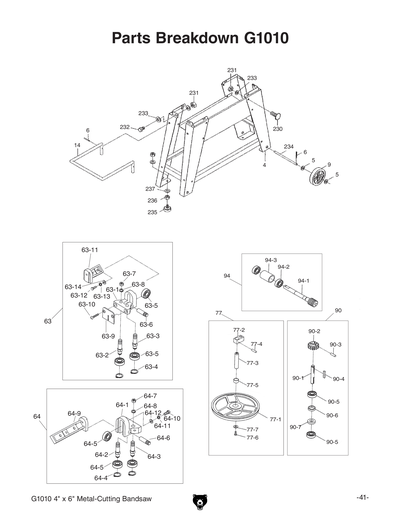

Part Diagram for G1010
Part Diagram for G1010
Part Diagram for G1010
Part Diagram for G1010
Part Diagram for G1010
Part Diagram for G1010
Part Diagram for G1010

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
P1010001
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
2
P1010002
Now: PN05
HEX NUT 1/4-20
Price
N/A
3
P1010003
Now: PW06
FLAT WASHER 1/4
Price
N/A
4
COMPLETE STAND ASSY V2.12.95
Price
$260.50
4C
COMPLETE STAND ASSY V3.12.07
Price
$260.50
5
P1010005
Now: PW14
FLAT WASHER 5/8
Price
N/A
6
COTTER PIN 1/8 X 1"
Price
$1.85
9
WHEEL V1.02.98
Price
$4.85
9A
WHEEL W/AXLE V2.07.04
Price
$15.45
10
P1010010
Now: PW06
FLAT WASHER 1/4
Price
N/A
11
P1010011
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
12
P1010012
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
13
*DISCD*FLOOR STAND LEFT V1.10.03
Price
N/A
14
LIFTING HANDLE
Item is no longer available
Price
N/A
15
ADJUSTING TENSION ROD
Price
$10.10
16
MOTOR CABLE
Item is no longer available
Price
N/A
17
PIVOTING ROD
Price
$6.40
18
LOCK WASHER 5/16
Price
N/A
18A
SUPPORT PLATE
Price
$4.05
19
DISTANCE SET BRACKET
Price
$13.45
19-1
HEX BOLT 5/16-18 X 1/2
Price
N/A
20
P1010020
Now: PN02
HEX NUT 5/16-18
Price
N/A
21
STOCK STOP ROD 1/2 X 216
Price
N/A
22
WIRE RELIEF RETAINER
Price
$1.49
23
TOGGLE SWITCH METAL 2POLE
Price
N/A
24
*DISCD*JAM NUT 7/16 X 24
Item is no longer available
Price
N/A
25
*DISCD*GEAR WASHER
Item is no longer available
Price
N/A
26
TOGGLE SWITCH METAL 2POLE
Price
N/A
27
P1010027
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
28
HANDWHEEL
Price
$23.60
28-1
HANDWHEEL HANDLE
Price
$7.60
30
E-CLIP 10MM
Price
N/A
31
P1010031
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
32
LEADSCREW 350 X 16-8
Price
$11.50
33
VISE NUT 35 X 32 X 60
Price
$36.55
34
MOVEABLE VISE PLATE
Price
$10.30
35
P1010035
Now: PW02
FLAT WASHER 3/8
Price
N/A
36
P1010036
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
37
SWIVEL BASE
Price
$220.80
38
P1010038
Now: PS80
PHLP HD SCR 10-32 X 1/4
Price
N/A
39
SCALE
Price
$7.25
40
P1010040
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
41
WIRE RING 1/2"
Item is no longer available
Price
N/A
42
SCREW M4 X 16
Item is no longer available
Price
N/A
43
WIRE PROTECTOR
Price
$1.49
44
POWER CABLE
Item is no longer available
Price
N/A
45
SPRING HANDLE BRACKET
Price
$1.60
45-1
SPRING HANDLE BRACKET
Price
$7.25
46
SPRING ADJ SCREW 80 X 1/4-20
Price
$1.60
47
SPRING 25 X 212
Price
$18.75
48
P1010048
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
49
MOVABLE VISE PLATE
Price
$20.85
50
P1010050
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
51
P1010051
Now: PW07
FLAT WASHER 5/16
Price
N/A
52
P1010052
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
53
P1010053
Now: PB38
HEX BOLT 7/16-14 X 2
Price
N/A
54
PIVOT 5/16 HOLE 7-7/8L V1.12.95
Price
$1.60
54A
PIVOT 3/8 HOLE 7-7/8L V2.09.00
Item is no longer available
Price
N/A
54B
PIVOT 5/8HOLE 2(3/8HOLE) 8-1/2L V3.03.01
Price
$41.70
55
VERTICAL CUTTING PLATE
Price
$41.40
56
TABLE SUPPORTING PLATE
Price
$13.15
57
ELECTRIC CORD CLIP
Price
$12.95
58
PLUM HANDLE SCREW
Price
$3.80
59
*DISCD*STEEL SAFETY COVER V1.12.95
Item is no longer available
Price
N/A
59A
SAFETY COVER PLASTIC V2.04.04
Price
$35.65
60
EXT RETAINING RING 10MM
Price
N/A
61
SET SCREW 5/16-18 X 5/8
Price
N/A
62
GUIDE PIVOT RIGHT
Price
N/A
62-1
*DISCD*ECCENTRIC PIVOT
Item is no longer available
Price
N/A
62A
*DISCD*GUIDE PIVOT - ECCENTRIC
Price
$4.35
63
BLADE ADJUSTABLE ASSY REAR
Price
$79.35
63-1
BLADE ADJUSTABLE
Price
$22.95
63-10
FLAT HD SCR 1/4-20 X 3/8
Price
N/A
63-11
ADJUSTABLE BRACKET RIGHT
Price
$26.35
63-12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
63-13
LOCK WASHER 5/16
Price
N/A
63-14
FLAT WASHER 5/16
Price
N/A
63-2
BEARING SHAFT
Price
$7.25
63-3
GUIDE PIVOT RIGHT
Price
$5.50
63-4
C-RETAINER RING S10
Price
$1.60
63-5
BALL BEARING 6000ZZ
Price
N/A
63-6
BEARING PIN
Price
$7.25
63-7
HEX NUT 3/8-24
Price
N/A
63-8
LOCK WASHER 3/8
Price
N/A
63-9
DEFLECTOR PLATE
Price
$2.45
64
ADJUSTABLE BRACKET ASSY RT
Price
$41.25
64-1
BLADE ADJUSTMENT FRONT
Price
$9.40
64-10
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
64-11
LOCK WASHER 5/16
Price
N/A
64-12
FLAT WASHER 5/16
Price
N/A
64-2
BEARING SHAFT
Item is no longer available
Price
N/A
64-3
GUIDE PIVOT LEFT
Item is no longer available
Price
N/A
64-4
C-RETAINER RING S10
Item is no longer available
Price
N/A
64-5
BALL BEARING 6000ZZ
Price
N/A
64-6
BEARING PIN 10 X 36
Price
$2.45
64-7
HEX NUT 3/8-24
Price
N/A
64-8
LOCK WASHER 3/8
Price
N/A
64-9
*DISCD*ADJUSTABLE BRACKET LEFT
Item is no longer available
Price
N/A
64A
BLADE ADJ SEAT ASSY
Price
$74.90
65
ADJUSTABLE BRACKET RIGHT
Price
N/A
65A
*DISCD*ADJUSTING BRACKET V1.12.95
Price
$19.85
66
BLADE ADJUSTABLE KNOB
Price
$5.80
67
LOCK WASHER 5/16
Price
N/A
68
FLAT HD SCR 1/4-20 X 3/8
Price
N/A
69
BLADE GUARD
Item is no longer available
Price
N/A
70
P1010070
Now: PN11
HEX NUT 3/8-24
Price
N/A
71
BLADE WHEEL FRONT
Price
$69.00
71-1
SET SCREW 5/16-18 X 5/16
Price
N/A
71-2
BEARING BUSHING 33 X 25 X 8
Price
$1.49
72
BEARING COVER
Price
$1.60
73
KEY 5 X 5 X 25
Price
N/A
74
KEY 5 X 5 X 30
Price
N/A
75
P1010075
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
76
SWITCH CUT OFF TIP
Price
$1.85
77
BLADE WHEEL ASSY REAR
Price
$114.45
77-1
BLADE WHEEL REAR
Price
$73.10
77-2
BLADE WHEEL SHAFT ASSY
Price
N/A
77-3
BLADE WHEEL SHAFT ASSY
Price
$15.05
77-4
BLADE WHEEL SHAFT ASSY
Price
N/A
77-5
BUSHING
Price
$2.20
77-6
HEX BOLT 5/16-18 X 3/4
Price
N/A
77-7
FLAT WASHER 5/16
Price
N/A
77-8
BLADE WHEEL SHAFT
Price
$12.10
78
*DISCD*OIL FILLER PLUG
Item is no longer available
Price
N/A
79
KNOB 3/8-16 X 3-1/2
Price
$4.60
80
SPRING 14 X 75
Price
$1.85
81
BODY FRAME
Price
$154.70
82
MOTOR 1/2HP 110V/220V 1-PH V2.08.98
Price
N/A
83
P1010083
Now: PB41
HEX BOLT 1/2-12 X 1-1/2
Price
N/A
84
MOTOR MOUNT PLATE
Price
$30.00
85
*DISCD*MOTOR V1.12.95
Item is no longer available
Price
N/A
85A
MOTOR 1/2HP 110V/220V 1-PH V2.08.98
Price
$417.60
86
MOTOR PULLEY
Price
$34.50
86-1
SET SCREW 5/16-18 X 5/16
Price
N/A
87
BALL BEARING 6202ZZ
Price
N/A
88
BEARING BUSHING
Price
N/A
89
OIL SEAL TC15 X 35 X 7
Price
N/A
90
TRANSMISSION GEAR ASSY
Price
$142.30
90-1
TRANSMISSION WHEEL SHAFT
Price
$6.40
90-2
TRANSMISSION GEAR
Price
$76.40
90-3
PIN 4 X 22
Price
$1.60
90-4
KEY 5 X 5 X 25
Price
N/A
90-5
BALL BEARING 6202ZZ
Price
N/A
90-6
BUSHING
Price
$1.60
90-7
OIL SEAL TC15 X 35 X 7
Price
N/A
91
P1010091
Now: PN02
HEX NUT 5/16-18
Price
N/A
92
GEAR BOX GASKET
Price
$5.50
93
GEAR BOX COVER
Price
$6.40
94
WORM GEAR SHAFT ASSY
Price
$34.15
94-1
WORM GEAR SHAFT
Price
$25.30
94-2
BALL BEARING 6202ZZ
Price
N/A
94-3
BEARING BUSHING
Price
$3.40
95
ROLL PIN 4 X 22
Price
N/A
96
P1010096
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
98
PLUM SCREW 5/16-18 X 45
Price
$1.60
99
BUSHING 11/16 X 1/4
Item is no longer available
Price
N/A
100
FLAT HD SCR 6-32 X 3/8
Price
N/A
101
WORM GEAR PULLEY
Price
$46.60
101-1
SET SCREW 5/16-18 X 3/4
Price
N/A
101-2
PULLEY BUSHING
Item is no longer available
Price
N/A
102
LOCK WASHER 5/16
Price
N/A
103
BLADE TENSION SLIDING PLATE
Price
$33.85
104
SET SCREW 5/16-18 X 5/8
Price
N/A
105
*DISCD*SPRING PIN 4 X 20
Item is no longer available
Price
N/A
106
*DISCD*SLIDING PLATE DRAW BLOCK
Price
$4.90
107
BLADE WHEEL SHAFT ASSY
Price
N/A
108
SHAFT BLOCK
Price
$3.40
109
BLADE TENSION SLIDING GUIDE
Price
$2.75
110
MOTOR PULLEY COVER ASSY
Price
N/A
111
MOTOR PULLEY COVER ASSY
Price
$43.50
112
V-BELT AX22
Price
N/A
114
LOCK WASHER 3/8
Price
N/A
115
CHIP PAN
Price
$18.15
116
UPPER STAND SUPPORT
Price
$77.65
117
LOCK WASHER 1/4
Price
N/A
118
P1010118
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
120
BUSHING 19 X 17 X 7
Price
$1.60
121
*DISCD*RND HD CROSS SOCKET
Item is no longer available
Price
N/A
122
P1010122
Now: PN19
HEX NUT 7/16-14
Price
N/A
123
P1010123
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
124
P1010124
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
125
P1010125
Now: PW02
FLAT WASHER 3/8
Price
N/A
126
*DISCD*BUSHING
Item is no longer available
Price
N/A
132
SAFETY GUARD RIGHT
Price
$3.65
132-1
SAFETY GUARD LEFT
Price
N/A
133
SAFETY GUARD LEFT
Price
$9.40
134
*DISCD*SCREW
Price
$1.49
135
P1010135
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
156
P1010156
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
157
STAR WASHER 3/16
Price
$1.49
158
P1010158
Now: PN07
HEX NUT 10-24
Price
N/A
187
P1010187
Now: PW07
FLAT WASHER 5/16
Price
N/A
188
P1010188
Now: PN02
HEX NUT 5/16-18
Price
N/A
189
P1010189
Now: PW07
FLAT WASHER 5/16
Price
N/A
198
C-RETAINER RING S/S
Price
$1.60
199
P1010199
Now: PN05
HEX NUT 1/4-20
Price
N/A
203
TOGGLE SWITCH
Price
$16.35
205
SWITCH INDICATOR
Item is no longer available
Price
N/A
206
HEX NUT
Item is no longer available
Price
N/A
207
POSITION PIN
Price
$3.40
208
PLUM HANDLE
Price
$1.60
209
FIXED PLATE
Price
$7.25
211
P1010211
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
212
P1010212
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
213
P1010213
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
214
P1010214
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
215
P1010215
Now: PN05
HEX NUT 1/4-20
Price
N/A
230
P1010230
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
231
P1010231
Now: PN02
HEX NUT 5/16-18
Price
N/A
232
P1010232
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
233
P1010233
Now: PW07
FLAT WASHER 5/16
Price
N/A
234
WHEEL ROD
Price
$13.60
235
RUBBER HD SCR 3/8 X 20
Price
$4.60
236
P1010236
Now: PN08
HEX NUT 3/8-16
Price
N/A
237
P1010237
Now: PW02
FLAT WASHER 3/8
Price
N/A
MANUAL
MANUAL FOR G1010 07/07
Price
$14.65
