Parts for G1011Z Bandsaw 7" X 12" Metal Cutting

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

2
*DISCD*DOWEL PIN
Item is no longer available
Price
N/A
3
*DISCD*RAPID NUT
Item is no longer available
Price
N/A
4
*DISCD*MOVABLE JAW
5
Now: PW01M
FLAT WASHER 8MM
Price
N/A
6
CAP SCREW M8-1.25 X 45
Price
N/A
7
CAP SCREW M8-1.25 X 45
Price
N/A
9
*DISCD*MOVABLE JAW SUBPLATE
Item is no longer available
Price
N/A
10
CAP SCREW M10-1.25 X 28
Price
N/A
11
*DISCD*FIXED JAW
12
*DISCD*PIVOT SHAFT NUT
Item is no longer available
Price
N/A
13
*DISCD*NUT
Item is no longer available
Price
N/A
14
Now: PW01
FLAT WASHER 1/2
Price
N/A
19
Now: PW01M
FLAT WASHER 8MM
Price
N/A
20
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
21
*DISCD*PIVOT SHAFT
Item is no longer available
Price
N/A
22
*DISCD*SLEEVE
Item is no longer available
Price
N/A
23
*DISCD*TORSION SPRING
Item is no longer available
Price
N/A
24
*DISCD*TABLE
Item is no longer available
Price
N/A
25
*DISCD*RETAINING PLATE
Item is no longer available
Price
N/A
26
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
27
Now: PW01M
FLAT WASHER 8MM
Price
N/A
28
*DISCD*FEED SUPPORT BRACKET
Item is no longer available
Price
N/A
29
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
30
CAP SCREW M8-1.25 X 30
Price
N/A
31
LOCK WASHER 8MM
Price
N/A
32
*DISCD*EYE BOLT
Item is no longer available
Price
N/A
33
*DISCD*FEED SPRING
Item is no longer available
Price
N/A
34
Now: PW01M
FLAT WASHER 8MM
Price
N/A
35
*DISCD*HOSE CLAMP
Item is no longer available
Price
N/A
36
*DISCD*SPINDLE BRACKET
Item is no longer available
Price
N/A
38
*DISCD*GASKET
Item is no longer available
Price
N/A
60
*DISCD*CUT PT SCISCREW
61
*DISCD*WORK STOP ARM
62
*DISCD*UPPER WORK STOP ROD
63
*DISCD*LOWER WORK STOP ROD
72
*DISCD*HAND WHEEL
73
*DISCD*SET SCREW
Item is no longer available
Price
N/A
74
*DISCD*CLAMP SPINDLE
Item is no longer available
Price
N/A
79
*DISCD*PUMP
Item is no longer available
Price
N/A
102
CAP SCREW M5-.8 X 10
Price
N/A
103
*DISCD*BLADE GUARD
Item is no longer available
Price
N/A
113
*DISCD*SAW BOW
Item is no longer available
Price
N/A
114
*DISCD*TILT ARM
Item is no longer available
Price
N/A
114A
*DISCD*IDLE WHEEL V2-USES P6205 BEARING
117
*DISCD*PIN
Item is no longer available
Price
N/A
118
*DISCD*RETAINING RING
Item is no longer available
Price
N/A
119
*DISCD*CYLINDER PIVOT BRACKET
Item is no longer available
Price
N/A
122
*DISCD*HYDRAULIC CYLINDER
Item is no longer available
Price
N/A
126
*DISCD*DRIVE WHEEL COVER
Item is no longer available
Price
N/A
130
*DISCD*BRACKET
132
*DISCD*BRUSH SPACER
133
*DISCD*CHIP BRUSH
134
*DISCD*SHOULDER SCREW
Item is no longer available
Price
N/A
136
*DISCD*IDLER WHEEL COVER
Item is no longer available
Price
N/A
139
*DISCD*SWITCH ACTUATOR
Item is no longer available
Price
N/A
144
*DISCD*COLUMN BLADE COVER
Item is no longer available
Price
N/A
145
*DISCD*NOZZLE
Item is no longer available
Price
N/A
146
CAP SCREW M6-1 X 30
Price
N/A
147
*DISCD*COOLANT MOUNT
148
*DISCD*BARB FITTING
Item is no longer available
Price
N/A
150
*DISCD*HOSE
Item is no longer available
Price
N/A
201
ROLL PIN 5 X 20
Price
N/A
202
*DISCD*HANDLE
Item is no longer available
Price
N/A
203
*DISCD*THREADED ROD
Item is no longer available
Price
N/A
204
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
205
*DISCD*TENSION BLOCK
Item is no longer available
Price
N/A
207
*DISCD*ROLL PIN
Item is no longer available
Price
N/A
208
Now: PN01M
HEX NUT M6-1
Price
N/A
209
CAP SCREW M6-1 X 45
Price
N/A
210
*DISCD*YOKE AND SHAFT ASSY
210A
*DISCD*YOKE & SHAFT ASSY V2-USES P6205
211
*DISCD*SLIDE
Item is no longer available
Price
N/A
213
*DISCD*THRUST BEARING
214
*DISCD*IDLER WHEEL
215
*DISCD*BRONZE BEARING
Item is no longer available
Price
N/A
215A
*DISCD*NEEDLE BEARING
217
*DISCD*RETAINING RING
Item is no longer available
Price
N/A
217A
*DISCD*RETAINER-V2 2PC
218
*DISCD*SLIDE PLATE
219
CAP SCREW M6-1 X 16
Price
N/A
220
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
221
Now: PB18M
HEX BOLT M6-1 X 15
Price
N/A
222
*DISCD*GIB
Item is no longer available
Price
N/A
223
CAP SCREW M6-1 X 30
Price
N/A
224
Now: PW03M
FLAT WASHER 6MM
Price
N/A

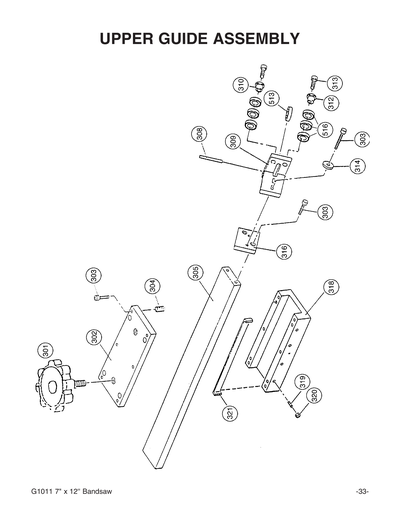

301
*DISCD*KNOB
Item is no longer available
Price
N/A
302
*DISCD*GUIDE BAR COVER
Item is no longer available
Price
N/A
303
CAP SCREW M8-1.25 X 25
Price
N/A
304
*DISCD*SET SCREW
Item is no longer available
Price
N/A
305
*DISCD*GUIDE BAR
Item is no longer available
Price
N/A
307
*DISCD*BEARING
Item is no longer available
Price
N/A
308
*DISCD*DOWEL PIN
Item is no longer available
Price
N/A
309
*DISCD*BLADE GUIDE BEARING
Item is no longer available
Price
N/A
310
*DISCD*STRAIGHT BUSHING
Item is no longer available
Price
N/A
312
*DISCD*ECCENTRIC BUSHING
Item is no longer available
Price
N/A
313
CAP SCREW M8-1.25 X 30
Price
N/A
314
Now: PW01M
FLAT WASHER 8MM
Price
N/A
316
*DISCD*BLADE GUIDE SUBPLATE
Item is no longer available
Price
N/A
318
*DISCD*GUIDE BAR CRADLE
Item is no longer available
Price
N/A
319
SET SCREW M6-1 X 25
Price
N/A
320
Now: PN01M
HEX NUT M6-1
Price
N/A
321
*DISCD*GIB
Item is no longer available
Price
N/A
401
*DISCD*BACK PANEL
Item is no longer available
Price
N/A
402
*DISCD*DRIVE PULLEY
Item is no longer available
Price
N/A
403
*DISCD*V-BELT
Item is no longer available
Price
N/A
404
*DISCD*BELT GUARD
Item is no longer available
Price
N/A
405
*DISCD*STUD
Item is no longer available
Price
N/A
406
Now: PW01M
FLAT WASHER 8MM
Price
N/A
407
*DISCD*KNOB PULLEY COVER
Item is no longer available
Price
N/A
408
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A
409A
*DISCD*MOTOR MOUNT
Item is no longer available
Price
N/A
409B
*DISCD*MOTOR MOUNT
Item is no longer available
Price
N/A
410
*DISCD*MOTOR MOUNTING PLATE
Item is no longer available
Price
N/A
411
*DISCD*MOTOR 1HP
Item is no longer available
Price
N/A
412
LOCK WASHER 12MM
Price
N/A
413
CAP SCREW M12-1.75 X 25
Price
N/A
414
*DISCD*DRIVE WHEEL
Item is no longer available
Price
N/A
415
*DISCD*SPEED REDUCER
Item is no longer available
Price
N/A
416
CAP SCREW M10-1.5 X 40
Price
N/A
417
SET SCREW M5-.8 X 10
Price
N/A
418
Now: PB31M
HEX BOLT M10-1.5 X 40
Price
N/A
420
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
421
LOCK WASHER 8MM
Price
N/A
422
Now: PW01M
FLAT WASHER 8MM
Price
N/A
423
*DISCD*KNOB MOTOR ADJUST PLATE
Item is no longer available
Price
N/A
424
Now: PW01
FLAT WASHER 1/2
Price
N/A
426
*DISCD*KEY
Item is no longer available
Price
N/A
427
*DISCD*SET SCREW
Item is no longer available
Price
N/A
428
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
429
LOCK WASHER 8MM
Price
N/A
430
Now: PW01M
FLAT WASHER 8MM
Price
N/A
501
CAP SCREW M8-1.25 X 30
Price
N/A
502
Now: PW01M
FLAT WASHER 8MM
Price
N/A
503
*DISCD*BLADE GUIDE BEARING BRACKET
Item is no longer available
Price
N/A
506
CAP SCREW M8-1.25 X 40
Price
N/A
507
*DISCD*GUIDE BAR
Item is no longer available
Price
N/A
509
*DISCD*DOWEL PIN
Item is no longer available
Price
N/A
510
SET SCREW M5-.8 X 25
Price
N/A
511
*DISCD*JAM NUT
Item is no longer available
Price
N/A
512
*DISCD*ECCENTRIC BUSHING
Item is no longer available
Price
N/A
513
*DISCD*BEARING
Item is no longer available
Price
N/A
514
*DISCD*STRAIGHT BUSHING
Item is no longer available
Price
N/A
515
*DISCD*SOC HD CAP SCREW
Item is no longer available
Price
N/A
516
*DISCD*BEARING
Item is no longer available
Price
N/A
517
*DISCD*SPACER
Item is no longer available
Price
N/A
601
*DISCD*FLOW CONTROL VALVE ASSY
Item is no longer available
Price
N/A
602
*DISCD*CONNECTOR 90 DEG
Item is no longer available
Price
N/A
603
*DISCD*STRAIGHT CONNECTOR
Item is no longer available
Price
N/A
604
*DISCD*HYDRAULIC HOSE
Item is no longer available
Price
N/A
605
*DISCD*HYDRAULIC CYLINDER
Item is no longer available
Price
N/A
606
*DISCD*CLEVIS
Item is no longer available
Price
N/A
607
*DISCD*LOCK NUT
Item is no longer available
Price
N/A
608
*DISCD*PIN
Item is no longer available
Price
N/A
609
*DISCD*COTTER PIN
Item is no longer available
Price
N/A
610
*DISCD*SNAP RING
Item is no longer available
Price
N/A
611
*DISCD*SNAP RING
Item is no longer available
Price
N/A
612
*DISCD*MOUNTING SHAFT
Item is no longer available
Price
N/A
700
*DISCD*WARNING LABEL
Item is no longer available
Price
N/A
701
*DISCD*GRIZZLY NAMEPLATE 8W X 3.5H
Price
N/A
MANUAL
MANUAL FOR G1011Z 05/99
Item is no longer available
Price
N/A
