Parts for G1012 - 18" Woodcutting Bandsaw

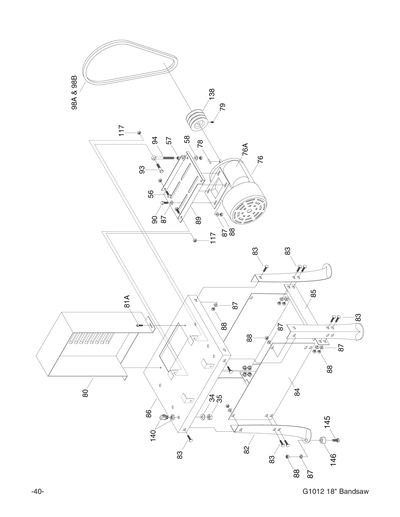

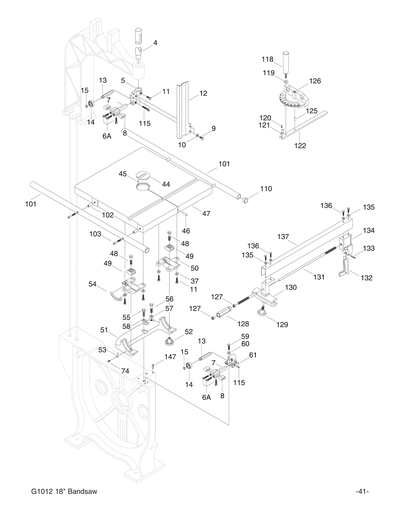

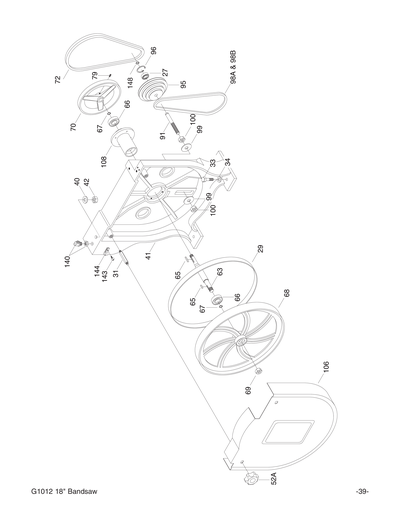

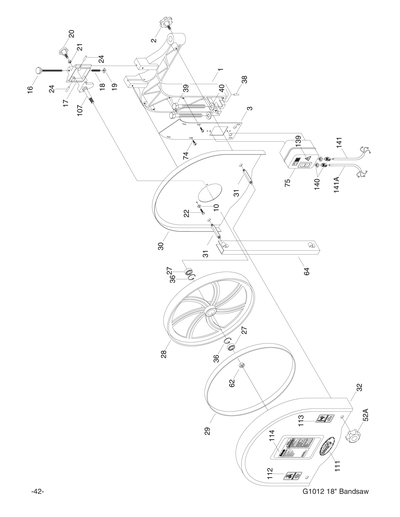

Part Diagram for G1012
Part Diagram for G1012
Part Diagram for G1012
Part Diagram for G1012
Part Diagram for G1012
Part Diagram for G1012
Part Diagram for G1012
Part Diagram for G1012
Part Diagram for G1012
Part Diagram for G1012
Part Diagram for G1012
Part Diagram for G1012

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

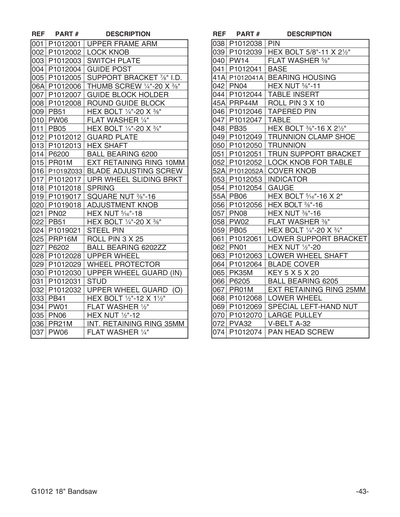

Ref #
Part #
Description
1
UPPER FRAME ARM
Price
$178.00
2
LOCK KNOB
Price
$3.95
3
SWITCH PLATE
Price
$14.70
4
*DISCD*GUIDE POST
Item is no longer available
Price
N/A
5
SUPPORT BRACKET CAST IRON 7/8"ID V2.12.1
Price
N/A
5A
*DISCD*SUPPORT BRACKET 1" I.D.
Item is no longer available
Price
N/A
5V2
SUPPORT BRACKET CAST IRON 7/8"ID V2.12.1
Price
$71.25
6A
THUMBSCREW 1/4-20 X 3/8
Price
N/A
7
GUIDE BLOCK HOLDER CAST IRON V2.04.00
Price
N/A
7A
GUIDE BLOCK HOLDER CAST IRON V2.04.00
Price
$31.20
8
BLADE GUIDE BLOCK ROUND
Price
$6.70
9
P1012009
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
10
P1012010
Now: PW06
FLAT WASHER 1/4
Price
N/A
11
P1012011
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
12
*DISCD*BLADE GUARD
Price
N/A
13
*DISCD*HEX SHAFT V1.12.95
Item is no longer available
Price
N/A
13V2
HEX SHAFT V2.10.09
Price
$12.80
14
BALL BEARING 6200-OPEN
Price
N/A
15
EXT RETAINING RING 10MM
Price
N/A
16
*DISCD*BLADE ADJUSTING SCREW 5/8-18 X 2
Price
N/A
17
*DISCD*UPER WHEL SLDING BRACKET V1.12.95
Item is no longer available
Price
N/A
17A
UPPER WHEEL SLIDING BRACKET V2.07.07
Price
N/A
18
SPRING 4.2 X 76
Price
$12.40
19
SQUARE NUT 3/8-16
Price
N/A
20
*DISCD*ADJUSTMENT KNOB
Price
N/A
21
P1012021
Now: PN02
HEX NUT 5/16-18
Price
N/A
22
P1012022
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
23
*DISCD*UPPER HINGE ASSY
Item is no longer available
Price
N/A
24
*DISCD*STEEL PIN
Price
N/A
25
ROLL PIN 3 X 25
Price
N/A
26
UPPER HINGE ASSY
Price
N/A
26A
UPPER HINGE ASSY
Price
N/A
27
BALL BEARING 6202ZZ
Price
N/A
28
*DISCD*UPPER WHEEL
Item is no longer available
Price
N/A
29
WHEEL PROTECTOR
Price
$66.35
30
UPPER WHEEL GUARD INNER
Price
$64.40
31
*DISCD*STANDOFF-HEX DE
Item is no longer available
Price
N/A
32
UPPER WHEEL GUARD OUTER
Price
$71.90
33
P1012033
Now: PB41
HEX BOLT 1/2-12 X 1-1/2
Price
N/A
34
P1012034
Now: PW01
FLAT WASHER 1/2
Price
N/A
35
P1012035
Now: PN06
HEX NUT 1/2-12
Price
N/A
36
INT RETAINING RING 35MM
Price
N/A
37
P1012037
Now: PW06
FLAT WASHER 1/4
Price
N/A
38
PIN
Price
$5.05
39
P1012039
Now: PB64
HEX BOLT 5/8-11 X 2-1/2
Price
N/A
40
P1012040
Now: PW14
FLAT WASHER 5/8
Price
N/A
41
BASE
Price
$239.80
41A
BEARING HOUSING
Price
$40.55
42
P1012042
Now: PN04
HEX NUT 5/8-11
Price
N/A
44
***USE P1019Z077***
Price
N/A
44A
TABLE INSERT ALUMINUM
Price
N/A
45
*DISCD*ROLL PIN 3 X 8
Item is no longer available
Price
N/A
45A
ROLL PIN 3 X 10
Price
N/A
46
TAPERED PIN
Price
$9.25
47
TABLE
Price
$243.35
48
P1012048
Now: PB35
HEX BOLT 3/8-16 X 2-1/2
Price
N/A
49
TRUNNION CLAMPSHOE
Price
$7.75
50
TRUNNION
Price
$24.80
51
TRUNNION SUPPORT BRACKET
Price
$48.95
52
LOCK KNOB FOR TABLE
Price
$9.55
52A
LOCK KNOB FOR TABLE
Price
N/A
53
POINTER
Price
N/A
54
GAUGE
Price
$2.75
55
P1012055
Now: PB58
HEX BOLT 3/8-16 X 2
Price
N/A
56
P1012056
Now: PB60
HEX BOLT 3/8-16 X 3
Price
N/A
57
P1012057
Now: PN08
HEX NUT 3/8-16
Price
N/A
58
P1012058
Now: PW02
FLAT WASHER 3/8
Price
N/A
59
P1012059
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
61
SUPPORT BRACKET LOWER
Price
$30.25
62
P1012062
Now: PN01
HEX NUT 1/2-20
Price
N/A
63
LOWER WHEEL SHAFT
Price
$70.05
64
*DISCD*BLADE COVER
Item is no longer available
Price
N/A
65
KEY 5 X 5 X 30
Price
N/A
66
BALL BEARING 6205-OPEN
Price
N/A
67
EXT RETAINING RING 25MM
Price
N/A
68
LOWER WHEEL
Price
$105.40
69
LOWER WHEEL LH NUT 3/4-10
Price
$10.10
70
*DISCD*PULLEY LARGE
Item is no longer available
Price
N/A
72
V-BELT A32
Price
N/A
74
P1012074
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
75
MAG SWITCH 2HP 220V 1PH
Price
$120.45
76
*DISCD*MOTOR 2HP 110V/220V 1-PH
Item is no longer available
Price
N/A
76A
CAPACITOR COVER
Price
$8.20
76B
MOTOR FAN
Price
$18.15
76C
S CAPACITOR 400M 125V 1-3/4 X 3-3/8
Price
N/A
77
*DISCD*MOTOR PULLEY- V1 2" DIAMETER
Price
$27.90
77A
*DISCD*MOTOR PULLEY- V2 3" DIAMETER
Price
$17.25
78
KEY 5 X 5 X 25
Price
N/A
79
SET SCREW 1/4-20 X 1/4
Price
N/A
80
PULLEY GUARD
Price
$45.00
81A
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
82
STAND FOOT
Price
$11.85
83
CARRIAGE BOLT 5/16-18 X 1/2
Price
N/A
84
ADJUSTING PLATE LONG V2.11.97
Price
$14.70
84A
ADJUSTING PLATE, LONG V1.12.95
Item is no longer available
Price
N/A
85
ADJUSTING PLATE SHORT V2.11.97
Price
$6.40
85A
ADJUSTING PLATE, SHORT V1.12.95
Item is no longer available
Price
N/A
86
STAND
Price
$82.55
87
P1012087
Now: PW07
FLAT WASHER 5/16
Price
N/A
88
P1012088
Now: PN02
HEX NUT 5/16-18
Price
N/A
89
*DISCD*MOTOR BASE
Item is no longer available
Price
N/A
90
P1012090
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
91
*DISCD*SHAFT
Item is no longer available
Price
N/A
92
ROLLER BASE
Item is no longer available
Price
N/A
93
P1012093
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
94
ADJ ROD
Price
$3.95
95
PULLEY
Price
$80.05
96
INT RETAINING RING 35MM
Price
N/A
97
*DISCD*MOTOR PULLEY GUARD V1
Item is no longer available
Price
N/A
98A
V-BELT A31
Price
N/A
98B
V-BELT A33
Price
N/A
99
P1012099
Now: PW14
FLAT WASHER 5/8
Price
N/A
100
P1012100
Now: PN04
HEX NUT 5/8-11
Price
N/A
101
FENCE RAIL REAR
Price
N/A
101A
FENCE RAIL REAR
Price
$49.55
102
FENCE RAIL SPACER
Price
$3.05
103
CAP SCREW 1/4-20 X 1-3/4
Price
N/A
103A
CAP SCREW 1/4-20 X 1-1/2
Price
N/A
104
COMPLETE FENCE ASSY
Price
N/A
104A
*DISCD*FENCE CLAMP FRONT
Price
N/A
105
*DISCD*COMPLETE MITER GAUGE
Item is no longer available
Price
N/A
106
LOWER WHEEL GUARD
Price
$75.50
107
UPPER HINGE ASSY
Price
$89.45
107A
UPPER HINGE ASSY
Price
N/A
108
BEARING HOUSING LOWER
Price
$42.60
109
COMPLETE FENCE ASSY
Price
N/A
110
RAIL PLUG
Price
$4.95
111
GRIZZLY LOGO 8.3W X 4.3H
Price
N/A
112
DO NOT OPEN LABEL
Price
N/A
113
BANDSAW BLADE 2W X 3.3H V2.04.08
Price
N/A
114
WARNING ID LABEL
Price
$4.25
115
THUMBSCREW 1/4-20 X 3/4
Price
N/A
117
LOCK NUT 3/8-16
Price
N/A
118
*DISCD*MITER GAUGE HANDLE
Item is no longer available
Price
N/A
119
*DISCD*FIBER WASHER 1/4
Price
$1.49
120
P1012120
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
121
INDICATOR
Price
$2.45
122
*DISCD*GAUGE BAR ALUM V1.03.02
Item is no longer available
Price
N/A
122V2
GAUGE BAR IRON V2.03.09
Price
$57.70
125
*DISCD*GAUGE BODY W/PIN
Price
N/A
126
*DISCD*GAUGE BODY W/PIN
Item is no longer available
Price
N/A
127
P1012127
Now: PN08
HEX NUT 3/8-16
Price
N/A
128
*DISCD*REAR LOCKING KNOB
Price
N/A
129
*DISCD*LOCKING KNOB FRONT
Price
N/A
130
*DISCD*FENCE CLAMP FRONT
Price
N/A
131
*DISCD*CLAMP ROD
Price
N/A
132
*DISCD*REAR CLAMP
Price
N/A
133
ROLL PIN 5 X 30
Price
N/A
134
*DISCD*REAR FENCE BRACKET
Price
N/A
135
P1012135
Now: PW06
FLAT WASHER 1/4
Price
N/A
136
P1012136
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
137
COMPLETE FENCE ASSY
Price
N/A
137-1
COMPLETE FENCE ASSY
Price
$408.45
138
MOTOR PULLEY
Price
$37.45
139
ELECTRICITY 1.4W X 1.2H
Price
N/A
140
STRAIN RELIEF M13 TYPE-6 ST
Price
N/A
141
POWER CORD 12G X 3W 86"L
Price
N/A
141A
POWER CORD 12G X 3W 36"L
Price
N/A
143
P1012143
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
144
CORD CLIP
Price
$2.45
145
P1012145
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
146
RUBBER FEET
Price
$9.80
147
ROLL PIN 6 X 16
Price
N/A
148
EXT RETAINING RING 15MM
Price
N/A
COIL
*DISCD*MAGNETIC COIL 220V
Price
$45.75
MANUAL
MANUAL FOR G1012 02/02
Price
$14.65
PART
MISC PART FOR G1012
Price
$1.60
ZPART
MISC PART FOR G1021Z
Item is no longer available
Price
N/A
