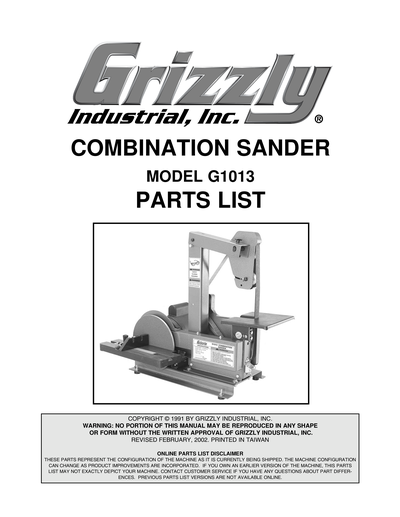

Parts for G1013 - Combination Sander 1" x 42" Belt 8" Disc

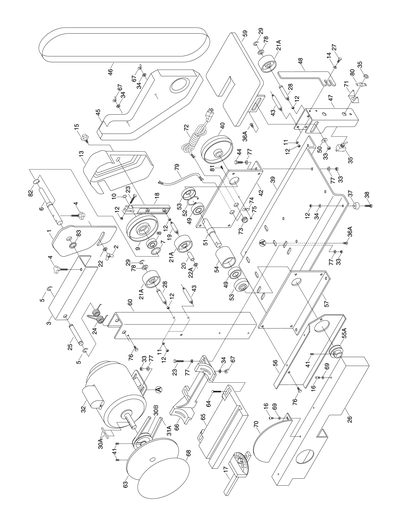

Part Diagram for G1013
Part Diagram for G1013
Part Diagram for G1013
Part Diagram for G1013
Part Diagram for G1013
Part Diagram for G1013

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

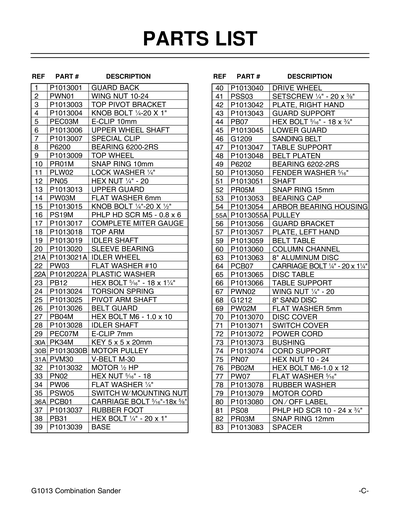

Ref #
Part #
Description
1
*DISCD*GUARD BACK
Price
$5.75
2
WING NUT 10-24
Price
N/A
3
*DISCD*TOP PIVOT BRACKET
Item is no longer available
Price
N/A
4
*DISCD*KNOB BOLT 1/4"-20 X 1"L
Item is no longer available
Price
N/A
5
E-CLIP 10MM
Price
N/A
6
*DISCD*UPPER WHEEL SHAFT V1.12.95
Item is no longer available
Price
N/A
6A
*DISCD*UPPER WHEEL SHAFT V2.05.05
Item is no longer available
Price
N/A
7
*DISCD*SPECIAL CLIP S10
Item is no longer available
Price
N/A
8
BALL BEARING 6200-2RS
Price
N/A
9
*DISCD*TOP WHEEL V1.12.95
Item is no longer available
Price
N/A
9A
*DISCD*PLASTIC TOP WHEEL V2.05.05
Item is no longer available
Price
N/A
10
EXT RETAINING RING 10MM
Price
N/A
11
LOCK WASHER 1/4
Price
N/A
12
P1013012
Now: PN05
HEX NUT 1/4-20
Price
N/A
13
*DISCD*UPPER GUARD
Price
$16.10
14
FLAT WASHER 6MM
Price
N/A
15
*DISCD*KNOB BOLT 1/4"-20 X 5/16"L
Item is no longer available
Price
N/A
16
PHLP HD SCR M5-.8 X 6
Price
N/A
17
*DISCD*MITER GAUGE
Item is no longer available
Price
N/A
18
*DISCD*TOP ARM
Item is no longer available
Price
N/A
19
*DISCD*IDLER SHAFT
Item is no longer available
Price
N/A
20
*DISCD*SLEEVE BEARING D7 X D11 D25.5
Item is no longer available
Price
N/A
21
*DISCD*SLEEVE BEARING D7 X D11 D25.5
Price
N/A
21A
*DISCD*IDLER WHEEL
Item is no longer available
Price
N/A
22
P1013022
Now: PW03
FLAT WASHER #10
Price
N/A
22A
*DISCD*PLASTIC WASHER 5MM
Item is no longer available
Price
N/A
23
P1013023
Now: PB13
HEX BOLT 1/4-20 X 1-1/4
Price
N/A
24
*DISCD*TORSION SPRING D3MM
Item is no longer available
Price
N/A
25
*DISCD*PIVOT ARM SHAFT
Item is no longer available
Price
N/A
26
*DISCD*BELT GUARD
Price
$16.10
27
HEX BOLT M6-1 X 10
Price
N/A
28
*DISCD*IDLER SHAFT
Item is no longer available
Price
N/A
29
E-CLIP 7MM
Price
N/A
30
*DISCD*PULLEY - V1.12.95
Item is no longer available
Price
N/A
30A
KEY 5 X 5 X 20
Price
N/A
30B
*DISCD*MOTOR PULLEY- V2.02.02
Item is no longer available
Price
N/A
31
V-BELT A30
Price
N/A
31A
V-BELT M30 3L300
Price
N/A
32
*DISCD*MOTOR V3.10.95
Item is no longer available
Price
N/A
32-1
*DISCD*CONNECTION BOX
Item is no longer available
Price
N/A
32-3
S CAPACITOR 150M 125V 1-1/2 X 2-3/4
Price
N/A
32A
*DISCD*MOTOR V2.10.97
Item is no longer available
Price
N/A
32B
*DISCD*MOTOR KEYLESS V1.09.97
Item is no longer available
Price
N/A
33
P1013033
Now: PN02
HEX NUT 5/16-18
Price
N/A
34
P1013034
Now: PW06
FLAT WASHER 1/4
Price
N/A
35
*DISCD*PUSH BUTTON SWITCH V2.10.04
Price
N/A
35A
*DISCD*PUSH BUTTON SWITCH V2.10.04
Item is no longer available
Price
N/A
36
CARRIAGE BOLT 5/16-18 X 1/2
Price
N/A
36A
CARRIAGE BOLT 5/16-18 X 5/8
Price
N/A
37
*DISCD*RUBBER FOOT
Item is no longer available
Price
N/A
38
P1013038
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
39
*DISCD*BASE
Price
$16.10
40
*DISCD*DRIVE WHEEL
Item is no longer available
Price
N/A
41
SET SCREW 1/4-20 X 3/8
Price
N/A
42
*DISCD*RIGHT PLATE
Item is no longer available
Price
N/A
43
*DISCD*GUARD SUPPORT
Price
$3.45
44
P1013044
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
45
*DISCD*LOWER GUARD
Item is no longer available
Price
N/A
46
1" x 42" A/O Sanding Belt 100 Grit, 2 Pk.
Price
N/A
47
*DISCD*TABLE SUPPORT
Item is no longer available
Price
N/A
48
*DISCD*BELT PLATEN
Item is no longer available
Price
N/A
49
BALL BEARING 6202-2RS
Price
N/A
50
*DISCD*FENDER WASHER 5/16
Item is no longer available
Price
N/A
51
*DISCD*SHAFT
Item is no longer available
Price
N/A
52
EXT RETAINING RING 15MM
Price
N/A
53
*DISCD*BEARING CAP
Item is no longer available
Price
N/A
54
*DISCD*ARBOR BEARING HOUSING
Item is no longer available
Price
N/A
55
*DISCD*PULLEY V1.12.95
Item is no longer available
Price
N/A
55A
*DISCD*PULLEY V2.02.02
Item is no longer available
Price
N/A
56
*DISCD*GUARD BRACKET
Item is no longer available
Price
N/A
57
*DISCD*LEFT PLATE
Item is no longer available
Price
N/A
58
P1013058
Now: PB13
HEX BOLT 1/4-20 X 1-1/4
Price
N/A
59
*DISCD*SANDING BELT TABLE
Item is no longer available
Price
N/A
60
*DISCD*COLUMN CHANNEL
Item is no longer available
Price
N/A
61
P1013061
Now: PW06
FLAT WASHER 1/4
Price
N/A
62
CARRIAGE BOLT 5/16-18 X 1/2
Price
N/A
63
*DISCD*ALUMINUM DISC 8 IN V3.07.02
Item is no longer available
Price
N/A
64
CARRIAGE BOLT 1/4-20 X 1-1/4
Price
N/A
65
*DISCD*SANDING DISC TABLE
Item is no longer available
Price
N/A
66
*DISCD*SANDING DISC TABLE SUPPORT
Price
$12.95
67
WING NUT 1/4-20
Price
N/A
68
*DISCD*SANDING DISC 8"
Item is no longer available
Price
N/A
69
FLAT WASHER 5MM
Price
N/A
70
*DISCD*DISC COVER
Price
$3.45
71
*DISCD*SWITCH COVER
Price
$1.49
72
*DISCD*POWER CORD
Item is no longer available
Price
N/A
73
*DISCD*BUSHING 15 X 9 X 5
Item is no longer available
Price
N/A
74
*DISCD*CORD HOLDER
Item is no longer available
Price
N/A
75
P1013075
Now: PN07
HEX NUT 10-24
Price
N/A
76
HEX BOLT M6-1 X 12
Price
N/A
77
P1013077
Now: PW07
FLAT WASHER 5/16
Price
N/A
78
*DISCD*RUBBER WASHER D7.2 X D11 X .25
Item is no longer available
Price
N/A
79
*DISCD*MOTOR CORD
Price
$4.90
80
*DISCD*ON/OFF LABEL
Item is no longer available
Price
N/A
81
P1013081
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
82
EXT RETAINING RING 12MM
Price
N/A
83
*DISCD*SPACER
Item is no longer available
Price
N/A
MANUAL
*DISCD*MANUAL FOR G1013 02/02
Item is no longer available
Price
N/A
