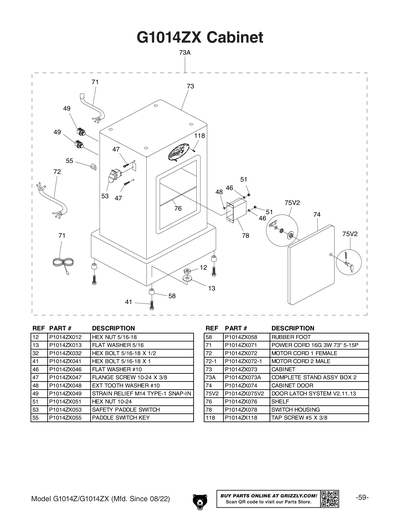

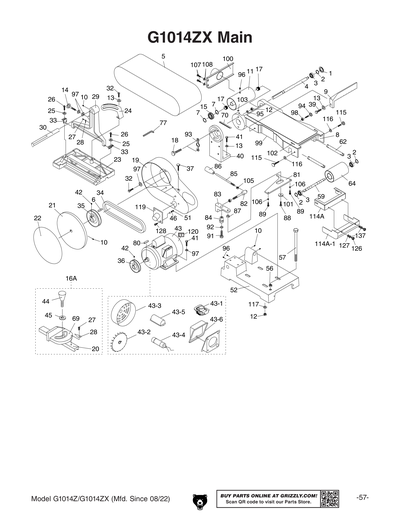

Parts for G1014ZX - 6" x 48" Belt/9" Disc Combo Sander with Cabinet Stand

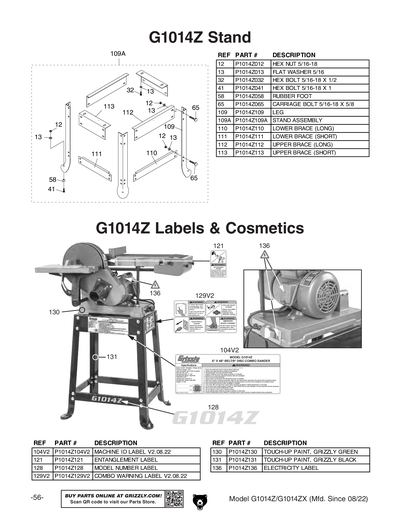

Part Diagram for G1014ZX
Part Diagram for G1014ZX
Part Diagram for G1014ZX
Part Diagram for G1014ZX
Part Diagram for G1014ZX
Part Diagram for G1014ZX
Part Diagram for G1014ZX
Part Diagram for G1014ZX
Part Diagram for G1014ZX
Part Diagram for G1014ZX
Part Diagram for G1014ZX
Part Diagram for G1014ZX
Part Diagram for G1014ZX
Part Diagram for G1014ZX

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

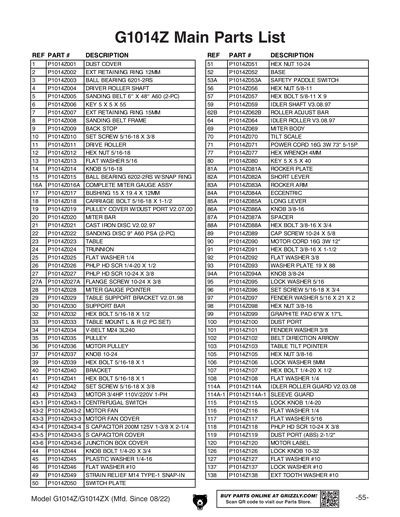

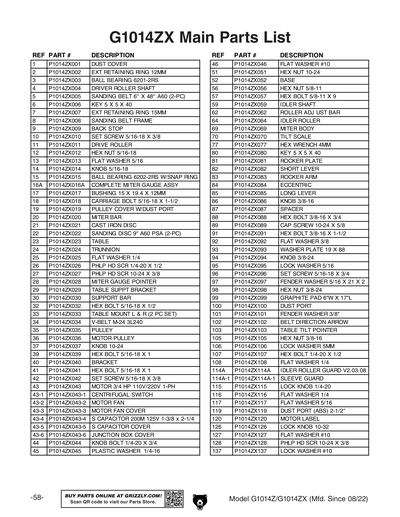

Ref #
Part #
Description
1
DUST COVER
Price
N/A
2
EXT RETAINING RING 12MM
Price
N/A
3
BALL BEARING 6201-2RS
Price
N/A
4
DRIVER ROLLER SHAFT
Price
N/A
5
6" x 48" A/O Sanding Belt 100 Grit, 2 Pk.
Price
N/A
6
KEY 5 X 5 X 40
Price
N/A
7
EXT RETAINING RING 15MM
Price
N/A
8
SANDING BELT FRAME
Price
N/A
9
BACK STOP
Price
N/A
10
SET SCREW 5/16-18 X 3/8
Price
N/A
11
*DISCD*DRIVE ROLLER
Price
N/A
11V2
DRIVE ROLLER V2.04.24
Price
N/A
12
HEX NUT 5/16-18
Price
N/A
13
FLAT WASHER 5/16
Price
N/A
14
KNOB 5/16-18
Price
N/A
15
BALL BEARING 6202-2RS W/SNAP RING
Price
N/A
16A
COMPLETE MITER GAUGE ASSY
Price
N/A
17
*DISCD*BUSHING 15 X 19.4 X 12MM
Price
N/A
17V2
BUSHING 15 X 20 X 15.3MM V2.04.24
Price
N/A
18
CARRIAGE BOLT 5/16-18 X 1-1/2
Price
N/A
19
PULLEY COVER W/DUST PORT V2.07.00
Price
N/A
20
MITER BAR
Price
N/A
21
CAST IRON DISC V2.02.97
Price
N/A
22
9" A/O Sanding Disc, 100 Grit PSA, 2 Pk.
Price
N/A
23
TABLE
Price
N/A
24
TRUNNION
Price
N/A
25
FLAT WASHER 1/4
Price
N/A
26
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
27
PHLP HD SCR 10-24 X 3/8
Price
N/A
28
MITER GAUGE POINTER
Price
N/A
29
TABLE SUPPORT BRACKET V2.01.98
Price
N/A
30
SUPPORT BAR
Price
N/A
31
TABLE MOUNT L & R (2 PC SET)
Price
N/A
32
HEX BOLT 5/16-18 X 1/2
Price
N/A
33
TABLE MOUNT L & R (2 PC SET)
Price
N/A
34
V-BELT M24 3L240
Price
N/A
35
PULLEY
Price
N/A
36
MOTOR PULLEY
Price
N/A
37
KNOB 10-24
Price
N/A
39
HEX BOLT 5/16-18 X 1
Price
N/A
40
BRACKET
Price
N/A
41
HEX BOLT 5/16-18 X 1
Price
N/A
42
SET SCREW 5/16-18 X 3/8
Price
N/A
43
MOTOR 3/4HP 110V/220V 1-PH
Price
N/A
43-1
CENTRIFUGAL SWITCH
Price
N/A
43-2
MOTOR FAN
Price
N/A
43-3
MOTOR FAN COVER
Price
N/A
43-4
S CAPACITOR 200M 125V 1-3/8 X 2-1/4
Price
N/A
43-5
S CAPACITOR COVER
Price
N/A
43-6
JUNCTION BOX COVER
Price
N/A
44
KNOB BOLT 1/4-20 X 3/4
Price
N/A
45
PLASTIC WASHER 1/4-16
Price
N/A
46
FLAT WASHER #10
Price
N/A
47
FLANGE SCREW 10-24 X 3/8
Price
N/A
48
EXT TOOTH WASHER #10
Price
N/A
49
STRAIN RELIEF M14 TYPE-1 SNAP-IN
Price
N/A
50
SWITCH PLATE
Price
N/A
51
HEX NUT 10-24
Price
N/A
52
BASE
Price
N/A
53
Safety Paddle Switch
Price
N/A
55
PADDLE SWITCH KEY
Price
N/A
56
HEX NUT 5/8-11
Price
N/A
57
HEX BOLT 5/8-11 X 9
Price
N/A
58
RUBBER FOOT
Price
N/A
59
IDLER SHAFT V3.08.97
Price
N/A
60

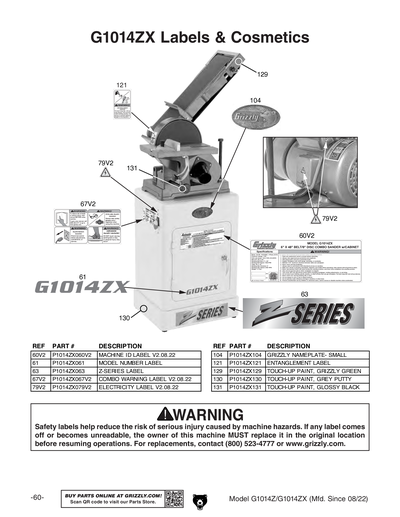

MACHINE ID LABEL V2.08.22
Price
N/A
60V2
MACHINE ID LABEL V2.08.22
Price
$16.40
60V3
MACHINE ID LABEL V3.04.24
Price
$10.95
61
MODEL NUMBER LABEL
Price
$23.10
62
ROLLER ADJUST BAR
Price
N/A
63
Z SERIES 11.6W X 2.8H
Price
N/A
64
IDLER ROLLER V3.08.97
Price
N/A
65
CARRIAGE BOLT 5/16-18 X 3/4
Price
N/A
66
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
67
READ MANUAL 1.5W X 2.5H
Price
N/A
67V2
COMBO WARNING LABEL V2.08.22
Price
N/A
68
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
69
MITER BODY
Price
N/A
70
TILT SCALE
Price
N/A
71
POWER CORD 16G X 3W 73"L
Price
N/A
72
MOTOR CORD 1 FEMALE
Price
$11.75
72-1
MOTOR CORD 2 MALE
Price
$11.75
73
CABINET
Price
$268.10
73A
COMPLETE STAND ASSY BOX 2
Price
$452.85
74
CABINET DOOR
Price
$27.20
74-1
HINGE PIN
Price
N/A
75
DOOR LATCH SYSTEM V1
Price
$5.50
75V2
DOOR LATCH SYSTEM V2.11.13
Price
$13.95
76
SHELF
Price
$21.50
77
HEX WRENCH 4MM
Price
N/A
78
SWITCH HOUSING
Price
$10.90
79
ELECTRICITY 0.7W X 0.6H
Price
N/A
79V2
ELECTRICITY 0.5W X 0.4H
Price
N/A
80
KEY 5 X 5 X 40
Price
N/A
81
ROCKER PLATE
Price
N/A
82
SHORT LEVER
Price
N/A
83
ROCKER ARM
Price
N/A
84
ECCENTRIC
Price
N/A
85
LONG LEVER
Price
N/A
86
KNOB 3/8-16
Price
N/A
87
SPACER
Price
N/A
88
HEX BOLT 3/8-16 X 3/4
Price
N/A
89
CAP SCREW 10-24 X 5/8
Price
N/A
90
MOTOR CORD 16G 3W 12"
Price
N/A
91
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
92
FLAT WASHER 3/8
Price
N/A
93
WASHER PLATE 19 X 88
Price
N/A
94
KNOB 3/8-24
Price
N/A
95
LOCK WASHER 5/16
Price
N/A
96
SET SCREW 5/16-18 X 3/4
Price
N/A
97
FENDER WASHER 5/16 X 21 X 2
Price
N/A
98
HEX NUT 3/8-24
Price
N/A
99
GRAPHITE PAD 6"W X 17"L
Price
N/A
100
DUST PORT
Price
N/A
101
FENDER WASHER 3/8
Price
N/A
102
BELT DIRECTION ARROW
Price
N/A
103
TABLE TILT POINTER
Price
N/A
104
Nameplate - Mini
Price
N/A
105
HEX NUT 3/8-16
Price
N/A
106
LOCK WASHER 5MM
Price
N/A
107
HEX BOLT 1/4-20 X 1/2
Price
N/A
108
FLAT WASHER 1/4
Price
N/A
114
*DISCD*IDLER ROLLER GUARD V1.02.03
Price
N/A
114A
IDLER ROLLER GUARD V2.03.08
Price
N/A
114A-1
SLEEVE GUARD
Price
N/A
115
LOCK KNOB 1/4-20
Price
N/A
116
FLAT WASHER 1/4
Price
N/A
117
FLAT WASHER 5/16
Price
N/A
118
TAP SCREW #5 X 3/8
Price
N/A
119
2-1/2" Universal Dust Port for Shop-Vac & Sears
Price
N/A
120
MOTOR LABEL
Price
N/A
121
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
126
LOCK KNOB 10-32
Price
N/A
127
FLAT WASHER #10
Price
N/A
128
PHLP HD SCR 10-24 X 3/8
Price
N/A
129
N/S GRIZZLY GREEN G1023S
Price
N/A
130
GREY PUTTY REF G0504
Price
N/A
131
GLOSSY BLACK
Price
N/A
133
ABRASION INJURY HAZARD
Price
N/A
134
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
137
LOCK WASHER #10
Price
N/A
MAN
MANUAL G1014Z/ZX MFD-11.07-7.22 V2.10.17
Price
N/A
MANV2
MANUAL G1014Z/ZX MFD-8.22-3.24 V3.08.22
Price
N/A
MANV3
MANUAL G1014Z/ZX MFD-8.22-3.24 V3.08.22
Price
N/A
MANV4
MANUAL G1014Z/ZX MFD-04.24+ V4.03.24
Price
N/A
